User’s Manual
BluFlex DVT Prophylaxis System

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
1
Warning
1. Connect the Master Control unit to a proper power source.
2. Do not use the pump in the presence of uncontained flammable liquids or gasses.
3. Keep the pump and garment away from sources of liquid and open flames.
4. Keep the pump and garment away from sharp objects.
Caution
Product should be used in accordance with hospital policy
1. The control unit should only be repaired by an authorized distributor.
2. Do not drop the control unit; store it in direct sunlight or extreme cold conditions.
Safety
These usage and safety guidelines are IMPORTANT! Please follow them carefully.
General Use
1. Carefully unpack the contents of the pump package.
2. Connect the master control unit to a proper power source.
3. Do not use or store your pump any of the listed environments –
Do not drop the control unit or store it in direct sunlight or extreme cold
conditions.
Do not use the pump in the presence of uncontained flammable liquids
or gasses.
Keep the pump and garments away from sources of liquid and open
flames.
Keep the garments away from sharp objects.
Keep the pump and garments away from heating devices.
Storage Environment Specification
It is recommended that the following guidelines be used whenever the system is being
stored or transported to another location:
Temperature limitations: 5°C ~ 60°C
Relative humidity: 30% ~ 75%
Control Unit
1. Check power cord and plug for abrasions and excessive wear.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
2
2. Plug in the unit and verify airflow from the hose connection ports.
3. Place in a dry storage area when not in use.
Product Description
The BluFlex DVT Prophylaxis System is a non-invasive intermittent pneumatic
compression system that aids in prevention and reduction in incidence of deep vein
thrombosis (DVT), a potentially life threatening condition, which can lead to pulmonary
embolism.
The system consists of a pump and soft pliable compression single patient use
garments for leg or foot compression. The pump supplies compression on a pre-set
inflation pressure of 40mmHg for calf and thigh compression, and 80mmHg for foot
compression. Pressure in the garments is transferred to the extremities, augmenting
venous blood flow, thus reducing stasis. This process also stimulates fibrinolysis; further
reducing the risk of early clot formation.
Please note: It is NOT RECOMMENDED that patients with following symptoms use this
product without consulting a physician.
Caution
Contraindications for use:
The use of the BluFlex DVT Prophylaxis System is NOT RECOMMENDED in the
following conditions –
1. Severe congestive cardiac failure.
2. Severe arteriosclerosis or other ischaemic vascular disease.
3. Extreme deformity of the limbs.
4. Known or suspected deep vein thrombosis.
5. Known or suspected Pulmonary Embolism.
6. Any local condition in which the garments would interfere: i.e.
i. Gangrene
ii. Dermatitis
iii. Untreated or infected wounds
iv. Recent skin grafts

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
3
BluFlex DVT Prophylaxis System

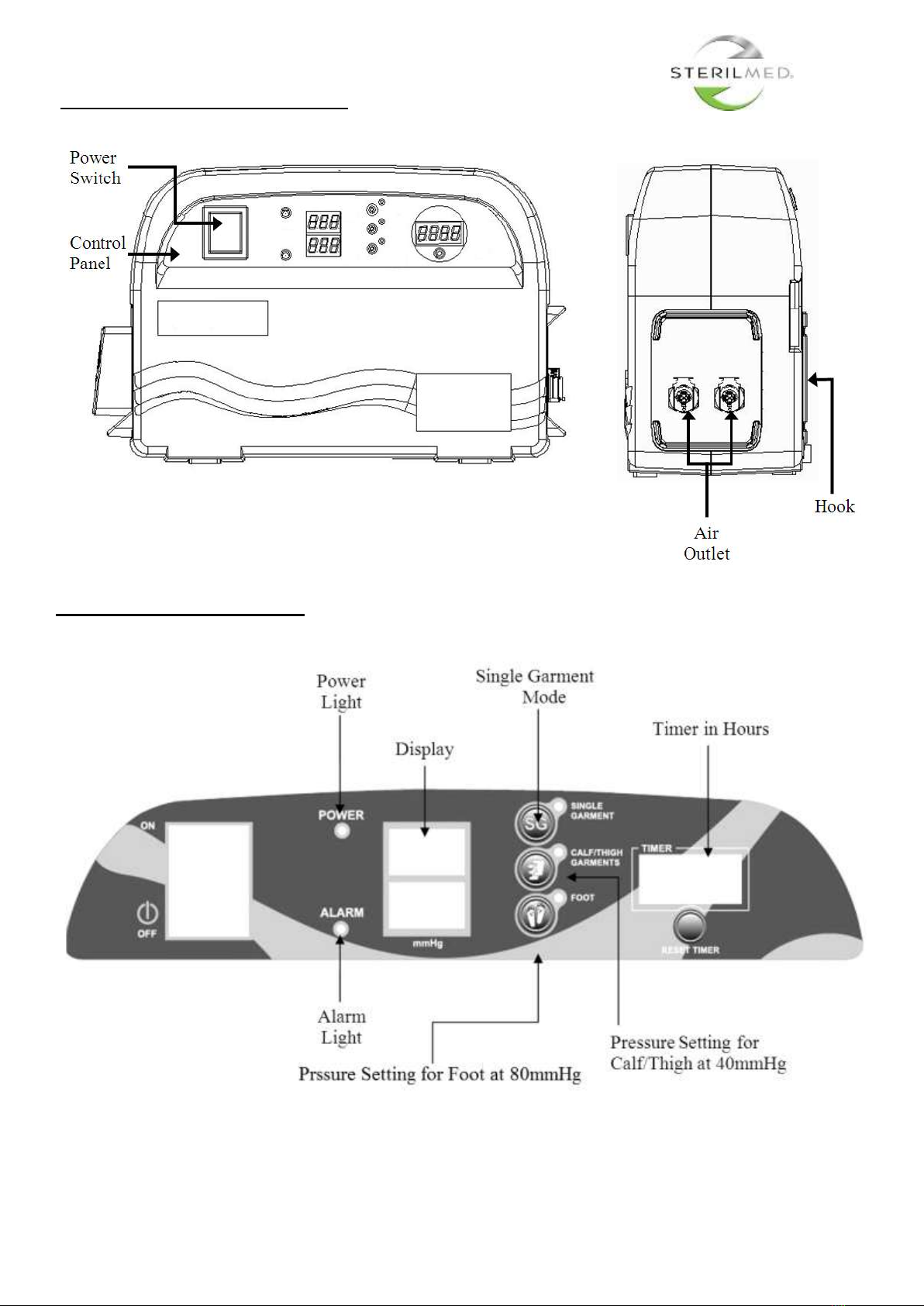

Control Unit Features

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
4
Operating Instructions
To operate the BluFlex DVT Prophylaxis System the following steps should be followed:
Please read this instruction manual in its entirety before setting up.
1. Plug pump into an appropriate electrical outlet. DO NOT SWITCH ON.
2. Position the pump on flat surface or suspend the pump at the foot of the bed using the swing-
out hooks.
3. Place garment(s) on the legs or feet, ensure the male Velcro does not touch the patient’s
skin. Use only foot or only calf/thigh for dual garment therapy; don’t mix foot with calf/thigh
garment.
4. Snugly wrap garment, making sure the inflatable bladder is in the correct orientation.
Garments are labelled to indicate correct positioning. When correctly positioned, secure with
the tabs. Garments should fit securely but not tightly around the patient’s extremity. Repeat
the procedure for the other limb. If only one garment is used, disconnect one of the hoses
from the pump.
5. Air tubing is required to connect garment(s) to the pump. Attach the garments to the air
tubing using the white snap lock connectors. Each tube has a male end connector at one end
and a female end connector at the other. The female end (large white connector) will fit to the
male end (small white connector) that is on the garment. Make certain that a “click” sound is
heard to ensure a solid connection.
6. Attach the other end(s) of the air tubing (male end) to the large white female connector(s) on
the pump. Make certain that a click is heard with each snap lock connection. If you need to
disconnect the tubing, press the silver tab on large white (female) connector and pull apart.
7. Press the on/off switch to turn pump on.
8. Pump will start initialization process for approximately 10 seconds.
9. Pump will automatically detect Single/Dual garment/s during initialization process. The pump
is set to default to Dual Calf/Thigh garments.
10. To switch to Foot Therapy, while pump is in operation press “FOOT” button for approximately
3 seconds until “FT” is displayed. To switch back to Calf/Thigh Therapy while the pump is in
operation, press “CALF/THIGH GARMENTS” for approximately 3seconds until “LEG” is
displayed.
11. If the pump is in operation on Dual Garments Therapy and you want to change to Single
Garment Therapy, disconnect one of the hoses from the pump and press “SINGLE GARMENT.”
The pump will start initialization process for 10 seconds and the Single Garment Therapy will
begin.
12. If the pump is in operation on Single Garment Therapy and you want to change to Dual
Garment Therapy, attach the second hose and garment and press “SINGLE GARMENT.” The
pump will directly start the Dual Garment Therapy.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
5
13. TIMER –To activate the TIMER, switch the pump and timing will commence. The TIMER
reflects HOURS of compression. If compression is interrupted i.e. the patient is removed from
therapy, and the pump is switched off at the power switch; the timer will suspend timing until
the patient is reconnected to therapy and therapy is continued.
14. RESETTING TIMER –to reset the timer press “RESET TIMER” for 5 seconds and it will reset.
Always reset timer prior to new therapy to ensure correct time is measured.
15. Disconnect Device：Switch the device off, disconnect from power supply and remove
garments from the patient.
Note:
Ensure that there are no kinks in the tubing and the connectors are properly locked. Never
apply or remove the garments while inflated as this may damage to the garments.
The parts and/or accessories supplied are specifically designed for use with the BluFlex
DVT Prophylaxis System control unit. Use of other products in conjunction with the system
is not recommended.
Caution
Indicator Lights:
Green - Illuminated to indicate power on.
Amber - Flashing indicates a fault has been detected. An audible alarm
will follow after 5 minutes visual alarm.
Blue-Flashing indicates initialization in process. Upper display
window will show (INT).
Blue LED Display - Upper display illuminated to indicate when Calf/Thigh (LEG) or
FOOT (Ft) is activated. Lower display illuminated to indicate
pressure being delivered and alarm signals of low
pressure(LO), high pressure (HI), garment error (GE) and
fault(F) –redirect for service.
TIMER - Indication of therapy time in hours from last reset.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
6
Alarm Codes
Indicates the error information for BluFlex DVT Prophylaxis System, these include: - LO, HI,
GE and F.
Alarm Codes
Status
Description
Troubleshooting
LO
Low Pressure
Leg pressure is less than
40mmHg or Foot
pressure is less than
80mmHg after 2
consecutive cycles.
Air hose is disconnected
from garment.
Check garment application is
not too loose or too tight.
Check for air leaks from air
hoses/garments. Replace if
faulty.
If hose is disconnected,
connect hose to garment.
Turn the pump off and restart.
HI
High Pressure
Air hose is kinked.
Check air hoses/garments for
kinks. Undo kinks and restart
pump.
GE
Garment Error
Garment is not
connected to pump
during start up.
Garments are not fully
deflated during each
restart.
The initialization failed
due to possible kinks
from air
hoses/garments.
Connect garments to pump
and restart.
Ensure garments are fully
deflated before restarting
pump.
Undo kinks from air
hoses/garments and restart
pump.
F
System Failure
Pressure is greater than
set pressure after two
inflations.
Electrical malfunction.
Check air hose connections.
Turn the pump off and restart.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
7
Garment Application Instructions
BluFlex DVT Prophylaxis System Garments are 100% Latex FREE
Instructions for use:
1. Plug the BluFlex DVT Prophylaxis control unit into a suitable electrical outlet.
2. Connect Air hoses to the pump.
3. Connect Garments to the air hose. A click confirms proper connection.
4. Place the garments on the patient, ensuring that male Velcro does not contact the
patient's skin. Use only foot or only calf/thigh for dual garment therapy; don’t
mix foot with calf/thigh garment.
5. Ensure a snug fit. Place two fingers around the back of the garment to ensure the
garment is not too tight. Routinely inspect the patient’s feet, for proper
circulation, once compression commences.
6. TURN THE PUMP ON, the power indicator light will illuminate. A “beep”sound
confirms operation.
Contraindications & Cautions
Do not use the BluFlex DVT Prophylaxis where increased venous or lymphatic return
is not desired. The BluFlex DVT Prophylaxis System could be contraindicated and
should not be used by persons with known or suspected deep vein thrombosis,
pulmonary oedema, congestive heart failure, severe arteriosclerosis,
thrombophlebitis, or active infection. Do not use on persons with painful and
sensitive extremities, where the garment will interfere with gangrenous limbs, on
persons with vein ligation or recent skin grafts, or extreme deformity of the leg.
Note: If you are unsure of any contraindications please refer to the patient’s physician
before using the BluFlex DVT Prophylaxis system.
Tubing Set Compatibility
The garments connect to the Pump via the Tubing Sets provided with the Pump. The
following is the recommendation but the caregiver can still select the tubing type
based on the situation.
Note: Do not connect multiple Tubing Sets together
Item
Item
#
Recommendation
Replacement tubing, 60”
610
Recovery Room
Replacement tubing, 120”
610L
Operation Room

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
8
Cleaning
The pump: The casing of the pump is manufactured from ABS plastic. If soiled it can be
wiped down with a sodium hypochlorite solution to dilution of 1000ppm or any EPA
approved, hospital grade disinfector The control unit (face) should also be cleaned
weekly (or as often as hospital protocol requires) using a damp soft cloth and mild
detergent. (Switch off the electrical supply to the pump and disconnect the power cord
from the main supply before cleaning and inspection)
Garment Cleaning: After patient use, save garments for reprocessing and place in
designated collection containers.
Periodic Maintenance
WARNING:
Make sure the unit has been removed from the mains/power supply by removing the
mains/power supply from the socket.
CAUTION:
Static Sensitive Devices - Electrostatic discharge can seriously damage the control and
power supply PCB assemblies.
No daily maintenance is required. Aside from routine cleaning and disinfecting, routine
checks and optional annual preventative maintenance, only authorized technical
personnel should service equipment. If the ‘tamper-proof seal’ on the bottom of the
pump is compromised, customer will be charged a user-damage fee.
1. Routine Checks
a) Inspect the control unit for external damage to case, controls, and connections.
b) Inspect power cord for damage
c) Test all controls
Caution
Do not use phenol based cleaning solutions.

Switch off the electrical supply to the pump and disconnect the power cord from the
main supply before cleaning and inspection.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
9
2. Annual Preventive Maintenance
Preventive maintenance can be carried out every 12 months. Check:
a) Case is free from debris
b) Electrical connections are secure and completely insulated
c) Tubes are completely pushed on and are free from kinks
d) Wiring is intact
e) Air is alternating
f) Outlet tubes and snap-lock connectors are secured and fitted correctly
Qualitative Check:
Item
Pass
Fail
Qualitative Tasks
Service
1.1
Chassis / Housing
1.2
Mount / Fasteners
1.3
Hooks
1.4
AC Plug / Receptacles
1.5
Alarm Light (yellow)
1.6
Labeling
Quantitative Check:
Item
Pass
Fail
Quantitative Tasks
Service
2.1
Pressure for Foot is 75-100mmHg @ 120V 60Hz.
2.2
Pressure for Calf/Thigh is 35-55mmHg @ 120V
60Hz.
2.3
Can alternate One Garment or Two Garments
2.4
12 sec inflation –
48 sec -Deflation /rest A___ B___.
2.5
The pump displays the low pressure alarm code
- LO
Possible air leak from
tubing connection or
compressor.
2.6
The pump displays the high pressure alarm code
-HI
Possible kinked tubing.
2.7
The pump displays garment error code - GE
Possible incorrect
garment configuration.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
10
Pressure Settings and Testing
Pre-set inflation pressure settings are as follows:
Calf and Thigh — 40 mmHg (nominal)
Foot — 80 mmHg (nominal)
If needed, pressure verification testing can be done as follows:
Setup equipment as shown below, making sure there are no kinks in the tubing.
Use mercury pressure gauge.
Garments have to be wrapped on objects which have “Leg” or “Foot” shapes.
Reference garment application instructions for more details.
Factory Testing
Each pump’s functionality has been factory-tested. The tamper-proof seal at the bottom of
the pump designates when the pump was last tested. If the seal is compromised, your
service warranty will be voided and you will be charged a user damage fee.
Double Insulation
Although the BluFlex pump is classified as an IEC Class 1 Device, the pump is of double
insulation design, and the design has been approved by safety testing report issued by
TUV.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
11
Waste Disposal
This Product has been supplied from an environmentally aware
manufacturer that complies with the WEEE.
This product may contain substances that could be harmful
to the environment if disposed of in places (landfills) that are not
appropriate according the legislation. Please be environmentally
responsible and recycle this product through your recycling facility at its
end of life.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
12
EMC
Article I. Guidance and manufacturer’s declaration – electromagnetic emissions
The BluFlex DVT Prophylaxis System is intended for use in the electromagnetic environment specified below. The
customer or the user of the system should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment –guidance
RF emissions
CISPR 11
Group 1
The BluFlex DVT Prophylaxis System uses RF
energy only for its internal function. Therefore,
its RF emissions are very low and are not likely
to cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11
Class B
The BluFlex DVT Prophylaxis System is suitable
for use in all establishments, including
domestic establishments and those directly
connected to the public low-voltage power
supply network that supplies buildings used for
domestic purposes.
Harmonic emissions
EN 61000-3-2
Class A
Voltage fluctuations/
flicker emissions
EN 61000-3-3
Complies

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
13
Article II. Guidance and manufacturer’s declaration – electromagnetic immunity
The BluFlex DVT Prophylaxis System is intended for use in the electromagnetic environment specified below. The customer
or the user of the system should assure that it is used in such an environment.
Immunity test
EN 60601
test level
Compliance level
Electromagnetic environment –
guidance
Electrostatic discharge
(ESD)
EN 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete, or
ceramic tile. If floors are covered with
synthetic material, the relative
humidity should be at least 30 %.
Electrical fast
transient/burst
EN 61000-4-4
±2 kV for power
supply lines
±1 kV for input/output
lines
±2 kV for power
supply lines
±1 kV for input/output
lines
Mains power quality should be that of a
typical commercial or hospital
environment.
Surge
EN 61000-4-5
±1 kV line(s) to line(s)
±2 kV line(s) to earth
±1 kV line(s) to line(s)
±2 kV line(s) to earth
Mains power quality should be that of a
typical commercial or hospital
environment.
interruptions and
voltage variations
on power supply
input lines
EN 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
Main power quality should be that of a
typical commercial or hospital
environment. If the user of the BluFlex
DVT Prophylaxis System requires
continued operation during power
mains interruptions, it is recommended
that the BluFlex DVT Prophylaxis
System be powered from an
uninterruptible power supply or a
battery.
Power frequency
(50/60 Hz)
magnetic field
EN 61000-4-8
3 A/m
3 A/m
Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical commercial
or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
14
Article III. Guidance and manufacturer’s declaration – electromagnetic immunity
The BluFlex DVT Prophylaxis System is intended for use in the electromagnetic environment specified below. The customer
or the user of the BluFlex DVT Prophylaxis System should assure that it is used in such an environment.
Immunity test
EN 60601 test level
Compliance
level
Electromagnetic environment –guidance
Conducted RF
EN 61000-4-6
Radiated RF
EN 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3 Vrms
3 V/m
Portable and mobile RF communications equipment should
be used no closer to any part of the BluFlex DVT Prophylaxis
System including cables, than the recommended separation
distance calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance
d = 1,2
d = 1,2 80 MHz to 800 MHz
d = 1,2 800 MHz to 2,5 GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters, as determined by
an electromagnetic site survey, a should be less than the
compliance level in each frequency range.b
Interference may occur in the vicinity of equipment marked
with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
If the measured field strength in the location in which the BluFlex DVT Prophylaxis System is used exceeds the applicable RF
compliance level above, the BluFlex DVT Prophylaxis System should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as reorienting or relocating the BluFlex DVT
Prophylaxis System.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
15
Recommended separation distances between
portable and mobile RF communications equipment and the BluFlex DVT Prophylaxis System
The BluFlex DVT Prophylaxis System is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the BluFlex DVT Prophylaxis System can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications
equipment (transmitters) and the BluFlex DVT Prophylaxis System as recommended below, according to the maximum
output power of the communications equipment.
Rated maximum output power of
transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d = 1,2
80 MHz to 800 MHz
d = 1,2
800 MHz to 2,5 GHz
d = 2,3
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m)
can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power
rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects, and people.

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
16
Technical Data
The Control Unit
Model Name
BluFlex DVT Prophylaxis System
Size
31.5 x 11 x 19.5 cm
Weight
3.1 Kg
Pressure Range
Calf/Thigh: 35-55 mmHg
Foot: 75-100 mmHg
Input Rating
AC 100-240V, 60/50Hz
Fuse Rating
1A 250V
Classification
Class Ⅰ, Type BF
Not AP or AGP type
Operation Humidity
30-75%
Operation Temperature
15° - 35°C
Applied Part
Garment and Air Hose
Garments are designed for use with the BluFlex DVT Prophylaxis System
Controller.
Garments
Patient Sizing
Order Number
Calf Garments
Small
Up to 14”calf circumference
640CS
Medium
Up to 18”calf circumference
640CM
Large
Up to 24”calf circumference
640CL
Bariatric
Up to 32”calf circumference
640CB
Thigh Garments
Medium
Up to 29”thigh circumference
660TM
Large
Up to 36”thigh circumference
660TL
Bariatric
Up to 42”thigh circumference
660TB
Foot Garments
Standard
Up to US men’s size 13
690F
Large
Over US men’s size 13
690FL
Extension tubing

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
17
Replacement tubing, 60”
610
Replacement tubing, 120”
610L

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
18

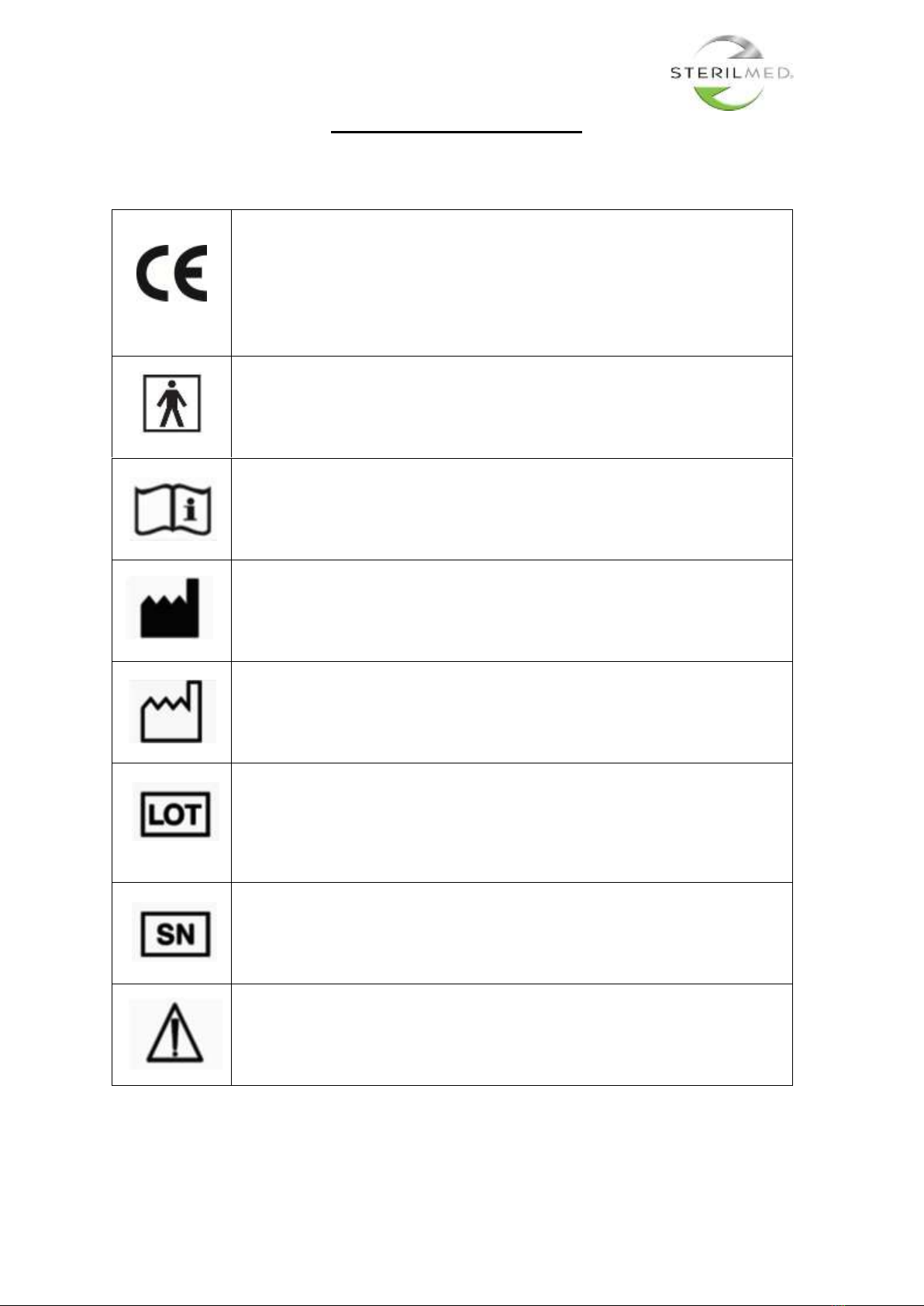

Symbols Used
0197
European Conformance
Type BF Applied Part
Operating Instructions
Manufacture
Date of Manufacture
Batch Code
Ex. YYMMDDXX
Serial Number
Caution

INSTRUCTIONS FOR USE
Control #: SMI-420-435 Rev. B
Distributed by
11400 73rd Ave. North, Maple Grove, MN 55369.
888-541-0078
763-488-3350 (fax)
www.sterilmed.com
AL300269 V1.01
