Kane 3500 User manual

KANE3500
Pressure Meter
Stock No: 18854 -2 June 2014
© Kane International Ltd

KANE3500 Manual Page 2
General Operation
When the instrument is first switched on using , the top line of the display shows in
sequence the date, the time, the model version number, the battery status and the pressure
units. The bottom line of the display shows a countdown number that starts at 10 and
reduces to zero. At zero the meter display two lines of data.
The display shows 2 lines of data and all data can be printed via an optional infrared printer.
The printed data can be 'live' data, 'frozen data' or stored data. 255 sets of tests can be
stored in non-volatile memory.
Two lines of 20 characters can be added to the header of printouts.
The meters are controlled using 8 buttons
The eight buttons are:
ON/OFF
Press for ON or OFF.
The meter counts down from 10 after OFF is pressed
Press to cancel OFF .
MENU
Press and hold for MENU.
ZERO
Press and hold until there is a beep to ZERO the reading
BACKLIGHT
Press and hold until there is a beep to toggle the BACKLIGHT
HOLD/ PRINT
A quick press to HOLD the reading and the display flashes.
A longer press to PRINT

KANE3500 Manual Page 3
UP / DOWN /
Press either to change the bottom line of the display.
ENTER
Press to cancel OFF .
The buttons , and also change settings such as date, time, and other
menu items when MENU mode has been selected.

KANE3500 Manual Page 4
1. BEFORE USING THE METER FOR THE FIRST TIME:
Remove the cover and fit a new battery in the battery compartment. Take great care to
ensure that the battery is fitted with the correct battery polarity. Then replace the
battery cover. Always check that the meter is working correctly after replacing the battery.
Set the meter’s correct time, date and units. These are then stored when the meter is
switched off.
2. BEFORE USING THE METER EVERY TIME:
After switch on, check that date and time are correct and battery power is sufficient and the
displayed units are the ones required.
SAFETY WARNING
Never connect to a pressure source where you are not sure what the maximum pressure
might be. Always ensure that the meter you are using is correctly rated for the pressure that
you intend to measure. Excessive pressure (>5 times nominal range) can permanently
damage the meter’s pressure sensor.
NOTE : Use the + input for all single input measurements of pressure or vacuum. Only
use the – input when taking a differential measurement.
3. THE MENU FUNCTIONS
The MENU structure comprises main menu options. STORE, SETUP and PRESSURE
have a sub-menu structure. SERVICE is for use by an approved service organisation only.
MENU
Press and use the button to select the following function for change:
STORE
SETUP
PRESSURE
SERVICE
EXIT
Press to select a main menu function
When you have selected the function to change, press to select.
Repeat this to scroll through the menu and select (using the key) and change (using
the / keys) the function.

KANE3500 Manual Page 5
The final, logical returns you to the main menu display.
To exit the MENU function the final logical is pressed. No changes are made if the
MENU function is aborted by pressing .
PRESSURE
SMOOTH
OFF = Normal
ON = Readings filtered to damp out fluctuations
RESOLVE
HIGH = maximum number of decimal places
LOW = one less decimal place displayed
PS UNITS
mBAR, inH2O, hPa, mmHg, PSI, kPa, Pa, mmH2O
SETUP
Temperature units - oF or oC
AUTO-OFF adjusts the auto power off time.
A setting of 00 sets the meter for manual switch off only.
Time – Uses “Military” time as standard: 7am = 07:00, 7pm = 19:00
Date user defined format
Header – 2 lines each of up to 20 characters that appear on the printout.
Use and / .
Language : English, French, Italian, German, Spanish
The display’s contrast.
EXIT

KANE3500 Manual Page 6
STORE
VIEW:
The test number appears on the top line.
Use or to change test number.
The bottom line shows the measured value.
Use to exit this mode.
LOG :
Saves a set of results when is pressed. Storage capacity is 255 sets of results
AUTO STO :
Automatically stores readings at a preset interval. Press then select YES or NO. If
YES set the desired time interval between 2 and 99 seconds and then press to
activate and exit.
DEL ALL:
Clears all the memory when YES and pressed.
EXIT
BOTTOM LINE OPTIONS
Max Pressure
Min Pressure
Time
Date
Pressure units
Battery Status
Instrument Internal Temp

KANE3500 Manual Page 7
Max Pressure is displayed as:
P 1.3
-
1.9
Min Pressure is displayed as:
P 1.3
-
1.1
4. MEASURING
Make sure you do not exceed the meter’s operating specifications.
 Do not exceed the meter’s internal temperature operating range
 Do not put the meter on a hot surface
When taking critical draft measurements always re-zero the meter in the position you are
taking the readings and hold the meter still during the test.
Differential Port Port 1
IR Printer Output

KANE3500 Manual Page 8
Always use the top right hand port (Port 1) for taking single channel measurements
(pressure or vacuum). Only use the left hand port for differential measurements.
If the pressure being measured exceeds the meter’s design range the display will show OR
for “over-range”
When taking draft readings at very low pressure or draft levels, for maximum accuracy, re-
zero the meter in the orientation that it is being used. This eliminated gravity effects on the
very sensitive pressure transducer. It is also recommend that the meter is switched on for at
least five minutes and then re-zeroed before taking such sensitive measurements.

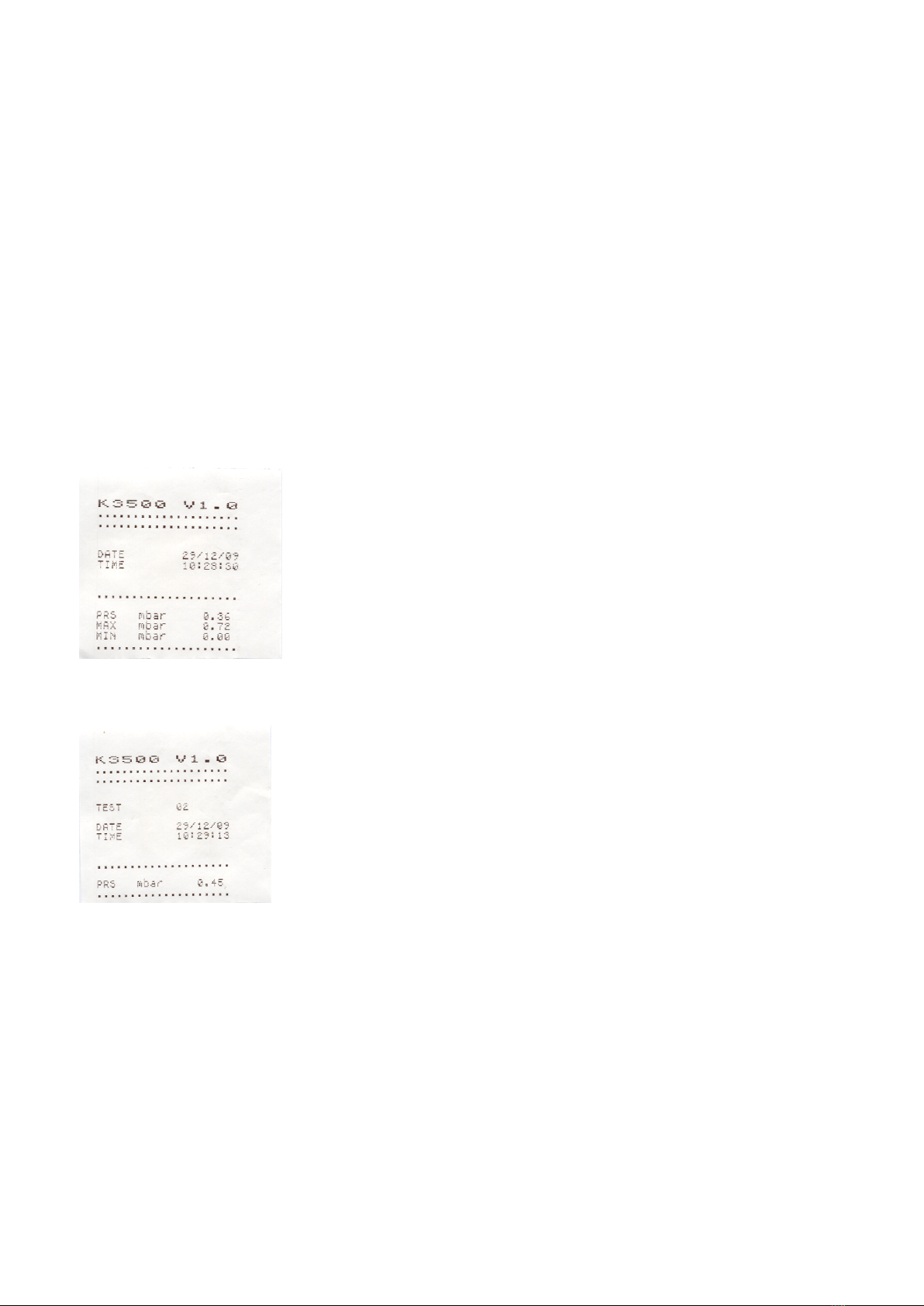

EXAMPLE PRINTOUTS
The standard printout is:
The MAX and MIN readings are those observed since last switch on
NOTE: Printouts of stored readings will also include the TEST NO. below the header.

KANE3500 Manual Page 9
5. METER ANNUAL RECALIBRATION AND SERVICE
The meter should be re-calibrated and serviced annually by a Kane approved service centre.
Local regulations may require more frequent re-calibration.
Calibration is performed in firmware and there are no user accessible adjustments or user
serviceable parts.
6. SPECIFICATION
Model: KANE3500-1
Nominal Pressure Ranges
mBar mmH2O Pa kPa
80.00 800.0 8000 8.000
PSI mmHg hPa inH20
1.000 60.00 80.00 30.00
Model: KANE3500-2
Nominal Pressure Ranges
mBar mmH2O Pa kPa
160.00 1600.0 16000 16.000
PSI mmHg hPa inH20
2.000 120.00 160.00 60.00

KANE3500 Manual Page 10
Model: KANE3500-5
Nominal Pressure Ranges
mBar mmH2O Pa kPa
400.0 4000 32000 40.00
PSI mmHg hPa inH20
5.000 300.0 400.0 150.0
Model: KANE3500-15
Nominal Pressure Ranges
mBar kPa PSI
1040.0 100.00 15.00
mmHg hPa inH20
780.0 1040.0 400.0
Model: KANE3500-30
Nominal Pressure Ranges
mBar kPa PSI
2070.0 207.00 30.00
mmHg hPa inH20
1560.0 2070.0 800.0

KANE3500 Manual Page 11
Pressure Measurement
Model: KANE3500-1
Max. overrange without damage to sensor is 5 times nominal range
Range Resolution Accuracy
+ 20 Pa 0.1 Pa +0.5 Pa
+ 100 Pa 0.1 Pa + 3 Pa
+ 2000 Pa 1 Pa + 3% of reading
+ 80 hPa 0.01 hPa + 3% of reading
Model: KANE3500-2
Max. overrange without damage to sensor is 5 times nominal range
Range Resolution Accuracy
+ 20 Pa 0.3 Pa +2 Pa
+ 2000 Pa 0.3 Pa + 5 Pa
+ 160 hPa 0.01 hPa + 3% of reading
Model: KANE3500-5
Max. overrange without damage to sensor is 5 times nominal range
Range Resolution Accuracy
+ 3000 Pa 1 Pa + 5 Pa
+ 300 hPa 0.1 hPa + 0.1 hPa
+ 400 hPa 0.1 hPa + 3% of reading

KANE3500 Manual Page 12
Model: KANE3500-15
Max. overrange without damage to sensor is
5 times nominal range
Range Resolution Accuracy
+ 309.99 hPA 0.01 hPa + 10 hPa
+ 1040.0 hPA 0.1 hPa + 3% of reading
Model: KANE3500-30
Max. overrange without damage to sensor is 5 times nominal range
Range Resolution Accuracy
+ 1076 hPA 0.1 hPa + 10 hPa
+ 2070.0 hPA 1 hPa + 3% of reading
Dimensions
Weight
295 grams with battery
Handset
160mm x 80mm x 40mm
(180mm incl. spigots)
Ambient Operating Range
+0C to +45C
10% to 90% RH non-
condensing
Power Supply
9 Volt PP3 alkaline battery

KANE3500 Manual Page 13
7. ELECTROMAGNETIC COMPATIBILITY
European Council Directive 89/336/EEC requires electronic equipment not to generate
electromagnetic disturbances exceeding defined levels and have adequate immunity levels
for normal operation. Specific standards applicable to this meter are stated below.
As there are electrical products in use pre-dating this Directive, they may emit excess
electromagnetic radiation levels and, occasionally, it may be appropriate to check the meter
before use by:
Use the normal start up sequence in the location where the meter will be used.
Switch on all localized electrical equipment capable of causing interference.
Check all readings are as expected. A level of disturbance is acceptable.
If not acceptable, adjust the meter’s position to minimize interference or switch off, if
possible, the offending equipment during your test.
At the time of writing this manual (June 2014) Kane International Ltd are not aware of any
field based situation where such interference has occurred and this advice is only given to
satisfy the requirements of the Directive.
This product has been tested for compliance
with the following generic standards:
EN 61000-6-3 :2011
EN 61000-6-1 :2007
and is certified to be compliant
Specification EC/EMC/KI/KANE3500 details
the specific test configuration, performance
and conditions of use.
Please Note:
Batteries used in this instrument should be disposed of in accordance with current legislation
and local guidelines.
At the end of its life the meter should be sent to the appropriate recycling centre in
accordance with current legislation and local guidelines

KANE3500 Manual Page 14
APPENDIX 1 – Main Parameters :
UNITS :
User selectable from :
PSI
hPa
inH2O
mBar
mmH2O
Pa
kPa
NOTE! Not all units available on all models.
DATE : Date shown as day, month and year. The
order can be changed using the menu
function. Date is recorded when each test is
printed.
TIME : The time is shown in hours and minutes,
expressed in « Military » time or the 24 hr
clock. Time is recorded when each test is
stored/printed.
NOTE ! When changing the batteries on
the instrument the memory will store the
date and time for up to one minute, if
outside this time it may be necessary to
re-enter the details.
SYMBOLS used on the display.
T The internal temperature of the meter
P The pressure reading in the user’s selected
units
Displays the Battery power available in %
When the LO BAT symbol appears this
indicates the batteries are less than 10% of
charge and should be replaced, readings
may be affected if used with low power
batteries

KANE3500 Manual Page 15
RETURNING YOUR KANE3500 TO KANE
When returning your KANE3500, please always ensure that you enclose:
 Your full contact details
 A daytime telephone number
 Details of faults you might have experienced
Packing your KANE3500
When returning your KANE3500, please pack it appropriately to prevent any damage during
transit.
Before sealing your package, please ensure that you have enclosed the items listed above
and that it is clearly marked for the attention of:
Southern Service Centre
Kane International Ltd
Kane House
Swallowfield
Welwyn Garden City
Hertfordshire
AL7 1JG
Sending your KANE3500
Once your KANE3500 has been securely packed then your package is ready for shipment
back to Kane. If you do not have an account with a courier company you can take your
package to your local Post Office. It is advisable to send the package by Special Delivery so
that it is insured and traceable while in transit.
When we receive your KANE3500
On receipt of your package, our Service Engineers will inspect your KANE3500 and any
accessories and confirm to you the total service cost. Once you have accepted this the work
will be carried out, and upon completion the analyser returned to you.
If you have any questions that we haven’t answered, please feel free to contact our Southern
Service Centre:
Tel: [phone]
Fax: [phone]
Email: [email protected]

KANE3500 Manual Page 16
Service Returns (Simply cut out and attach to your package)
Southern Service Centre
Kane International Ltd
Kane House, Swallowfield
Welwyn Garden City
Hertfordshire
AL7 1JG
Southern Service Centre
Kane International Ltd
Kane House, Swallowfield
Welwyn Garden City
Hertfordshire
AL7 1JG
Southern Service Centre
Kane International Ltd
Kane House, Swallowfield
Welwyn Garden City
Hertfordshire
AL7 1JG

KANE3500 Manual Page 17
Product Registration
Please complete, detach and return to: Kane International Ltd,
Kane House, Swallowfield, Welwyn Garden City, Hertfordshire, AL7 1JG
Your Details
Name:
Job Title:
Company Name:
Company Address 1:
Address 2:
Town/City:
County:
Postcode:
Country:
Phone Number:
Fax Number:
Mobile Number:
Email Address:
Product Details
Note: Proof of Purchase may be required for warranty claims.
Date Purchased as numbers (05.01.10):
Purchased From:
Model Number:
Product Serial Number:

KANE3500 Manual Page 18
Why did you buy a Kane Product?
 Dealer Recommendation  Other Recommendation
 Value for Money  Our Fixed Price Servicing Programme
 Kane  Previous Owner
 Not your Decision  Other:
What brand was your previous analyser?
How did you hear about Kane?
 Magazine Advert  Trade Counter Literature
 Personal Recommendation  Internet
 Exhibition  Other:
Which do you read most often?
Often Sometimes Hardly Ever
Registered Gas Engineer   
Gas Installer   
P.H.P.I.   
P.H.A.M. News   
Heating Ventilating & Plumbing   
Heating & Plumbing Monthly   
Thank you for completing this survey.
All the information we have collected is confidential.
We do not sell or share data with any other company or organisation.

KANE3500 Manual Page 19

KANE3500 Manual Page 20
Thank you for buying this
pressure meter.
Before use, please register on
our website
www.kane.co.uk
or complete, detach and return
the Product Registration page.
