Kenwood HMP32 User manual

instructions
istruzioni
instrucciones
Bedienungsanleitungen
gebruiksaanwijzing
Instrukcja obsługi
instruções
TYPE: HMP32
TYPE: HMP34

English 2 - 8
Nederlands 9 - 14
Français 15 - 22
Deutsch 23 - 30
Italiano 31 - 37
Português 38 - 44
Español 45 - 51
Dansk 52 - 57
Svenska 58 - 63
Norsk 64 - 69
Suomi 70 - 76
Türkçe 77 - 82
Česky 83 - 88
Magyar 89 - 94
Polski 95 - 102
Ελληνικά 103 - 110
Русский 111 - 119
Қазақша 120 - 127
Slovenčina 128 - 133
Українська 134 - 141
ÝY
oru - orp

1
2
3
4
12
11
13
5
9
10
6 7 8
L

A B
C D
E F
G H

I J

2
Safety
ORead these instructions carefully and retain for future
reference.
OBefore using for the first time, remove all packaging
and any labels. Wash the parts: See ‘Cleaning’.
OIf the plug or cord is damaged it must, for safety
reasons, be replaced by Kenwood or an authorised
Kenwood repairer in order to avoid a hazard.
ODO NOT process hot ingredients.
ODo not operate your appliance for longer than
the times specified below without a rest period.
Processing continuously for longer periods can
damage your appliance.
Function/
Attachment
Maximum
Operation
Time
Rest Period
Between
Operations
Beaters 6 mins Unplug the
appliance
and allow to
cool down for
15 minutes
Kneaders
Heavy cake
mixes
Bread doughs
3 mins
ONever put the handmixer body in water or let the cord
or plug get wet.
OKeep fingers, hair, clothing and utensils away from
moving parts.
ONever let the cord touch hot surfaces or hang down
where a child could grab it.
ONever use a damaged handmixer. Get it checked or
repaired: see ‘Service and Customer Care’.
ONever use an unauthorised attachment.
OAlways switch off the appliance and disconnect
from the power supply, if it is left unattended, before
assembling, disassembling or cleaning.
OAppliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and if they understand the
hazards involved.
OMisuse of your appliance can result in injury.
OThe rated power is based on the chopper attachment.
Other attachments may draw less power.
OChildren should be supervised to ensure that they do
not play with the appliance.
English

3
OThis appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
OOnly use the appliance for its intended domestic use.
Kenwood will not accept any liability if the appliance
is subject to improper use, or failure to comply with
these instructions.
Cleaning Refer to illustration L
OAlways switch off, unplug and remove the beaters or
kneaders before cleaning.
ONever put the handmixer body in water or let the cord
or plug get wet.
ONever use abrasives to clean parts.
Metal Bowl (TYPE HMP34 only)
ONever use a wire brush, steel wool or bleach to clean
your stainless steel bowl. Use vinegar to remove
limescale. Keep away from heat (cooker tops, ovens,
microwaves).
Before plugging in
O Make sure your electricity supply is the same as the one shown
on the underside of the power unit.
Important – Plug and Fuse Information
OThe wires in the cord are coloured as follows:
Blue = Neutral, Brown = Live.
OIf the plug is cut off it must be DESTROYED IMMEDIATELY. An
electric shock hazard may arise if an unwanted non-rewireable
plug is inadvertently inserted into a socket outlet.
OIf the plug supplied with your appliance has a fuse fitted and the
fuse fails it must be replaced with one of the same rating.
Note:
OFor non-rewireable Plug Type G the fuse cover MUST be refitted
when replacing the fuse. If the fuse cover is lost then the plug
must not be used until a replacement can be obtained. The
correct fuse cover is identified by colour and a replacement
may be obtained from your Kenwood Authorised Repairer (see
Service).
Plug Type G
O This appliance conforms to EC Regulation 1935/2004 on
materials and articles intended to come into contact with food.

4
Key
1Tool release button
2Speed selector
3(P) Pulse button
4Mixer
5Beater
6Beater with gear
7Kneader
8Kneader with gear
9Mixing bowl
10 Cradle
11 Mixer release button
12 Cradle release button
13 Stand
To Use your
Handmixer

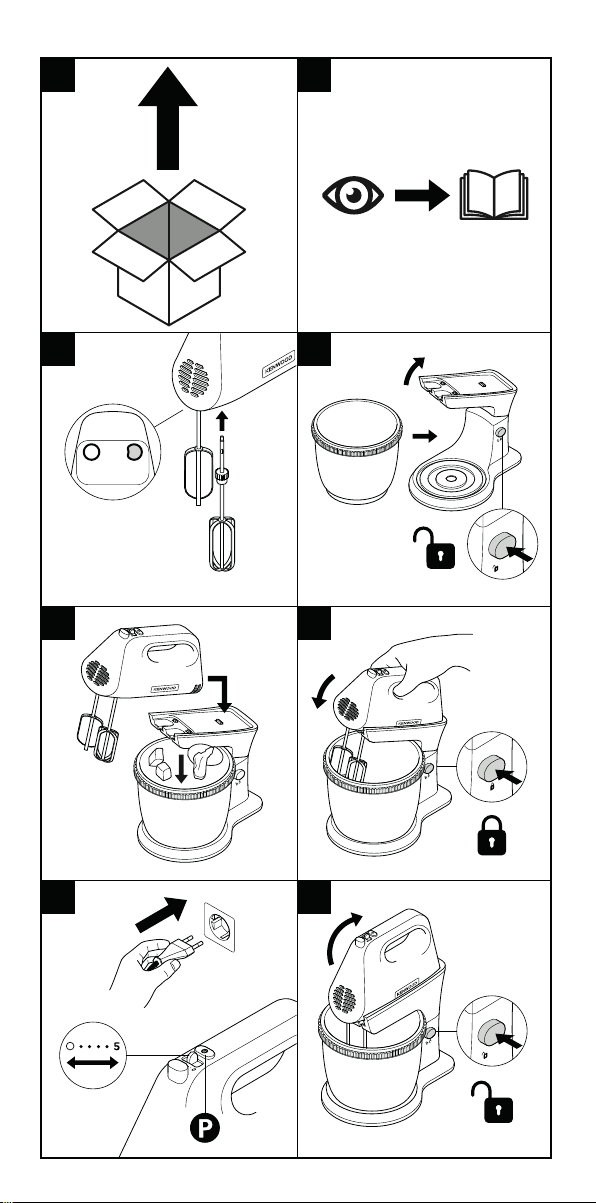

Refer to illustrations A– C
Fitting the beaters/kneaders
Insert the beater/kneader with
the plastic gear in the socket.
Setting Up the Bowl
& Stand
Refer to illustrations D– G
1 Fit the beaters/kneaders to
the Handmixer.
2 Hold the front of the cradle
and raise by pressing the
cradle release button.
3 Place the bowl onto the stand.
4 Fit the mixer to the cradle and
push down to secure.
Note: Check that the beater/
kneader with the plastic gear
aligns with the drive gear on
the cradle.
5 Lower the cradle by holding
the Handmixer handle whilst
pressing the cradle release
button at the same time.
6 Plug in and select a speed
(Refer to the recommend
usage chart).
After Use
Refer to illustrations H– J
1 Switch the speed selector to
the ‘O’ OFF position.
2 Hold by the handle and lift
up the cradle by pressing the
cradle release button.
3 Remove the mixer from the
cradle by pressing the mixer
release button and lifting off.
4 Remove the beaters/kneaders
– hold by the shafts and press
the tool release button.
Note: they can only be
removed when the mixer is
released from the cradle and
the speed selector is in the
‘O’ OFF position.
Hints and Tips
OAs the mixture thickens,
increase the speed.
OIf the machine starts to
slow or labour, increase the
speed.
OPress the ‘P’ pulse button
to operate the motor at
maximum speed. The motor
will operate for as long as
the pulse is held in position.
Note: the ‘P’ pulse button
will only operate if a speed
is selected first.
OScrape down the sides
and bottom of the bowl at
regular intervals to assist the
mixing operation’
OWhen creaming for cake
mixtures, use butter
or margarine at room
temperature or soften
before use.
OFor best results with
small quantities, use the
handmixer without the
stand.
OLarge quantities and thick
mixtures may require a
longer mixing time.

5
OIf you wish to mix larger quantities or heavier mixes, remove the
mixer from the stand and use a bowl of an appropriate size.
OTo re-knead bread doughs remove the mixer from the stand
and use hand held.
Please note that these are recommendations for using the stand
and supplied mixing bowl. If using the mixer by hand, the speed
you select may depend upon the bowl size (if not using the bowl
supplied), quantities, the ingredients you are mixing and personal
preference.
Gradually increase to the recommended speeds below.
(MAX) (Mins)
x10 4-5 1-3
4-8˚C
200-500 ml 1-5 2-3
x5 250 g
1-5 1-2
x4 +250 g +500 g
51
+125 g250 g
1-2 2-4
45 ml
H2O21
(MAX) (Mins)
+250 ml450 g
4-5 2-3
K
Recommended Usage Chart

6
Optional attachment (not
supplied in pack)
Mini chopper - refer to 'Service and Customer Care” section to order.
Service and Customer Care
If you experience any problems with the operation of
your appliance, before calling for assistance refer to the
Troubleshooting guide or visit www.kenwoodworld.com.
If you need help with:
OUsing your appliance or
OServicing, spare parts or repairs (in or out of guarantee)
Call Kenwood Customer Care on 0345 222 0458 or visit
www.kenwoodworld.com. Have your model number
(e.g. TYPE: HMP32 & HMP34) and date code (5 digit code e.g.
23T04) ready. They are located on the underside of the power
unit.
OSpares and attachments
call 0844 557 3653.
OOther countries
OIf you experience any problems with the operation of
your appliance, before requesting assistance refer to the
'Troubleshooting Guide' section in the manual or visit
www.kenwoodworld.com.
OPlease note that your product is covered by a warranty, which
complies with all legal provisions concerning any existing
warranty and consumer rights in the country where the product
was purchased.
OIf your Kenwood product malfunctions or you find any defects,
please send it or bring it to an authorised KENWOOD Service
Centre. To find up to date details of your nearest authorised
KENWOOD Service centre visit www.kenwoodworld.com or the
website specific to your Country.
ODesigned and engineered by Kenwood in the UK.
OMade in China.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
At the end of its working life, the product must not be disposed of as
urban waste.
It must be taken to a special local authority dierentiated waste
collection centre or to a dealer providing this service.
