Kohler BEITOU 72830T-L User manual

1227406-2A-E 1
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Recommended working pressures: 2~5bar.
3. The highest working pressure for showerhead is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure
reducer is needed. The highest water and environment temperature is 60°C. Please keep shower head away
from heater, or it may become damaged and cause injury to the user.
4. Please ensure only apply water pressure test on the product, and empty the air in pipe and faucet thoroughly
before the test. Please ensure test pressure below 0.8MPa(8bar) and test duration within 30 minutes.
5. If water pressure is too high, water flow is excess, please install the attached flow regulator.
INSTALLATION INSTRUCTIONS
72830T-L Wall Mount Showerhead
ROUGH-IN DIMENSIONS
BEITOU
72830T-L Wall Mount Showerhead
BEITOU
72830T-L
1227406-2A-E 4
SERVICE PARTS
**Color code must be specified when ordering.
315
70
44
Min.200
52.5
3-G1/2-B
31~41
14
550
52.5
52
280
Finished Floor
Finished Wall
Recommended height 2150
1225747**
1225771 1225772
1262748
1227384
1262747
1227376
1227373
1225775
1225780
1225755**
1225743
1225742
1227385
1275652
1225718
1082902
1154399
1225787
1225788
1082904
870992
1242635
77420
1225774
1225772
1225773
1225727**
1225773

1227406-2A-E 2 1227406-2A-E 3
INSTALLATION CHECKOUT
Ensure that all connections are tight. Ensure that the handle is in the off position.
Turn on the drain and main water supply, and check for leaks. Repair as needed.
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could
adversely affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
9
11 10 12
7
8
④
⑥
⑤

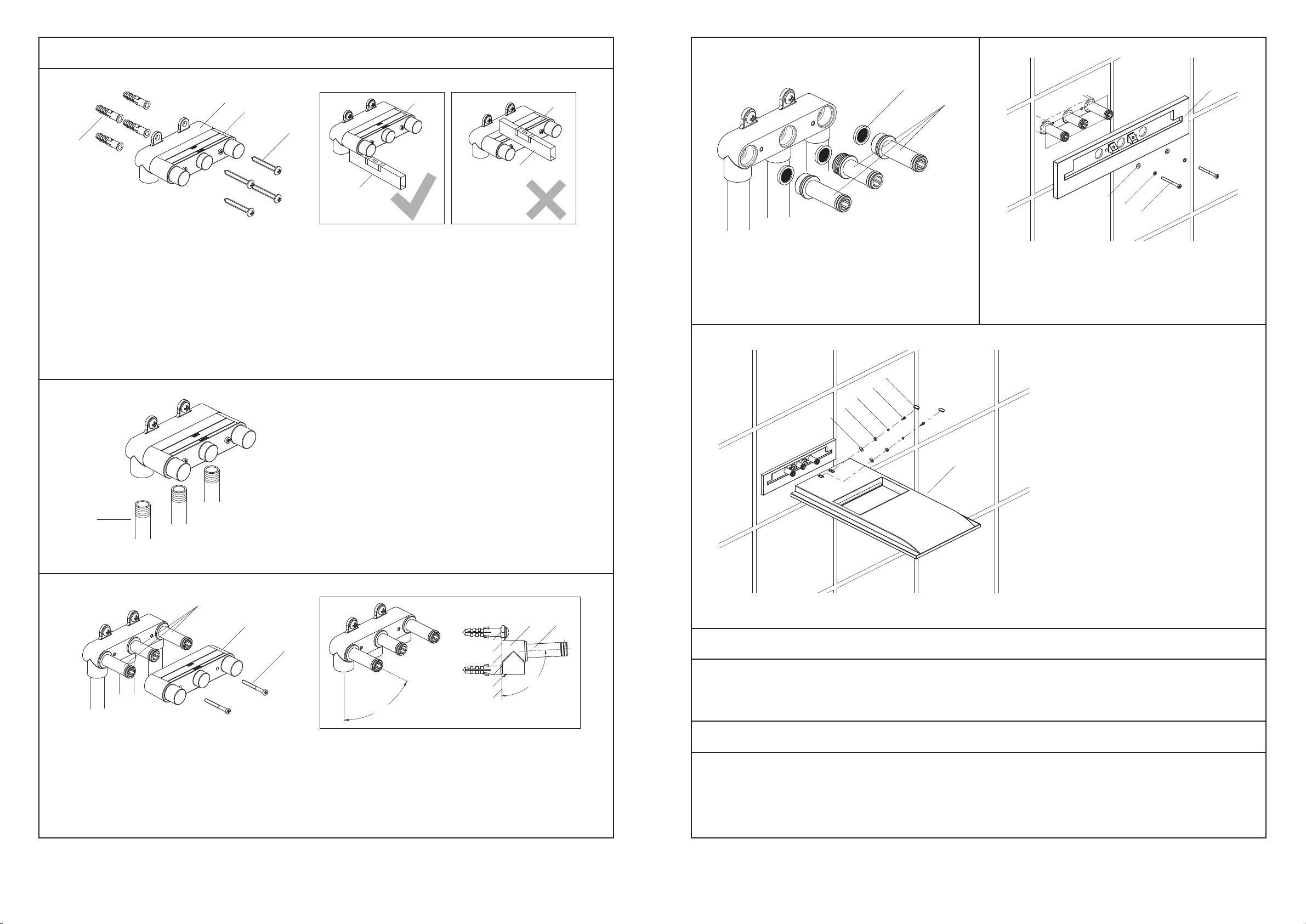

INSTALLATION
How to Install the Base
Determine the position of the base(1) will be mounted on the vertical wall according to the rough-in dimensions.
Make a suitable hole in the wall. Drill four holes(Ø10) as anchor(3) diameter and base position in the wall. The
center line of two vertical holes should be vertical.
Install the anchors, secure the base by the screws(2). NOTE: The out surface of the finished wall should be
between the MAX and MIN marks on the protector(4). Ensure the bottom of protector is horizontal by lever ruler.
Use appropriate thread sealants or thread tape on the
water supplies(5). Connect water supplies to the base.
During installation, the protector remain on the base.
How to Install the Showerhead
When the finished wall is completed, take off the screws(6) and protector(4). The angle between connectors(7)
and finished wall should be 93 degrees.
Remove the connectors(7) by hex wrench, take off
the filter washers(8). Flush water supplies for about
one minute to remove debris. Reinstall the
connectors and filter washers.
Slide the escutcheon base(9) on the connector till it
against the wall, tighten it by screw(12) with
washer(11) and locking gasket(10).
Slide the showerhead kit(16) into the
escutcheon base.
Fix the showerhead by the screw(15)
with washer(11, 13) and locking
gasket(10). Press the cap(14).
Level ruler
Level ruler
Rain
Waterfall
Laminar
2
3
1
1 7
44
4
93º
93º
7
4
6
5
①
②
③
16
13
10
15 14
11
