Kohler K-1098 User manual

Installation Guide
Bath/Shower Faucet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page“ Français-1”
Español, página“ Español-1”
K-1098 K-1099
114542-2-BC

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
•Do not install a shut-off device on either outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
•Factors that change the temperature of the water supplied to the
valve, such as seasonal water temperature changes, and water
heater replacement or servicing, will change the maximum water
temperature supplied by the valve and may create a scalding
hazard.
•The pressure-balanced valve will not compensate for changes in
the water supply temperature; adjust the maximum water
temperature setting of this pressure-balanced valve when such
changes occur.
•Pressure-balanced valves may not provide protection against
scalding if there is a failure of other temperature-limiting devices
elsewhere in the plumbing system.
The installer is responsible for installing the valve and adjusting the
maximum water temperature of this pressure-balanced valve
according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Service Department at 1-800-4-KOHLER.
Outside the U.S., please contact your distributor.
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the information box in the Homeowners Guide and on the valve label.
Retain the Homeowners Guide for future reference.
114542-2-BC 2 Kohler Co.

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few
minutes to review this manual before you start installation. If you
encounter any installation or performance problems, please don’t
hesitate to contact us. Our phone numbers and website are listed on
the back cover. Thanks again for choosing Kohler Company.
Tools and Materials
Before You Begin
IMPORTANT! This instruction provides installation information for
two faucet models. Be sure to follow the steps that apply to your
installation.
Please read all instructions before you begin.
Observe all local plumbing and building codes.
Shut off the main water supply.
The K-1099 uses two valves, one for the bath fill, and another for
the shower. Pay special attention to this feature when planning
your site preparation.
Avoid excessive heat if you solder connections to prevent damage
to the fitting.
Flush all piping thoroughly before installing the valve(s).
Do not force the handle(s) in any direction. To turn the valve off,
gently turn it to the ″Off″position.
For the K-1099, do not use any plastic pipe between the valve and
the spout.
Pipe
Wrench Adjustable Wrench Strap Wrench Hacksaw or Tubing Cutter
Propane
Torch
Solder
Hex
Wrench
Thread
Sealant
Plumbers
Putty
Assorted
Screwdrivers Thermometer
Kohler Co. 3 114542-2-BC

Before You Begin (cont.)
Do not connect a deck-mount spout, diverter, or handshower to
the spout outlet unless you cap the shower outlet on the valve.
Install a pipe or tube in a straight drop of 7” (17.8 cm) to 18”
(45.7 cm) with only one elbow between the valve and the
wall-mounted spout. Other types of installation may cause
unsatisfactory shower performance.
Kohler Co. reserves the right to make revisions in the design of
faucets without notice, as specified in the Price Book.
114542-2-BC 4 Kohler Co.

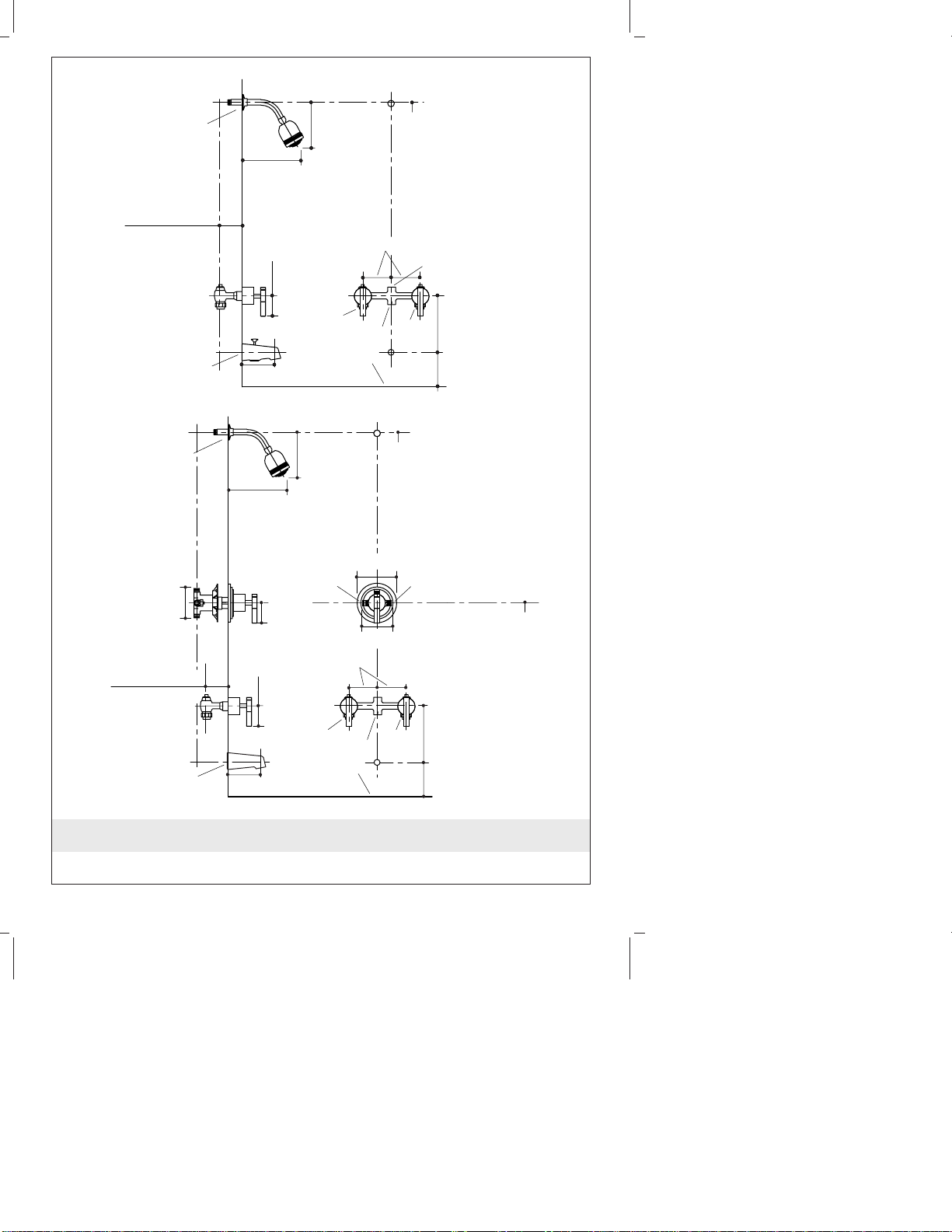

1. Rough-In Dimensions
K-1098
48" (121.9 cm)
to Floor
(Shower Only)
1/2" Pipe
1/2" Pipe
5-5/16"
(13.5 cm)
7-5/16"
(18.6 cm)
3" (7.6 cm) Max.
2-7/8"
(7.3 cm)
4-7/8" (12.4 cm)
1/2"
Cold
1/2" Hot
72" (182.9 cm) -
78" (198.1 cm) To
Floor (Typical)
2-1/4" (5.7 cm) Min.
1/2" Pipe
4" (10.2 cm)
Top of Rim 4"
(10.2 cm)
8"
(20.3 cm)
1/2" Pipe
1/2" Pipe
1/2" Pipe
5-5/16"
(13.5 cm)
7-5/16"
(18.6 cm)
3" (7.6 cm) Max. 2-7/8"
(7.3 cm)
4-7/8" (12.4 cm)
1/2"
Cold
1/2" Hot
72" (182.9 cm) -
78" (198.1 cm) To
Floor (Typical)
2-1/4" (5.7 cm) Min. 1/2" Pipe
4" (10.2 cm)
Top of Rim 4"
(10.2 cm)
10"
(25.4 cm)
1/2" Pipe
K-1099
2-7/8"
(7.3 cm)
4"
(10.2 cm)
4" (10.2 cm)
6" (15.2 cm) D.
1/2" Cold
1/2" Hot
Kohler Co. 5 114542-2-BC

2. Install the Support Framing
K-1098 Only
Determine the installation location of the valve, showerhead, and
spout.
Install the support framing as required.
K-1099 Only
Determine the installation location of the valve, showerhead, and
spout.
Install the support framing as required.
72" (182.9 cm) -
78" (198.1 cm)
To Floor (Typical)
4" (10.2 cm)
10" (25.4 cm)
48" (121.9 cm)
to Floor
(Shower Only)
72" (182.9 cm) -
78" (198.1 cm)
To Floor (Typical)
4" (10.2 cm)
10" (25.4 cm)
114542-2-BC 6 Kohler Co.

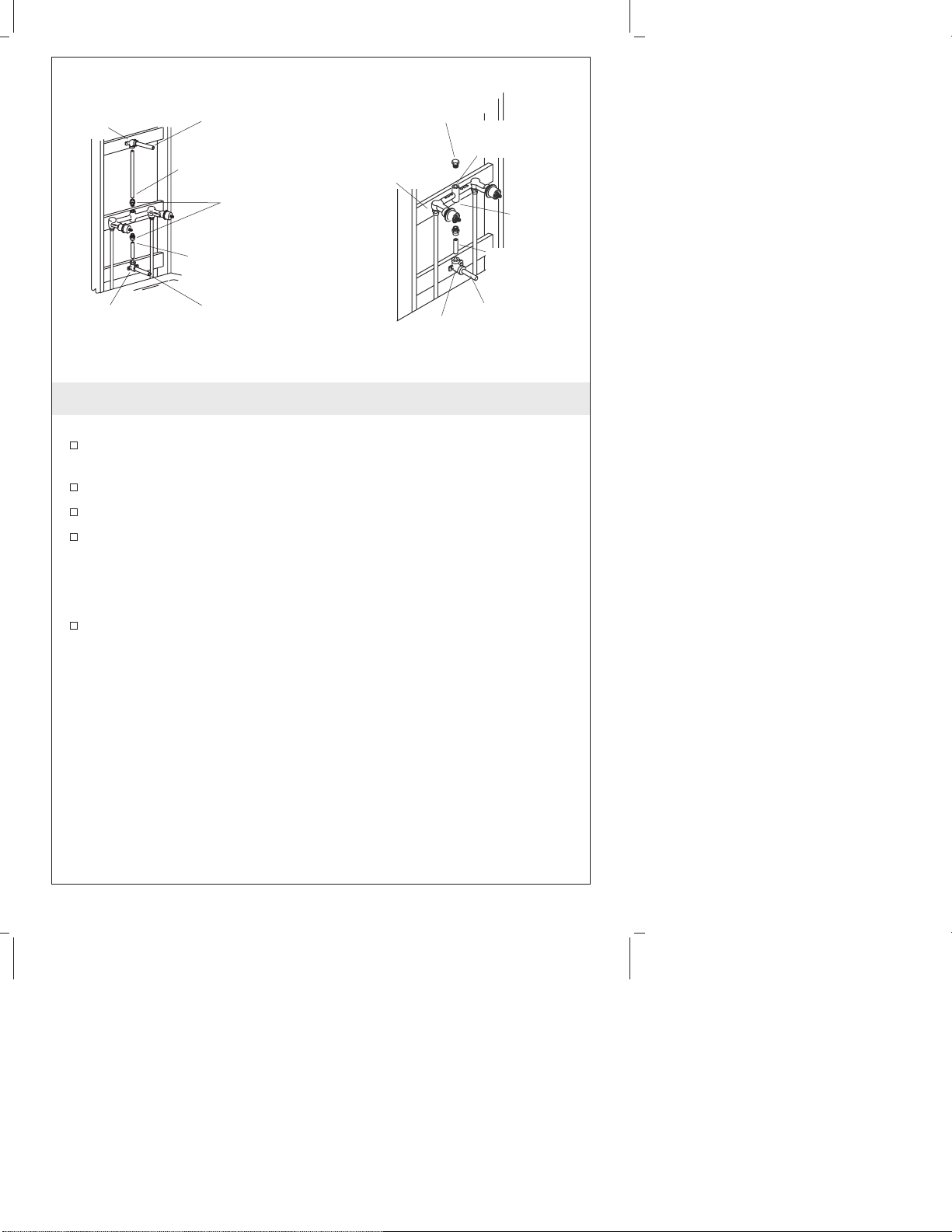

3. Installing the Yoke
All Installations
Install elbows and adapters (if used) onto 1/2″copper tubing or
1/2″pipe of proper length.
Connect the piping to the bath yoke outlet.
Secure the tubing to the framing.
Install a temporary 1/2″nipple into the bath ell, and if applicable,
the shower ell. The nipple should extend at least 2″(5.1 cm)
beyond the finished wall.
Model K-1099
Apply thread sealant to the plug threads and install the plug in
the shower outlet.
Elbow
Elbow
Adapters
1/2" Copper
Tubing
1/2" Copper
Tubing
Temporary
Nipple
Temporary
Nipple
K-1098
Shower
Outlet
1/2"
Adapter
or
Solder
Direct
1/2" Copper
or Pipe
Temporary
Nipple
Bath
Outlet
Bath Ell
Plug
K-1099
Kohler Co. 7 114542-2-BC

4. Install the Yoke - Ceiling Installations
IMPORTANT! Perform these steps for ceiling installations only.
The faucet fitting is factory assembled specifically for hot and
cold water supplies from the floor.
If installing the faucet for ceiling supplies, turn the yoke over so
the supplies connect from the top.
Remove the aspirator with a 3/8” hex wrench.
For the K-1098, reinstall the aspirator at the top of the yoke. Do
not overtighten. For the K-1099, discard the aspirator.
Reversing the yoke for ceiling supplies reverses the direction the
lever handles close.
For proper operation, reverse the ceramic valves.
Open the valve before removing it.
Tighten the valves securely.
If you are installing K-1099, proceed to the next section.
Aspirator
Hot
Cold
Valve Unit
Ceiling
Supplies
Thread
Protector
114542-2-BC 8 Kohler Co.

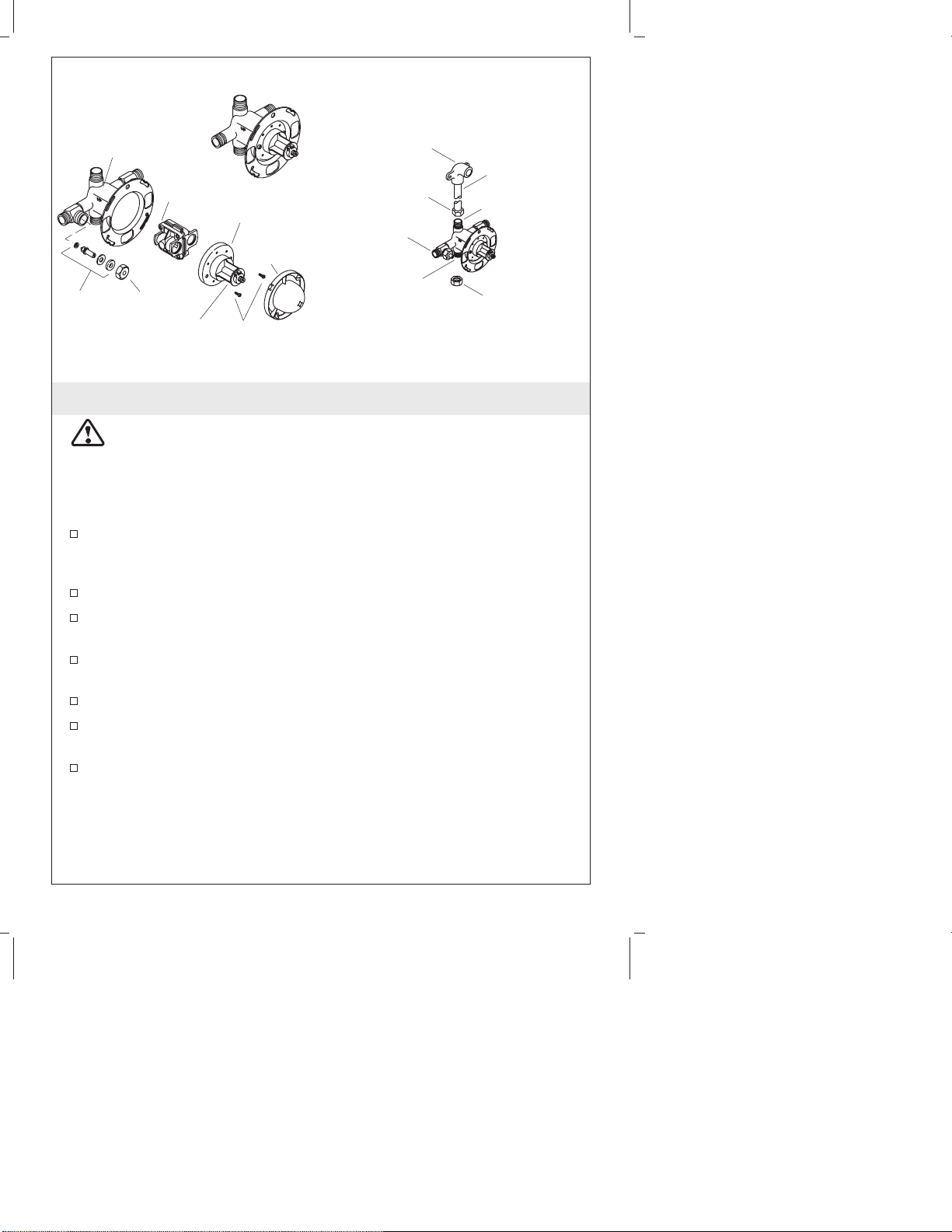

5. Installing the Valve - K-1099
CAUTION: Risk of product damage. The valve body contains
plastic components. Remove the stop nut and stem assembly,
valve cap, and pressure balancing unit before you apply
soldering heat to the valve body.
IMPORTANT! Use thread sealant on all threaded connections.
Carefully remove the stop nut and stem assembly, valve cap,
collar, and pressure balancing unit before you apply soldering
heat to the valve body.
Rotate the valve fully counterclockwise.
If the valve has stops, rotate both stop adjustments fully
counterclockwise.
Install elbows and adapters (if used) to 1/2″copper tubing or
1/2″pipe of proper length.
Secure the tubing to the framing.
Install a temporary 1/2″nipple into the shower ell to extend at
least 2″(5.1 cm) beyond the finished wall.
Use thread sealant, and install a pipe cap on the bath outlet.
Stem
Assembly Stop Nut
Valve
Cap
Valve
Body
Pressure
Balancing Unit
Plaster
Guard
Screws
Collar
Less StopsWith Stops
Cap
Bath Outlet
Hot Side
Shower Outlet
Shower Ell 1/2" Copper
or Pipe
1/2" Adapter or
Solder Direct
Kohler Co. 9 114542-2-BC

6. Complete Valve Installation - K-1099
CAUTION: Risk of product damage. The valve body contains
plastic components. Remove the stop nut and stem assembly,
valve cap, and pressure balancing unit before you apply
soldering heat to the valve body.
NOTE: If the valve is to be installed in a two valve, back-to- back
configuration, proceed to the ″Back-to-Back Installation″section.
IMPORTANT! Use thread sealant on all threaded connections.
Connect the water supplies to the valve body using elbows, 1/2”
copper tubing or pipe, and adapters (if needed).
Secure the piping to the framing.
Temporarily install 1/2” nipples to the bath and shower elbows
so they will extend at least 2” (5.1 cm) beyond the finished wall.
If you removed the inner valve components for soldering,
carefully reinstall them now.
1/2"
Copper
or Pipe
1/2"
Elbow
Temporary
Nipple
Temporary
Nipple
Valve
Body
Hot
Supply
Stem
Assembly
Cold
Supply
Pressure
Balancing
Unit
Collar
Screws
Valve Cap
Stop Nut
1/2"
Adapter
or Solder
Direct
114542-2-BC 10 Kohler Co.

7. Back to Back Valve Installation - K-1099
NOTE: Never install the valve body upside down.
Install both valves following the valve installation instructions.
The supplies to one of the valves will be reversed.
Remove the plaster guard, cap, cap assembly, and collar from the
valve with the reversed supply connections.
Rotate the cap assembly and collar 180° (tab on the bottom).
Reassemble and securely tighten the screws.
Reinstall the plaster guard.
8. Complete the Valve Installation
NOTE: This section applies to all valve installation styles.
Install caps onto the temporary bath and shower nipples.
Turn on the hot and cold water supplies, and check the new
installation for leaks.
Remove the caps from the temporary nipples.
Remove the plaster guard.
Turn the valve control to the ″On″position, and cycle the control
through the operating range. Check for leaks.
Turn the valve control off.
Screws
180˚
Tab
Collar
Valve
Body Cap
Assembly
Hot
Supply
Cold Supply
Plaster Guard
Kohler Co. 11 114542-2-BC

Complete the Valve Installation (cont.)
If the valve has stops, rotate both stop adjustments fully
clockwise.
Turn the valve control ″On″, and note that water does not run.
Turn the valve control ″Off″, and rotate both stop adjustments
fully counterclockwise.
Reinstall the plaster guard.
114542-2-BC 12 Kohler Co.

9. Install the Finished Wall - K-1099
Thick Wall Installation
Provide a 5-9/16″(14.1 cm) diameter hole in the wall material.
The flat front surface of the plaster guard must be flush with the
finished wall.
Complete the finished wall.
Do not remove the plaster guard until instructed.
Thin Wall Installation
NOTE: The finished wall must line up within the front-to-back
depth of the installed plaster guard.
Remove the plaster guard from the backing plate.
Twist the plaster guard dome to separate it from the outer ring.
Discard the outer ring.
Slide the dome over the valve stem.
Provide a 4″(10.2 cm) diameter hole in the wall material.
Make openings for the stops (if included) by using the holes in
the backing plate as a guide.
Secure the backing plate to the back of the wall material.
Do not remove the dome until instructed to do so.
Finished Wall
Plaster Guard
5-9/16"
(14.1 cm) D.
2-3/4" (7 cm) –
3-1/2" (8.9 cm)
Rough-In Depth
Thick Wall
2-3/4" (7 cm)
Rough-In Depth
Backing Plate
Outer Ring
Dome
Wall Material
Plaster Guard
Plaster Guard
Valve Stem
Backing Plate
4" (10.2 cm) D.
ThinWall
Kohler Co. 13 114542-2-BC

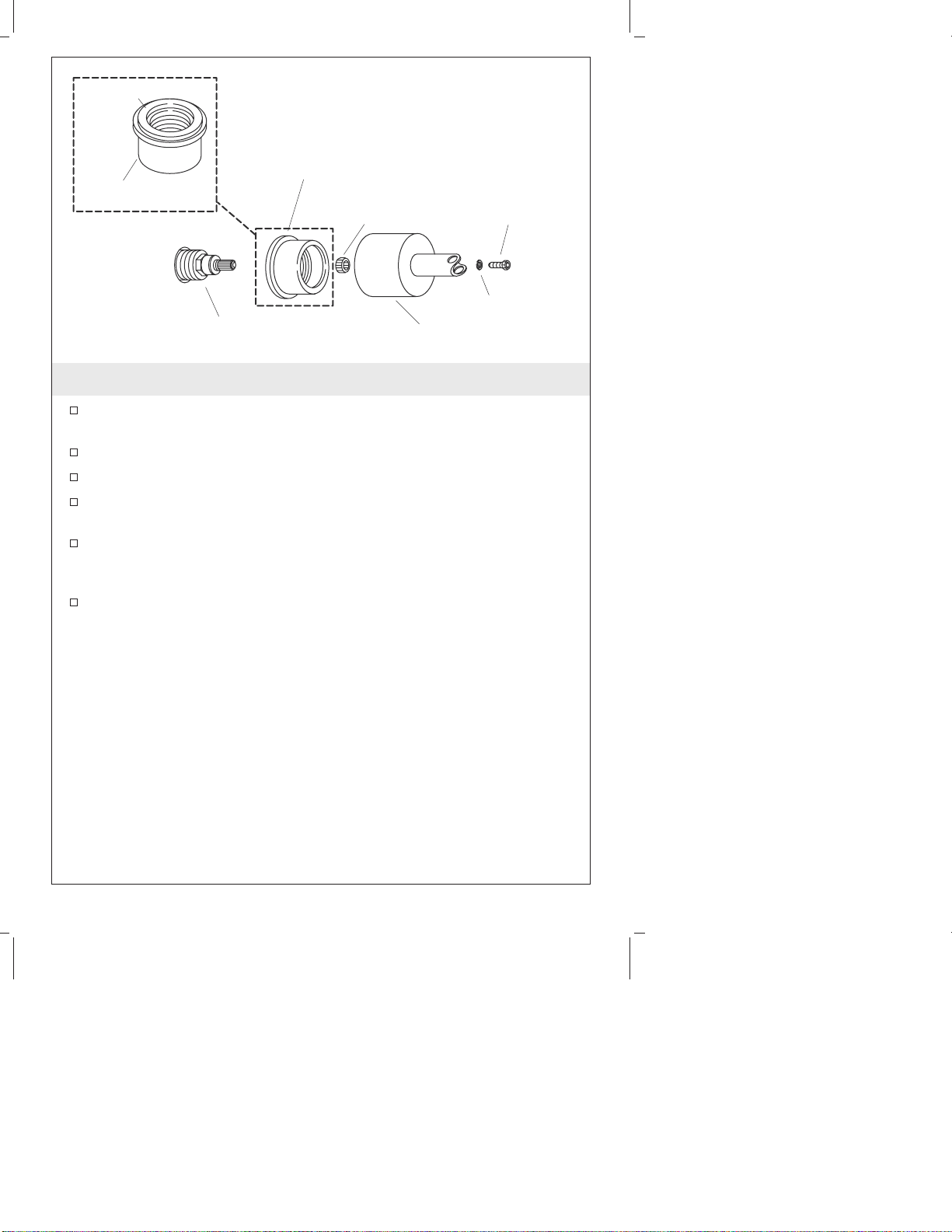

10. Install the Handle Escutcheons
Position the gasket on the bottom of the escutcheon, and thread
the escutcheon onto the valve body.
Tighten the valve locknut.
Position the spline adapter onto the valve stem.
Set the handle stem/skirt over the valve, and secure to the valve
stem with the lockwasher and screw.
Align the eyelets in the handle stem/skirt so they point toward
the other handle, and are parallel to the back edge of the finished
wall.
Use a 5/32” hex wrench to tighten.
Lockwasher
Handle Stem/Skirt
Escutcheon
Screw
Gasket
Escutcheon
Valve Stem
Spline
Adapter
114542-2-BC 14 Kohler Co.

11. Install the Handles
Position a centerpiece onto each handle stem/skirt with the eyelet
holes are clearly visible when looking inside.
Thread a screw into each side of the centerpiece, and tighten with
a 5/32” hex wrench.
Slide the appropriate color rings (Red = hot, left side handle; Blue
= cold, right side handle) over the endpiece threads.
To ease installation, lubricate the O-rings with soapy water.
Slide an O-ring over each endpiece threads.
Handle
Stem/Skirt Short
Endpiece
Centerpiece
Screw
O-Ring
Color Ring
Long
Endpiece
Screw
O-Ring
Color Ring
Kohler Co. 15 114542-2-BC

12. Install Handles - K-1099
Remove and discard the plaster guard, if installed.
Rotate the valve stem fully counterclockwise.
Position the handle stem over the valve stem with the eyelets
vertical, and secure with a screw.
Slide the skirt (with O-ring installed) over the handle stem and
onto the shoulder of the valve. Secure with a setscrew.
Slide the escutcheon assembly over the skirt, and secure with
long screws.
Install the O-ring into the plug.
Position the handle over the stem eyelets, and secure by
threading the plug into the handle.
Press the plug button firmly in place.
For the 74781 handle, install the O-ring, ring, and endpiece on the
opposite end of the handle.
Handle Stem
Lever
Handle
(42674)
Plug Button
Screw
O-Ring
Valve
Stem
Endpiece
O-Ring
O-Ring
O-Ring
Screw Lever
Handle
(74781)
Ring
Plug
Plug
Plug Button
Escutcheon
Assembly
Setscrew
Skirt
114542-2-BC 16 Kohler Co.

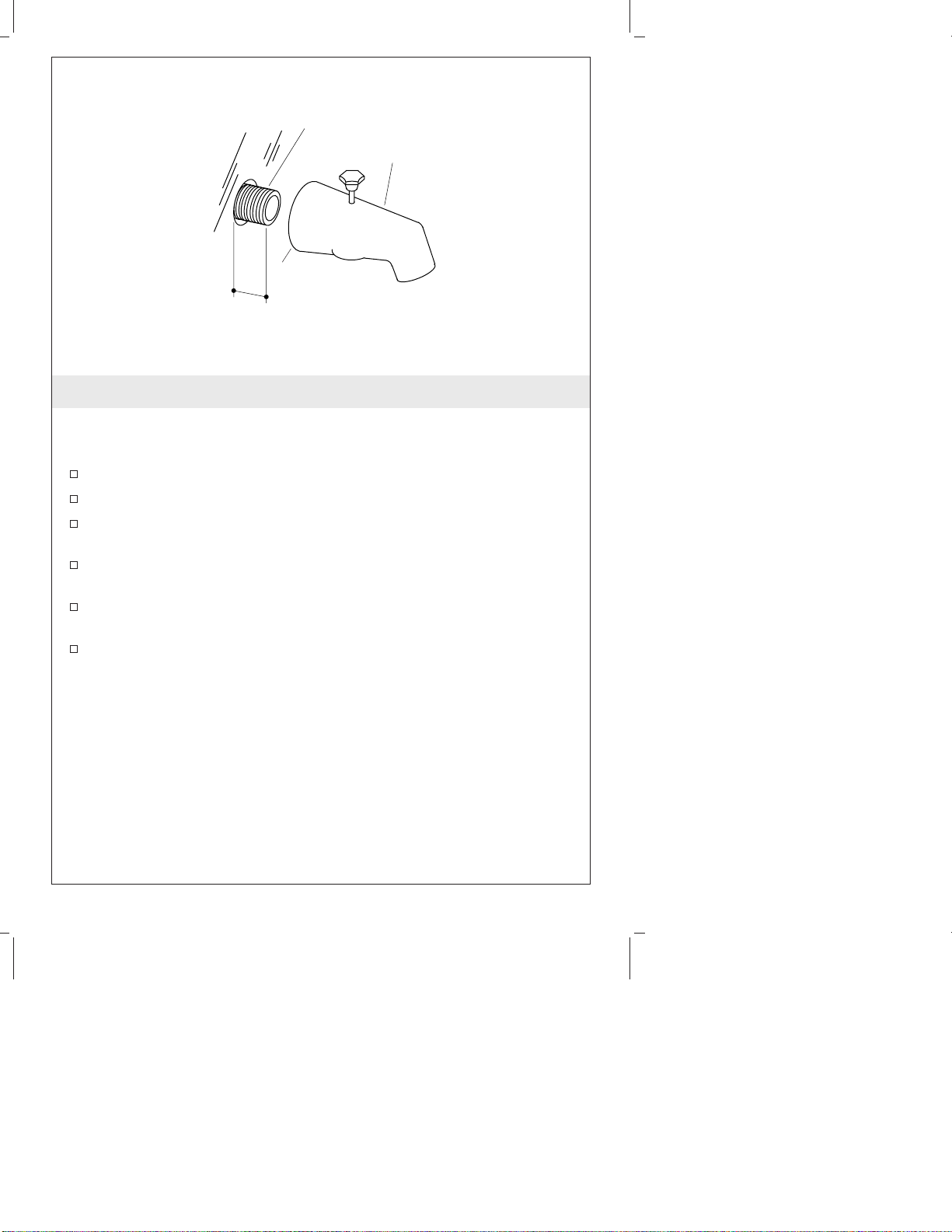

13. Install the Spout
NOTE: To improve clarity, only the diverter spout used for the
K-1098 model is shown. Installation of both diverter and
non-diverter spouts is identical.
Remove the temporary nipple.
Apply thread sealant to the 1/2″nipple threads on both ends.
Install a 1/2″nipple to extend 7/16″(1.1 cm) beyond the finished
wall.
Apply a bead of plumbers putty or other sealant around the inlet
of the spout according to the manufacturer’s instructions.
Carefully tighten the spout with a clean strap wrench and remove
all excess putty.
Flush hot and cold water through the spout for one minute.
Spout
Nipple
7/16"
(1.1 cm)
Apply plumbers
putty.
Kohler Co. 17 114542-2-BC

14. Install the Showerhead
CAUTION: Risk of product damage. To avoid plugging the
showerhead spray outlets, use thread sealant tape on the shower
arm threads. Do not use thread sealant compound (pipe dope).
Remove the temporary nipple.
Apply a bead of plumbers putty or other sealant to the
escutcheon according to the manufacturer’s instructions.
Slide the escutcheon over the shower arm.
Apply thread sealant on the shower arm threads and thread the
shower arm into the elbow.
Tighten with a clean strap wrench. Do not overtighten.
Flush the system for one minute.
Apply thread sealant to the shower arm threads, and thread the
showerhead onto the shower arm. Tighten securely.
Remove all excess putty.
For three-way showerhead operation, grasp the outer ring of the
showerhead, and gently rotate clockwise or counterclockwise.
There are two small detents within the outer ring to provide the
three operating positions.
Elbow
Escutcheon
Setscrew
Showerhead
Apply plumbers
putty.
114542-2-BC 18 Kohler Co.

15. Water Temperature Adjustment
CAUTION: Risk of personal injury. The water temperature
should never be set above 120° F (49° C).
NOTE: Do not remove the O-ring and collar at this time. Removing
the O-ring and collar will change the factory setting for the
maximum water temperature.
If the handle and escutcheon assembly are installed, remove them
now.
Turn the valve clockwise to the full open position and let the hot
water run for several minutes. Position a thermometer in the
water stream and check the temperature.
For minor water temperature changes, adjust the setscrew, and
recheck the water temperature.
For major water temperature changes, remove the O-ring and
collar from the valve stem. Slowly rotate the valve stem until the
desired maximum water temperature is reached.
Reinstall the collar on the valve stem with the setscrew against
the side of the tab.
Reinstall the O-ring and rotate the valve stem counterclockwise to
shut the water off.
Recheck the water temperature.
Complete the information on the valve label (if supplied).
Setscrew Tab
Collar Valve
Label
O-Ring
Valve
Stem
Kohler Co. 19 114542-2-BC

Guide d’installation
Robinet de baignoire/douche
Outils et matériels
INSTRUCTIONS IMPORTANTES
À LIRE ET À LAISSER AU CLIENT
AVERTISSEMENT : Risque de brûlures ou de blessures graves.
•Avant de commencer l’installation, l’installateur doit régler la
température maximale de l’eau de cette valve pour réduire au
minimum les risques de brûlures, ceci conformément à la norme
ASTM F 444.
•Ne pas installer un dispositif d’arrêt sur les sorties de cette valve.
L’installation d’un tel dispositif peut créer une condition de débit
croisé au régulateur et modifier la température de l’eau.
•Les facteurs qui changent la température de l’eau fournie à cette
valve, tels que les changements de température d’eau saisonniers,
et le remplacement ou l’entretien du chauffeau, changeront la
température maximale de l’eau fournie par le régulateur et
pourront présenter un danger de brûlures.
•La valve à pression équilibréene compensera pas les changements
de température d’alimentation d’eau; ajuster la température
maximale de cette valve à pression équilibrée si de tels
changements se produisent.
Clé à
tubes Clé à molette Clé à sangle Scie à métaux ou coupe tubes Chalumeau
à propane
Soudure
Joint
d'étanchéité
pour filetage
Mastic de
plombier
Tournevis
assortis Thermomètre
Clé hexagonale
Kohler Co. Français-1 114542-2-BC
