IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE
USING
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
WARNING: RG-3 UV emitted from this lamp. Skin or eye
injury could result. Avoid exposure of eyes and skin to
unshielded lamp. Always be certain the lamp is off before
opening the protective cover.
CAUTION: Risk of personal injury. Replacement of the UV
lamp must only be performed by qualified service personnel.
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface. Provide adequate ventilation
when bathing to avoid damage to the electronic components due to
high humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during winter storage.
Allow the unit to warm to room temperature before reinstalling or
using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed; it could cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
1278653-5-B 2 Kohler Co.

IMPORTANT SAFEGUARDS (cont.)
DANGER: To reduce the risk of electrocution:
Do not place or store this product where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of burns, electrocution, fire,
or injury to persons:
Close supervision is necessary when this product is used by or
near children, the elderly, or invalids. Adjust the temperature of
the seat for the elderly, those who are incapacitated, or persons
with sensitive skin.
Use this product only for its intended use as described in this
manual. Do not use attachments not recommended by Kohler Co.
Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped, damaged, or
dropped into water. Return the product for examination and
repair.
Keep the cord away from heated surfaces.
Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked. Keep the air openings free of lint, hair, and the like.
Never use while sleeping or drowsy.
Never drop or insert any object into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Connect this product to a properly grounded outlet only. See the
″Grounding Instructions″section.
This product conforms to applicable provisions of US 21 CFR,
Chapter 1, Subchapter J, Radiological Health.
SAVE THESE INSTRUCTIONS
Kohler Co. 3 1278653-5-B

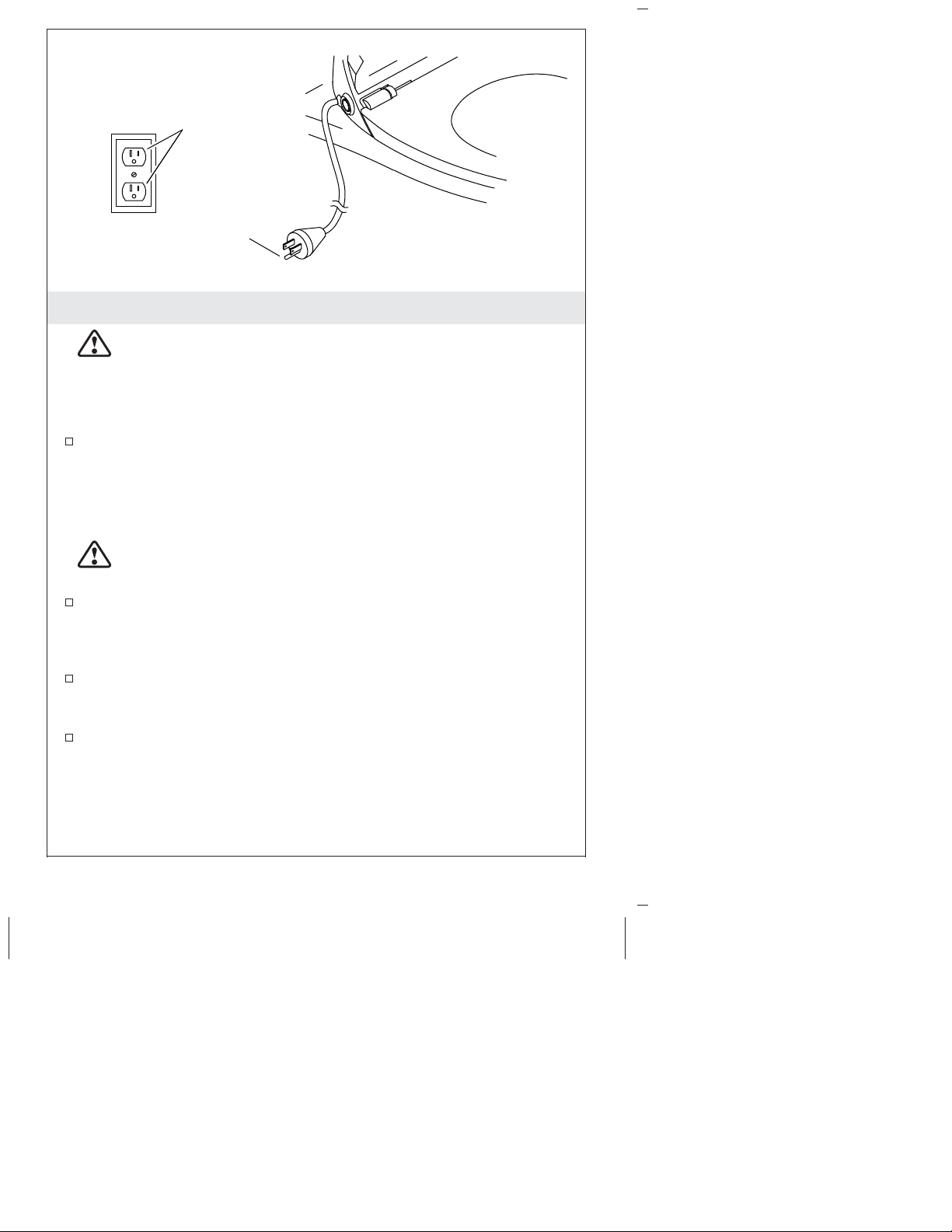

Grounding Instructions
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the product is properly grounded.
Do not use an extension cord with this product.
Grounded
Outlet
Grounding
Plug
1278653-5-B 4 Kohler Co.

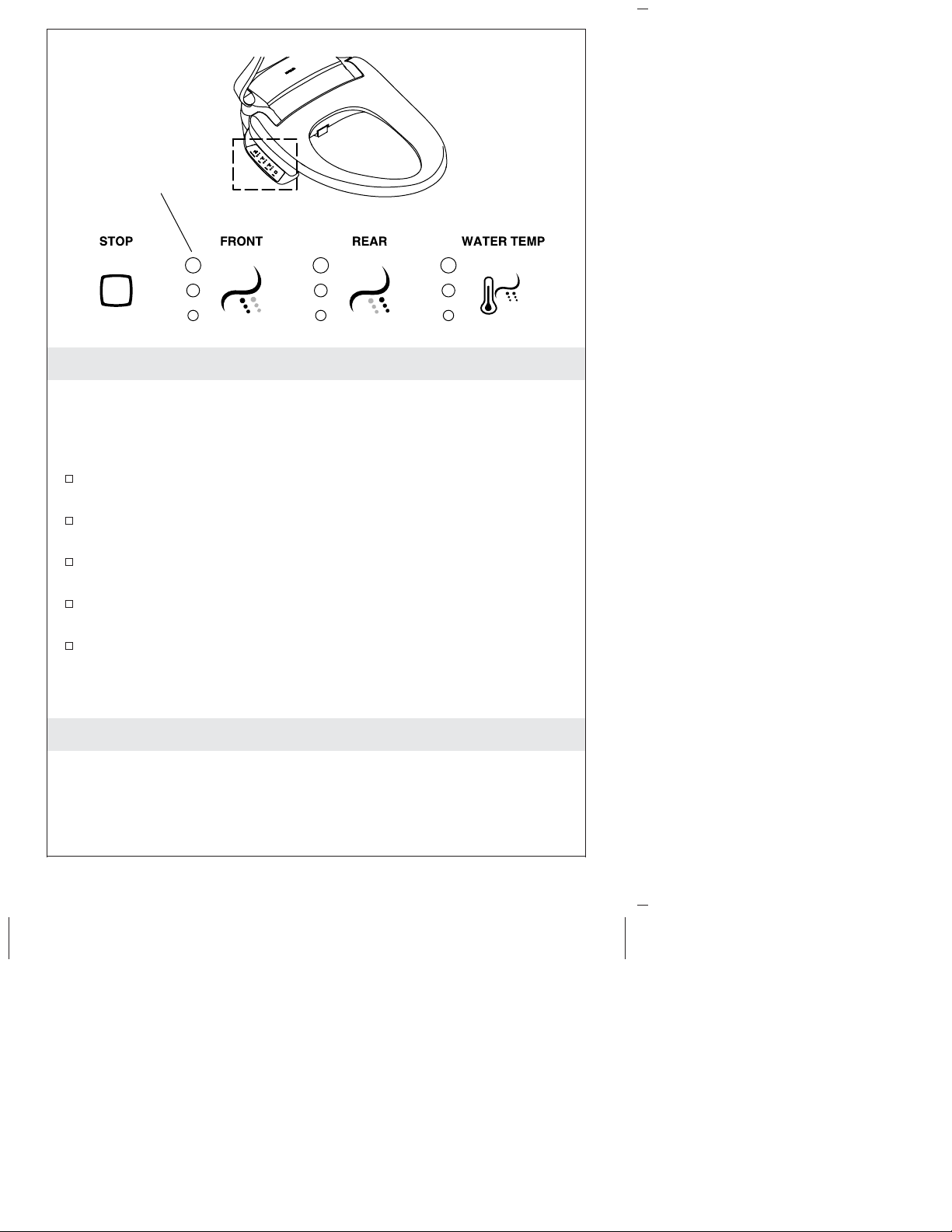

Operation
NOTE: For features with multiple settings, press the icon to move
the setting one level higher. If the feature is set at the highest level,
pressing the icon will deactivate it or adjust it to a lower setting.
″STOP″-Stops the front wash or rear wash feature.
″FRONT″-Activates the front wash feature and adjusts the front
wash water pressure.
″REAR″-Activates the rear wash feature and adjusts the rear
wash water pressure.
″WATER TEMP″-Changes the water spray temperature.
Status light - Shows the status of an enabled feature. Each feature
has three settings. The bottom light is low, middle is medium,
and top is high.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
Status
Light
Kohler Co. 5 1278653-5-B

Care and Cleaning (cont.)
•Use a soft, dampened sponge or cloth to wipe surfaces clean.
Remove the cleaner quickly after applying. Rinse and dry any
overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Never use an abrasive material such as a brush or scouring pad
to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
1278653-5-B 6 Kohler Co.

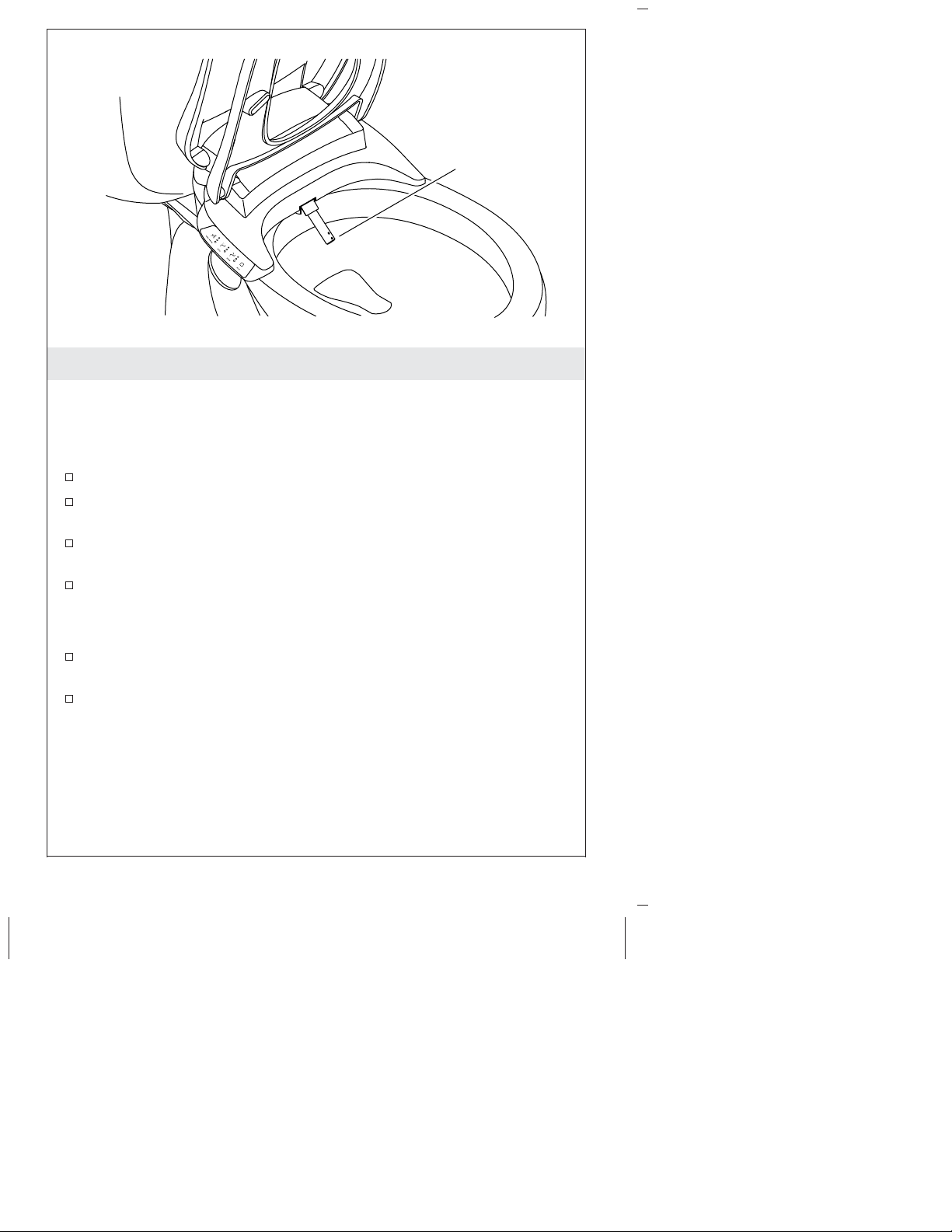

Cleaning the Spray Wand
NOTE: The spray wand can only be extended for cleaning when
the seat is not activated or occupied.
Manual Cleaning
Raise the lid and seat.
Press the ″FRONT″icon on the panel to extend the wand forward
for cleaning.
Clean the spray wand with a soft-bristled brush and hot water.
Press the ″FRONT″icon again to retract the wand.
Automatic UV Disinfection
An automatic 45-minute UV disinfecting cycle activates every 24
hours.
Lifting the seat lid will end a UV cycle that is in process.
Spray
Wand
Kohler Co. 7 1278653-5-B

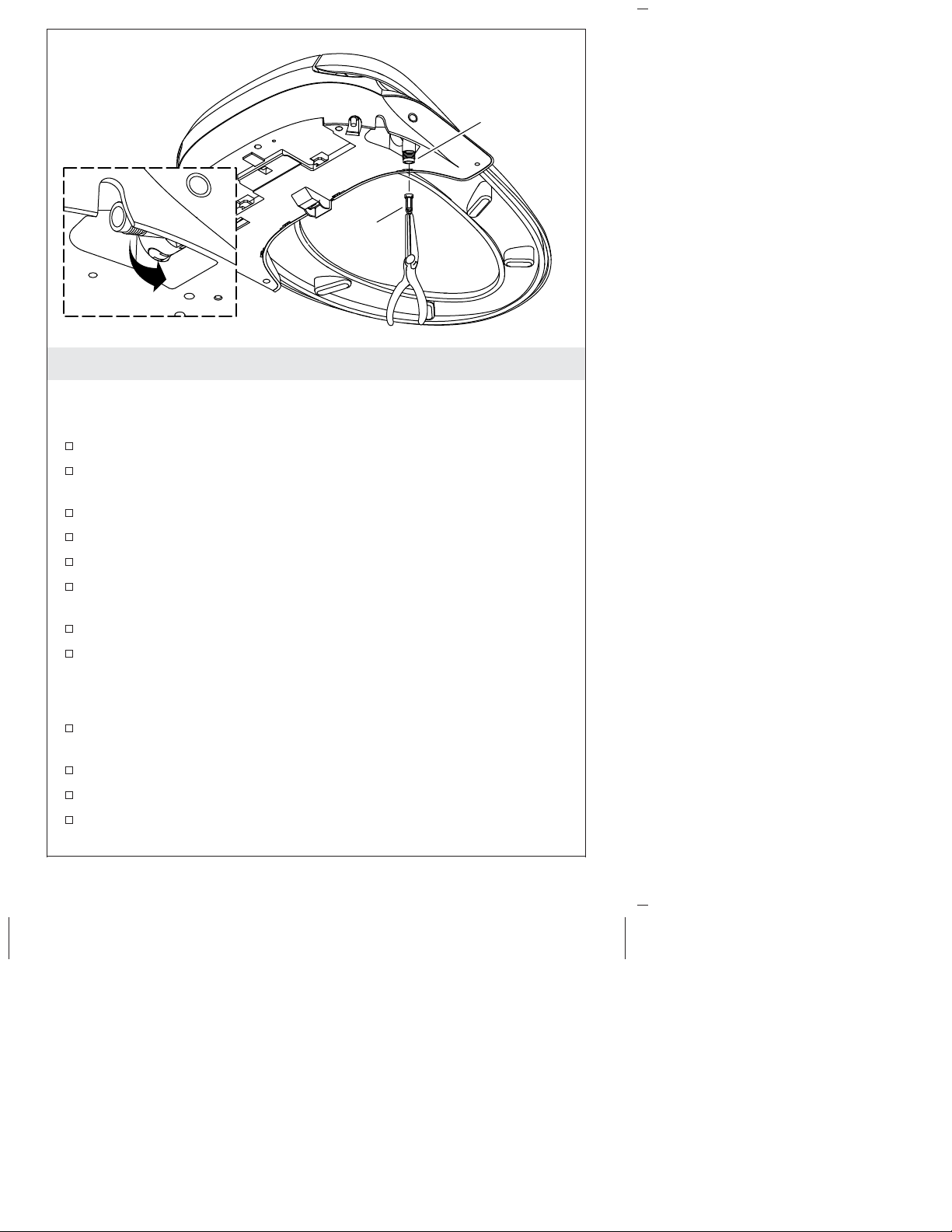

Cleaning the Filter Screen
NOTE: The filter screen should be cleaned every six months or
when there is a reduction in the maximum water flow from the
spray wand.
Turn off the water at the supply stop.
Press the release button to disengage the seat from the mounting
bracket. Refer to the ″Removing the Seat″Section.
Slide the seat forward to allow access to the hose inlet.
Rotate the inlet downward.
Disconnect the water supply hose from the inlet.
Using a long-nosed pliers, carefully remove the filter screen from
the inlet.
Clean the filter screen with a soft-bristled brush.
Reinstall the filter screen.
CAUTION: Risk of product damage. Do not cross-thread the hose
connection to the inlet.
Reconnect the water supply hose to the inlet, 1/4 turn past hand
tight.
Rotate the inlet upward.
Reinstall the seat.
Turn on the water supply.
Filter
Screen
Inlet
1278653-5-B 8 Kohler Co.

Cleaning the Filter Screen (cont.)
Check all connections for leaks and make any adjustments as
needed.
Kohler Co. 9 1278653-5-B

Removing the Seat
For Cleaning
IMPORTANT! When removing the seat for cleaning, take care to
avoid exerting any force on the hose connections.
Press the release button.
Slide the seat forward to access the area around the mounting
plate. Avoid putting pressure on the hoses.
Clean the area as needed.
To reinstall, slide the seat back until it engages the mounting
plate.
For Servicing
Turn off the water at the supply stop.
Flush the toilet to relieve any pressure from the supply hose.
Unplug the power cord from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Press the release button.
Slide the seat forward to disengage from the mounting plate.
When servicing is complete, reinstall the seat and reconnect all
components.
Release
Button
Mounting
Plate
