Konica Minolta PagePro 1350E User manual

The powerful
Personal printer
Trademark Statement
All rights reserved. Specifications are subject to change without notice. The Konica Minolta logos, used
trademarks, are trademarks or registered trademarks of Konica Minolta Holdings, Inc. All other trademarks or
registered trademarks are the property of their respective owners or manufacturers.
The Powerful
Personal Printer
REVOLUTION IN LASER PRINTING
PagePro 1350E

PagePro 1350E
Contents
Introduction 3
Specs at a glance 4
Ready to run 5
Engine 6
Dimensions & Environment 7
Controller 8
Paper Handling 9
Printer Control 12
Consumables 15
Online Support 16
Appendix 17
2

PagePro 1350E
Introduction
The PagePro™ 1350E : The
powerful personal laser printer
When it comes to a personal laser printer in a professional environment, a
few fundamentals are paramount: compatibility, reliability, speed, ease of
operation and high quality printing. The PagePro 1350E has all of these,
in one compact and durable unit. With superb power ensuring full
compatibility with a broad range of enterprise applications, it integrates
perfectly into any medium to large-size corporation.
The powerful personal printer
•Fast: up to 20 ppm A4, first page out in less than 13 seconds
•Powerful: PCL6 emulation, 200 MHz processor, 16 MB standard
memory.
•Reliable: High duty cycles (15000 pages), robust but stylish design
•Simple to use: toner starter kit, easy replaceable consumables,
simple control panel, status monitor
•Professional Quality: Professional laser sharp 1200x1200 dpi print
resolution.
•Affordable: low purchase price, low maintenance costs
Target users
The PagePro 1350E is targeted at small businesses and organisation
s
working with applications requiring PCL compatibility, but is also suitable fo
r
larger organisations – for employees who want to have direct access to
a
laser printer for their personal use and privacy.
•Personal laser printer in a professional environment
•Medium to large-size Corporation working with applications requiring
PCL compatibility.
•Employees in large organizations who need direct access to a laser
printer for their personal use and privacy
•Warehouse and Reception desks
3

PagePro 1350E
Specs at a glance
Technology Monochrome laser printer
Print Speed 20 ppm
First page out 13 seconds
Print resolution 1200 x 1200 dpi
Memory 16 MB standard, upgradeable to 144 MB
Emulation PCL 6, PCL 5e
OS Supported Windows 98 SE/ 2000 Professional/ Me/ XP Home Edition & XP Professional/ NT 4.0
Workstation & Server/ 2000 server/ 2003 server/ DOS, SAP3. (Mac OSX 10.2 and higher &
Linux are compatible by using third party solutions).
Interfaces Standard: IEEE 1284 parallel interface, USB 2.0 (High-Speed). Optional: external print server
Typerfaces 45 PCL Fonts
Paper Size supported A4, A5, B5, Letter, Legal, Postcard, Envelope
Media Supported Plain paper, recycled paper, thick stock, OHP transparencies, laser-quality labels, envelopes
and Japanese post office standard postcards
Paper Input 250-sheets multi-purpose tray
Paper Output 100-sheets face-down output tray
Consumable Yield Starter Kit: toner; 1,500 pages, OPC drum; 20,000 pages. Replacement consumables: Toner;
high capacity 6,000 pages, standard capacity; 3,000 pages. Drum; OPC drum 20,000 pages
Warranty 1 year PROTECT.REPLACE swap warranty (within EU; local law applies)
Max. Monthly duty Up to 15,000 pages per month
Size (W) 387 mm x (D) 430 mm x (H)283 mm
Weight Without consumables 7 kg, with consumables 7.8 kg

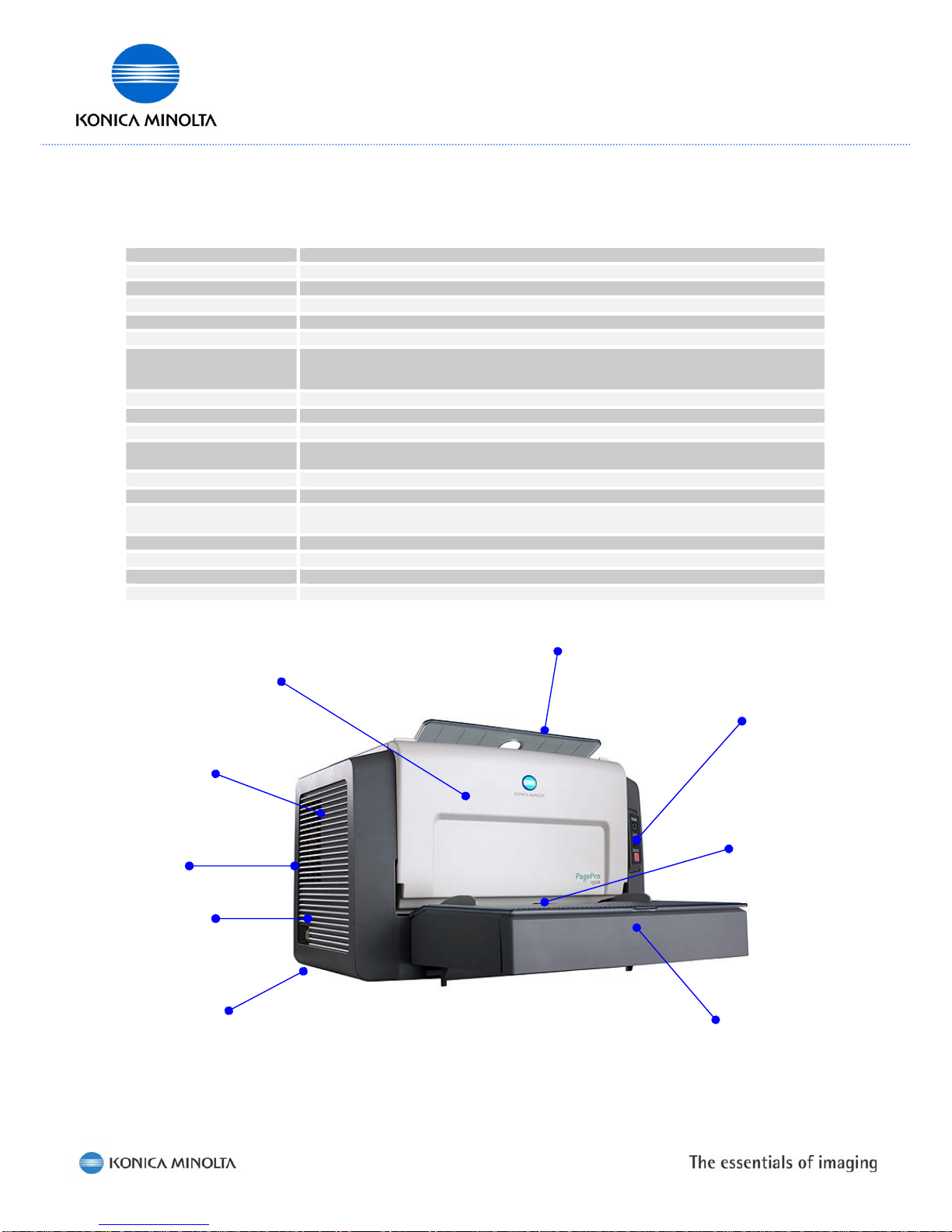

100-sheet ou
t
p
ut tra
y
Easy front door
access to consumables Easy to use
control panel
1200 x 1200 d
p
i
Manual tray
(1 sheet)
PCL 6,
PCL5e
16 MB
(144 MB max)
USB 2.0, Parallel,
Optional Print Server 250-sheets paper
input tray
4

PagePro 1350E
Ready to run
What ships in the box
•PagePro 1350E
•Utilities and Documentation CD
•One toner cartridge, 1500 prints (installed)
•One OPC drum cartridge, 20.000 prints (installed)
•Power Cord
•One 250-sheet paper input tray
•Installation guide (printed)
•General Information Guide (printed)
Printer Software
The following is included on the Utilities and Documentation CD:
•User Guide
•Installation Guide
•Installer
•Uninstaller
•Printer status monitor
•Driver set
5

PagePro 1350E
Engine
Excellent print quality and durability
are hallmarks of the PagePro 1350E
print engine.
The PagePro 1350E is based on the Minolta SP701 laser printer engine.
The engine features selectable resolutions of 600 x 600, 1200 x
600 (default), and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed
reduces by approximately half.)
Duty cycle
15,000 prints (A4 size) per month maximum.
Print speeds by page size and resolution
Page size* 600x600 dpi
1200x600 dpi 1200x1200 dpi
A4 20 ppm 10 ppm or more
* Normal paper
Note: print speeds for 1200x600 dpi are the same as 600x600 dpi
The PagePro 1350E produces high
quality prints like the one above at
full speed in both 600 dpi and 1200
x 600 dpi resolutions. Get 1200 x
1200 dpi resolution prints at 10
ppm.
First page out times
Page size*
600x600 dpi
1200x600 dpi 1200x1200 dpi
A4 13 seconds 22 seconds
* Normal paper
Note: First page out time for 1200x600 dpi is the same as 600x600 dpi
6

PagePro 1350E
7
Dimensions &
Environment
The PagePro 1350E is a powerful
machine in a compact body
Physical dimensions
Packaging
Width Depth Height
393 mm 493 mm 512 mm
Printer
Width Depth Height
387 mm 448 mm 283 mm (paper output tray closed)
387 mm 448 mm 348 mm (paper output tray extended)
Weight
Shipping 10.2 kg
Printer w/o consumables 7 kg
Operating environment conditions
Power supply 220-240V at 50/60 Hz
Power consumption •900W maximum
•400W or less (continuous printing)
•15W or less (Standby/Fuser off)
•80W or less (Standby/Fuser on)
•15W or less (Standby/Sleep)
Temperature (operating) 10° -35° C
Humidity (operating) 15 - 85% RH
Noise •54 dB (printing)
•52 dB (Midnight Mode)
•39 dB (standby)
Use the Status Display to enable “Midnight Mode” quieter printing for all
times or selected times during the day:

PagePro 1350E
Controller
Designed for professional Business
Individuals and small workgroups
the PagePro 1350E includes the
features needed.
Processor
The PagePro 1350E is powered by a ASIC D8701 processor operating at
200 MHz
Printer memory
The PagePro 1350E includes 16 MB of RAM on the controller. One DIMM
(Dual In-Line Memory) socket is available for additional system RAM. The
PagePro 1350E has a maximum memory capacity of 144 MB. An optional
128 MB DIMM Upgrade kit is available to reach maximum memory
capacity.
•Standard RAM: 16 MB
•Maximum RAM: 144 MB
Resolution
The printers default resolution setting is 1200x600 dpi. At 1200x1200 dpi
the printer speed decreases by approximately 50%.
•600x600 dpi
•1200x600 dpi (default)
•1200x1200 dpi (half speed)
Language Emulations
The PagePro 1350E is designed as a capable office laser printer
supporting common page description languages.
•PCL 6
•PCL 5e
•PJL (Compatible with HP LaserJet 1300)
Connectivity
Standard Interfaces:
•IEEE 1284 parallel
•USB 2.0.
Optional Interface:
•S.E.H. Baseline 650 PrintServer
Host computer requirements
PC Hardware IBM-compatible PC with at least a 233 MHz CPU
Operating System Windows Server 2003/XP/2000/Me/98SE
PC memory Windows Server 2003/XP: 129 MB, Win. 2000:
65MB, Win Me: 33MB, Win. 98SE: 17 MB
Hard disk space 128 MB or more
CD-ROM 1x or faster CD-ROM/DVD drive
8

PagePro 1350E
Paper handling
The PagePro 1350E supports a wide
range of paper sizes to meet the
needs of professional business
users.
The multipurpose tray holds up to
250 sheets of paper.
The output tray must be fully
extended for proper stacking and full
100-sheet capacity.
The PagePro 1350E includes a 250-sheet multipurpose tray for paper and
other print media. The tray accommodates all supported page sizes up to
A4 (210 x 297 mm).
Print media
The PagePro 1350E supports a range of print media to handle a variety of
applications.
Supported media
Normal/Plain paper 60 – 90 gsm
Recycled paper 60 – 90 gsm
OHP transparency *
Envelopes *
Post Card *
Thick stock 90 – 163 gsm
* Must be certified for laser printer and capable of withstanding fusing temperature
of 205° C (401° F)
Recommended Paper
Sheet Type Europe
Plain Paper
(recommended) Copy Paper 80 Copy Paper 70
(Neusiedler)
Recycle Paper Recycling Copy 80
(Steinbeis)
Transparency
Film 3M PP2500
Letterhead Fourstar 403C 75g/m²
Parchment Deed 13C 75g/m²
Parmanent Record 33C 75g/m²
Neenah Bond 2700 75g/m²
9

PagePro 1350E
The PagePro 1350E’s design motto
was “Easy to own, easier to use”.
Supported media sizes
Cut sheet x-dimension y-dimension
A4 210 mm 297 mm
B5 (JIS) 182 mm 257 mm
A5 148 mm 210 mm
Legal 8.5” 14”
Letter 8.5” 14”
G. Letter 8” 10.5”
Statement 5.5” 8.5”
Executive 7.25” 10.5”
Folio 210 mm 330 mm
Letter plus 8.5” 12.69”
UK Quarto 8” 10”
Foolscap 8” 13”
G. Legal 8.5” 13”
Chinese 16K 185 mm 260 mm
Chinese 32K 130 mm 185 mm
16K 195 mm 270 mm
Custom 76 mm (min)
216 mm (max) 127 mm (min) 356 mm (max)
Envelope
B5 (ISO) 176 mm 250 mm
#10 4.125” 9.5”
C5 162 mm 229 mm
DL 110 mm 220 mm
Monarch 3.875” 7.5”
C6 114 mm 162 mm
Cho #3 120 mm 235 mm
Cho #4 90 mm 205 mm
Postcard
Japanese postcard 100 mm 148 mm
Double postcard 148 mm 200 mm
X
Y
The table at right refers to
X and Y dimensions of the
media as diagrammed
above.

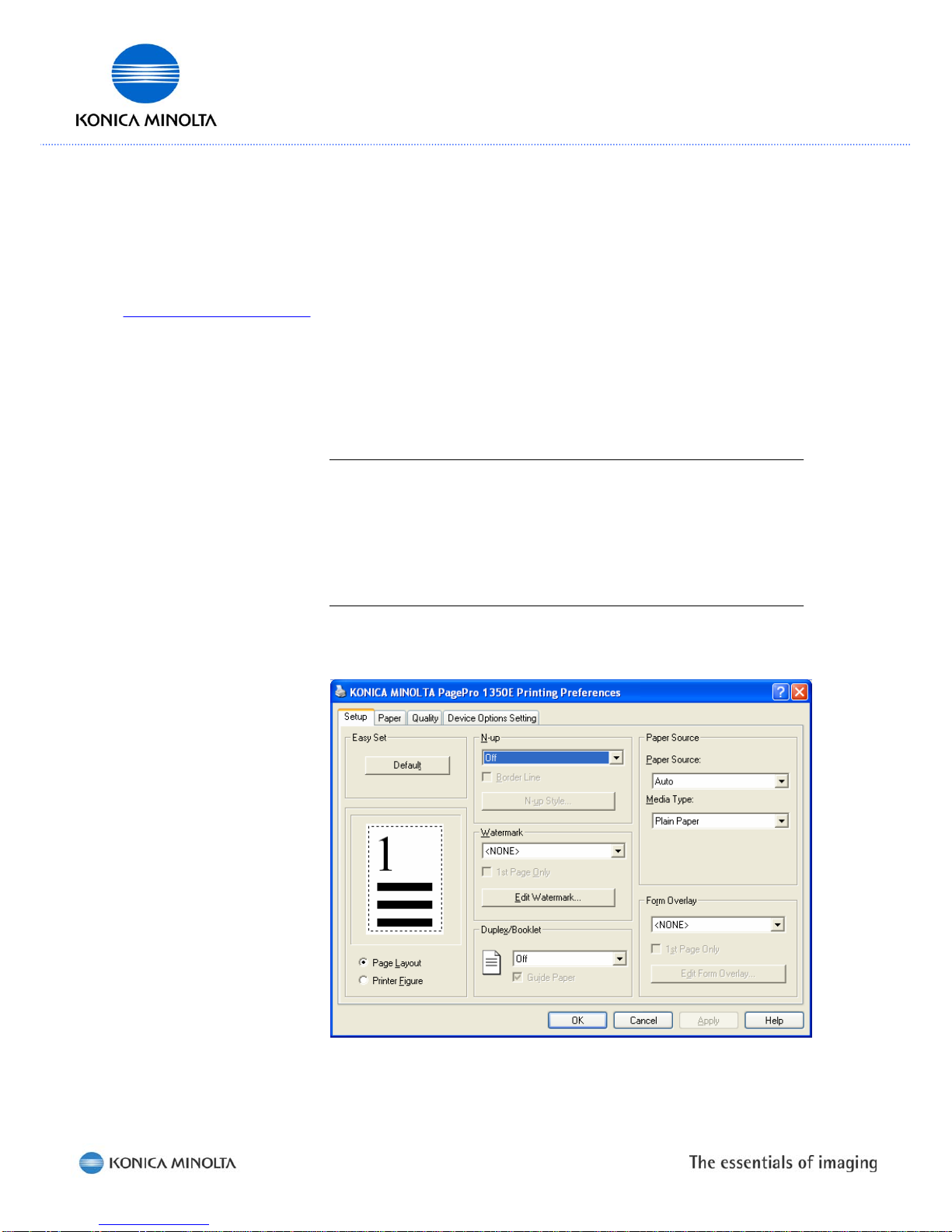

Define custom page sizes from the PagePro
1350E driver
