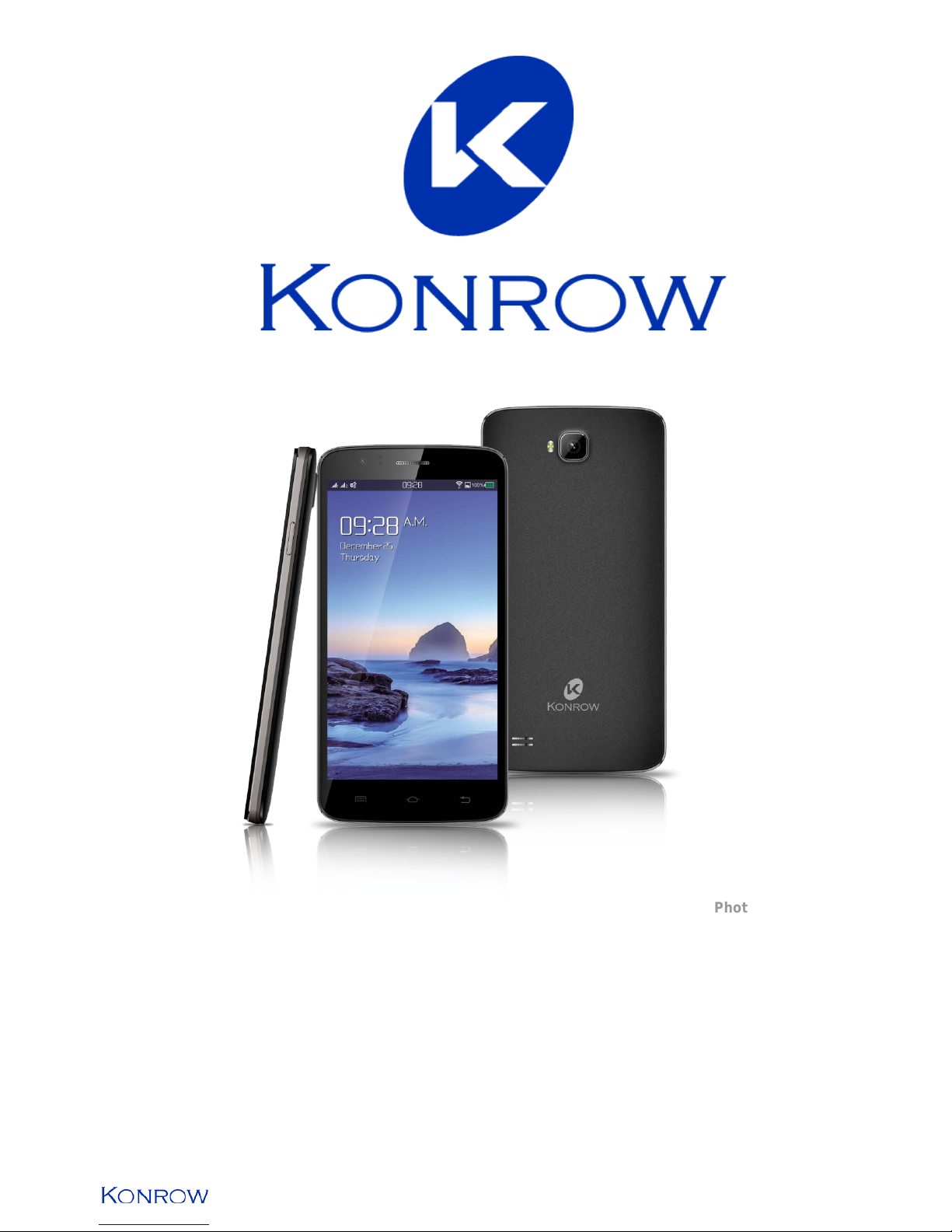

Konrow SMARTFIVE User manual

Photo may differ from the
actual product
QUICK START GUIDE
SMARTFIVE Smartphone
* Retrouver la notice d’utilisation complète de votre Smartphone L-EMENT 500 en téléchargement
sur notre site PDF

2
Got everything?
•1 x Smartphone
•1 x mains adaptor
•1 x USB cable
•1 x user guide
•1 x pair of earphones
NOTE: The packaging materials, such as the adhesive tape, plastic film, string and labels, are not part of this
product.
WARNING: For your safety, please do not remove the screen's protective film,
located under the antistatic film (with tab). It protects your screen against slight
scratches and provides optimum protection if the phone is dropped.
KONROW accepts no responsibility for personal injury sustained following removal of the protective film by the
consumer. Note that this protective film does not increase the robustness of the product. For replacement of the
protective film, please consult a specialist Smartphone dealer.
Installation guide
1. Description of the Smartphone
1 – Front camera
2 – Rear camera & flash
3 – Volume
4 – ON/OFF button
5 – Jack
6 – Micro USB port
7 – Speakers
2. Inserting a SIM card
The SMARTFIVE Smartphone is a mobile phone with dual SIM card, which enables you to use two lines on the same
Smartphone.Your SMARTFIVE has two SIM ports. A MicroSIM port and a standard SIM card port. To insert the SIM
card(s):
•Switch off the phone and remove the rear cover and battery.
•Insert the MicroSIM card correctly into the relevant card slots (see figure below). The standard SIM card goes
under the MicroSIM and MicroSD slots.
CAUTION : The 3G and 4G function can only be used on SIM card 1.
•Then replace the battery and cover.
1
2
3
4
7
6
5

3
3. Inserting a MicroSD
It is possible to increase the internal memory of the SMARTFIVE device with a MicroSD card. (maximum 32GB
MicroSD card).
•Switch off the phone and remove the rear cover and battery.
•Insert the memory card into the relevant slot.
•Then replace the battery and cover.
CAUTION: Inserting or removing a SIM card or a MicroSD card requires the Smartphone to be completely switched
off.
4. Installing and charging the battery
Installing the battery:
•Remove the rear cover of your Smartphone.
•Insert the battery ensuring that the image shown here is facing you.
•Replace the rear cover of the Smartphone.
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Model: SMARTFIVE Li Battery 3.7V DC / 2000 mAh
To replace the battery, please enquire with the after-sales service of your dealer.
Dispose of used batteries according to the instructions.
Charging the battery:
•To charge the battery, connect the USB cable (supplied) to the USB port of your Smartphone and the
other end to the mains adaptor (supplied). Then connect the mains adaptor to a power outlet.
•The battery charge icon illuminates during charging and indicates the charge status.
•When the battery is fully charged, you can disconnect the USB cable from the device then from the
power outlet.
IMPORTANT:
•The Smartphone is only recharged via its USB port.
•Ensure your Smartphone is fully discharged before charging it for the first time.
•The battery must be charged for at least 5 to 8 hours when first charged.
Note: You can use the device when it is being charged. In this case, the battery may take longer to charge fully.
Safety information for charging the battery:
•To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other
power supply or electrical device.
•The power outlet to which the device is connected must be near the equipment and must always be
easily accessible.
•Always wait at least 5 seconds after switching off the device before restarting it. Switching the device off
and then back on again immediately may damage the electrical circuits.
•Do not disassemble the battery. Do not dispose of batteries in fire or water. Do not charge the battery if
the room temperature exceeds 45° C.
•For all repairs or to replace the battery, consult a qualified technician.
•The lifetime of the battery depends largely on how you use it. Do not expose the battery to temperatures
less than 0°C or greater than 60°C. Its performance may be altered.
•Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of
data. If the device is not working properly, restart the Smartphone or unplug the mains adaptor from the
power outlet then plug it in again.

4
Getting Started
1. Switching the Smartphone on and off
•To switch the Smartphone on, press the On/Off button
located on the side of the Smartphone for 3 seconds.
•If the Smartphone is switched on, press for less than a
second on the button to put the device into standby mode.
Press it again to leave standby mode.
•To switch off the Smartphone, press the On/Off button for
3 seconds until a menu appears, then touch the Off
button and confirm.
2. Locking/unlocking SIM cards
Your SMARTFIVE is a dual SIM Smartphone. It enables you to phone using two lines from the
same device.
There are two SIM card slots.
•When you start up your phone, the latter invites you to enter the PIN codes of your two
SIM cards in succession. (SIM1 then SIM 2)
•The "emergency call" function enables you to call an emergency number without
entering the PIN code.
3. Locking/unlocking the screen
To unlock the screen:
•Press the power key on your phone.
•Hold and drag the unlock icon to the right to unlock the device.
You can configure the screen lock by adding a password or pattern to be replicated when unlocking your Smartphone.
CAUTION: Forgetting your screen lock password, PIN code or pattern
permanently blocks your Smartphone
If this is forgotten or lost, the product warranty will not cover such an oversight. Even a “reset”
cannot solve the problem. As a precaution, take a note of your password or pattern.
PASSWORD: _________________

5
4. Making a call
CAUTION:It is impossible to make or receive a call on the two SIM cards at the same time.
For example, if you are on a call on the SIM 1 line, those trying to contact you on SIM 2 will automatically be diverted
to voicemail.
•Tap the icon on the main menu or the home screen to dial the number of your choice.
•Tap the operator’s icon to call with SIM 1 or SIM 2.
•Press the +/- buttons to adjust the call volume.
•When you want to end a call, press the icon.
5. Receiving a call
•When a call is received, slide your finger over the icon.
•When you want to end a call, press the icon.
6. Activating the Wi-Fi connection
In the settings, slide the bar to YES to activate the Wi-Fi. The device automatically searches the available Wi-Fi
networks. Click on the network of your choice to activate it and connect to it.
You can also activate this function from the notifications panel.
The icon is displayed in the system tray when you are connected to a wireless internet network or when wireless
internet networks are detected by the device.
CAUTION:Most Wi-Fi networks are locked with a password (WEP or WPA2 PSK key). To connect to a locked
Wi-Fi network, click on it and enter the password for your network in the dialogue box which is displayed on the
screen.
The WEP or WPA2 PSK key for a Wi-Fi network is generally noted on a label located on the back of your
internet modem.
Note: Restart your Smartphone if necessary.
7. Downloading an application
Your SMARTFIVE Smartphone is supplied with the Google Playstore enabling you to download applications
such as utilities and games.
To access these to the store, go to the application page using the button located on the home page and tap the
Play Store icon.
Note: The availability of access to Google Play Store depends on your phone operator and the country in which you
are located. Access to the on-line store requires an account to be created.
NOTE: KONROW shall under no conditions be responsible for the content on the on-line store. The product
warranty will not cover any malfunction due to an application from on-line stores.

6
Listening safety
•Before using the earphones, check that the volume is not set to maximum to prevent hearing loss.
•The high volume settings are intended for individuals with reduced hearing capacity and not for those
with normal hearing.
•Do not use the earphones while driving.
•Adjust the volume so that you can hear the sounds around you.
•To prevent possible hearing damage, do not listen at high volume levels for long periods.
•Listening to a portable audio player at high volumes can damage your hearing and
lead to hearing impairment (deafness, ringing ears, tinnitus and hyperacusis).
In order to prevent these risks it is recommended not to use the device at full volume;
use must not exceed one hour per day.
•This product complies with the EN 60950-1:2006/A12:2011 standard "Information
technology equipment - Safety - Part 1: General requirements" in accordance with the
order of 25 July 2013 implementing Article L. 5232-1 of the French Public health code concerning
portable audio players.
•Do not use pre-amplified or amplified models of headphones or earphones (i.e. with individual volume
control and/or self-powered by batteries), as they do not ensure adherence to the maximum volume.
Electromagnetic waves safety information (SAR)
Your SMARTFIVE Smartphone is designed to not exceed the radio wave limits recommended by the European
authorities. These limits include safety margins to ensure the protection of all persons regardless of their age or
health.
The SAR (specific absorption rate) of mobile phones quantifies the maximum level of exposure of the user to
electromagnetic waves, for aural use. French legislation stipulates that the SAR must not exceed 2 W/kg averaged
over 10g of tissue.
The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory
tests.
The actual value of the SAR during use of the phone is lower than this level.
The value of the SAR of the phone can vary according to the following factors: how far/close the phone is to a relay
antenna, use of accessories and others.
The maximum SAR level of your SMARTFIVE Smartphone is given in the following table:
Position
Connectivity
SAR value
Head
EGSM900 / DCS1800/ WCDMA2100
Body
EGSM900 / DCS1800/ WCDMA2100
NOTE:The SAR value may vary, depending on national reporting and testing requirements and the network band
.CAUTION:
•Do not use your Smartphone in certain locations such as aircraft, hospitals, service stations and professional
garages or while driving a vehicle. The electromagnetic waves from the Smartphone can disrupt the
performance of electronic devices used in these locations.
We recommend that you switch off your phone or switch it to flight mode in these locations to avoid
interference.
•If you use an electronic implant (pacemakers, insulin pumps, neurostimulators, etc.), please keep a distance
of 15cm between the Smartphone and your electronic implant.
•When using a hands-free kit, pregnant women should keep the phone away from their abdomen and
teenagers should keep the phone away from their lower abdomen.
Advice to reduce the level of exposure to radiation:
•Please use your Smartphone where reception is good to reduce the quantity of radiation received (avoid using
in an underground car park or when travelling [train or car]).
•A reception icon indicates the quality of reception on your phone. A 4-bar display means that reception is
good .
•Use of a hands-free kit also allows the level of exposure to be reduced.

7
Safety and care information
•Read these instructions carefully.
•Keep these instructions.
•Follow all these instructions.
•Heed the warnings.
•Clean your smartphone only with a soft cloth (dry or slightly damp).
•Do not attempt to disassemble the device; it would no longer be covered by the warranty.
•Do not bring sharp objects directly into contact with the surface and do not spray any cleaning product
directly onto the screen.
•Do not exert excessive pressure on the screen and do not put objects on it. This could damage the
screen.
•Use the spare parts specified by the manufacturer.
•After any service or repair carried out on this product, ask the technician to perform a safety check.
•Use only the spare parts/accessories specified by the manufacturer.
•Refer to a qualified person for any repairs. Repair is required if the device is damaged in some manner
or other, if the power cord or plug is damaged, if liquid has been spilled or objects have fallen on the
device, or if the device has been exposed to rain or moisture, or has been dropped.
•Do not expose the device to direct sunlight or other source of extreme heat or cold.
•Respect the privacy of others when using your Smartphone.
•Keep the device away from all metal objects (coins, keys, etc.).
•Do not leave near a magnetic field as this could cause data to be lost or could damage the device.
•Do not drop the device.
•Do not expose the device to shocks, frictions or impacts.
•In order to prevent data loss, remember to make a (computer or paper) back-up of information saved on
the device.
•To prevent interference, do not use the device near other electronic devices, a pacemaker or medical
equipment.
•Operating temperature: 5-40°C.
NOTE: In order to reduce any risk of fire or electric shock:
•Do not expose this device to rain or moisture.
•Do not expose the product to water droplets or to splashes and do not place any object filled with liquid,
such as a vase, on the device.
•Do not use the product near flammable or explosive materials.
•The power plug is used to disconnect the device and must always be easily accessible.
•In order to completely disconnect the device from the electricity supply, the power plug must be
disconnected from the power outlet.
•Do not attempt to override the safety features of the polarized plug or the earth connection. A polarized
plug has two pins, one of which is wider than the other. A plug with an earth connection has two flat pins
and a third round pin for the earth connection. The widest pin and the third pin constitute the important
safety features designed to protect you. If you cannot manage to fully insert the plug into the wall outlet,
contact your electrician to replace the obsolete wall socket.
•Disconnect this device during electrical storms or when not in use for an extended period.
•Switch off the device in places presenting risk of explosion and when travelling by plane.
•Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.
•The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet,
where it is plugged in or where it is connected to the device.
•Do not overload the power outlet. Use the power supply only as indicated.
•Do not install this device near heat sources such as electric hobs, cookers or others (including
amplifiers).

8
Warning on using the phone while driving
In France, in accordance with Article R412-6-1 of the French highway code, drivers are not permitted to use
hand-held phones whilst the vehicle is moving.
The penalty for non-compliance with this article is a fine and a 3-point penalty on your driving license.
The use of a hands-free kit is permitted. However, Article R412-6 of the French highway code provides a fine without
license penalty points if the driver is not in a position to carry out required manoeuvres comfortably and without delay
when using his hands-free kit whilst driving.
NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in
the country where you are travelling.
Epilepsy warning
Please read before using a video game or allowing your children to use one.
Some people are susceptible to epileptic seizures or loss of consciousness when exposed to certain flashing
lights or light patterns in everyday life. Such people may have a seizure while watching television images or
playing certain video games. This may happen even if the person has no medical history of epilepsy or has
never had any epileptic seizures. If you or anyone in your family has ever had symptoms related to epilepsy
(seizures or loss of consciousness) when exposed to flashing lights, consult your doctor prior to playing. We
advise that parents should monitor the use of video games by their children. If you or your child has the
following symptoms while playing a video game, stop playing IMMEDIATELY and consult your doctor: dizziness,
blurred vision, eye or muscle twitches, loss of consciousness, disorientation, any involuntary movement or
convulsion.
Precautions to take during use of any video game:
•Do not sit too close to the screen. Sit a good distance away from the television screen, as far away as
the length of the cable allows.
•Preferably play video games on a small television screen. Avoid playing if you are tired or have not had
much sleep.
•Make sure that the room in which you are playing is well lit.
•Rest for ten to fifteen minutes per hour while playing a video game.
Recycling
The symbol shown here and on the product means that the product is classed as Electrical or Electronic
Equipment and should not be disposed with other household or commercial waste at the end of its
working life.
The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to
recycle products using best available recovery and recycling techniques to minimize the impact on the
environment, treat any dangerous substances and avoid the increasing landfill.
Product disposal instructions for residential users:
If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local
recycling procedures. For more information please contact your local authority or the retailer where the product was
purchased.
Product disposal instructions for business users:
Business users should contact their suppliers and check the terms and conditions of the purchase contract and
ensure that this product is not mixed with other commercial waste for disposal.
The warranty scope of application
If you encounter any problems:
A contact form and complete FAQ are available on our website:
www.konrow.com
An interactive vocal server is also available containing information available on the FAQ section of our website
at the following number: 09 72 50 06 23
© 2014 KONROW
If none of these platforms does solve your problem, contact your retailer.
For security reasons, only our technical staff can intervene on our products, because of that we never provide
any spare part.

9
The manufacturer shall not be held responsible for
modifications made by the user or any resultant
consequences which could affect the conformity of the
product with the CE marking. Any unauthorized
modif
ication of the product voids this declaration of
conformity.
The KONROW supplier warranty is valid for normal use of the device as defined in the instructions.
This warranty excludes damage caused by external circumstances.
Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating
error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection
against heat, humidity, or freezing temperatures.
The warranty is applicable only in metropolitan France.
• The warranty does not cover user manuals or applications, settings, content or data of any kind.
• The warranty does not cover normal usury of the product. (Screens, batteries and camera)
• The warranty does not cover damage to the product due to misuse, including in particular those caused by
objects, a pressure or a drop.
• The warranty does not cover any use of the label with the precautions outlined in the manual.
• The warranty does not cover defects caused to the product with another product connected or used with an
accessory or software not provided by KONROW.
• The warranty does not cover any damage to the battery.
• The warranty does not cover the product or its accessories if it has been disassembled or modified in any way.
• The warranty does not cover any unidentifiable product by serial number or IMEI number(s). If its elements
have been removed, altered or defaced, the warranty does not apply.
• The warranty does not cover damage done to the product caused by exposure to moisture, conditions that
extreme heat or cold, corrosion, oxidation, with any liquid whatsoever.
• The warranty does not cover any damage to SIM player(s) or MicroSD reader.
The legal warranty for hidden defects applies in compliance with Articles 1641 and seq. of the French Civil
Code.
Declaration of conformity
We, KONROW (Address: 27 Boulevard d'Arras - 13004 Marseille),
declare that the KONROW’s SMARTFIVES martphone complies with the essential requirements of the Directive
R&TTE 1999/05/EC applicable to the following European standards:
0700
V1.2
