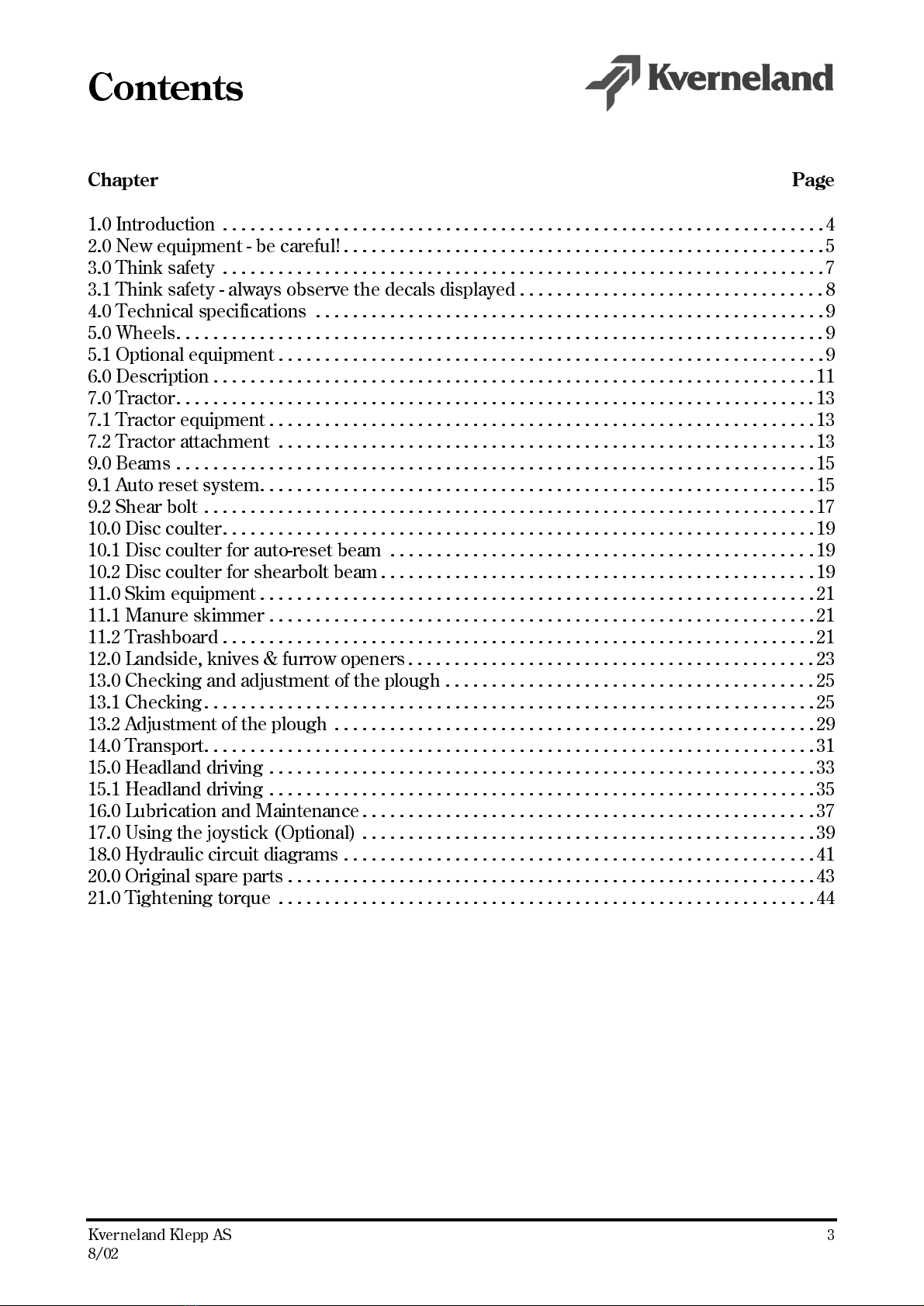

Contents
PageChapter
Kverneland Klepp AS 3
8/02
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.0 New equipment - be careful! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.0 Thin safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.1 Thin safety - always observe the decals displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4.0 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5.0 Wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5.1 Optional equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.0 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
7.0 Tractor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.1 Tractor equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.2 Tractor attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
9.0 Beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
9.1 Auto reset system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
9.2 Shear bolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
10.0 Disc coulter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10.1 Disc coulter for auto-reset beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10.2 Disc coulter for shearbolt beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11.0 S im equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11.1 Manure s immer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11.2 Trashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.0 Landside, nives & furrow openers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
13.0 Chec ing and adjustment of the plough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13.1 Chec ing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13.2 Adjustment of the plough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
14.0 Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
15.0 Headland driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
15.1 Headland driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
16.0 Lubrication and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
17.0 Using the joystic (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
18.0 Hydraulic circuit diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
20.0 Original spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
21.0 Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

gb_ ntroduksjon_s kkerhet.fm
48/02
1.0 Introduction
Congratulations on the purchase of your new Kverneland plough. You have chosen a product
which will give you trouble free service and performance to the highest standards expected.
Should you require after sales, service or the supply of spare parts, please contact your local
Kverneland dealer.
All Kverneland products are developed and tested in co-operation with farmers and institutions
with the purpose to secure the most optimal function and safety in operation.
For your safety, we as you to read through this operator's manual before you begin to use the
equipment.
Good luc !
Kverneland Klepp AS
4355 Kvernaland
Tlf.: 51 42 90 00
Fax:[phone]

gb_ ntroduksjon_s kkerhet.fm
8/02 5
2.0 New equipment - be careful!
It is very important to be careful when new equipment is going to be used for the first time.
Incorrect mounting of equipment and operational errors can lead to expensive repair wor and
operational losses. The Kverneland factory warranty is not valid if the instructions in this
operating manual are not followed correctly.
Please ensure that all equipment is mounted correctly and that it is not damaged. Also, chec that
the hydraulic hoses are mounted such that they are long enough for free hydraulic cylinder
movement and that they do not become trapped during implement operation.
When leaving the Kverneland fac tory a ll new equipment is lubricated with the correct ind of
grease. Only use quality grease recommended.
Chec that all nuts and bolts are firmly tightened (loo at chapter 21.0 Tightening torque), this is
very important after the first hours in use.
Important Safety Recommendations
All mounted reversible ploughs:
On large fully mounted reversible ploughs it is recommended to replace the cross shaft after
approx. 1000 m of transport operation. This is for safety r easons in the unli ely event a fa ilu re
should occur.
Hydraulic system:
The hydraulic system is wor ing under high pressure and is therefore potentially dangerous. It is
very important that all hoses and connections are chec ed frequently for lea age and external
damage.
The hydraulic hoses should not be connected to, or removed from the hydraulic system on the
tractor unless the oil pressure in both the tractor and implement has been released.
In accordance with the EU-directive, all hydraulic hoses should be exchanged with new genuine
Kverneland replacements after 6 years. Porous and defective hoses must always be replaced
immediately.
Oil leakage from damaged hoses and connections can cause fatal injury and possible fire
risk.
Al ays seek medical treatment immediately follo ing an injury.
Note: The sound level on all ploughs is less than 70 dB.

Complete model code and serial number must be stated to
avoid mistakes when ordering spare parts and
misunderstandings regarding service consultations. The
identification plate is located on the headstock.
Le code complet et le numéro de série doivent être
indiqués pour éviter des erreurs lors de la commande de
pièces de rechange et des malentendus concernant des
demandes de Service Après Vente. La plaque d’identité est
située sur la tête.
Um bei Ersatzteilbestellungen und Serviceleistungen
Fehler und Mißverständnisse zu vermeiden ist es
erforderlich, daß die genaue Bezeichnung und die
Seriennummer angegeben werden. Die Plakette befindet
sich am Drehwerk.
Debe figura el codigo completo del modelo y el numero de
serie para evitar errores al pedir las piezas de recambio y
al hacer consultas tecnicas. La placa de identificacion esta
situada en el cabezal.
Maschine no.:__________
Delivery year:__________
GB
F
D
E
NO
KG
MADE IN NORWAY
BY KVERNELAND KLEPP AS
N-4355 KVERNALAND - NORWAY
GB Model
D Modell
F Modelé
E Modelo
GB Headstock
D Drehwerk
F Type de tête
E Tipo de cabezal
GB Serial number
D Seriennummer
F Numéro de serie
E Numero de serie
GB Type of body
D K rperform
F Type de corps
E Tipo de cuerpo
MOD
WEIGHT
GB Interbody clearance
D K rperlängsabstand
F Dégagement sous age
E Separaciòn entre cuerpos
Type of beam:
Heavy Duty
Vibromat
On-land
gb_ ntroduksjon_s kkerhet.fm
68/02

gb_ ntroduksjon_s kkerhet.fm
8/02 7
.0 Think safety
Read the instruction
manual and follow the
instructions given.
The tractor should be fitted
with enough front-end
weights for stability and to
maintain secure steering.
Do not stand on, under or
close to the implement
while it is in work or while
coupling it to the tractor.
Use the tractor’s position
control when coupling the
implem ent to the tractor.
Do not stand under or near
the implement unless it is
properly supported.
Do not stand between
tractor and implement
while it is being raised.
hen p arking the t ract o r -
always lower the
implement.
The tractor's lower link
arms should be stabilised
before driving on a public
road so that the plough and
tractor lower link arms do
not touch the tyres during
transport.
The implement must not be
used for other purposes
than those it is constructed
for.
Make sure that all nuts and
bolts are always fully
tightened.
The user should be familiar
with the function and safe
use of the implement.
The user is responsible for
ensuring the implement
complies with the law when
driving on public roads.

gb_ ntroduksjon_s kkerhet.fm
88/02
.1 Think safety - always observe the decals displayed
1. Warning: Always read the instruction manual.
2. Danger: Do not stand between tractor and
implement.
3. Use the par ing support.
4. Danger: Reversible plough.
5. Crush danger: Keep clear.
6. Crush danger: Keep clear.
7. Sharp point: Keep clear.
8. Crush danger: Keep clear.
9. All nuts should be tightened after some hours
of use.

PLRL_gb_tekn ske_spes f kasjoner.fm
8/02 9
4.0 Technical specifications
1. Net. we ght w thout equ pm.
5.0 Wheels
Rubber depth wheel, 12,5/80 x 12 layers
Rubber depth wheel,12,5/400 x 22,5, 8 layers
Rubber depth wheel,12,5/400 x 22,5, 14 layers
Rear depth wheel, 200 x 14,5
Rear depth wheel, 26 x 12 - 12
5.1 Optional equipment
S immers
Maize s immers
Trashboards
Disc coulters
Landside nives
Furrow opener (for tractors with wide tyres)
First furrow hydraulic adjustment
Pac omat (integral soil pac er) - different widths of rollers, front and rear equipment
Model
Inter
body
clear.
Under-
beam
clear.
Number
of
furrows
Beam
type Frame size (mm) Furrow width (cm)
Pac o
-mat
S
Pac o
-mat
C
Weight
g (1)
PL-100/
PL-100-OL
100 70/75 6(3 + 3) 7(4 + 3)
8(5 + 3) Auto 150x150x
12,5(6,3) 35 - 50 No Yes 3400/3820/
4250
RL
RL-100-OL
100 70/80 6(3 + 3) 7(4 + 3)
8(5 + 3) Fixed 150x150x
12,5(6,3) 35 - 50 No Yes 2050/3420/ 3800

PLRL_gb_tekn ske_spes f kasjoner.fm
10 8/02
Fig. 1
ABC
D
EF

PLRL_gb_tekn ske_spes f kasjoner.fm
8/02 11
6.0 Description
The plough (fig. 1) consists of a tow frame (A), a first main frame (B), a second main frame (C) and
a wheel carriage (D). The two main frame sections are joined together by a special hinge (E) on
the wheel carriage.
The wheels automatically align parallel with the landside when the plough is turned from one side
to another.
All body and leg assemblies are fastened by means of M24" bolts (F) to the main frame, thereby
allowing the furrow width to be varied from 14'' to 20'' (35 - 50 cm).
The "on-land" version can be used for both "in-furrow" and "on-land" operation. This is achieved
by operating the special 3-stage first furrow-adjusting cylinder.
When driving “on-land”, maximum overall wheel setting on the tractor is 3200 mm.

gb_PLRL_traktor.fm
12 8/02
Fig. 2 Fig. 3
Fig. 4
A

gb_PLRL_traktor.fm
8/02 13
7.0 Tractor
7.1 Tractor equipment
The tractor must be equipped with (minimum) :
- One double acting hydraulic outlet for the turnover cylinders
- One double acting hydraulic outlet for the wheel carriage. If the plough is equipped with a
joystic or foot pedal the following operations can be made-
a) Raise and lower the centre carriage section,
b) Raise and lower the rear ploughing section,
c) Adjust the Vari-Width furrow width system
-
Optional equipment can be delivered:
- One double acting hydraulic outlet for the hydraulic furrow width adjustment
- One double acting hydraulic outlet for Vari-Width system if a joystic /foot pedal control is not
used
- One double acting hydrauli c outlet for the hin ge c ylin der if a joystic /foot pedal c ontrol is n ot
used
- If the plough is equipped with a Pac omat, additional outlets may be required.
NB! The tractor l ower lin a rms (A, fig. 4) must be sta bili sed pr eventin g sideways movement. If
this is not possible, the free movement has to be limited and equal on both sides.
Front-end tractor weights are usually required. For "in-furrow" operation, the rear tractor wheel
setting (between inside faces of tyres) should be from 110 to 160 cm. When using a 4WD-tractor it
is most important that wheel distance in front is not less than that of the rear wheel setting. If the
distance in front is less than the rear, there will be a width variation on the first furrow. However,
when using a 2WD-drive tractor it can be an advantage to adjust the front wheels 0 to 10 cm. wider
for optimum ploughing performance (fig. 2).
When part of the tractor tyre rolls on the land with a distance (E) or when using a furrow opener
(fig. 3) the rear wheel distance (D) would be A + 2E. NB! When using furrow openers, the width
of the front furrow (E) will be narrower than the remaining furrows. The front furrow width should
always be set from the original furrow wall.
The tractors' lift rods should be equal in length and the angle of the lower draft arms equal on both
sides. The air pressure must also be equal on both rear wheels.
7.2 Tractor attachment
The cross shaft is delivered with Cat. III (Ø36 mm) 965 mm.
The par ing stands must be raised before ploughing and put down again when par ing the plough.

gb_loftevende_ste nutloser.fm
14 8/02
Fig. 5 Fig. 6 Fig. 7
Fig. 8 Fig. 9
Fig. 10
F
1
1
2
3
4
5
5
4
E
H
I
G
F
G
I
H
A

gb_loftevende_ste nutloser.fm
8/02 15
9.0 Beams
9.1 Auto reset system
Fig. 5 shows the HD-spring. For heavy soils two additional leaves No. 5 can be supplied (fig. 5). The
standard spring is with two leaves No. 5. For heavy soils, it is possible to mount two spring units on
top of each other.
To disassemble a complete beam with body and s im equipment:
- Ensure that the beam is sitting against the balls and is supported by lifting equipment or by
par ing the plough on a level floor.
- Release the spring tension by loosen the bolts (E) and (F) (fig. 6).
The spring suspension rod (H) (fig. 7) is pushed forward allowing the bolt (A) (fig. 8) to be pulled
out. The beam is now dismounted from the plough and can be removed.
Assemble in reverse order.
The spring is tightened by means of the two bolts (E) and (F). Screw in the bolt (E) halfway. Then
turn bolt (F) so that the clearance (I) between the drawbar and the inner side of the leg section is
1 - 2 mm (fig. 7). Finally bolt (E) (fig. 6) is adjusted until the distance between (J) and (K) is 70 cm
(fig. 9). This dimension is mar ed on the side of the long spanner (fig. 10).
With correct adjustment, maximum spring tension is achieved. Always use the correct number of
leaves to suit soil type. Too many leaves fitted will prevent the auto-reset system to operate
correctly.
Over time, the spring will become out of adjustment and must then be re-set again in accordance
to fig. 9.
NB! Always maintain the setting as per the decal (70-cm). If ignored, the spring system may not
function correctly and will result in the assembly flexing the wrong way (fig. 9, decal).

gb_loftevende_skjaerbolt.fm
16 8/02
Fig. 11
C
A
B

gb_loftevende_skjaerbolt.fm
8/02 17
9.2 Shear bolt
Fig. 11 shows a shear bolt protected beam assembly, (A), M20.
IMPORTANT :
Bolt B has M30 and right hand threads.
Bolt C has M30 and left hand threads.
Tightening torque for shear bolt (A) = 545 - 600 Nm (55,5 - 61 pm).
Tightening torque for bolt (B) and (C) = 883 - 932 Nm (90 - 95 pm).
NB! Only use original shear bolts!

PGRG_gb_rullekn v.fm
18 8/02
Fig. 12
Fig. 13 Fig. 14
Fig. 15 Fig. 16
T
X
U
X
T
2/3 D
D
1/3 D 5 cm
1-4 cm
AB
U
X
B
A
C
U

PGRG_gb_rullekn v.fm
8/02 19
10.0 Disc coulter
10.1 Disc coulter for auto-reset beam
Disc coulters can be mounted on all furrows on ploughs fitted with the auto-reset beam.
The disc coulter for the auto-reset beam can be delivered in two variants. The most common type
is shown in fig. 12 to fig. 14. Adjust the depth by loosening bolt (T) (fig. 13). The limit stop for the
turning angle for the disc is also adjusted by loosening the bolt (T). Care must be ta en when
adjusting the rear disc coulter so that it does not collide with the rear depth wheel.
The disc coulter is adjusted so that 1/3 of the diameter (D) cuts into the ground. this will ensure
positive rotation and avoid the disc from stopping. The distance between the coulter and the share
should be minimum of 5cm. When wor ing in stony soil, the distance should be increased.
The distance between the coulter and the landside can be adjusted by loosening both bolts (U) and
turning the eccentric (X). The distance should be 1 - 4 cm (fig. 14).
Disc coulter with parallel side adjustment is shown i fig. 16. To adjust the wor ing depth, bolt (A)
(fig. 16) is loosened and the arm (B) is raised up or down against the serrated boss mounted to the
arm (C). The distance between the coulter and the landside can be adjusted by loosening bolt (U).
The cran ed arm (C) is then moved to the appropriate wor ing position and b olt (U) tightened. The
disc distance should be 1 - 4 cm (fig. 14).
10.2 Disc coulter for shearbolt beam
Disc coulter for fixed beam is shown in fig. 15.
The disc coulter can only be mounted on the rear body assembly.
The disc coulter is adjusted so that 1/3 of the diameter cuts into the ground. The limit stop for the
turning angle for the disc is also adjusted by loosening the bolt (T). The distance between the
coulter and the share should be minimum 5cm. When wor ing in stony soil, the distance should
be increased.
Adjust the depth by loosening bolt (A) (fig. 15) and adjust the disc to the correct wor ing position.
When shallow ploughing, it is possible to adjust the disc's depth by lowering the shaft (B) (fig. 15).
The distance between the disc coulter and the landside can be adjusted by loosening both bolts (U,
fig. 15) and turning the excentric (X). The distance should be 1 - 4 cm (fig. 14).
NB! Remember to tighten all the bolts frequently.

gb_loftevende_skumutstyr.fm
20 8/02
Fig. 17 Fig. 18
Fig. 19 Fig. 20
Fig. 21
A
B
A
W
X
Y
Z
V
