Leica MC120 HD User manual

Leica MC120 HD / MC170 HD
User Manual

Leica MC120 HD / MC170 HD User Manual 2
Contents
General Notes
General Notes 5
Important Safety Notes 6
Symbols Used 7
Safety Instructions 8
Introduction
Congratulations! 11
Standard Delivery and Optional Accessories 12
Overview of the Instrument 13
Effective Displayed Section 14
Assembly

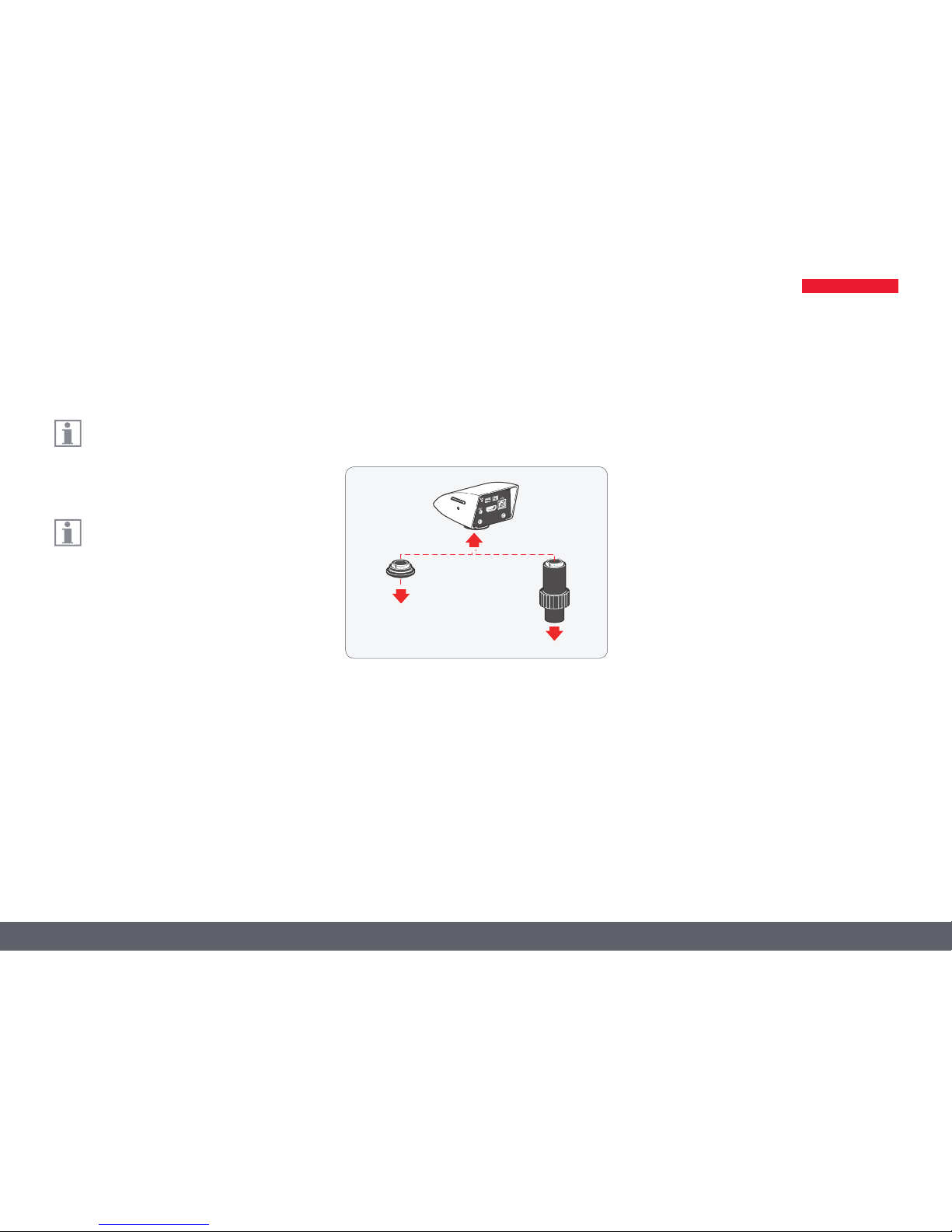

Assembling the Camera 16
Installation

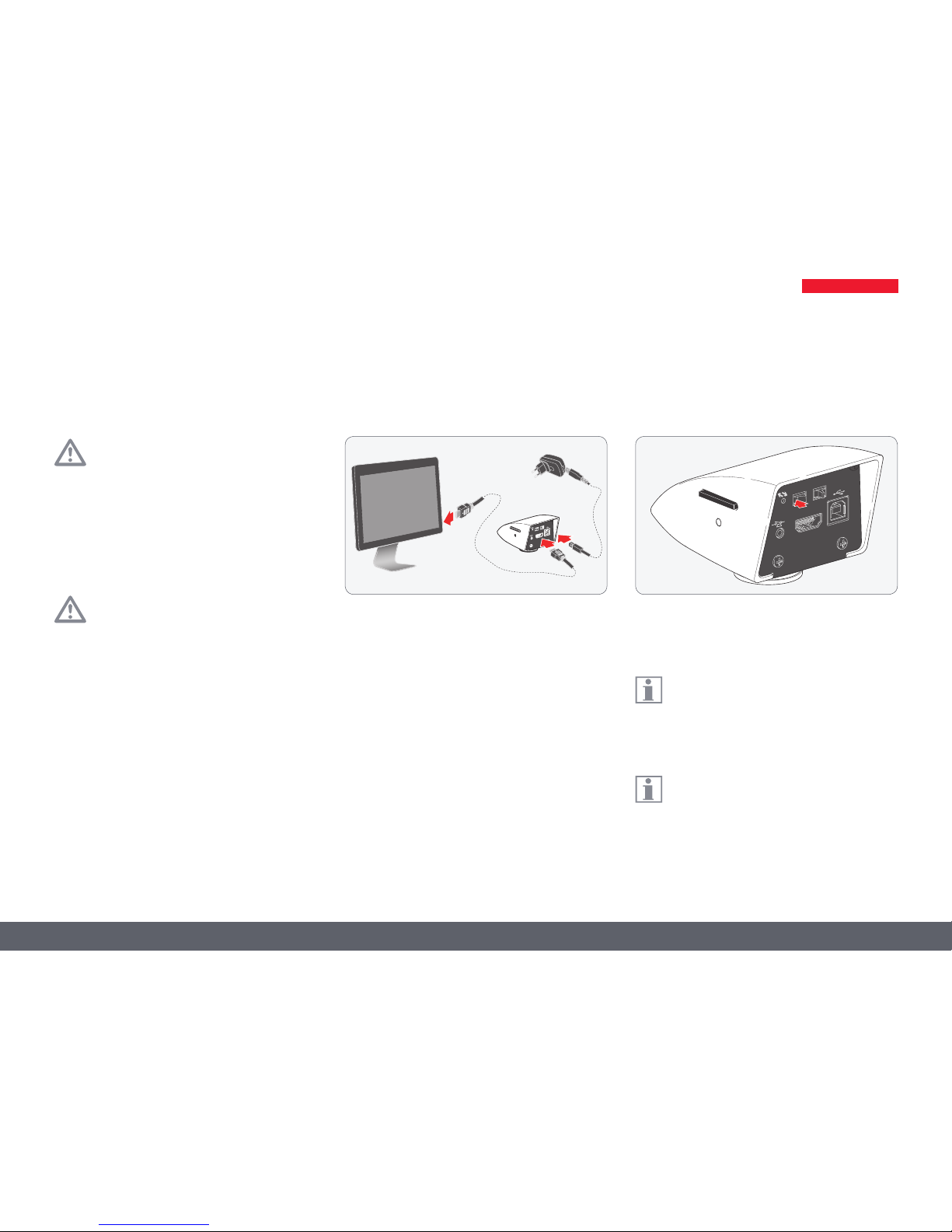

Cables and Terminals, Activating HD Mode (Standalone) 18
Connecting a Computer, Installing Software, Activating PC Mode 19
Limitations in PC Mode 20
Instrument Setup
Switching on the Leica MC120 HD / MC170 HD 22
Configuring the Footswitch 23
Remote control 24
"Pairing" the Leica MC120 HD MC 170 HD with the Remote Control 26
Application
Switching on the Leica MC120 HD / MC170 HD (Standalone) 28
Information about SD Memory Cards 29
Capturing Images without a Computer 30
Displaying Images and Videos without a Computer 31
White Balance 32
Switching on the Leica MC120 HD / MC170 HD (PC Mode) 33
Additional Use of an HD Monitor (PC Mode) 34

Leica MC120 HD / MC170 HD User Manual 3
Contents (Continued)
User Menu
Calling up the User Menu 36
Automatic white balance 37
Manual white balance 38
Exposure 39
Resolution 40
Camera Settings 42
User-Defined Settings 44
Setting Image Overlays (SETUP OVERLAY) 46
Configuring Predefined Illumination Scenarios 48
Service
Care, Maintenance, Contact Persons 50
Spare parts 53
Specifications
Leica MC120 HD / MC170 HD 55
Dimensional Drawings 57

Leica MC120 HD / MC170 HD User Manual General Notes 4
General Notes

Leica MC120 HD / MC170 HD User Manual General Notes 5
General Notes
Safety concept
Before using your Leica microscope camera for
the first time, please read the "Safety Concept"
brochure included with your instrument. It
contains additional information on handling
and care.
Use in clean rooms
The Leica MC120 HD / MC170 HD digital micro-
scope camera can be used in clean rooms with-
out any problems.
Cleaning
ϘDo not use any unsuitable cleaning agents,
chemicals or techniques for cleaning.
ϘNever use chemicals to clean colored
surfaces or accessories with rubberized
parts. This could damage the surfaces,
and specimens could be contaminated by
abraded particles.
ϘIn most cases, we can provide special solu-
tions on request. Some products can be
modified, and we can offer other accesso-
ries for use in clean rooms.
ϘFollow the notes regarding cleaning the
filter glass in the Service section.
Servicing
ϘRepairs may only be carried out by Leica
Microsystems-trained service technicians.
Only original Leica Microsystems spare
parts may be used.
Responsibilities of person in charge of
instrument
ϘEnsure that the Leica microscope camera
is operated, maintained and repaired by
authorized and trained personnel only.

Leica MC120 HD / MC170 HD User Manual General Notes 6
Important Safety Notes
User Manual
The LeicaMC120 HD / MC170 HD can be config-
ured in a variety of ways in the Leica product
range. You can find information on individual
system components on the interactive CD-ROM
together with all relevant user manuals in addi-
tional languages. Keep this CD-ROM in a safe
place, where it is available to the user. User
manuals and updates are also available for you
to download and print from our web site at
www.leica-microsystems.com
This user manual describes the special func-
tions of the MC120 HD / MC170 HD digital
microscope camera and contains important
instructions for operating safety, maintenance
and the accessory parts.
The "Safety Concept" booklet contains addi-
tional safety information regarding the service
work, requirements and the handling of the
microscope camera, accessories and electrical
accessories as well as general safety instruc-
tions.
You can combine individual system articles
with articles from external suppliers (e.g. cold
light sources, etc.). Please read the User Manual
and the safety instructions from the supplier.
Before installing, operating or using the instru-
ments, read the user manuals listed above. In
particular, please follow all safety instructions.
To maintain the unit in its original condition
and to ensure safe operation, the user must
follow the instructions and warnings contained
in these user manuals.

Leica MC120 HD / MC170 HD User Manual General Notes 7
Symbols Used
Warning! Safety hazard!
This symbol indicates especially impor-
tant information that is mandatory to
read and observe. Failure to comply can cause
the following:
ϘHazards to persons!
ϘInstrument malfunctions and damage.
Warning of hazardous electrical voltage
This symbol indicates especially impor-
tant information. Failure to comply can
cause the following:
ϘHazards to persons!
ϘInstrument malfunctions and damage.
Instrument malfunctions and damage.
This symbol warns against touching hot
surfaces, such as light bulbs.
Important information
This symbol indicates additional infor-
mation or explanations that are intended
to provide clarity.

Leica MC120 HD / MC170 HD User Manual General Notes 8
Safety Instructions
Description
ϘThe individual modules fulfill the highest
requirements for observation and docu-
mentation of the Leica MC120 HD / MC170
HD digital microscope camera.
Intended use
ϘRefer to "Safety Concept" booklet
Non-intended use
ϘRefer to "Safety Concept" booklet
Never use the Leica MC120 HD / MC170 HD
or its components for surgical procedures
(such as eye surgery) if it is not expressly
intended for such use.
The instruments and accessories described in
this User Manual have been tested for safety and
potential hazards. The responsible Leica affiliate
must be consulted whenever the instrument is
altered, modified or used in conjunction with
non-Leica components that are outside of the
scope of this manual!
Unauthorized alterations to the instrument or
noncompliant use shall void all rights to any
warranty claims.
Place of use
ϘRefer to "Safety Concept" booklet
ϘElectrical components must be placed at
least 10 cm away from the wall and from
flammable substances.
ϘAvoid large temperature fluctuations,
direct sunlight and vibrations. These condi-
tions can distort measurements and micro-
graphic images.
ϘIn warm and warm-damp climatic zones,
the individual components require special
care in order to prevent the build-up of
fungus.
Responsibilities of person in charge of
instrument
ϘRefer to "Safety Concept" booklet
Ensure that:
ϘThe Leica MC120 HD / MC170 HD digital
microscope camera and accessories are
operated, maintained and repaired by
authorized and trained personnel only.
ϘAll operators have read, understood and
observe this User Manual, and particularly
the safety regulations.

Leica MC120 HD / MC170 HD User Manual General Notes 9
Safety Instructions (continued)
Repairs, service work
ϘRefer to "Safety Concept" booklet
ϘOnly original Leica Microsystems spare
parts may be used.
ϘBefore opening the instruments, switch off
the power and unplug the power cable.
ϘAvoid contact with powered electrical
circuits, which can lead to injury.
Transport
ϘUse the original packaging for shipping or
transporting the individual modules of the
Leica MC120 HD / MC170 HD digital micro-
scope camera and the accessory compo-
nents.
ϘIn order to prevent damage from vibrations,
disassemble all moving parts that (accord-
ing to the user manual) can be assembled
and disassembled by the customer and
pack them separately.
Integration in third-party products
ϘRefer to "Safety Concept" booklet
Disposal
ϘRefer to "Safety Concept" booklet
Legal regulations
ϘRefer to "Safety Concept" booklet
EC Declaration of Conformity
ϘRefer to "Safety Concept" booklet
Health risks
Workplaces with microscopes facilitate and
improve the viewing task, but they also impose
high demands on the eyes and holding muscles
of the user. Depending on the duration of unin-
terrupted work, asthenopia and musculoskele-
tal problems may occur. For this reason, appro-
priate measures for reduction of the workload
must be taken:
ϘOptimal arrangement of workplace, work
assignments and work flow (changing tasks
frequently).
ϘThorough training of the personnel, giving
consideration to ergonomic and organiza-
tional aspects.
The ergonomic optical design and construction
of Leica microscopes are intended to reduce the
exertion of the user to a minimum.

Leica MC120 HD / MC170 HD User Manual Introduction 10
Introduction

Leica MC120 HD / MC170 HD User Manual Introduction 11
We congratulate you on purchasing the
Leica MC120 HD / MC170 HD digital micro-
scope camera by Leica Microsystems.
The special design of the Leica MC120 HD /
MC170 HD makes it a universal, highly versatile
tool for viewing microscopic specimens and
capturing still images or even video.
Real Full HD display
The integrated HDMI output allows the camera
image to be output to a high-definition
(HD-capable) monitor, where the following
resolutions are possible:
Ϙ1920×1080 (Full HD). This resolution
provides the best possible imaging perfor-
mance on a Full HD-capable monitor.
Ϙ1280×720 (HD ready). This resolution is
suitable for display on monitors labeled
"HD ready" or on smaller monitors with a
10" or 12" diagonal.
Leica Application Suite
Your LeicaMC120 HD / MC170 HD digital micro-
scope camera includes the "Leica Application
Suite" software. It allows additional scenarios
to be implemented in which an HD moni-
tor and computer monitor can even be used
together. This means you will be perfectly
equipped for any situation, including: Work-
ing on a computer, during presentations, train-
ing sessions, trade show appearances, during
materials testing and more.
User-friendly even in the smallest detail
Like every digital camera, the Leica MC120 HD /
MC170 HD microscope camera reacts differ-
ently to different light sources. However, the
white balance is matched to LED illuminators
from Leica at the factory. This means that if you
use a Leica LED illuminator, you automatically
obtain the best results!
Congratulations!

Leica MC120 HD / MC170 HD User Manual Introduction 12

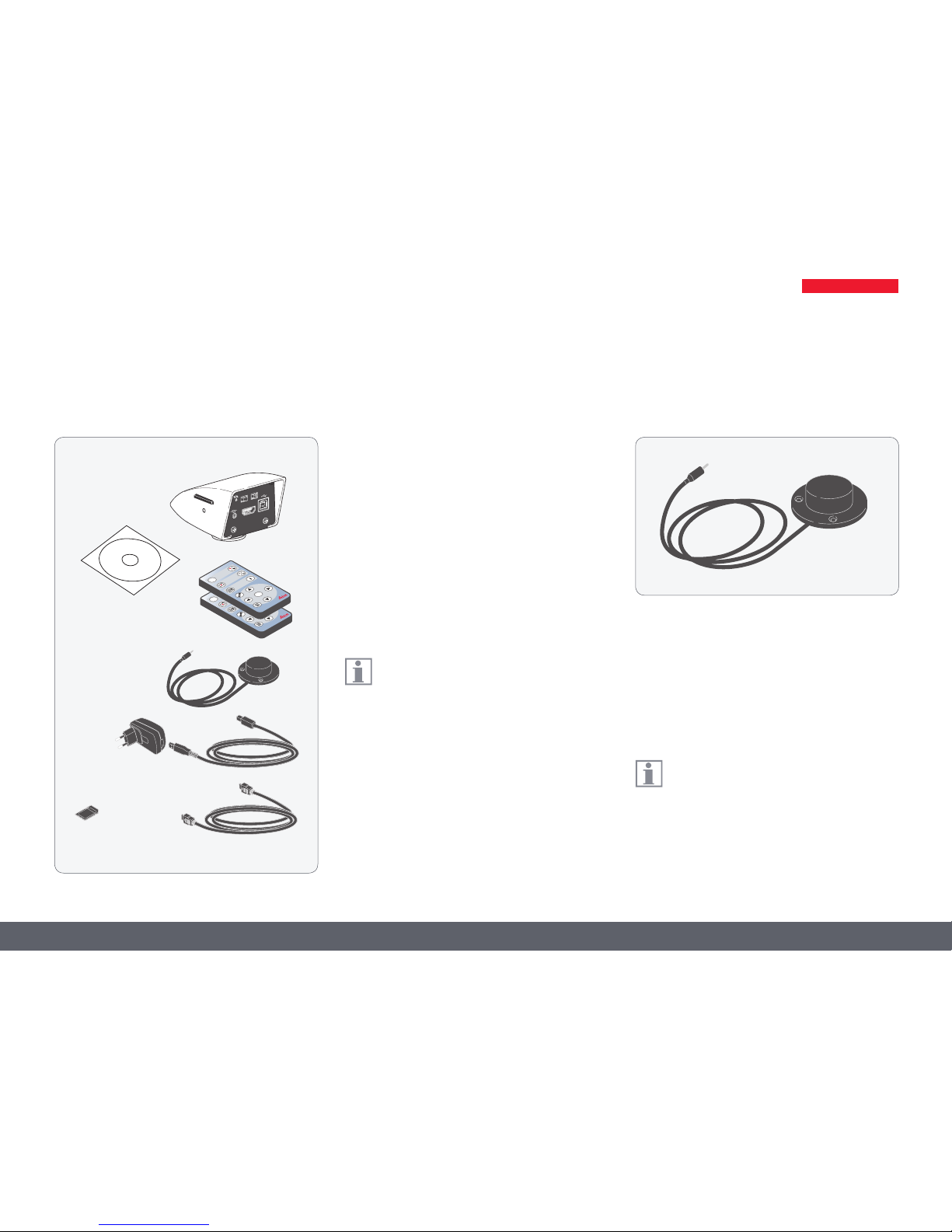

Standard delivery
Standard delivery of the Leica MC120 HD /
MC170 HD digital microscope camera includes:
1 Leica MC120 HD / MC170 HD digital
microscope camera
2 2 remote control units, with battery
3 "Leica Application Suite (LAS)" software DVD
4 USB cable, for connecting to a computer or
to a power supply unit for supplying power
5 HDMI cable, for connecting to an HD monitor
6 SD memory card
Additional information about working on
the computer and with Leica Application
Suite is provided in the software's online help.
Optional accessories: Handswitch/footswitch
Various functions can be assigned to the
optional handswitch/footswitch (such as taking
individual pictures, white balance).
For information on additional accessories, such
as objectives and adapters, illumination or the
dust cover for the microscope, please contact
your Leica Microsystems authorized dealer.
You can find detailed descriptions of
different accessories in their correspond-
ing user manual.
Standard Delivery and Optional Accessories
5
4
6
3
PC-HD
HDMI
ON-OFF
1
WB
OK
RC2
WB
OK
RC2
2
7

Leica MC120 HD / MC170 HD User Manual Introduction 13
Overview of the Instrument
PC-HD
HDMI
ON-OFF
1
2
3
4
7
8
5
6
1 Card holder for SD card
2 Status light
3 IR receiver, for remote control
4 HDMI connection
5 USB connection
6 Connection for footswitch
7 Mode switch, for PC or HD mode
8 On/off switch

Leica MC120 HD / MC170 HD User Manual Introduction 14
The live image on the HD monitor and
the final image capture may not show
the same section depending on the sensor size
in the microscope.
1 Live image in 16:9 format, displayed on the
HD monitor
2 Image capture in 4:3 format, displayed on
the computer or saved to an SD card.
Effective Displayed Section
1
2

Leica MC120 HD / MC170 HD User Manual Assembly 15
Assembly

Leica MC120 HD / MC170 HD User Manual Assembly 16
The Leica MC120 HD / MC170 HD is
mounted on a (trinocular) tube or on
a microscope's photo port using a C-mount
adapter.
The Leica MC120 HD / MC170 HD is
compatible with all stereo, macro and
light microscopes from Leica Microsystems.
Assembly
1. Screw the camera onto a C-mount adapter.
2. Place the camera on the microscope's
photo port or the tube using the previously
mounted C-mount adapter.
Assembling the Camera
1
2
2
0.4x / 0.5x
PC-HD
HDMI
ON-OFF

Leica MC120 HD / MC170 HD User Manual Installation 17
Installation

Leica MC120 HD / MC170 HD User Manual Installation 18
Cables and Terminals, Activating HD Mode (Standalone)
General Notes
The Leica MC120 HD / MC170 HD is
designed for the use of HD-capable
(high definition)monitors. We urgently recom-
mend connecting the HD monitor using an
HDMI connector and not using a DVI adapter,
as otherwise proper function can no longer be
guaranteed!
Please only connect the provided
5 V power supply unit. Using an incor-
rect voltage can substantially damage the
LeicaMC120 HD / MC170 HD.
Power supply and HD monitor
1. Connect the Leica MC120 HD / MC170 HD
to a suitable power socket using the USB
cable and power supply.
2. Connect the LeicaMC120 HD / MC170 HD
to the HD monitor using the HDMI cable.
Activating HD mode (standalone)
1. Set the mode switch to "HD" in order to
set the LeicaMC120 HD / MC170 HD to HD
mode (standalone).
An SD card with sufficient free memory
must be inserted into the LeicaMC120 HD /
MC170 HD in order to save images in HD mode
(standalone).
In order to avoid instrument malfunctions,
do not connect the Leica MC120 HD /
MC170 HD to a computer while in HD mode
(standalone).
PC-HD
HDMI
ON-OFF
1
2
21
PC-HD
HDMI
ON-OFF

Leica MC120 HD / MC170 HD User Manual Installation 19
Connecting a Computer, Installing Software, Activating PC Mode
Installation and connection
For instructions on installing and using
the software for PC mode, refer to the
DVD provided with the Leica MC120 HD /
MC170 HD.
1. Place the DVD provided into the comput-
er's disk drive and follow the instructions
for installing the software.
2. Connect the LeicaMC120 HD / MC170 HD
to the computer using the USB cable.
Activating PC mode
1. Set the mode switch to "PC" in order to
set the LeicaMC120 HD / MC170 HD to PC
mode.
The Leica software has to be installed
on the computer in order to use the
LeicaMC120 HD / MC170 HD in PC mode. The
computer also has to have sufficient free hard
drive space.
The Leica MC120 HD / MC170 HD is
powered by the computer via the USB
cable. The status light is red when switching on
the LeicaMC120 HD / MC170 HD; as soon as it
is green, you can open the software and view,
record or manage images.
3. Follow the instructions in the software for
adjusting and recording an image.
2
2
PC-HD
HDMI
ON-OFF
PC-HD
HDMI
ON-OFF
PC-HD
HDMI
ON-OFF
1

Leica MC120 HD / MC170 HD User Manual Installation 20
Aspect ratio
Images are always output in a 4:3
aspect ratio when the LeicaMC120 HD /
MC170 HD is connected to a computer – even if
a 16:9 monitor is connected to the HDMI port.
However, the image is displayed correctly on
these kinds of devices, just with black screen
edges.
Limitations in PC Mode
4:3
Operation
The Leica MC120 HD / MC170 HD is
controlled entirely via the computer
in PC mode. The remote control and the foot-
switch do not work. The menus for the camera
are also not displayed on the HD monitor.
Status information can be retrieved at any time
despite this by using on the remote control.
Images cannot be saved onto the SD card
in PC mode.
16:9
