Lenze ESMD371L2YXA User manual

Instructions de mise en service FR
SMD
Frequency Inverter
0.37 kW... 22 kW
Betriebsanleitun DE
Instrucciones de funcionamiento IT
Istruzioni di funzionamento ES
Operating Instructions EN
(13466184)

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 1
Contents
About these instructions.............................................................................2
1 Safety information ..............................................................................3
1.1 Pictographs used in these instructions.......................................4
2 Technical data ....................................................................................6
2.1 Standards and application conditions.........................................6
2.2 Ratings .......................................................................................7
3 Installation ..........................................................................................8
3.1 Mechanical installation ...............................................................8
3.1.1 Dimensions and mounting ..............................................8
3.2 Electrical installation...........................................................................9
3.2.1 Installation according to EMC requirements ...................9
3.2.2 Fuses/cable cross-sections ............................................9
3.2.3 Connection diagram......................................................10
3.2.4 Control terminals........................................................... 11
4 Commissioning.................................................................................12
4.1 Parameter setting.....................................................................12
4.2 Electronic programming module (EPM) ...................................12
4.3 Parameter menu.......................................................................13
5 Troubleshooting and fault elimination...............................................20

2 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
About these instructions
This documentation applies to the smd frequency inverter, and contains important technical data
and describes installation, operation, and commissioning.
Please read the instructions before commissioning.
Scope of delivery Important
• 1 smd inverter (ESMD...)
with EPM installed
(see Section 4.2)
• 1 Operating Instructions
After receipt of the delivery, check immediately whether the items
delivered match the accompanying papers. Lenze does not accept any
liability for deciencies claimed subsequently.
Claim
• visible transport damage immediately to the forwarder.
• visible deciencies/incompleteness immediately to your Lenze
representative.
A Certications
BType
CInput Ratings
D Output Ratings
EHardware Version
FSoftware Version
V0011
ABCDEF
Made in USA
Inverter
smd - Full I/O
Type:
ESMD223L4TXA
Id-No: 13XSAPID
N10104
Z519
LISTED 5D81
IND. CONT. EQ.
Input: 3/PE AC
400/480 V
52 / 45 A
50-60 Hz
Output: 3/PE AC
0-400 / 460 V
46 / 40 A
22 kW / 15 HP
0 - 240 Hz
For detailed information
refer to instruction
Manual SL03
SN: 13XSAPID012345678
ESMD223L4TXA 000XX XX XX
1341308801234567
+

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 3
Safety information
1 Safety information
General
Some parts of Lenze controllers (frequency inverters, servo inverters, DC controllers) can be
live, moving and rotating. Some surfaces can be hot.
Non-authorized removal of the required cover, inappropriate use, and incorrect installation or
operation creates the risk of severe injury to personnel or damage to equipment.
All operations concerning transport, installation, and commissioning as well as maintenance
must be carried out by qualied, skilled personnel (IEC 364 and CENELEC HD 384 or DIN
VDE 0100 and IEC report 664 or DIN VDE0110 and national regulations for the prevention of
accidents must be observed).
According to this basic safety information, qualied skilled personnel are persons who are familiar
with the installation, assembly, commissioning, and operation of the product and who have the
qualications necessary for their occupation.
Application as directed
Drive controllers are components which are designed for installation in electrical systems or
machinery. They are not to be used as appliances. They are intended exclusively for professional
and commercial purposes according to EN 61000-3-2. The documentation includes information
on compliance with the EN 61000-3-2.
When installing the drive controllers in machines, commissioning (i.e. the starting of operation
as directed) is prohibited until it is proven that the machine complies with the regulations of the
EC Directive 2006/42/EC (Machinery Directive); EN 60204 must be observed.
Commissioning (i.e. starting of operation as directed) is only allowed when there is compliance
with the EMC Directive (2004/108/EC).
The drive controllers meet the requirements of the Low Voltage Directive 2006/95/EC. The
harmonised standards of the series EN 50178/DIN VDE 0160 apply to the controllers.
Note: The availability of controllers is restricted according to EN 61800-3.These products can
cause radio interference in residential areas. In this case, special measures can be necessary.
Installation
Ensure proper handling and avoid excessive mechanical stress. Do not bend any components
and do not change any insulation distances during transport or handling. Do not touch any
electronic components and contacts.
Controllers contain electrostatically sensitive components, which can easily be damaged by
inappropriate handling. Do not damage or destroy any electrical components since this might
endanger your health!
Electrical connection
When working on live drive controllers, applicable national regulations for the prevention of
accidents (e.g. VBG 4) must be observed.
The electrical installation must be carried out according to the appropriate regulations (e.g.
cable cross-sections, fuses, PE connection). Additional information can be obtained from the
documentation.
The documentation contains information about installation in compliance with EMC (shielding,
grounding, lters and cables). These notes must also be observed for CE-marked controllers.
The manufacturer of the system or machine is responsible for compliance with the required limit
values demanded by EMC legislation.

4 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Safety information
Operation
Systems including controllers must be equipped with additional monitoring and protection devices
according to the corresponding standards (e.g. technical equipment, regulations for prevention
of accidents, etc.). You are allowed to adapt the controller to your application as described in
the documentation.
DANGER!
• After the controller has been disconnected from the supply voltage, live components
and power connection must not be touched immediately, since capacitors could be
charged. Please observe the corresponding notes on the controller.
• Do not continuously cycle input power to the controller more than once every three
minutes.
• Please close all protective covers and doors during operation.
Explosion Proof Applications
Explosion proof motors that are not rated for inverter use lose their certication when used for
variable speed. Due to the many areas of liability that may be encountered when dealing with
these applications, the following statement of policy applies:
Lenze AC Tech Corporation inverter products are sold with no warranty of tness for a particular
purpose or warranty of suitability for use with explosion proof motors. Lenze AC Tech Corporation
accepts no responsibility for any direct, incidental or consequential loss, cost or damage that
may arise through the use of AC inverter products in these applications. The purchaser expressly
agrees to assume all risk of any loss, cost or damage that may arise from such application.
1.1 Pictographs used in these instructions
Pictograph Signal word Meaning Consequences if ignored
DANGER! Warning of Hazardous Electrical
Voltage.
Reference to an imminent danger
that may result in death or serious
personal injury if the corresponding
measures are not taken.
WARNING! Impending or possible danger for
persons
Death or injury
STOP! Possible damage to equipment Damage to drive system or its
surroundings
Note Useful tip: If observed, it will make
using the drive easier

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 5
Safety Information
Note for UL approved system with integrated controllers
UL warnings are notes which apply to UL systems. The documentation contains special information
about UL.
• Integral solid state protection does not provide branch circuit protection. Branch
circuit protection must be provided in accordance with the National Electrical
Code and any additional local codes. The use of fuses or circuit breakers is the
only approved means for branch circuit protection.
• When protected by CC and T Class Fuses, suitable for use on a circuit capable
of delivering not more than 200,000 rms symmetrical amperes, at the maximum
voltage rating marked on the drive.
• Additionally suitable when protected by a circuit breaker having an interrupting
rating not less than 200,000 rms symmetrical amperes, at the maximum
voltage rating marked on the drive. (Excludes ESMD113_4T_, ESMD112_2Y_,
ESMD113_2T_, ESMD152_2Y_, ESMD153_2T_, ESMD222_2Y_, ESMD223_4T_,
ESMD402_2T_, ESMD552_2T_, ESMD752_2T_, ESMD153_4T_, and
ESMD183_4T_).
• Use minimum 75°C copper wire only, except for control circuits.
• For control circuits, use wiring suitable for NEC Class 1 circuits only.
• Torque Requirements are listed in section 3.2.3, Connection diagram.
• Shall be installed in a pollution degree 2 macro-environment.
Warnings!
DANGER!
Risk of Electric Shock! Capacitors retain charge for approximately 180
seconds after power is removed. Disconnect incoming power and wait at
least 3 minutes before touching the drive.
WARNING!
The opening of branch-circuit protective device may be an indication that a
fault has been interrupted. To reduce the risk of re or electric shock, current
carrying parts and other components of the controller should be examined
and replaced if damaged.

6 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Technical data
Conformity CE Low Voltage Directive (2006/95/EC)
Approvals UL 508C Underwriters Laboratories - Power Conversion Equipment
Max. permissible motor cable
length (1)
shielded: 50 m (low-capacitance)
unshielded: 100 m
Input voltage phase imbalance < 2%
Humidity < 95% non-condensing
Output frequency 0...500 Hz
Environmental conditions Class 3K3 to EN 50178
Temperature range
Transport -25 … +70 °C
Storage -20 … +70 °C
Operation 0 … +55 °C (with 2.5 %/°C current derating above +40 °C)
Installation height 0 … 4000 m a.m.s.l. (with 5 %/1000 m current derating above 1000 m a.m.s.l.)
Vibration resistance acceleration resistant up to 0.7 g
Earth leakage current > 3.5 mA to PE
Enclosure (EN 60529) IP 20
Protection measures against short circuit, earth fault, overvoltage, motor stalling, motor overload
Operation in public supply networks
(Limitation of harmonic currents)
Total power
connected to
the mains
Compliance with the requirements (2)
EN 61000-3-2
< 0.5 kW With mains choke
0.5 … 1 kW With active lter (in preparation)
> 1 kW Without additional measures
EN 61000-3-12 16 ... 75A Additional measures are required for compliance with the
standard
Supply Conditions AC Mains Direct Connection
Power System
TT For central grounded systems operation is permitted without
restrictions
TN For corner grounded 400/500V systems, operation is possible,
but reinforced insulation to control circuits is compromised.
IT Mains IT Mains power systems are not supported.
(1) For compliance with EMC regulations, the permissible cable lengths may change.
(2) The additional measures described only ensure that the controllers meet the requirements of the EN 61000-3-2.
The machine/system manufacturer is responsible for the compliance with the regulations of the machine.
2 Technical data
2.1 Standards and application conditions

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 7
Technical data
(1) For rated mains voltage and carrier frequencies 4, 6, and 8 kHz
(2) For rated mains voltage and carrier frequency 10 kHz
(3) Maximum current is a function of setting C90 (input voltage selection)
2.2 Ratings
Type Power
[kW]
Mains Output Current (3)
Voltage, frequency Current
[A] (3)
INImax for 60 s
[A] (1) [A] (2) [A] (1) [A] (2)
1~ 3~ 3~ 3~ 3~ 3~
ESMD371L2YXA 0.37
1/N/PE 230 V OR
3/PE 230 V
(180 V -0%…264 V +0%)
50/60 Hz
(48 Hz -0%…62 Hz +0%)
4.7 2.7 2.2 2.0 3.3 3.0
ESMD751L2YXA 0.75 8.4 4.8 4.0 3.7 6.0 5.6
ESMD112L2YXA 1.1 12.0 6.9 6.0 5.5 9.0 8.3
ESMD152L2YXA 1.5 12.9 7.9 6.8 6.3 10.2 9.5
ESMD222L2YXA 2.2 17.1 10.8 9.6 8.8 14.4 13.2
ESMD302L2TXA 3.0
3/PE 230 V
(180 V -0%…264 V +0%)
50/60 Hz
(48 Hz -0%…62 Hz +0%)
13.5 12.0 11.0 18.0 16.5
ESMD402L2TXA 4.0 17.1 15.2 14.0 23 21
ESMD552L2TXA 5.5 25 22 20 33 30
ESMD752L2TXA 7.5 32 28 26 42 39
ESMD113L2TXA 11 48 42 39 63 58
ESMD153L2TXA 15 59 54 50 81 75
400V 480V 400V 480V 400V 480V 400V 480V 400V 480V
ESMD371L4TXA 0.37
3/PE 400/480 V
(320 V -0%…528 V +0%)
50/60 Hz
(48 Hz -0%…62 Hz +0%)
1.6 1.4 1.3 1.1 1.2 1.0 2.0 1.7 1.8 1.5
ESMD751L4TXA 0.75 3.0 2.5 2.5 2.1 2.3 1.9 3.8 3.2 3.5 2.9
ESMD112L4TXA 1.1 4.3 3.6 3.6 3.0 3.3 2.8 5.4 4.5 5.0 4.2
ESMD152L4TXA 1.5 4.8 4.0 4.1 3.4 3.8 3.1 6.2 5.1 5.7 4.7
ESMD222L4TXA 2.2 6.4 5.4 5.8 4.8 5.3 4.4 8.7 7.2 8.0 6.6
ESMD302L4TXA 3.0 8.3 7.0 7.6 6.3 7.0 5.8 11.4 9.5 10.5 8.7
ESMD402L4TXA 4.0 10.6 8.8 9.4 7.8 8.6 7.2 14.1 11.7 12.9 10.8
ESMD552L4TXA 5.5 14.2 12.4 12.6 11.0 11.6 10.1 18.9 16.5 17.4 15.2
ESMD752L4TXA 7.5 18.1 15.8 16.1 14.0 14.8 12.9 24 21 22 19.4
ESMD113L4TXA 11 27 24 24 21 22 19.3 36 32 34 29
ESMD153L4TXA 15 35 31 31 27 29 25 47 41 43 37
ESMD183L4TXA 18.5 44 38 39 34 36 31 59 51 54 47
ESMD223L4TXA 22 52 45 46 40 42 37 69 60 64 55

8 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Installation
a
4 x M4
1.2 Nm
10 lb-in
4 x M6
2.8 Nm
24 lb-in
c
a1
b1 b2
s2s2
s1 s1
b
A
B
C
D
smd402
Type a
[mm]
a1
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
s1
[mm]
s2
[mm]
m
[kg]
ESMD371L2YXA
ESMD371L4TXA 93 84 146 128 17 100 15 50 0.6
ESMD751L2YXA
ESMD751L4TXA 93 84 146 128 17 120 15 50 0.9
ESMD112L4TXA 93 84 146 128 17 146 15 50 1.0
ESMD112L2YXA 114 105 146 128 17 133 15 50 1.4
ESMD152L4TXA 114 105 146 128 17 122 15 50 1.4
ESMD222L4TXA 114 105 146 128 17 139 15 50 1.4
ESMD152L2YXA, ESMD222L2YXA
ESMD302L2TXA
ESMD302L4TXA
114 105 146 128 17 171 15 50 2.0
ESMD402L2TXA
ESMD402L4TXA, ESMD552L4TXA 114 105 146 100 17 171 15 50 2.0
ESMD552L2TXA, ESMD752L2TXA
ESMD752L4TXA, ESMD113L4TXA 146 137 197 140 17 182 30 100 3.2
ESMD113L2TXA, ESMD153L2TXA
ESMD153L4TXA... ESMD223L4TXA 195 183 248 183 23 203 30 100 6.4
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture;
excessive vibration or excessive temperatures. Contact Lenze for more information.
3 Installation
3.1 Mechanical installation
3.1.1 Dimensions and mounting

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 9
Installation
EMC
Compliance with EN 61800-3/A11
Noise emission
Compliance with limit value class A according to EN 55011 if installed in a control
cabinet with the appropriate footprint lter and the motor cable length does not
exceed 10m
AScreen clamps
BControl cable
CLow-capacitance motor cable
(core/core < 75 pF/m, core/screen < 150 pF/m)
DElectrically conductive mounting plate
EFilter
Tmd005
B
C
D
A
E

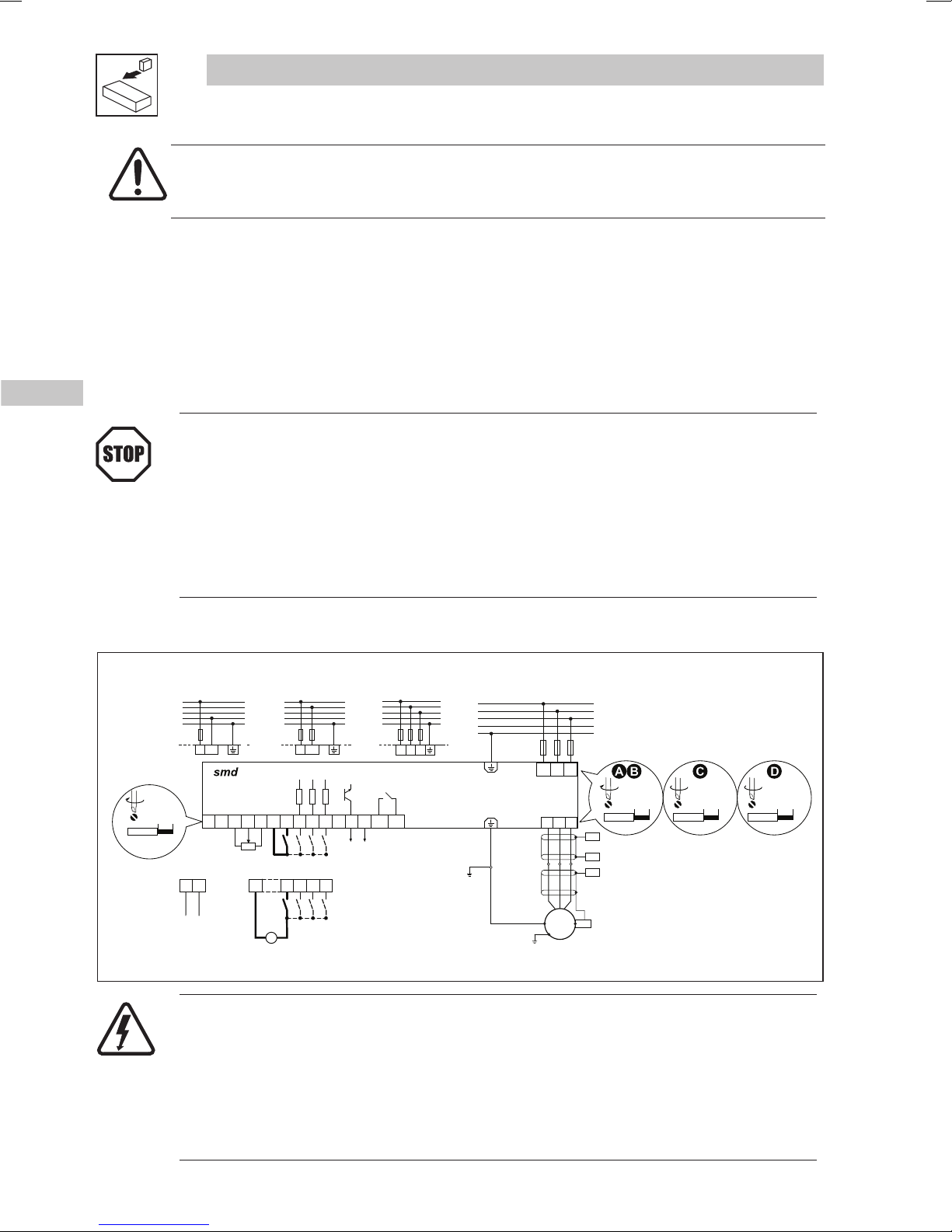

3.2.2 Fuses/cable cross-sections
3.2 Electrical installation
3.2.1 Installation according to EMC requirements
(1)
Type
Recommendations E.l.c.b.(2)
Fuse Miniature
circuit
breaker(5)
Fuse (3) or
Breaker(6)
Input Power Wiring
(L1, L2/N, L3, PE)
(N. America) [mm²] [AWG]
1/N/PE
ESMD371L2YXA M10 A C10 A 10 A 2.5 14
> 30 mA
ESMD751L2YXA M16 A C16 A 15 A 2.5 14
ESMD112L2YXA M20 A C20 A 20 A 4 (4) 12
ESMD152L2YXA M25 A C25 A 25 A 6 (4) 12
ESMD222L2YXA M32 A C32 A 30 A 4 10
3/PE
ESMD371L2YXA ... ESMD751L2YXA
ESMD371L4TXA ... ESMD222L4TXA M10 A C10 A 10 A 2.5 14
ESMD112L2YXA, ESMD152L2YXA
ESMD302L4TXA M16 A C16 A 12 A 2.5 14
ESMD222L2YXA M16 A C16 A 15 A 2.5 12
ESMD402L4TXA M16 A C16 A 15 A 2.5 14
ESMD302L2TXA
ESMD552L4TXA M20 A C20 A 20 A 4 (4) 12
ESMD402L2TXA
ESMD752L4TXA M25 A C25 A 25 A 6 (4) 10
ESMD552L2TXA
ESMD113L4TXA M40 A C40 A 35 A 6 8
ESMD752L2TXA
ESMD153L4TXA M50 A C50 A 45 A 10 8
ESMD183L4TXA M63 A C63 A 60 A 16 6
ESMD113L2TXA
ESMD223L4TXA M80 A C80 A 70 A 16 6
ESMD153L2TXA M100 A C100 A 90 A 16 4
(1) Observe the applicable local regulations.
(2) Pulse-current or universal-current sensitive earth leakage circuit breaker.
(3) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, required. Bussman KTK-R, JJN, JJS or equivalent.
(4) Connection without end ferrules or with attached pin end connectors.
(5) Installations with high fault current due to large supply mains may require a type D circuit breaker.
(6) Thermomagnetic type breakers preferred.

10 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Installation
Observe the following when using E.l.c.b:
• Installation of E.l.c.b only between supplying mains and controller.
• The E.l.c.b can be activated by:
- capacitive leakage currents between the cable screens during operation (especially with long,
screened motor cables)
- connecting several controllers to the mains at the same time
- RFI lters
Installation After a Long Period of Storage
STOP!
Severe damage to the drive can result if it is operated after a long period of storage or
inactivity without reforming the DC bus capacitors.
If input power has not been applied to the drive for a period of time exceeding three years
(due to storage, etc), the electrolytic DC bus capacitors within the drive can change
internally, resulting in excessive leakage current. This can result in premature failure of
the capacitors if the drive is operated after such a long period of inactivity or storage.
In order to reform the capacitors and prepare thedrive for operation after a long period of
inactivity, apply input power to the drive for 8 hours prior to actually operating the motor.
3.2.3 Connection diagram
U V W
L1 L2
8 9 20 28 E1
E2 E3
K14 K12
+10 V +12 V COM AIN
7
87
+
_
71 72
L3
7 28 E1 E2 E3
20 A1
62
AOUT
TXA TXB
COM
DIGOUT
PE
N
L3
L2
L1
3/PE 320V - 0 % … 528V + 0 %
48 Hz … 62 Hz
0.5 Nm/ 4.5 lb-in
6 mm /0.24 in
0.2 Nm/ 2 lb-in
6 mm /0.24 in
< 1mm? /AWG 26…16
_
0 … 20 mA
4 … 20 mA
1k … 10k
+12 V DC - 0 %
…
+30 V DC + 0 %
L1 L2
PE
N
L3
L2
L1
3/PE 180V - 0% … 264V + 0 %
48 Hz … 62 Hz
L3
1.2 Nm/ 10 lb-in
9 mm /0.35 in
2.0 Nm/ 18 lb-in
13 mm /0.5 in
L2
PE
N
L3
L2
L1
2/PE 180V - 0% … 264V + 0 %
48 Hz … 62 Hz
L1
PE
N
L3
L2
L1
1/N/PE 180V - 0% … 264V + 0 %
48 Hz … 62 Hz
L2 L1
PES
PE PES
PES
M
3~
PES
PE
smd403
WARNING!
Per UL requirements, use a FUSE (not a circuit breaker) for 240VAC drives requiring >40A
protection and for 480VAC & 600VAC drives requiring >32A protection.
DANGER!
• Hazard of electrical shock! Circuit potentials are up to 240 VAC above earth ground.
Capacitors retain charge after power is removed. Disconnect power and wait until the
voltage between B+ and B- is 0 VDC before servicing the drive.
• Do not connect mains power to the output terminals (U,V,W)! Severe damage to the
drive will result.
• Do not cycle mains power more than once every three minutes. Damage to the drive
will result.

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 11
Installation
Terminal Data for control connections (printed in bold = Lenze setting)
71 RS-485 serial communication input RXB/TXB (B+)
72 RS-485 serial communication input RXA/TXA (A-)
7Reference potential
8Analog input
0 … 10 V (changeable under C34)
input resistance: >50 kΩ
(with current signal: 250Ω)
9Internal DC supply for setpoint potentiometer +10 V, max. 10 mA
20 Internal DC supply for digital inputs +12 V, max. 20 mA
28 Digital input Start/Stop LOW = Stop HIGH = Run Enable
Ri= 3.3 kΩ
E1 Digital input congurable with CE1
Activate fixed setpoint 1 (JOG1) HIGH = JOG1 active
E2 Digital input congurable with CE2
Direction of rotation
LOW = CW rotation
HIGH = CCW rotation
E3 Digital input congurable with CE3
Activate DC injection brake (DCB) HIGH = DCB active
A1 Digital output congurable with c17 DC 24 V / 50 mA; NPN
62 Analog output congurable with c08 & c11
K14 Relay output (normally-open contact)
Congurable with C08
Fault (TRIP)
AC 250 V / 3 A
DC 24 V / 2 A … 240 V / 0.22 A
K12
LOW = 0 … +3 V, HIGH = +12 … +30 V
Protection against contact
• All terminals have basic isolation (single insulating distance)
• Protection against contact can only be ensured by additional measures (i.e. double insulation)
STOP!
In the case of a Spinning Motor:
To bring free-wheeling loads such as fans to a rest before starting the drive, use the DC
injection braking function (“Auto-DCB”). Starting a drive into a freewheeling motor creates
a direct short-circuit and may result in damage to the drive.
Conrm motor suitability for use with DC injection braking.
3.2.4 Control terminals
STOP!
If the kVA rating of the AC supply transformer is greater than 10 times the input kVA rating of the drive(s),
an isolation transformer or 2-3% input line reactor must be added to the line side of the drive(s).

12 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Commissioning
4.2 Electronic programming module (EPM)
The EPM contains the controller’s memory. Whenever parameter settings are
changed, the values are stored in the EPM. It can be removed, but must be
installed for the controller to operate (a missing EPM will trigger an F1 fault).
The controller ships with protective tape over the EPM that can be removed
after installation.
An optional EPM Programmer (model EEPM1RA ) is available that allows: the controller to be
programmed without power; OEM settings to be default settings; fast copying of EPMs when
multiple controllers require identical settings. It can also store up to 60 custom parameter les for
even faster controller programming.
smd404
Tmd007

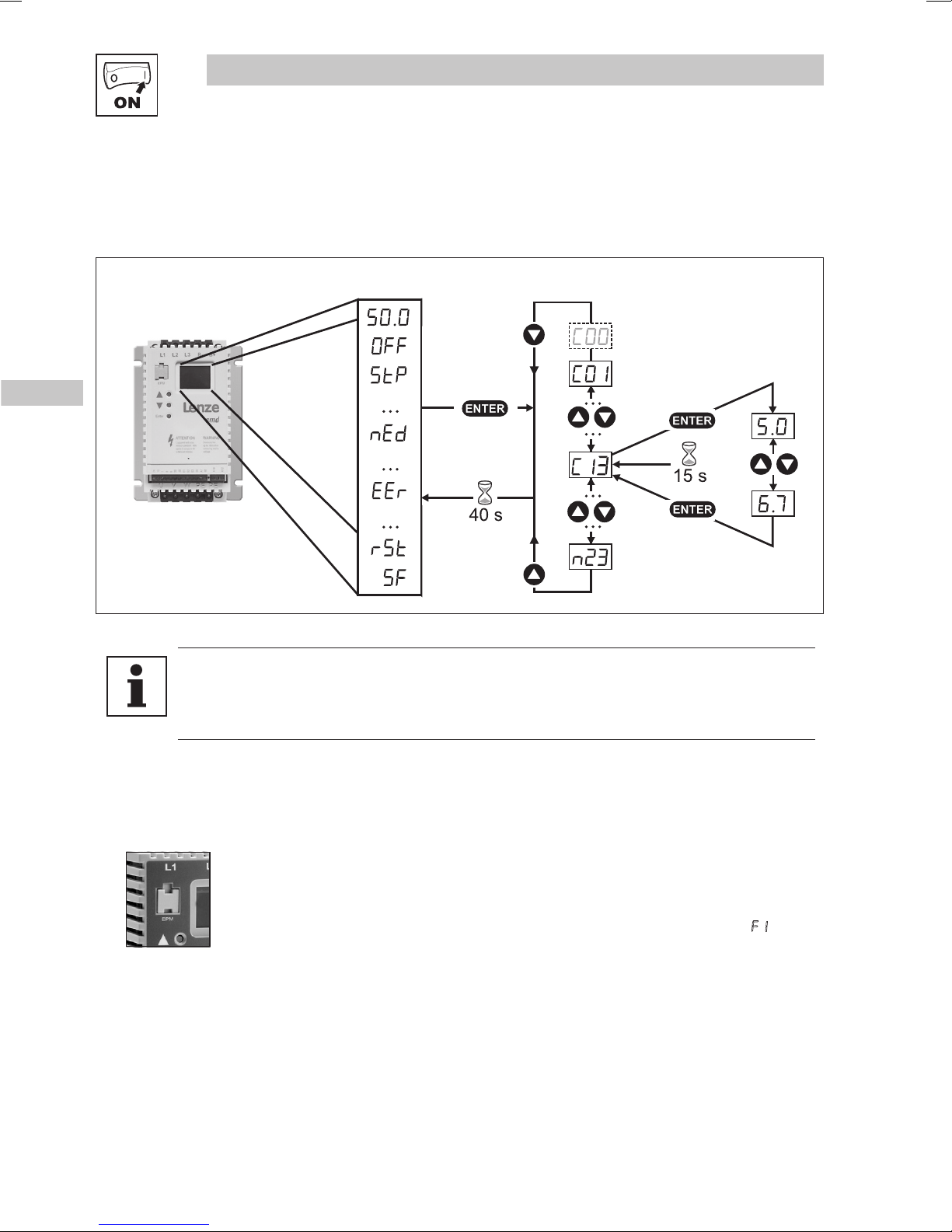

4 Commissioning
4.1 Parameter setting
Status/fault messages Change parameters
Note
If the password function is enabled, the password must be entered into C00 to
access the parameters. C00 will not appear unless the password function is enabled.
See C94.

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 13

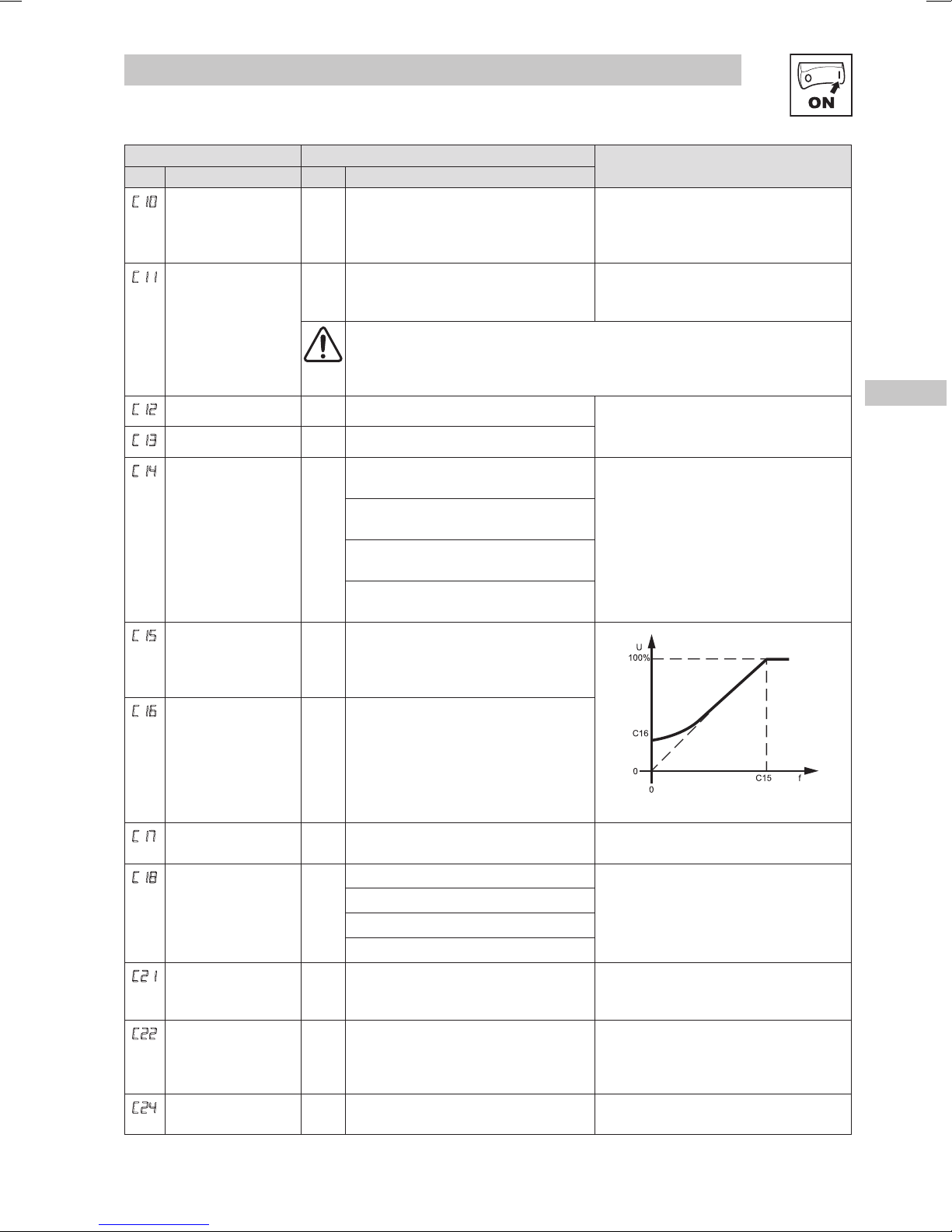

Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
C00 Password entry 0 0 999 Visible only when password is active
(see C94)
C01 Setpoint and control
source
0 Setpoint source: Control conguration:
0 Analog input (terminal 8; see C34) Control = terminals
Programming = keypad
Monitoring = LECOM 1 Code c40
2 Analog input (terminal 8; see C34) Control = terminals
Programming = LECOM / keypad
Monitoring = LECOM
3 LECOM Control = LECOM
Programming = LECOM / keypad
Monitoring = LECOM
4 Analog input (terminal 8; see C34) Control = terminals
Programming = remote keypad
Monitoring = remote keypad5 Code c40
6 Analog input (terminal 8; see C34) Control = remote keypad
Programming = remote keypad
Monitoring = remote keypad7 Code c40
8 Analog input (terminal 8; see C34) Control = terminals
Programming = Modbus / keypad
Monitoring = Modbus9 Code c40
10 Analog input (terminal 8; see C34) Control = Modbus
Programming = Modbus / keypad
Monitoring = Modbus11 Code c40
Note
• When C01 = 1, 5, 7, 9, or 11, use c40 for speed setpoint
• When C01 = LECOM (3), write speed command to C46
C02 Load Lenze setting 0 No action/loading complete • C02 = 1...4 only possible with
OFF or 1nh
• C02 = 2 : C11, C15 = 60 Hz
1 Load 50 Hz Lenze settings
2 Load 60 Hz Lenze settings
3 Load OEM settings (if present)
4 Translate
WARNING!
C02 = 1...3 overwrites all settings! TRIP circuitry may be disabled! Check codes
CE1...CE3.
NOTE
If an EPM that contains data from a previous software version is installed, C02 =
4 converts the data to the current version.
4.3 Parameter menu

14 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
CE1 Conguration -
Digital input E1
11 Activate xed setpoint 1 (JOG1) • Use C37...C39 to adjust xed setpoints
• Activate JOG3: Both terminals =
HIGH
2 Activate xed setpoint 2 (JOG2)
3 DC braking (DCB) See also C36
4 Direction of rotation LOW = CW rotation
HIGH = CCW rotation
5 Quick stop Controlled deceleration to standstill,
active LOW; Set decel rate in C13 or
c03
CE2 Conguration -
Digital input E2
4 6 CW rotation
7 CCW rotation
CW rotation = LOW and CCW rotation =
LOW: Quick stop; Open-circuit protected
8 UP (setpoint ramp-up) UP = LOW and DOWN = LOW: Quick
stop; Use momentary NC contacts
9 DOWN (setpoint ramp-down)
10 TRIP set Active LOW, triggers EEr (motor coasts
to standstill)
NOTE: NC thermal contact from the
motor can be used to trigger this input
CE3 Conguration -
Digital input E3
3 11 TRIP reset See also c70
12 Accel/decel 2 See c01 and c03
13 Deactivate PI Disables PI function for manual control
14 Activate xed PI setpoint 1 • Use C37...C39 to adjust xed
setpoints
• Activate xed PI setpoint 3: Both
terminals = HIGH
15 Activate xed PI setpoint 2
Note
A CFG fault will occur under the following conditions:
• E1...E3 settings are duplicated (each setting can only be used once)
• One input is set to UP and another is not set to DOWN, or vice-versa
C08 Conguration -
Relay output
1 Relay is energized if
0 Ready
1 Fault
2 Motor is running
3 Motor is running - CW rotation
4 Motor is running - CCW rotation
5 Output frequency = 0 Hz
6 Frequency setpoint reached
7 Threshold (C17) exceeded
8 Current limit (motor or generator
mode) reached
9 Feedback within min/max alarm
(d46, d47) range
10 Feedback outside min/max alarm
(d46, d47) range
C09 Network address 1 1 247 Each controller on network must have
unique address

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 15
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
C10 Minimum output
frequency
0.0 0.0 {Hz} 500 • Output frequency at 0% analog
setpoint
• C10 not active for xed setpoints or
setpoint selection via c40
C11 Maximum output
frequency
50.0 7.5 {Hz} 500 • Output frequency at 100% analog
setpoint
• C11 is never exceeded
WARNING!
Consult motor/machine manufacturer before operating above rated frequency.
Overspeeding the motor/machine may cause damage to equipment and injury to
personnel!
C12 Acceleration time 1 5.0 0.0 {s} 999 • C12 = frequency change 0 Hz...C11
• C13 = frequency change C11...0 Hz
• For S-ramp accel/decel, adjust c82
C13 Deceleration time 1 5.0 0.0 {s} 999
C14 Operating Mode 2 0 Linear characteristic with
Auto-Boost
• Linear characteristic: for standard
applications
• Square-law characteristic: for fans
and pumps with square-law load
characteristic
• Auto boost: load-dependent output
voltage for low-loss operation
1 Square-law characteristic with
Auto-Boost
2 Linear characteristic with constant
Vmin boost
3 Square-law characteristic with
constant Vmin boost
C15 V/f reference point 50.0 25.0 {Hz} 999
Set the rated motor frequency
(nameplate) for standard applications
C16 Vmin boost
(optimization of
torque behavior)
4.0 0.0 {%} 40.0
Set after commissioning: The unloaded
motor should run at slip frequency
(approx. 5 Hz), increase C16 until
motor current (C54) = 0.8 x rated motor
current
C17 Frequency threshold
(Qmin)
0.0 0.0 {Hz} 500 See C08 and c17, selection 7
Reference: setpoint
C18 Chopper frequency 2 0 4 kHz • As chopper frequency is increased,
motor noise is decreased
• Observe derating in Section 2.2
• Automatic derating to 4 kHz at 1.2 x Ir
1 6 kHz
2 8 kHz
3 10 kHz
C21 Slip compensation 0.0 0.0 {%} 40.0 Change C21 until the motor speed no
longer changes between no load and
maximum load
C22 Current limit 150 30 {%} 150
Reference: smd rated output current
• When the limit value is reached, either
the acceleration time increases or the
output frequency decreases
• When C90 = 2, max setting is 180%
C24 Accel boost 0.0 0.0 {%} 20.0 Accel boost is only active during
acceleration
smd006

16 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
C31 Analog input dead
band
00 Enabled C31 = 0 activates dead band for analog
input. When analog signal is within dead
band, controller’s output = 0.0 Hz and
display will read StP
1 Disabled
C34 Conguration -
analog input
0 0 0...10 V
1 0...5 V
2 0...20 mA
3 4...20 mA
4 4...20 mA monitored Will trigger SD5 fault if signal falls below
2 mA
C36 Voltage - DC
injection brake
(DCB)
4.0 0.0 {%} 50.0 • See CE1...CE3 and c06
• Conrm motor suitability for use with
DC braking
C37 Fixed setpoint 1
(JOG 1)
20.0 0.0 {Hz} 999 When PI is active (see d38), C37...C39
are xed PI setpoints
C38 Fixed setpoint 2
(JOG 2)
30.0 0.0 {Hz} 999
C39 Fixed setpoint 3
(JOG 3)
40.0 0.0 {Hz} 999
C46 Frequency setpoint 0.0 {Hz} 500 Display: Setpoint via analog input,
function UP/DOWN, or LECOM
C50 Output frequency 0.0 {Hz} 500 Display
C53 DC bus voltage 0.0 {%} 255 Display
C54 Motor current 0.0 {%} 255 Display
C59 PI feedback c86 {%} c87 Display
C70 Proportional gain 5.0 0.0 {%} 99.9
C71 Integral gain 0.0 0.0 {s} 99.9
C90 Input voltage
selection
0 Auto Automatically sets to Low (1) or High
(2) upon next power-up, depending on
input voltage
1 Low For 200 V or 400 V input
2 High For 240 V or 480 V input
Note
• To simplify commissioning, the Lenze setting is preset at the factory, depending
on model:
C90 = 1 for 400/480 V models
C90 = 2 for 230/240 V models
• Upon reset (C02 = 1, 2), C90 = 0. Conrm correct setting after next power-up.
C94 User password 0 0 999
Changing from “0” (no password),
value will start at 763
When set to a value other than 0,
must enter password at C00 to access
parameters
C99 Software version Display, format: x.yz
c01 Acceleration time 2 5.0 0.0 {s} 999 • Activated using CE1...CE3
• c01 = frequency change 0 Hz...C11
• c03 = frequency change C11...0 Hz
• For S-ramp accel/decel, adjust c82
c03 Deceleration time 2 5.0 0.0 {s} 999

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 17
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
c06 Holding time -
automatic DC
injection brake
(Auto-DCB)
0.0 0.0 {s} 999
0.0 = not active
999 = continuous brake
• Automatic motor braking below 0.1 Hz
by means of motor DC current for the
entire holding time (afterwards: U, V,
W inhibited)
• Conrm motor suitability for use with
DC braking
c08 Analog output
scaling
100 1.0 999 When 10 VDC is output at terminal 62, it
will equal this value (see c11)
c11 Conguration -
Analog output (62)
00 None
1 Output frequency 0-10 VDC Use c08 to scale signal
Example: c11 = 1 and c08 = 100:
At 50 Hz, terminal 62 = 5 VDC
At 100 Hz, terminal 62 = 10 VDC
2 Output frequency 2-10 VDC
3 Load 0-10 VDC
4 Load 2-10 VDC
5 Dynamic braking Only used with DB option
c17 Conguration -
Digital output (A1)
0Output is energized if
0 Ready
1 Fault
2 Motor is running
3 Motor is running - CW rotation
4 Motor is running - CCW rotation
5 Output frequency = 0 Hz
6 Frequency setpoint reached
7 Frequency threshold (C17)
exceeded
8 Current limit (motor or generator
mode) reached
9 Feedback within min/max alarm
(d46, d47) range
10 Feedback outside min/max alarm
(d46, d47) range
c20 I2t switch-off
(thermal motor
monitoring)
100 30 {%} 100
100% = smd rated output current
• Triggers 0C6 fault when motor
current exceeds c20 for too long
• Correct setting = (motor nameplate
current) / (smd output current rating)
X 100%
• Example: motor = 6.4 amps and smd
= 7.0 amps; correct setting = 91%
(6.4 / 7.0 = 0.91 x 100% = 91%)
WARNING!
Do not set above rated motor current as listed on the motor dataplate. Does not
provide full motor protection!
c21 Motor Overload
Type
00 00 Speed Compensation
Reduces the allowable continuous
current when operating below 30Hz.
Ir
100%
60%
30 f
1
0
Ir: rated current (%), f: motor frequency (Hz)
01 No Speed Compensation
Example: Motor is cooled by
forced ventilation as apposed to
shaft mounted, self cooling fans.

18 Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
c25 Serial baud rate 0 0 LECOM: 9600 bps
Modbus: 9600,8,N,2
• See C01
• LECOM if C01 = 0...3
• Modbus if C01 = 8...11
1 LECOM: 4800 bps
Modbus: 9600,8,N,1
2 LECOM: 2400 bps
Modbus: 9600,8,E,1
3 LECOM: 1200 bps
Modbus: 9600,8,O,1
c38 Actual PI setpoint c86 c87 Display
c40 Frequency setpoint
via keys
or Modbus
0.0 0.0 {Hz} 500 Only active if C01 is set properly
(C01 = 1,5,7,9,11)
c42 Start condition
(with mains on)
10 Start after LOW-HIGH change at
terminal 28
See also c70
1 Auto start if terminal 28 = HIGH
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to
personnel! Automatic starting/restarting should only be used on equipment that is
inaccessible to personnel.
c60 Mode selection for c61 0 0 Monitoring only c60 = 1 allows the keys to adjust
speed setpoint (c40) while monitoring c61
1 Monitoring and editing
c61 Present status/error status/error message • Display
• Refer to Section 5 for explanation of
status and error messages
c62 Last error error message
c63 Last error but one
c70 Conguration TRIP
reset (error reset)
00 TRIP reset after LOW-HIGH
change at terminal 28, mains
switching, or after LOW-HIGH
change at digital input “TRIP reset”
1 Auto-TRIP reset • Auto-TRIP reset after the time set in
c71
• More than 8 errors in 10 minutes will
trigger rSt fault
WARNING!
Automatic starting/restarting may cause damage to equipment and/or injury to
personnel! Automatic starting/restarting should only be used on equipment that is
inaccessible to personnel.
c71 Auto-TRIP reset delay 0.0 0.0 {s} 60.0 See c70
c78 Operating time
counter
Display
Total time in status “Start”
0...999 h: format xxx
1000...9999 h: format x.xx (x1000)
10000...99999 h: format xx.x (x1000)
c79 Mains connection
time counter
Display
Total time of mains = on
c81 PI setpoint 0.0 c86 c87
c82 S-ramp integration
time
0.0 0.0 {s} 50.0 • c82 = 0.0: Linear accel/decel ramp
• c82 > 0.0: Adjusts S-ramp curve for
smoother ramp
c86 Minimum feedback 0.0 0.0 999 • Select feedback signal at C34
• If feedback is reverse-acting, set
c86>c87
c87 Maximum feedback 100 0.0 999

Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 19
Commissioning
Code Possible Settings IMPORTANT
No. Name Lenze Selection
d25 PI setpoint accel/
decel
5.0 0.0 {s} 999 Sets rate of change for PI setpoint
d38 PI mode 0 0 PI disabled
1 PI enabled: normal-acting When feedback (terminal 8) exceeds
setpoint, speed decreases
2 PI enabled: reverse-acting When feedback (terminal 8) exceeds
setpoint, speed increases
d46 Feedback minimum
alarm
0.0 0.0 999
See C08 and c17, selections 9 and 10
d47 Feedback maximum
alarm
0.0 0.0 999
n20 LECOM power up
state
0 0 Quick stop
1 Inhibit
n22 Serial time-out
action
0 0 Not active Selects controller reaction to serial
timeout
1 Inhibit
2 Quick stop
3 Trip fault FC3
n23 Serial fault time 50 50 {ms} 65535 Sets the serial timeout length
