Termination Instructions:
1. Strip a minimum of 1 inch of jacket
from the end of the F/UTP cable,
pull the foil or braided shield back over
the jacket as shown (in Fig 1) and wrap
the drain wire around the shield. For
U/FTP cable, fold the foil from each
twisted pair over the jacket and wrap
the drain wire around the shield.
Note: Insulation displacement connector
(IDC) is suitable for 22-26 AWG solid wire.
2. Insert the wires from the stripped cable
into the stuffer cap through the hole
as shown.
3. Insert the wires into their correct
positions per the desired wiring scheme.
4. Cut the excess wire off as close to the
edge of the cap as possible, tips of the
wires should not protrude more
than 1/32 of an inch.
5. Make sure that arrows on both connector
and cap point in the same direction.
6. Align the cap with the IDC towers and
press into position.
7. Rotate the wings toward each other
until they snap closed.
8. Ensure that the drain wire is wrapped
around the cable and shield.
9. Tie-wrap the drain wire to the shield.
Do not over tighten the tie wrap! It
should be snug, but not so tight that
it crushes the wires.
Technical Support: 800-824-3005
Customer Service: 800-722-2082
International: 425-486-2222
Fax: [phone]
Web: www.leviton.com

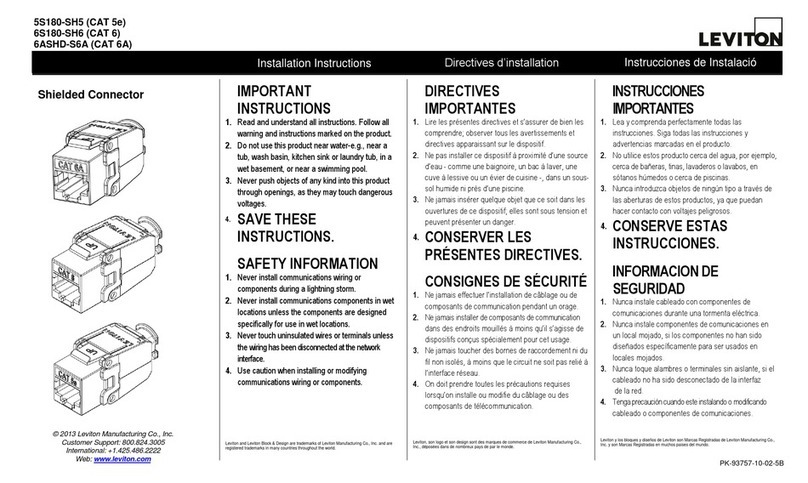

IMPORTANT INSTRUCTIONS
1. Read and understand all instructions. Follow
all warnings and instructions marked on
the product.
2. Do not use this product near water-e.g., near
a tub, wash basin, kitchen sink or laundry tub,
in a wet basement, or near a swimming pool.
3. Never push objects of any kind into this product
through openings, as they may touch
dangerous voltages.
4. SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
1. Never install communications wiring or
components during a lightning storm.
2. Never install communications components in
wet locations unless the components are
designed specifically for use in wet locations.
3. Never touch uninsulated wires or terminals
unless the wiring has been disconnected at the
network interface.
4. Use caution when installing or modifying
communications wiring or components.
5. To prevent electrical shock, each opening must
be filled with a module.
2222 - 222nd Street SE
Bothell, WA 98021, USA
Phone: [phone]
Fax: [phone] PK-93365-10-02-0B
0R-93365-00-00-02
Shielded
Connector
Disassembly Instructions:
1. Cut the tie wrap as close to the cable
as possible. Do not cut or damage
the drain wire.
2. To open the wings, insert a small
screwdriver into the slot and
gently lift over the snap.
1
2
