VerifEye®Series 8000 PT Module
Cat. No. S480V
Installation Guide
WEB VERSION

TABLE OF CONTENTS
1 Introduction ...........................................................................................................1
1.1 Description and Specifications...........................................................................1
2 Installation..............................................................................................................4
2.1 Mounting the VerifEye PT module .....................................................................5
2.2 Install 347V Wye/600V Delta PT module in 600V three-phase
3-wire system.....................................................................................................7
2.3 Install 347V Wye/600V Delta PT module in 347V three-phase
4-wire system.....................................................................................................8
2.4 Install 480V Delta PT module in 480V three-phase 3-wire system ...................9
3 Maintenance...........................................................................................................9
3.1 Fuse Replacement.............................................................................................9
4 Regulatory Compliance ......................................................................................10
4.1 Equipment servicing and access .....................................................................10
5 Warranty and Contact Information.....................................................................11
WEB VERSION

WARNING:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
• This equipment MUST be installed and serviced by qualified electrical personnel with the
requisite knowledge, training and experience related to the installation and operation of
this equipment.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before
working on or inside the equipment. Use a properly rated voltage sensing device to
confirm power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• Product may use multiple voltage/power sources. Be sure all sources of power have been
disconnected before servicing.
• Do not depend on this product for voltage indication.
• Only install this product on insulated conductors.
• If the meter appears damaged or defective, first disconnect all power to the meter.
Then call or email technical support for assistance.
• The equipment must be accessible to authorized personnel only. Equipment must be
installed in areas where access can be restricted.
• DO NOT work alone.
• Before closing all covers and doors, carefully inspect the work area for tools and objects
that may have been left inside the equipment.
• DO NOT bypass external fusing.
• DO NOT short the secondary of a Voltage Transformer (VT).
• Always short the secondary of a current transformer prior to disconnecting current
input loads.
CAUTION:
• Use the unit only in accordance with the electrical power rating
• Initial installation of the unit must be inspected by the local electrical Inspection Authority
• Install the unit in compliance with the following local and national electrical codes:
• Canada: Canadian Electrical Code, Part I, CSA C22.1
• United States: National Fire Protection Association (NFPA) 70; US National
Electrical Code
• Elsewhere: International Electrotechnical Commission (IEC) 364, Part 1-7
• Ensure that the unit is properly earthed
• If the equipment is installed or used in a manner other than that specified in this document,
it may void your warranty or impair the protection of the equipment.
WEB VERSION

1 Introduction
1
This guide provides a description of the VerifEye Series 8000 PT (potential transformer) module and
procedures for installing and maintaining the module.
This documentation is intended for those responsible for installing and maintaining the VerifEye PT
(potential transformer) module. Installers must be qualified electricians with knowledge of local and national
code requirements. See Warnings and Cautions.
1.1 Description and specifications
The VerifEye Series 8000 PT module provides step-down voltage connections to VerifEye Series 8000
meters for metering single-phase to three-phase voltages of 600V, 347V, or 400V, while meeting all
regulatory electrical safety and ANSI 0.5 Accuracy Class standards. The VerifEye Series 8000 PT module
provides both the per-phase input metering sense voltages and the auxiliary input power required by
VerifEye Series 8000 energy meters.
There are two variants of the VerifEye Series 8000 PT module that support the following source voltages
and wiring configurations:
1. The 347V Wye / 600V Delta variant supports:
• 347V, three-phase, 4-wire wye
• 600V, three-phase, 3-wire delta
2. The 480V Delta variant supports:
• 480V, three-phase, 3-wire delta
The 347V/600V PT module variant has three sense voltage potential transformers for metering. The
configuration of the transformers (347V wye or 600V delta) is selected by using the jumper provided.
The 480V PT module has two sense voltage potential transformers for metering.
There is a separate auxiliary power transformer in both variants to operate the meter. All voltage inputs
are fused.
One VerifEye Series 8000 PT module can be used to provide sense voltages and auxiliary power to a
maximum of two meters.
Table 1 lists the specifications of the VerifEye PT module.
WEB VERSION

1 Introduction
2
Specification Value
Dimensions
Height 8.39 in. (21.31 cm)
Width 13.53 in. (34.37 cm)
Depth 2.125 in. (5.4 cm)
Weight 12.5 lb (5.67 kg)
Fuse Ratings
High voltage inputs F1 T315 mA, 1000V
F2
F3
Voltage outputs F4 T250 mA, 250V
F5
F6
F7
Transformer specifications
Input voltage 600V Voltage tolerance: +/-10%
480V
347V
Output voltage 120V Accuracy: 0.3%
Environmental
Operating temperature -40 to158°F (-40 to 70°C)
Operating humidity 5% to 90% non-condensing
Usage environment Indoor or enclosed outdoor environment
Maximum altitude 9843 ft (3000 m)
Pollution degree 2
Table 1: VerifEye PT module specifications
WEB VERSION

3
2 Installation
The installation site must be supplied with access to the main electrical panel and any sub-panels. Portable
or permanent lighting must be available to provide the installers with a clear view of the equipment and of
the installation environment. Each installation may vary depending on physical site restrictions.
Figure 1 shows the recommended spacing for mounting the equipment at the installation site.
Figure 1: Recommended equipment spacing and dimensions
7.59 in.
(189.8 mm)
9.0 in.
(228.6 mm)
MIN 3.50 in. (88.9 mm)
8.39 in.
(213.1 mm)
13.19 in.
(335.0 mm)
13.53 in.
(343.7 mm)
2.25 in.
(5.4 mm)
6.50 in.
(16.5mm) No 8
SCREWS
TYPICAL
PT ENCLOSURE
METER
SHORTING
OR
TERMINATION
ENCLOSURE
12.58 in.
(319.5 mm)
12.58 in.
(319.5mm)
WEB VERSION

2 Installation
4
List of tools and equipment
The installer must have the following tools and equipment before proceeding with the installation:
• an appropriate 15-Amp maximum circuit breaker or a disconnect device
• current/voltage meter
• 4-wire 14 AWG (1.63 mm2) 194°F (90°C) cable
• 3-wire, 14 AWG (1.63 mm2), 194°F (90°C) cable
• small flat-head screwdriver
• #2 Phillips screwdriver
• crimping tool
• wire strippers
• four 1-inch (25 mm) #8 mounting screws suitable for selected mounting surface
2.1 Mounting the VerifEye Series 8000 PT module
WARNING:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
To be installed by electrician or other qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before
working on or inside the equipment. Use a properly rated voltage sensing device to confirm
power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
In all installations, the VerifEye Series 8000 PT Module must be connected to the source panel voltage
through a 15A maximum disconnect or breaker that disconnects all line and neutral wires, so that the
PT module can be powered down. The disconnect or breaker must be located within easy reach of the
meter operator, and must be labeled to indicate the VerifEye Series 8000 PT module and meter that it is
connected to. The disconnect or breaker device must meet IEC 60947-1, IEC 60947-3 and/or comply with
the local electrical code.
Figure 2 shows a typical system installation for a three-phase 4-wire 347V wye configuration with the
VerifEye Series 8000 PT module mounted adjacent to the electrical panel and the VerifEye meter.
WEB VERSION

2 Installation
5
Generic Breaker Panel
PT Module
Shorting Bloc
k
Module
Generic Conduit

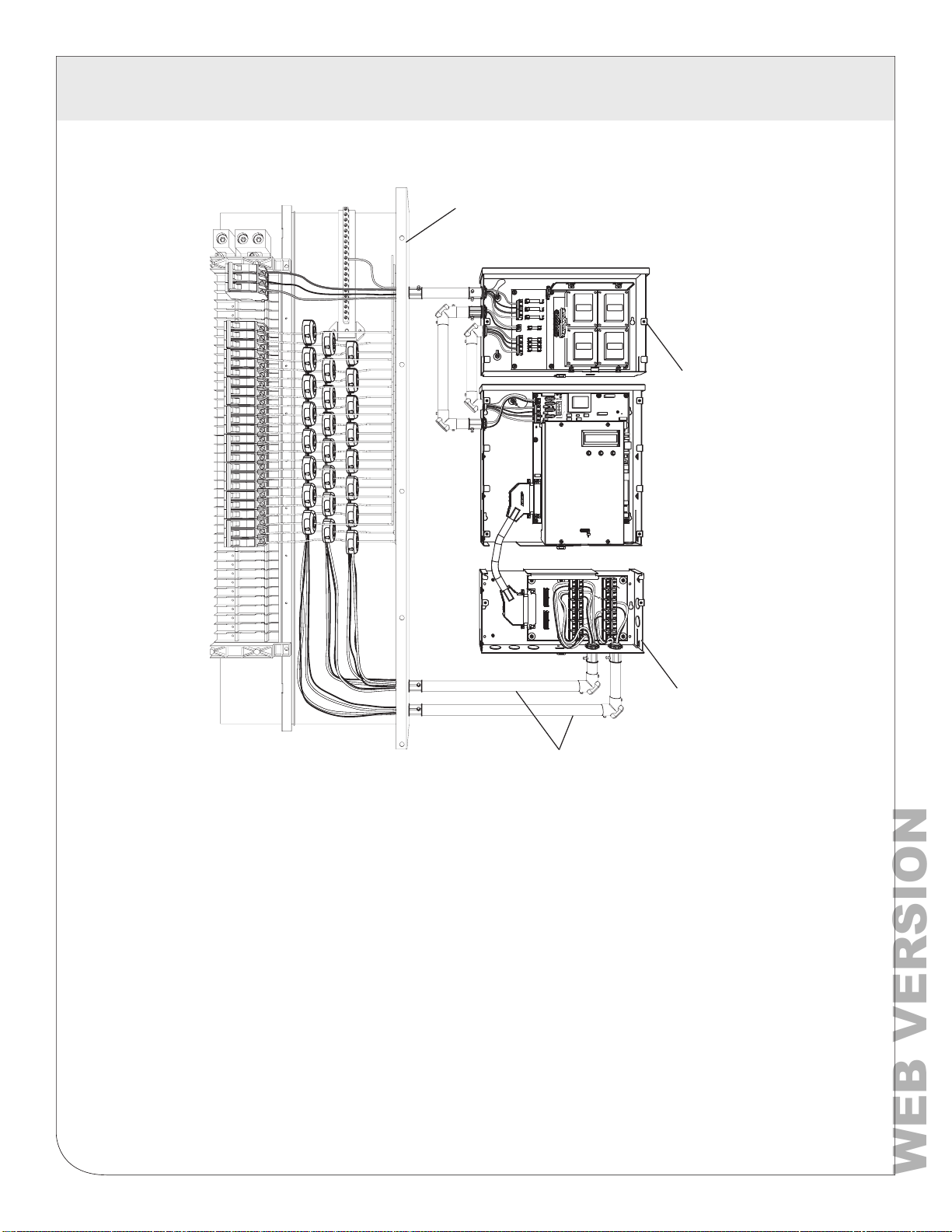

Figure 2: Typical three-phase 4-wire 347V wye system installation
WEB VERSION

2 Installation
6
2.2 Install 347V Wye/600V Delta PT module in 600V three-phase 3-wire system
WARNING:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
To be installed by electrician or other qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before
working on or inside the equipment. Use a properly rated voltage sensing device to confirm
power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
1. Install the configuration jumper on the PT module in the 600V delta position (default), as shown in
Figure 3, and as indicated on the printed circuit board.
2. Remove the control voltage jumper on the
VerifEye meter as shown in Figure 3.
3. Connect the source panel
disconnector breaker to the VerifEye
Series 8000 PT module in accordance
with local and national electrical
codes.
4. Connect the VerifEye Series 8000 PT
module to the VerifEye Series 8000
meter using a 3-wire (red, black, blue),
14 AWG (1.63 mm2), 194°F (90°C)
cable. The maximum cable length
between the 120V outputs of the PT
module and the meter sense voltage
Figure 3: 600V delta PT module to meter wiring connections
C
B
A
N
N
A
B
C
AUX_N
AUX_A
C
B
A
N
Configuration Jumper (600V position)
C
B
A
N
C
B
A
N
C
B
A
N
C
B
A
N
AUX-A
AUX-N
PT Module Meter
BL
BK
RD
BL
BK
RD
Control Voltage
Jumper Removed
AUX_A AUX_N
WEB VERSION

2 Installation
7
2.3 Install 347V Wye/600V Delta PT module in 347V three-phase 4-wire system
WARNING:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
To be installed by electrician or other qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before
working on or inside the equipment. Use a properly rated voltage sensing device to confirm
power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
1. Install the configuration jumper on the PT module in the 347V wye position as shown in Figure 4, and as
indicated on the printed circuit board.
2. Remove the control voltage jumper on
the VerifEye Series 8000 meter as
shown in Figure 4.
3. Connect the source panel
disconnect or breaker to the
VerifEye Series 8000 PT module in
accordance with local and national
electrical codes.
4. Connect the VerifEye Series 8000
PT module to the VerifEye Series
8000 meter using a 4-wire (red,
black, blue, white), 14 AWG (1.63
mm2), 194°F (90°C) cable. The
maximum cable length between the
120V outputs of the PT module and
the meter sense voltage inputs
is 108 ft (33 m).

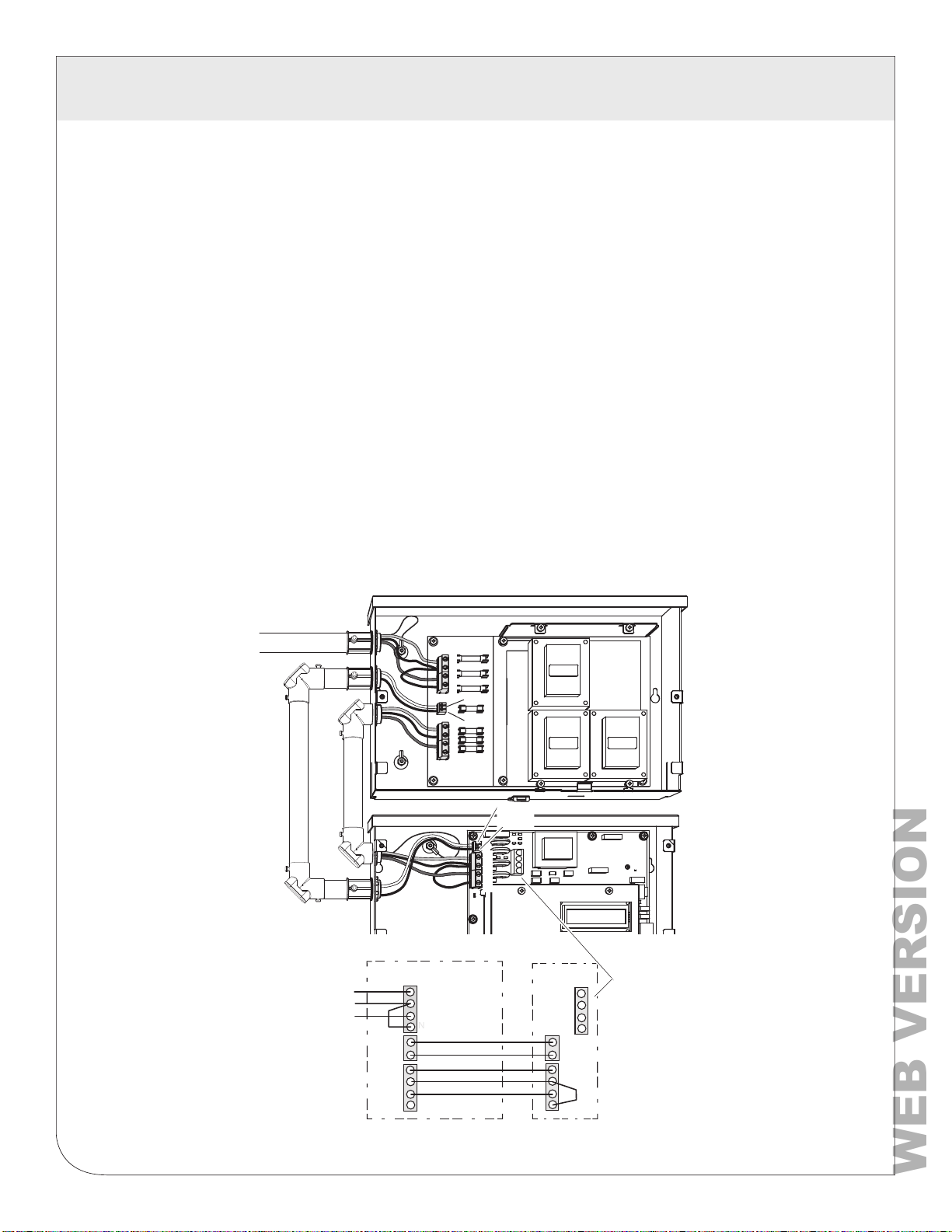

Figure 4: 347V Wye PT module to meter wiring connections
C
B
A
N
N
A
B
C
AUX_N
AUX_A
C
B
A
N
C
B
A
N
C
B
A
N
C
B
A
N
C
B
A
N
AUX-A
AUX-N
PT Module Meter
BL
BK
RD
BL
BK
RD
WT
Control Voltage
Jumper Removed
ConfigurationJumper (347V position)
AUX_N
AUX_A
WEB VERSION

2 Installation
8
2.4 Install 480V Delta PT module in 480V three-phase 3-wire system
WARNING:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
To be installed by electrician or other qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before
working on or inside the equipment. Use a properly rated voltage sensing device to confirm
power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
1. Connect the source panel disconnect or breaker to the VerifEye Series 8000 PT module in accordance
with local and national electrical codes.
2. Remove the control voltage jumper on the VerifEye Series 8000 meter as shown in Figure 5.
3. Connect the VerifEye Series 8000 PT module to the VerifEye Series 8000 meter using a 3-wire (red,
black, blue), 14 AWG (1.63 mm2), 194°F (90°C) cable, as shown in Figure 5. The maximum cable length
between the 120V outputs of the PT module and the meter sense voltage inputs is 108 ft (33 m).
Figure 5: 480V Delta PT module to meter wiring connections
C
B
A
N
N
A
B
C
AUX_N
AUX_A
AUX_A
AUX_N
C
B
A
N
C
B
A
N
C
B
A
N
C
B
A
N
C
B
A
N
AUX-A
AUX-N
PT Module Meter
BL
BK
RD
BL
BK
RD
Control Voltage
Jumper Removed
WEB VERSION

3 Maintenance
9
Do not perform any operation or maintenance procedures that are not described in this product
documentation. No preventive maintenance is required on any of the equipment. Visually inspect the
equipment yearly and ensure it is free of dust or other particles. If necessary, wipe with a clean cloth.
Individual components are not user-serviceable and must be returned to Leviton for repair.
3.1 Fuse Replacement
CAUTION:
• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
To be installed by electrician or other qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before working on or
inside the equipment. Use a properly rated voltage sensing device to confirm power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• Replace all devices, doors and covers before turning on power to this equipment.
1. Remove the outer cover from the unit.
2. Locate the fuse to be replaced inside the unit.
3. Remove the fuse from the holder as shown in Figure 6.
4. Replace the fuse with a fuse that meets the same specifications as printed on the metalwork (refer to
fuse rating specifications listed in Table 1 on page 1).
5. Re-install the outer cover on the unit and turn on the power source.
Figure 6: Replacing the fuse
Fuse holder
Fuse
WEB VERSION

4 Regulatory Compliance
10
The VerifEye PT module must be installed by a certified electrician with knowledge of local safety
regulations. Initial installation of the unit, and any subsequent modification to the unit, must be inspected by
the local electrical safety authority.
The VerifEye Series 8000 PT module complies with the standards listed in Table 2.
4.1 Equipment servicing and access
The information in this section must be considered as a mandatory requirement, and must be strictly
adhered to when installing and operating VerifEye PT (potential transformer) module.
Access to equipment
The equipment must be accessible to authorized personnel only. Equipment must be installed in areas
where access can be restricted.
Servicing the equipment
No preventive maintenance is required on any of the equipment. Visually inspect the equipment yearly
and ensure it is free of dust or other particles. If necessary, wipe with a clean cloth.
Component servicing
Individual components are not user-serviceable, and must be returned to Leviton for repair. If an
equipment fault occurs, do not attempt to repair the faulty component.
All maintenance activities should be performed by qualified personnel only. Do not perform any operating or
maintenance procedures that are not described in the product documentation provided by Leviton.
Graphical symbols
Table 3 shows the graphical symbols that appear on the equipment.
Table 2: Regulatory Compliance
Table 3: Graphical symbols that appear on equipment
Discipline Regulatory and industry standard
Safety UL certified to IEC/EA/UL/CSA 61010-1 3rd Edition
CSA-C22.2 No. 61010-1-04
Symbol Description
Indicates the supply wire protective earth, also
known as chassis ground, for the primary ground.
This symbol indicates a replaceable fuse.
WEB VERSION

5 Warranty and Contact Information
11
The Leviton name, Leviton logo and VerifEye brand used in this guide are trademarks or registered
trademarks of Leviton. Other trademarks used are the property of their
respective owners.
This product must be installed, connected and used in compliance with prevailing standards and/or
installation regulations. As standards, specifications and designs change from time to time, always ask for
confirmation of the information given in this publication.
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time
of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from
the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option. For details
visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for
removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper
environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating
conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any
kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the
applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular
purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages,
including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure
to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty,
whether based on contract, tort or otherwise.
FOR TECHNICAL ASSISTANCE CALL:
1-800-824-3005 (USA Only)
1 800 405-5320 (Canada Only)
Leviton Manufacturing Co., Inc.
201 North Service Road, Melville, NY 11747
Visit Leviton’s Web site at http://www.leviton.com
© 2019 Leviton Manufacturing Co., Inc. All rights reserved.
TRADEMARK DISCLAIMER:
Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for
informational purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply
affiliation, sponsorship, or endorsement.
WEB VERSION
