Liko UltraTwin FreeSpan Manual

English
Instruction Guide
7EN130101-02
2007-05-11

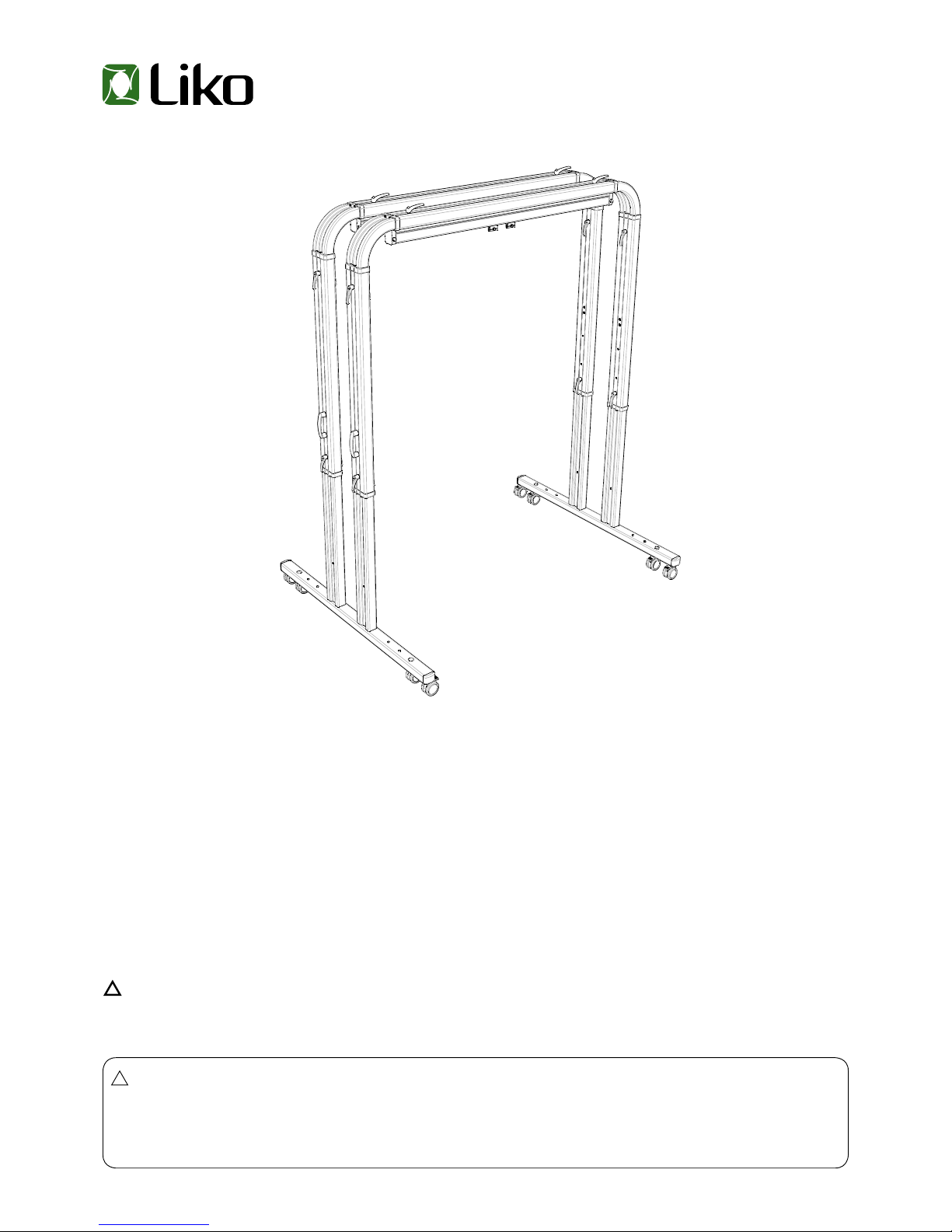

UltraTwin FreeSpan
!
UltraTwin FreeSpan is a freestanding rail system
specially designed to lift heavy patients in combination
with Likorall or Multirall lift motor.
UltraTwin FreeSpan is adjustable to four different
heights, and is available in 8 different rail lengths,
giving a total width ranging from 2 - 5,5 meters (79
- 217 inch.).
Equipped with locking handles on the lift rail,
FreeSpan can be widened a further 225 mm (8.9 in.)
in each corner.
UltraTwin FreeSpan can be lowered to the transport
position (1700 mm/66.9 inches) to simplify mounting
of the lift motor and/or moving the lift system to another
room.
UltraTwin FreeSpan has lockable wheels, is made of
aluminum and is, despite its light weight, extremely
stable.
UltraTwin FreeSpan complies with the requirements in
EN-ISO 10535 according to MDD 93/42/EEC.
CAUTION!
Carefully read these instructions and the instructions for the particular lifting accessory being used.
Lifting and transferring a person always presents a potential risk. It is essential to thoroughly understand the
content of these manuals, and that only trained persons use the equipment.
If you have questions, please contact Liko or your local Liko representative.
”Caution!” triangles are used to warn of situations that demand extra care and attention.
In this document, the person being lifted is referred to as the ”patient” and the person helping them is referred to
as the ”caregiver”.

2 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
Safety Instructions ........................................ 2
Product Description ...................................... 3
Technical Data/Measurements ..................... 4
Assembly Instructions................................ 5-6
User's Guide................................................. 7
Care and Maintenance ................................. 8
Table of contents
Safety Instructions
Before use, ensure that:
• you have read and understood the instruction manuals for the lift and accessories;
• staff who use the lift are properly informed of its correct use;
• the lift has been assembled according to the assembly instructions;
• the frame of the lift is assembled and adjusted to working height (2250-2550 mm/88.6-100.4 inches).
• the selected lift accessories are the right ones with respect to type, model, size and material in relation to
the needs of the patient;
• lift accessories are not damaged;
• lift accessories are correctly attached to the lift;
• lift accessories are correctly and securely applied to the patient in such a way that no personal injury can occur;
Never leave a patient unattended in UltraTwin FreeSpan!
UltraTwin FreeSpan is a Medical-technical device, class 1, in accordance with MDD 93/42/EEC.
UltraTwin FreeSpan complies to EN ISO 10535.
Maximum load: 400 kg (880 lbs.)
NOTE!
This instruction guide contains information that is important for users of the product.
A complete understanding of the contents of the instruction guide is essential, and only personnel who
are well informed should use the equipment.
Remember to keep the instruction guide readily accessible for users of the product.

3 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
UltraTwin FreeSpan is intended for use in combination with either Likorall 242 ES or Multirall lift motor.
For appropriate accessories, see instruction guide for respective lift motor.

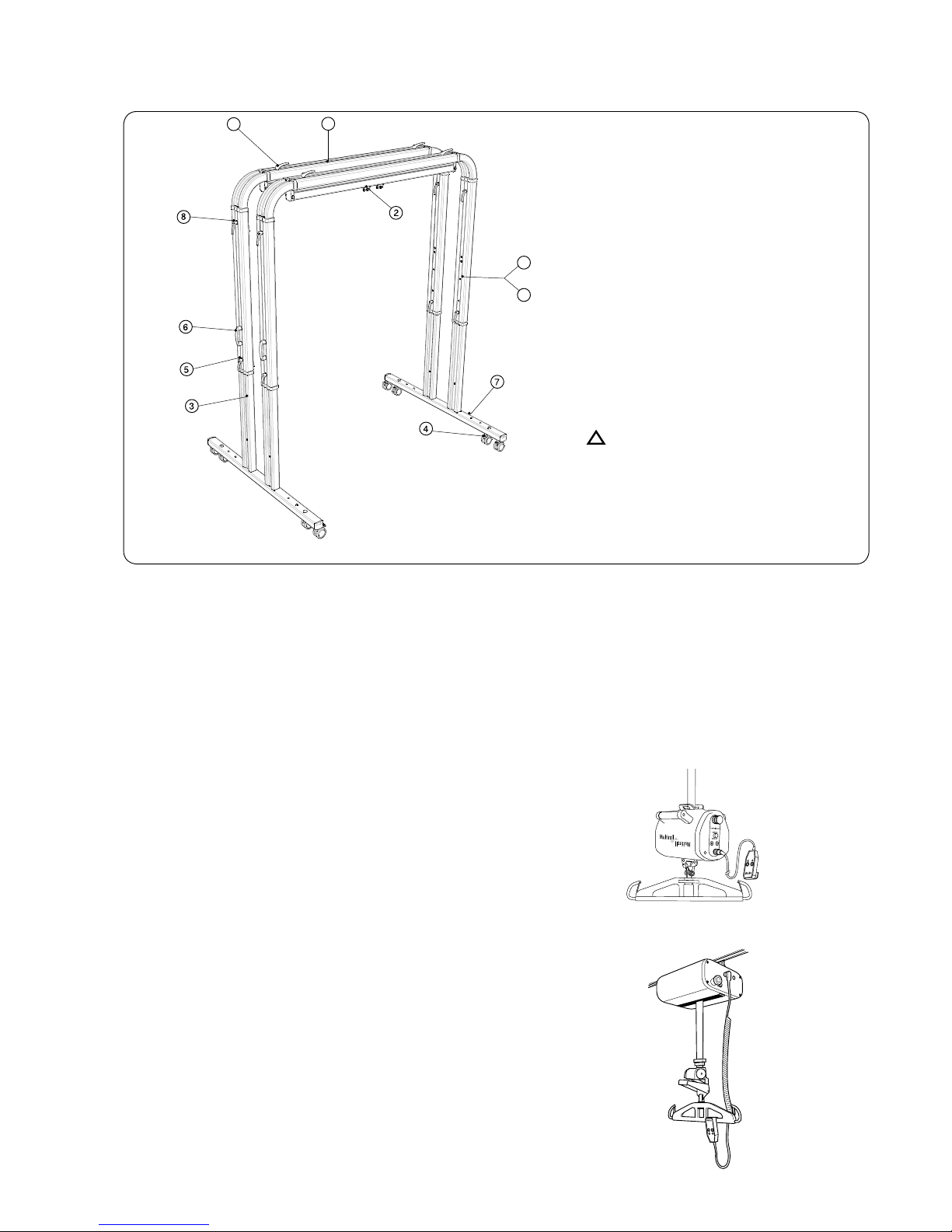

Product Description
1. Rail with corners
2. Carriage (either for Likorall or for Multrall)
3. Upright, telescopic
4. Wheels with brakes
5. Lower locking handles
6. Handles
7. Holes for alternative wide placement of
the uprights
8. Upper locking handles
9. Parking position
10. Hole for charger mounting
11. Locking handle for adjusting corners
NOTE! The locking handles for
adjusting corners should never
be dismounted.
UltraTwin Freespan mounted in the narrow position cc 300 mm (11.8 inch.) is appropriate for lifts with (a heavy
patient) UltraSlings and Original High Back Sling in size XL and XXL.
UltraTwin Freespan mounted in the wide position cc 800 mm (31.5 inch.) is appropriate for lifts when using
UltraStretch.
9
10
Lift unit
Installation of Likorall lift units on UltraTwin Freespan
is described in this instruction guide.
Installation of Multirall lift units on UltraTwin Freespan
is described in the Multirall instruction guide.
11 1

4 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
Mod. Cap. A* Amin** L B C D E F1F2Weight
tot. part
15 880 88.6-100.4 66.9 59.0 78.3-96.1 5.3 3 56.7 11.8 31.5 160.6 57.2
20 880 88.6-100.4 66.9 78.7 98.0-115.7 5.3 3 56.7 11.8 31.5 171.6 68.2
25 880 88.6-100.4 66.9 98.4 117.7-135.4 5.3 3 56.7 11.8 31.5 182.6 79.2
30 880 88.6-100.4 66.9 118.1 137.4-155.1 5.3 3 56.7 11.8 31.5 193.6 90.2
35 880 88.6-100.4 66.9 137.8 157.1-174.8 5.3 3 56.7 11.8 31.5 204.6 101.2
40 880 88.6-100.4 66.9 157.5 176.8-194.5 5.3 3 56.7 11.8 31.5 215.6 112.2
45 880 88.6-100.4 66.9 177.2 196.5-214.2 5.3 3 56.7 11.8 31.5 226.6 123.2
50 880 88.6-100.4 66.9 196.9 216.1-233.9 5.3 3 56.7 11.8 31.5 237.6 134.2

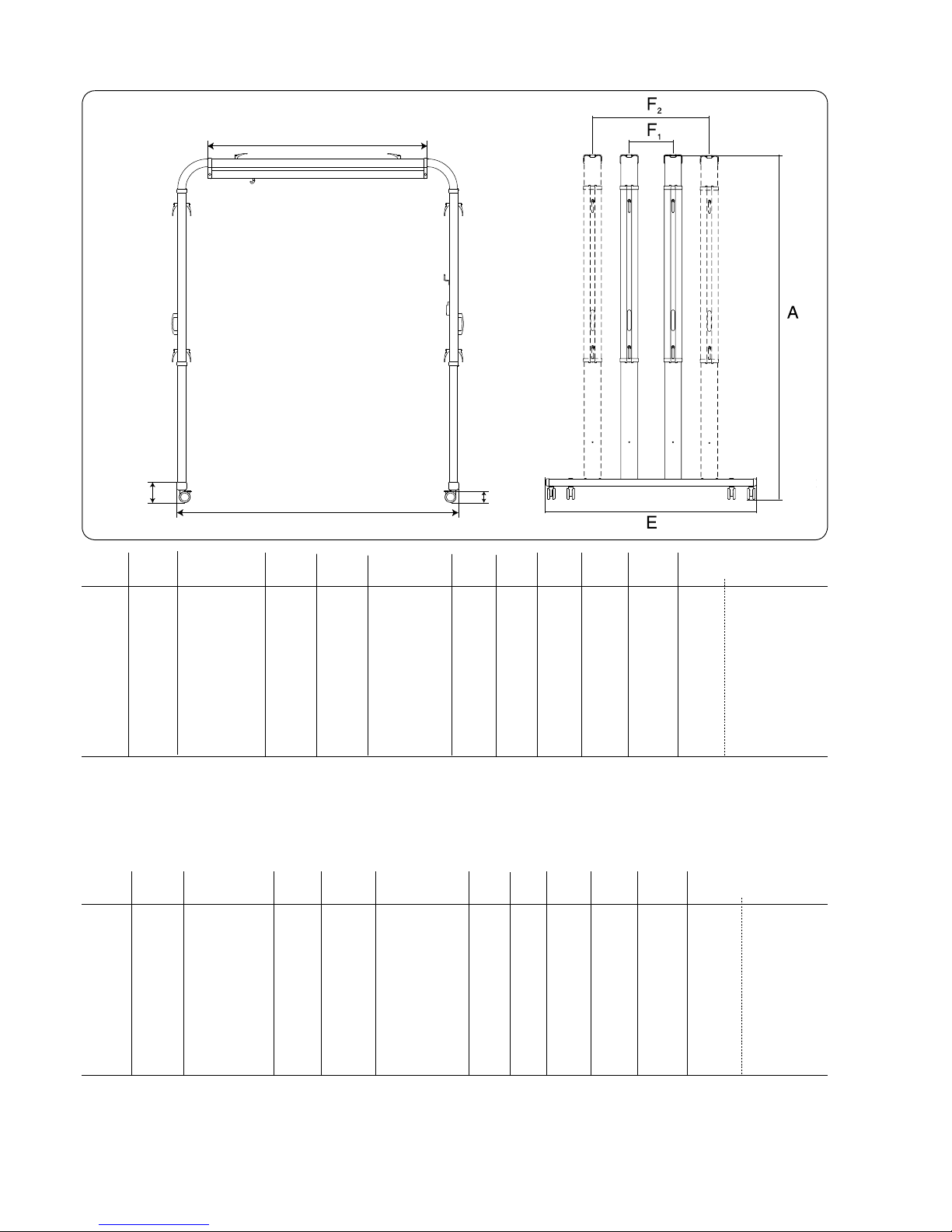

Technical Data/Measurements
L
B
CD
Capacity and weight in lbs. Dimensions in inches.
* The height of the rail system can be adjusted in intervals of 4 inch.
** Note that the lowest working height for FreeSpan is 88.6 inch. The 67 inch. height is intended only for transport, not for
lifting or transferring patient.
F1is vaild with the standard width between the rails, F2is valid with extra width between the rails.
Mod. Cap. A* Amin** L B C D E F1F2Weight
tot. part
15 400 2250-2550 1700 1500 1990-2440 135 75 1440 300 800 73 26
20 400 2250-2550 1700 2000 2490-2940 135 75 1440 300 800 78 31
25 400 2250-2550 1700 2500 2990-3440 135 75 1440 300 800 83 36
30 400 2250-2550 1700 3000 3490-3940 135 75 1440 300 800 88 41
35 400 2250-2550 1700 3500 3990-4440 135 75 1440 300 800 93 46
40 400 2250-2550 1700 4000 4490-4940 135 75 1440 300 800 98 51
45 400 2250-2550 1700 4500 4990-5440 135 75 1440 300 800 103 56
50 400 2250-2550 1700 5000 5490-5940 135 75 1440 300 800 108 61
Capacity and weight in kg. Dimensions in mm.
* The height of the rail system can be adjusted in intervals of 10 cm.
** Note that the lowest working height for FreeSpan is 2250 mm. The 1700 mm height is intended only for transport, not for
lifting or transferring patients.
F1is vaild with the standard width between the rails, F2is valid with extra width between the rails.

5 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
Assembly instructions
3a) Slide the lift unit onto the longer carriage with
the emergency stop end in the opposite direction as
the carriage brake knob, as in the diagram above.
Afx the carriage in the outermost hole in the moun-
ting rail above the lift unit using the accompanying
M8 bolt and nut.
Mounting Likorall lift motor
3b) Slide on the shorter carriage from the other direc-
tion. Afx the carriage in the outermost hole in the
mounting rail above the lift unit using the accompany-
ing M8 bolt and nut.
Repeat 3a-3b with the other rail.
1. Fit both the rails to one of the uprights, as in the
diagram. Make sure the handle is facing outward.
Mount the upper locking handles that hold the rails
to the upright, and tighten.
Note that the upper locking handles lock the rail to
the uprights and may only be used when assemb-
ling or disassembling UltraTwin FreeSpan!
2. Repeat the above procedure with the other upright.
Make sure the handles are aligned lengthwise with the
uprights.
3. Mount the lift motor in the pre-mounted carriages. Note that UltraTwin FreeSpan is delivered with a carriage
specic for either Likorall or Multirall lift motors. For mounting with Multirall, see the instruction in the Multirall ins-
truction guide. Below is mounting of Likorall lift motor described.
Read instructions for the lift motor before use!
Before assembly, make sure that the uprights are locked in their lowest position and that the upper locking handles
have been removed from both uprights. Lock the wheels before assembly.
Before assembly, check that the following components are included:
• Uprights, 2 pcs. With wheels,
handles and locking handles (8 pcs.)
• Parking bracket, 2 pcs
• Rail with corners, end-stops
and carriage, 2 pcs
3. Adjustment of overall width
If you need to adjust the width of Freespan:
Loosen the locking handles on top of the lift rail and pull
the uprights out to the desired width (max 225 mm/8,9 in.
wider in each corner). Tighten the locking handles.
NOTE! The locking handles for adjusting
corners must not be dismounted from the
rail.

6 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
Mounting Ultra Control Unit
Slide the connection plate in place
on top of the liftmotors. Make sure
it fastens to the carriage.
Connect the cables from the distribu-
tor to both lift motors.
Note! The cable should be inserted in
the socket for the hand control (left).
Secure the plate to the carriages
with the bolt and sprint attached.

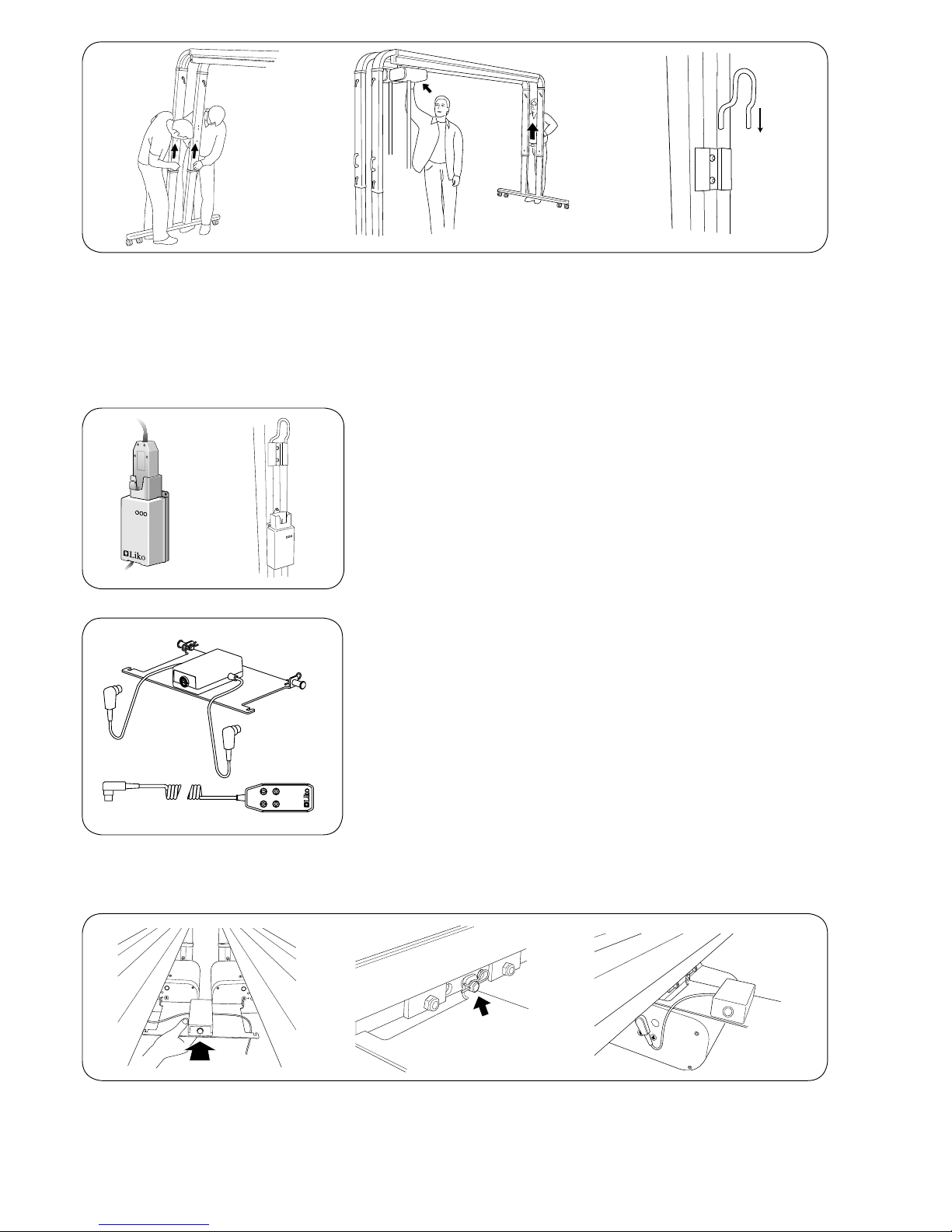

4. Raise the uprights to the rst
operating position (2250 mm).
5. Raise the uprights step by step.
One person moves the lift motors to
the other side of the rail, while the
other lifts the upright. Repeat the pro-
cedure until the freestanding system
has reached the desired height.
Battery charger
6. Finally, t the parking brackets
into the pre-mounted xtures on
the uprights.
The battery charger for Likorall or
Multirall can be mounted directly to
the upright via the pre-drilled M4
holes.
Ultra Control Unit (Likorall lift motor)
When using Likorall lift motor in UltraTwin Freespan with standard
width between the rails (see page 5), the Ultra Control Unit (prod.
no. 3126040) makes it possible to operate both lift motors with one
hand control.

7 Liko • w w w . l i k o . comInstruction guide UltraTwin Freespan • 7EN130101-02
Moving FreeSpan
UltraTwin FreeSpan is not to be moved with a patient in the lift!
FreeSpan can be moved when fully assembled with the lift unit, though not with the patient in the lift.
Release wheel locks and move FreeSpan to the desired location. If the lift is to be moved from one room
to another and the door opening is too low, FreeSpan can be lowered to its transport position (1700 mm/
66.9 inches). We recommend that two people move the lift.
For instructions how to lower UltraTwin FreeSpan, see page 6 and follow the points 4-5 in reverse order.

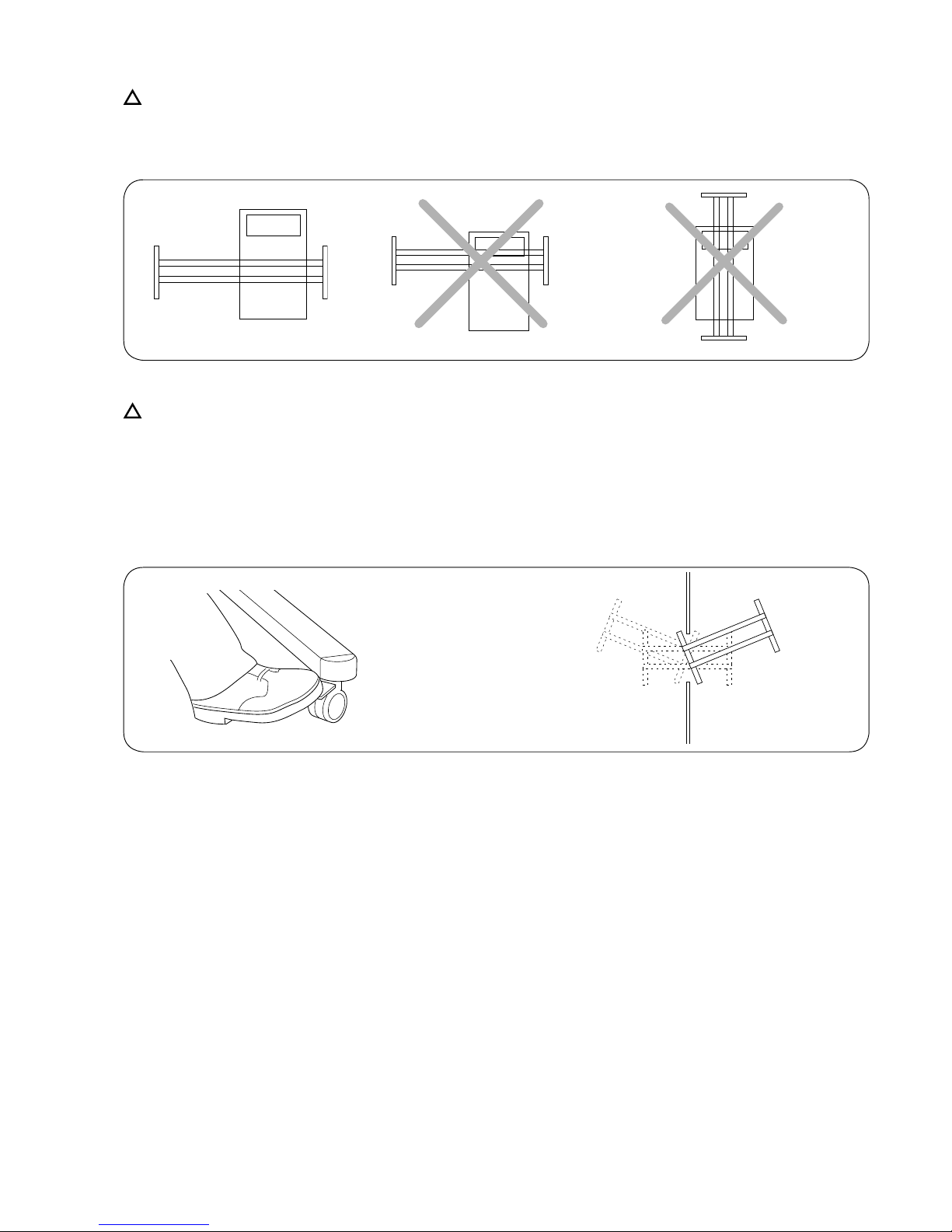

Helpful hint. Where door openings are narrower than
1240 mm (48.9 inches), move FreeSpan according to
the illustration (zigzag).
User's Guide
Caution! During use and during lifting operations, FreeSpan should be positioned so that the rail is always
directly over the patient's centre of gravity. Lifting at any angle away from the rail will affect stability negatively.
In the case of lifting a patient from a bed, this means that the rail should be aligned directly over the bed.
This applies both to transfers from the bed to the bedside and to a position near the foot of the bed.
Locking the wheels
FreeSpan’s wheels can be locked, if necessary.
Press down on the front wheel-locking lever with
your foot.
To release wheel lock, press the rear part of the
wheel-locking lever.
UltraTwin FreeSpan with one hand control
When using UltraTwin FreeSpan with standard width between the rails, both Likorall motors can be simultaneously
maneuvered with one hand control. Ultra Control Unit is required (prod. no. 3126040).
For instructions how to mount the control unit, see page 6. For more information, see Liko's Product List.
UltraTwin FreeSpan with UltraStretch for horizontal lifts
UltraTwin FreeSpan is available in a model especially designed for use with the horizontal stretcher, LikoUltraStret-
cher (prod. nr. 3156058). This model has the rails wider apart than the standard model (see F1-F2 on page 4).
Otherwise the rail systems are identical.
For mounting and instructions for use, see Instruction Guide for the stretcher being used.

www.liko.com
© Copyright Liko AB 2007-05
Inspection and maintenance
To ensure trouble-free use, certain details should be inspected each day the lift is used.
• Inspect the lift system and check for signs of wear or external damage.
• Check carriage function and Quick Release Hook safety-catch function.
• Ensure that locking handles are securely tightened.
When necessary, clean the lift by wiping it with a damp cloth or waterbased surface disinfectants.
NOTE! Do not use cleaning agents that contain carbolic acid (phenol), chlorine or other
aggressive chemicals, since these may damage aluminium and plastic materials.
Regular scheduled inspection
UltraTwin FreeSpan must be inspected for wear and tear at least once a year, according to Liko’s service
instructions, by authorized Liko personnel.
IMPORTANT
Repairs and maintenance may only be done by authorized Liko personnel using original spare parts.
Storage
The lift system should be stored in temperatures above the freezing point and not above normal air
humidity (approx. 60 %).
Made in Sweden
Service agreements
Liko invites you to sign a service agreement for regular maintenance and testing of your lift system.
Liko's products are constantly being updated and rened. Liko reserve the right to change aspects of the
products without prior notice. Contact your local Liko representative for updated information and advice.
Liko is accredited according to the ISO 9002 and 14001 quality and environmental management
systems standards.
Manufacturer:
Liko AB
SE-975 92 Luleå
Sweden
[email protected]
National Distributor in USA and Canada: Liko Distributor in UK:
Liko Ltd.
Brunel Centre,
Stroudwater Business Park
Stonehouse, Gloucester
GL10 3RU, United Kingdom
Phone: [phone]
Fax: [phone]
[email protected]
Liko North America
122 Grove Street
Franklin, Ma 02038, USA
Phone: [phone]
Fax: [phone]
[email protected]
