LUCCI Air Airfusion Atlanta User manual

V1.0-EU (11/2019)
LUCCI
ATLANTA
DC CEILING FAN
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Airfusion Atlanta Installation Instructions
1 | P a g e
V1.0-EU (11/2019)
ATLANTA
THANK YOU FOR PURCHASING
Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power
which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and
silent operation.
Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to 65%
more energy than ceiling fans with traditional AC motors.
Silent operation –This DC fan motor is programmed with a stabilized current which efficiently reduces motor
noise.
Low operating temperature –The DC power is managed effectively which brings down the motor operating
temperature to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the
longevity of the motor.
6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes
complete with a 6 speed remote, which gives a greater choice of comfort levels.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning the use of the appliance in a safe way and understand the
hazards involved. Cleaning and maintenance shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local
wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE
DISCONNECTION MUST BE INCORPORATED INTO
THE FIXED WIRING IN ACCORDANCE WITH THE
WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting

Airfusion Atlanta Installation Instructions
2 | P a g e
V1.0-EU (11/2019)
ATLANTA
the minimum electrical safety of this standard.
Please note warranty will be void if installation is without a
means for an all-pole disconnection incorporated in the
fixed wiring in accordance with the wiring rules.
Example: If a fan is connected to a circuit that can be
isolated via an all-pole safety switch at the switchboard,
then this is considered to be an all-pole disconnection to the
ceiling fan electrical circuit, meeting the requirements of
clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input
of remote control must also be included in the wiring,
and located the same room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
ground water and get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 28kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m
above the floor in Australia.
8. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of 2
walls. This fan is not waterproof. When installed in an alfresco area, the ceiling fan must be positioned in
a location protected from water, wind, dust and salt. Exposure to these elements will void the warranty.
Mounting the fan in a situation where it is subject to water or moisture is dangerous and may increase the
risk of damage, injury or electrical shock.
9. Must be assembled and installed by a licensed electrician.
10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
11. The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.

Airfusion Atlanta Installation Instructions
3 | P a g e
V1.0-EU (11/2019)
ATLANTA
12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.
PARTS LIST
Unpack your ceiling fan carefully. Remove all parts and hardware.
Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.

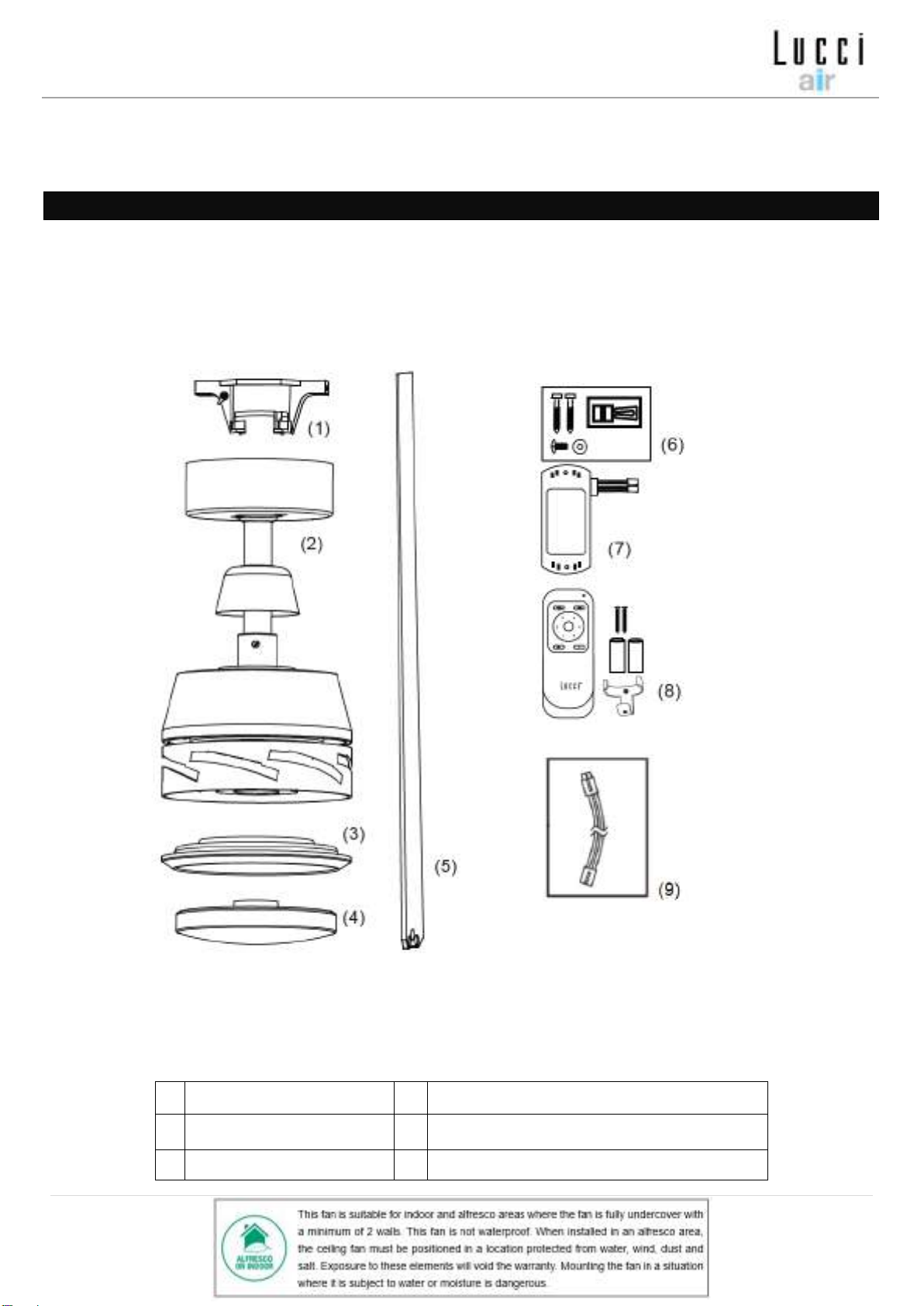

Examine all parts, you should have the following list and Fig.1:
1
Mounting bracket x 1
6
Installation screws and balancing kit x 1 set
2
Fan assembly x 1
7
Remote receiver x 1
3
Light kit bracket x 1
8
Remote controller, battery, holder x 1 set
Fig. 1

Airfusion Atlanta Installation Instructions
4 | P a g e
V1.0-EU (11/2019)
ATLANTA
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations

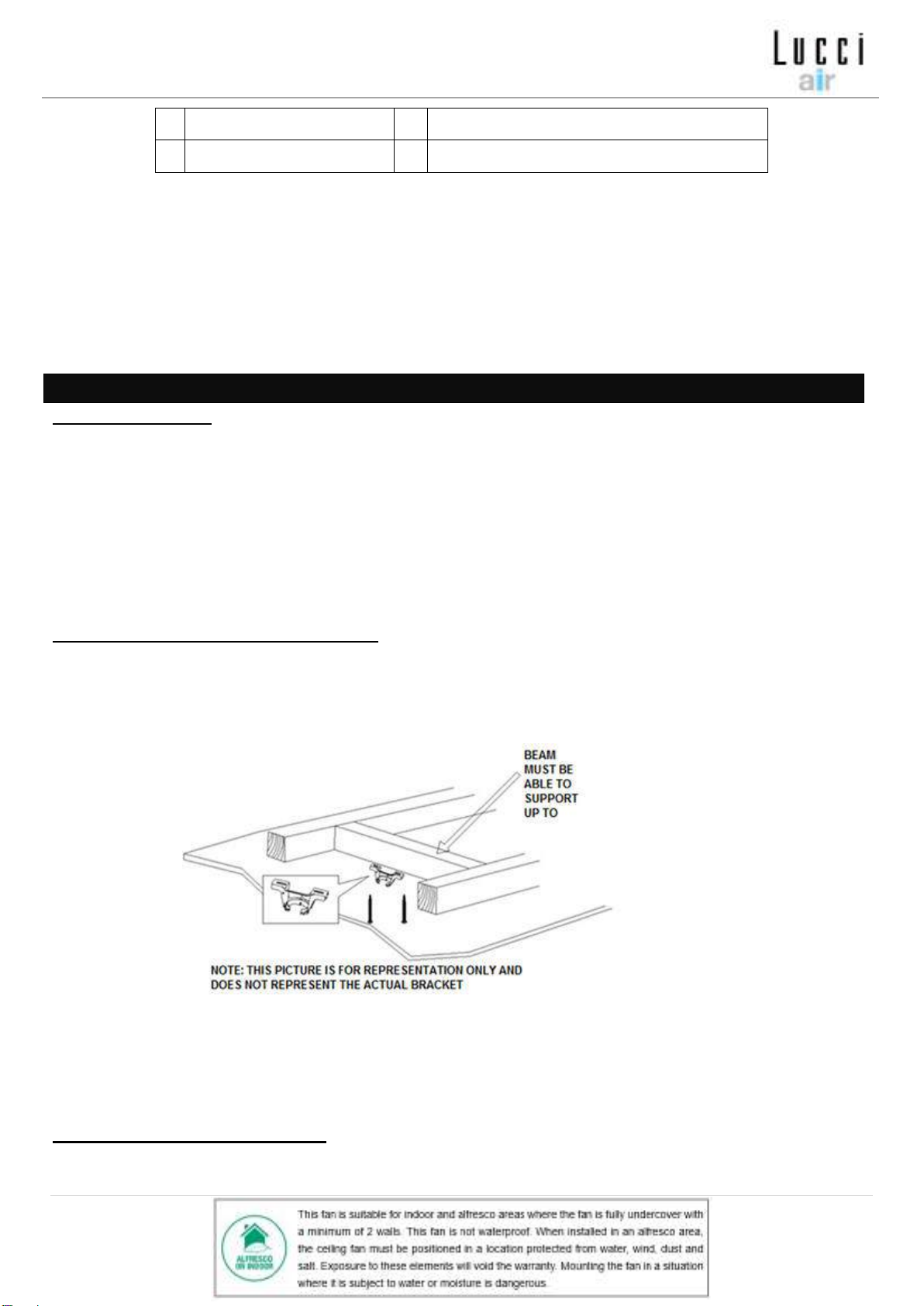

INSTALLING THE MOUNTING BRACKET
The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig. 2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 9 degree angled ceiling installation. (Fig. 3)
4
GX53 lamp x 1
9
Light kit extension cable x 1
5
Blades x 7
Fig. 2
30 KG

Airfusion Atlanta Installation Instructions
5 | P a g e
V1.0-EU (11/2019)
ATLANTA

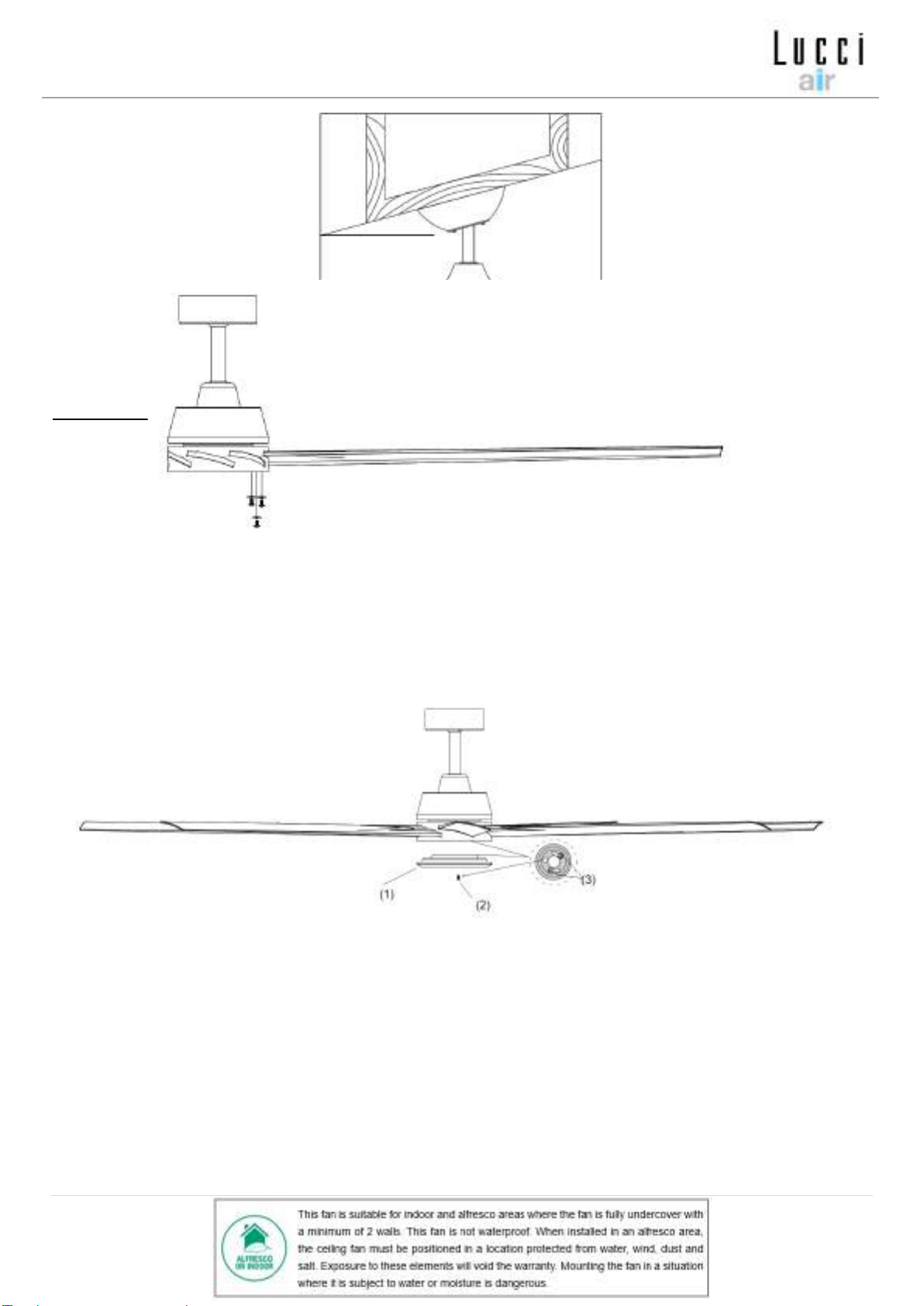

INSTALLATION OF BLADE (Fig. 4)
1. Insert the blade into the slot of rotating member of fan motor assembly.
2. Align and engage the holes of the blade to the blade bracket.
3. Secure the blade to the fan motor assembly by tightening the 3 blade screws and washers.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
Take care not to over tighten the screws, as this can damage the blades
4. Repeat the same process for the other blades.
INSTALLATION OF LIGHT KIT (Fig. 5)
NOTE: The light kit must be installed by a licensed electrician.
Align the two slot screws of the motor part with the keyhole slots of the light kit bracket (3).
Turn the light kit bracket anticlockwise until the slot screws are firmly at the end of the slots.
Tighten the screw (2) and the 2 slot screws to secure the light kit bracket.
Install the lamp (4) to the GX53 lamp holder (5). Do not exceed the maximum power rating.
Fig. 3
9°
Fig. 4

Airfusion Atlanta Installation Instructions
6 | P a g e
V1.0-EU (11/2019)
ATLANTA
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 6)
ELECTRICAL WIRING DIAGRAM THE FAN
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN
ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN
PROGRAMMING THE REMOTE AND RECEIVER TO PAIR TOGETHER.
Note: If a down rod extension is used, the Light kit extension cable (item 9, of Fig.1) is required.

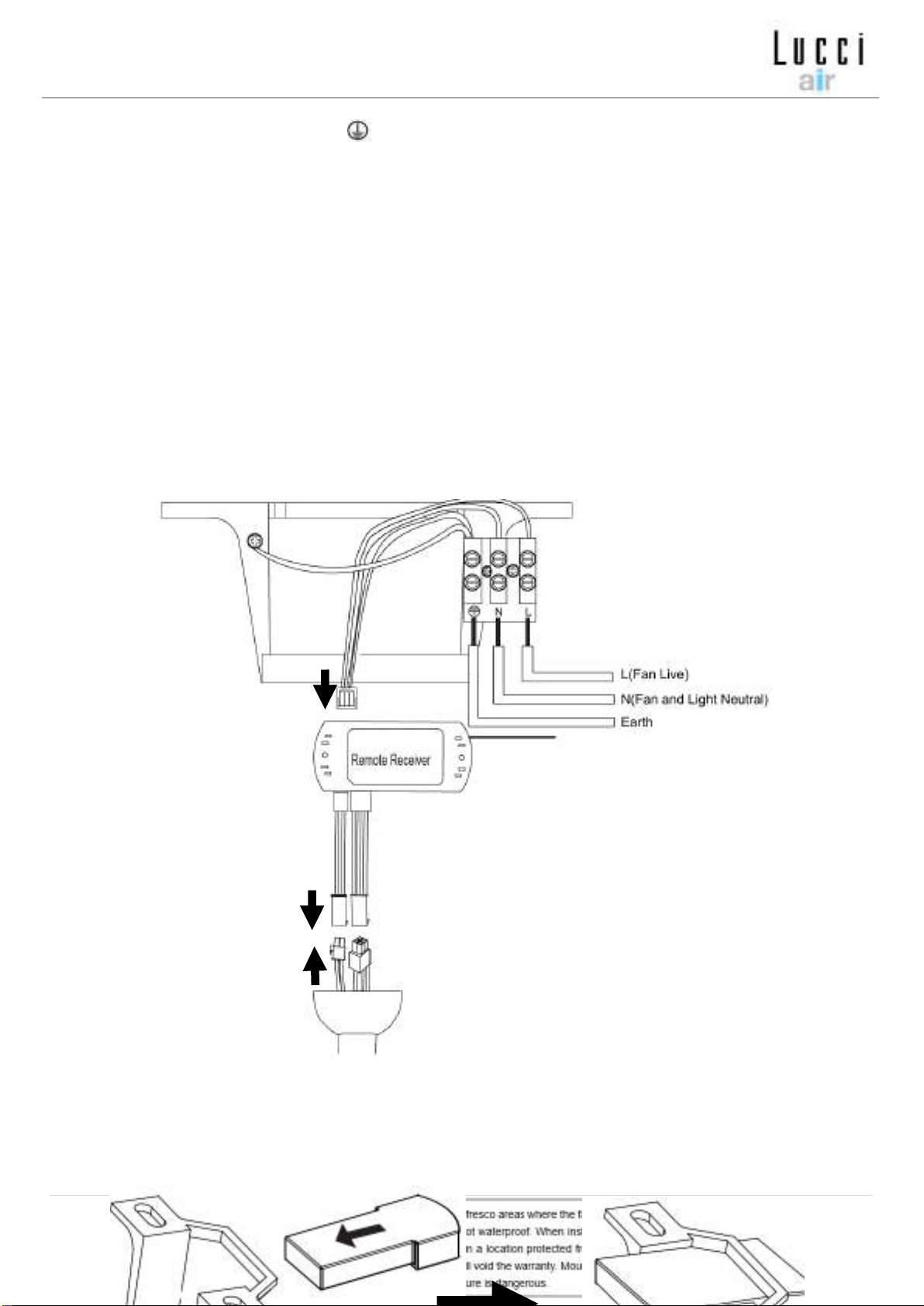

See Fig. 8 for instructions below to wire up the fan.
Connect “LIVE”supply wire to the “L” of terminal block on the mounting bracket.
Connect “NEUTRAL” supply wire to the “N” of terminal block on the mounting bracket.
Fig. 6
Fig. 5

Airfusion Atlanta Installation Instructions
7 | P a g e
V1.0-EU (11/2019)
ATLANTA
Connect “EARTH” wire to the “ ” of terminal block on the mouthing bracket.
Hang the fan (Refer to “hanging the fan” Fig. 6, page 6).
Plug connector from the supply wiring from the mounting bracket to the input of the DC motor
driver/receiver.
Plug the light connector and the fan connector from the DC motor driver/receiver to the input wires of
the fan motor and the light kit.
Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the
mounting bracket. Take care not to damage or loosen any of the wiring.(Fig. 8).
To fan motor
and light
Fig. 7

Airfusion Atlanta Installation Instructions
8 | P a g e
V1.0-EU (11/2019)
ATLANTA

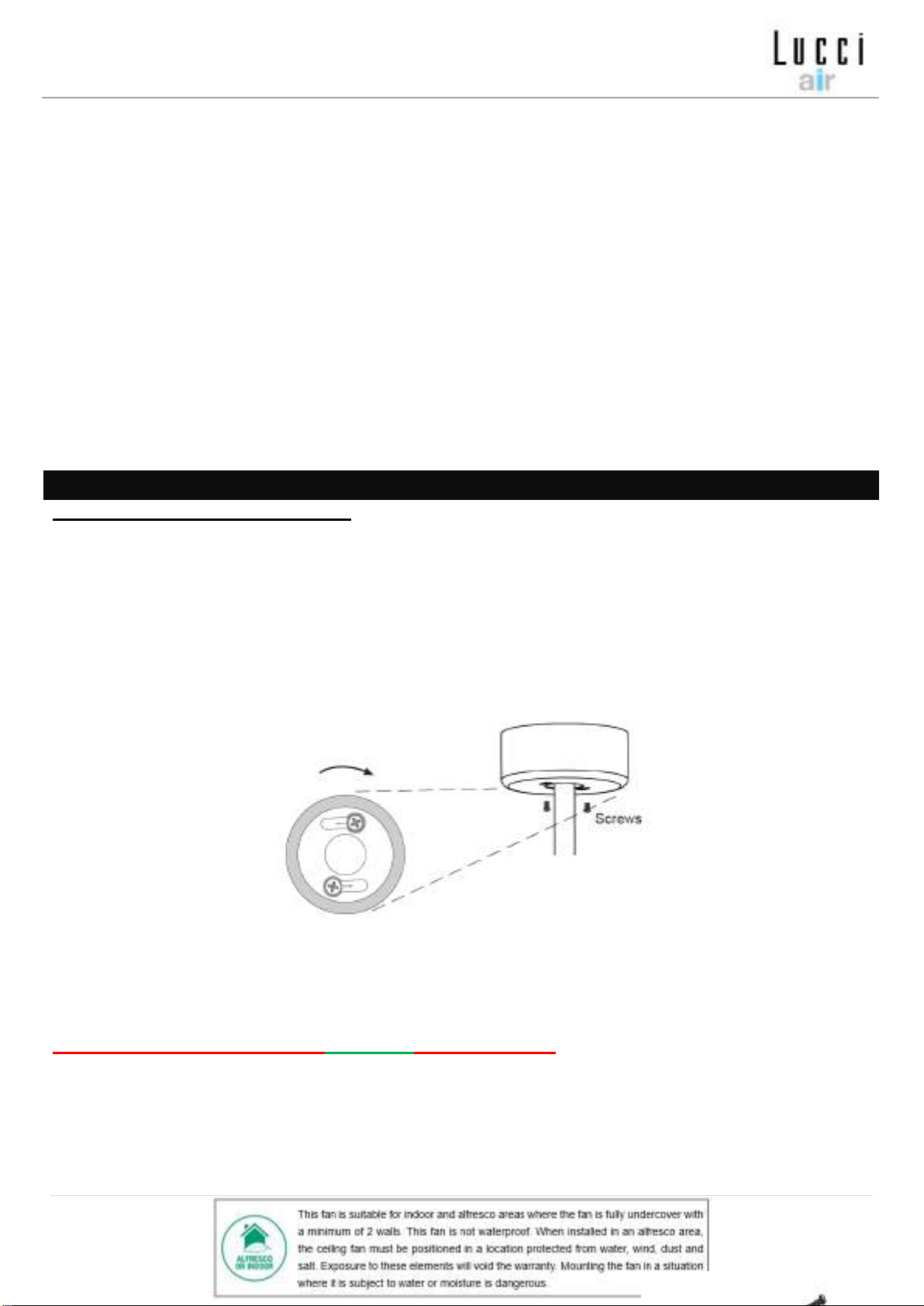

FINISHING THE INSTALLATION
INSTALLATION OF THE CANOPY (Fig. 9)
1. Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s
accessible metal body back to the earth terminal at the terminal block on the mounting bracket.
2. Loosen the 2 screws at the bottom of the mouthing bracket.
3. Slide the canopy up to the mounting bracket and align the key holes on the canopy with the screws on the
mounting bracket. Turn the canopy until it locks into place with the narrow section of the key holes and
secure it by tightening the two screws. Avoid damaging the electrical wiring prepared previously.
INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 10)
Fig. 9
1. Locate a suitable wall to fix the remote control
holder with the 2 screws. (Fig.10a).
2. Slide the remote into the holder. (Fig. 10b)

Airfusion Atlanta Installation Instructions
9 | P a g e
V1.0-EU (11/2019)
ATLANTA
USING YOUR CEILING FAN
REMOTE CONTROL (Fig. 11)
LIGHT FUNCTION CONTROL (Fig. 11)
The GX53 LED lamp has a built-in 3 step dimming circuit.
- Initially turn ON the LED lamp with 100% brightness –press Light button (4) once on the remote.
- Press the Light button to switch OFF and then ON again, within 3 seconds for dimming to 50% brightness.
- Press the Light button to switch OFF and then ON again, within 3 seconds for dimming to 20% brightness.
(If the ON/OFF toggle switching is not completed within 3 seconds, the lamp will reset to 100% brightness)
Fig. 11
(1) Reverse control
(2) Natural wind (The fan speed automatic cycle
between 1 to 6 speed)
(3) Speed control
(4) Light On/Off
(5) Fan On/Off
(6) 1.5V AAAbattery x 2 pcs (Included)

Airfusion Atlanta Installation Instructions
10 | P a g e
V1.0-EU (11/2019)
ATLANTA
PAIRING REMOTE AND RECEIVER –WHEN 1 DC CEILING FAN IS INSTALLED IN ONE LOCATION
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for the fan.
NOTE: Ensure power to the receiver is ON prior to pairing the remote with the receiver.
Turn OFF the mains supply to the fan by on/off wall switch.
Install the batteries into the remote. Please make sure the polarity of the battery is correct.
Turn ON the power to the receiver.
Press and hold the “ ” button on the remote for 10 seconds within 30 seconds of switching the power
ON to the receiver of the ceiling fan.
There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is
successful.
Turn ON and change the speed of the ceiling fan via the remote to check the operation and successful
paring.
PAIRING REMOTE AND RECEIVER –WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE
LOCATION
When two or more ceiling fans are located near each other, you may desire to have the remote/receiver for
each fan paired so that the operation of one fan does not affect the operation of the other fans.
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for each fan.
NOTE: Ensure power to the Receiver is ON prior to pairing the remote with the receiver.
Remote / Receiver pairing for ceiling fan 1:
Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.
Install the batteries into the remote. Please make sure the polarity of the battery is correct.
Turn ON the power to receiver 1. Keep the power OFF to receiver 2. (Each ceiling fan must have its own
isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).
Press and hold the “ ” button of transmitter 1 for 10 seconds within 30 seconds of switching the power
ON to the receiver of ceiling fan 1.
There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is
successful.
Turn ON and change the speed of the ceiling fan 1 by the transmitter to check the operation and
successful paring.
Remote / Receiver paring for Ceiling fan 2:
Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.
Install the batteries into the remote. Please make sure the polarity of the battery is correct.
Turn ON the power to receiver 2. Keep the power OFF to receiver 1. (Each ceiling fan must have its own

Airfusion Atlanta Installation Instructions
11 | P a g e
V1.0-EU (11/2019)
ATLANTA
isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).
Press and hold the “ ” button of transmitter 2 for 10 seconds within 30 seconds of switching the power
ON to the receiver of ceiling fan 2.
There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is
successful.
Turn ON and change the speed of ceiling fan 2 by the transmitter to check the operation and successful
pairing.
REPAIRING THE FAN RECEIVER & REMOTE PAIRING
Should the remote and receiver lose control after installation or during use, the pairing of the remote and the
receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC
ceiling fan remote and receiver.
Issues:
Loss of control - Fan is only running at high speed after installation
Loss of control - No reverse function after installation
Loss of control - Remote cannot communicate with the receiver
Solution:
Switch off the main power of ceiling fan.
Switch on the main power of the ceiling fan. Follow the same process as described in the ‘Paring remote
and receiver’ section to repair your fan.
Turn on and select the different speed of the ceiling fan to check the operation of the fan.
AFTER INSTALLATION
NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet.
If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few
centimeters is quite acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down
rod are secure.

Airfusion Atlanta Installation Instructions
12 | P a g e
V1.0-EU (11/2019)
ATLANTA
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to
the instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should
the ceiling fan become un-balanced again. Store your balancing kit away after installation for future use if
required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan
motor noise. This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new
fan disappear during this time.
The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as
hearing the motor run –All electric motors are audible to some extent.
CARE & CLEANING
NOTE: Always turn OFF the power at the mains switch before performing any maintenance or
attempting to clean your fan.
Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush
or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or the
blades and create the possibility of an electrical shock.
Ensure that the fan does not come in contact with any organic solvents or cleaners.
To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
The motor has a permanently lubricated ball bearing so there is no need to oil.
SAFETY PRECAUTIONS FOR BATTERY
-WARNING –Keep new and used batteries away from children.
-CAUTION –Do not ingest battery—Chemical burn hazard.
-Always use 2 x AAA battery type with this ceiling fan remote controller.
-Ensure the batteries are inserted with the correct polarity.
-To prevent false operation during battery insertion or replacement, this ceiling fan must be disconnected
from the supply mains.
-Remove batteries from the product when not in use for long periods of time.
-Batteries must be removed from the remote transmitter before it is discarded.
-Dispose of exhausted batteries immediately and safely (so they cannot be retrieved by children).
Batteries can still be dangerous. Contact your local council to safely dispose of the battery.
-Regularly check the product and make sure the battery box lid is correctly secured. If the battery
compartment does not close securely, stop using the product and keep it away from children.
-If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.

Airfusion Atlanta Installation Instructions
13 | P a g e
V1.0-EU (11/2019)
ATLANTA
TECHNICAL INFORMATION
Fan
56’’ fan –Atlanta
Fan Models / SKU#
LD-56" ATL / SKU# 213182, 213183
Rated Voltage
220-240V~ 50Hz
Rated Wattage (Motor)
42W
LED Lamp Specifications
(Included with fan)
Type: GX53, Power: Max.12W; Dimming type: 3-Step switched; CCT: 3000K;
Performance brightness: 100% - 1100lm, 50% - 550lm, 20% - 220lm;
Gx53 LED lamp SKU# 121354
Battery for remote
2 x AAA (Included)
Weight
6.8kg
Canopy Dimensions
H:51mm Dia:140mm
WARRANTY INFORMATION
IN AUSTRALIA / NEW ZEALAND –Please refer to the separated WARRANTY STATEMENT.
IN EUROPE –If you are a European customer please contact the retail outlet where the fan was purchased
for warranty service.
Distributed by:
Beacon Lighting Europe GmbH
Campus Fichtenhain 42
47807 Frefeld
Germany
Beacon International Ltd.
Suite 1, 66/Floor, The Center
99 Queens Road, Central
Hong Kong
