PARTNER Endeavor™
Communications System
Programming and Use
518-458-100
Comcode 108340803
Issue 2 August 1998

Copyright © 1998, Lucent Technologies Lucent Technologies 518-458-100
All Rights Reserved Issue 2
Printed in U.S.A. August 1998
Notice
Every effort has been made to ensure that the information in this book is complete and accurate at the time of printing.
However, information is subject to change.
Federal Communications Commission (FCC) Interference
Notice
This equipment has been tested and found to comply with the limits of a Class A or a Class B digital device, pursuant to
Part 15 of FCC rules. For additional information on FCC regulations, see “Federal Communications Commission (FCC)
Interference Information” on the next page.
Canadian Emissions Requirements
This digital apparatus does not exceed the Class A or the Class B limits for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Industry Canada (IC). For additional IC information, see “IC Notification
and Repair Information” in this section.
Le present appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables aux appareils
numeriques de la classe A ou de la classe B prescrites dans le Reglement sur le brouillage radioelectrique edicte par le
ministere des Industrie Canada. Vous trouverez des renseignements complémitaires dans cette section: “IC Notification
and Repair Information” de
PARTNER Endeavor Communications System Programming and Use guide.
Security
Toll fraud, the unauthorized use of your telecommunications system by an unauthorized party (for example, persons other
than your company’s employees, agents, subcontractors, or persons working on your company’s behalf) can result in
substantial additional charges for your telecommunications services. You are responsible for the security of your system.
There may be a risk of tollfraud associated with your telecommunications system. You are responsible for programming and
configuring your equipment to prevent unauthorized use. Your system manager should read all documents provided with this
product to fully understand the features that can introduce the risk of toll fraud and the steps that can be taken to reduce that
risk. Lucent Technologies does not warrant that this product is immune from or will prevent unauthorized use of common-
carrier telecommunication services or facilities accessed through or connected to it. Lucent Technologies will not be
responsible for any charges that result from such unauthorized use. If you
suspect you are being victimized by toll fraud and
you need technical support or assistance, call the Lucent Technologies National Customer Care Center at 1-800-721-7071.
Trademarks
Magic on Hold, MERLIN, MLS-34D, MLS-18D, MLS-12D, MLS-12, MLS-6, PARTNER, PARTNER MAIL, PARTNER MAIL
VS, PassageWay, SYSTIMAX, and TransTalk are registered trademarks of Lucent Technologies. PARTNER Endeavor is a
trademark of Lucent Technologies. Microsoft is a registered trademark and Windows is a trademark of Microsoft
Corporation. The SoundStation is a registered trademark of Polycom, Inc.
Warranty
Lucent Technologies provides a limited warranty for this product. Refer to “Lucent Technologies Limited Warranty and
Limitation of Liability” in Appendix B of this book.
Ordering Information
The order number for this book is 518-458-100. To order additional books, call 800-457-1235 or 765-361-5353. For
information about ordering other system reference materials, replacement parts, accessories, and other compatible
equipment, refer to “Product Ordering Information” in Appendix B.
Support Telephone Number
In the continental U.S., Lucent Technologies provides a toll-free customer hotline 24 hours a day. Call the hotline at 1-800-
721-7071 or your Lucent Technologies Authorized Dealer, if you need assistance when programming or using your system.
Consultation charges may apply.
Outside the continental U.S., contact your Lucent Technologies Representative or local Authorized Dealer.

Federal Communications
Commission (FCC)
Interference Information
References to FCC regulations are not applicable outside of the U.S.
Class A Compliance
This equipment, in the 5-Slot configuration and in the 2-Slot configuration with a 362EC
module or PARTNER MAIL VS, has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of FCC rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manuals, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will have to correct the interference at his
or her own expense.
FCC Notification and Repair Information
This equipment is registered with the FCC in accordance with Part 68 of its rules. In
compliance with those rules, you are advised of the following:
Means of Connection: Connection to the telephone network shall be through a
standard network interface jack USOC RJ11C. These USOCs must be ordered from
your local telephone company.
FCC-compliant line cords are provided with Line and Line/Extension Modules for
connecting to the telephone company-provided USOC RJ11C jacks. Use only FCC-
compliant line cords and jacks for these connections.
This equipment may not be used with party lines or coin telephone lines.
Notification to the Telephone Companies: Before connecting this equipment, you or
your equipment supplier must notify your local telephone company’s business office of
the following:
■The telephone number(s) you will be using with this equipment.
■The appropriate registration number and ringer equivalence number (REN),
which can be found on the right-hand side of the control unit.
■The facility interface code, which is O2LS2.
You must also notify your local telephone company if and when this equipment is
permanently disconnected from the line(s).
REN Information: The REN is used to determine the quantity of devices that may be
connected to the same telephone line. Excessive RENs on the telephone line may
result in the devices not ringing in response to an incoming call. In most, but not all
areas, the sum of RENs should not exceed two (2.0). To be certain of the number of
devices that may be connected to a line, as determined by the total RENs, contact the
local telephone company.

Repair Instructions: If you experience trouble because your equipment is
malfunctioning, the FCC requires that you disconnect the equipment from the network
and not use it until the problem has been corrected. Repairs to this equipment can only
be made by the manufacturer, by its authorized agents, or by others who may be
authorized by the FCC. In the event repairs are needed on this equipment, please
contact the Lucent Technologies hotline at 1-800-721-7071 or your local Authorized
Dealer. For warranty information, see Appendix B.
Rights of the Local Telephone Company: If this equipment causes harm to the
telephone network, the local telephone company may discontinue your service
temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will also be advised of your right
to file a complaint with the FCC.
Your local telephone company may make changes in its facilities, equipment,
operations, or procedures that affect the proper functioning of this equipment. If they do,
you will be notified in advance to give you an opportunity to maintain uninterrupted
telephone service.
Hearing Aid Compatibility: All system phones are compatible with inductively coupled
hearing aids as prescribed by the FCC.
Industry Canada (IC) Notification and Repair Information
The Industry Canada (IC) label identifies certified equipment. This certification means
that the equipment meets certain telecommunications network protective, operational,
and safety requirements. The IC does not guarantee the equipment will operate to the
user’s satisfaction.
Before installing this equipment, users should ensure that is permissible to connect it to
the facilities of the local telecommunications company. The equipment must also be
installed using an acceptable method of connection. In some cases, the company’s
inside wiring for single-line individual service may be extended by means of a certified
connector assembly (telephone extension cord). The customer should be aware that
compliance with the above conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made by the
user to this equipment, or any equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the equipment.
Users, for their own protection, should ensure that the electrical ground connections of
the power utility, telephone lines, and internal metallic water pipe system, if present, are
connected. This precaution may be particularly important in rural areas.
!CAUTION:
Users should not attempt to make such connections themselves, but should
contact the appropriate electrical inspection authority or electrician, as
appropriate.

To prevent overloading, the Load Number (LN) assigned to each terminal device
denotes the percentage of the total load to be connected to a telephone loop used by
the device. The termination on a loop may consist of any combination of devices subject
only to the requirement that the total of the Load Numbers of all the devices does not
exceed 100.
IC Certification No: See the label on the side of the control unit.
CSA Certification No: LR 60486
Load No: 7
Renseignements sur la notification du ministére des Industrie Canada et la réparation
L’étiquette du Ministére des Industrie Canada identifie le matériel homologué. Cette
étiquette certifie que le matériel est conformé à certaines normes de protection,
d’exploitation et de sécurité des réseaux de télécommunications. Le Ministére n’assure
toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder
aux installations de l’entreprise locale de télécommunication. Le matériel doit
également être installé en suivant une méthode acceptée de peuvent etre prolonges au
moyen d’un dispositif homologue de raccordement. Dans certains cas, les fils intérieurs
de l’enterprise utilisés pour un service individuel à ligne unique peuvent être prolongés
au moyen d’un dispositif homologué de raccordement (cordon prolongateur
téléphonique interne). L’abonné ne doit pas oublier qu’il est possible que la conformité
aux conditions énoncées ci-dessus n’empêchent pas la dégradation du service dans
certaines situations. Actuellement, les entreprises de télécommunication ne permettent
pas que l’on raccorde leur matériel à des jacks d’abonné, sauf dans les cas précis
prévus pas les tarifs particuliers de ces entreprises.
Les réparations de matériel homologué doivent être effectuées par un centre
d’entretien Canadien autorisé désigné par le foumisseur. La compagnie de
télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite
de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais
fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre
de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particuliérement
importante dans les régions rurales.
!ADVERTISSEMENT:
L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir
racours à un service d’inspection des installations électriques, ou à un electrician,
selon le cas.
L’indice de charge (IC) assigné à chaque dispositif terminal indique, pour éviter toute
surcharge, le pourcentage de la charge totale qui peut être raccordée a un circuit
téléphonique boucié utilisé par ce dispositif. La terminaison du circuit boucié peut être
constituêe de n’importe quelle combinaison de dispositifs, pourvu que la somme des
indices de charge de l’ensemble des dispositifs ne dépasse pas 100.
No d’homolagation: Voir l’étiquette sur le côté de l’unité de contrôle.
No de certification CSA: LR 60486
L’indice de charge: 7

Contents
i
About This Guide vii
■Purpose vii
1 Overview 1-1
■Features and Capabilities 1-1

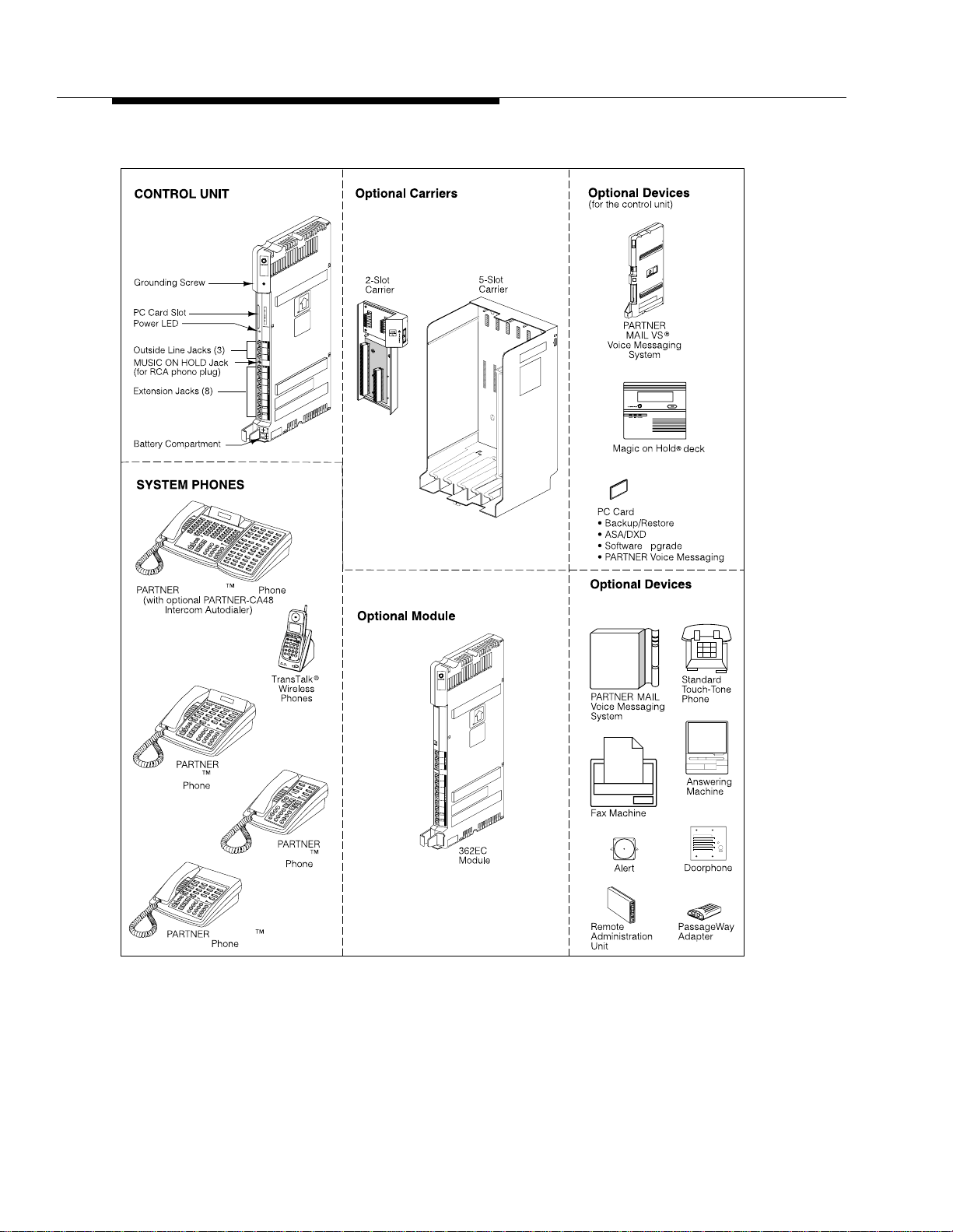

■System Components 1-3
■Auxiliary Equipment 1-13
2 Programming 2-1
■Overview 2-1
■Hardware Considerations 2-2
■Initial System Setup 2-3
■Changing Settings after Installation 2-6
■Changing Settings to Support
PBX or Centrex Services 2-9
■System Programming Options 2-10
■Using System Programming 2-16
■Telephone Programming Options 2-21
■Using Telephone Programming 2-25
3 Learning about Telephones 3-1
■System Telephones 3-1
■Standard Telephones 3-8
■Combination Extensions 3-13
■Using Telephones 3-14
4 Using Auxiliary Equipment 4-1
■Overview 4-1

Contents
ii
■Answering Machines 4-4
■Auto Attendant 4-8
■Credit Card Scanners 4-9
■Fax Machines 4-10
■Modems 4-18
■Night Service with Auxiliary Equipment 4-20
■Voice Messaging Systems 4-22
5 Feature Reference 5-1
■Overview 5-1
■AA (Automated Attendant) Extensions
(#607) 5-4
■Abbreviated Ringing (#305) 5-5
■Allowed List Assignments (#408) 5-6
■Allowed Phone Number Lists (#407) 5-7
■Answering Calls 5-10
■Auto Dialing 5-13
■Automatic Extension Privacy (#304) 5-16
■Automatic Line Selection 5-18
■Automatic System Answer Button
(#111) 5-21
■Automatic System Answer Delay
(#110) 5-24
■Automatic System Answer Lines
(#204) 5-26
■Automatic System Answer Mode
(#121) 5-28
■Automatic System Answer
Record/Playback (I891) 5-30
■Automatic VMS Cover (#310) 5-33
■Background Music (F19) 5-35
■Backup Programming—Automatic
(#123) 5-37
■Backup Programming—Manual (#124) 5-39
■Call Coverage (F20,XX,XX) 5-41
■Call Coverage Rings (#116) 5-45
■Call Forwarding/Call Follow-Me
(F11,XX,XX) 5-46

Contents
iii
■Call Park 5-49
■Call Pickup (I6XX) 5-51
■Call Waiting (#316) 5-52
■Caller ID 5-54
■Caller ID Inspect (F17) 5-56
■Caller ID Name Display (F16) 5-58
■Caller ID Type (#122) 5-59
■Calling Group Extensions (#502) 5-61
■Conference Calls 5-62
■Conference Drop (F06) 5-64
■Copy Settings (#399) 5-65
■Dial Mode (#201) 5-67
■Direct Extension Dial Button (#113) 5-68
■Direct Extension Dial Delay (#112) 5-71
■Direct Extension Dial Lines (#205) 5-72
■Direct Extension Dial Record/Playback
(I892) 5-74
■Direct Line Pickup—Active Line (I68LL) 5-77
■Direct Line Pickup—Idle Line (I8LL) 5-79
■Disallowed List Assignments (#405) 5-81
■Disallowed Phone Number Lists (#404) 5-82
■Display 5-85
■Display Language (#303) 5-87
■Distinctive Ring (#308) 5-88
■Do Not Disturb (F01) 5-89
■Doorphone Alert Extensions (#606) 5-91
■Doorphone Extension (#604 and #605) 5-92
■Emergency Phone Number List (#406) 5-94
■Exclusive Hold (F02) 5-96
■Extension Name Display 5-98
■External Hotline (#311) 5-100
■Fax Machine Extensions (#601) 5-102
■Group Call Distribution (#206) 5-103
■Group Calling—Ring/Page (I7G/I*7G) 5-105
■Group Hunting—Ring/Voice Signal
(I77G/I*77G) 5-109
■Group Pickup (I66G) 5-113
■Hold 5-115
■Hold Disconnect Time (#203) 5-117
■Hotline (#603) 5-119

Contents
iv
■Hunt Group Extensions (#505) 5-121
■Intercom Dial Tone (#309) 5-123
■Joining Calls 5-124
■Last Number Redial (F05) 5-126
■Line Access Mode (#313) 5-128
■Line Access Restriction (#302) 5-130
■Line Assignment (#301) 5-132
■Line Coverage Extension (#208) 5-136
■Line Ringing 5-138
■Making Calls 5-140
■Manual Signaling (F13XX or F13*XX) 5-145
■Message Light Off (F10XX) 5-147
■Message Light On (F09XX) 5-149
■Music-On-Hold (#602) 5-151
■Music-On-Hold Volume (#614) 5-153
■Night Service Button (#503) 5-154
■Night Service Group Extensions (#504) 5-157
■Number of Lines (#104) 5-158
■Outgoing Call Restriction (#401) 5-160
■Outgoing Call Restriction Button (#114) 5-162
■Outside Conference Denial (#109) 5-165
■Personal Speed Dial Numbers 5-166
■Pickup Group Extensions (#501) 5-169
■Pool Access Restriction (#315) 5-170
■Pool Extension Assignment (#314) 5-172
■Pool Line Assignment (#207) 5-175
■Privacy (F07) 5-177
■Recall (F03) 5-179
■Recall Timer Duration (#107) 5-181
■Restore Programming (#125) 5-182
■Ring on Transfer (#119) 5-184
■Rotary Dialing Timeout (#108) 5-185
■Save Number Redial (F04) 5-186
■Send All Calls 5-188
■Special Dialing Functions 5-190
■Star Code Dial Delay (#410) 5-192
■Station Lock (F21) 5-195
■Station Unlock (F22) 5-198
■System Date (#101) 5-199
■System Day (#102) 5-200

Contents
v
■System Password (#403) 5-201
■System Release Status (F59) 5-202
■System Reset—Programming Saved
(#728) 5-203
■System Speed Dial Numbers 5-205
■System Time (#103) 5-208
■Toll Call Prefix (#402) 5-209
■Touch-Tone Enable (F08) 5-210
■Transfer Return Extension (#306) 5-211
■Transfer Return Rings (#105) 5-213
■Transferring Calls 5-215
■VMS Cover (F15) 5-219
■VMS Cover Rings (#117) 5-221
■VMS Hunt Delay (#506) 5-222
■VMS Hunt Schedule (#507) 5-223
■Voice Interrupt on Busy (#312) 5-224
■Voice Interrupt on Busy Talk-Back (F18) 5-226
■Voice Mailbox Transfer (F14) 5-228
■Wake Up Service Button (#115) 5-230
6 Troubleshooting 6-1
■Customer Self-Service Center on the
Internet 6-2
■When You Need Help 6-3
■Power Failure Operation 6-4
■Battery Replacement 6-5
■Clearing a Backup-Failure Alarm 6-9
■Problems with System Phones 6-10
■Problems with Standard Phones 6-14
■Other Problems with Phones 6-16
■Problems with Combination Extensions 6-21
■Problems with Standard Devices 6-22
■Problems with ASA/DXD Cards 6-23
■Problems with Automatic Backup 6-24
■Problems with Manual Backup 6-26
■Problems with System Restore 6-28
■System Problems 6-30
■Other Problems with System 6-33

Contents
vi
A Specifications A-1
B Maintenance, Repair,
and Ordering Information B-1
■Maintenance B-1
■Repair Information B-1
■Lucent Technologies Limited Warranty
and Limitation of Liability B-2
■Product Ordering Information B-3
C Speed Dial Form C-1
■Speed Dial Form C-1
GL Glossary GL-1
IN Index IN-1
Programming Quick Reference
Feedback Form

vii
About This Guide
Purpose
This guide is intended for the System Manager. It explains what the PARTNER
Endeavor™ can do, provides instructions for programming and using the system,
and tells how to get the most out of the system’s many features and capabilities.
Terminology
Throughout this guide, the PARTNER Endeavor Communications System is
referred to simply as the
system and Lucent Technologies telephones specifically
designed to work with the system are called
system phones . You can also use
industry-standard telephones with the system, which are referred to as
standard
phones
in this guide. Finally, the PARTNER MAIL VS®, PARTNER® Voice
Messaging PC Card or PARTNER MAIL® Voice Messaging System, which you
may have connected to the system, is referred to as the
voice messaging system .
How to Use This Guide
For information about the following topics, refer to the appropriate chapter:
■ Getting Acquainted. Chapter 1 provides an overview of system features
and hardware components.
■ Programming the System. You can change your system’s settings easily
to accommodate new or expanding needs. Chapter 2 provides general
programming information, while Chapter 5 provides detailed instructions
for programming specific system features.
■ Training Co-Workers. Chapter 3 explains how system and standard
phones work with the system. To help train co-workers on telephone
basics, you can share this information with them.
■ Using Auxiliary Equipment. The system supports a wide variety of
auxiliary equipment, including fax machines, modems, voice messaging
systems, and call reporting devices. Chapter 4 provides advice on setting
up these devices to work effectively with the system.

About This Guide
viii
■ Daily Operation. Depending on how your system is set up, you may need
to oversee some of the system’s daily operations. For example, you may
need to turn on Night Service at the end of each day before leaving the
office. Reference information about all features, including descriptions and
instructions for using each feature, is provided in Chapter 5.
■ Solving Problems. Chapter 6 provides information about solving
problems if your system or telephones malfunction.
Once you are experienced with the system, use the Table of Contents or Index to
locate the information you need.
Throughout this guide, feature names are printed in bold—for example, System
Date (#101). Chapter 5, ‘‘Feature Reference’’ provides comprehensive
information about each feature, with the features arranged in alphabetical order.
For example, if you see a reference to System Date (#101), you can look it up in
Chapter 5 for details.
Product Safety Statements
Product safety statements are identified in this guide by a .
!CAUTION:
Indicates the presence of a hazard that will or can cause minor personal
injury or property damage if the hazard is not avoided.
!WARNING:
Indicates the presence of a hazard that can cause severe or fatal personal
injury if the hazard is not avoided.
How to Comment on This Guide
A feedback form is located at the end of this guide, after the appendices. If the
form is missing, send your comments and recommendations for changes to:
Publications Manager, Lucent Technologies, 211 Mount Airy Road (Room
2W-226), Basking Ridge, NJ 07920 (FAX [phone]).
!

Purpose
ix
Important Safety Instructions
The following list provides basic safety precautions that should always
be followed when using your telephone equipment:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug all telephone connections before cleaning. DO NOT use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. This product should be serviced by (or taken to) a qualified repair center
when service or repair work is required.
5. DO NOT use this product near water—for example, in a wet basement
location.
6. DO NOT place this product on an unstable cart, stand, or table.
7. Never push objects of any kind into slots or openings as they may touch
dangerous voltage points or short out parts that could result in a risk of fire
or electric shock. Never spill liquid of any kind on the product.
8. DO NOT use the telephone to report a gas leak in the vicinity of the leak.
9. The product is provided with a three-wire grounding type plug. This is a
safety feature. DO NOT defeat the safety purpose of the grounding type plug.
DO NOT staple or otherwise attach the power supply cord to building
surfaces.
!CAUTION:
DO NOT block or cover the ventilation slots or openings. They
prevent the product from overheating. DO NOT place the product
in a separate enclosure unless proper ventilation is provided. DO
NOT place the product flat on a surface. The control unit must be
wall-mounted.

About This Guide
x

1-1
Overview
Features and Capabilities
The following list provides an overview of the PARTNER Endeavor™
Communications System’s features. The features apply to all releases of
PARTNER Endeavor unless specified otherwise.
■Full line of system phones, some with displays showing date, time, and
programming and feedback messages. All system phones provide access
to multiple outside lines and system features.
■Programmable buttons on system phones, providing one-touch access to
system features by simply by pressing the button.
■Intuitive operation of basic call-handling capabilities including transfer,
conference, and hold.
■Intercom (inside) calling to other system extensions using an Intercom
button and the two-digit number assigned to the extension. Users can
either ring or voice-signal an idle system phone; use Voice Interrupt On
Busy to signal another user who is active on a call; or manually signal to
audibly alert another predetermined extension.
■Grouping of extensions for flexibility in directing and answering calls.
■Integrated voice messaging support with the PARTNER MAIL VS system or
PARTNER MAIL system, so callers can reach a desired extension or group
without operator assistance and leave messages at unanswered or busy
extensions.
■PARTNER Voice Messaging PC Card provides a voice messaging service
as well as effective solutions for after-hours call answering and back-up for
the receptionist.
■Caller ID support on system display phones (if Caller ID service is available
from your local telephone company and you subscribe to it).

Overview
1-2
■Power failure operation with a standard phone, allowing you to make calls
from extension 10 during a power failure while retaining programmed
equipment settings for up to four days. (An optional Uninterruptible Power
Supply, or UPS, is also available to allow full equipment operation during a
power failure.)
■Centrex or PBX operation support—including one-touch dialing of feature
access codes on system phones.
■Flexible dialing restrictions and permissions so you can control telephone
activity and phone bills.
■Special hospitality features that let Bed-and-Breakfast proprietors, for
example, regulate phone use in guest rooms and schedule wake-up calls
for guests.
■Easy-to-use programming procedures, making it simple for you to manage
your system and telephones. System display phones provide messages
and prompts during programming.
■Two system-programming extensions, allowing you to program the system
from one extension without interrupting call activity at the other
programming extension—usually the receptionist’s extension.
■Modular connections to the control unit, making it easy to reconfigure your
system or to add lines and/or extensions as your business grows.
■Direct connections for industry-standard devices—including most standard
phones, fax machines, answering machines, modems, and credit card
scanners.
■Optional equipment support, including doorphones, Music-On-Hold1, auto
attendants, extra alerts, and PC Cards for Backup/Restore or for software
upgrades. Doorphones work only on Tip Ring ports, which are the bottom
two ports on a processor or a 362EC expansion module.
■Automatic System Answer feature to help answer and route calls.
■Direct Extension Dial feature to allow callers to dial an extension or help
group directly without the aid of the receptionist.
■Line Pooling to create up to four groups, or pools, of multiple outside lines.
When users access a pool to make a call, the system selects an available
line from the pool.
■Call Coverage for users who are unable to answer their calls, but want their
calls answered by another individual.
1. The performance of music over telephone lines is a public performance under United
States Copyright law. Accordingly, in order for the performance of that music to be lawful, it
must be licensed annually to the user bythe copyright owners or their representatives. One
way to obtain permission is to contact ASCAP, BMI, and/or similar performing rights
organizations, to obtain a license. Or, you can purchase a Magic-On-Hold® system, which
includes the required license for the first year. This license must be renewed annually by
the copyright owners or their representatives.

System Components
1-3
System Components
Modular hardware design makes the system easy to install and expand. The basic
system consists of a PARTNER Endeavor processor module, which supports
three lines and eight extensions. Using these lines and extensions, you can add
various optional devices and telephones to configure your system to meet your
needs. To expand the system to include more lines and extensions, simply attach
additional modules and a carrier to contain them. The term “control unit” is used to
refer to the stand-alone PARTNER Endeavor 362 processor module (or to the
carrier and the modules it contains), since this is the heart of the system. Figure
1-1 shows an example of system components.
!WARNING:
There are no customer-serviceable components inside the system modules
or carrier. There are hazardous voltages within that can cause severe or fatal
personal injury. DO NOT OPEN THE MODULES.

Overview
1-4
Combo
Combo
MUSIC
ON
HOLD
Endeavor -34
PARTNER Endeavor 362
Processor Module
ECS
362EC
Combo
Combo
Endeavor -6
--
Expansion
U
(for extension jacks on last 2
ports of Endeavor 362 Processor Module
or 362EC Expansion Module)
--
Endeavor -18D
Endeavor -18
Figure 1-1. Sample System Components

System Components
1-5
Configurations
The system can have one of three basic configurations:
■Stand-alone PARTNER Endeavor 362 processor module. This
configuration does not use a carrier.
■2-Slot Carrier, which can hold up to two modules. The PARTNER Endeavor
362 processor module resides in the leftmost slot with either a 362EC
expansion module or PARTNER Mail VS (PMVS) module in the right slot.
■5-Slot Carrier, which can hold up to five modules. The PARTNER Endeavor
362 processor module resides in the center slot with four 362EC expansion
modules in the remaining slots or three 362EC expansion modules and one
PARTNER Mail VS module in the last slot.
NOTE:
A PARTNER Endeavor PC Upgrade Card is required.
In either carrier, one and only one of the modules must be a PARTNER Endeavor
362 processor module. The modules slide into the carrier, which channels power
to the system.
System Modules
The following system modules can be installed in your system:
■PARTNER Endeavor 362 Processor Module provides the software
intelligence that controls the system’s features. It has jacks for three
outside lines, eight extensions (the top six station ports support only
Enhanced Tip Ring devices and the bottom two ports support both
Enhanced Tip Ring and Tip Ring devices), a Music-On-Hold audio source
and a grounding screw. It also has one PC Card slot, a bicolor red and
green light-emitting diode (LED), and two AAA user-replaceable batteries.
The module also provides support for Caller ID information on system
display phones. The system requires one PARTNER Endeavor 362
processor module.
■362EC Expansion Module provides expanded line and extension
capability. It has jacks for three outside lines and eight extensions (again,
Tip Ring devices are only supported on the bottom two ports). By using
four 362EC expansion modules, you can have a maximum of 40 extensions
with 15 lines (one PARTNER Endeavor 362 processor module and four
362EC expansion modules).
NOTE:
A 362EC expansion module will work ONLY in conjunction with a PARTNER
Endeavor 362 processor module.
To get Caller ID, first you must subscribe to the service from your local phone
company (if it is available) on a per-line basis, then connect those lines associated
