Makita DUS054Z User manual
DUS054
EN Cordless Garden Sprayer INSTRUCTION MANUAL 2
FR Pulvérisateur de Jardin Sans-Fil MANUEL D’INSTRUCTION 20
DE Akku Drucksprühgerät BETRIEBSANLEITUNG 38
IT Spruzzatore da giardino a batteria ISTRUZIONI PER L’USO 56
NL Draadloze Tuinsproeier GEBRUIKSAANWIJZING 74
ES
Fumigador Inalámbrico para Jardín
MANUAL DE INSTRUCCIONES
92
PT Pulverizador a Bateria
MANUAL DE INSTRUÇÕES
110
DA Trådløs havesprøjte BRUGSANVISNING 128
EL 146
TR KULLANMA KILAVUZU 164
SV Sladdlösa trädgårdsspruta BRUKSANVISNING 182
NO Trådløs hagesprøyter BRUKSANVISNING 200
FI Langaton Puutarhasuihke KÄYTTÖOHJE 218
LV
LIETOŠANAS INSTRUKCIJA
236
LT Belaidis Sodo Purkštuvas
NAUDOJIMO INSTRUKCIJA
254
ET Juhtmevaba aiapihusti KASUTUSJUHEND 272
RU
290
2English
1
8
13
2
9
3
10 11 12
5
4
6
16
17
14
15
7
English (Original instructions)

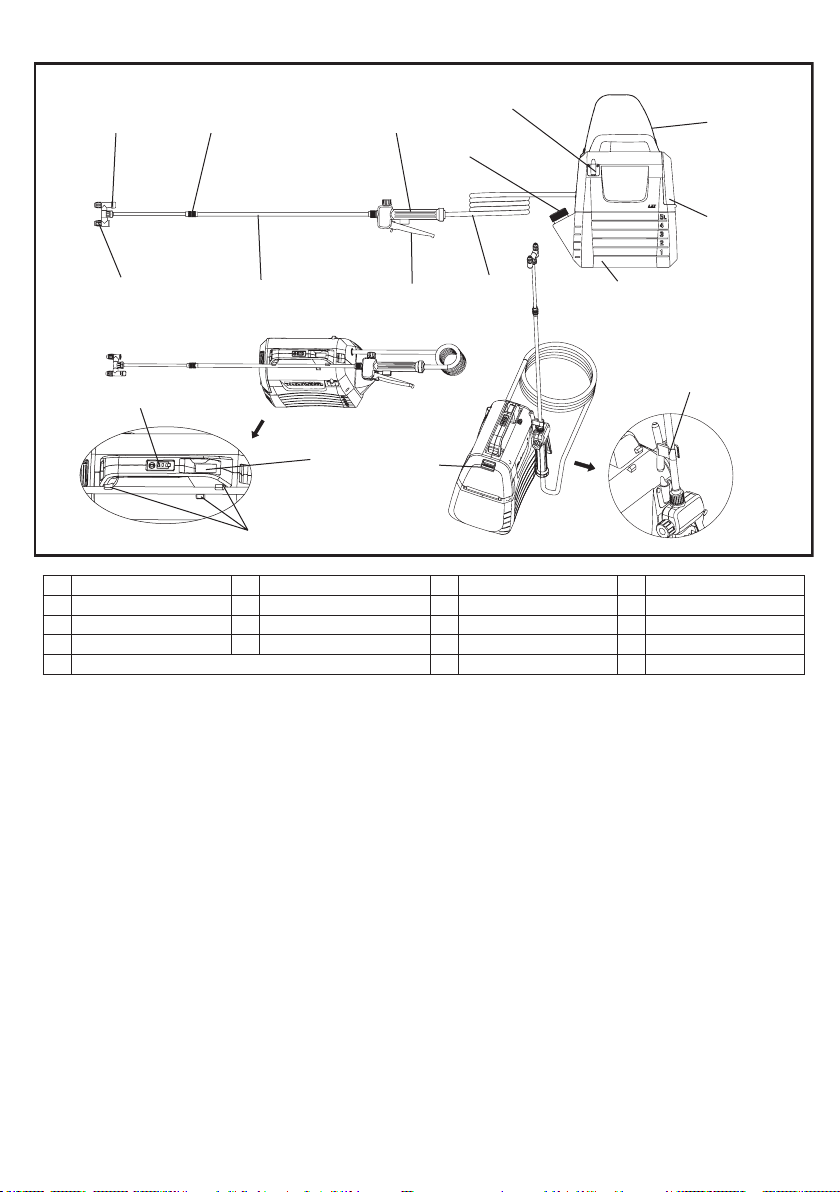

1 Head switch cock 2 Extension nut 3 Handle 4 Measuring cup
5 Spray wand bracket 6 Shoulder strap 7 Battery cover 8 Adjustable spray head
9 Spray wand 10 Lever 11 Hose 12 5L tank
13 Indicator lamps 14 15 Spray wand holder 16 Locking lever
17 Hook (for attaching the spray wand) - - - -
3English
SPECIFICATIONS
Model DUS054
Rated voltage D.C. 18 V
Tank capacity 5 L
Hose length 1.7 m
Total extendable length 50 - 70 cm
Nozzle type 2-Head (Switchable to 1 head)
Max. working pressure 0.3 MPa
Working pressure with standard nozzle Max. Approx. 0.26 Mpa
Min. Approx. 0.13 Mpa
Flow rate with standard nozzle Max. Approx. 0.91 L/min
Min. Approx. 0.47 L/min
G 1/4"
Dimensions (L × W × H) 343 × 182 × 368 mm
Net weight 3.2 - 3.5 kg
without notice.
combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
WARNING: Do not use a corded power supply such as battery adapter or portable power pack with
this machine. The cable of such power supply may hinder the operation and result in personal injury.
Symbols
The followings are symbols used for the equipment. Be sure that you understand their meaning before use.
Wear ear protection. Warning
Ni-M
H
Li-ion
Only for EU countries
Due to the presence of hazardous
components in the equipment, waste
electrical and electronic equipment,
accumulators and batteries may have a
negative impact on the environment and
human health.
Do not dispose of electrical and elec-
tronic appliances or batteries with house-
hold waste!
In accordance with the European
Directive on waste electrical and elec-
tronic equipment and on accumulators
and batteries and waste accumulators
and batteries, as well as their adaptation
to national law, waste electrical equip-
ment, batteries and accumulators should
be stored separately and delivered to a
separate collection point for municipal
waste, operating in accordance with the
regulations on environmental protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Wear a breathing
mask. Wear eye protection.
Wear safety
footwear.
Wear protective
gloves.
Do not use in the rain or leave the sprayer outdoors
while raining.
Read instruction manual.
Keep bystanders away when spraying.
4English
Intended use
This machine is intended for spraying.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-1:
Sound pressure level (LpA): 70 dB (A) or less
Uncertainty (K): 3 dB (A)
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-1:
Work mode: operation without load
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
WARNING
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capa-bilities or lack of expe-
rience and knowledge if they
have been given supervision
or instruction concerning use
of the appliance in a safe way
and understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
with this power tool. Failure to follow all instructions
serious injury.
Save all warnings and instruc-
tions for future reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
5English
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device
and/or doctor for advice before operating this power
tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
A
moment of inattention while operating power tools
may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
to power source and/or battery pack, picking up
or carrying the tool. Carrying power tools with your
have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer’s responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
2. Do not use the power tool if the switch does not
Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
3. Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
6English
5. Maintain power tools and accessories. Check for
misalignment or binding of moving parts, break-
age of parts and any other condition that may
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and the
work to be performed. Use of the power tool for
in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1.
manufacturer. A charger that is suitable for one
used with another battery pack.
2. -
nated battery packs. Use of any other battery
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals together
4. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
5. Do not use a battery pack or tool that is dam-
explosion or risk of injury.
6.
excessive temperature.-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
Charging improperly or at temperatures outside
Service
1.
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and changing
accessories.
Cordless Garden Sprayer
Safety Warnings
WARNING:
for this symbol reference on the container.
WARNING: Some spray created from products
used with the sprayer contains chemicals known
to cause cancer, birth defect of other reproductive
harm.
Some examples of these chemicals are:
· compounds in fertilize
· compounds in insecticides, herbicides, and pesticides;
· arsenic and chromium from chemically treated lumber.
Follow directions on containers of all such products.
To reduce your exposure to these chemicals, wear
approved safety equipment such as face masks that
are specially designed to filter out sprays, gloves, and
other appropriate protective equipment.
Before using any pesticide or other spray mate-
rials in this sprayer, read the label on its original
container thoroughly and follow its directions.
Some spray materials are dangerous and should
not be used in this sprayer, as they can damage the
sprayer and cause serious bodily injury or property
damage.
Electric shock hazard. Never spray toward electri-
cal outlets.
Do not use commercial grade chemicals or
chemicals for commercial or industrial pur-
poses. Use only consumer grade water-based lawn
and garden chemicals.
Do not pour hot or boiling liquids into the tank.
These can weaken or damage the hose or tank.
Spray area must be well ventilated.
Avoid spraying on windy days. Spray can be
accidentally blown onto plants or objects that should
not be sprayed.
Store the sprayer in a secure, well-ventilated
Do not use caustic (alkali) self-heating or cor-
rosive (acid) liquids in this sprayer. These can
corrode metal parts or weaken the tank and hose.
7English
Know the contents of the chemical being
sprayed. Read all Material Safety Data Sheets
(MSDS) and container labels provided with the
chemical. Follow the chemical manufacturer s
safety instructions.
Do not leave residue or spray material in the
tank after using the sprayer. Clean after each use.
Do not smoke while using the sprayer, or spray
Risk of injection. Do not discharge directly against
skin.
To reduce the risk of electric shock, do not put
the sprayer into water or other liquid. Do not
place or store the sprayer where it can fall or be
pulled into a tub or sink.
Maintain this product. Thoroughly inspect both
the inside and outside of the sprayer and exam-
ine the components before each use. Check for
cracked and deteriorated hoses, leaks, clogged
nozzles, and missing or damaged parts. If dam-
aged, have the product repaired before use.
Many accidents are caused by poorly maintained
products.
Disconnect the battery from the unit before
draining, cleaning, or storing the sprayer. Such
preventive safety measures reduce the risk of acci-
dental starting.
Always wear eye protection with side shields
or goggles marked to comply with ANSI Z87.1.
eyes resulting in possible serious injury.
Protect your lungs. Wear a face or dust mask
when using the sprayer. Following this rule will
reduce the risk of serious personal injury.
Battery tools do not have to be plugged into
an electrical outlet; therefore, they are always
in operating condition. Be aware of possible
hazards when not using your battery tool or
when changing accessories. Remove battery
pack when tool is not in use. Following this rule
personal injury.
Do not place battery tools or their batteries near
This will reduce the risk of explosion
and possibly injury.
Do not crush, drop or damage battery pack. Do
not use a battery pack or charger that has been
dropped or received a sharp blow. A damaged
battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
Batteries can explode in the presence of a
source of ignition, such as a pilot light. To reduce
the risk of serious personal injury, never use any
exploded battery can propel debris and chemicals. If
Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of
electric shock.
For best results, your battery tool should be
charged in a location where the temperature is
more than 10 °C (50 °F) but less than 40 °C (104 °F).
To reduce the risk of serious personal injury, do not
store outside or in vehicles.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with
soap and water. If liquid gets into your eyes,
-
utes, then seek immediate medical attention.
Following this rule will reduce the risk of serious
personal injury.
Do not use battery-operated appliance in rain.
Do not use battery-operated appliance in rain.
Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
The
cell may explode. Check with local codes for possi-
ble special disposal instructions.
Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
Avoid Dangerous Environment - Don’t use appli-
ances in damp or wet locations.
Use Right Appliance - Do not use appliance for
any job except that for which it is intended.
Don’ t Force Appliance - It will do the job better
and with less likelihood of a risk of injury at the rate
for which it was designed.
Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in dry, and high
or locked-up place - out of reach of children.
Maintain Appliance With Care - Keep clean for
best performance and to reduce the risk of injury.
Follow instructions for changing accessories.
Inspect appliance cord, and if damaged, have it
repaired by an authorized service facility. Keep
handles dry, clean, and free from oil and grease.
Check Damaged Parts - Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
or other part that is damaged should be properly
repaired or replaced by an authorized service center
unless indicated elsewhere in this manual.
tank cover is not tightened.
8English
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper the battery car-
tridge.
explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water or
rain.
-
heating, possible burns and even a breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if it
is severely damaged or is completely worn out.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties, for-
warding agents, special requirement on packaging
and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe place.
Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products speci-
Installing the batteries to non-com-
explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low tem-
perature burns. Pay attention to the handling of
hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near high-volt-
age electrical power lines, do not use the
battery cartridge near high-voltage electrical
power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery ser-
vice life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let a
hot battery cartridge cool down before charging
it.
4. When not using the battery cartridge, remove it
from the tool or the charger.
5. Charge the battery cartridge if you do not use it
for a long period (more than six months).
9English
CORDLESS GARDEN SPRAYER USE AND CARE
1. The cordless garden sprayer can work by Makita lithium-ion battery cartridge. Use of any other batteries may
3. Do not use any batteries, attachments or accessories not recommended by the manufacturer of this appliance.
The use of batteries, attachments or accessories not recommended can result in serious personal injury.
10 English
ASSEMBLY
CAUTION:
the machine.
CAUTION:
Make sure that the all parts are securely assembled so that the liquid does not leak when operating the machine.

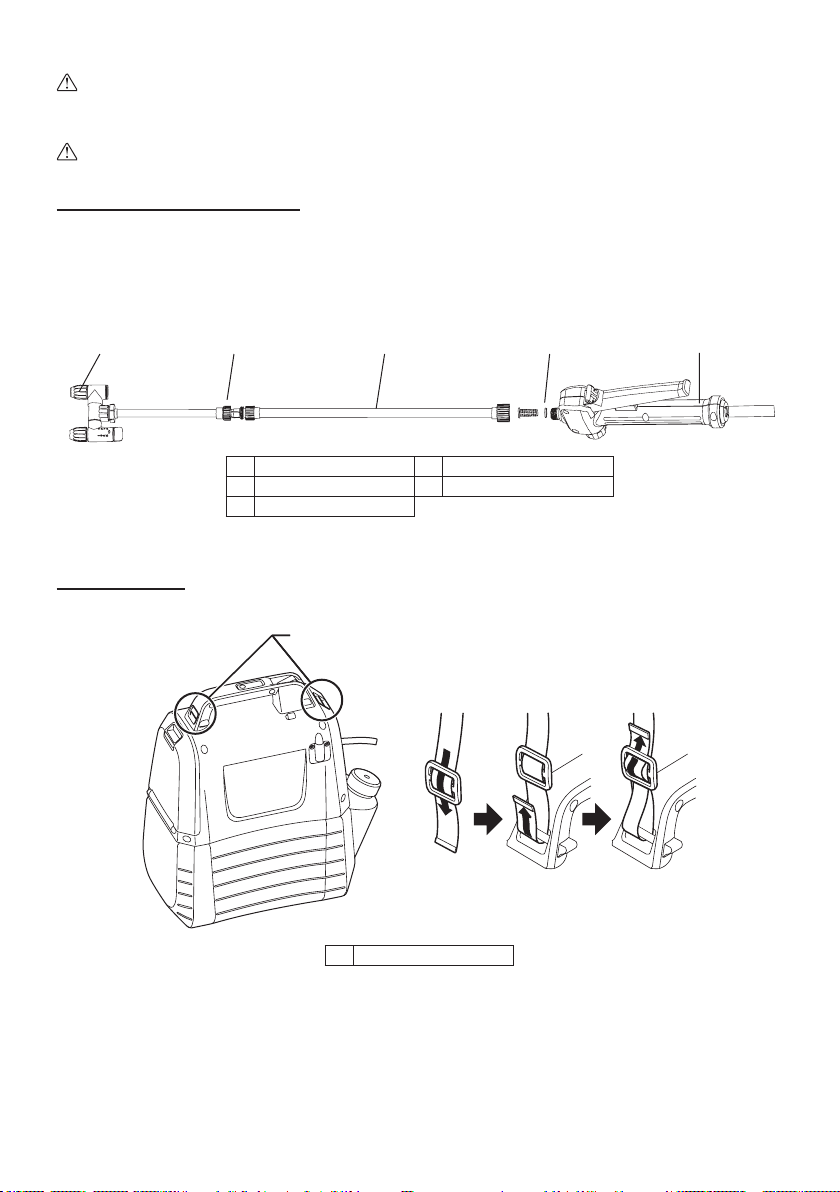

Assembly of the spray wand
1. Remove the cap from the handle.
2. Make sure the O-ring is in place, then thread the spray wand onto the handle and tighten it securely. Refer to
Figure 1.
3. Loosen the extension nut and pull out the spray wand to the desire length.
4. Retighten the extension nut.
12 3 4 5
1 Adjustable spray head 2 Extension nut
3 Spray wand 4 O-ring
5 Handle
Figure 1
Shoulder strap
1
1 Hanger
Figure 2
11 English
FUNCTIONAL DESCRIPTION
CAUTION:
function on the machine.
Installing or removing the battery cartridge
CAUTION:
machine and battery cartridge and a personal injury.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted
correctly.
To install the battery cartridge, pull down the locking lever, and then open the battery cover. Align the tongue on the
battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place
with a little click. Refer to Figure 3.
To remove the battery cartridge, slide it from the machine while pressing the button. Refer to Figure 4.
Figure 3 Figure 4
12 English
Indicating the residual battery capacity
Press the check button on the machine to indicate residual battery capacity. The indicator lamps light up for few
seconds. Refer to Figure 5.
Indicator lamps
Residual battery capacity
Lighted
50 % to 100 %
30 % to 50 %
0 % to 30 %
NOTE:
capacity.
12
1Indicator lamps 2Check button
Figure 5
Machine / battery protection system
extend machine and battery life. The machine will automatically stop during operation if the machine or battery is
placed under one of the following conditions.
- Overload protection : When the machine is operated in a manner that causes it to draw an abnormally high current,
-
tion that caused the machine to become overloaded. Then turn the machine on to restart.
- Overdischarge protection : When the battery capacity becomes low, the machine stops automatically. If the
machine does not operate even when the switches are operated, remove the battery cartridge from the machine
and charge it.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
1Indicator lamps 2Check button
Figure 6
13 English
Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light
up for a few seconds.
Indicator lamps
Remaining capacity
Lighted
75 % to 100 %
50 % to 75 %
25 % to 50 %
0 % to 25 %
NOTE:
actual capacity.
NOTE:
14 English
Mixture
WARNING! Always follow the chemical manufacturer’s instructions printed on their product labeling
for use, cleaning, and storage. Clean thoroughly after each use, following the instructions in the
Maintenance and cleaning section of this manual. Chemicals should be stored out of the reach of
children. Failure to do so may result in serious personal injury.
WARNING! THE PRODUCT IS DESIGNED FOR SPRAYING CONSUMER-GRADE HOME AND
GARDEN CHEMICALS SUCH AS WEED KILLERS, FUNGICIDES, INSECTICIDES, AND FERTILIZERS.
CAUTION: Be sure that no previously used chemical has been left in tank. If so, chemical reaction may
occur generating harmful gas.
NOTICE:
NOTICE: Liquids to be sprayed must be as thin as water. Thicker liquids will not spray properly.
15 English
1. Remove the battery prior to adding chemical liquid to the tank.
3. Unscrew and remove the measuring cup.
4. Measure the recommended liquid. The cup can be used to measure up to 50 ml (2 oz) of liquid. Refer to Figure 8.
dissolve chemical liquid in water completely in a separate container and then pour it into the tank. Make sure you
6. Rinse the measuring cup with clean water.
9. Reattach the motor housing to the tank and rotate it clockwise to “Click”. Refer to Figure 11.
*Container is not included.
Figure 7 Figure 8
Figure 9 Figure 10
Figure 11
16 English
WARNING!
OPERATION
CAUTION:
1. Before operating the machine, put on safety goggles and other safety gear.

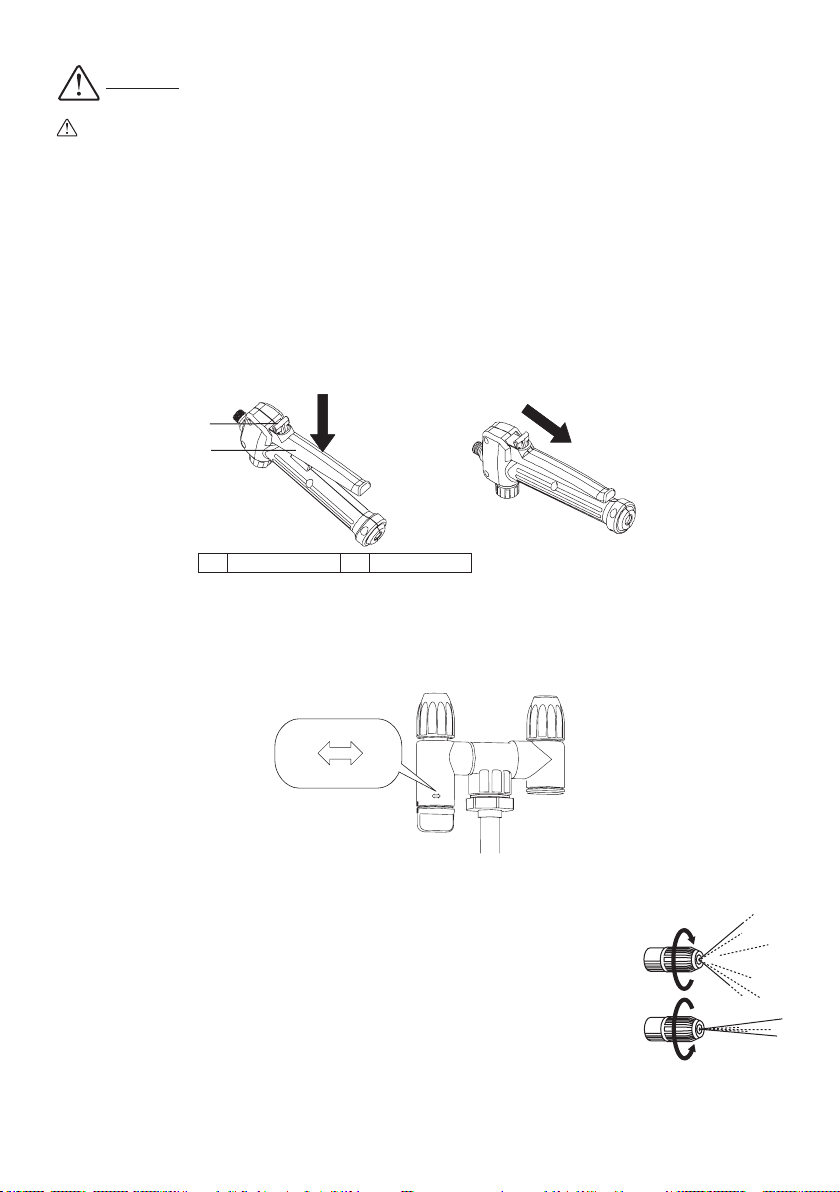

3. Press and hold the lever down to start spraying. Refer to Figure 12.
4. Release the lever to stop spraying.
Lock-on
The lock-on feature is convenient for continuous spray or when covering a large area.
1. To lock-on, press the lever down and pull the lock button backwards, then release the lever. Refer to Figure 13.
2. To release the lock-on, press the lever and push the lock button forward.
Note: Make sure the lever is not in locked position before inserting the battery pack into the machine.
1
2
1Lock button 2Lever
Figure 12 Figure 13
Adjustment to one-head type
1. Turn the cock to the “lock” side to use the machine as one head type. Refer to Figure 14.
23(1
/2&.
ORFN
RSHQ
Figure 14
Adjusting spray
You can mist or jet the liquid using the adjustable spray head.
1. Remove the battery pack from the machine.
2. To mist the liquid, tighten the adjustable spray head.
3. To jet the liquid, loosen the adjustable spray head.
Tighten
Loosen
17 English
Caution • Do not overturn cock exceeding 180o
• Do not touch nozzle lever by mistake when resting nozzle on nozzle stand to avoid
erroneous spraying.
• Do not leave leftover chemical inside tank for a long period of time.
This would damage parts and shorten life of product.
Spraying
WARNING! Never set the unit on the ground during use. Avoid the machine and battery from getting wet at
all times. Do not spray near or directly at the unit.
1. Aim the sprayer nozzle directly at the plants or objects you wish to spray.
2. Never point the spray end of the wand at yourself or others.
3.
Be aware of splash back, stand far enough from the object being sprayed to prevent the spray splashing back onto you
.
4. Never spray in the direction of people or animals; always spray downwind.
5. Avoid spraying on windy days. Spray can be accidentally blown onto plants or objects that should not be sprayed.
MAINTENANCE AND CLEANING
CAUTION:
inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed
by Makita Authorized or Factory Service Centers, always using Makita replacement parts.
MAINTENANCE
WARNING! To avoid serious personal injury, always remove the battery pack from the machine when
cleaning or performing any maintenance.
WARNING! Always wear eye protection with side shields or goggles marked to comply with ANSI Z87.1.
WARNING! When servicing, use only identical replacement parts. Use of any other parts may create a
hazard or cause product damage.
WARNING!
plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal
injury.
NOTICE: Periodically inspect the entire product for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all
assistance.
NOTICE:
Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
GENERAL MAINTENANCE: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove
dirt, dust, oil, grease, etc.
CLEANING THE UNIT
WARNING! Always store and dispose of chemicals properly. Disposal of contaminated rinse water
should be performed according to local ordinances and by laws.
18 English
DRAINING THE TANK
If there is any liquid left in the tank after spraying, the tank should be drained before cleaning.
• Remove the battery pack.
• Remove the motor housing from the tank.
NOTE: Drain the liquid back into the original container. Do not store chemical liquid in the tank.
CLEANING THE TANK
• Fill the tank about one-third full with clean water. A small amount of mild household detergent may be added.
NOTE:
• Wipe the outside of the tank with a clean, dry cloth.
• Reattach the motor housing to the tank.
• Reinstall the battery pack. Spray until the tank has been emptied. Make sure to direct the spray toward an area that
will not be damaged by the spray solution.
again as instructed above.
• Allow all parts to completely dry before reinstalling parts and storing the unit.
CLEANING THE NOZZLE
If the nozzle becomes plugged, use the steps below to clear.
• Remove the battery pack.
• Unscrew and remove the nozzle cap form adjustable spray head of the spray wand.
•
.
• Wipe the adjustable spray head with a clean dry cloth, and reattach the nozzle cap to the adjustable spray head.
CLEANING THE PUMP
Follow the procedures below to clean the pump:
2. Remove the spray wand from handle.
3. Drain any remaining liquid or store leftover liquid to another container to make sure the tank is empty.
4. Separate the motor housing from the tank and turn it upside down. Refer to Figure 16.
5. Unscrew the red cap to open water inlet hole, and then connect the hole to the water tap. Make sure the O-ring is
placed inside the red cap.
adhered to the pump. Refer to Figure 17.
7. Disconnect the water tap and re-tighten the red cap. Make sure that the O-ring inside the cap is in place.
Figure 15
2
1
Figure 16 Figure 17
1 Red cap 2 O-ring
19 English
OPTIONAL ACCESSORIES
CAUTION:
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attach-
ment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
• Makita genuine battery and charger.
NOTE:
country to country.
20 Français
1
8
13
2
9
3
10 11 12
5
4
6
16
17
14
15
7
Français (Instructions originales)
1Boisseau de l'interrup-
teur à tête 2 Écrou d'extension 3 Manette 4 Verre de mesure
5Support de lance de pul-
vérisation 6 Bretelle 7 Couvercle de batterie 8 Tête de pulvérisation
ajustable
9 Lance de pulvérisation 10 Levier 11 Flexible 12 Réservoir 5L
13 Voyants lumineux 14 Interrupteur de Démar-
rage/Arrêt 15 Porte-lance de pulvéri-
sation 16 Levier de verrouillage
17 Crochet (pour attacher la lance de pulvérisation) - - - -
This manual suits for next models
1
Table of contents
Languages:
Other Makita Paint Sprayer manuals
Makita
Makita XSU03 User manual
Makita
Makita EVH2000 User manual
Makita
Makita DUS108 User manual
Makita
Makita BVF104 User manual
Makita
Makita BVF154 User manual
Makita
Makita EVH2000 User guide
Makita
Makita BVF104 Manual
Makita
Makita DUS108 User manual
Makita
Makita DUS054 User manual
Makita
Makita DVF104 User manual
Makita
Makita US053D User manual
Makita
Makita DUS054 User manual
Makita
Makita DUS054 User manual
Makita
Makita DVF104 User manual
Makita
Makita BVF104 User manual
Makita
Makita US053D User manual
Makita
Makita BVF104 User manual
Makita
Makita PM7651H User guide
Makita
Makita DUS108 User manual
Makita
Makita BVF154 User manual
