Makita 3706 User manual

INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Cutout Tool
MODEL 3706
004550
DOUBLE
INSULATION

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
SYMBOLS END201-2
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
..................Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use
The tool is intended for cutting gypsum, wood, plastic
and soft wall tiles.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
Noise and Vibration
The typical A-weighted sound pressure level is 84 dB (A).
Uncertainty is 3 dB(A).
The noise level under working may exceed 85 dB (A).
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
These values have been obtained according to
EN60745.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents, EN60745, EN55014, EN61000 in
accordance with Council Directives, 73/23/EEC, 89/336/
EEC, 98/37/EC.
Yasuhiko Kanzaki CE 2005
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Responsible manufacturer:
Makita Corporation Anjo Aichi Japan
Model 3706
Collet chuck capacity 3.18 mm, 6.35 mm
No load speed (min-1)32,000
Overall length 250 mm
Net weight 1.1 kg
Safety class /II

3
GENERAL SAFETY RULES GEA001-3
WARNING:
Read all instructions. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term “power tool” in all of the
warnings listed below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Work area safety
1. Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
2. Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
9. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
10. Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal inju-
ries.
11. Avoid accidental starting. Ensure the switch is
in the off-position before plugging in. Carrying
power tools with your finger on the switch or plug-
ging in power tools that have the switch on invites
accidents.
12. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
13. Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
14. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
15. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Power tool use and care
16. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
17. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
18. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.

4
19. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
21. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
22. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working con-
ditions and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
23. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
24. Follow instruction for lubricating and changing
accessories.
25. Keep handles dry, clean and free from oil and
grease.
ADDITIONAL SAFETY RULES ENB050-2
1. Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord. Con-
tact with a “live” wire will make exposed metal parts
of the tool “live” and shock the operator.
2. Wear eye protection and dust mask.
3. Ventilate your work area adequately.
4. Check the bit carefully for cracks or damage
before operation. Replace cracked or damaged
bit immediately.
5. Check for the proper clearance beneath the
workpiece before cutting so that the bit will not
strike a hard surface such as the floor, work-
bench, etc.
6. Do not cut metal objects such as nails and
screws. Inspect for and remove all nails, screws
and other foreign material from the workpiece
before operation.
7. Check that the bit is not contacting the work-
piece before the switch is turned on. Always
hold the tool with two hands while switching the
tool on. The motor torque can cause the tool to
turn.
8. Before using the tool on an actual workpiece, let
it run for a while. Watch for vibration or wob-
bling that could indicate improperly installed bit.
9. Make sure that the shaft lock is released before
the switch is turned on.
10. Always use with the shoe securely attached to
the tool and positioned flat and firmly against
the workpiece.
11. Hold the tool firmly.
12. Do not perform any operation using your hands
to support or guide the workpiece.
13. Keep hands away from moving parts.
14. Do not use this tool for drilling.
15. Do not leave the tool running. Operate the tool
only when hand-held.
16. Always switch off and wait for the bit to come to
a complete stop before removing the bit from
workpiece.
17. Do not touch the bit or the workpiece immedi-
ately after operation; it may be extremely hot
and could burn your skin.
18. Always lead the power supply cord away from
the tool towards the rear.
19. Draw attention to the need to use cutters of the
correct shank diameter and which are suitable
for the speed of the tool.
SAVE THESE INSTRUCTIONS

5
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Adjusting depth of cut
To adjust the shoe, turn the thumb screw to loosen. Slide the shoe to the
desired position and tighten the thumb screw securely. Check for the proper
clearance beneath the workpiece before cutting so that the bit will not strike a
hard surface such as the floor, workbench, etc.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the switch lever
actuates properly and returns to the “OFF’’ position.
To start the tool, move the switch lever to the “ON’’ position.
To stop the tool, move the switch lever to the “OFF’’ position.
This can be done in the forward area of the switch lever or by bumping off the
rear area of the switch lever.
ASSEMBLY CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Installing or removing bit
CAUTION:
• Do not tighten the collet nut without inserting a bit, or the collet cone will
break.
• When using the bit with 6.35 mm shank diameter, first remove the
adapter from the collet cone, then install the bit.
To install the bit, insert the bit all the way into the collet cone.
Press the shaft lock to keep the shaft stationary and use the wrench to tighten
the collet nut securely.
To remove the bit, follow the installation procedure in reverse.
1. Shoe
2. Thumb screw
1
2
001624
1. Switch lever
2. Bump off switch
ONOFF
12
001625
1. Bit
2. Collet nut
3. Shaft lock
4. Adapter
5. Wrench
6. Loosen
7. Tighten
1
2
3
45
7
6
001626

6

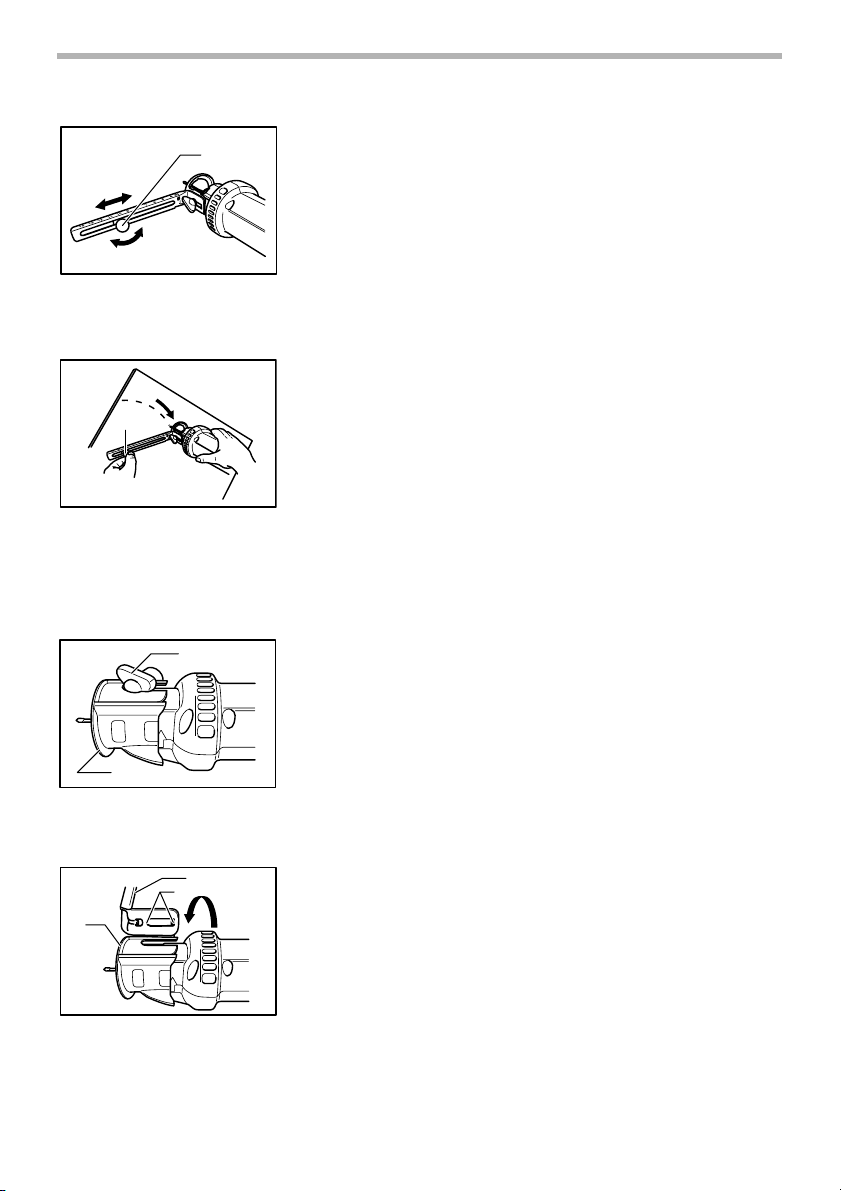

Changing the collet cone
CAUTION:
•Use the correct size collet cone and adapter for the bit which you
intended to use.
•Do not tighten the collet nut without inserting a bit, or the collet cone will
break.
To change the collet cone, loosen the collet nut and remove. Remove installed
collet cone and adapter and replace with desired collet cone and adapter.
Reinstall collet nut.
OPERATION
CAUTION:
•Avoid forcing the bit to bend or twist. It may snap.
•Before turning the tool on, make sure the bit and collet nut are securely
tightened.
Hold the tool secure with the bit pointing in a safe direction not contacting any
surface and slide the switch to the “ON’’ position. Wait until the tool attains full
speed.
When starting the multipurpose bit into the material, hold the tool at approxi-
mately a 45 degree angle with the edge of the shoe base contacting the mate-
rial.
Carefully bring the tool to a straight position so the shoe base is in full contact
with the material.
When inserting the drywall guide bit into the drywall, carefully insert the bit
straight until the shoe base is in full contact with the material.
Move the tool slowly with a constant pressure in a clockwise direction to make
the cut.
When cutting straight line, clamp a straight board firmly to the material and use
it as a guide. Move the tool in the direction of the arrow with the shoe base
flush with the side of the guide board.
When the cut is complete, turn the tool off and wait for the bit to stop rotating
and then carefully remove it from the material.
1. Adapter
2. Collet nut
3. Collet cone
12
3
004554
001627
001628
001629
001630

7
NOTE:
1. When using this tool, the rotating action causes the tool to pull. The less
pressure applied to the tool causes less pull and provides a more accu-
rate cut. Excessive pressure or fast cutting can cause the bit to dull or
break premature.
2. When cutting drywall around outlet boxes, cut in a counterclockwise
direction for ease of cut.
3. The standard bit included with this tool is for cutting drywall only. When
cutting materials other than drywall, do not use the standard drywall
guide bit.
Circular guide
Circular cutting diameters: 10 cm - 34 cm
Installing circular guide
Release the thumb screw which serves to secure the shoe.
Align the projections in the circular guide with the grooves in the shoe, and
secure the shoe and circular guide using the thumb screw.
To adjust the cutting depth, proceed first by loosening the thumb screw and
then by sliding the shoe and circular guide together. After completion of the
adjustment, tighten the thumb screw securely.
1. Shoe
2. Loosen
3. Tighten
4. Thumb screw
14
3
2
001631
1. Shoe
2. Circular guide
3. Projections
1
2
3
001632
1. Shoe
2. Circular guide
3. Thumb screw
1
2
3
001633

8
Operation
Loosen the knob, and adjust its position in accordance with the size of the cir-
cle to be cut. (The hole dimensions to be cut are indicated on the side of the
circular guide as a general guideline.) After completion of the adjustment,
tighten the knob securely.
Insert the end of the knob into the center of the circle to be cut, and proceed to
cut in a clockwise direction.
Vacuum cover
Cleaner operations can be performed by connecting the cutout tool to Makita
vacuum cleaner or dust collector.
Installing vacuum cover
Loosen the thumb screw and remove the shoe. Attach the vacuum cover, and
fasten it securely using the thumb screw.
Installing vacuum cover with circular guide
Release the thumb screw which serves to secure the vacuum cover. Align the
projections in the circular guide with the grooves in the vacuum cover, and
secure the vacuum cover and circular guide using the thumb screw.
1. Knob
2. Tighten
3. Loosen
1
2
3
001634
1. Knob
1
001635
1. Thumb screw
2. Vacuum cover
1
2
001636
1. Circular guide
2. Projections
3. Vacuum cover
3
1
2
001637

9
To adjust the cutting depth, proceed first by loosening the thumb screw and
then by sliding the vacuum cover and circular guide together. After completion
of the adjustment, tighten the thumb screw securely.
Connecting to Makita vacuum cleaner or dust collector
Connect the hose of a vacuum cleaner/dust collector to the dust nozzle. When
connecting to Makita vacuum cleaner, an optional hose 28 mm in inner diame-
ter is necessary.
When connecting to Makita dust collector, connect the hose for the dust col-
lector directly to the dust nozzle.
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspec-
tion and replacement, any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always using Makita
replacement parts.
1. Circular guide
2. Thumb screw
3. Vacuum cover
4. Loosen
5. Tighten
1
2
3
45
001638
1. Vacuum cover
2. Hose 28
3. Hose for vacuum cleaner
1
2
3
001639
1. Vacuum cover
2. Hose 28
3. Dust collector
1
2
3
001640

10
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.
•Drywall guide bit 1/8”, 1/4”, 3 mm, 6 mm
•Collet cone 6 mm
•Collet cone 6.35 mm (1/4”)
•Adapter 3.18 - 6.35 mm / 3 - 6 mm
•Wrench 17
•Circular guide
•Vacuum cover

Memo
11

Makita Corporation Anjo, Aichi, Japan
884373C223
