Makita 3706 User manual

Cutout Tool
Collet chuck capacity
1/4",
1/8"
MODEL 3706
Overall length Net weight
No
load speed
(RPM)
32,0001min. 250 mm (9-7/8") 1.1 kg (2.4 Ibs)
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPECIFICATIONS
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

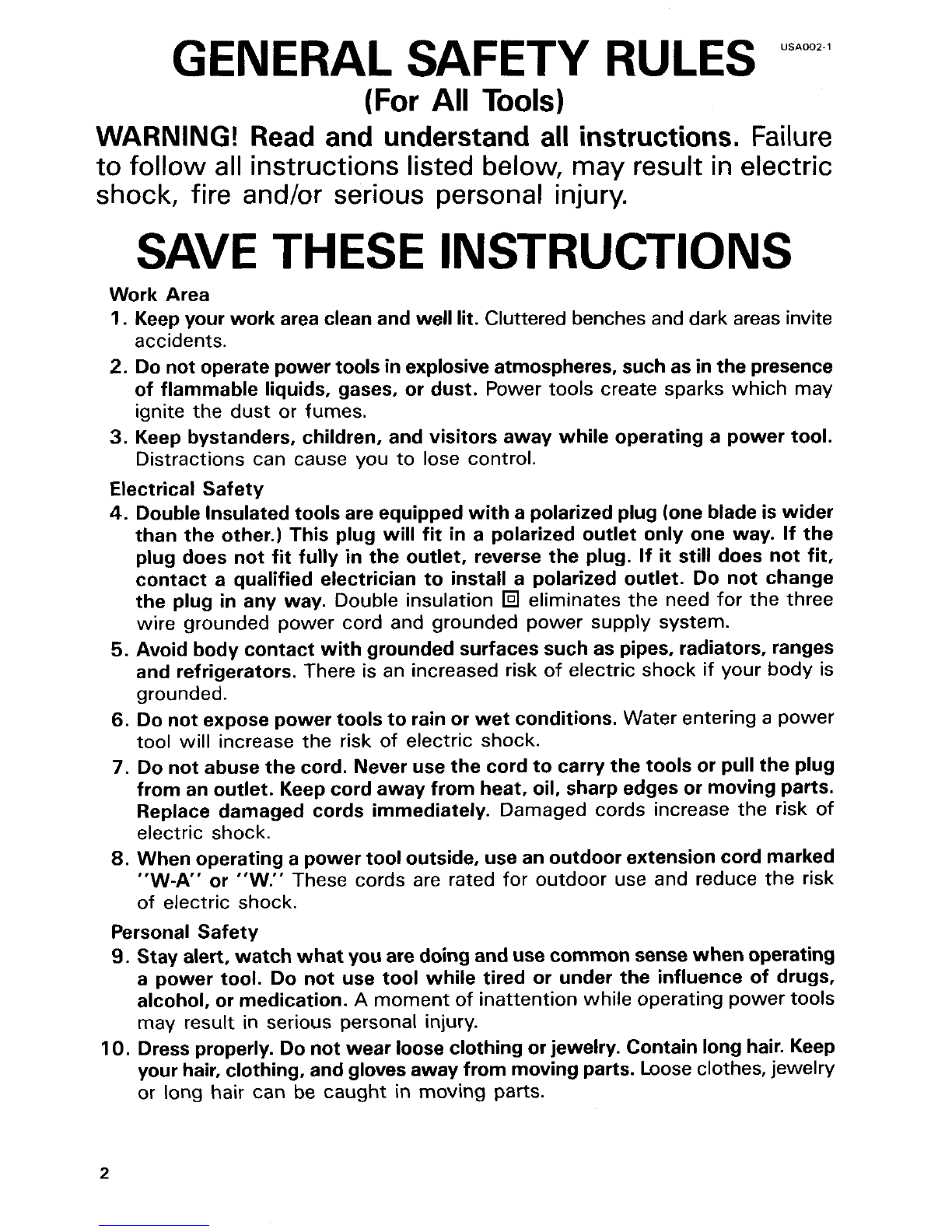

GENERAL SAFETY RULES USAW2-’
(For All Tools)
WARNING! Read and understand all instructions. Failure
tofollow all instructionslisted below, may result inelectric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
1. Keepyour work area cleanand well lit. Cluttered benches and dark areas invite
accidents.
2. Do notoperate power tools in explosiveatmospheres, suchas inthe presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
4. Double Insulatedtools are equipped with apolarized plug(onebladeis wider
than the other.)
This plug will fit in a polarized outlet only one way. If the
plug does not
fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug
in any way. Double insulation eliminates the need for the three
wire grounded power cord and grounded power supply system.
5. Avoid body contact withgrounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is
grounded.
6. Donotexpose powertoolstorainor wetconditions. Water entering a power
tool
will increase the risk of electric shock.
7. Donotabuse the cord. Never use the cordtocarry the tools or pullthe plug
from an outlet. Keepcordaway from heat, oil, sharp edges or movingparts.
Replace damaged cords immediately. Damaged cords increase the risk
of
electric shock.
8. Whenoperating a powertooloutside, useanoutdoorextension cordmarked
“W-A“ or “W.“ These cords are rated for outdoor use and reduce the risk
of electric shock.
Personal Safety
9. Stay alert, watchwhat youare doing andusecommonsensewhenoperating
a power tool. Do not use tool while tired or under the influence of drugs,
alcohol, or medication. A momentof inattentionwhile operating power tools
may result
in serious personal injury.
IO. Dressproperly. Donotwear looseclothingorjewelry. Contain longhair. Keep
your hair, clothing, andglovesaway frommovingparts. Looseclothes, jewelry
or long hair can be caught
in moving parts.
2

11. Avoid accidental starting. Be sure switchis off before plugging in. Carrying
tools with your finger on the switch or plugging in tools that have the switch
on invites accidents.
12. Removeadjusting keys or wrenches before turning the tool on. A wrench
or
a key that is left attached to a rotatingpart of the tool may resultinpersonal
injury.
13.
Do notoverreach.Keepproperfootingand balanceat alltimes. Proper footing
and balance enables better control of the tool in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
Tool Use and Care
15. Use clamps or other practicalway tosecure and support the workpiece to
a stable platform. Holdingthe work by hand or against your body is unstable
and may lead to
loss of control.
16. Donotforce tool. Use the correct tool for your application. The correct tool
will do the job better and safer
at the rate for which it is designed.
17. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled with the switch is dangerous and must be repaired.
18. Disconnectthe plugfrom the powersource before makingany adjustments,
changing accessories, or storing the
tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintainedtools, with sharp cuttingedges are less likelytobind andare easier
to control.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tools operation.
If damaged, have
the tool serviced before using. Many accidents are caused by poorly
maintained tools.
22. Use only accessories that are recommended by the manufacturerfor your
model. Accessories that may be suitablefor one tool, may become hazardous
when used on another tool.
SERVICE
23. Tool service must be performedonly by qualifiedrepair personnel. Service
or maintenance performed
by unqualified personnel could result in a risk of
injury.
24. When servicing a tool, use only identical replacement parts. Follow
instructions
in the Maintenancesectionof this manual. Use of unauthorized
parts or failuretofollow Maintenance Instructionsmay createarisk of electric
shock or injury.
3

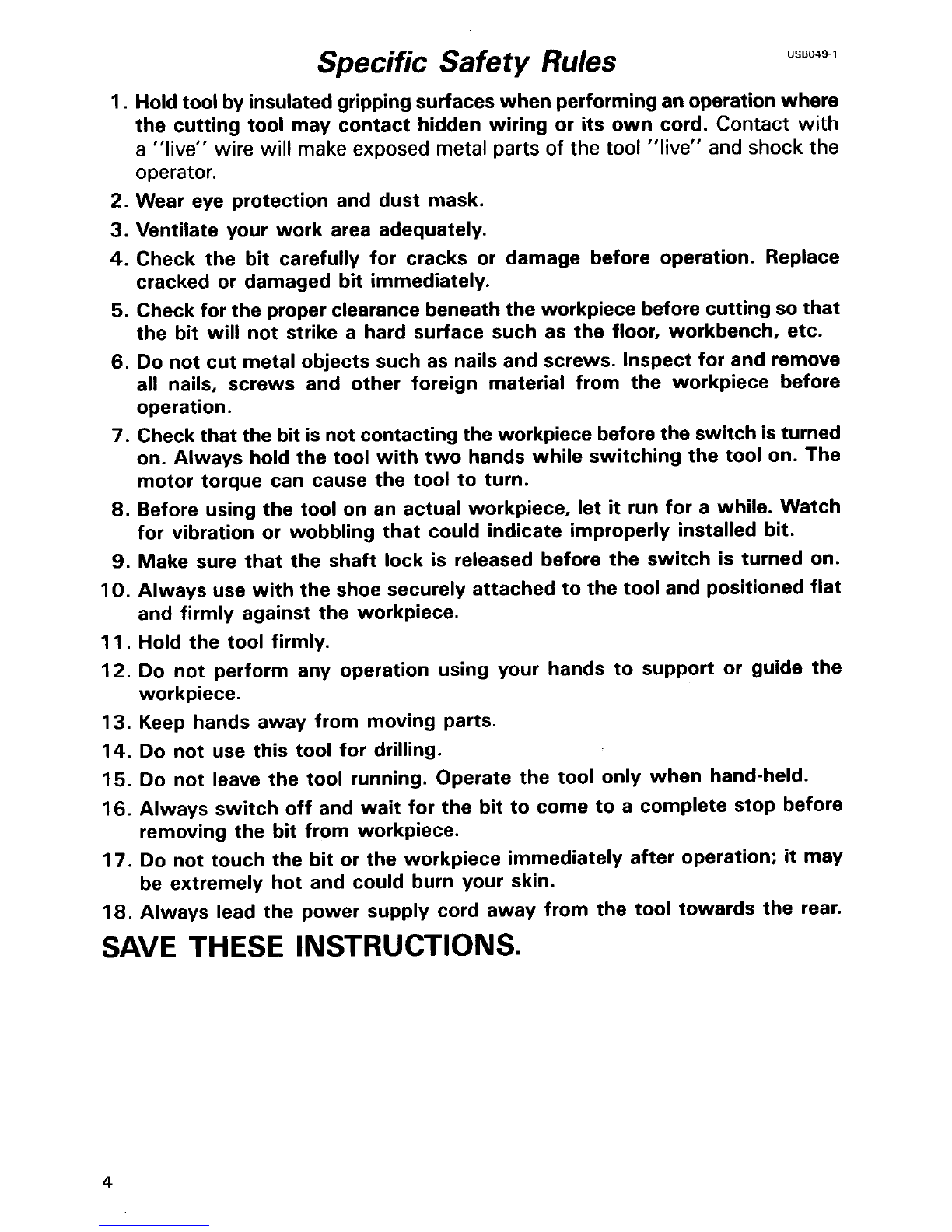

Specific Safety Rules
USBO49~1
1 . Holdtoolbyinsulatedgrippingsurfaceswhenperforminganoperation where
the cutting tool may contact hidden wiring
or its own cord. Contact with
a ''live" wire will makeexposed metal parts of the tool "live" and shock the
operator.
2. Wear eye protection and dust mask.
3. Ventilate your work area adequately.
4. Check the bit carefully for cracks or damage before operation. Replace
cracked or damaged bit immediately.
5. Check for the properclearancebeneaththe workpiece beforecutting so that
the bit
will not strike a hard surface such as the floor, workbench, etc.
6. Do not cut metal objects such as nailsand screws. Inspect for and remove
all nails, screws and other foreign material from the workpiece before
operation.
7. Check that the bit isnotcontacting the workpiece beforethe switch is turned
on. Always hold the tool with two hands while switchingthe tool on. The
motor torque can cause the tool to turn.
8. Before using the tool on an actual workpiece, let it run for a while. Watch
for vibration or wobbling that could indicate improperly installed bit.
9. Make sure that the shaft lock is released before the switch is turned on.
IO. Always use withthe shoe securely attached tothetool and positioned flat
11. Hold the tool firmly.
12. Do not perform any operation using your hands to support or guide the
13. Keep hands away from moving parts.
14. Do not use this tool for drilling.
15. Do not leave the tool running. Operate the tool only when hand-held.
16. Always switch off and wait for the bit to come to a complete stop before
17. Do not touch the bit or the workpiece immediately after operation; it may
18. Always lead the power supply cord away from the tool towards the rear.
and firmly against the workpiece.
workpiece.
removing the bit from workpiece.
be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

SYMBOLS
The followings show the symbols used for tool.
v .................................... volts
A .................................... amperes
Hz .................................... herts
% .................................... alternating current
.................................... no load speed
lol .................................... Class II Construction
..Jmin ................................... revolutions or reciprocation per minute
5

To adjust the shoe, turn the thumb screw
to loosen. Slide the shoe to the desired
position and tighten the thumb screw
securely. Check for the proper clearance
beneath the workpiece before cutting
so
that the bit will not strike a hard surface
such as the floor, workbench, etc.
Switchaction
CAUTION:
Before plugging in the tool, always check to see that the switch lever actuates properly
and returnsto the
"OFF" position.
Shoe
Thumbscrew
To start the tool, movethe switch lever to
the
"ON" position. To stop the tool, move
the switch lever tothe
"OFF" position.This
can be done in the forward area
of the
switch lever or by bumpingoff the rear area
of the switch lever.
Switchlever Bump off switch
II
ASSEMBLY
Installingor removingthe bit
CAUTION:
Always be sure that the tool is switched off and unpluggedbefore installingor removing
the bit.
To install the bit, insert the bit
all the way
into the collet cone. Press the shaft lock to
keep the shaft stationary and use the
wrenchto tightenthe collet nut securely.
6

Note:
When usingthe bitwith
1/4" (6.35 mm)shank diameter, first removethe adapter from the
colletcone, then installthe bitas describedabove.
To remove the bit, follow the installationprocedure in reverse.
CAUTION:
Do nottightenthe collet nutwithout inserting a bit, or the colletcone will break.
OPERATION
CAUTION :
Avoid forcingthe bit to bendor twist. Itmay snap.
Beforeturningthe tool on, make sure the bit and collet nutare securely tightened.
Holdthe tool secure with the bit pointingin a safe direction not contactingany surface
andslidethe switch to the "ON" position.Wait untilthe tool attains full speed
When startingthe multipurposebit into the
material, holdthe
tool at approximately a 45
degree angle with the edge of the shoe
basecontactingthe material.
Carefully bringthe tool to
a straightposition
so the shoe base is in full contact with the
material.
When inserting the drywall guide bit into
the drywall, carefully insert the bit straight
untilthe shoe base is infull contactwith the
material.
Movethe tool slowly with
a constant pres-
sure in
a clockwise direction to make the
cut.
I
7

When cuttingstraight line, clamp a straight
board firmly to the materialand use
it as a
guide. Movethetool in the direction of the
arrow with the shoe base flush with the
side of the guide board.
When the cut is complete,turn the tool off and wait for the bit to stop rotatingand then
carefullyremove it from the material.
Notes:
1. When using the tool, the rotating action causes the tool to pull. The less pressure
applied to the tool causes less pull and provides
a more accurate cut. Excessivepres-
sureor fast cuttingcan causethe bit to dull or break premature,
2. When cuttingdrywallaroundoutletboxes, cut in a counterclockwisedirectionfor ease
of cut.
3. The standard bit includedwith this tool isfor cutting drywallonly.When cutting mate-
rialsotherthandrywall,do not usethe standarddrywallguidebit.
MAINTENANCE
CAUTION:
Always be sure that the tool is switchedoff and unpluggedbeforeattemptingto perform
inspectionor maintenance.
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and
replacement,or any other maintenance
or adjustment should be performed by Makita
Authorized
or FactoryService Centers, always usingMakitareplacementparts.
8

ACCESSORIES
CAUTION:
These accessoriesor attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories
or attachments might present a risk of injury to persons.
The accessories
or attachmentsshould be used only inthe proper and intendedmanner.
Collet cone
Part No. 763608-8
Size
: 114"
Drywallguide bit
Part No. 733232-1
Size
: 114"
Wrench 17
Part No. 781008-0
Adapter 3.18 - 6.35
Part No. 324149-5
Size
: 1/8" - 1J4"
Drywallguide bit
Part No. 733229-0
Size
: 118"
9

WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known
[to the State of Califomia] to
cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
9 Crystalline silicafrom bricksand cement and other masonry products, and
9 Arsenic andchromiumfrom chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work.
To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masksthat are specially designed
to filter out microscopic particles.
Leadfrom lead-based paints,
i
MAKITA LIMED ONE YEAR WARRANTY
Warranty Policy
I
Every Makita tool IS thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL
OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY
FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE.”
I AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives
you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above limitation may not apply to you.
-. LI -
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
004373-069
PRINTED IN USA
