INSTRUCTION MANUAL
Cordless Impact Driver
DTD170
ENGLISH: Original instructions
Read before use.
2ENGLISH
SPECIFICATIONS
Model: DTD170
Fastening capacities Machine screw 4 mm - 8 mm
Standard bolt 5 mm - 16 mm
High tensile bolt 5 mm - 14 mm
No load speed Max impact mode 0 - 3,600 min-1
Hard impact mode 0 - 3,200 min-1
Medium impact mode 0 - 2,100 min-1
Soft impact mode 0 - 1,100 min-1
T mode 0 - 3,600 min-1
Impacts per minute Max impact mode 0 - 3,800 min-1
Hard impact mode 0 - 3,600 min-1
Medium impact mode 0 - 2,600 min-1
Soft impact mode 0 - 1,100 min-1
T mode 0 - 2,600 min-1
Rated voltage D.C. 18 V
Battery cartridge BL1815, BL1815N, BL1820,
BL1820B
BL1830, BL1830B, BL1840,
BL1840B, BL1850, BL1850B,
BL1860B
Overall length 117 mm
Net weight 1.2 kg 1.5 kg
without notice.
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
Read instruction manual.
Cd
Ni-MH
Li-ion
Do not dispose of electric equipment or
battery pack together with household waste
material!
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for screw driving in wood, metal
and plastic.
Noise
-
Sound pressure level (L
Sound power level (L
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
-
mum capacity of the tool
Vibration emission (ah2
2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
3ENGLISH
EC Declaration of Conformity
For European countries only
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
liquids, gases or dust.
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions.
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.
the risk of electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
-
ication.
2. Use personal protective equipment. Always
wear eye protection.
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.
attached to a rotating part of the power tool may
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off.
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool.
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean.
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed.
for operations different from those intended could
result in a hazardous situation.
4ENGLISH
Battery tool use and care
1.
the manufacturer.
when used with another battery pack.
2. -
nated battery packs.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
eyes, additionally seek medical help.
from the battery may cause irritation or burns.
Service
1.
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Cordless impact driver safety
warnings
1. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2.
Be sure no one is below when using the tool in
high locations.
3.
4. Wear ear protectors.
5. Do not touch the bit or the workpiece immedi-
ately after operation. They may be extremely
hot and could burn your skin.
6. Keep hands away from rotating parts.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity
with product (gained from repeated use) replace strict
adherence to safety rules for the subject product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Be careful not to drop or strike battery.
Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION:
Only use genuine Makita batteries.
have been altered, may result in the battery bursting
void the Makita warranty for the Makita tool and charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
5ENGLISH

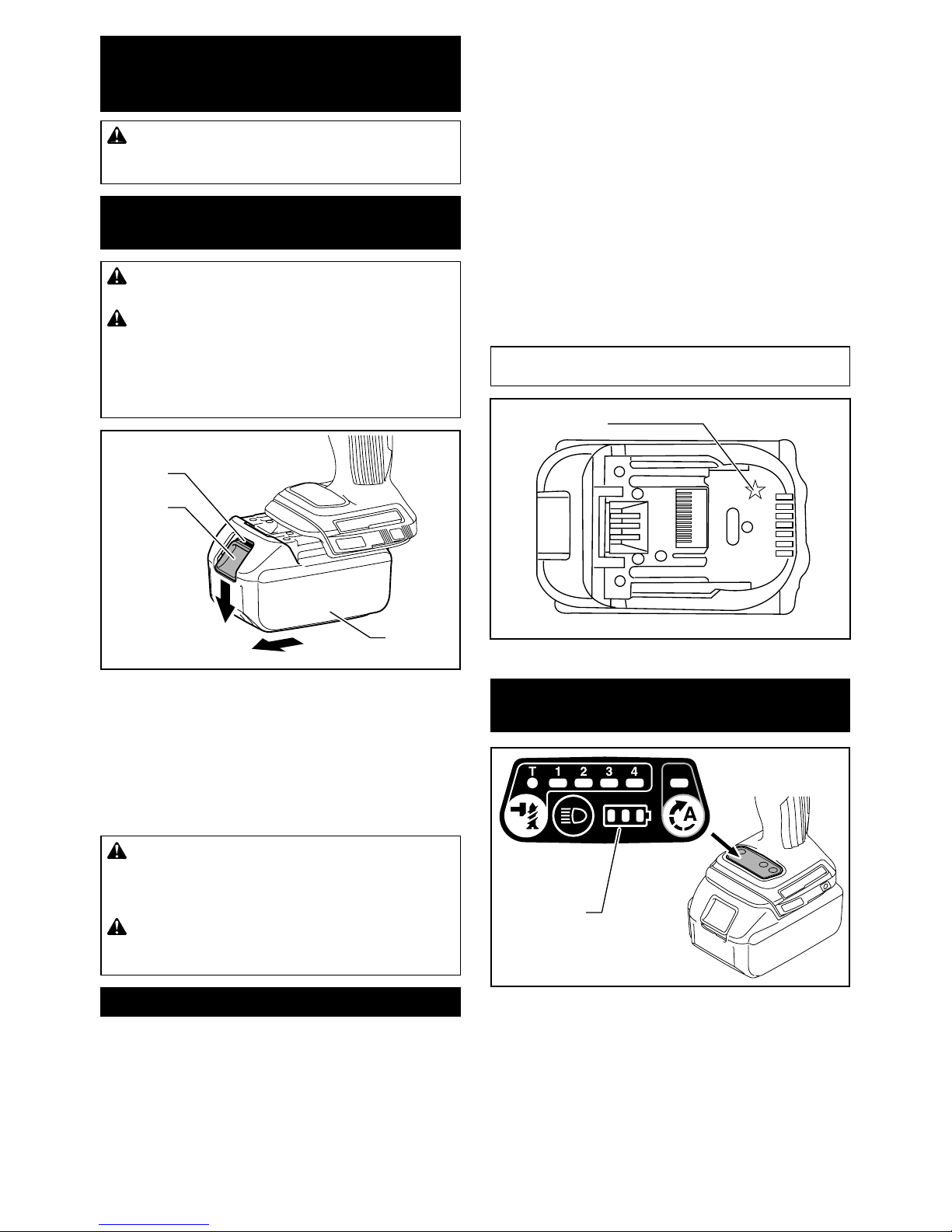

FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
cartridge. Failure to hold the tool and the battery
and result in damage to the tool and battery cartridge
1
2
3
1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Tool / battery protection system
-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
Overload protection
it to draw an abnormally high current, the tool automat-
ically stops without any indication. In this situation, turn
the tool off and stop the application that caused the tool
to become overloaded. Then turn the tool on to restart.
Overheat protection
-
ically. In this situation, let the battery cool before turning
the tool on again.
Overdischarge protection
automatically. In this case, remove the battery from the
tool and charge the battery.
NOTE: Overload protection will work only with batter-
ies with star marking.
1
1. Star marking

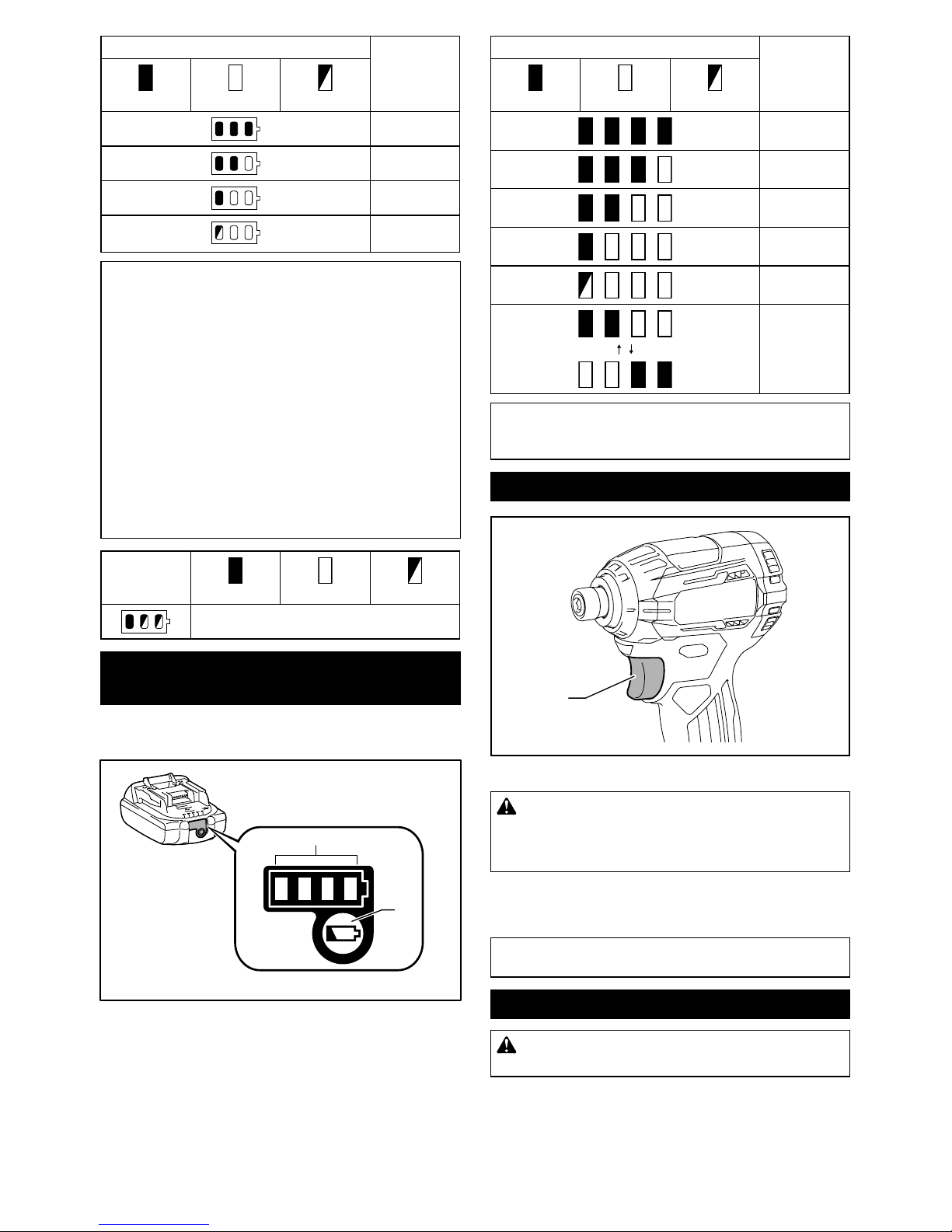

Indicating the remaining battery
capacity
1
1. Battery indicator
the remaining battery capacity. The remaining battery
capacity is shown as the following table.
6ENGLISH
Battery indicator status Remaining
battery
capacity
On Off Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
NOTE:
turned off to save the battery power. To check the
remaining battery capacity, slightly pull the switch
trigger.
NOTE:
minute after releasing the switch trigger.
NOTE:
stops even with a recharged battery cartridge, cool
down the tool fully. If the status will not change, stop
using and have the tool repaired by a Makita local
service center.
NOTE:
for one minute as shown in the table below, and then
tool before operating again.
Battery
indicator
On Off Blinking
Tool is overheated
Indicating the remaining battery
capacity
Only for battery cartridges with "B" at the end of the
model number
1
2
1. Indicator lamps 2. Check button
-
cate the remaining battery capacity. The indicator lamps
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Switch action
1
1. Switch trigger
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
NOTE: The tool automatically stops if you keep pull-
ing the switch trigger for about 6 minutes.

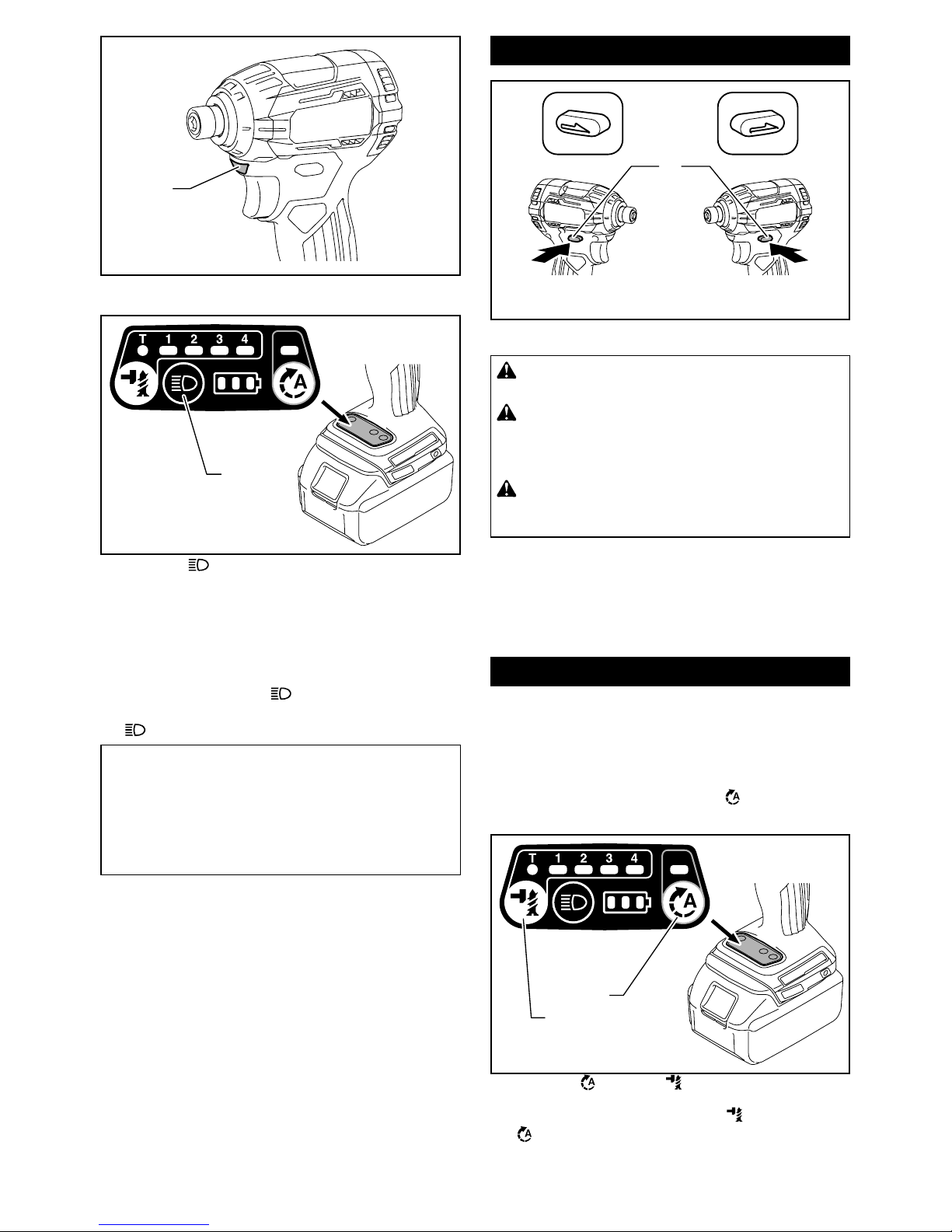

Lighting up the front lamp
CAUTION: Do not look in the light or see the
source of light directly.
7ENGLISH
1
1. Lamp
1
1. Button
release it. The lamp goes out approximately 10 seconds
after releasing the switch trigger.
To keep the lamp off, turn off the lamp status. To turn off
within 10 seconds.
To turn on the lamp status again, press the but-
ton again similarly.
NOTE:
on, the lamp status is OFF.
NOTE:
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
1
AB
1. Reversing switch lever
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
CAUTION: When not operating the tool,
always set the reversing switch lever to the neu-
tral position.
This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the
-
terclockwise rotation.
-
tion, the switch trigger cannot be pulled.
A mode
driving screws with good control.
In this mode, the tool drives a screw with low-speed
-
tion speed increases and reaches the maximum speed.
on the panel.
1
2
1. Button 2. Button
(not the but-
ton ).
8ENGLISH

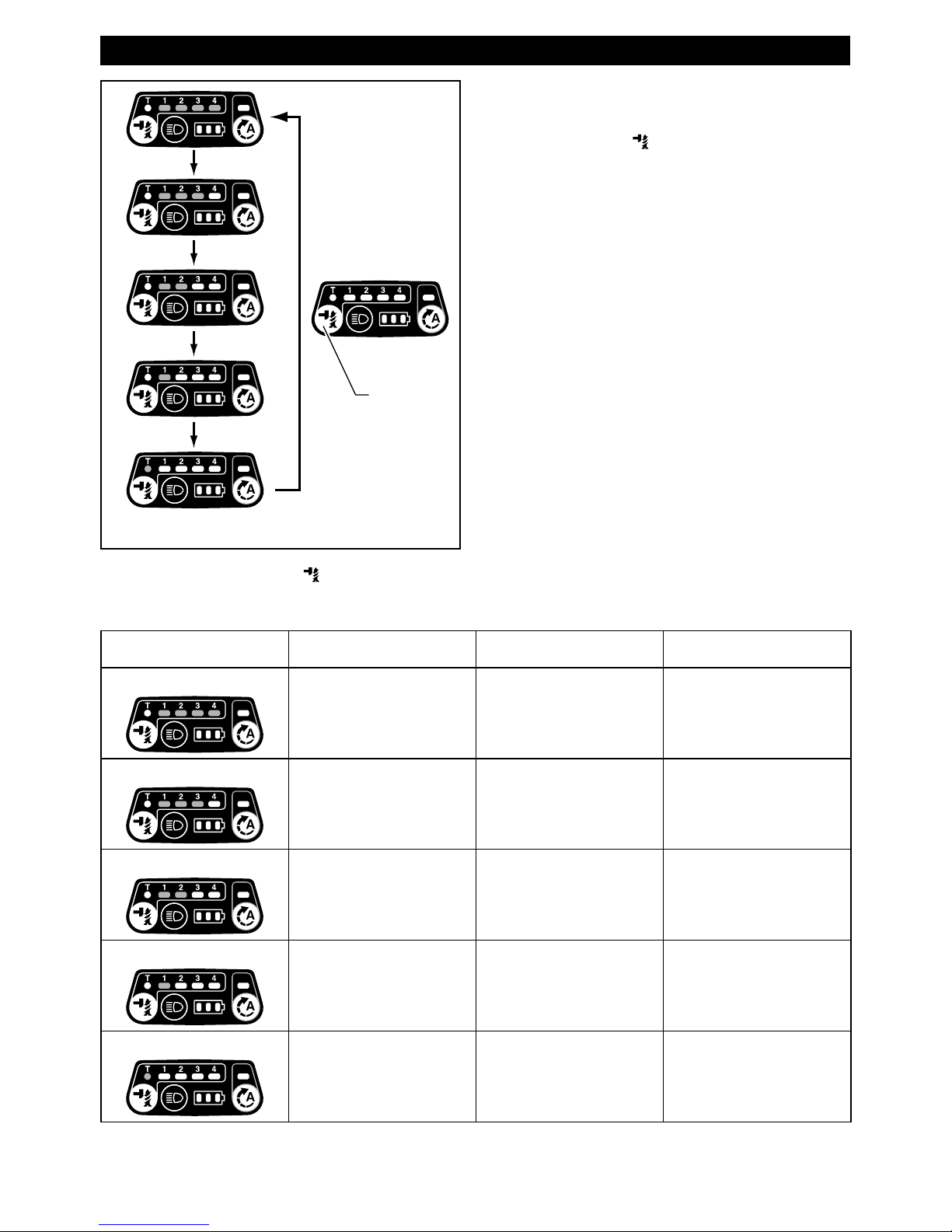

Changing the impact force
2
1
3
4
5
6
7
1.2. Max 3. Hard 4. Medium
5. Soft 6. T mode 7. Button
-
,hard, medium, soft, and T mode.
This allows a tightening suitable to the work.
is pressed, the number of
In this mode, the tool starts to drive a screw with faster
rotation, which is suited for drilling with the self-drilling-
screw tip. Once the tool starts to tighten the screw, it
impacts in medium force grade.
For approximately one minute after releasing the switch
trigger, the impact force can be changed.
Impact force grade displayed
on panel
Maximum blows Purpose Example of application
Max 3,800 min-1 Tightening with the maximum
force and speed.
Tightening underwork mate-
rials, tightening long screws,
tightening bolts.
Hard 3,600 min-1 Tightening with less force and
speed than Max mode (easier
to control than Max mode).
Tightening underwork mate-
rials, tightening long screws,
tightening bolts.
Medium 2,600 min-1 -
ing is needed.
plaster boards.
Soft 1,100 min-1 Tightening with less force to
avoid screw thread breakage.
Tightening sash screws, tight-
ening small screws such as M6.
T mode 2,600 min-1 Tightening when speed and
Tightening self drilling screws.
9ENGLISH
Impact force grade displayed
on panel
Maximum blows Purpose Example of application
3,800 min-1 Tightening screws with better
control.
Tightening long screws.
NOTE:
NOTE:
grade can be checked by pulling the switch trigger to the extent that the tool does not operate.
NOTE:
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.

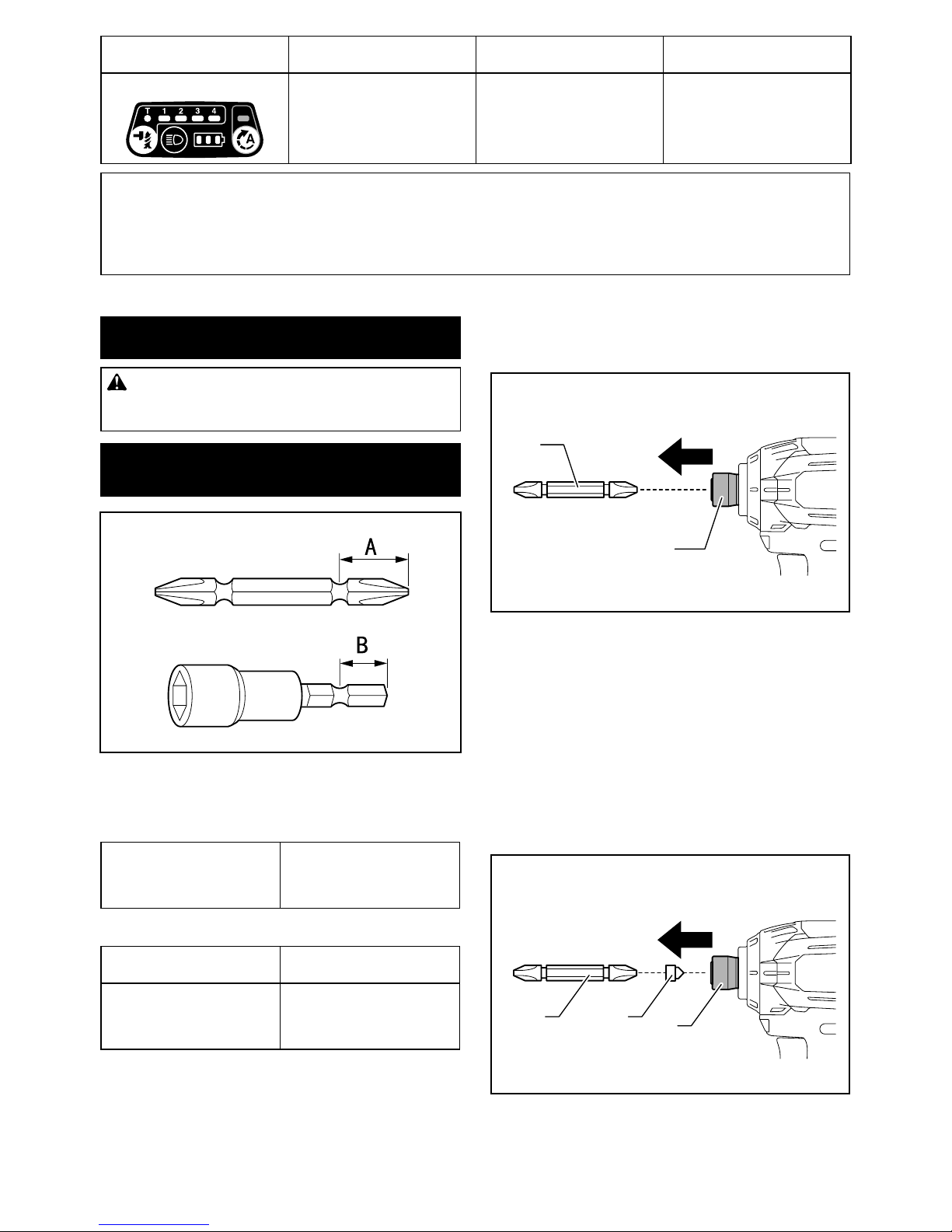

Installing or removing driver bit/
socket bit
socket bit.
For tool with shallow driver bit hole
bit. Follow the procedure
1. (Note) Bit-piece is not
necessary.
For tool with deep driver bit hole
To install these types of driver
bits, follow the procedure 1.
To install these types of driver
bits, follow the procedure 2.
(Note) Bit-piece is necessary
for installing the bit.
Procedure 1
For tool without one-touch type sleeve
1
2
1. Driver bit 2. Sleeve
To install the driver bit, pull the sleeve in the direction of
the arrow and insert the driver bit into the sleeve as far
as it will go.
Then release the sleeve to secure the driver bit.
For tool with one-touch type sleeve
To install the driver bit, insert the driver bit into the
sleeve as far as it will go.
Procedure 2
In addition to Procedure 1, insert the bit-piece into the
sleeve with its pointed end facing in.
1 2 3
1. Driver bit 2. Bit-piece 3. Sleeve
To remove the driver bit, pull the sleeve in the direction
of the arrow and pull the driver bit out.
10 ENGLISH
NOTE: If the driver bit is not inserted deep enough
into the sleeve, the sleeve will not return to its original
position and the driver bit will not be secured. In this
case, try re-inserting the bit according to the instruc-
tions above.
NOTE:
the sleeve and insert it into the sleeve as far as it will
go.
NOTE:
Installing hook
1
2
3
1. Groove 2. Hook 3. Screw
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool. To install
the hook, insert it into a groove in the tool housing on
either side and then secure it with a screw. To remove,
loosen the screw and then take it out.
OPERATION
The proper fastening torque may differ depending upon
workpiece to be fastened, etc. The relation between fas-
Proper fastening torque for standard bolt
N•m
(kgf•cm)M14
M12
M10
M8
M16
M14
M12
M10
M8
M16
140
(1428)(1224)(1020)(816)(612)(408)(204)120
100
80
60
40
20
01
2
1
2
1. Fastening time (second) 2. Fastening torque
Proper fastening torque for high tensile bolt
2
1
M14
M12
M14
M12
M10
M8
M10
M8
200
180
160
140
120
100
80
60
40
20
0123
(2040)
(1836)
(1632)
(1428)
(1224)
(1020)
(816)
(612)
(408)
(204)
N•m
(kgf•cm)
1. Fastening time (second) 2. Fastening torque
the extent that the bit will not slip off the screw and turn
the tool on to start operation.
NOTICE: If you use a spare battery to continue
the operation, rest the tool at least 15 min.
11 ENGLISH
NOTE:
bolt that you wish to use.
NOTE:
is not damaged.
NOTE: Hold the tool pointed straight at the screw.
NOTE: If the impact force is too strong or you tighten
the screw or the point of the driver bit may be over-
stressed, stripped, damaged, etc. Before starting your
proper fastening time for your screw.
The fastening torque is affected by a wide variety of
check the torque with a torque wrench.
completely, voltage will drop and the fastening
torque will be reduced.
2. Driver bit or socket bit
Failure to use the correct size driver bit or socket
bit will cause a reduction in the fastening torque.
3. Bolt
class of bolt are the same, the proper fasten-
ing torque will differ according to the diame-
ter of bolt.
same, the proper fastening torque will differ
of bolt and the bolt length.
4. The manner of holding the tool or the material
of driving position to be fastened will affect the
torque.
5. Operating the tool at low speed will cause a reduc-
tion in the fastening torque.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
The use of any other
accessories or attachments might present a risk of
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885516-220
20160226
Other manuals for DTD170
8
This manual suits for next models
1
Table of contents
Other Makita Power Tools manuals
Makita
Makita DTW181Z User manual
Makita
Makita 3612 User manual
Makita
Makita DJS131 User manual
Makita
Makita DMP180 User manual
Makita
Makita HR2475 User manual
Makita
Makita AT450H User manual
Makita
Makita 6907D User manual
Makita
Makita ST113D User manual
Makita
Makita DHR263 Manual
Makita
Makita HR001G User manual
Makita
Makita CG100D User manual
Makita
Makita VR251D User manual
Makita
Makita BTW150 User manual
Makita
Makita BHR241 User manual
Makita
Makita DJV140 User manual
Makita
Makita BUX361 User manual
Makita
Makita HR007G User manual
Makita
Makita 6922NB User manual
Makita
Makita TW161D User manual
Makita
Makita TW060D User manual
