INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Demolition Hammer
MODEL HM0860C
004479
DOUBLE
INSULATION

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
SYMBOLS END201-2
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
..................Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use
The tool is intended for chiselling work in concrete, brick,
stone and asphalt as well as for driving and compacting
with appropriate accessories.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents;
EN60745, EN55014, EN61000 in accordance with
Council Directives, 89/336/EEC, 98/37/EC.
Measured sound power level: 100 dB
Guaranteed sound power level: 103 dB
These sound power levels were measured in accord-
ance with Council Directive, 2000/14/EC.
Conformity assessment procedure: Annex VI
Notified body: BSI Product Services, Maylands Avenue,
Hemel Hempstead HP2 4SQ, England
Vibration
The typical weighted root mean square acceleration
value is 11 m/s2.
This value has been obtained according to EN60745.
Yasuhiko Kanzaki CE2005
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Responsible manufacturer:
Makita Corporation Anjo Aichi Japan
Model HM0860C
Blows per minute (min-1)1,100 - 2,650
Overall length 454 mm
Net weight 4.7 kg
Safety class /II

3
GENERAL SAFETY RULES GEA001-3
WARNING:
Read all instructions. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term “power tool” in all of the
warnings listed below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Work area safety
1. Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
2. Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
9. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
10. Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal inju-
ries.
11. Avoid accidental starting. Ensure the switch is
in the off-position before plugging in. Carrying
power tools with your finger on the switch or plug-
ging in power tools that have the switch on invites
accidents.
12. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
13. Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
14. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
15. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Power tool use and care
16. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the rate
for which it was designed.
17. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
18. Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
19. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.

4
20. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
21. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
22. Use the power tool, accessories and tool bits
etc. in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working con-
ditions and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
23. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
24. Follow instruction for lubricating and changing
accessories.
25. Keep handles dry, clean and free from oil and
grease.
SPECIFIC SAFETY RULES GEB004-2
DO NOT let comfort or familiarity with product (gained from repeated use)
replace strict adherence to hammer safety rules. If you use this tool unsafely
or incorrectly, you can suffer serious personal injury.
1. Wear ear protectors. Exposure to noise can cause
hearing loss.
2. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
3. Hold tools by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord. Con-
tact with a “live” wire will make exposed metal parts
of the tool “live” and shock the operator.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly recom-
mended that you wear a dust mask and thickly
padded gloves.
5. Be sure the bit is secured in place before opera-
tion.
6. Under normal operation, the tool is designed to
produce vibration. The screws can come loose
easily, causing a breakdown or accident. Check
tightness of screws carefully before operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for a
while by operating it under no load. This will
loosen up the lubrication. Without proper warm-
up, hammering operation is difficult.
8. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Do not point the tool at any one in the area when
operating. The bit could fly out and injure some-
one seriously.
13. Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
14. Do not operate the tool at no-load unnecessar-
ily.
15. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhalation
and skin contact. Follow material supplier safety
data.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this instruction manual
may cause serious personal injury.

5
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the tool is switched
off.
To start the tool, push the “I (ON)” side of the switch lever. To stop the tool,
push the “O (OFF)” side of the switch lever.
Speed change
The blows per minute can be adjusted just by turning the adjusting dial. This
can be done even while the tool is running. The dial is marked 1 (lowest
speed) to 5 (full speed).
Refer to the table below for the relationship between the number settings on
the adjusting dial and the blows per minute.
CAUTION:
• The speed adjusting dial can be turned only as far as 5 and back to 1. Do
not force it past 5 or 1, or the speed adjusting function may no longer
work.
Indicator lamp
The green power-ON indicator lamp lights up when the tool is plugged. The
indicator lamp is lit but the tool does not start even if the tool is switched on,
the carbon brushes may be worn out, or the electric circuit or the motor may be
defective. If the indicator lamp does not light up and the tool does not start, the
ON/OFF switch or the mains cord may be defective.
The red service indicator lamp lights up when the carbon brushes are nearly
worn out to indicate that the tool needs servicing. After approx. 8 hours of use,
the motor will automatically be shut off.
1. Switch lever
1
O(OFF)
I(ON)
004480
1. Adjusting dial
1
004481
006416
Number on adjusting dial Blows per minute (min-1)
5 2,650
4 2,450
3 1,900
2 1,350
1 1,100
1. Power-ON indicator lamp ( green)
2. Service indicator lamp ( red )
1
2
004482

6
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
For tool with side grip (auxiliary handle)
The side grip swings around to either side, allowing easy handling of the tool in
any position. Loosen the side grip by turning it counterclockwise, swing it to the
desired position and then tighten it by turning clockwise.
Side handle(auxiliary handle)
The side handle can be swung 360°on the vertical and secured at any desired
position. It also secures at eight different positions back and forth on the hori-
zontal. Just loosen the clamp nut to swing the side handle to a desired posi-
tion. Then tighten the clamp nut securely.
Bit grease (optional accessory)
Coat the bit shank head beforehand with a small amount of bit grease (about
0.5 -1 g;.). This chuck lubrication assures smooth action and longer service
life.
Installing or removing the bit
Clean the bit shank and apply bit grease before installing the bit.
1. Side grip
1
004483
1. Side handle
2. Clamp nut
1
2
005275
1. Bit shank
2. Bit grease
2
1
003150

7
Insert the bit into the tool. Turn the bit and push it in until it engages.
If the bit cannot be pushed in, remove the bit. Pull the chuck cover down a cou-
ple of times. Then insert the bit again. Turn the bit and push it in until it
engages.
After installing, always make sure that the bit is securely held in place by trying
to pull it out.
To remove the bit, pull the chuck cover down all the way and pull the bit out.
Bit angle
The bit can be secured at 12 different angles. To change the bit angle, slide
the change ring forward, then turn the change ring to change the bit angle. At
the desired angle, slide the change ring back to the original position. The bit
will be secured in place.
OPERATION
CAUTION:
•Always use the side grip (auxiliary handle) and firmly hold the tool by
both side grip and switch handle during operations.
Chipping/Scaling/Demolition
Hold the tool firmly with both hands. Turn the tool on and apply slight pressure
on the tool so that the tool will not bounce around, uncontrolled. Pressing very
hard on the tool will not increase the efficiency.
1. Bit
2. Chuck cover
1
2
004484
004485
004486
004487

8
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
Replacing carbon brushes
When the resin insulating tip inside the carbon brush is exposed to contact the
commutator, it will automatically shut off the motor. When this occurs, both car-
bon brushes should be replaced. Keep the carbon brushes clean and free to
slip in the holders. Both carbon brushes should be replaced at the same time.
Use only identical carbon brushes.
Use a screwdriver to remove the brush holder covers.
Use a screwdriver to remove the brush holder caps. Take out the worn carbon
brushes, insert the new ones and secure the brush holder caps.
Reinstall the brush holder covers firmly.
Lubrication
This tool requires no hourly or daily lubrication because it has a grease-
packed lubrication system. It should be relubricated after every 6 months of
operation. Send the complete tool to Makita Authorized Service Center for this
lubrication service. However, if circumstances require that you should lubricate
it by yourself, proceed as follows.
Run the tool for several minutes to warm it up. Switch off and unplug the tool.
Loosen the four screws (two short screws on the upper side and two long
screws on the lower side. ) and remove the handle.
1. Commutator
2. Insulating tip
3. Carbon brush
1
2
3
001146
1. Screwdriver
2. Brush holder cover
12
004488
1. Screwdriver
2. Brush holder cap
1
2
004489
1. Screw
1
004490

9

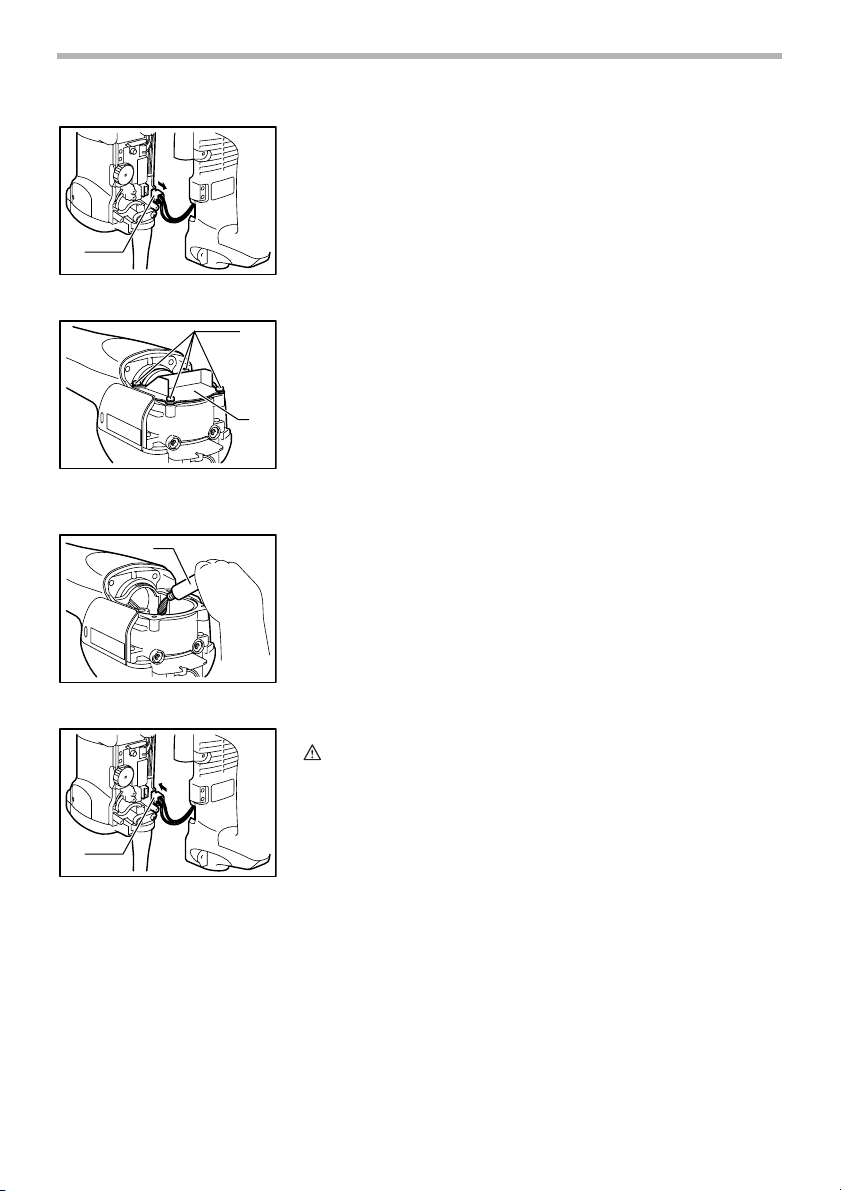

Disconnect the terminal by pulling it.
Remove the crank cap by loosening the screws with a screwdriver. Rest the
tool on the table with the bit end pointing upwards. This will allow the old
grease to collect inside the crank housing.
Wipe out the old grease inside and replace with a fresh grease (30 g). Use
only Makita genuine hammer grease (optional accessory). Filling with more
than the specified amount of grease (approx. 30 g) can cause faulty hammer-
ing action or tool failure. Fill only with the specified amount of grease.
Reinstall the crank cap and secure with the screws.
Connect the terminal and reinstall the handle.
CAUTION:
•Be careful not to damage the terminal or lead wires especially when
wiping out the old grease or installing the handle.
•Whenever reinstalling the handle, use the two short screws for the upper
side and two long screws for the lower side.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
1. Terminal
1
004491
1. Screw
2. Crank cap
1
2
004492
1. Hammer grease
1
004493
1. Terminal
1
004494

10
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.
•Bull point
•Cold chisel
•Scaling chisel
•Grooving chisel
•Clay spade
•Bit grease
•Rammer
•Bushing tool
•Ground rod adapter
•Hammer grease
•Safety goggle
•Side handle (auxiliary handle)

Memo
11

Makita Corporation Anjo, Aichi, Japan
884516D227
