Makita TM3010C User manual

INSTRUCTION MANUAL
Multi Tool
TM3010C
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model TM3010C
Oscillation per minute 6,000 - 20,000 (min-1)
Oscillation angle, left/right 1.6 ° (3.2 ° total)
Overall length 283 mm
Net weight 1.6 - 1.7 kg
Safety class /II
 
without notice.
 
 
EPTA-Procedure 01/2014, are shown in the table.
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Wear safety glasses.
Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of the European Directive,
on Waste Electric and Electronic
Equipment and its implementation in
accordance with national law, electric
equipment that have reached the end of
their life must be collected separately and
returned to an environmentally compatible
recycling facility.
Intended use
The tool is intended for sawing and cutting wood,
plastic, gypsum, non-ferrous metals, and fastening
elements (e. g. unhardened nails and staples). It is also
intended for working soft wall tiles, as well as dry sand-
ing and scraping of small surfaces. It is especially for

Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841:
Work mode: Sanding
Sound pressure level (LpA) : 80 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Work mode: Cutting with plunge cut saw blade
Sound pressure level (LpA) : 80 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Work mode: Cutting with segment saw blade
Sound pressure level (LpA) : 79 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Work mode: Scraping
Sound pressure level (LpA) : 82 dB (A)
Uncertainty (K) : 3 dB (A)
The noise level under working may exceed 80 dB (A).
Wear ear protection
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841:
Work mode : sanding
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
Work mode : cutting with plunge cut saw blade
Vibration emission (ah) : 6.5 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode : cutting with segment saw blade
Vibration emission (ah) : 2.5 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode : scraping
Vibration emission (ah) : 5.0 m/s2
Uncertainty (K) : 1.5 m/s2

3ENGLISH
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-

with this power tool. Failure to follow all instructions


-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. -

liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. 
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. 
reduce risk of electric shock.
2. 
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. 
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
 Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location

(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. 
residual current of 30 mA or less is always
recommended.
8. Power tools can produce electromagnetic

However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
9. Do not touch the power plug with wet hands.
10. 

safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
-
ication. A moment of inattention while operating

2. 
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions

3. 
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with

that have the switch on invites accidents.
4. 
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may

5. 
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or


long hair can be caught in moving parts.
7. 
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action

second.

4ENGLISH
9. 

The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct

rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source

-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5.
Maintain power tools and accessories. Check for
-
age of parts and any other condition that may

the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8.
Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
 The entangle-
ment of cloth work gloves in the moving parts may


1. 
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
Multi tool safety warnings
1. This power tool is intended to function for
sawing, cutting, grinding and sanding. Read all
safety warnings, instructions, illustrations and

Failure to follow all instructions listed below may

2. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden wir-
ing or its own cord. Cutting accessory contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
3.
Use clamps or another practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body
leaves it unstable and may lead to loss of control.
4. Position the cord clear of the spinning acces-
sory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into
the spinning accessory.
5. Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
6. 

7. 
8. Make sure the application tool is not contact-
ing the workpiece before the switch is turned
on.
9. 
10. 
only when hand-held.
11. Always switch off and wait for the blade to

blade from the workpiece.
12. Do not touch the application tool or the work-
piece immediately after operation; they may be
extremely hot and could burn your skin.
13. Do not operate the tool at no-load
unnecessarily.
14. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
15. Some material contains chemicals which may
-
tion and skin contact. Follow material supplier
safety data.
16. This tool has not been waterproofed, so do not
use water on the workpiece surface.

5ENGLISH
17. Ventilate your work area adequately when you
perform sanding operations.
18. Use of this tool to sand some products, e.g.
leaded paint surfaces, wood and metals could
expose user and bystanders to dust contain-
ing hazardous substances. Use appropriate
respiratory protection.
19. Be sure that there are no cracks or breakage
on the pad before use. Cracks or breakage

20. -
cally designed and recommended by the tool
manufacturer. Just because the accessory
can be attached to your power tool, it does not
assure safe operation.
21. 
Depending on application, use face shield,
safety goggles or safety glasses. As appro-

workshop apron capable of stopping small
 The eye pro-

generated by various operations . The dust mask

generated by your operation. Prolonged exposure
to high intensity noise may cause hearing loss.
22. Keep bystanders a safe distance away from
work area. Anyone entering the work area

Fragments of workpiece or of a broken accessory

area of operation.
23. -
sory has come to a complete stop. The spinning
accessory may grab the surface and pull the
power tool out of your control.
24. Do not run the power tool while carrying it at
your side. Accidental contact with the accessory
could snag your clothing, pulling the accessory
into your body.
25. 
materials. Sparks could ignite these materials.
26. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
27. Always be sure that the tool is switched off
and unplugged before carrying out any work
on the tool.
28. If working place is extremely hot and humid,

short-circuit breaker (30 mA) to assure opera-
tor safety.
29. 
sure no one is below when using the tool in
high locations.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace

product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause

FUNCTIONAL
DESCRIPTION
WARNING:
 Always be sure that the tool is switched off

function on the tool. Failure to switch off and
unplug the tool may result in serious personal


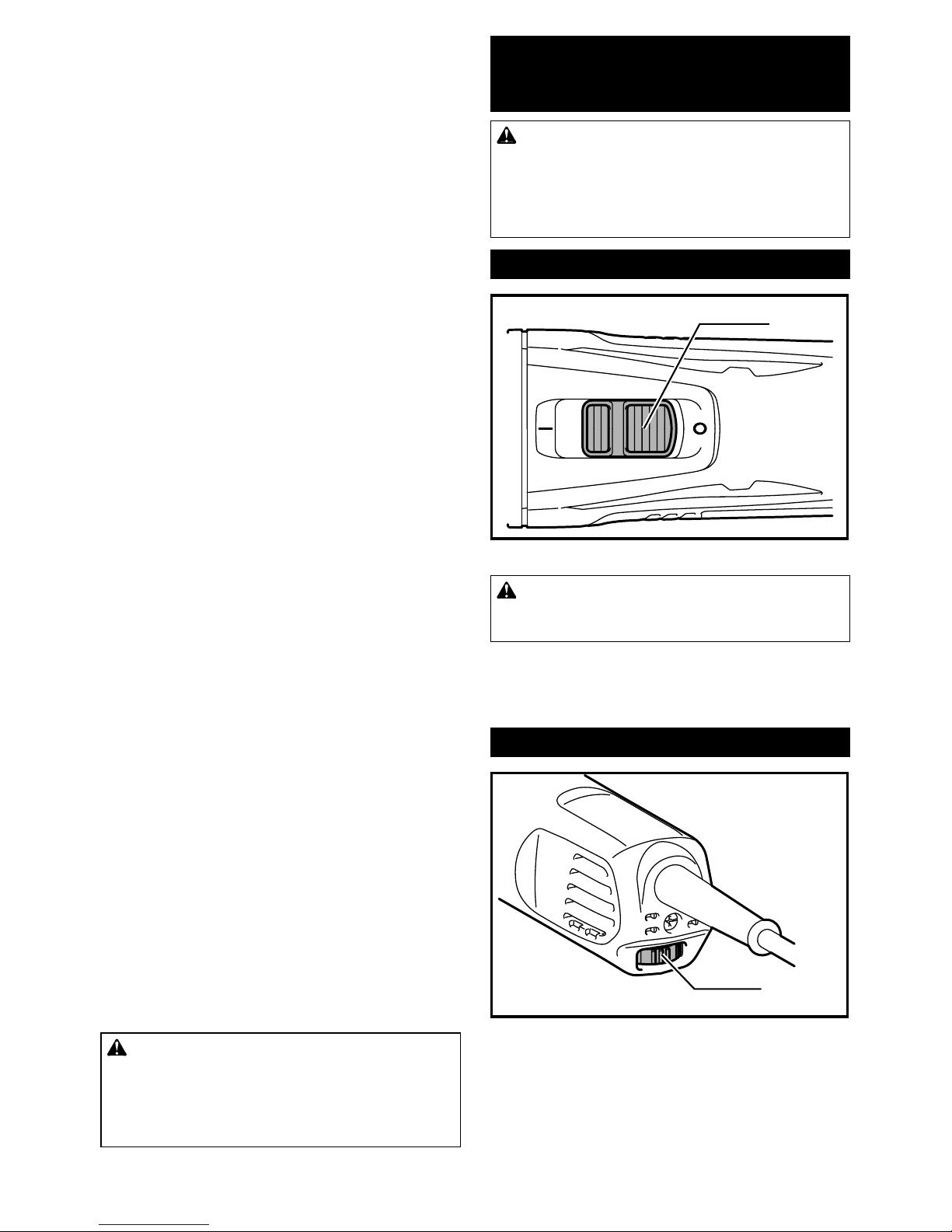

Switch action
1
1. Slide switch
CAUTION:
 
that the tool is switched off.
To start the tool, slide the slide switch toward the "I
(ON)" position.
To stop the tool, slide the slide switch toward the "O
(OFF)" position.

1
1. Dial

orbital stroke rate, turn the dial between 1 and 5. The
higher the number is, the higher the orbital stroke
rate is. Preset the dial to the number suitable for your
workpiece.

6ENGLISH
NOTE:
 
from 5 to 1. Forcing the dial may damage the
tool. When changing the dial direction, always
turn the dial moving it through each intermediate
number.
Constant speed control
Electronic speed control for obtaining constant speed.

rate is kept constant even under load condition.
ASSEMBLY
CAUTION:
 
unplugged before carrying out any work on the
tool.

tool (optional accessory)
WARNING:
 
Installing application tool upside down may
damage the tool and cause serious personal

 
according to your work. Application tool can be
installed at an angle of every 30 degree.
CAUTION:
 

 
moving part of the lock lever from time to time.
Otherwise dust may accumulate in the moving
part of the lock lever and hinder its smooth
movement.
 
tool may be damaged.

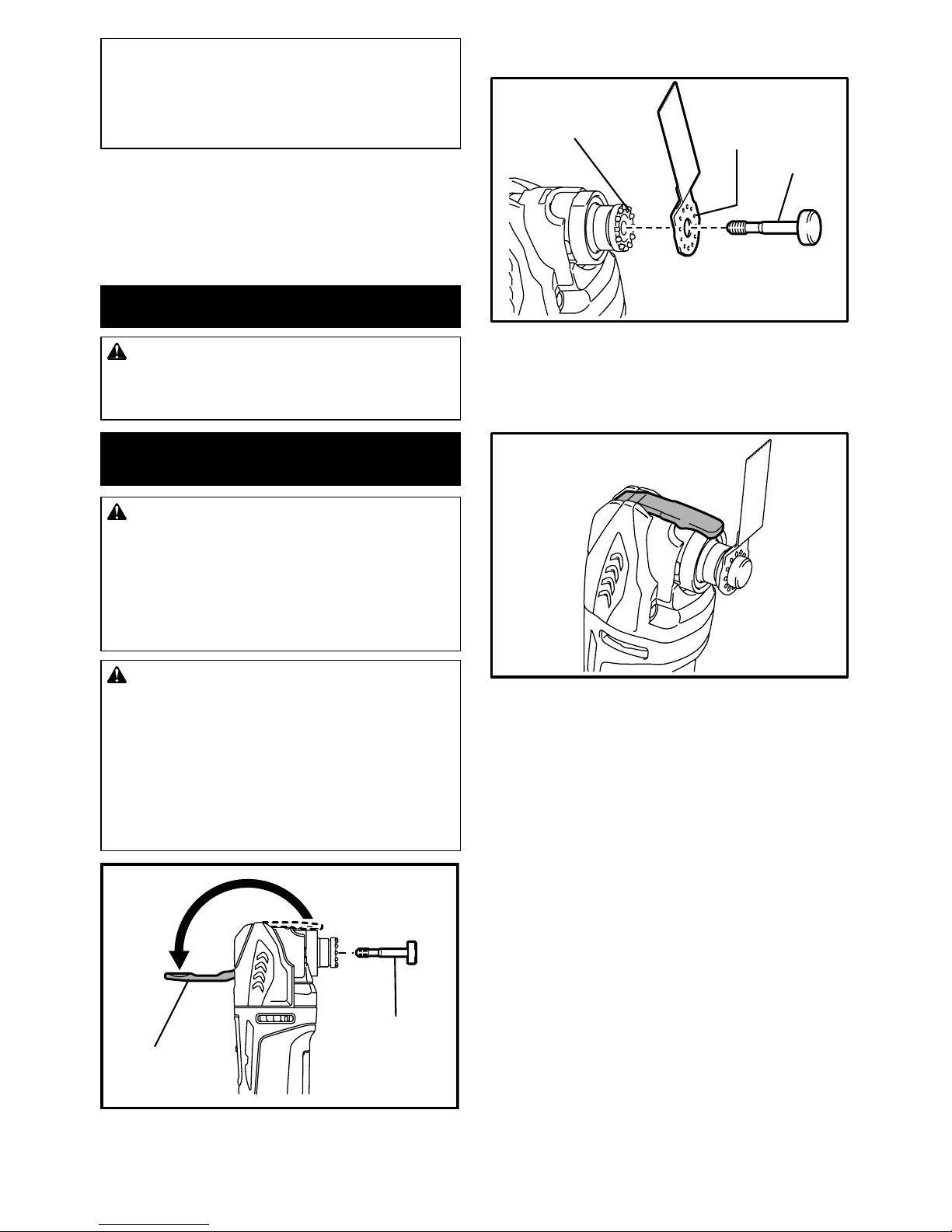

1
2
1. Holder bolt 2. Lock lever
1. Open the lock lever fully. And remove the holder
bolt.
1
2
3
1. Holder bolt 2. Holes in the application tool
3.
2. Put an application tool (optional accessory) on the


3. Insert the holder bolt till it stops. And then, return
the lock lever to its original position.
When using sanding application tool, mount the appli-
cation tool on the sanding pad so that it matches the
sanding pad direction.
-

paper.
As sanding papers have holes for dust extraction,
mount a sanding paper so that the holes in a sanding
paper match those in the sanding pad.
To remove a sanding paper, raise its end and peel it off.
To remove the holder bolt, follow the installation proce-
dures in reverse.

7ENGLISH
1
2
3
4
1. Holder bolt 2. Holes in the application tool
3. Adapter 4.
When using application tools with a different type of
installation section, use a correct adapter (optional
accessory).
OPERATION
WARNING:
 
keep your hand and face away from the applica-
tion tool.
CAUTION:
 
housing. Do not touch the metal part.
 
may cause a motor lock and stop the tool.

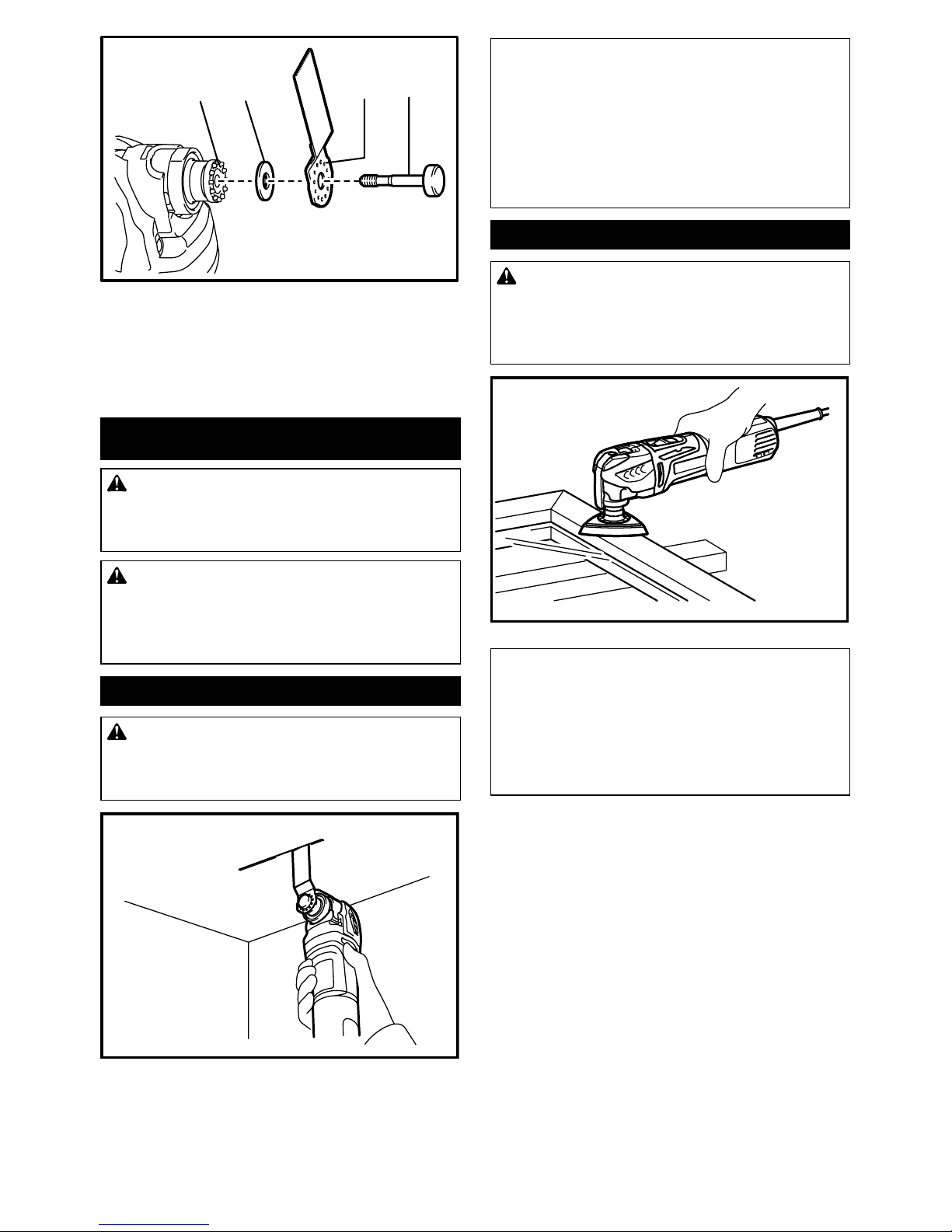

Cutting, sawing and scraping
CAUTION:
 
(e.g. towards either side) of tool application with
no cutting edge. It may damage the tool.
Put the application tool on the workpiece.
And then move the tool forward so that the application
tool movement does not slow down.
NOTE:
 

 

 
preset the orbital stroke rate 3 - 5.
 
straight line.
Sanding
CAUTION:
 
metal to sand wood.
 
paper without grit.
Apply a sanding paper on the workpiece.
NOTE:
 -
mendable to determine a correct orbital stroke
rate suitable for your work.
 
sanding the whole workpiece is completed.
Replacing a sanding paper with different grit


8ENGLISH
Dust extraction attachment (optional
accessory)
1
2
3
4
5
6
7
1. Joint 2. Nozzle band 3. Dust nozzle 4. Dust
attachment 5. Felt ring 6. Pad 7. Holder bolt
1
1
2
3
1. Nozzle band 2. Protrusions 3. Holes
 
 -

 
attachment and then secure them with the applica-
tion tool installation bolt.
When you wish to perform cleaner operation, connect
a vacuum cleaner to your tool. Connect a hose of vac-
uum cleaner to the dust extraction attachment (optional
accessory).
MAINTENANCE
CAUTION:
 
unplugged before attempting to perform inspec-
tion or maintenance.
 
or the like. Discoloration, deformation or cracks
may result.
To maintain product SAFETY and RELIABILITY,
repairs, carbon brush inspection and replacement, any

by Makita Authorized Service Centers, always using
Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION:
 -

in this manual. The use of any other accessories

persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
 
 
 
 
 
 
 
 
 

9ENGLISH
 
 
 
 
 
 
 
 
 
NOTE:
 
tool package as standard accessories. They
may differ from country to country.

10

11

www.makita.com
Mak i t a E ur ope N .V.
Mak i t a C or por ation 3-11- 8, S um i y os hi - c ho,
Anjo, Aichi 446- 8502 J apan
Jan-Baptist Vi nk s t r aat 2,
3070 Kortenberg, B el gi um
885221B229
EN
20170403
