INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Cordless Cleaner
Aspiradora Inalámbrica
XLC09
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: XLC09
Capacity 730 mL
Continuous use
(with battery BL1830B)
1 (Quiet mode) Approx. 38 min
2 (Normal speed mode) Approx. 21 min
3 (High speed mode) Approx. 15 min
4 (Max speed mode) Approx. 8 min
Overall length (with pipe, nozzle, and battery BL1830B) 1,066 mm (42")
Rated voltage D.C. 18 V
Net weight 1.3 - 1.7 kg (2.9 - 3.7 lbs)
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
SAFETY WARNINGS
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance,
basic precautions should always be fol-
lowed, including the following:
READ ALL
INSTRUCTIONS
BEFORE USING
THIS APPLIANCE.
WARNING
To reduce the risk of re, electric shock
or injury:
1. Do not leave appliance when battery
tted. Remove battery from appli-
ance when not in use and before
servicing.
2. Do not use on wet surfaces. Do not
expose to rain. Store indoors.
3. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
4. Use only as described in this man-
ual. Use only manufacturer's recom-
mended attachments.
5. Do not use with damaged battery.
If appliance is not working as it
should, has been dropped, dam-
aged, left outdoors, or dropped into
water, return it to a service center.

3ENGLISH
6.
Do not handle appliance with wet hands.
7. Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair, and any-
thing that may reduce air ow.
8. Keep hair, loose clothing, ngers,
and all parts of body away from
openings and moving parts.
9. Turn o󰀨 all controls before removing
the battery cartridge.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up ammable or
combustible liquids, such as gaso-
line, or use in areas where they may
be present.
12. Do not pick up anything that is burn-
ing or smoking, such as cigarettes,
matches, or hot ashes.
13. Do not use without dust bag and/or
lters in place.
14. Do not charge the battery outdoors.
15. Prevent unintentional starting. Ensure
the switch is in the o󰀨-position before
connecting to battery pack, picking
up or carrying the appliance. Carrying
theappliancewithyourngeronthe
switch or energizing appliance that have
the switch on invites accidents.
16. Disconnect the battery pack from
the appliance before making any
adjustments, changing accessories,
or storing appliance. Such preventive
safety measures reduce the risk of
starting the appliance accidentally.
17. Recharge only with the charger
specied by the manufacturer. A
charger that is suitable for one type of
batterypackmaycreateariskofre
when used with another battery pack.
18. Use appliances only with speci-
cally designated battery packs. Use
of any other battery packs may create
ariskofinjuryandre.
19. When battery pack is not in use,
keep it away from other metal
objects, like paper clips, coins,
keys, nails, screws or other small
metal objects, that can make a
connection from one terminal to
another. Shorting the battery terminals
togethermaycauseburnsorare.
20. Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact acciden-
tally occurs, ush with water. If liq-
uid contacts eyes, additionally seek
medical help. Liquidejectedfromthe
battery may cause irritation or burns.
21. Do not use a battery pack or appli-
ance that is damaged or modied.
Damaged or modied batteries may
exhibit unpredictable behaviour
resulting in re, explosion or risk of
injury.
22. Do not expose a battery pack or
appliance to re or excessive tem-
perature. Exposure to re or tem-
perature above 130 °C may cause
explosion.
23. Follow all charging instructions
and do not charge the battery
pack or appliance outside of the
temperature range specied in the
instructions. Charging improperly or
at temperatures outside of the speci-
edrangemaydamagethebatteryand
increasetheriskofre.
24. Have servicing performed by a
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the product is
maintained.
25. Do not modify or attempt to repair
the appliance or the battery pack
except as indicated in the instruc-
tions for use and care.
SAVE THESE
INSTRUCTIONS.
ADDITIONAL
SAFETY RULES
This appliance is intended for commer-
cial use.
1. Read this instruction manual and
the charger instruction manual care-
fully before use.

4ENGLISH
2.
Do not pick up the following materials:
— Hot substances that are burn-
ing or smoking (cigarettes,
matches, incense sticks, can-
dles, hot ashes), sparks and
metal dust generated by cutting
or grinding metal, etc.
— Flammable liquid (kerosene,
gasoline, solvents such as ben-
zine, thinner, etc.)
— Flammable material (toner,
paint, spray, etc.)
— Explosive or pyrophoric sub-
stances (nitroglycerin, alumi-
num, magnesium, titanium, zinc,
red phosphorus, yellow phos-
phorus, celluloid, etc. and their
dust, gas or steam)
— Liquid, oil, wet dirt or damp gar-
bage, including vomit and excreta
— Hard pieces with sharp edges (wood
chips, metals, stones, glasses,
nails, pins, razors or cutlery)
— Solidifying and conductive ne
powder (metal or carbon powder)
— Foam like carpet cleaning agent,
etc. (they may cause explosion
or re)
— Large amount of powder (our,
re extinguisher powder, etc.)
— Substances that cause toxic
symptoms
— Aggressive chemicals (acid,
alkali, etc.)
— Fine binding powder such as
cement
— Fine particle like concrete dust
— Desiccants
— Asbestos
— Pesticides
Suchactionmaycausere,injuryand/
or property damage.
To reduce your exposure to these chem-
icals, always wear approved respiratory
protection such as dust masks that are
speciallydesignedtolteroutmicro-
scopic particles. Direct the exhaust air
away from your face and body.
3. Stop operation immediately if you
notice anything abnormal.
4. If you drop or strike the cleaner,
check it carefully for cracks or dam-
age before operation.
5. Do not bring close to stoves or other
heat sources.
6. Do not block the intake hole or vent holes.
SAVE THESE
INSTRUCTIONS.
Symbols
The followings show the symbols used for
tool.
volts
direct current
Important safety
instructions for
battery cartridge
1. Before using battery cartridge, read
all instructions and cautionary mark-
ings on (1) battery charger, (2) bat-
tery, and (3) product using battery.
2. Do not disassemble or tamper with
the battery cartridge. It may result in
are,excessiveheat,orexplosion.
3. If operating time has become
excessively shorter, stop operating
immediately. It may result in a risk
of overheating, possible burns and
even an explosion.
4. If electrolyte gets into your eyes,
rinse them out with clear water and
seek medical attention right away. It
may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with
any conductive material.
(2) Avoid storing battery cartridge
in a container with other metal
objects such as nails, coins, etc.
(3) Do not expose battery cartridge
to water or rain.

5ENGLISH
A battery short can cause a large
current ow, overheating, possible
burns and even a breakdown.
6. Do not store and use the tool and
battery cartridge in locations where
the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery car-
tridge even if it is severely damaged
or is completely worn out. The bat-
tery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop
the battery cartridge, or hit against a
hard object to the battery cartridge.
Suchconductmayresultinare,
excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries
are subject to the Dangerous Goods
Legislation requirements.
For commercial transports e.g. by
third parties, forwarding agents,
special requirement on packaging
and labeling must be observed.
For preparation of the item being
shipped, consulting an expert for
hazardous material is required.
Please also observe possibly more
detailed national regulations.
Tape or mask o󰀨 open contacts and
pack up the battery in such a man-
ner that it cannot move around in
the packaging.
11. When disposing the battery car-
tridge, remove it from the tool and
dispose of it in a safe place. Follow
your local regulations relating to
disposal of battery.
12. Use the batteries only with the prod-
ucts specied by Makita. Installing
the batteries to non-compliant products
mayresultinare,excessiveheat,
explosion, or leak of electrolyte.
13. If the tool is not used for a long
period of time, the battery must be
removed from the tool.
14. During and after use, the battery
cartridge may take on heat which
can cause burns or low temperature
burns. Pay attention to the handling
of hot battery cartridges.
15. Do not touch the terminal of the tool
immediately after use as it may get
hot enough to cause burns.
16. Do not allow chips, dust, or soil
stuck into the terminals, holes, and
grooves of the battery cartridge. It
maycauseheating,catchingre,burst
and malfunction of the tool or battery
cartridge, resulting in burns or personal
injury.
17. Unless the tool supports the use
near high-voltage electrical power
lines, do not use the battery car-
tridge near a high-voltage electrical
power lines. It may result in a mal-
function or breakdown of the tool or
battery cartridge.
18. Keep the battery away from
children.
SAVE THESE
INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).

6ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
CAUTION: Take care not to trap nger(s)
between cleaner and battery as shown in diagram
when loading battery. Trappingnger(s)maycause
injury.

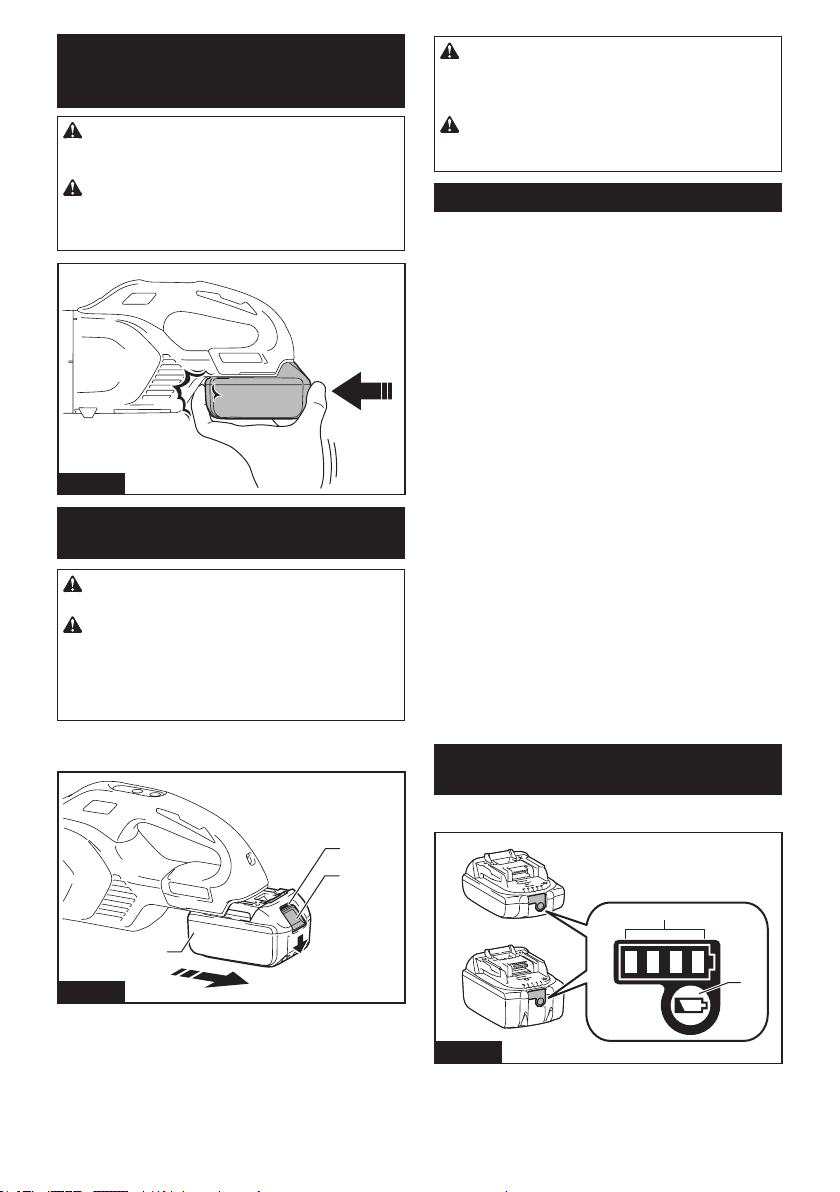

Fig.1
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨yourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
1
2
3
Fig.2
►1. Red indicator 2. Button 3. Battery cartridge
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
showninthegure,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Tool / battery protection system
The tool is equipped with tool/battery protection system.
Thissystemautomaticallycutso󰀨powertothemotorto
extend tool and battery life. The tool will automatically
stop during operation if the tool or battery is placed
under one of the following conditions.
Overloaded:
The tool/battery is operated in a manner that causes it
to draw an abnormally high current.
Inthissituation,turnthetoolo󰀨andstoptheapplication
that caused the tool to become overloaded. Then turn
the tool on to restart.
Overheated:
The tool/battery is overheated. In this situation, let the
tool/battery cool before turning the tool on again.
Low battery voltage:
The remaining battery capacity is too low and the tool will not
operate. In this situation, remove and recharge the battery.
Protections against other causes:
Protection system is also designed for other causes
that could damage the tool and allows the tool to stop
automatically. Take all the following steps to clear the
causes, when the tool has been brought to a temporary
halt or stop in operation.
1.
Turnthetoolo󰀨,andthenturnitonagaintorestart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
Fig.3
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.

7ENGLISH
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Switch action
1
2
Fig.4
►1. Suction power change button 2. ON/OFF button
To start the cleaner, simply push the ON/OFF button. To
switcho󰀨,pushtheON/OFFbuttonagain.
You can change the suction power of the cleaner in
four steps by pushing the suction power change button.
Each push on this button repeats the Quiet/Normal/
High/Max mode in a cycle.
Level Indication Mode
1Quiet mode
2Normal speed
mode
3High speed mode
4Max speed mode
NOTE: You can change the suction power before
turning on the cleaner.
NOTE: The cleaner starts the operation with the
same suction power as the last operation.
Lighting up the lamp
CAUTION: Do not look in the light or see the
source of light directly.
To turn on the lamp, push the suction power change
button.Thelampgoeso󰀨inapproximately10seconds.
While the cleaner is running, the lamp turns on.
The lamp goes out approximately 10 seconds after
stopping operation.
NOTE: When the remaining battery capacity gets low,
the lamp starts blinking. The timing, at which the lamp
starts blinking depends on the temperature at work
place and the battery cartridge conditions.
1
2
3
Fig.5
►1. Suction power change button 2. ON/OFF button
3. Lamp
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
Parts description
Optional accessory
High performance lter and stay and
sponge lter
134
2
Fig.6
►1. Capsule 2.Highperformancelter3. Stay
4.Spongelter

8ENGLISH
Prelter or high performance lter
and HEPA lter
12
34
Fig.7
►1. Capsule 2.Prelter3.Highperformancelter
4.HEPAlter
NOTICE: Do not underlay the high performance
lter with an optional lter (non-woven cloth). The
lterscouldnotberemovedfromthecleaner.
NOTE:Donotinstallanoptionallter(non-woven
cloth)betweentheHEPAlterandprelter.Thesuc-
tion power may be reduced.
NOTE:Alwaysusethehighperformancelterthatis
framed with an originally-designed stay when overlay-
ingitontheHEPAlter.
2
1
Fig.8
►1.Highperformancelter2. Stay (designed for high
performancelter)
Disposing of dust
CAUTION: Empty the cleaner before it
becomes too full, or the suction force weakens.
CAUTION: Be sure to empty the inside of the
cleaner itself of dust. Failure to do so may cause the
ltertobecloggedorthemotortobedamaged.
Inordertodropduststickingonthelterinthecapsule,
tap the capsule 4 or 5 times with your hand.
1
Fig.9
►1. Capsule
Point suction inlet downwards, turn capsule in direction
of arrow in diagram, and disconnect capsule slowly and
straight.
12
Fig.10
►1. Capsule 2. Suction inlet
NOTE: Dust may spill out when capsule is opened, so
be sure to set a garbage bag beneath capsule.
Remove accumulated dust from the inside of capsule
andhighperformancelter.
12
Fig.11
►1. Capsule 2.Highperformancelter

9ENGLISH
Twisthighperformancelterindirectionofarrowto
unfastensecuringlipfromcleanerunitandthenpullo󰀨
thelter.
1
Fig.12
►1. Securing lip
NOTE:Whenusingtheprelter,alsofollowthepro-
cedure above.
Cleanoutthenedustandlightlytaptodislodgedust
fromhighperformancelter.
Reassembly
Connecthighperformancelter.Atthistime,makesure
totwisthighperformanceltersothatsecuringlipis
rmlylockedintothecleanerunit.
1
Fig.13
►1.Highperformancelter
1
Fig.14
►1. Securing lip
NOTICE: Always be sure to check that high per-
formance lter is loaded correctly prior to using
cleaner. If it is not loaded correctly, dust will get into
the motor housing, and cause motor failure.
If the problem as described later occurs, high perfor-
mancelterisnotloadedcorrectly.Reloaditcorrectly
to rectify problem.
Attach the capsule. Align the mark on capsule with the
markonthehandleandthenrmlytwistcapsuleinthe
direction of arrow until it is secured.
1
2
3
Fig.15
►1. Mark 2. Handle 3. Capsule
NOTE: Always remove dust ahead of time, as suction
power will be reduced if there is too much dust in
cleaner.
Problem Example
Thesecuringlipofhighperformancelterisnotrmly
locked into groove of cleaner housing.
1
2
Fig.16
►1. Securing lip 2. Groove of cleaner housing

10 ENGLISH
Installing or removing stay / HEPA
lter
Optional accessory
For the stay and sponge lter
To remove the stay, push up the bottom part of pillars
ofthestaywithyourngersandreleaseitsgroovefrom
the protrusion on the cleaner. After that, remove the
spongelter.
12
Fig.17
►1. Stay 2.Spongelter
To install, align the grooves on the stay with the protru-
sion on the cleaner and push until it clicks.
Insertthespongelterbetweenthepillarsandsetitin
the original position.
For the HEPA lter
WheninstallingtheHEPAlter,tthegrooveofthe
HEPAlterwiththeprotrusiononthecleaner.Then,put
theprelterorthehighperformancelterontheHEPA
lterandtwistittosecure.Toremove,followtheinstal-
lation procedure in reverse.
1
2
Fig.18
►1.HEPAlter2.Prelter
1
2
Fig.19
►1.HEPAlter2.Highperformancelter
OPERATION
CAUTION: Do not move your face close to the
air vent when operating the cleaner.Ifforeignobjects
areblownintoeyes,itmayresultinpersonalinjury.
Installing and removing cleaner
attachments
CAUTION: After installing attachments, check
if they are securely installed. If the attachments are
installedimperfectly,theymaycomeo󰀨andcause
personalinjury.
CAUTION: Be careful not to hit your hand on
the wall etc. when removing the attachments.
When using attachment with lock
function
To install attachment, insert it to the suction inlet of the cleaner
until it clicks. Make sure that the attachment is locked.
1
2
3
4
Fig.20
►1. Suction inlet 2. Attachment with lock function
3. Hook 4. Release button

11 ENGLISH
NOTICE: When installing the attachment with
lock function, be sure to align the release button
on the cleaner with the hook on the attachment. If
they are not aligned, the attachment will not be locked
andmaycomeo󰀨fromthecleaner.
To remove, pull the attachment while pushing the
release button.
1
2
Fig.21
►1. Release button 2. Attachment with lock function
When using attachment without lock
function
CAUTION: To connect attachment without
lock function, twist and insert it in direction of
the arrow to secure the connection during use.
To disconnect the attachment, twist and extract
it also in direction of the arrow. If the attachment
is twisted in the opposite direction, the capsule may
become loose.
Fig.22
Cleaning (Suction)
Nozzle
Attachthenozzletocleano󰀨tables,desks,furniture,
etc. The nozzle slips on easily.
1
Fig.23
►1. Nozzle
Nozzle + Extension wand (Straight pipe)
Theextensionwandtsinbetweenthenozzleandthe
cleaner itself. This arrangement is convenient for clean-
ingaoorinastandingposition.
1
2
3
Fig.24
►1. Cleaner body 2. Extension wand (Straight pipe)
3. Nozzle
Sash nozzle
Fit on the sash nozzle for cleaning corners and crevices
of a car or furniture.
1
2
Fig.25
►1. Sash nozzle 2. Cleaner body

12 ENGLISH
You can store the sash nozzle in the nozzle holder.
1
2
Fig.26
►1. Nozzle holder 2. Sash nozzle
CAUTION: Be careful not to trap nger(s)
between the sash nozzle and the nozzle holder.
Trappingnger(s)maycauseinjury.
Sash nozzle + Extension wand
(Straight pipe)
In tight quarters where the cleaner itself cannot
squeeze in, or in high places hard to reach, use this
arrangement.
1
2
3
Fig.27
►1. Sash nozzle 2. Extension wand (Straight pipe)
3. Cleaner body
Cleaning without nozzle
You can pick up powder and dust without nozzle.
Fig.28
Forpickingupdustonaoorinastandingposition,itis
convenient to attach the extension wand to the cleaner.
1
Fig.29
►1. Extension wand (Straight pipe)
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
After use
CAUTION: Putting the cleaner against the
wall without any other support may cause the
cleaner to fall down, resulting in personal injury
or damage to the cleaner.
Fig.30

13 ENGLISH
Cleaning
CAUTION: Clean lters when they become
clogged. Continuing use in the clogged condition
mayresultinheatingorre.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
NOTICE: Do not blow dust sticking on the
cleaner and lters by air duster. It brings dust into
the housing and causes failure.
NOTICE: After washing lters, dry them thor-
oughly before use.Insu󰀩cientlydriedltersmay
cause poor suction and shorten the service life of the
motor.
NOTICE: After cleaning lters and sponge lter,
be sure to re-install them before use. If you use the
cleanerwithoutltersandspongelter,dustcomes
into the motor housing and cause malfunction.
Cleaner body
Fromtimetotimewipeo󰀨theoutside(cleanerbody)of
the cleaner using a cloth dampened in soapy water.
Cleanoutalsothesuctionopeningandltermounting
area.

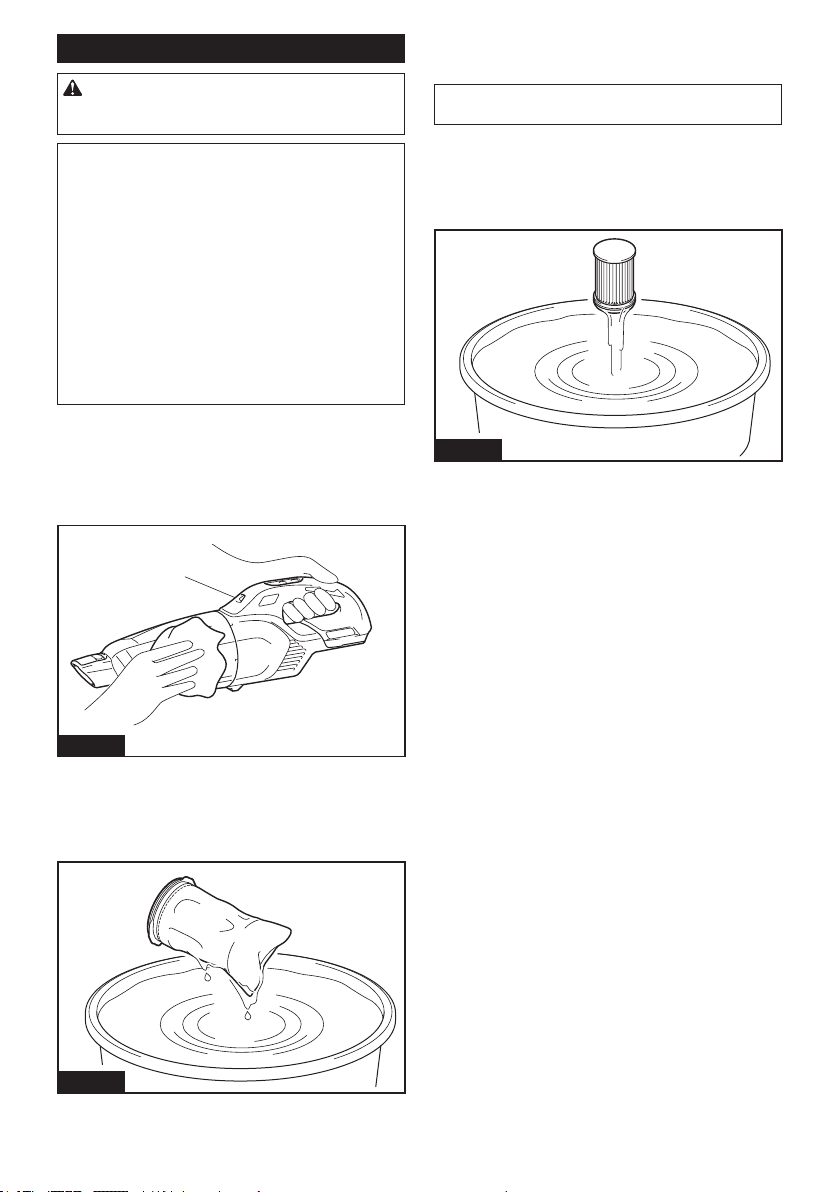

Fig.31
High performance lter
Washthelterinsoapywaterwhenitiscloggedwith
dust and the cleaner power becomes weak. Dry it out
thoroughly before use.
Fig.32
HEPA lter
Optional accessory
NOTICE: Do not rub or scratch the HEPA lter
with hard objects such as a brush and a paddle.
CloggedHEPAltercausespoorsuctionperformance.
Cleanoutthelterfromtimetotime.
OccasionallywashtheHEPAlterinwater,rinseand
dry thoroughly in the shade before use. Never wash the
lterinawashingmachine.
Fig.33
Sponge lter
Whenthespongelterbecomesdirty,cleanitas
follows.
1. Removeltersthatcoverthestay.
2. Pulloutthespongelterfrombetweenthepillars.
3. Cleanthespongelterbytappingorwashing.If
you wash it, dry it out thoroughly before use.

14 ENGLISH
4. Insertthespongelterbetweenthepillarsandset
it in the original position. Make sure that each bottom
edgeofthepillarholdsdownthespongelter,and
thereisnogapbetweenthespongelterandsuction
opening.
1
2
Fig.34
►1.Spongelter2. Bottom edge of pillar
Wall mount for cordless cleaner
Optional accessory
NOTE: The screw to mount the holder is not included.
Prepareascrewwhichtswiththematerialtoscrew
into.
Attach the wall mount for cordless cleaner to a hard
wooden wall, beam or column, where the wall mount
forcordlesscleanercanbermlysecured.Alwaysbe
sure that the wall mount for cordless cleaner is securely
attached before hanging the cleaner.
1
Fig.35
►1. Wall mount for cordless cleaner
CAUTION: Do not hang the cleaner to the wall
mount violently or hang other appliances than the
cleaner.
Troubleshooting
Before asking for repairs, check the following points.
Symptom Area to be investigated Fixing method
Weak suction power Is the capsule full of dust? Empty the capsule of dust.
Isthelterclogged? Cleanorwashthelter.
Is the battery cartridge discharged? Charge the battery cartridge.
Not working Is the battery cartridge discharged? Charge the battery cartridge.
Noise and vibration Isthelterclogged? Cleanorwashthelter.
Is the nozzle, pipe or suction inlet of the
appliance is clogged?
Removethecloggedobjectsinthenozzle,
pipe or suction inlet of the appliance.
Is the nozzle/pipe inlet blocked? Do not block the nozzle/pipe inlet.
CAUTION: Do not attempt to repair the cleaner by yourself.

15 ENGLISH
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Extension wand (Straight pipe)
• Nozzle
• Nozzle for carpet
• Shelf brush
• Sash nozzle
• Round brush
• Flexible hose
• Filter (non-woven cloth)
• Prelter
• Highperformancelter
• HEPAlter
• Seat nozzle
• Crevice nozzle
• Wall mount for cordless cleaner
• Cyclone unit
• Cyclone attachment
• Tool bag
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨erfromcountrytocountry.
Cyclone attachment
Optional accessory
3
4
1
2
5

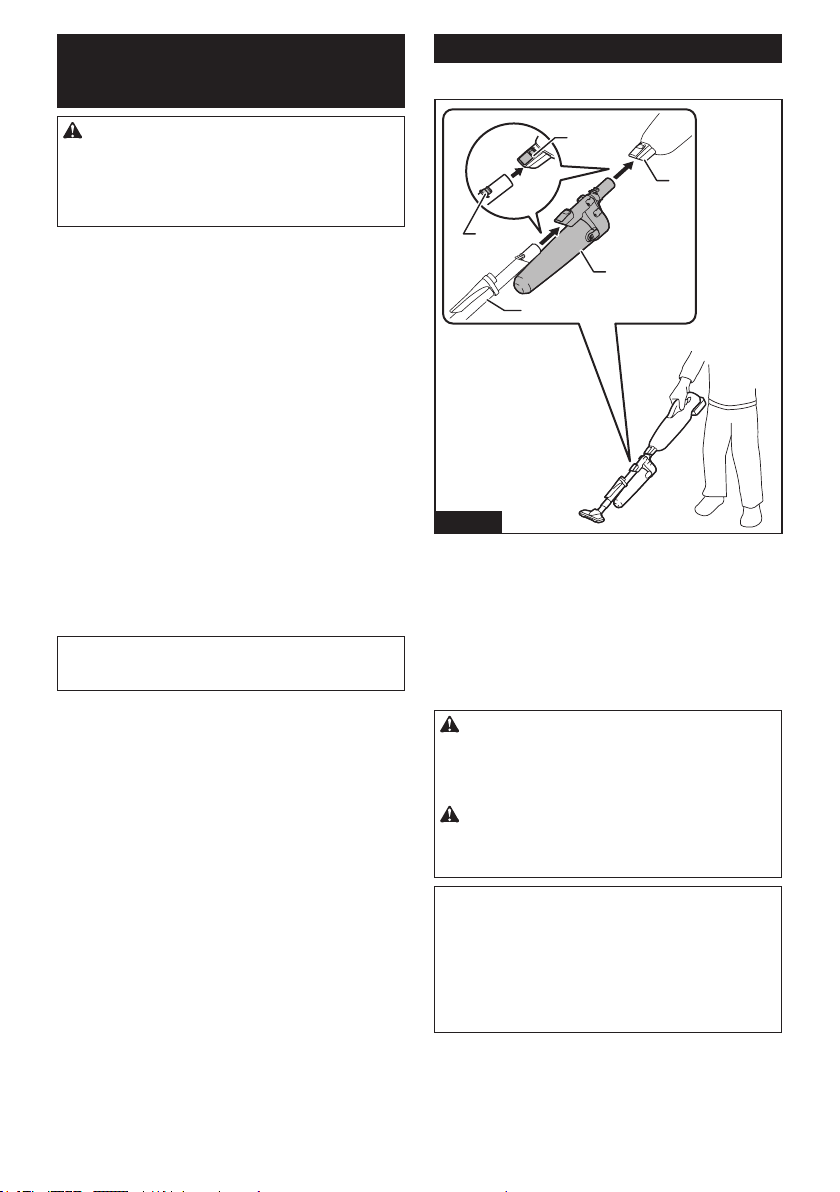

Fig.36
►1. Release button 2. Hook 3. Extension wand
(Straight pipe) 4. Cyclone attachment 5. Suction
inlet
About the cyclone attachment
Using the cleaner with the cyclone attachment installed
reduces the amount of dust that enters the capsule,
which helps to prevent the suction force from weaken-
ing. In addition, cleaning after use is also simple.
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool. If the
battery cartridge is left inserted, the cleaner may start
unexpectedlyandresultininjury.
CAUTION: Clean the mesh lter of the
cyclone attachment and the lters of the cleaner
unit when they become clogged. Continuing use in
the clogged condition may result in heating or smoke.
NOTICE: When the cyclone attachment is
attached, do not use the cleaner in a horizontal
or upward facing position. Doing so may cause the
meshltertobecomeclogged.
NOTICE: Always use the cleaner with the lters
installed, even when using the cyclone attach-
ment.Usingthecleanerwithouttheltersinstalled
may result in a motor malfunction.

16 ENGLISH
NOTE: Check that the cyclone attachment, cleaner,
and extension wand (straight pipe) are locked prop-
erly before use.
NOTE: Empty the dust case of the cyclone attach-
ment and the capsule of the cleaner when dust has
accumulated. Continuing use will result in weakened
suction force.
NOTE: You can also use the cyclone attachment with-
out lock function.
NOTE: To install or remove the cyclone attachment,
refer to the section "Installing and removing cleaner
attachments".
Disposing of dust
When dust has accumulated up to the full line of the
dust case, follow the procedure below and dispose of
the dust.
1. Holdthedustcasermly,pressandholdthetwo
buttons, and remove the dust case.
23
1
4
Fig.37
►1. Full line 2. Dust case 3. Button (two locations)
4.Meshlter
2. Dispose of the dust inside the dust case and
remove any dust and powder adhered to the surface of
themeshlter.
3. Insert the dust case all the way until the two but-
tons lock with a click.
2
1
Fig.38
►1. Dust case 2. Button (two locations)
CAUTION: When reassembling the dust case,
be careful not to pinch your ngers.
NOTE: Check that the cyclone attachment, cleaner,
and extension wand (straight pipe) are locked prop-
erly before restarting operation.
NOTE: If the suction force does not recover even
after disposing of the dust and cleaning the mesh
lter,checkwhetherdusthasaccumulatedinthe
capsule of the cleaner or clogging has occurred.
NOTE:Thedustmayyupwhendisposingfromthe
cyclone attachment. Be careful not to let dust get into
your eyes.
Cleaning
CAUTION: After washing the cyclone attach-
ment, dry it thoroughly before use.Insu󰀩ciently
dried components may cause an electrical shock or
damage to the appliance.
Whenthedustcasebecomesdirtyorthemeshlteris
clogged, remove and wash them with water. (Refer to
“Disposing of dust” for the removal procedure.)
Dry the parts thoroughly before reinstallation and use.
2
1
Fig.39
►1. Dust case 2.Meshlter

17 ENGLISH
Whenthemeshltergetsdirtybadly,cleanitinthe
following procedures.
1. Turnthemeshlterinthedirectionofthearrow
and remove it while the hooks are unlocked.
1
2
Fig.40
►1.Meshlter2. Hook
2. Removethedustonthemeshlterandthenwash
it with water. After that, dry it thoroughly.
3. Insertthemeshlterintothebasewhilethehooks
arealignedwiththeport.Turnthemeshlterinthe
direction of the arrow until the hooks are locked with a
click.Makesurethatthemeshlterisinstalledsecurely.
1
2
3
Fig.41
►1.Meshlter2. Hook 3. Port
MAKITA LIMITED WARRANTY
Please refer to the annexed warranty sheet for the
most current warranty terms applicable to this product.
If annexed warranty sheet is not available, refer to the
warranty details set forth at below website for your
respective country.
United States of America: www.makitatools.com
Canada: www.makita.ca
Other countries: www.makita.com

18 ESPAÑOL
ESPAÑOL (Instrucciones originales)
ESPECIFICACIONES
Modelo: XLC09
Capacidad 730 ml
Uso continuo
(con batería BL1830B)
1 (Modo silencioso) Aprox. 38 min
2 (Modo velocidad normal) Aprox. 21 min
3 (Modo velocidad alta) Aprox. 15 min
4 (Modo velocidad máxima) Aprox. 8 min
Longitud total (con tubo, boquilla y batería BL1830B) 1 066 mm (42")
Tensión nominal 18 V c.c.
Peso neto 1,3 kg - 1,7 kg (2,9 lbs - 3,7 lbs)
• Debidoanuestrocontinuoprogramadeinvestigaciónydesarrollo,lasespecicacionesaquíincluidasestán
sujetasacambiosinprevioaviso.
• Lasespecicacionespuedenvariardepaísapaís.
• El peso incluye el o los cartuchos de batería, pero no los accesorios. La combinación de menor y mayor peso
del aparato y del o los cartuchos de batería se muestra en la tabla.
Cartucho de batería y cargador aplicables
Cartucho de batería BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Cargador DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Algunos de los cartuchos de batería y cargadores enumerados arriba podrían no estar disponibles depen-
diendo de su área de residencia.
ADVERTENCIA: Use únicamente los cartuchos de batería y los cargadores indicados arriba. El uso de
cualquier otro cartucho de batería y cargador podría ocasionar una lesión y/o un incendio.
ADVERTENCIAS DE
SEGURIDAD
INSTRUCCIONES
IMPORTANTES DE
SEGURIDAD
Al usar cualquier aparato eléctrico,
siempre deben seguirse las precaucio-
nes básicas, incluyendo las siguientes:
GUARDE ESTAS
INSTRUCCIONES.
ADVERTENCIA
Para reducir el riesgo de incendio, des-
carga eléctrica o lesión:
1. No deje el aparato con la batería
puesta. Retire la batería del aparato
cuando no lo vaya a utilizar y antes
de dar servicio de mantenimiento.
2. No lo utilice sobre supercies
húmedas. No lo exponga a la lluvia.
Almacénelo en interiores.
3. No permita que sea utilizado como
un juguete. Supervise de cerca
cuando lo utilicen niños o se utilice
cerca de ellos.
4. Utilícelo solamente como se des-
cribe en este manual. Sólo use
aditamentos recomendados por el
fabricante.

19 ESPAÑOL
5. No lo utilice con una batería dañada.
Si el aparato no está funcionando
como debiera, se ha dejado caer, se
ha dañado, se ha dejado a la intem-
perie o ha caído sobre agua, llévelo
a un centro de servicio.
6. No manipule el aparato con las
manos mojadas.
7. No introduzca ningún objeto en las aber-
turas. No lo utilice con ninguna abertura
bloqueada; manténgalo libre de polvo,
pelusa, cabello y cualquier objeto que
pueda reducir el ujo de aire.
8. Mantenga el cabello, la ropa holgada,
los dedos y todas las partes del cuerpo
lejos de las aberturas y piezas móviles.
9. Apague todos los controles antes
de retirar el cartucho de batería.
10. Tenga especial cuidado cuando lim-
pie en escaleras.
11. No lo utilice para recoger líquidos
inamables o combustibles, tal
como gasolina, ni en áreas donde
puedan estar presentes.
12. No recoja nada que se esté que-
mando o desprenda humo, tal como
cigarros, fósforos o cenizas calientes.
13. No lo utilice sin la bolsa recolectora de
polvo y/o los ltros colocados en su lugar.
14. No cargue la batería en exteriores.
15. Evite una puesta en marcha acci-
dental. Asegúrese de que el inte-
rruptor esté en la posición apagada
antes de conectar el paquete de
baterías, levantar el aparato o car-
garlo. Cargar el aparato con su dedo
en el interruptor o pasar energía al
aparato con el interruptor encendido
puedo propiciar accidentes.
16. Desconecte el paquete de baterías
del aparato antes de hacer cualquier
ajuste, cambiar accesorios o almacenar
el aparato. Estas medidas de seguridad
preventivas reducen el riesgo de poner en
marcha el aparato accidentalmente.
17. Recargue sólo con el cargador
especicado por el fabricante. Un
cargador que es adecuado para un
solo tipo de paquete de baterías puede
generar riesgo de incendio al ser utili-
zado con otro paquete de baterías.
18. Use los aparatos únicamente con
los paquetes de baterías designados
especícamente para ellos. El uso
de otros paquetes de baterías puede
generar riesgo de lesiones e incendio.
19. Cuando no se esté usando el paquete
de baterías, guárdelo lejos de otros
objetos metálicos tales como suje-
tapapeles (clips), monedas, llaves,
clavos, tornillos u otros objetos metá-
licos pequeños que puedan crear
una conexión entre una terminal y
otra. Ocasionar un cortocircuito en las
terminales de la batería puede provocar
quemaduras o incendios.
20. En condiciones de mal uso, podría
escapar líquido de la batería; evite
tocarlo. Si lo toca accidentalmente,
enjuague con agua. Si el líquido
entra en contacto con los ojos,
solicite adicionalmente atención
médica. El líquido expulsado de la
batería puede causar irritación o
quemaduras.
21. No utilice un paquete de baterías
o aparato que esté dañado o haya
sido modicado. Las baterías daña-
das o modicadas podrían com-
portarse de manera impredecible
causando un incendio, explosión o
riesgo de lesión.
22. No exponga un paquete de baterías
o aparato al fuego o a una tempe-
ratura excesiva. La exposición al
fuego a una temperatura superior a
130 °C podría causar una explosión.
23. Siga todas las instrucciones rela-
tivas a la carga y no cargue el
paquete de baterías o el aparato
fuera del rango de temperatura
especicado en las instrucciones.
Cargar de manera inapropiada o a
temperaturas fuera del rango especi-
cadopodríadañarlabateríaeincre-
mentar el riesgo de incendio.
24. Pida que el servicio lo realice un
técnico en reparaciones calicado
y que utilice únicamente piezas de
repuesto idénticas a las originales.
Esto garantizará que se mantenga la
seguridad del producto.

20 ESPAÑOL
25. No modique ni intente reparar el
aparato ni el paquete de baterías
salvo como se indique en las ins-
trucciones para el uso y cuidado.
GUARDE ESTAS
INSTRUCCIONES.
REGLAS DE
SEGURIDAD
ADICIONALES
Este aparato está diseñado para uso
comercial.
1. Lea cuidadosamente este manual
de instrucciones y el manual de
instrucciones del cargador antes de
usar el aparato.
2. No recoja los siguientes materiales:
— Sustancias calientes que están
ardiendo o echando humo
(cigarrillos, cerillas, palitos de
incienso, velas, cenizas calien-
tes), chispas y polvo metálico
generados por el corte o el
lijado de metales, etc.
— Líquidos inamables (quero-
seno, gasolina, disolventes
como bencina, diluyentes, etc.)
— Materiales inamables (tóner,
pinturas, aerosoles, etc.)
— Sustancias explosivas o pirofó-
ricas (nitroglicerina, aluminio,
magnesio, titanio, zinc, fósforo
rojo, fósforo amarillo, celu-
loide, etc., y su polvo, gases o
vapores)
— Líquido, aceite, suciedad
mojada o basura húmeda, inclu-
yendo vómitos y heces
— Piezas duras con bordes losos
(astillas de madera, metales,
piedras, vidrios, clavos, alle-
res, navajas o cuchillería)
— Polvo no conductor y solidi-
cante (polvo metálico o de
carbono)
— Espumas, como limpiadores de
alfombras, etc. (pueden causar
explosiones o incendios)
— Grandes cantidades de polvo
(harina, polvo de extintor de
incendios, etc.)
— Sustancias que causan sínto-
mas tóxicos
— Productos químicos agresivos
(ácidos, alcalinos, etc.)
— Polvo aglutinante no, como el
cemento
— Partículas diminutas como las
del polvo de concreto
— Desecantes
— Asbesto
— Pesticidas
Tal acción podría ocasionar un incen-
dio,lesionesodañosmateriales.
Para reducir la exposición a estas sus-
tancias químicas, siempre utilice un
equipo de protección respiratoria apro-
bado, tal como las máscaras contra
polvo que están especialmente dise-
ñadasparaltrarpartículasmicroscó-
picas. No apunte la salida de aire a la
cara y al cuerpo.
3. Detenga la operación de inmediato
si nota algo anormal.
4. Si deja caer o golpea la aspira-
dora, verique cuidadosamente
si hay grietas o daños antes de la
operación.
5. No la acerque a estufas ni a otras
fuentes de calor.
6. No obstruya el oricio de ujo
de entrada ni los oricios de
ventilación.
7. Este aparato no se destina para
utilizarse por personas (incluyendo
niños) cuyas capacidades físicas,
sensoriales o mentales sean dife-
rentes o estén reducidas o carezcan
de experiencia o de conocimiento,
a menos que dichas personas reci-
ban una supervisión o capacitación
para el funcionamiento del aparato
por una persona responsable de su
seguridad.
