Members Mark SMFPC3F33 Owner's manual

Assembly Instructions & User’s Manual
1
Ridley Media Fireplace
Model Number: SMFPC3F33
Customer Assistance (spare/replacement parts): 1-866-942-5362
or Email: p[email protected]
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
OR
LOT NUMBER: DATE PURCHASED: / /

Assembly Instructions & User’s Manual
2
Table of Contents
Quality Statement .................................................................................................................................................................. 3
Important Safety Information................................................................................................................................................ 3
Before Assembly ..................................................................................................................................................................... 3
Care & Use .............................................................................................................................................................................. 3
Package Contents ................................................................................................................................................................... 4
Product Information ............................................................................................................................................................... 4
Components ........................................................................................................................................................................... 5
Hardware ................................................................................................................................................................................ 5
Tools ........................................................................................................................................................................................ 5
Step 1 ...................................................................................................................................................................................... 6
Step 2 ...................................................................................................................................................................................... 7
Step 3 ...................................................................................................................................................................................... 8
Step 4 - Hinge adjustment ...................................................................................................................................................... 9
Step 5 .................................................................................................................................................................................... 10
Step 6 .................................................................................................................................................................................... 11
Warning ....................................................................................................................................................................... 12
Danger ......................................................................................................................................................................... 13
Troubleshooting ................................................................................................................................................................... 13
Care & Use Instructions ........................................................................................................................................................ 13
Storage Instructions ............................................................................................................................................................. 13
Technical Data ...................................................................................................................................................................... 13
Limited Warranty Information ............................................................................................................................................. 14

Assembly Instructions & User’s Manual
3
Quality Statement
Question or Comments? We would love to hear about your Member’s Mark experience!
Visit us at: Samsclub.com/membersmarkhelp
Important Safety Information
 Please read all instructions carefully before assembling this product.
 Where applicable, and for your safety, assembly by an adult is strongly recommended.
 Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize
the structural integrity of the item.
 Hardware may loosen overtime. Periodically check that all connections are tight.
 NOTE: To prevent injury and property damage from unexpected tipping of furniture, we highly
recommend installation of the anti-tip kit included with this product.
Before Assembly
 Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work
surface, as this will avoid damaging parts during assembly.
 The shipping box can provide an ideal work surface if none is available.
 Use the components and hardware lists below to identify, inventory and separate each of the
hardware and components included.
 To avoid accidentally discarding small components or hardware, do not dispose of any packaging or
contents of the shipping carton until assembly is complete.
 DO NOT USE power tools unless it is explicitly identified in this manual as required for use during
assembly. Power tools can damage the fasteners, hardware and/or components.
 Do not fully tighten all fasteners / screws until all parts are in place. Failure to follow these instructions
may cause the fasteners / screws to misalign during assembly.
Care & Use
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous
area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid
rubbing.
 Do not place furniture in direct sunlight.

Assembly Instructions & User’s Manual
4

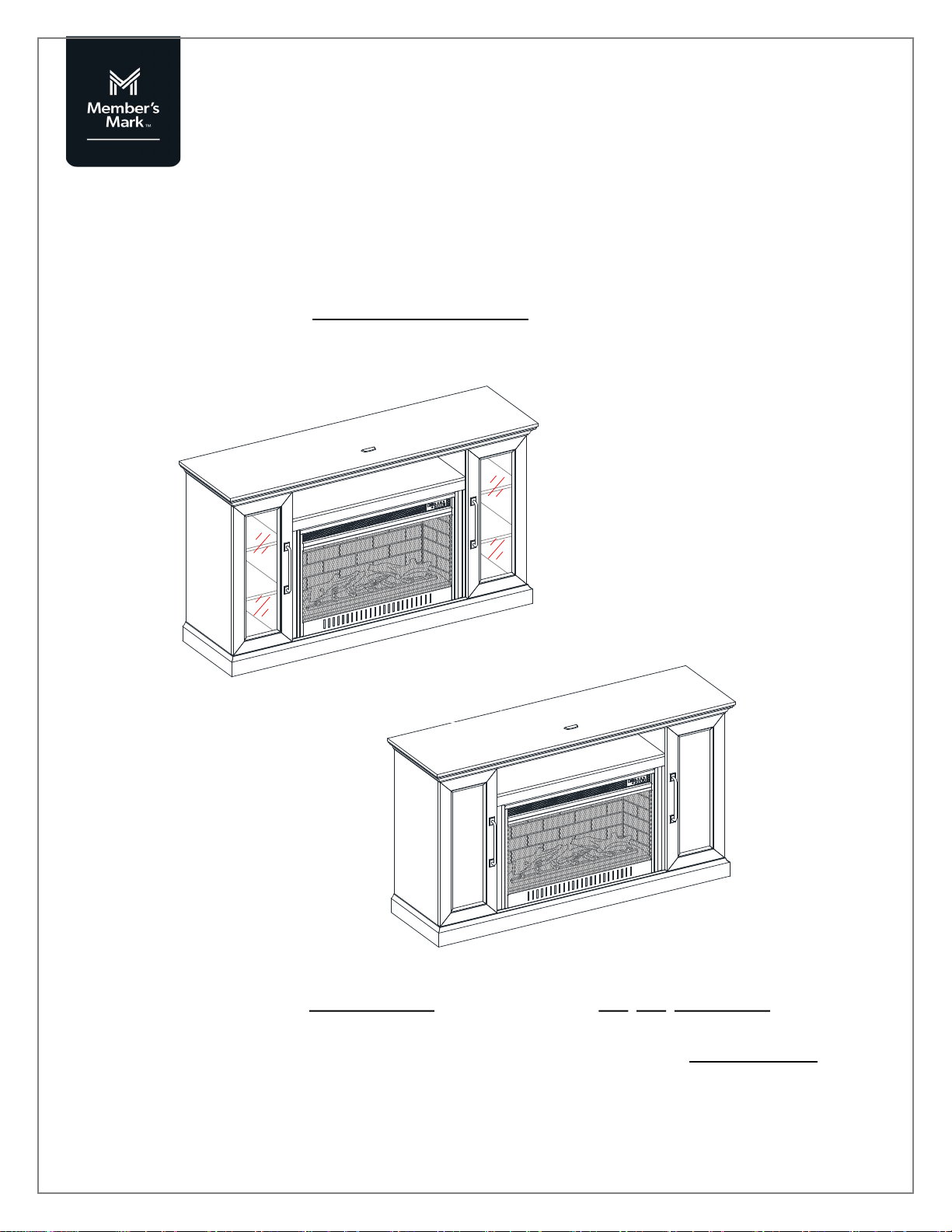

Package Contents
Component Description Quantity
A
Fireplace
1
B
Adjustable Shelf
4
C
Wood door insert
2
Product Information
Dimensions – 66” x 19” x 37” (167.6 cm x 48.3 cm x 94 cm)
Weight Capacity
A
B
C
FITS UP TO MOST
190
.
5
cm /
75
”
DIAGONAL FLAT-PANEL TVs
MAXIMUM LOAD 45.4 kg / 100 lb
MAXIMUM LOAD
22
.
7
kg /
50
lb
Place TV behind the stopper
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT PANEL TVS
AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS. NEVER USE WITH
LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT
PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE
SUPPORTING SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT
PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY. FOR USE WITH
TELEVISIONS WEIGHING 100 LB (45.4 KG) OR LESS. USE WITH HEAVIER TELEVISIONS MAY RESULT IN INSTABILITY
CAUSING TIP OVER RESULTING IN DEATH OR SERIOUS INJURY.
WARNING

Assembly Instructions & User’s Manual
5

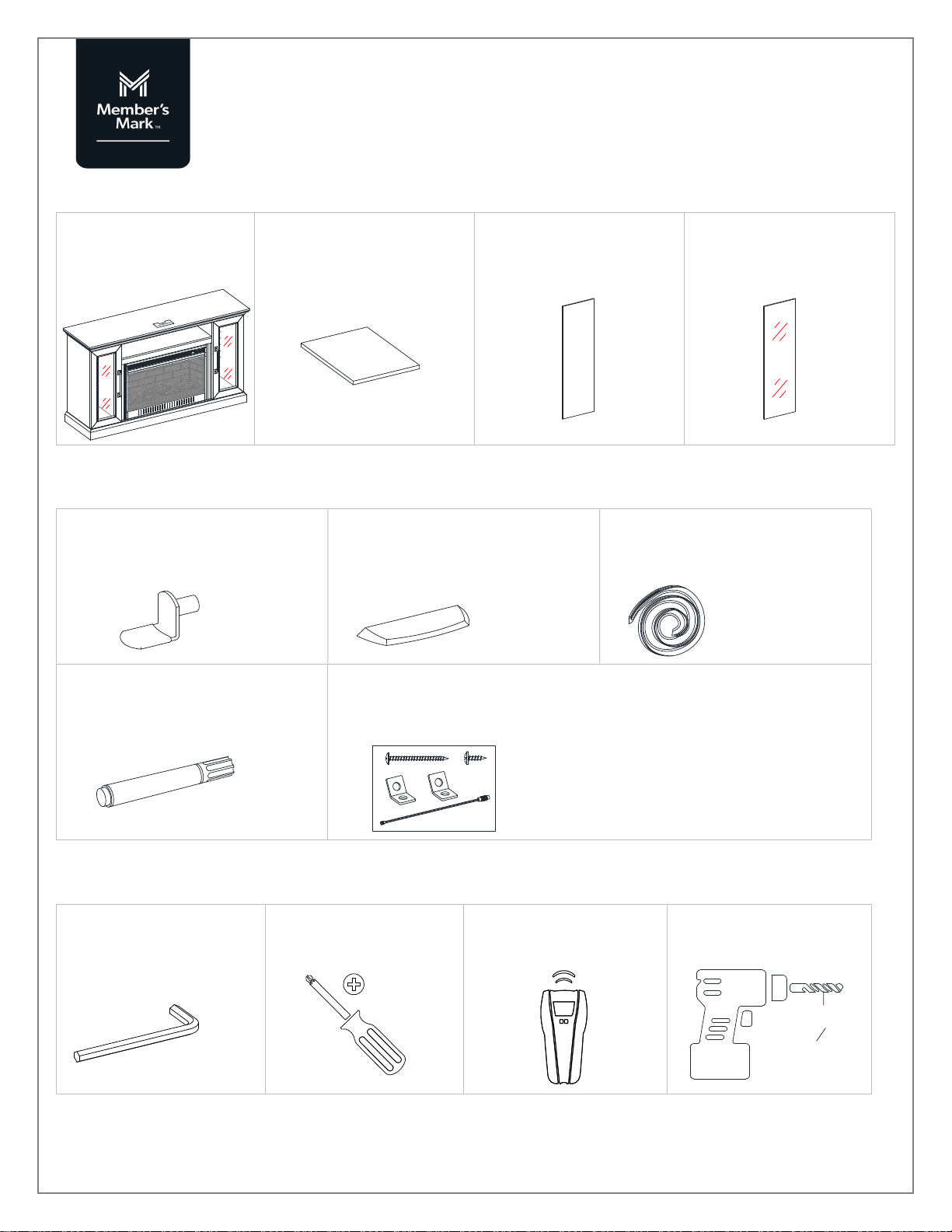

Components
Component A
Part No. not available
Qty: 1
Component B
Part No. 00SMFPC3F33-B
Qty: 4
Component C
Part No. 00SMFPC3F33-C
Qty: 2
Component D
(Pre-attached)
Part No. 00SMFPC3F33-D
Qty: 2
Hardware
Shelf Support (H1)
Part No. 00SMFPC3F33-N
Qty: 16+1 extra
Acrylic Stopper (H2)
Part No. 00SMFPC3F33-O
Qty: 1
Spare Rubber Liner (H3)
Part No. 00SMFPC3F33-I
Qty: 1.5m
Touch-up Pen (H5)
Part No. 00SMFPC3F33-Q
Qty: 1
Tipping Restraint Hardware Kit (H6)
Part No. 00SMFPC3F33-R
Qty: 2
Tools
Hex Wrench (H4)
Part No. 00SMFPC3F33-P
Qty: 1
Phillips Screwdriver
(Not Included)
Stud Finder
(Not Included)
Power Drill
(Not Included)
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
3 mm
18
"

Assembly Instructions & User’s Manual
6
Step 1
a) Unpack the units and confirm that you have all hardware and required parts.
b) Open the doors and insert eight Shelf Supports (H1) in the holes at the desired height inside each
compartment. Make sure you place the four Shelf Supports at the same level, so the shelf is not tilted.
c) Tilt and rest the Adjustable Shelves (B) onto the Shelf Supports (H1).
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
B
H1
H1
B
B
B
B
A
H1 x 16

Assembly Instructions & User’s Manual
7
Step 2
a) The vented rear panel is removable for easy access to audio and video component hook-up. Be sure to route
the cables through the cutout.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
A
Cable channel

Assembly Instructions & User’s Manual
8
Step 3
a) The Glass Door Panels (D) are pre-attached when shipping. You can keep as they are or interchange with
Wood Door Panels (C).
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
D
C
A
A
Rubber Liner

Assembly Instructions & User’s Manual
9
Step 4 - Hinge adjustment
a) Loosen or tighten the indicated screw to adjust the gaps forward and backward between doors and console.
b) Rotate the screw clockwise or counterclockwise to adjust the door horizontally as shown.
c) Loosen or tighten the indicated screw to adjust the door vertically to the desired position.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Lateral
adjustment
Height
adjustment
Depth
adjustment
1
2~3mm
2
2
2mm
3
2mm

Assembly Instructions & User’s Manual
10
Step 5
NOTE: To prevent your TV from tipping, you must follow these instructions if you place a flat panel television
on top of your console. Otherwise, remove the acrylic stopper template directly.

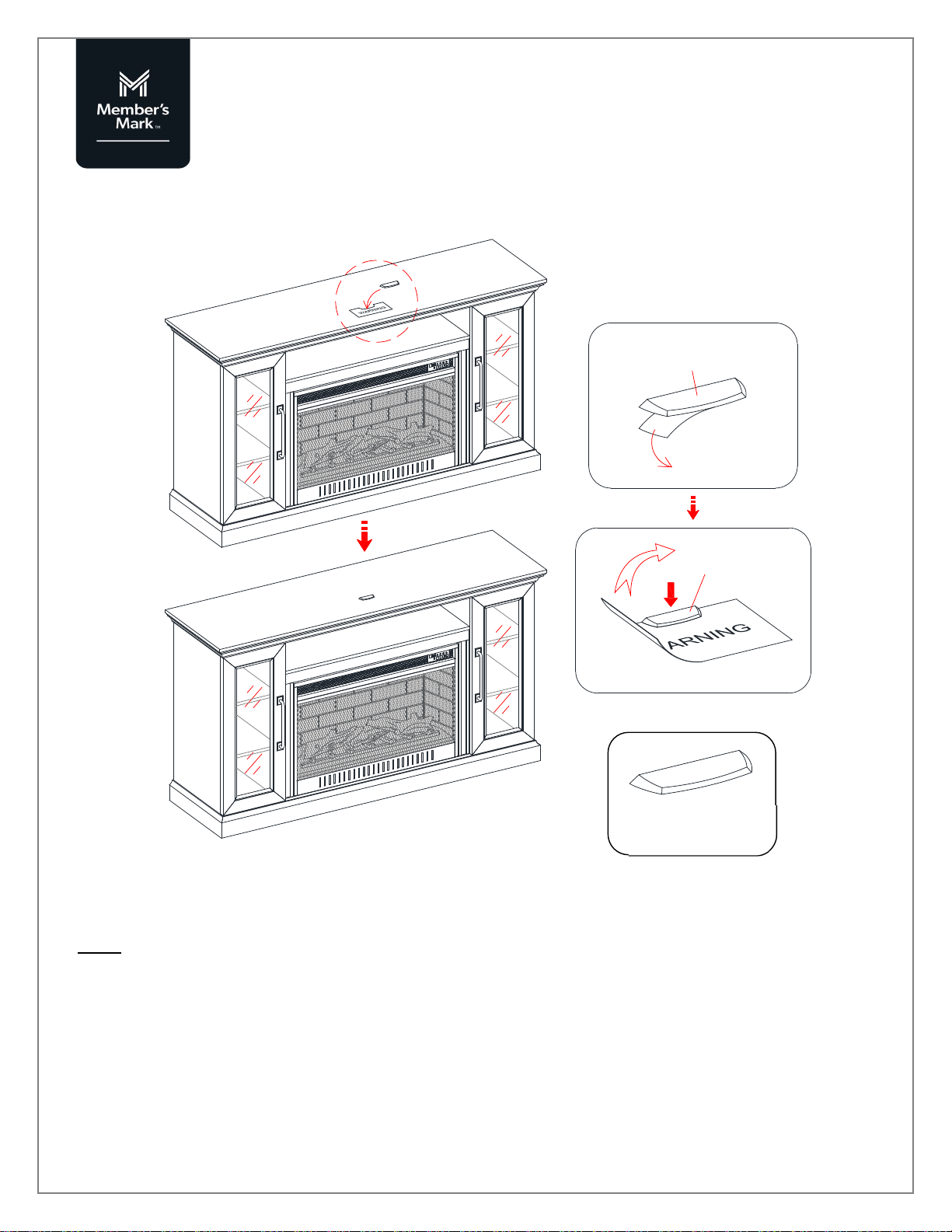

a) Remove the paper backing from the Acrylic Stopper (H2) and place it in the cut-out of the acrylic stopper
template on the front of the top panel. Make sure it is properly aligned before applying pressure.
b) Now, remove the acrylic stopper template carefully.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
H2 x 1
A
A
A
H2
H2

Assembly Instructions & User’s Manual
11

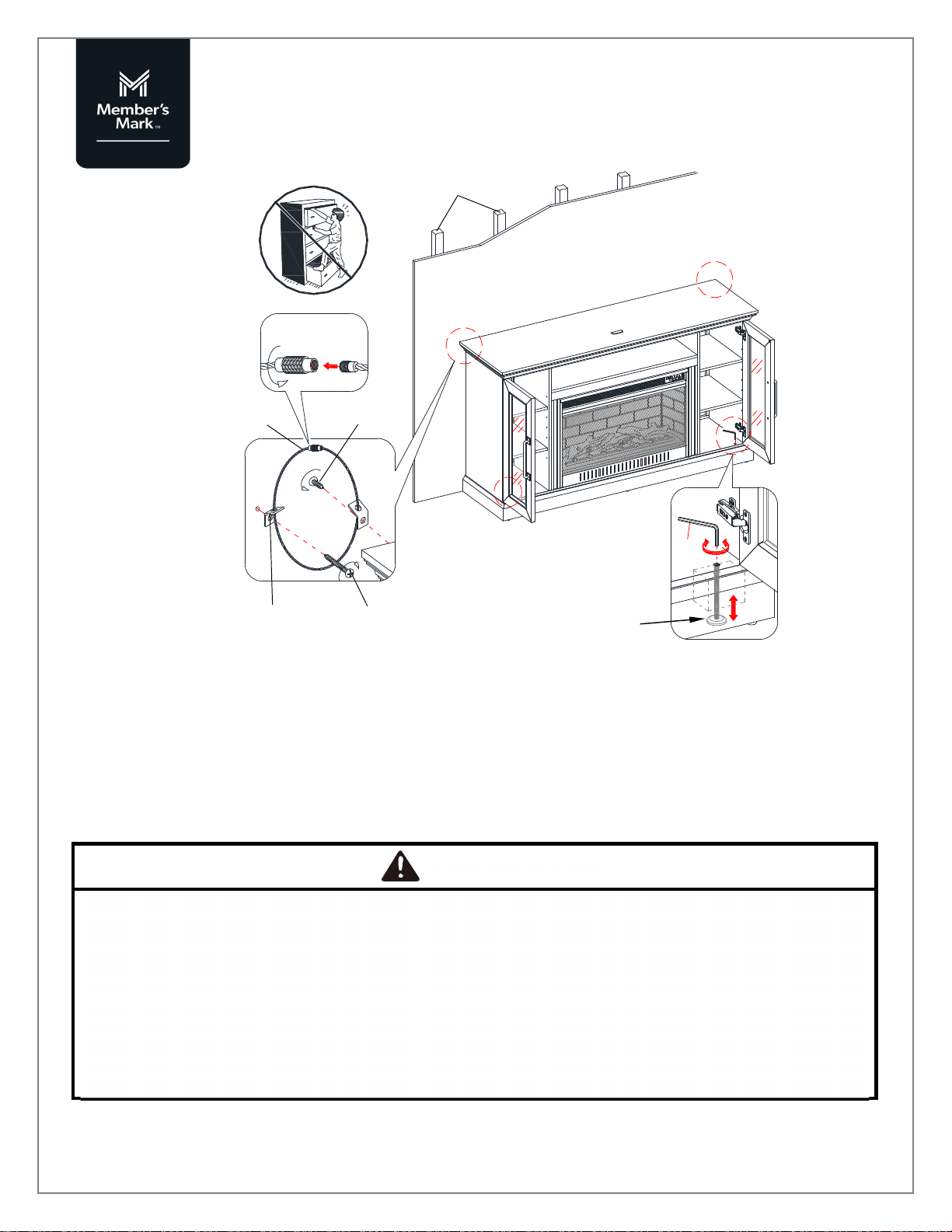

Step 6
a) Ask for assistance to position the assembled unit at the desired location against a wall. Open the door and
you will see a hole at each front corner of the base, use the enclosed Hex Wrench (H4) to turn the leveler
and adjust the height of the unit, until the unit is level.
b) Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware (H6) to
attach the tip-over restraints to the unit and the wall.
c) Connect the fireplace to the power transformer. Follow the operating manual for the electric fireplace insert
to control your fireplace.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
H4
W
all
Wall
Wooden stud
Short screw
Long screw
Metal bracket
Floor leveler
Steel cable
Connector
H6
WARNING
Unit must be placed on a level surface or leveled with included hardware (when applicable).
Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
For safety reasons, it is imperative that this unit be mounted to the wall.
Do not use without installing the tip restraint.
Unit can tip over causing severe injury or death.
Do not exceed the recommended weight limits.
Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
Before cutting, drilling or hammering into any wall or floor surface, verify the location of
electrical, plumbing and gas lines. Cutting may cause serious injury.

Assembly Instructions & User’s Manual
12
Warning
Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture
or household items. Carefully read the following safety information.
This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 100 lb. (45.4 kg) and
maximum load 75 in. (190.5 cm) diagonal flat-panel TV. The shelf maximum recommended weight
allowance is 50 lb. (22.7 kg). Use with heavier televisions may result in instability causing tip over resulting
in death or serious injury.
Death or serious injury may occur when children climb on audio and/or video equipment furniture. A
remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a
result may tip over onto the child.
NEVER allow children to climb or play with the TV or furnishing supporting the TV.
NEVER place toys, food, remote, etc. on top of the TV or TV furnishing.
ALWAYS use either the safety hardware as instructed or other wall anchoring device.
Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or
video equipment may result in death or serious injury due to furniture collapse or over turning onto a child.
NEVER place a TV on furniture that is not intended to support a TV.
NEVER exceed the maximum size and weight of the TV shown in the instructions.
Be sure to refer to the TV warning label as shown in the instructions.
Overloading drawers and shelves may result in furniture that can break or sag, or tip-over which may result
in injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with casters may result in injury or damage
to furnishings or personal property.
ALWAYS unload shelves and drawers, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to move and/or reposition it.
The unit is not meant as a seat and no one should be sitting or standing on the top panel.
Clean the metal trim using a soft cloth, slightly dampened with citrus oil-based product and buff with a clean,
soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Citrus oil-based products can be obtained at supermarkets or hardware stores.

Assembly Instructions & User’s Manual
13
Danger
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not
modify the plug provided with the product – If it will not fit the outlet; have a proper outlet installed by
qualified electrician.
Troubleshooting
Problem Possible Cause Prevention / Solution
Tilting / wobbling Surface not level Adjust the floor levelers
Scratches / Nicks Assembly or shipping damage Use the touch-up pen to cover
Doors are not level Hinges are not engaged properly Refer to the hinge sticker for adjustment
Care & Use Instructions
Care
Use a soft, clean cloth that will not scratch the surface when cleaning.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an
inconspicuous area.
Use
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently.
Avoid rubbing.
Do not place furniture in direct sunlight.
Storage Instructions
Item
SMFPC3F33
1. Carefully place all components into shipping box and/or provided container tape it shut.
2. When not in use, please store your item in a cool, dry place away from sunlight.
3. Exposing your item to excessive heat or humidity may damage your item.
Technical Data
Rated voltage: 120 V ~ 60 Hz Rated power input: 1500 W
Rated current: 12.5 A Capacity: 100 lb
Need Assistance? Visit us at: samsclub.com/membersmarkhelp

Assembly Instructions & User’s Manual
14
Limited Warranty Information
This product is covered by the Sam's Club Member Satisfaction Guarantee. Please visit samsclub.com for more
information.
This product’s components have a one-year guarantee against defects in material and/or workmanship. If you
have any questions regarding the warranty or spare / replacement parts, please call our toll-free number
1-866-942-5362 or email us at [email protected].
NOTE: Please consider recycling all applicable packaging material.
Distributed by Sam’s West Inc.
2101 SE Simple Savings Dr.
Bentonville, Arkansas 72716-0745
Made in Vietnam
Need Assistance? Visit us at: samsclub.com/membersmarkhelp

Instrucciones de ensamble y manual del usuario
1
Consola con chimenea para medios Ridley
Número del modelo: SMFPC3F33
Asistencia al cliente (partes extras/de repuesto): 1-866-942-5362
o mande un correo electrónico a: [e-mail]
ESTÉ INSTRUCTIVO CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
O
NÚMERO de LOTE: FECHA de COMPRA: / /

Instrucciones de ensamble y manual del usuario
2
Tabla de contenido
Declaración de calidad ........................................................................................................................................................... 3
Información de seguridad importante .................................................................................................................................. 3
Antes del ensamble ................................................................................................................................................................ 3
Cuidado y uso ......................................................................................................................................................................... 3
Contenidos del paquete ......................................................................................................................................................... 4
Información del producto ...................................................................................................................................................... 4
Componentes ......................................................................................................................................................................... 5
Material de ferretería ............................................................................................................................................................ 5
Herramientas .......................................................................................................................................................................... 5
Paso 1 ...................................................................................................................................................................................... 6
Paso 2 ...................................................................................................................................................................................... 7
Paso 3 ...................................................................................................................................................................................... 8
Paso 4 - ajuste de bisagras ..................................................................................................................................................... 9
Paso 5 .................................................................................................................................................................................... 10
Paso 6 .................................................................................................................................................................................... 11
Advertencia ................................................................................................................................................................. 12
Peligro ......................................................................................................................................................................... 13
Solución de problemas ......................................................................................................................................................... 13
Instrucciones de cuidado y uso ............................................................................................................................................ 13
Instrucciones de almacenaje ................................................................................................................................................ 13
Información Técnica ............................................................................................................................................................. 13

Instrucciones de ensamble y manual del usuario
3
Declaración de calidad
¿Preguntas o Comentarios? Nos gustaría escuchar sobre su experiencia Member’s Mark!
Visitenos en: Samsclub.com/membersmarkhelp
Información de seguridad importante
 Por favor lea todas las instrucciones antes de ensamblar el mueble.
 Donde se pueda, y por su seguridad, se recomienda el ensamble por un adulto.
 Use solo ferretería suplida por el vendedor para ensamblar la unidad. El uso de ferretería no autorizada
podría poner en riesgo la integridad estructural de la unidad.
 La ferretería se podría aflojar con el tiempo. Revisar periódicamente que las conexiones estén apretadas
 NOTA: Para prevenir lesiones o daños de inclinación inesperada del mueble, nosotros recomendamos
instalar el juego contra inclinación (volteo) incluido en este producto.
Antes del ensamble
 Retirar todas las partes y ferretería de la caja. Poner todo sobre una alfombra o en un are libre de
rasguños, para evitar daños a las partes durante el ensamble.
 La caja de envió provee una superficie ideal de trabajo.
 Para evitar el desecho accidental de partes o ferretería pequeñas, no tire ningún paquete o contenidos
del paquete hasta terminar el ensamble.
 Usar las listas de partes y ferretería para identificar y separar cada una de las piezas incluidas.
 El uso de herramientas eléctricas no está recomendado, a menos que se especifique. Estas
herramientas pueden dañar la ferretería o la madera.
 No apretar completamente los pernos/sujetadores hasta que las partes estén en su lugar. La falla de
seguir estas instrucciones puede causar que los pernos/sujetadores se desalineen durante el ensamble.
Cuidado y uso
 Use una toalla suave y limpia para evitar daños y rayaduras.
 Uso de cera para pulir muebles no es necesario. Si desea usar cera cheque en un área que no sea
visible para verificar su funcionamiento.
 Usar solventes de cualquier tipo puede dañar el terminado del mueble.
 Nunca use agua para limpiar la unidad, ya que le puede dañar el acabado.
 Líquidos derramados deben limpiarse inmediatamente, con una toalla suave evitando tallar.
 No poner el mueble en luz solar directa.

Instrucciones de ensamble y manual del usuario
4
Contenidos del paquete
Componente
Descripción
Cantidad
A
Chimenea
1
B
Repisa ajustable
4
C
Inserto para puerta de madera
2
Información del producto
Dimensiones – 66” x 19” x 37” (167,6 cm x 48,3 cm x 94 cm)
Capacidad de peso
A
B
C
CARGA MÁXIMA
22
,
7
kg /
50
l
ibras
PARA
LA MAYORÍA DE LAS
TELEVISIONES
CON
PANTALLA PLANA DE 190,5 cm / 75” EN DIAGONAL
CARGA MÁXIMA 45,4 kg / 100 libras
PONER LA TV DETRÁS DEL TOPE
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE TUBO.
UTILIZARSE ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE AUDIO/VIDEO QUE TENGA LA
MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON TELEVISIONES MÁS GRANDES/PESADAS DE LAS
RECOMENDADAS. PARA EVITAR INESTABILIDAD COLÓQUELA EN EL CENTRO DE LA UNIDAD; LA BASE DE LA
TELEVISIÓN DEBE DE REPOSAR SOBRE LA SUPERFICIE DE SOPORTE DE LA UNIDAD SIN REBASAR LAS ORILLAS.
LAS TELEVISIONES DE PANTALLA PLANA COLOCADAS INAPROPIADAMENTE, O LAS TELEVISIONES DE PANTALLA
PLANA INCLUYENDO EQUIPO QUE SOBREPASA LAS MEDIDAS Y PESOS RECOMENDADOS PUEDEN CAERSE Y/O
ROMPER LA UNIDAD, CAUSANDO POSIBLES DAÑOS O LESIONES. PARA USO DE TELEVISIONES DE HASTA 100 LIBRAS
(45,4 KG) O MENOS. USO CON TELEVISIONES DE MAYOR PESO PUEDE RESULTAR EN INESTABILIDAD CAUSANDO
QUE LA UNIDAD CAIGA, PROVOCANDO EN ALGUNOS CASOS DAÑOS O MUERTE.
ADVERTENCIA

Instrucciones de ensamble y manual del usuario
5
Componentes
Componente A
# de parte. no disponible
Cantidad: 1
Componente B
# de parte.
00SMFPC3F33-B
Cantidad: 4
Componente C
# de parte.
00SMFPC3F33-C
Cantidad: 2
Componente D
(Pre-adjuntado)
# de parte.
00SMFPC3F33-D
Cantidad: 2
Material de ferretería
Soporte de repisa (H1)
# de parte: 00SMFPC3F33-N
Cantidad: 16+1 extra
Tope de acrílico (H2)
# de parte: 00SMFPC3F33-O
Cantidad: 1
Revestimiento de goma de repuesto (H3)
# de parte: 00SMFPC3F33-I
Cantidad: 1,5m
Bolígrafo de retoque (H5)
# de parte: 00SMFPC3F33-Q
Cantidad: 1
Juego de restricción de movimiento (H6)
# de parte: 00SMFPC3F33-R
Cantidad: 2
Herramientas
Llave hexagonal (H4)
# de parte:
00SMFPC3F33-P
Cantidad: 1
Desarmador estrella
(no incluido) Buscador de vigas (no incluido)
Taladro
(no incluido)
¿Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp
3 mm
18
"

Instrucciones de ensamble y manual del usuario
6
Paso 1
a) Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas.
b) Abrir las puertas e insertar 8 soportes de repisa (H1) en los agujeros en las alturas deseadas adentro de cada
compartimiento. Asegurar de poner los cuatro soportes de repisa en el mismo nivel para que la repisa no
esté inclinada.
c) Voltear y descansar las repisas ajustables (B) sobre los soportes de repisa (H1).
¿Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp
B
H1
H1
B
B
B
B
A
H1 x 16
