Metra Electronics 99-5027 User manual

METRA - The World’s best kits ®metraonline.com
REV. 10/21/2016 INST-99-5027
Installation instructions for part 99-5027
®
CAUTION! All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• A) Radio housing • B) Radio housing trim piece “A” • C) Radio housing trim piece “B” • D) ISO Brackets
• E) Rear support • F) ISO Trim plate • G) Mounting bracket • H) (4) #8 x 3/8” Phillips screws

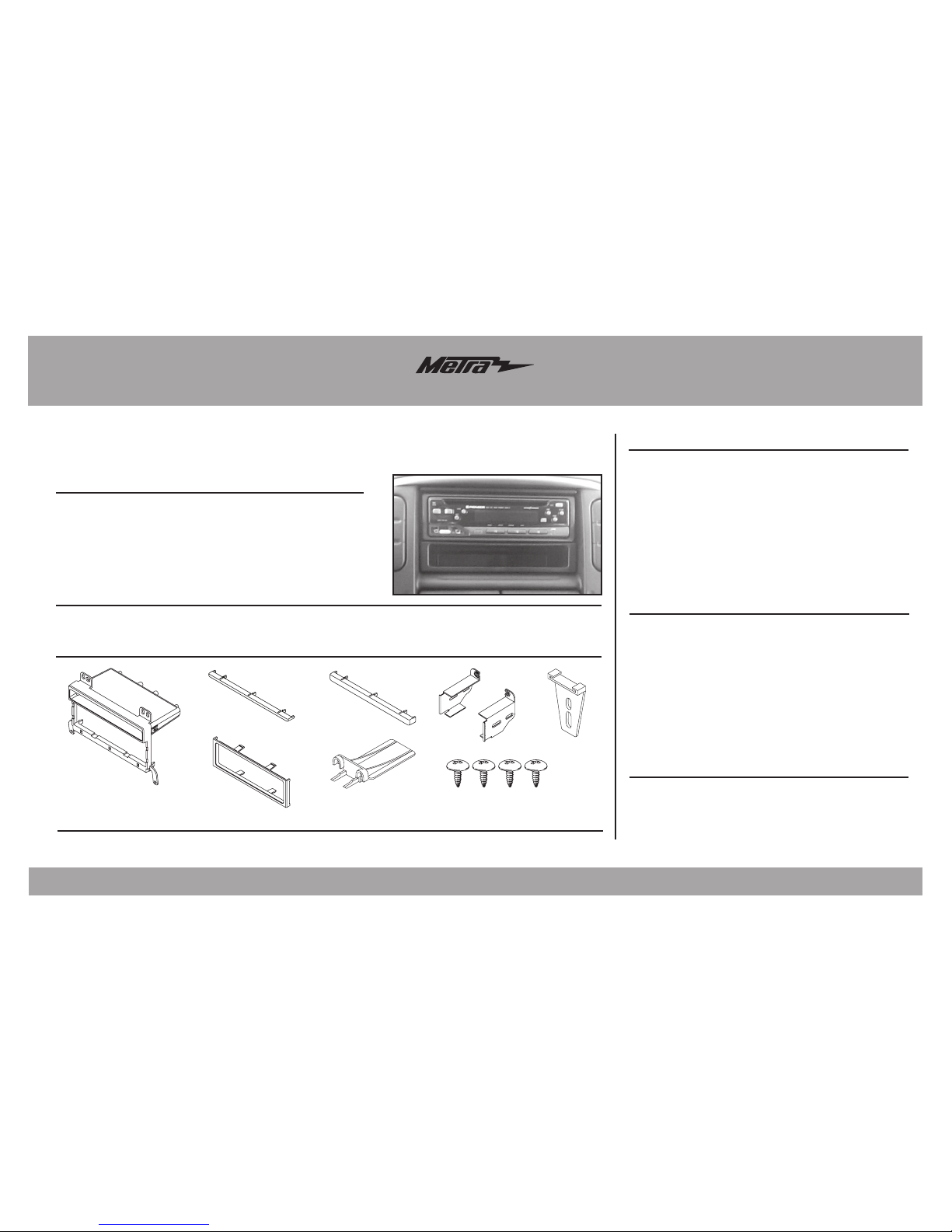

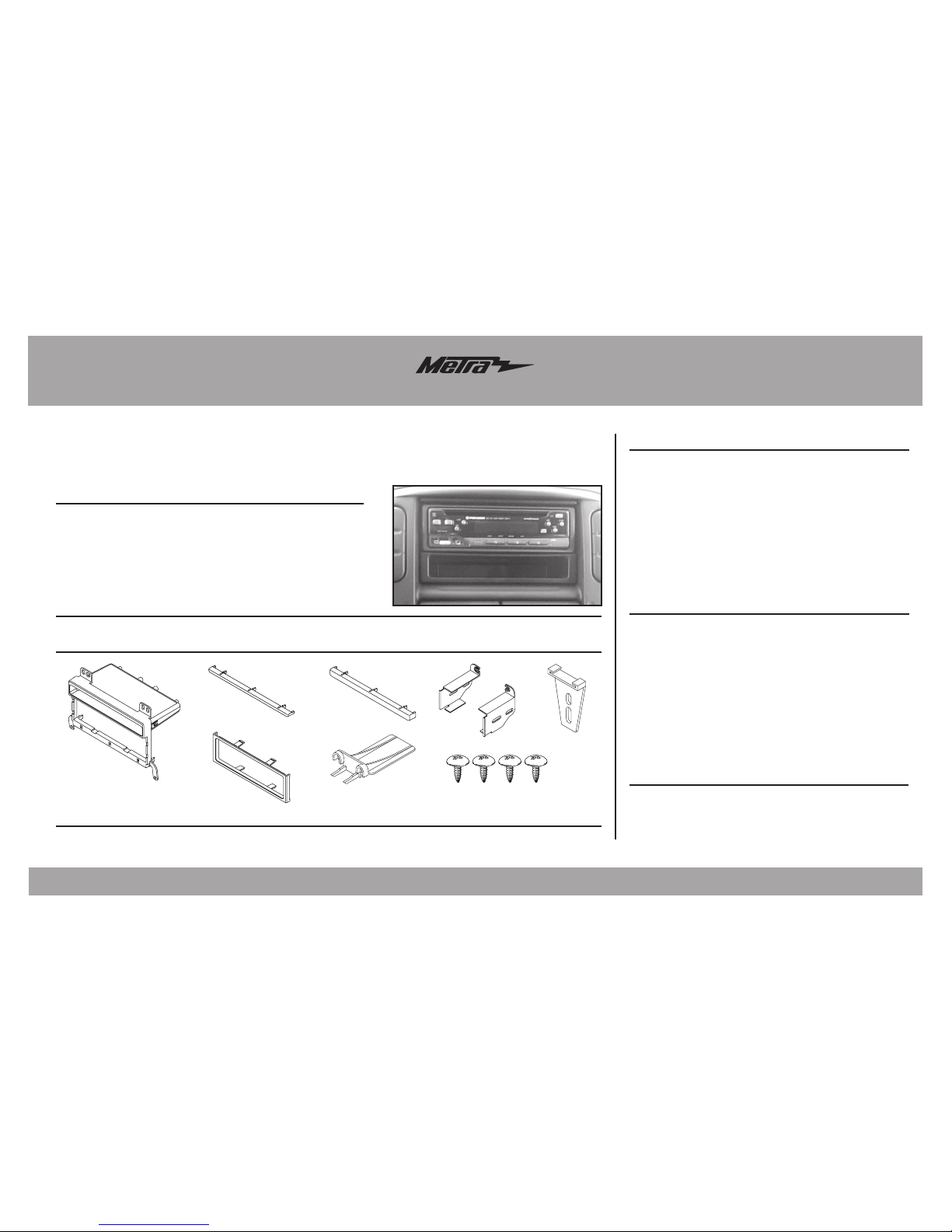

KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Please visit www.metraonline.com
for specific interface applications
Antenna Adapter:
• Not required
• Panel removal tool • Phillips screwdriver
• 86-5618 Ford radio removal keys
TOOLS REQUIRED
Ford/Mazda multi-kit 1995-2011
99-5027 / AT-586FT / AW-586FT / CF-586FT / IBR-527FD
B C EDA
GF H
APPLICATIONS
See application list inside cover

99-5027
Applications
2
Ford
Crown Victoria .....................1995-2011
Econoline .............................1997-2008
Expedition ............................1997-2002
Expedition (without NAV)..........2003-2006
Explorer ...............................1995-2005
F-150 ..................................1997-2003
F-150 (Heritage)................................... 2004
F-350 ..................................1999-2004
F-550 ..................................1999-2004
Mustang ..............................2001-2004
Ranger .................................1995-2011
Windstar ..............................1999-2003
Excursion .............................2000-2005
Lincoln
Aviator .................................2003-2005
Continental ..........................1995-1997
Blackwood .....................................2002
Mark 8 .................................1996-1998
Town Car .............................1995-2002
Navigator .............................1997-2002
Navigator
(with NAV, THX amp) ...2003-2006
Navigator (without NAV)...........2003-2006
Mazda
B-Series Pickup ...................1995-2009
Mercury
Grand Marquis .....................1995-2010
Mountaineer ........................1997-2005
Marauder .............................2003-2004
Mariner ................................2005-2007
Table of Contents
Dash Disassembly
Ford
– Crown Victoria 1995-2011............................ 3
– Econoline 1997-2008 ................................... 3
– Excursion 2000-2005................................... 4
– Expedition 1997-2002.................................. 4
– Expedition (without NAV) 2003-2006............... 5
– Explorer 1995-2001 ..................................... 3
– Explorer 2002-2005 ..................................... 5
– F-150 1997-2003......................................... 4
– F-150 (Heritage) 2004 .................................. 4
– F-250 1998 .................................................. 4
– F-250 1999-2004......................................... 3
– F-350 1999-2004......................................... 3
– F-550 1999-2004......................................... 3
– Mustang 2001-2004..................................... 5
– Ranger 1995-2011....................................... 3
Lincoln
– Aviator 2003-2005 ....................................... 7
– Blackwood 2002........................................... 4
– Continental 1995-1997................................. 3
Lincoln (Cont)
– Mark 8 1996-1998 ....................................... 3
– Navigator 1997-2002 ................................... 3
– Navigator (with NAV, THX amp) 2003-2006 ....... 6
– Navigator (without NAV) 2003-2006 ................ 6
– Town Car 1995-2002.................................... 3
Mazda
– B-Series Pickup 1995-2009 ......................... 3
Mercury
– Grand Marquis 1995-2010 ........................... 3
– Marauder 2003-2004 ................................... 3
– Mariner 2005-2007 ...................................... 3
– Mountaineer 1997-2001............................... 3
– Mountaineer 2002-2005............................... 5
Kit Preparation................................................. 8
Kit Assembly
– DIN radio provision with pocket..................9, 11
– ISO DIN radio provision with pocket .........10, 12

99-5027
3
Ford Crown Victoria 1995-2011/Econoline 1997-2008/Explorer 1995-2001/F-250 1999-2004/ F-350 1999-2004/F-550 1999-2004/Ranger 1995-2011,
Lincoln Continental 1995-1997/Mark 8 1996-1998/Town Car 1995-2002,
Mazda B-Series Pickup 1995-2009,
Mercury Grand Marquis 1995-2010/Marauder 2003-2004/Mariner 2005-2007/Mountaineer 1997-2001

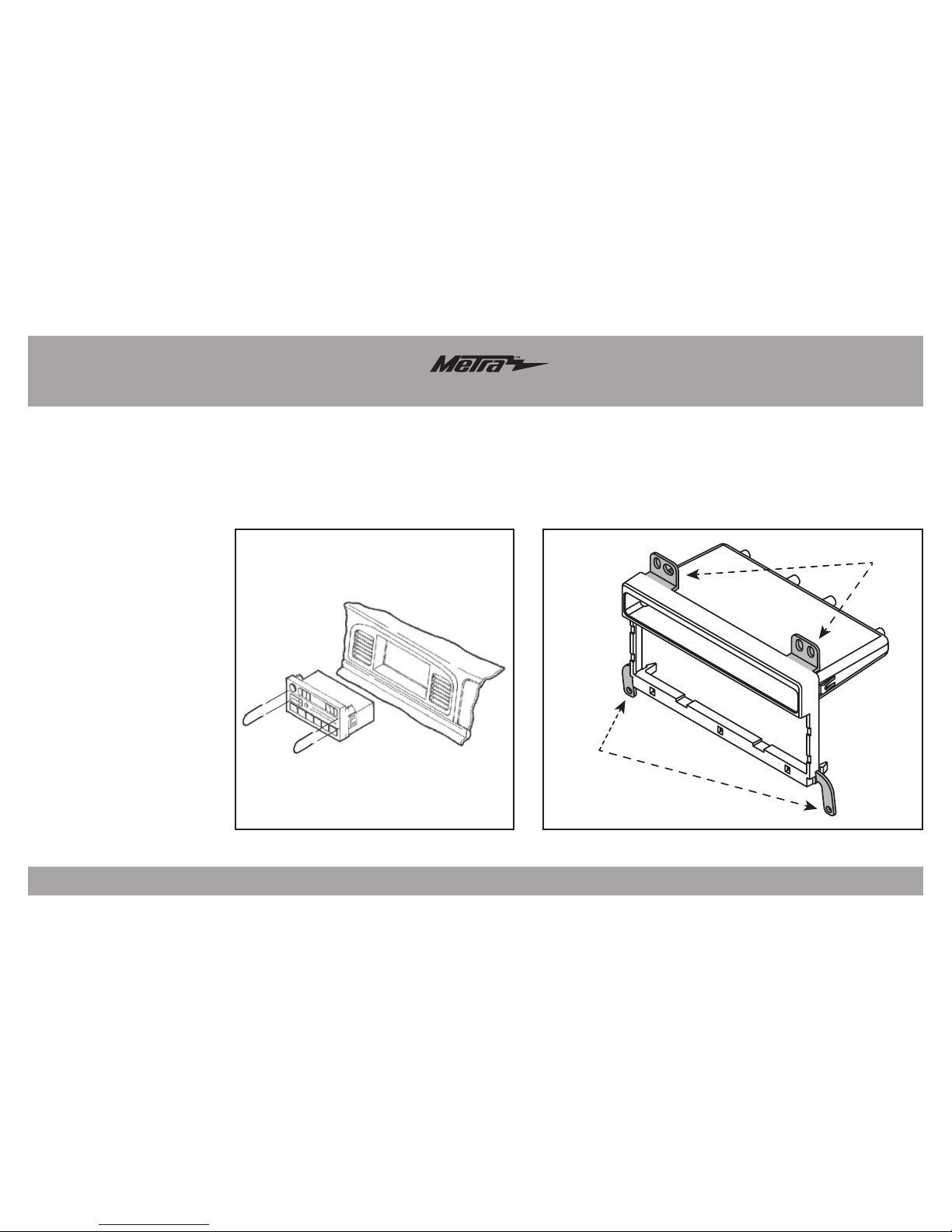

(Figure A)
1. Using Metra’s 86-5618, pull
the factory radio from the
dash and disconnect the
wiring. (Figure A)
2. Cut and remove the top
mounting legs “A” and the
bottom mounting legs “B”
from the radio housing.
(Figure B)
Continue to kit preparation
(Figure B)
“A”
“B”
“A”
“B”
Dash Disassembly

Ford Expedition 1997-2002/F-150 1997-2003/
F-150 (Heritage) 2004/F-250 1998
Excursion 2000-2005,
Lincoln Blackwood
2002/Navigator 1997-2002
1. Place your index fingers on the inner edges
of the A/C vents and push inward. Grasp
the exposed lip of each vent opening and
pull out on the radio trim bezel. Remove
the dash trim bezel (airbag wiring does not
need to be disconnected). (Figure A)
2.
Using Metra’s 86-5618, pull the factory radio
from the dash and disconnect the wiring.
3. Remove the (2) uppermost mounting
screws from the climate control panel.
4. Cut and remove the top mounting legs “A”
from the radio housing. (Figure B)
Note: For the Ford Expedition 1997-1998,
F-150 1997-1998, F-250 1998 remove the
rear support bracket from the dash cavity.
Continue to kit preparation
(Figure A)
4
(Figure B)
“A”
“A”
Dash Disassembly

5

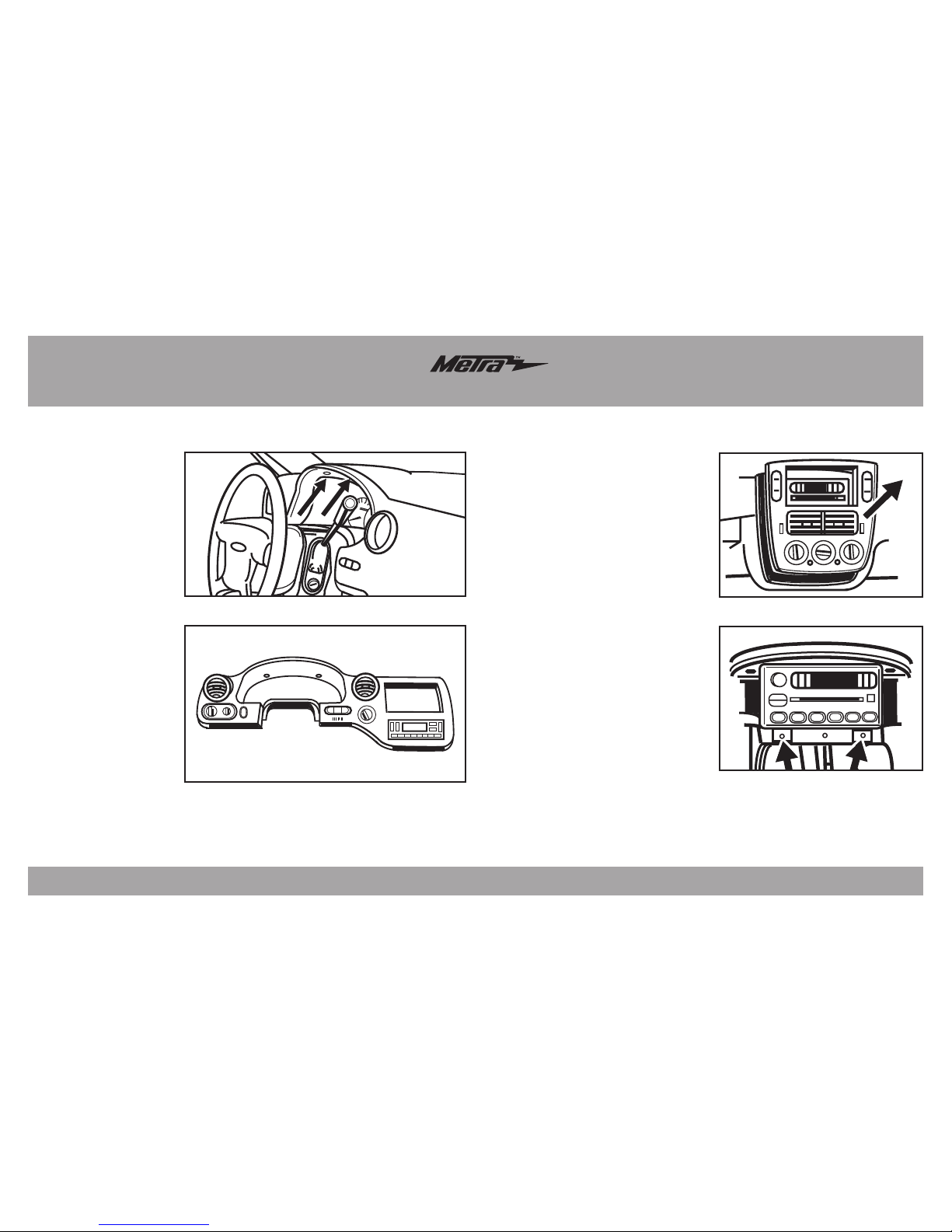

Ford Expedition (without
NAV) 2003-2006
1. Remove (2) 9/32”
screws from above
instrument cluster.
(Figure A)
2. Unclip and remove
entire panel
surrounding radio,
climate controls, and
instrument cluster.
(Figure B)
3. Remove (2) 9/32”
screws securing radio.
Continue to kit
preparation
(Figure B)
(Figure A)
Dash Disassembly
Ford Explorer 2002-2005
Mercury Mountaineer 2002-2005
1. Unclip and remove entire panel
surrounding radio including climate
controls and vents. (Figure A)
2. Remove (2) 9/32” screws securing
radio. (Figure B)
Continue to kit preparation
(Figure B)
(Figure A)

99-5027
6

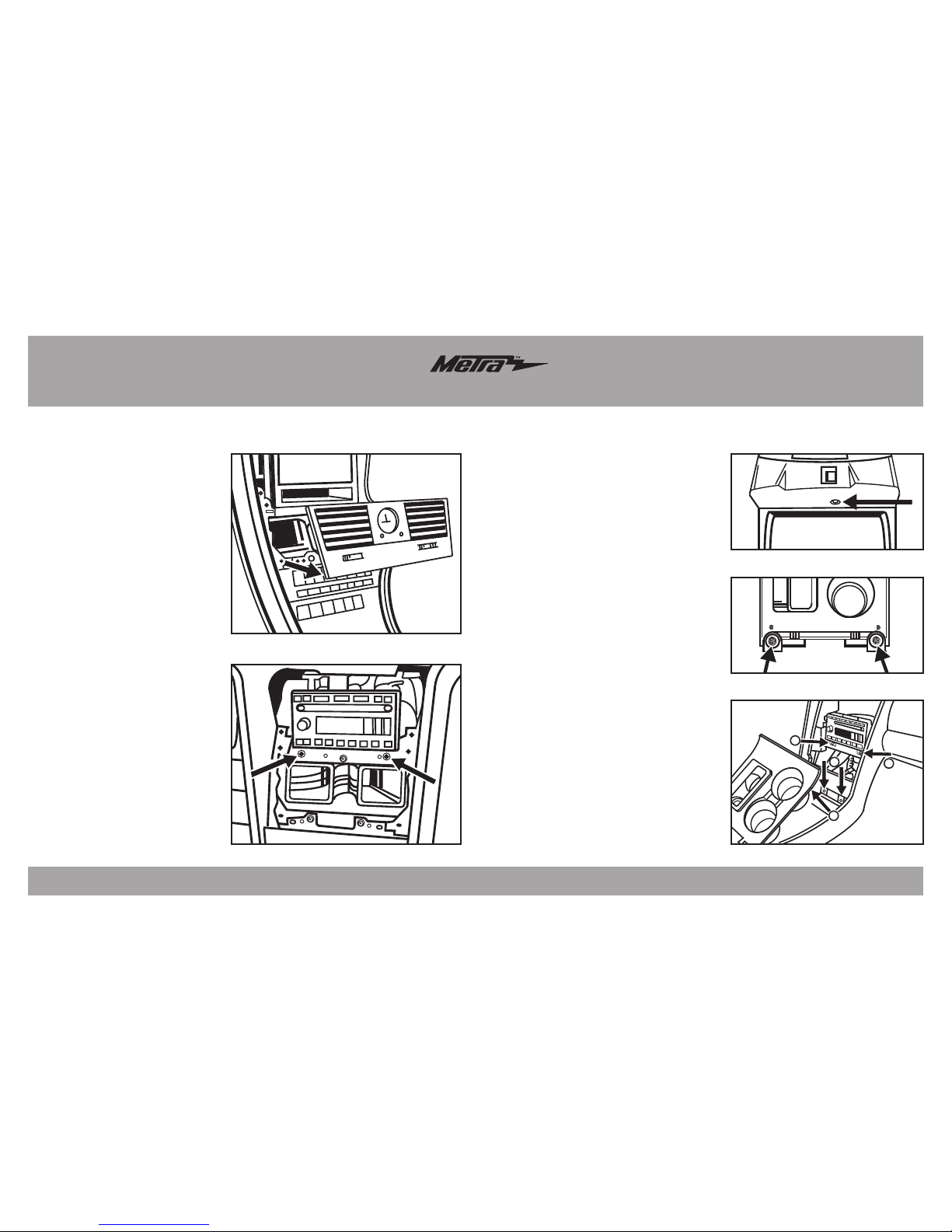

Lincoln Aviator 2003-2005
1. Unclip and remove vent panel above
radio on top of dashboard. (Figure A)
2. Remove (2) 9/32” screws exposed under
panel removed in step 1. (Figure B)
3. Unclip and remove panel around radio
with door in it. (Figure C)
Continued on the next page
(Figure A)
(Figure B)
(Figure C)
Dash Disassembly
Ford Mustang 2001-2004
1. Unclip and remove
shift lever trim panel.
(Figure A)
2. Unclip and remove
the entire panel
surrounding the radio
and climate controls
including the vents.
(Figure B)
3. Remove (2) 9/32”
screws securing radio.
(Figure B)
Continue to kit
preparation
(Figure A)
(Figure B)

99-5027
Lincoln Aviator 2003-2005 (Cont)
4. Unclip and remove vents
below radio. (Figure D)
5. Remove (2) 9/32” screws
securing radio. (Figure E)
Continue to kit preparation
(Figure E)
(Figure D)
105.9
7
Dash Disassembly
Lincoln Navigator
(with NAV, THX amp) 2003-2006
Navigator (without NAV) 2003-2006
1. Open center console and remove
(1) push pin from back of power
window switch panel. (Figure A)
2. Unclip and remove panel.
3. Remove (2) 9/32” screws exposed
on shifter panel then unclip and
move shifter panel off to side.
(Figure B, C)
4. Remove (2) 9/32” screws exposed
under ashtray assembly. (Figure C)
5. Unclip and remove entire panel
surrounding climate controls and
radio.
6. Remove (2) 9/32” screws securing
radio. (Figure C)
Continue to kit preparation
(Figure C)
(Figure A)
(Figure B)
INSIDE CENTER CONSOLE
TOP VIEW
Top view
Inside, center console
TOP OF SHIFTER TRIM PANEL
Top of shifter trim panel
5
4
7
7

8
1. Attach the corresponding radio housing trim piece to the
radio housing. (Figure A)
The following applications will use radio housing trim piece
“B” (thicker trim piece):
Ford Expedition (without NAV) 2003-2006
Ford Explorer 2002-2005
Ford Mustang 2001-2004
Lincoln Aviator 2003-2005
Lincoln Navigator (without NAV) 2003-2006
Lincoln Navigator (with NAV, with THX amp) 2003-2006
Mercury Mountaineer 2002-2005
2. Cut and remove the mounting legs (B) from the radio
housing. (Figure A)
Note: The kit is illustrated upside down of how it will
actually mount into the vehicle.
Continue to kit assembly, pages 9-10
All other applications will use radio housing trim piece “A”
(thinner trim piece):
Continue to kit assembly, pages 11-12
Kit Preparation
99-5027
(Figure A)
“B”
“A”“B”

99-5027
Kit Assembly
9
DIN radio provision with pocket
1. Remove the metal DIN sleeve
from the aftermarket radio.
2. Slide the sleeve into the radio
housing and secure by bending
the metal locking tabs down.
3. Slide the radio into the sleeve
until it clicks in.

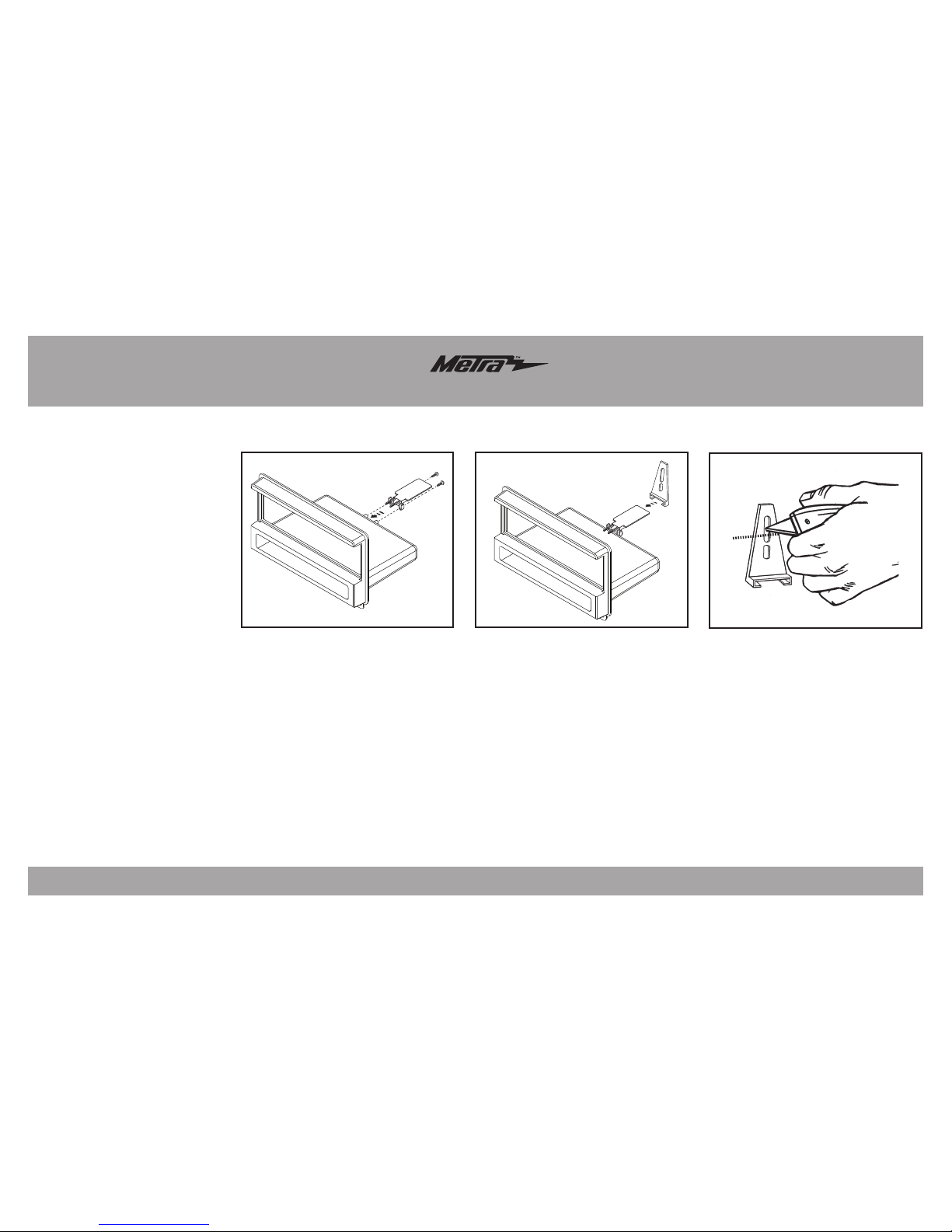

4. Secure the mounting bracket to
the back of the radio housing
with the (2) #8 x 3/8” Phillips
screws supplied. (Figure A)
5. Slide the rear support onto the mounting bracket, and
then mount the support to the back of the radio using the
hardware included with the radio. (Figure B)
Note: For the Ford Expedition and Lincoln Navigator, cut the
support as shown in Figure C. (Figure C)
6.
Locate the factory wiring harness and antenna connector in
the dash. Metra recommends using the proper mating adapter
from Metra or AXXESS. Test the radio for proper operation.
7. Reassemble the dash in reverse order of disassembly.
(Figure C)
(Figure B)(Figure A)

99-5027
10
ISO DIN radio provision with pocket
1. Attach the ISO brackets to the radio housing, and
then secure using the (2) #8 x 3/8” Phillips screws
provided and then snap the correct radio housing
trim piece to the radio housing. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the
aftermarket radio.
3. Slide the radio into the rear of the radio opening
and then secure with the screws supplied with the
radio. (Figure B)
4.
Snap the trim plate into the radio housing. (Figure B)
5. Locate the factory wiring harness and antenna
connector in the dash. Metra recommends using
the proper mating adapter from Metra or AXXESS.
Test the radio for proper operation.
6. Reassemble the dash in reverse order of
disassembly.
(Figure A) (Figure B)
Kit Assembly

99-5027
11
DIN radio provision with pocket
1. Remove the metal DIN sleeve from the aftermarket
radio.
2. Slide the sleeve into the radio housing and secure
by bending the metal locking tabs down.
3. Slide the radio into the sleeve until it clicks in.
4. Secure the mounting bracket to the back of the
radio housing with the (2) #8 x 3/8” Phillips screws
supplied. (Figure A)
5. Slide the rear support onto the mounting bracket,
and then mount the support to the back of the radio
using the hardware included with the radio. (Figure A)
6. Locate the factory wiring harness and antenna
connector in the dash. Metra recommends using the
proper mating adapter from Metra or AXXESS. Test the
radio for proper operation.
7. Reassemble the dash in reverse order of
disassembly.
(Figure A)
Kit Assembly

99-5027
ISO DIN radio provision with pocket
1. Attach the ISO brackets to the radio housing, and
then secure using the (2) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim ring from
the aftermarket radio.
3. Slide the radio into the rear of the radio opening
and then secure with the screws supplied with the
radio. (Figure B)
4.
Snap the trim plate into the radio housing. (Figure B)
5. Locate the factory wiring harness and antenna
connector in the dash. Metra recommends using the
proper mating adapter from Metra or AXXESS. Test
the radio for proper operation
.
6. Reassemble the dash in reverse order of
disassembly.
(Figure B)(Figure A)
Kit Assembly
12

99-5027

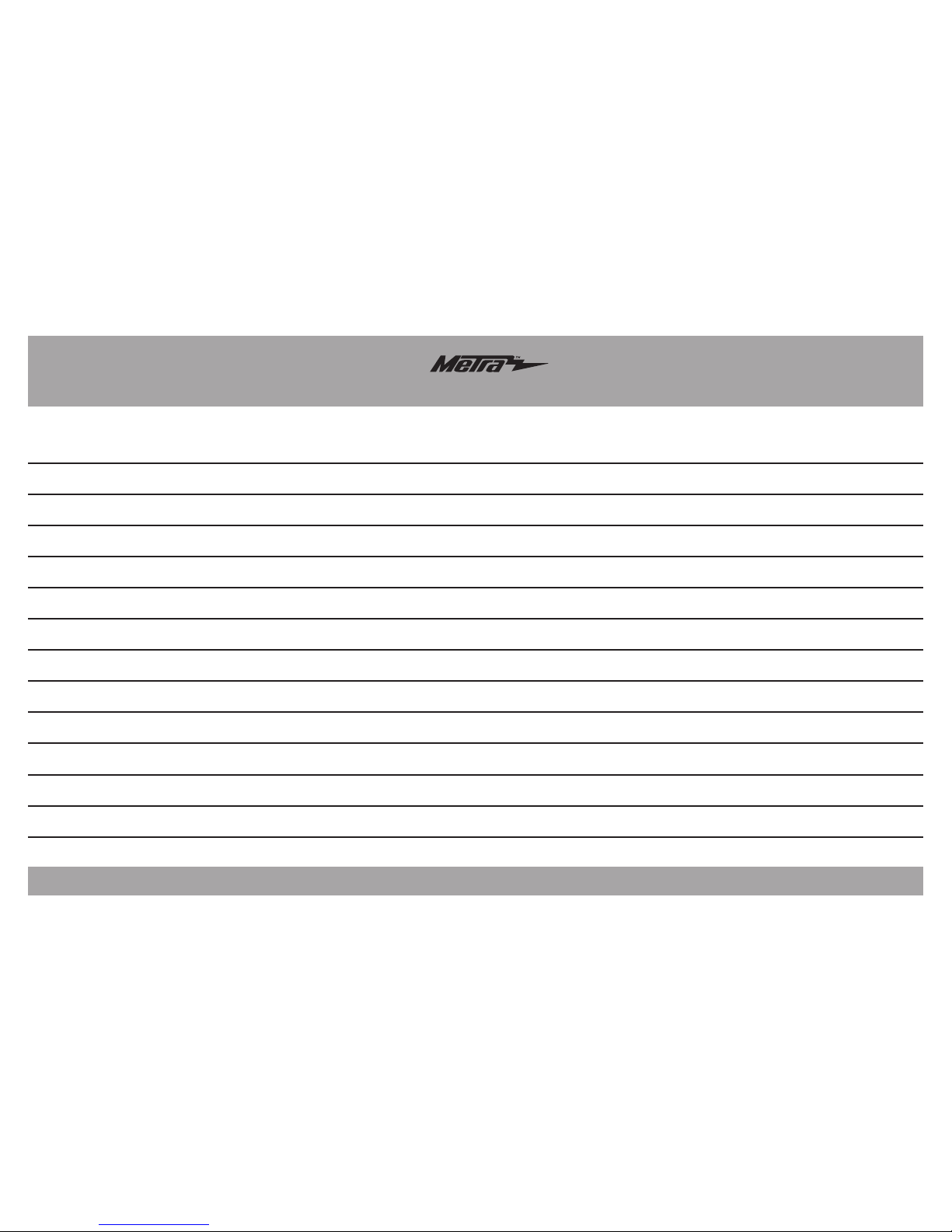

Notes
13

99-5027
Notes
14

99-5027
Notes
15

METRA - The World’s best kits ®metraonline.com © COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
REV. 10/21/2016 INST-99-5027
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Installation instructions for part 99-5027
®
IMPORTANT
If you are having difficulties with the
installation of this product, please call our
Tech Support line at 1-800-253-TECH.
Before doing so, look over the instructions a
second time, and make sure the installation
was performed exactly as the instructions
are stated. Please have the vehicle apart
and ready to perform troubleshooting steps
before calling.

METRA - The World’s best kits ®metraonline.com
REV. 10/21/2016 INST-99-5027
Instrucciones de instalación para la pieza 99-5027
®
¡PRECAUCIÓN! Todos los accesorios, interruptores, paneles de con-
troles de clima y especialmente las luces del indicador de las bolsas
de aire deben estar conectados antes ciclar la ignición. Además, no
quite el radio de fábrica con la llave en la posición o de encendido ni
con el vehículo funcionando.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• Provisión de radio DIN con bolsillo
• Provisión de radio ISO DIN con bolsillo
• A) Carcasa del radio • B) Moldura de la carcasa del radio, pieza “A”
• C) Moldura de la carcasa del radio, pieza “B” • D) Soportes ISO • E) Soporte trasero
• F) Placa de moldura ISO • G) Soporte de montaje • H) (4) tornillos Phillips de cabeza segmentada #8 x 3/8”
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
• Herramienta de remoción de panel
• Destornillador Phillips
• Llaves de remoción Ford 86-5618
HERRAMIENTAS REQUERIDAS
B C EDA
GF H
CABLEADO Y CONEXIONES DE ANTENA
Arnés de cableado:
• Visite metraonline.com para aplicaciones
de interfaz específicas
Adaptador de antena:
• No se requiere
(se venden por separado)
APLICACIONES
Ver interior de la portada
Ford/Mazda multi-kit 1995-2011
99-5027 / AT-586FT / AW-586FT / CF-586FT / IBR-527FD

99-5027
2
Aplicaciones
Ford
Crown Victoria .....................1995-2011
Econoline .............................1997-2008
Expedition ............................1997-2002
Expedition (sin NAV)................2003-2006
Explorer ...............................1995-2005
F-150 ..................................1997-2003
F-150 (Heritage)................................... 2004
F-350 ..................................1999-2004
F-550 ..................................1999-2004
Mustang ..............................2001-2004
Ranger .................................1995-2011
Windstar ..............................1999-2003
Excursion .............................2000-2005
Lincoln
Aviator .................................2003-2005
Continental ..........................1995-1997
Blackwood .....................................2002
Mark 8 .................................1996-1998
Town Car .............................1995-2002
Navigator .............................1997-2002
Navigator
(con NAV, amp THX) ....2003-2006
Navigator (sin NAV) .................2003-2006
Mazda
B-Series Pickup ...................1995-2009
Mercury
Grand Marquis .....................1995-2010
Mountaineer ........................1997-2005
Marauder .............................2003-2004
Mariner ................................2005-2007
Indice
Desmontaje del tablero
Ford
– Crown Victoria 1995-2011............................ 3
– Econoline 1997-2008 ................................... 3
– Excursion 2000-2005................................... 4
– Expedition 1997-2002.................................. 4
– Expedition (sin NAV) 2003-2006 ..................... 5
– Explorer 1995-2001 ..................................... 3
– Explorer 2002-2005 ..................................... 5
– F-150 1997-2003......................................... 4
– F-150 (Heritage) 2004 .................................. 4
– F-250 1998 .................................................. 4
– F-250 1999-2004......................................... 3
– F-350 1999-2004......................................... 3
– F-550 1999-2004......................................... 3
– Mustang 2001-2004..................................... 5
– Ranger 1995-2011....................................... 3
Lincoln
– Aviator 2003-2005 ....................................... 7
– Blackwood 2002........................................... 4
– Continental 1995-1997................................. 3
Lincoln (Cont)
– Mark 8 1996-1998 ....................................... 3
– Navigator 1997-2002 ................................... 3
– Navigator (con NAV, amp THX) 2003-2006........ 6
– Navigator (sin NAV) 2003-2006 ...................... 6
– Town Car 1995-2002.................................... 3
Mazda
– B-Series Pickup 1995-2009 ......................... 3
Mercury
– Grand Marquis 1995-2010 ........................... 3
– Marauder 2003-2004 ................................... 3
– Mariner 2005-2007 ...................................... 3
– Mountaineer 1997-2001............................... 3
– Mountaineer 2002-2005............................... 5
Preparación del kit .......................................... 8
Ensamble del kit
– Provisión de radio DIN con cavidad ............9, 11
– Provisión de radio ISO DIN con cavidad....10, 12

99-5027
3
Ford Crown Victoria 1995-2011/Econoline 1997-2008/Explorer 1995-2001/F-250 1999-2004/ F-350 1999-2004/F-550 1999-2004/Ranger 1995-2011,
Lincoln Continental 1995-1997/Mark 8 1996-1998/Town Car 1995-2002,
Mazda B-Series Pickup 1995-2009,
Mercury Grand Marquis 1995-2010/Marauder 2003-2004/Mariner 2005-2007/Mountaineer 1997-2001
(Figura A)
1. Usando las llaves 86-5618
de Metra, jale la unidad
central de fábrica del tablero
y desconecte el cableado.
(Figura A)
2. Corte y quite la patas de
montaje superior “A” y las
patas de montaje inferior
“B” de la carcasa del radio.
(Figura B)
Continúe con la
preparación del kit
(Figura B)
“A”
“B”
“A”
“B”
Desmontaje del tablero

4
Desmontaje del tablero
Ford Expedition 1997-2002/F-150 1997-2003/
F-150 (Heritage) 2004/F-250 1998
Excursion 2000-2005,
Lincoln Blackwood
2002/Navigator 1997-2002
1. Coloque sus dedos índices en los bordes
internos de las rejillas del aire acondicionado
y jale hacia adentro. Sujete el borde
expuesto de cada apertura de rejilla y jale
hacia afuera el bisel de la moldura del radio.
Quite el bisel de la moldura del tablero (no
es necesario desconectar el cableado de la
bolsa de aire).
(Figura A)
2.
Usando las llaves 86-5618 de Metra, jale
la unidad central de fábrica del tablero y
desconecte el cableado.
3. Quite los tornillos (2) de montaje superior
del panel de control climático.
4.
Corte y quite las patas de montaje superior
“A” de la carcasa del radio
. (Figura B)
Nota:
Para la Ford Expedition 1997-1998,
F-150 1997-1998, F-250 1998 retire el soporte
de apoyo trasero de la cavidad del tablero
.
Continúe con la preparación del kit
(Figura A) (Figura B)
“A”
“A”
