Midea VCR09B User manual

ROBOT VACUUM CLEANER
VCR09B
INSTRUCTION MANUAL
English
Please review this instruction manual before operating.

Contents
Safety Instructions
Product Introduction
Illustration of Appliance
Introduction of Components
Product Operation
Installing the Side Brushes
Charging your Robot Vacuum
Introduction of Remote Control
Power ON/OFF
Clean/Pause
Using APP
Mopping

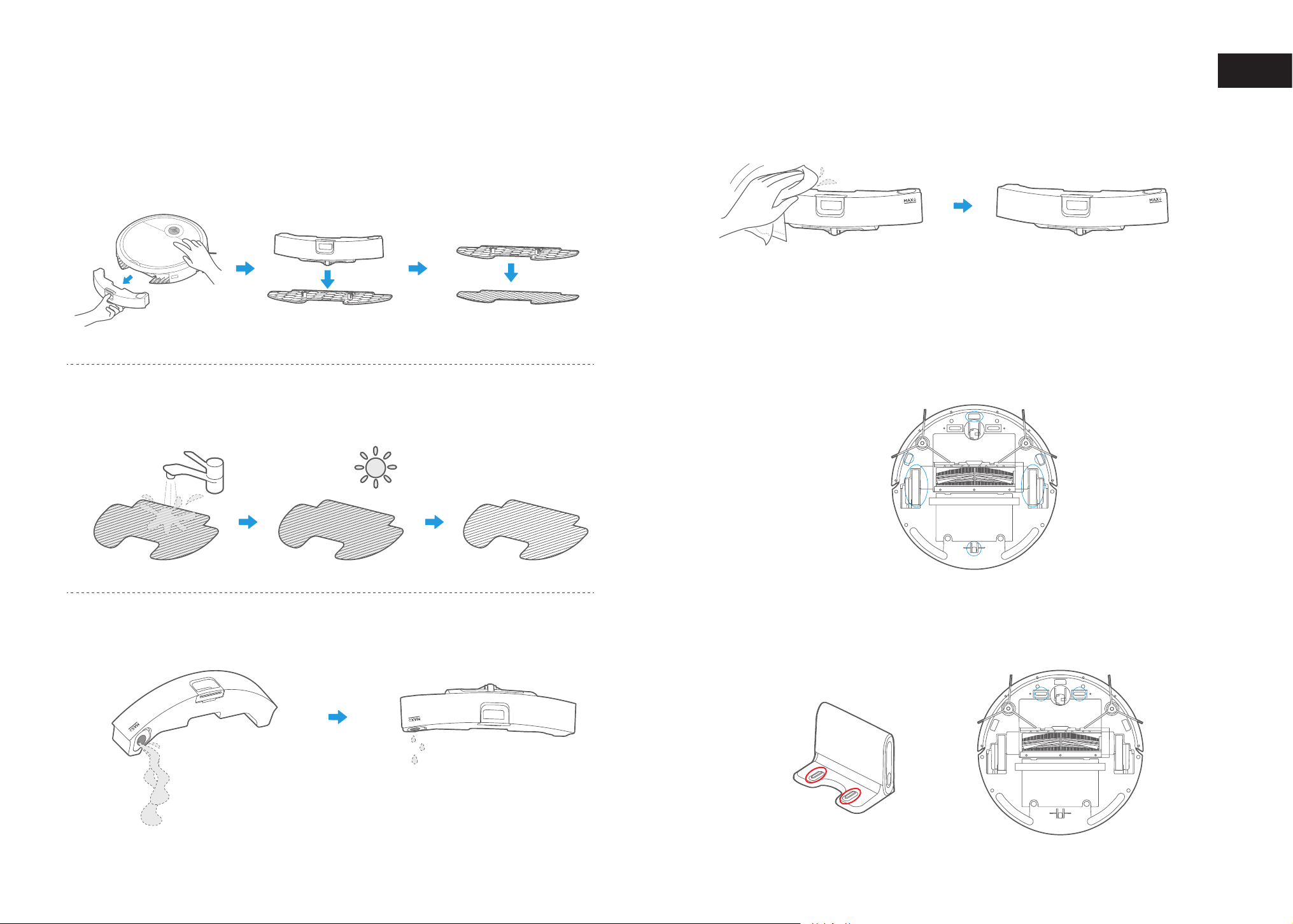

Product Maintenance
Cleaning the Side Brush
Cleaning the Dust Bin, Sponge and Filter
Cleaning the Water Tank
Cleaning the Sensor and Wheel
Cleaning the Charge Terminal
Cleaning the Brushroll
Trouble Shooting
4
6
8
9
10
11
11
12
13
14
15
18
20
20
20
22
23
23
24
26
2 3
EN

CAUTION
4 5
SAFETY INSTRUCTIONS
SAFETY
WARNING
EN
When using an electrical appliance, basis precautions should always be followed, including the
following:
READ ALL THE INSTRCUTIONS BEFORE USING( THIS APPLIANCE), Failure to follow the warnings
and instructions may result in electric shock, fire and/ or serious injury.
WARNING- To reduce the risk of fire, electric shock, or injury:
1. Do not use outdoors or on wet surfaces.
2. Do not allow to be used as a toy. Close attenttion is necessary when used by or near children,
pets or plants
3. Use only as described in this manual. Use only manufacture's recommended attachments
4. Do not use with damaged cord or plug. If appliance or docking station is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service
center.
5. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
6.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
7.Do not handle charger, including charger plug, and charger terminals with wet hands.
8.Do not put any objects into openings. Do not use with any opening blocked; keep free of dust,
lint, hair, and anything that may reduce air flow.
9.Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
10.Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where
they may be present.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
12.Do not use without dust bin and /or filters in place.
battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the
switch or energizing appliance that have the switch on invites accidents.
14. Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the
appliance accidentally.
15. Recharge only with the charger sepcified by the manufacturer. A charger that is suitalble for
one type of battery pack may create a risk of fire when sued with another battery pack.
16. Use appliance only with specifically designated battery packs. Use of any other battery packs
may create a risk of injury and fire.
17.When battery pack is not in use, keep it away from other metal objects, like papre clips, coins,
keys, nails, screws or other metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified
battery may exhibit unpredicatable behavior resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or
temperature above 130'C may cause explosion.
21. Do not use and store in extremely hot or cold environments( below4°C or above 40°C). Please
charge the robot in temperature above 4°C and below 40°C.
22.Follow all charging instructions and do not charge the battery pack or appliance outside of the
temperature range specified in the instructions. Charging inproperly or at temperatures outside of
the specified range may damaged the battery and increase the risk of fire.
23. Having servicing performed by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the product is maintained.
24.Do not modify or attempt to repair the appliance or the battery pack except as indicated in the
instructions for use and care.
25. Place the cords from other appliances out of the ares to be cleaned.
26. Do not operate the vacuum in a room where an infant or child is sleeping.
27. Do not operate the vacuum in an area where there are lit candies or fragile objects on the floor
to be cleaned.
28. Do not operate the vacuum in a room that has lit candies on furniture that the vacuum may
accidently hit or bump into.
29. Do not allow children to sit on the vacuum.
30. Do not use the vacuum on a wet surface.
31. Do not use the docking station if it is damaged.
33. The plug must be removed from the receptacle before cleaning or maintain the docking
station.
before removing the battery for disposal of the appliance.
35. If the robot will not be used for a long time, fully charge the robot and power OFF for storage
and unpluf the charger.
36. For use only with i5-DS docking station

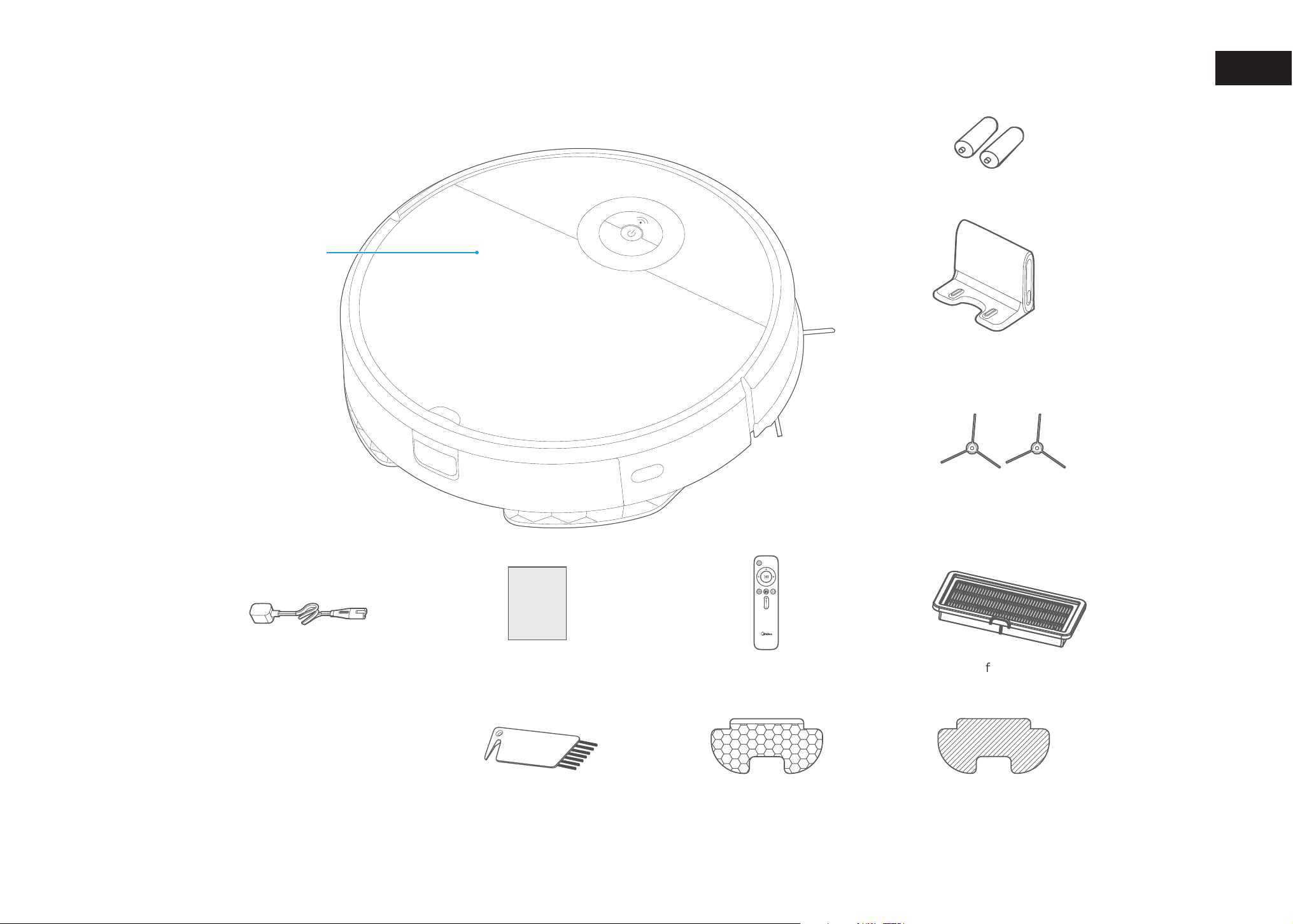

Product Introduction
6 7
Instruction manual X1
Manual
Mop holder X1
Spare ilter X1
Side brush X2 Pairs
Remote control X1
Docking station X1
Battery X2
Mopping pad X2
Cleaning brush X1
Robot Vacuum
EN
Power cord X1

Bumper
Start / Pause
Cover
Water tank
Power switch
Dust bin
Spare Filter
Dust bin release button
Power socket
8 9
Brushroll cover
Side brush
Brushroll
Wheel
Universal wheel
Battery cover
Cover for
water outlet
Mop holder
Dust bin
Docking station
Water tank assembly
Product Introduction
Illustration of Appliance Introduction of Components
Mopping pad
Holder
Water tank Water inlet
Release button
EN

10 11
Product Operation
NOTE
NOTE

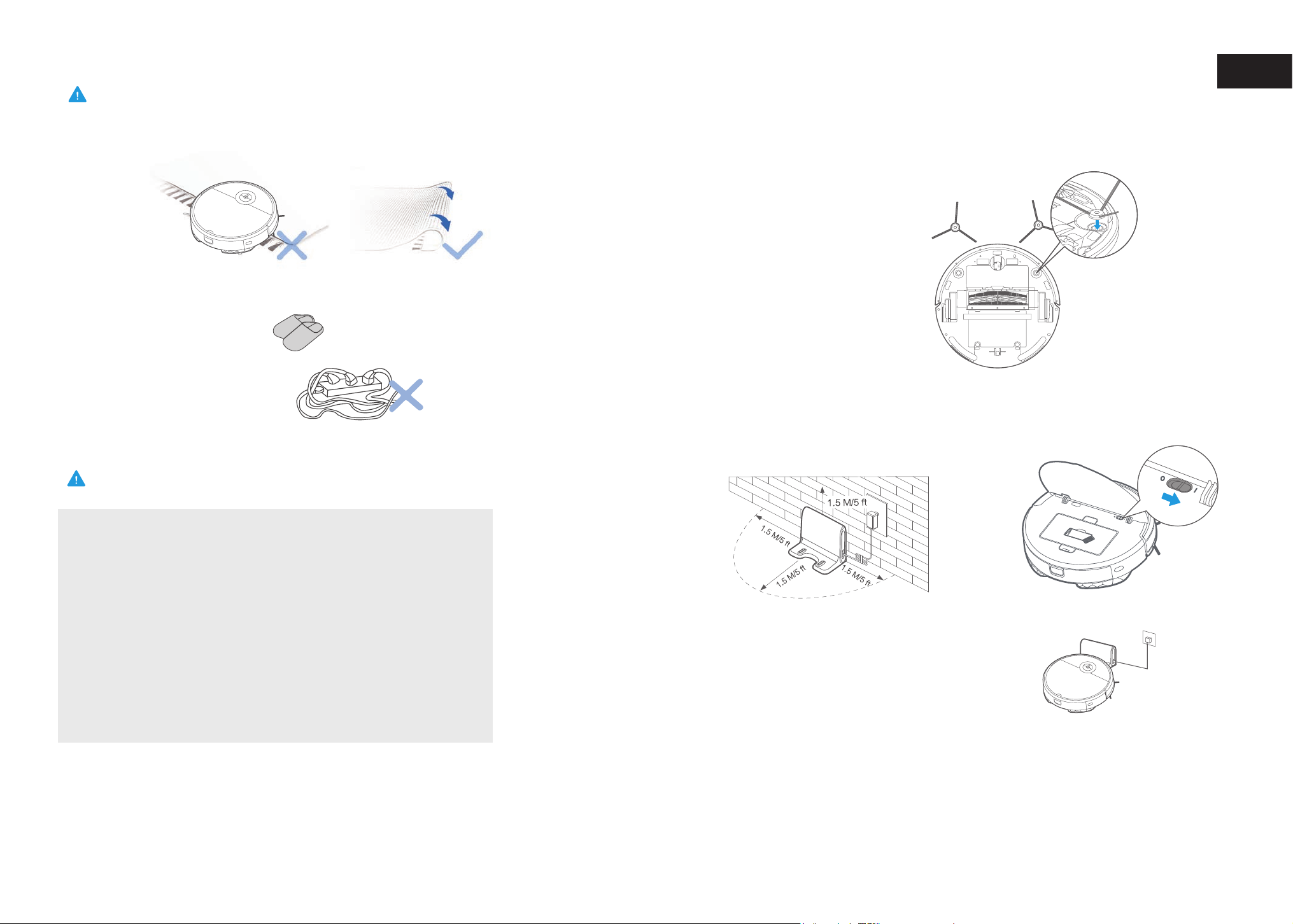

Charging your Robot Vacuum
Installing the Side Brushes
a. Turn the unit over.
b. With unit upside down, align side brush over brush post
c. Press down side brush until it snaps in place.
d. Ensure side brushes can rotate freely.
.
Open the cover and slide power switch
to on.
2
Place vacuum on the docking station, ensuring the charging contacts are touching. A white
light will start flashing, indicating the robot is charging.
Charge for 12 hours before first use.
3
1Put the docking station well：Place the
docking station against a wall and remove
all of obstructions around the docking
stand, as shown in the figure below.
1. Do not use your robot on wet surfaces or surfaces with standing water. Before using the
product on a rug with tasseled edges,please fold the rug edges under.
2 .Prepare room for cleaning, it is suggested to tidy up the room such as picking up small
objects from the floor and clearing away loose cords.
EN
a. When vacuum is charging, a white light will flash on the top of the
vacuum;
b. When charging is complete, the white light will remain
constant;
c. When the battery is low, a red flashing light will show;
d. If the robot is cleaning when low battery is identified, the robot
will automatically find the docking station to charge.
e. The robot can also be manually sent back to the docking station
to charge by using the remote, or app.
f. Before charging, it is suggested to empty the water tank and
remove the mopping pad and holder.

12 13
1. For the first use, please charge for 12 hours;
Remote control will work when within 16 feet of the robot.
2. When the battery is low power, please charge it as soon as possible;
3. If you do not use the appliance for an extended period of time, fully charge the battery and
put it in a ventilated and dry place;
4. If the appliance is not used for more than 3 months, charge the appliance for 12 hours.
NOTE
NOTE
a. Before using remote, insert the 2 included AAA batteries. Remove back battery cover and insert
in correct orientation.
b. To prevent the robot from accidentally falling down stairs, there is no backwards direction.
NOTE
Docking: Vacuum will return to docking station to charge.
1
6
Suc
Zig-zag cleaning: The robot will clean in a zig-zag route.
tion increase: Increases the suction power.
7
Suction decrease: Decreases the suction power.
8
Direction: Manually control the direction of the robot (forward, left, and right). Note that the robot
2
does not vacuum when in manual mode.
Start/Pause: Start or pause cleaning. The robot will automatically begin Smart Path cleaning.
3

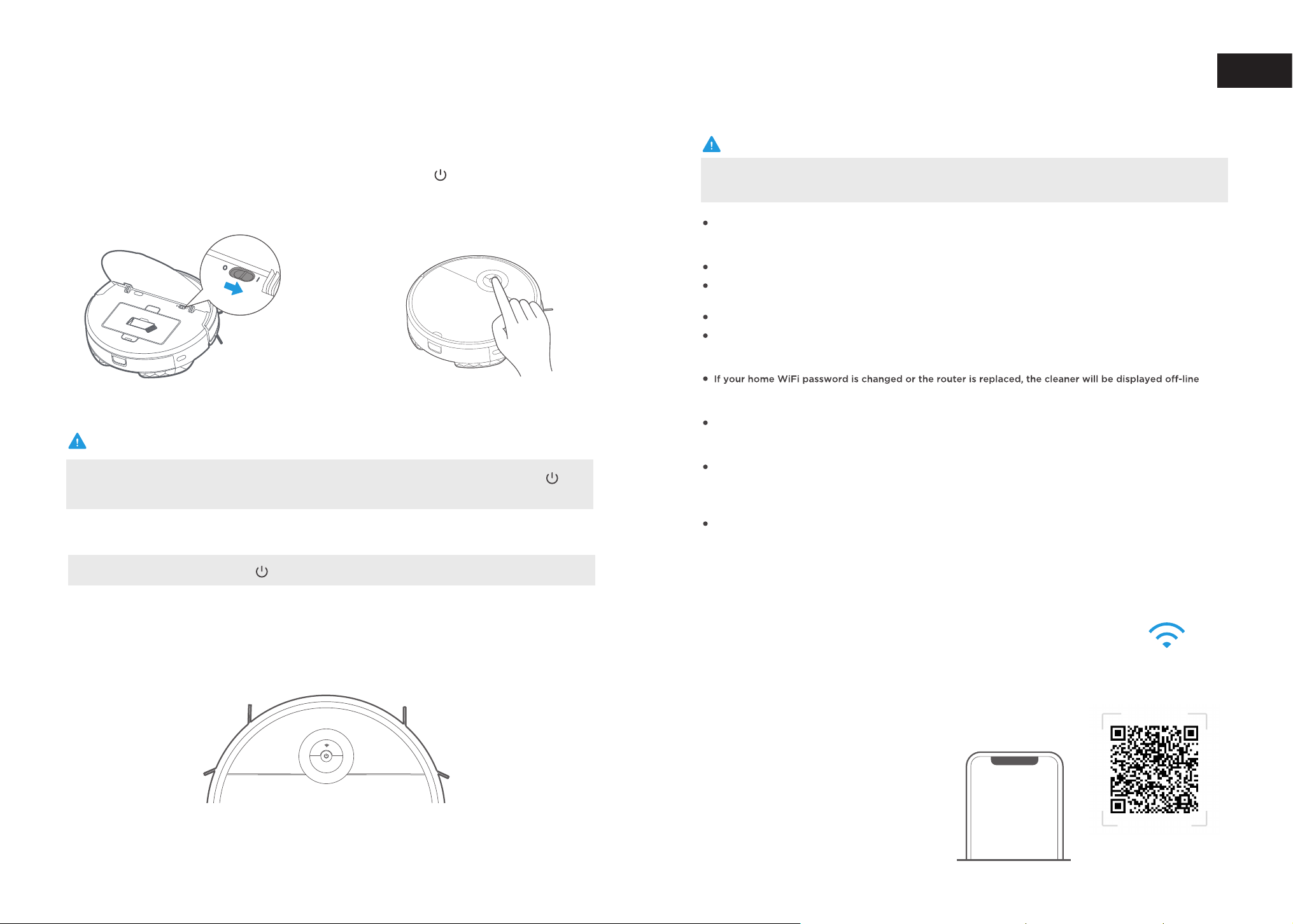

Power ON/OFF
Introduction of Remote Control
1Open the cover and slide power switch
to on.
Docking
Start/Pause
Spot cleaning
Suction decrease
Direction
Edge cleaning
Suction increase
Spot cleaning: The robot will clean a specific area in a spiral pattern.
4
Edge cleaning: The robot will clean edges of the room and furniture.
5
EN

14 15
If your home WiFi name or password is changed, you will need to reestablish connection with your
robot vacuum.
NOTE
Using APP
WiFi
1. Ensure mobile phone is connected to your home WiFi.
2. Download the MSmartLife app and register your vacuum
a. Scan the QR code or search for the MSmartLife app in the
Apple or Google Play store. Download the app.
b. Open the app and create your personal account.
Follow instructions on the screen.
Register and login
personal account
App supports iOS 8.0 and above, Android 4.4 and above phone system versions, but Pad device is
not accepted; generally the phone system version may be checked by clicking “Settings-About Mobile
Phone” in the mobile phone.
This model does not support WEP encrypted router;
The network accessing configuration of the cleaner requires WiFi network of 2.4GHz frequency range,
5GHz frequency range is not currently compatible;
Do not configure network accessing under the charging state;
WiFi is mandatory for network accessing configuration of the cleaner; once the network accessing is
configured successfully, App may be operated in WiFi/2G/3G/4G network environment and the
cleaner may be controlled remotely;
on App; Without any changes of App account number, one just needs to configure network accessing
for the cleaner once again;
If others want to use App to operate same cleaner, they just required to be invited on App by the
family creator to join in (on the condition that the invitee has downloaded App and registered for
an account);
When App changes, the old users may be invited to remove device on mobile App and the new users
just need to configure directly network accessing in accordance with network accessing instructions
(if the old users don’t remove the device on mobile App, it will be removed automatically after the
new users configure successfully network accessing);
Once the cleaner is configured successfully network accessing, the following operations will result in
clearance of WiFi settings and secondary network accessing configuration is required; Long press the
network accessing configuration key on the device over 3 seconds and after a tick sound is heard, all
Wi-Fi information will be cleared;
The robot will enter a sleep mode if it is not used for an extended period of time. Press the " "
button to wake the robot, and then use one of the options above to start cleaning.
NOTE
Clean
Pause
Ensure the power switch is in the
"ON" position.
1
Clean/Pause
2To begin cleaning, use one of the options below:
a. Press the " " key to start cleaning.
b. Press the Start/Pause button on the remote.
c. Press the Start button on the APP.
When robot is working, press the " " and it will stop cleaning.
EN

16 17
3. Add your robot vacuum to your app
Once the network access is configured successfully, you will be the owner of this cleaner and can
operate your security intelligent cleaner by accessing to cleaner operating interface.
Press the " +"button on the main screen of the app and select VCR09B from the available
list of products.
Add Equipment
After assembling and powering on the robot, press and hold down the " " button for 3 seconds
until a beep is heard. The WiFi indicator light should start to flicker. Follow instructions on app
for next steps.
4. Connect your robot to your WiFi
EN
+

18 19
a. It is recommended to fill the water tank 80% full before mopping for the first time.
b. It is recommended to use tap water in the water tank. Do not use any cleaning solutions.
c. It is recommended to observe the robot when mopping to ensure it does not go onto carpet.
NOTE
Attach the mopping pad to the holder.
1Press the button on tank and pull to
remove.
2
Fill the water.
3Attach mopping pad and holder to the
water tank.
4
Mopping
Reinsert the water tank assembly into
the vacuum.
5Press ‘‘ ’’ to start mopping.
6
EN

20 21
Clean the side brush with the cleaning tool or a rag.
2
If the side brush has deformed from hair wrap, remove
it in warm water for 5 seconds.
3
If the side brush is permanently damaged, replace with the spare set of brushes.
4
Empty the dust bin after each use.
Regularly check the side brush for hair wrapping.
1
Product Maintenance
Press the dust bin removal button
and lift out the dust bin.
Cleaning the Side Bru h
Cleaning the Dust Bin, Sponge and Filter
Open the cover.
12
Press dust bin release button to empty
into a trash bin.
Lift open the top of the dust bin to access
the spare filter.
34
NOTE
Rinse the dust bin, sponge, and filter with
warm water. dry THOROUGHLY for 24 hrs.
Replace the spare filter
holder back into the dust bin.
56
EN
Wash the filter and sponge ever 2-4 weeks.
NOTE

22 23
Once finished mopping, press the water tank release button and pull to remove the water tank.
Detach the mop holder and mopping pad by pulling them apart.
1
Wash the mopping pad and dry THOROUGHLY.
2
Lift open the Pour out the remaining water from the water tank.
3
Cleaning the Water Tank Wipe dry the water tank and set aside.
Exposure to sunlight is not recommended.
4
Wipe the sensor and wheels gently with a soft cloth, as shown in the figure below.
1
Cleaning the Sensor and Wheel
Wipe the charging terminals on both the robot and charging dock with a soft cloth,
as shown in the figure below.
1
Cleaning the Charge Terminal
EN

24 25
With the vacuum turned upside down, place your thumb in the open slot between the two tabs
1
Press brushroll lock and lift up to access brushroll.
2
Clean the brushroll with a soft cloth or warm water. Dry THOROUGHOLY and reinstall.
3
Cleaning the Brushroll
EN

In case of mis-function, please refer to the following table.
TROUBLE SHOOTING
- The appliance is covered by wires
on the ground, drooping curtain
fabric or blankets are twined
- Side brush and brushroll, etc.
get stuck, and the appliance cannnot
run normally
- The appliance will automatically start the
escape mode. If it is not out of trouble,
it needs manual help.
- Clean the windings on the side brush and
restart it. If not, contact the after-sales
department.
- Power on the appliance
- Make sure the appliance is fully in contact
with the charging terminal
- The power switch is not turned on
while charging
- The appliance and charging terminals
are not in full contact
- There’s no water in water tank
- The appliance base outlet hole
is blocked
- The ground is slippery
- Wires, shoes and other objects
normal operation of the appliance
- Cleaning is interrupted halfway
- The power switch is not turned on
- Low battery
- wheels are dropped and the three
groups of drop sensors are in a
falling state
- Turn on the power switch
- Charge the appliance
- Place the appliance close to the ground
- Contact aftersales service center
- If the floor is waxed, dry it before use
- Minimize ground items as much as possible
- Do not move or block the appliance
during work
- Contact the aftersales service center
- Add water
- Clear water outlet and tank filter
- The appliance does not sense
enough battery power
- Charge the appliance
- The power switch is not on
- Scheduled appointment is cancelled
- There’s obstacle ahead
- Bumper rail is clamped
- Clear the front obstacles
- Tap the bumper rail to check for if there’s
foreign matter stuck
- Turn on the power switch of appliance
- Reset and make appointment
The appliance gets stuck
Not cleaned completely,
and recharge it
No cleaning according
to the preset time
After the mop holder is
installed, the appliance
is impermeable
The appliance has missed
sweeps, there is no plan
for cleaning, and the map
in app shows irregularly
Appliance does not work
Appliance retreats
The appliance will not
be charged
SolutionProblem Possible reason
TROUBLE SHOOTING
SolutionCause
Disconnection
between the mobile
phone and the
equipment
Network connection
is not so smooth
- Change mobile phones for
confirmation;
- Change mobile phones and scan;
- Add equipment by product
category.
Troubleshooting
- Judge if the mobile phone
is accessed to network;
- Judge if the router works
normally;
- The cleaner is required to
be powered;
- The WiFi configurations of
the equipment are cleared;
- The WiFi password or
network is changed.
- Network busy;
- Poor WiFi signal reception
of the mobile phone;
- The network bandwidth is
not so adequate.
- Re-start the router and reduce the
number of access users;
- Check the settings of the mobile
phone itself;
- Broaden network bandwidth.
- The mobile phone shall be accessed
to network once again;
- Re-start the router;
- Power on the cleaner once again;
- Add new appliances into App;
- After system start-up, long press
“ ” 3 seconds and release it after
a tick sound is heard;clear all WiFi
configurations of the cleaner and
add household electrical appliances
once again for operation.
Slow App operation
The hardware
configurations of the
mobile phone are very
low, the camera has no
focus function.
The QR code of the
mobile phone itself
cannot be scanned
by App.
App displays
disconnection
Problem
26 27
In case of mis-function, please refer to the following table.
EN
