Mitutoyo ID-C112GXB User manual

ID-C112GXB
ABS Digimatic Indicator
For Bore gage
User’s Manual
Read this User’s Manual thoroughly
before operating the instrument. After reading,
retain it close at hand for future reference.
User
’
s Manual
No. 99MAH040B4
SERIES No. 543

No. 99MAH040B i
CONVENTIONS USED IN THIS MANUAL
Safety Precautions
To ensure that instruments are operated correctly and safely, Mitutoyo manuals use
various safety symbols (Signal Words and Safety Alert Symbols) to identify and warn
against hazards and potential accidents.
The following signs indicate general warnings:
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in serious
injury or death.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury or property damage.
Types of Notes
The following types of notes are used in this manual to help the operator obtain reliable
measurement data through correct instrument operation.
IMPORTANT
An important note provides information essential to use the product. You cannot
disregard this note.
An important note is a type of precaution, which if neglected could result in degraded
performance or accuracy, or instrument malfunction/failure.
NOTE
A note provides information to be especially noted or supplemented to use the product.
A note also supplies information to be noted for specific operations.
TIP
A tip is a type of note that helps the user apply the techniques and procedures described
in the text to his or her specific needs.
It also provides reference information associated with the topic being discussed.
The specifications and information in this manual are subject to change without notice.
Copyright 2014-2020 Mitutoyo Corporation. All rights reserved.

No. 99MAH040B
ii
Battery-related Warnings
WARNING
Always keep the battery out of the reach of infants and toddler to prevent it from being
swallowed. If it is swallowed, consult a physician immediately.
The battery should never be short-circuit, disassembled or deformed, heated or
exposed to flames.
If alkaline liquid contained in the battery does come in contact with your eyes, flush
them immediately with plenty of clean water and consult a physician. If the liquid
adheres to the skin or clothes, immediately flush it with plenty of clean water.
CAUTION
Never charge the battery since it is a primary battery. Never reverse the positive and
negative terminals when mounting. Improper handling of the battery could lead to
leakage or explosion, causing bodily injury or malfunction.
NOTE
Always use the recommended battery.
If the instrument will not be used for more than three months, remove the battery and
store it separately.
When discarding or storing the battery, cover the positive (+) and negative (–) terminals
with insulating tape to prevent contact with other metals. When disposing of it, follow
the ordinances or regulations of the local government.
Disposal Warnings
WARNING
A liquid crystal display and a lithium metal battery are used in this product. When
disposing of the instrument, follow the ordinances or regulations of the local
government.
The liquid crystal display contains an irritating substance. Should the liquid content
contact an eye or skin, flush with clean, flowing water. If the substance enters the
mouth, immediately rinse the mouth, drink plenty of water, induce vomiting, and then
consult a physician.

No. 99MAH040B
iii
Cautions on use
Observe the following precautions to avoid instrument failure or malfunction.
IMPORTANT
Do not strike the instrument or allow it to be struck.
Do not drop it or apply excessive force to it.
Do not disassemble or modify the instrument.
Do not press the keys with a pointed object (such as screwdriver or ballpoint pen).
Do not use or store the instrument under direct sunlight, or in an excessively hot or
cold environment.
Be alert for malfunction due to material deterioration if it is used in an environment with
low or high atmospheric pressure.
Do not store the instrument in a high-humidity environment. Do not use the instrument
where it could be splashed with coolant.
Do not use high-voltage equipment, such as an electric marking pen, near the
instrument. Electronic parts may be damaged by such equipment. Be alert for
malfunction if it is used in the vicinity of electric noise.
Secure the instrument with a fixture such as a dial gage stand in a vibration-free
environment.
Do not subject the spindle to a vertical load or torsion.
Wipe stains from the instrument panel by using a soft cloth or a cotton swab that is dry
or moistened with diluted neutral detergent. Do not use an organic solvent such as
thinner and benzene, which may cause the instrument panel to deform or malfunction.
The contaminated spindle may cause malfunction. Wipe them off with a cloth damped
with alcohol.
NOTE
Be alert for measurement errors caused by thermal expansion of the component parts
and the fixtures, resulting from a significant temperature fluctuation. Use the instrument
in a temperature-controlled room that has minimum temperature fluctuation. Allow
sufficient time for the instrument to thermally stabilize if it is moved to an environment
with a different temperature.

No. 99MAH040B
iv
Warranty
In the event that this product should prove defective in workmanship or material, within
one year from the date of original purchase for use, it will be repaired or replaced, at
Mitutoyo’s option, free of charge upon its prepaid return to Mitutoyo
If the product fails or is damaged for any of the following reasons, it will be subject to a
repair charge, even if it is still under warranty.
(a) Failure or damage owing to fair wear and tear.
(b) Failure or damage owing to inappropriate handling, maintenance or repair, or to
unauthorized modification.
(c) Failure or damage owing to transport, dropping, or relocation of the instrument after
purchase.
(d) Failure or damage owing to fire, salt, gas, abnormal voltage, lightning surge, or
natural disaster.
(e) Failure or damage owing to use in combination with hardware or software other than
those designated or permitted by Mitutoyo.
(f) Failure or damage owing to use in ultra-hazardous activities.
This warranty is effective only where the instrument is properly installed and operated in
conformance with the instructions in this manual within the original country of the
installation.
EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED
CONDITIONS, REPRESENTATIONS, AND WARRANTIES OF ANY NATURE
WHATSOEVER INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT
OR WARRANTY ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE, ARE HEREBY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY
APPLICABLE LAW.
You assume all responsibility for all results arising out of its selection of this product to
achieve its intended results.
Export Control Compliance
This Product falls into the Catch-All-Controlled Goods and/or Catch-All-Controlled
Technologies (including Programs) under Category 16 of Appended Table 1 of Export
Trade Control Order or under Category 16 of Appended Table of Foreign Exchange
Control Order, based on Foreign Exchange and Foreign Trade Law of Japan.
If you intend re-exporting the product from a country other than Japan, re-selling the
product in a country other than Japan, or re-providing the technology (including program),
you shall observe the regulations of your country.

No. 99MAH040B
v
Contents
CONVENTIONS USED IN THIS MANUAL.........................................................................................................i
Battery-related Warnings.................................................................................................................................ii
Disposal Warnings ...........................................................................................................................................ii
Cautions on use...............................................................................................................................................iii
Warranty ...........................................................................................................................................................iv
Export Control Compliance............................................................................................................................iv
1OVERVIEW............................................................................................................................................ 1-1
1.1 Overview ........................................................................................................................................ 1-1
1.2 Features(what you can do)........................................................................................................... 1-2
1.3Part Name and Dimensions.......................................................................................................... 1-3
1.4Details of the Display unit ............................................................................................................ 1-4
1.5Specifications................................................................................................................................ 1-5
1.6Standard accessories ................................................................................................................... 1-6
1.7 Optional accessories .................................................................................................................... 1-6
2SETUP.................................................................................................................................................... 2-1
2.1 Installation (replacement) of Battery and Initial Setting............................................................ 2-1
2.2 Adjusting Display Angle............................................................................................................... 2-2
2.3Mounting on the bore gage.......................................................................................................... 2-2
3FUNCTIONS AND OPERATIONS......................................................................................................... 3-1
3.1 Power ON/OFF............................................................................................................................... 3-2
3.2 Measurement mode....................................................................................................................... 3-2
3.2.1Preset setting......................................................................................................................... 3-2
3.2.2Numerical value Editing........................................................................................................ 3-4
3.2.3Changing to Minimum value detection mode “Min”.......................................................... 3-6
3.2.4Holding display value (when a data processor is not connected) ................................... 3-6
3.2.5Holding display value (when a data processor is not connected) ................................... 3-6
3.2.6Data seve/Data load............................................................................................................... 3-7
3.2.7Swtching units (in/mm)....................................................................................................... 3-10

No. 99MAH040B
vi
3.3 Setup mode.................................................................................................................................. 3-11
3.3.1 TOL:Tolerance judgment.....................................................................................................3-14
3.3.2 RES:Resolution....................................................................................................................3-16
3.3.3SCALE:Analog bar graduation...........................................................................................3-18
3.3.4LOCK:Keylock......................................................................................................................3-20
3.3.5 OTHER:Other functions ......................................................................................................3-22
3.3.5.1 PC(1):PC communication...............................................................................................3-25
3.3.5.2 RULER(2):Analog bar display ........................................................................................3-28
3.3.5.3 FAST(3):FAST mode ......................................................................................................3-30
3.3.5.4 RESET(4):All reset .........................................................................................................3-32
3.2 Calibration mode .........................................................................................................................3-34
4DATA OUTPUT.......................................................................................................................................4-1
4.1 Cable connection...........................................................................................................................4-1
4.2 Output connector ..........................................................................................................................4-2
4.3 Output Data Format.......................................................................................................................4-2
4.4 Timing Chart...................................................................................................................................4-3
5ERROR MESSAGE AND ACTION........................................................................................................5-1
Service Network

No. 99MAH040B
1-1
1 OVERVIEW
This chapter describes overview of this instrument including names
and functions of each part, external dimensions, and details of the
display unit.
1.1 Overview
This instrument is the dedicated inside diameter measuring instrument mounted to the
bore gage (511, 526 series). To obtain the highest performance from this instrument and to
use it safely, read this User‘s Manual and User‘s Manual of the bore gage prior to use.
Measurement and Setup mode are available with this instrument.
Measurement mode
・Normal mode : Dynamically displays measurement data
・Minimum value detection mode: Detects minimum value of the measurement data
Setup mode: Enables each setting
The measuring system of this instrument is the only ABS system (Absolute value
measurement which measures distance (displacement) from a preset position).
NOTE
・In this instrument, there are no run-out value detection mode and maximum value
detection mode.
・There is not INC system.
・This instrument is specially designed for bore gage. Therefore, the count direction
when spindle is pressed is limited to minus, and the plus direction is not available.
1

No. 99MAH040B
1-2
1.2 Features (what you can do)
The following can be achieved with this instrument:
・Measurement-related items
・Tolerance judgment of the measurement result P.3-11
・Measurement of minimum value P.3-6
・Outputting the measurement data to the data processor P.3-6
・Changing the display value unit P.3-10
・Display-related settings
・Changing the resolution P.3-16
・Changing the graduation of the analog bar P.3-18
・Hiding the analog bar P.3-28
・Holding the displayed measurement data P.3-6
・Saving the displayed measurement data P.3-7
・Loading the saved data P.3-7
・Other setting-related items
・Key lock P.3-20
・Setting up each function from PC P.3-25
・Setting up the FAST mode P.3-30
・Resetting to the factorydefault P.3-32

No. 99MAH040B
1-3

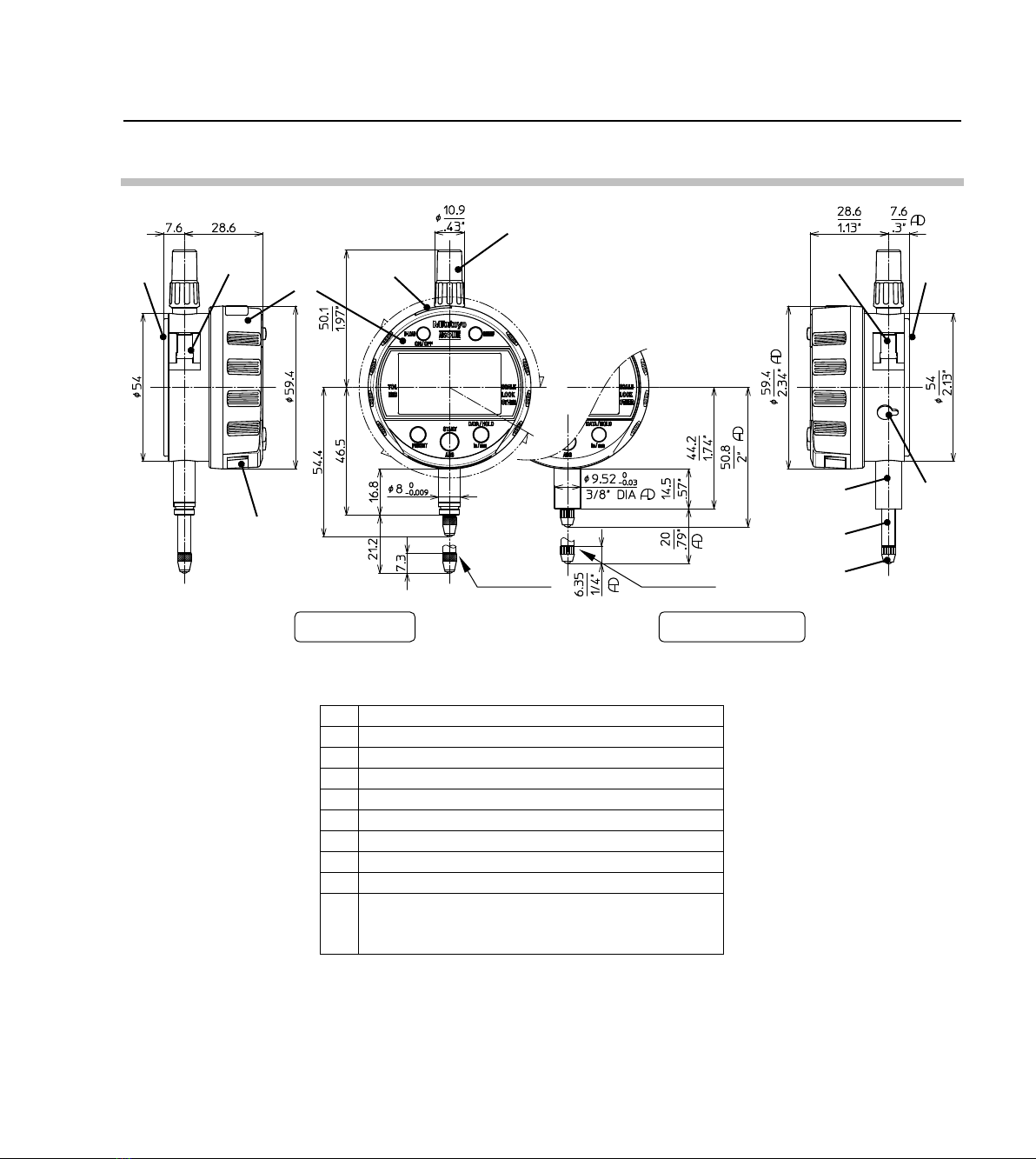

1.3 Part Names and Dimensions
1
Cap
2
Output connector (with rubber cap)
3
Display unit
4
Battery holder
5
Lever mounting position (left and right)
6
Flat back
7
Release mounting hole (with cap)
8
Stem
9
Spindle
10
Contact point
ISO/JIS models
ASME/AGD models
: Part No.901312
: Part No.21BZB005
1
2
Display rotate 330°
(A)
(B)
3
5
6
7
8
9
10
4
5
6
Joint screw
M2.5x0.45
ISO/JIS models
Joint screw
No.4-48 UNF
ASME/AGD models

No. 99MAH040B
1-4
1.4 Details of the Display unit
1
Lower left key
13
Tolerance judgment
2
Center key
14
Analog bar
3
Lower right key
15
Analog bar graduation
4
Upper right key
16
Minimum value detection
measurement
5
Upper left key
17
Lock
6
Key assist
18
Lower over-range
7
Cursor
19
Low battery alarm
8
Parameter
20
FAST
9
Display value
21
Maximum value
10
Unit
22
Minimum value
11
Data hold
23
Data No.
12
Preset No.
1
2
3
5
4
8
8
6
6
7
7
19
15
12
13
11
10
9
17
14
20
18
16
Measurement mode
Data load
22
21
23

No. 99MAH040B
1
-
5
1.5 Specifications
Model name *1 ID-C112GXB ID-C112GMXB ID-C112GEXB
Code No. *1 543-310B 543-311B 543-312B
Resolution *2 0.001 /0.01 mm 0.00005/0.0001/0.0005 in // 0.001/0.01 mm
Measuring range 12.7 mm 0.5 in / 12.7 mm
Error of indication for the
total measuring range
MPEE *3
0.003 mm ±0.0001 in / 0.003 mm
Hysteresis MPEH *3 0.002 mm 0.0001 in / 0.002 mm
Repeatability MPER *3 0.002 mm 0.0001 in / 0.002 mm
Stem diameter φ8 mm 3/8 in DIA
Contact point Carbide
(M2.5x0.45)
Carbide
(No.4-48UNF)
Measuring force MPL ≤1.5 N
Measuring direction Useful in all directions
Protection level *4 IP42 (in factory shipment state)
Power supply Lithium battery CR2032 ×1pc.
Battery life *5 Normal use :Approx. 1 year
Scale Electrostatic capacitance absolute encoder
Response speed Infinite
Measurement
frequency *6
Normal mode: 10 times/s
Minimum value detection mode: 50 times/s
CE marking
EMC Directive: EN 61326-1
Immunity test requirements: Clause 6.2 Table 2
Emission limit: Class B
RoHS Directive: EN IEC 63000
Operating temperature 0 ℃~40 ℃
Storage temperature -10 ℃~60 ℃
Net weight 170 g
*1：All instruments in this series are of the flat-back type.
*2：Changeable by way of setting. Refer to “3.3.2 RES : Resolution”.
*3：20°C, normal measurement.
The values are calculated with the resolution set to 0.001mm.
*4：The protection level (IP: International Protection) is indicated according to IEC 60529 and JIS C 0920
standards.
*5：Battery life depends on use of the indicator. Use the above value as a guide.
*6：If the spindle speed exceeds following, the correct peak value may not be displayed.
Normal mode: 10µm/s
Minimum value detection mode: 50µm/s

No. 99MAH040B
1-6
1.6 Standard accessories
・ Lithium battery CR2032(for monitor)
・No.99MAH040B User’s Manual
・No.99MAH041B Quick Reference Manual
・No.99MAH042M Product regulation guide
・No.421RAC717 Precautions for Use
・ Certificate of inspection
・No.WA100 Warranty
1.7 Optional accessories
・No.905338 Connecting cable (1m)
・No.905409 Connecting cable (2m)
・No.21EZA313 Parameter Setup Kit

No. 99MAH040B
2-1
2 SETUP
This chapter describes installation of a battery, adjusting display
angle and mounting on the bore gage
2.1 Installation (replacement) of Battery and Initial
Setting
A lithium battery (CR2032) is used with this instrument.
This instrument is not delivered with the battery set into position, so set the battery before
use.
1. Remove the battery holder by using a flat-blade screwdriver or the like.
(When replacing the battery, remove the spent battery.)
2. Set the battery into the battery holder as described in the figure below.
3. Set the battery holder into the original position. ([------] is displayed.)
4. To enter into the preset setting, press the center key.
5. Set up the preset values referring to "3.2.1 Preset setting".
6. Set up measurement mode and function which you want. (See section 3. Functions
and Operating Procedure.)
(2)
(3)
2

No. 99MAH040B
2-2
IMPORTANT
・Do not use a sharp-pointed tool to remove the battery holder and not pry out the
battery holder, to prevent damage to the battery holder.
・Note not to damage your nail when the battery holder is removed by hand.
・If the battery and battery holder is not set properly, a damage andmalfunction may
result.
・If the Measurement mode is not entered after executing the above procedure, set the
battery again.
・If the instrument will not be used for more than three months, remove the battery and
store it separately to prevent damage by battery leakage.
NOTES
・The supplied battery is used only to check the functions and performance of the
instrument, so it may not meet the battery life specification.
2.2 Adjusting Display Angle
The display can be rotated 90° (to position A) clockwise or 240° (to position B)
counterclockwise from the initial position. (For the rotating range, see 1. Part Names and
Dimensions.)
IMPORTANT
・Stoppers are set at both positions A and B. Stop rotating the display at the stoppers, or
the instrument may malfunction.
・Do not push in the display or pull it out. Doing so may cause the instrument to
malfunction.
2.3 Mounting on the bore gage
This instrument is used by mounting on a bore gage (optional) correctly. For details, refer
to the User‘s Manual of the bore gage.

No. 99MAH040B
3-1
3 FUNCTIONS AND
OPERATIONS
This chapter describes functions and their operations of this instrument.
Each key function will change as follows depending on the operation mode.
●Measurement mode
* "Press and hold" means pressing and holding the key for 2 seconds or more.
Keys
Press
Press and hold
Lower left
－
PRESET (3.2.1)
Center
START (3.2.5)
－
Lower right
DATA (3.2.7)
HOLD (3.2.6)
in/mm (3.2.10)
Upper left
D-LOAD(3.2.9)
ON/OFF (3.1)
Upper right
MENU (3.3)
－
●Setup mode/Numerical values setting
Keys
Press
Press and hold
Lower left
SELECT /
－
Center
OK /
－
Lower right
EDIT/
－
Upper left
CANCEL
－
Upper right
EXIT
－
3

No. 99MAH040B
3-2
3.1 Power ON/OFF
Power ON: Press the upper left key.
Power OFF: Press and hold the upper left key
NOTE
・If the power is turned off right after the battery is installed before completing preset
setting, "------" will be displayed when the power is turned on again.
・When the power is turned off while the instrument is holding the display value, and
then the power is turned on again, the held display value will be released.
・When the power is turned off, all the measurement values saved with the data save
function will be deleted.
Auto-off function (energy saving function): The power automatically will be turned off after
approximately 20 minutes of idle time.
NOTE
・When enabling FAST mode, auto-off function will be disabled. (Refer to "3.3.6.3
FAST(3): FAST mode ".)
3.2 Measurement mode
The following describes each setting and operation of the measurement mode of this
instrument. Refer to "1.1 Overview" for details of the measurement mode.
3.2.1 Preset setting
Set up the preset when performing master setting.
Three settings; P1, P2, P3 are available as preset values.

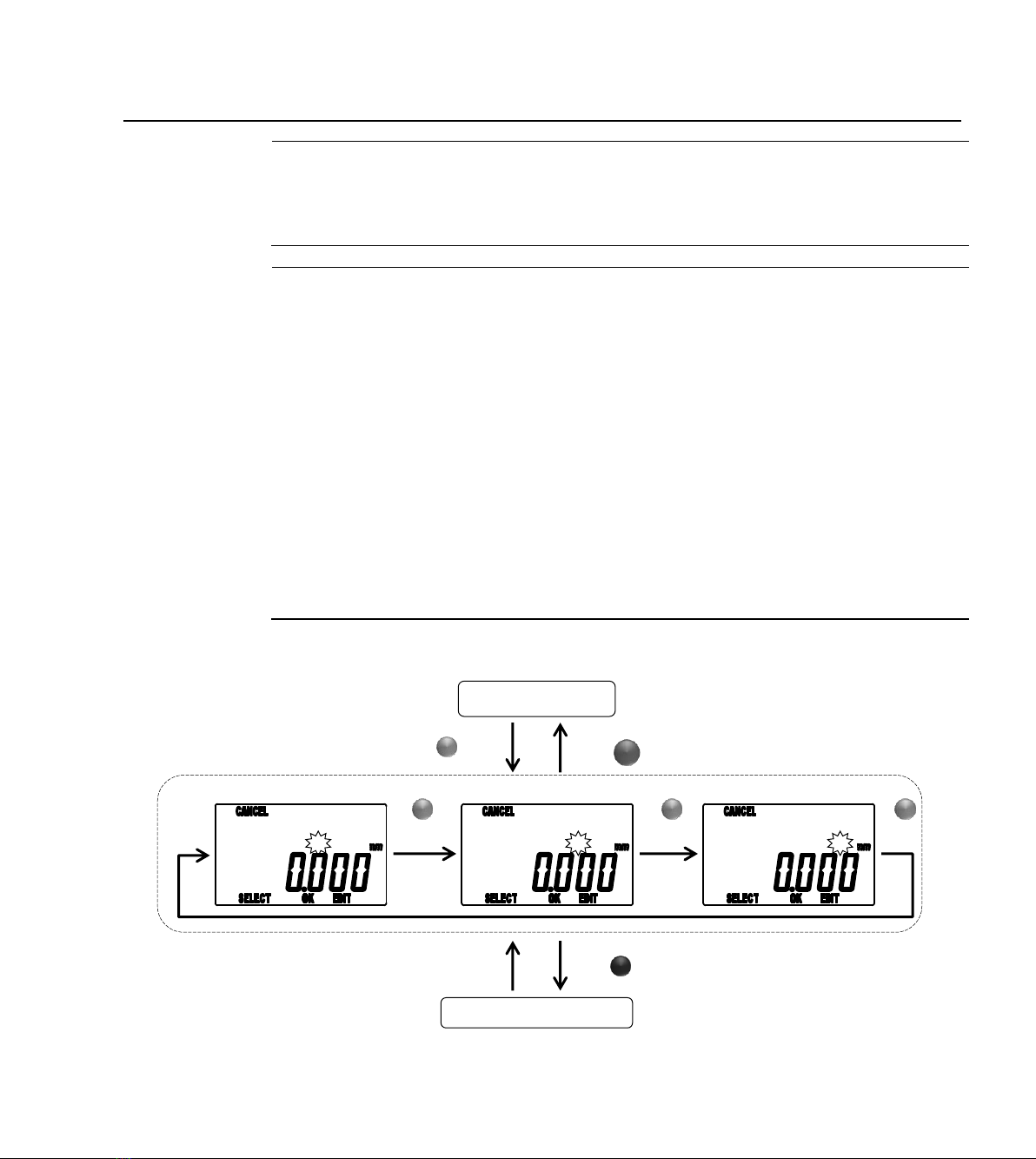

1. Starting the preset setting
Press and hold the lower left key in the measurement mode. "P□" (□indicates
Preset No.) starts blinking and the previously set value will be displayed. If the value
does not need to be changed, skip to step 4.
2. Selecting preset No.
Press the lower left key and select the preset No. to be set. Pressing the lower left key,
the display changes in the following order: P1→P2→P3.
3. Editing the preset value.
Press the lower right key to move the numerical value editing. Refer to "3.2.3
Numerical value editing" for details of the setting.
4. Completing the preset setting
Lift up the spindle and position the contact point in the desired preset position. Next,
press the center key.
In the peak detection mode, the spindle position of minimum value will be set as the
preset position.

No. 99MAH040B
3-3
IMPORTANT
・Repeatability in the range of 0.2 mm (.0079”) from the bottom of the stroke is not
guaranteed for this indicator. When setting the origin, be sure to lift the spindle at least
0.2 mm (.0079”) from the bottom of the stroke.
・The preset value will be calculated automatically according to the resolution. Check the
preset value when the resolution is changed since the conversion error may occur.
NOTE
・Press the upper left key to cancel the setting,
・The preset setting cannot be completed while the spindle is moving. So complete it
after the spindle stops.
・The power supply cannot be turned off with the upper left key in the preset setting.
・When auto-off is activated during preset setting, the setting will be canceled.
・The setup preset values and position will be held after the power is turned off.
However, when the battery is replaced, the preset position will be cleared. Set up the
position again.
・The preset setting cannot be completed if Overflow error of preset value (Err95) is
occurring for the selected preset number. Reset the preset value.
・When preset setting is changed, all the measurement values saved with the data save
function will be deleted.
・A rubber damper has been attached to the spindle in this indicator as a shock
absorber. The elasticity of the damper may cause the indicated value to not stabilize at
the bottom of the stroke, but this will not cause any operational problems.
Also, the spindle may feel heavy at the bottom of the stroke when this indicator is first
used, but this can be resolved by pushing the spindle up once.
Preset setting (Master setting)
Measurement mode
Numerical value Editing
※Press and hold
(2)
(2)
(3)
(4)
(1)
P1P2P3
P1P2P
P1P2P3
(2)
SELECT
EDIT
PRESET
OK
SELECT
SELECT

No. 99MAH040B
3-4
3.2.2 Numerical value Editing
Numerical value for "Preset", "Tolerance judgment" can be edit by same key operation.
Items that requires numerical value editing
Functions
Editing items
Preset
P1, P2, P3
Tolerance judgment
Upper limit, Lower limit
●Moving signs (+/-) and digits
Press the center key to move the sign or digit.
●Changing signs (+/-) and numerical values
Press the lower left key or lower right key to change the sign (+/-) or numerical value.
For signs (+/-)
Press the lower left or lower right key to switch the signs "+”⇔“-".
For numerical values
Pressing the lower left key, the display changes in the following order:
0→9→8→…→1→0.
Pressing the lower left key, the display changes in the following order:
0→1→2→…→9→0.
●Completing the numerical value editing
Press the upper right key to complete the numerical value editing.
After editing the numerical values, the previous setup widow will be restored.
NOTE
・If the last digit of resolution is "5", that of the numerical value changes in the order of "0
→5→0".
・Press the upper left key to cancel the setting.
・The value is temporarily saved until completing each setting before moving the
numerical value editing. If canceled, it will be deleted.

No. 99MAH040B
3-5
Numerical value Editing
「Preset」「 Tolerance judgment」
each settings
EXIT
