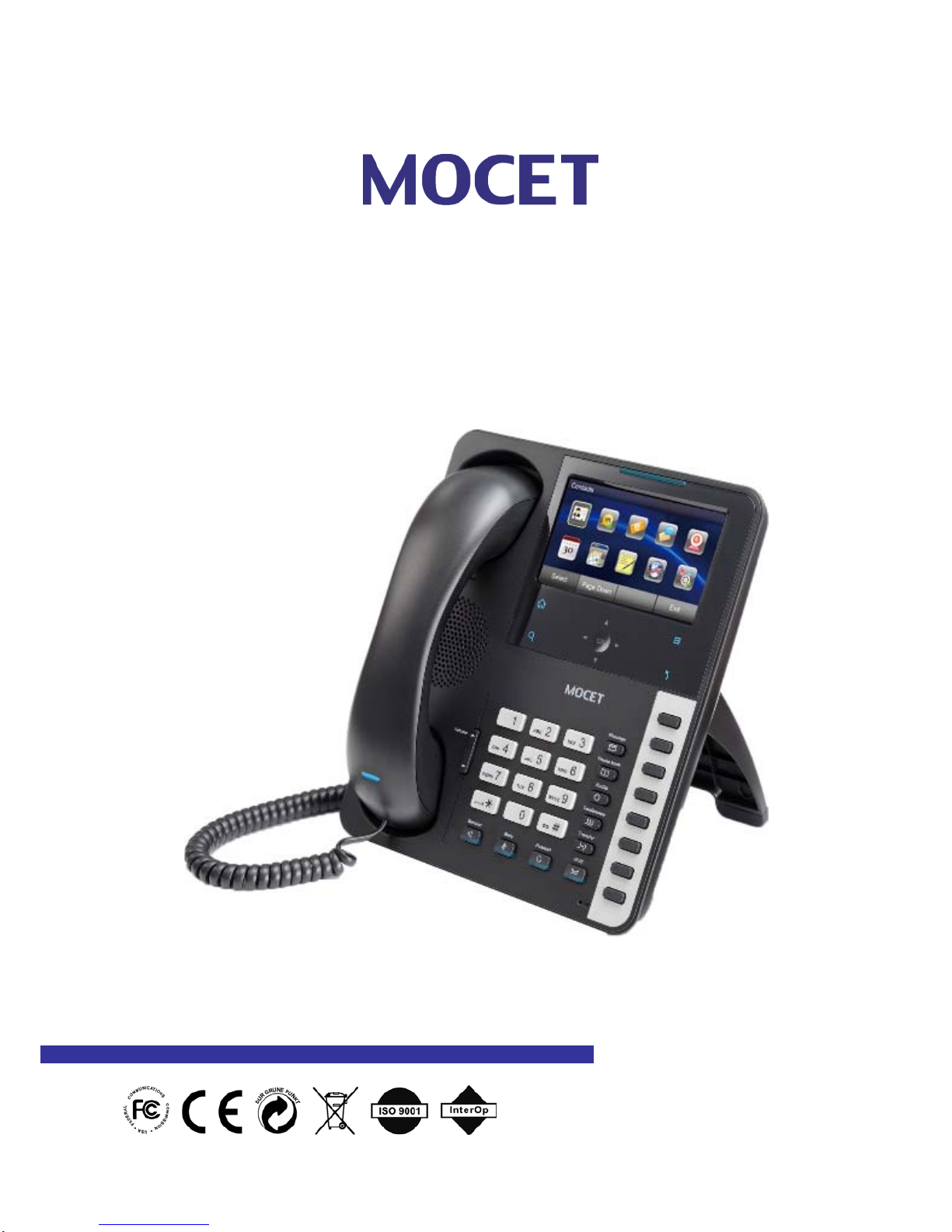

Mocet IP3072 Instruction manual

IP3072 Smart Office IP Deskphone
Quick User Guide
Copyright © 2012, All Rights Reserved.
Ver: B D/C: 101-1204

Page 2
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions in this manual, may cause interference to radio
communications. This equipment as been tested and found to comply with the limits for a Class B
computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against radio interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference, in which case the
user, at is own expense, will be required to take whatever measures are necessary to correct the
interface.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN55022
class B for ITE and EN 50082-1. This meets the essential protection requirements of the European
Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility. Environment
The phone you have purchased, as well as any used batteries must not be disposed of with
household waste. You should return these to your distributor if they are to replaced or dispose of
them in an approved recycling center. Trademarks
All company, brand and product names, like Metaswitch™, Broadsoft™, Freeswitch™ and
Asterisk™ are registered trademarks of their respective owners.
WARNING!
1. Read these installation instructions carefully before connecting the IP phone to its power.
2. To reduce the risk of electric shock, do not remove the cover from the IP phone or attempt to
dismantle it. Opening or removing covers may expose you to dangerous voltage levels.
Equally, incorrect reassembly could cause electric shock on re-use of the appliance.
3. Do not expose the IP Phone to Fire, direct sunlight or excessive heat.
4. Do not expose the IP Phone to rain or moisture and do not allow it to come into contact with
water.
5. Do not install the IP phone in an environment likely to present a THREAT OF IMPACT.
6. You may clean the IP phone using a fine damp cloth. Never use solvents (such as
trichloroethylene or acetone), which may damage the phone’s plastic surface and LCD
screen. Never spray the phone with any cleaning product whatsoever.
7. Take care not to scratch the LCD screen.
8. The IP phone is designed to work in temperatures from 5oC to 40oC.
9. The IP phone must be installed at least 1 meter from radio frequency equipment, such as
TVs, radios, hi-fi or video equipment (which radiate electromagnetic fields).
10. Do not connect the LAN/PC port to any network other than an Ethernet network.
11. Do not attempt to upgrade your IP phone in an unstable power environment. This could
cause unexpected issues.
12. Do not work on the system or connect or disconnect cables during lightning storms.
13. Children don't recognize the risks of electrical appliances. Therefore use or keep the phone
only under supervision of adults or out of the reach from children.
14. No repair can be performed by the end user, if you experience trouble with this equipment,
for repair or warranty information, please contact your supplier.

Page 3
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Introduction
The MOCET IP3072 Smart Office IP Deskphone is an Internet telephony phone that
connects to an Ethernet network rather than a traditional PSTN line. Basically, it can be
used as an extension phone in an office or stand alone phone at home. To function, it must
be registered to an IP PBX, VoIP Server or ISP/ITSP Soft Switch and can deliver high
quality voice quality and perform many advanced telephony functions and PBX-equivalent
call features.
After connecting the phone to the network and successful registration to a supported SIP
server whether local or remote, users can make, receive and transfer calls over the IP
network. The IP3072 contains multiple processors to allow it to perform multiple phone
calls and advanced music and video playback, streaming video, monitor IP surveillance
cameras, send and receive instant messages and emails, and access and display XML-
based apps and more. The power of the IP3072 improves the productivity of your workers
and increases communication efficiency and flexibility, while delivering an excellent touch
based user experience for business communications.
The IP3072 Smart Office IP Deskphone is an easy-to-use but sophisticated deskphone
with many advanced features including support for secure calling with Trusted Layer
Security (TLS) and Secure Real-time Transfer Protocol (SRTP), a built-in IP Security
(IPSEC) Virtual Private Network (VPN) client. Furthermore, its audio system has been
improved not only for wide band HD(High Definition) voice call, but also with the super
wide band music play quality.
The IP3072 supports six lines and 24 call appearances to satisfy even the busiest users.
Utilizing a next generation resistive touch 4.3” LCD screen and capacitive sensitivity
control panel design, the touch-based user interface simplifies even the most complicated
calling features. The IP3072, it can be positioned with multiple tilt angles with a wall mount
option as well, has a built-in two port Gigabit Ethernet switch with Class 2/3 power over
Ethernet (PoE) support, and eight programable keys. The IP3072 supports local
programming through a web browser as well as local and remote auto configuration
through the MOCET auto-provisioning system and management protocols.
The IP3072 supports many supplementary features including call hold, transfer, forwarding,
3-way conferencing, MWI, CWI, music-on-hold (MOH), do not disturb (DND), and auto-
answer and is compliant with industry-standard SIP protocols and many servers including
those based on Metaswitch™, Broadsoft™, Freeswitch™ and Asterisk™. Therefore, the
IP3072 can be deployed and used worldwide.
The IP3072 supports HD audio quality on both the handset, headset and speakerphones
along with support for wideband codecs including G.722. Connectivity options for the
IP3072 include, a dedicated external headset port, USB 1.1 type A port, Micro SD card slot,
and an Extended Dial Module (EDM) port. Up to two EDMs can be connected for a total of
56 programable buttons on the IP3072.

Page 4
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Hardware Installation
The IP3072 can support three different tilt angles of 60°, 51°, and 30° (see below).
Attaching the Stand to the Phone
After unpacking the box, attach the stand to the IP3072 phone first. Below this paragraph
we illustrate an example below of 60° angle installation with the stand. There are three sets
of “antlers” on the top of the stand (named 1, 2 and 3) and there are three sets of mounting
slots on the back of the phone (named A, B and C). See the illustration below.
The procedures for attaching the stand to the phone are as follows :
Step : Place the main body of the IP3072 face down on your lap or a firm sofa;
Step : First snap the “2nd” antler into the slot “B” hole;
Step : Then snap the “3rd” antler into the slot “C” hole (it may take a bit of pressure,
but when it locks in place, you will hear a click and the stand will not wiggle
on the phone.)
For other stand angle, such as 51° and 30°, please refer to the Installation Combination
Table below to find correct slots and correct antlers to use.

Page 5
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Snapping the slot “B” hole with the antler of stand first is the most
important step for a smooth installation. The product sticker on stand
should be facing inward towards the phone. When a stand is installed
at 60° or 30°, you can rotate the stand between 30° and 60° quickly
without pulling the antler in the slot B out.
Detaching the Stand from the Phone
To remove the stand from the IP3072 phone, follow the procedures below (we are using a
60° stand as an example):
Step : Place the main body of the IP3072 face down in your lap or a firm sofa;
Step : Place with two hands on the stand of the IP3072 and firmly press down the
stand, the “2nd” antler will be pulled straight out of the slot “B” hole; Keep pressing down
the stand, the “3rd” antler will be pulled straight out of the slot “C” hole.
CAUTION

Page 6
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Installation Combination Table
Different Tilt Angle Installation Slot Holes
on the Back Shell Antlers of Stand
B 2
C 3
B 3
A 2
B 2
A 1
Connecting the Handset to the Phone
After unpacking the box, connect the handset to the curly handset cord and then connect
the other end of the curly handset cord to the port marked HAND with the handset icon on
the bottom of the IP3072.
Connecting the Ethernet Cables
Using a general CAT-5 Ethernet cable, follow the installation steps below:
(1) If your Ethernet Switch supports PoE:
-Please connect an Ethernet cable to the Switch port from the LAN port of the
IP3072. Then you will see the phone LEDs and buttons light up momentarily and
the phone will boot.

Page 7
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
(2) If your Ethernet Switch doesn’t support PoE:
- Please connect an Ethernet cable to the Switch port from the LAN port of the
IP3072.
- Plug in the IP3072 power adaptor to the wall power outlet then plug the barrel
plug to the power port on the back of the phone. You should see the phone
LEDs and buttons light up momentarily and the phone will boot.
Do not use other power adapters. Use only the MOCET IP3072 Power
Adapter with your IP3072 IP Phone. Adapters for other devices may
damage IP3072 IP Phone.
To eliminate the requirement for multiple Ethernet cables to a user’s location, the user’s
computer can be connected to the network through the second Ethernet port on the
IP3072.
Notice :
1. The IP3072 takes just under two minutes to start up and become operational. There
are booting screens including progress bar and text descriptions to provide boot
progress information. Please be patient.
2. The IP3072 does not ship with a power adapter. If you are not using Power over
Ethernet (PoE), you must order the power adapter separately from MOCET.
3. If the PoE switch (on the rear panel) is set to “2” side, and the IP phone cannot boot
up through PoE Ethernet power, it may occur when accessories power loading is over
the PoE Class 2 limitation. In the case, please unplug the Ethernet cable, and set the
PoE switch (on the rear panel) is set to “3” side, and then plug the Ethernet cable
again.
The phone may crash or become malfunctional too, when if its PoE power switch is set
at class 2, and its power consumption is increased higher and get over the class 3
range. So, please follow the same above step to change to PoE Class 3 power level.
For your information, most Ethernet cable is carrying PoE Class 2 power. For PoE
Class 3 power, please contact your network manager or administrator for power
capability confirmation.
CAUTION

Page 8
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Appearance & Function Description
The IP3072 Smart Office IP Deskphone comes with a resistive touch color TFT LCD
screen with 480*272 pixels, 9 capacitive touch keys (including 5 nevigation keys), 8
programmable keys, as well as a traditional keypad, 9 function keys and volume key. In
the box, a handset, curly handset cord and an Ethernet cable supplied. It can be installed
and placed on the desktop or mounted on the wall. The wall mount accessory is available
separately. The figure below illustrates the front view of the IP3072 IP Phone. With the
point numbers, you can find its name and a simple description of specified part in the
following table.

Page 9
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
No Part Name Description
1 Hanger The hanger can be pulled; it is reversed for wall-mount
installation.
2 Speaker For ring and hands-free talking.
3 Hook switch &
Handset
bottom cradle
Under the cradle, a hook switch is used for handset hang-on and
hang-off detection.
The handset bottom cradle is for the placement of handset;
placing the handset on the bottom cradle while on a call will end
the call.
4
Message LED The message LED is for message waiting indication, upgrade
alert, instant message alert, email alert, and so forth.
5 Color LCD Display The LCD screen is used for displaying phone’s settings, phone
number, call status, multimedia playback and so forth.
4 Control keys 4 sensitive touch keys are used for control of the LCD screen.
They are Android like design for user easy operation.
Home Key The Home key is for returning to standby idle screen whatever
screen phone is in.
Menu Key
The Menu key is for exiting from showing screen and go to main
menu page.
Search Key The Search key is for accessing XML web services if the XML
web server is available.
6
Exit Key The Exit key is for exiting (going back) from showing screen and
go to upper screen.
7
Line soft keys
The Line keys are located inside touch LCD screen. They are
used to indicate the currently registered lines and their status.
For operation, user can touch the specific line for call, pickup, or
other control. The line 1 is on the top place while the line 6 is on
the bottom position.
8 Programmable keys
The Programmable keys are used for programming as different
hot keys by setting on menu. A blue LED is associated with each
key to indicate its status.
8
Programmable key
plate label (DESI)
The programmable key plate label is plastic. For best results,
we recommend using a fine permanent marker (such as Sharpie
brand) to write on it. It can be cleaned with industrial alcohol.
Note: Custom templates and programming software for MOCET
phones are available from DESI (see, http://labels.desi.com )
9
Numeric keypad
[1], [2], …, [9], [*], [0], [#]: The numeric keypad is for dialing
numbers.

Page 10
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
10
Volume Key
The Volume Control key is used to set the loudness of the ringer,
handset, headset and speakerphone functions. While the phone
is in idle state, the Ringer is adjustable. While in a call, the
handset, headset or speaker volume is adjustable.
Speaker Phone key
The SPKR key is used to activate or deactivate the hands-free
speaker. When lit with a blue LED, the hands-free function is
operational.
MUTE key
The MUTE key is used to activate or deactivate the microphone.
When lit with a blue LED, the microphone is muted.
Headset key
The Headset key is used to activate or deactivate the external
headset. A blue LED is lit to indicate active status.
Hold key
The Hold key is used to place the active call on hold. A blue LED
is used to indicate whether the call is on hold or not.
Message key
The Message key is used to access the Voice Mail System for
message retrieval.
Phonebook key The Phonebook key is used to enter into the Phone Book menu
to call, add, edit or delete a contact in a selected phonebook.
Redial key The Redial key dials the last dialed number automatically.
Conference key The Conference key is used to place multiple calls on the phone
into a conference on the phone.
11
Transfer key The Transfer key is used to transfer a call to another IP phone.
12
Hands-free MIC
Hands-free MIC hole.
Note: You can use a paperclip to pick up the programmable key
plate label (overlay) right here.
13
Handset LED The Handset LED. To show the phone’s status.
14
Navigation Control
keys
The Navigation Control Keys are used for navigating the menus
on the phone; menu items are displayed on the LCD screen.
15
Navigation OK key
The OK button is used to confirm and save a setting on the
phone or to dial a phone number.

Page 11
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
IP3072 Port Functions
The back side view and the connectors of the IP3072 are as follows:
No Part Name Description
1 Handset Connector RJ-9 Jack for connecting handset cord.
2 Headset Connector RJ-9 Jack for connecting headset cord.
3 LAN Port RJ-45 Jack 1000/100/10Mbps Ethernet port for connecting to the local area network (LAN). This port can support power over
Ethernet (PoE) if the LAN switch provides it.
4 POE 2/3 switch
A dip switch that can be set to Class 2 (under 6.49W) or Class 3
(under 12.95W). In general case, Class 2 is enough for the IP
phone. When the conditions below:
(1) Heavy Gigabit Ethernet data transfer and playing video with
loudest speaker output (without IP-EDMX and USB device)
(2) General usage of phone call application but equipped with two
IP-EDMX modules. (No USB device attached)
(3) General usage of phone call application but equipped with one
IP-EDMX module and USB device that sinks power over 1
Watt.
(4) General usage of phone call application but equipped with one
USB device that sinks over 1.5 Watt (without IP-EDMX).
(5) Other conditions that need more power from IP phone.
5 PC Port RJ-45 Jack 1000/100/10Mbps Ethernet port for connecting to a
computer.
6 Power Jack If a power source from adaptor is required, the adapter is plugged in here. Please order the IP3072 power adapter separately from
MOCET.
7 EDM Port
SATA interface for attaching the Extended Dial Module (IP-EDMX)
accessory. Up to two IP-EDMX units can be supported with the
IP3072. Please refer to IP-EDMX Quick Installation Guide for more
information.
8 MicroSD Card Slot This MicroSD card slot can support the IP phone to access or retrieve stored data in the MicroSD card, including photos, music
and video.
9 USB Port Type A USB 1.1 port with 5V/500mA power limitation (Can be used to
connect with a keyboard.)
Please refer to the figure below for these I/O port locations on the back shell of the IP3072
phone.
Remarks: There are 2 wiring slots under the I/O ports. One is used for fit Handset cord
and the other is used to fit the power adaptor wire.

Page 12
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
IP3072 LED Functions
The following table describes all functions of LED indicators:
LED Color Status Description
Off No new message(s).
Steady The phone is booting or upgrading.
Message LED
Blue
Blinking slow New message(s) indication.

Page 13
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Steady Feature is set to “ON –Active”
or the phone is busy.
Blinking slow Incoming call notification.
Programmable LED Blue
Off Feature is set “Off-inactive”.
Off No call is on hold.
Hold LED Blue Blinking slow Call is placed on hold.
Off Speakerphone is not in use.
Speakerphone LED Blue Steady On-hook dialing or hands-free mode.
Off Microphone is active.
MUTE LED Blue Steady Microphone is inactive.
Off Headset is not in use.
Headset LED Blue Steady Headset is in use.
Steady The phone is booting.
Flashing faster The phone is upgrading or urgent call notification; urgent call feature is not
available on all phone systems.
Red
Blinking slow Link failure, SIP account expiration, or
SIP Server not responding.
Steady The phone is in a normal idle state,
or is during a call with G.722 codec.
Handset LED
Blue
Blinking slow A normal incoming call with wideband
G.722 codec notification.
LED Icon on LCD Color Status Description
Green Steady The line registers ok, and is in use.
White Steady The line registers ok, and is not in use.
LCD Line Icons
Black Steady The line registers failed.

Page 14
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
IP3072 Screen Icons
The following table describes line and phone status icons on the main screen:
Top Line Icons on LCD Description
Network cable disconnected The icon indicates the network cable is disconnected
or broken.
IP Conflict The icon indicates the IP address of IP3072 conflicts
with other device’s.
Missed call The icon indicates IP3072 has a new missed call.
Call forward The icon indicates IP3072 is enabled “Call
Forwarding”.
Auto answer (AA) The icon indicates IP3072 is enabled “AutoAnswer”.
Don’t disturb (DND) The icon indicates IP3072 is enabled “Don’t Disturb”.
Voice mail (VM)
The icon indicates IP3072 has new voice mail(s).
And the number of new voice mail is showing in “VM
Msgs: XXX”.
Instant message (IM) The icon indicates IP3072 has instant message(s).
E-mail(EM) The icon indicates IP3072 has new E-mail(s).
Wireless signal is good
The icon indicates IP3072 is connected to Wi-Fi
access point through Wi-Fi Ethernet bridge, and has
good signal strength.
Wireless signal is fair
The icon indicates IP3072 is connected to Wi-Fi
access point through Wi-Fi Ethernet bridge, and has
fair signal strength.
Wireless signal is poor
The icon indicates IP3072 is connected to Wi-Fi
access point through Wi-Fi Ethernet bridge, but has
poor signal strength.
Wireless signal disconnected
The icon indicates IP3072 is not connected to Wi-Fi
access point through WR211N Wi-Fi Ethernet
bridge.
IP-EDMX connected The icon indicates IP3072 is connecting with IP-
EDMX module(s).
USB Keyboard connected The icon indicates IP3072 is connecting with an
USB mini keyboard.

Page 15
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Basic Operation Guide
This section will introduce some basic operation of the IP3072 phone. When the phone is
booted up and gets into idle state, or anytime user presses the Home key( ), the home
screen will be prompted as follows, where the day/time, phone status icons, and registered
line(s) will be displayed.
And four soft keys, Messaging, Call Log, Speed Dial, and Applications are shown in screen
for user to operate. When user touches the screen with a finger, the phone will react then.
For example, when you press the Messaging, the phone then prompts three messaging
icons, including Instant Messaging, E-mail and Answering Machine, for selection (see
below).
Of course, you can off-hook the handset and dial the phone number as you want. Or you
can press the Menu key( ), the first page of menu icons will be prompted. If you press
the “Page Down” soft key, then the second page will be displayed too.

Page 16
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
The Icon Function Description
In the menu, there are 18 icons and they are useful for users in different applications.
Most of the icon functions can be activated in either idle time or calling time. Their function
or applications are described below.
Icons Function Name Description
Contacts This is Phonebook of the IP phone. It contains public, private,
and LDAP contacts information.
Instant
Messaging
User can write, send, receive, read and delete the instant
messages through this function support. The destination can be
one phone number.
E-mail User can write, send, receive, read and delete the e-mails
through this function support. The destination can be one or
more real email addresses.
Answering
Machine
User can read and delete the voice messages through this
function support. The voice mail system is in the IP phone, but
not in the IP PBX or SIP server.
Surveillance
User can configure IP address and related information of IP
Camera(s), then open the video streaming any time for the
purpose of surveillance. And IP3072 support special On-
condition control mechanism and enable users to utilize IP
Cameras for door phone or video-conferencing applications.
Calendar This is used for schedule arrangement and personal memo of
events.

Page 17
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
World Clock The world clock supports world wide time zone information that
user can read the current time of any location. It is a very
convenient tool for users to book meeting time with multiple
location parties.
MemoPad User can write down memo(s) by input texts and save into the IP
phone even during a call.
XML Browser Launching this, user can connect to a target XML server and
browse its web pages. The XML server can be built in intranet or
internet as enterprise news center and bulletin board.
Multimedia The multimedia is used for playing music, video and viewing
images on the IP phone. Besides, it can support digital photo
frame too. Some file formats are supported.
Alarm Clock User can use the alarm tool to set particular time(s) or periodic
time(s) to remind users.
Painting Board The tool can be used for painting with a finger or proper pen and
then save to the storage (Micro SD card) or send to other call
party (through his/her phone number).
File Manager User can list and find the files in the storage (Micro SD card) or
embedded memory of the IP phone.
Settings This is a user level configuration tool. In the sub-menu, there are
volume, display, call, key, phone lock, e-mail account,
surveillance, door phone and video phone settings allowed to be
configured.
Administrator
Settings This is an advanced level configuration tool. Administrator can
enter this section with administrator password.
Help The help key will display some useful information to user. The
information includes Icon description, special call feature
operation brief and others.
Information The information contains IP phone’s IP address, MAC address,
firmware version and so on.
Reboot When the reboot is pressed, the phone will perform a warm boot
action.

Page 18
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
General Setting Items
For setting basic items, please follow the steps in the menu tree described below. For
other advanced items, please refer to the user guide of IP3072 IP phone.
Operation Description
Menu Page Down Settings Display Settings 
Date and Time Settings Time Zone Selection
Time zone
To obtain the correct local time, please set your local time zone for your
IP Phone.
Use navigation keys to move the cursor, and then press “Save” to
confirm your setting. If your local time is related to DST(daylight saving
time), please also set all parameters related to DST to obtain the correct
local time. Return back to the standby screen, you will find the correct
local time on the screen.
Menu Page Down Settings E-mail Account
E-mail
account To use E-mail, the IP Phone must register to a mail server. Please enter
all required mail registration information provided by your administrator or
service provider. After entering all required registration information, press
Test to verify the account is workable or not.
Basic Phone Services
Operation Description

or
Line Key 1. Pick-up the handset or press a line key or
press the speaker key.
You will hear a dial tone.
Making a call
2. Use the keypad to enter the phone number.
The LCD window displays the digits that you
entered and the matching numbers in Contacts.
Note: You may use the BKSP soft key to delete the last
digit.

Page 19
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
3. On-hook the handset when your conversation is
over.
1. Pick-up the handset upon hearing the phone
ringing.
Receiving a
call 2. On-hook the handset when your conversation is
over.
1. Press the REDIAL key. The last dialed number
will display on screen.Last
number
redial
2. Press Dial soft key to dial out.
 1. During a conversation, if the voice volume is too
low or too high, you may adjust it.
To adjust
volume
while on a
call
2. Press the Volume control key Up or Down to
adjust the volume of Speaker, Handset, or
Headset.
Placing a
call on hold
During a conversion, press Hold key to hold the
call.
1. During 2 way call, press Hold key to hold the
call.
Line Key 2. Press other inactive line key or NewCall soft
key to pop up “Dialing” screen, and then enter the
phone number of the 3rd party.
Transferring
a call
3. The 3rd party answers the call. Press Transfer
key to transfer the held call to the 3rd party.
1. During 2 way call, press Hold key to hold the
call.
Line Key 2. Press other inactive line key or NewCall soft
key to pop up “Dialing” screen, and then enter the
phone number of the 3rd party.
3-way
conferencing
3. The 3rd party answers the call. Press
Conference key to build a 3-way conference call.

Page 20
MOCET IP3072 Smart Office IP Deskphone Quick User Guide
Multimedia Services
Operation Description
Menu Multimedia Video Viewer
Viewing
Video(s) Choose video source from either Embedded Memory or External
Memory Card.
Note: To play video, your IP Phone must have MP4 decoder. Please
contact with your service provider for more information. Please note that
the supported maximum size of video is 352 x 288 pixels.
Menu Multimedia Music Player
Playing
Music Choose audio source from either Embedded Memory or External
Memory Card.
Note: Basic supported audio format is MIDI. To play MP3 format, your IP
Phone must have MP3 decoder. Please contact with your service provider
for more information.
Menu Multimedia Photo Viewer
Viewing
Photo(s) Choose photo source from either Embedded Memory or External
Memory Card.
Note: Basic supported photo format is JPEG baseline.
Menu Multimedia Voice Recorder
Recording
Audio
To record audio, press to start recording, and press to
stop recording or press to pause.
To play recorded files, press Files key to view record files, and then select
a file to play.
