Mocet IP3072 Service manual

Copyright © 2012, All Rights Reserved.
Ver: R01 D/C: 101-1030

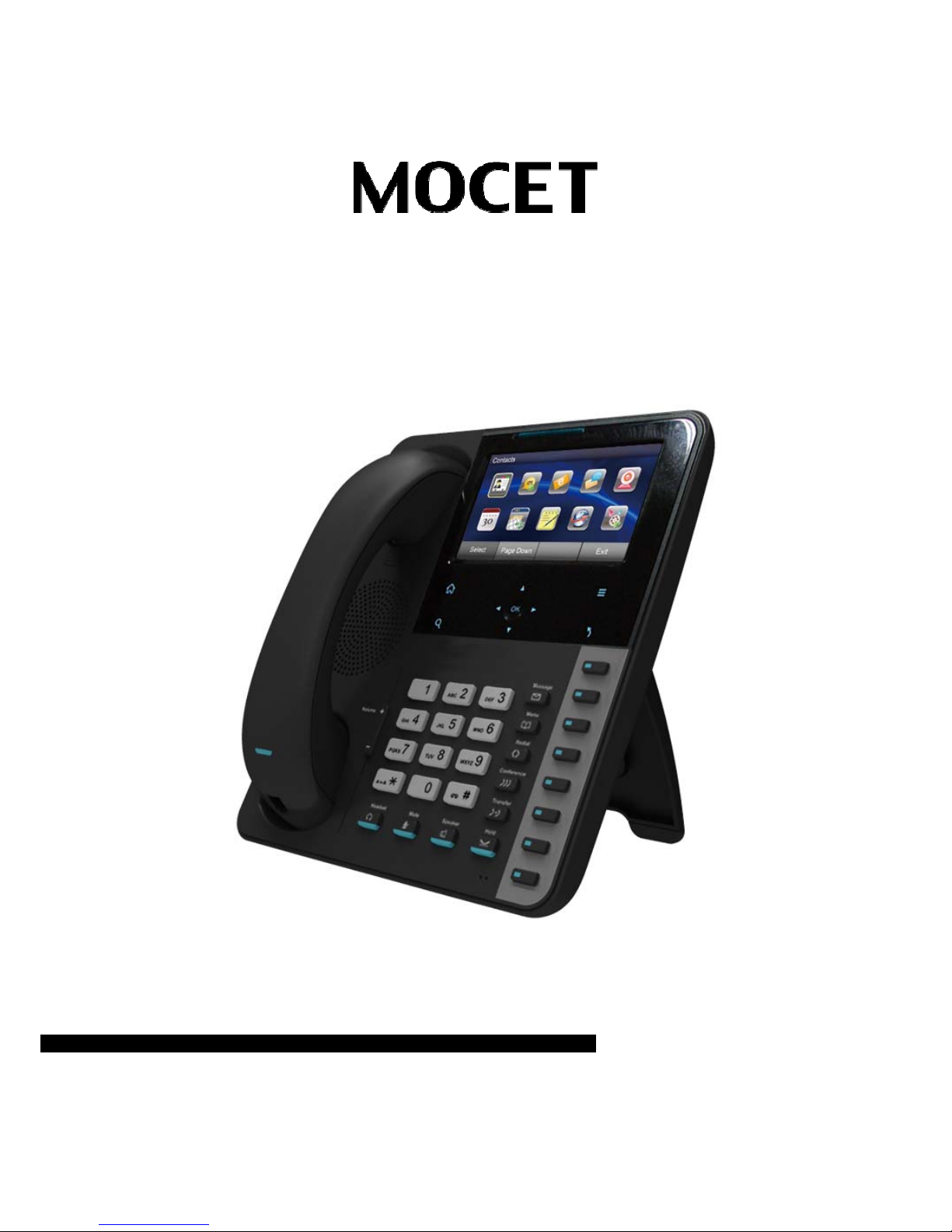

IP3072 Smart Office IP Desk Phone
Administrators’ Guide

Page 2
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions in this guide, may cause interference to radio
communications. This equipment as been tested and found to comply with the limits for a Class B
computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against radio interference when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference, in which case the
user, at is own expense, will be required to take whatever measures are necessary to correct the
interface.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN55022
class B for ITE and EN 50082-1. This meets the essential protection requirements of the European
Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Environment
The phone you have purchased, as well as any used batteries must not be disposed of with
household waste. You should return these to your distributor if they are to replaced or dispose of
them in an approved recycling center.
Trademarks
Windows 98/2000/XT/NT™ and Internet Explorer™ are registered trademarks of Microsoft
Corporation. All other company, brand and product names, like Metaswitch™, Broadsoft™,
Freeswitch™ and Asterisk™ are registered trademarks of their respective owners.
WARNING! ▼
1. Read these installation instructions carefully before connecting the IP phone to its power.
2. To reduce the risk of electric shock, do not remove the cover from the IP phone or attempt to
dismantle it. Opening or removing covers may expose you to dangerous voltage levels.
Equally, incorrect reassembly could cause electric shock on re-use of the appliance.
3. Do not expose the IP Phone to Fire, direct sunlight or excessive heat.
4. Do not expose the IP Phone to rain or moisture and do not allow it to come into contact with
water.
5. Do not install the IP phone in an environment likely to present a THREAT OF IMPACT.
6. You may clean the IP phone using a fine damp cloth. Never use solvents (such as
trichloroethylene or acetone), which may damage the phone’s plastic surface and LCD screen.
Never spray the phone with any cleaning product whatsoever.
7. Take care not to scratch the LCD screen.
8. The IP phone is designed to work in temperaturesfrom 5oC to 40oC.
9. The IP phone must be installed at least 1 meter from radio frequency equipment, such as TVs,
radios, hi-fi or video equipment (which radiate electromagnetic fields).
10. Do not connect the LAN/PC port to any network other than an Ethernet network.
11. Do not attempt to upgrade your IP phone in an unstable power environment. This could cause
unexpected issues.
12. Do not work on the system or connect or disconnect cables during lightning storms.
13. Children don't recognize the risks of electrical appliances. Therefore use or keep the phone
only under supervision of adults or out of the reach from children.
14. No repair can be performed by the end user, if you experience trouble with this equipment, for
repair or warranty information, please contact your supplier.
!

Page 3
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Introduction......................................................................................................7
About This Guide........................................................................................................7
Who Should Read This Guide? .................................................................................7
How This Guide is Organized ....................................................................................7
Getting Help and Support ..........................................................................................9
Part 1: Getting Started ..................................................................................10
Chapter 1: Welcome to the MOCET IP3072 Smart Office IP Desk Phone
.........................................................................................................................11
Key Features of IP3072 IP Phone ............................................................................11
Chapter 2: IP3072 IP Phone Firmware Architecture ..................................13
Where IP3072 Phones Fit in Your Network.............................................................13
Understanding IP3072 Phone Firmware Architecture ...........................................14
What are the Resource Files? ..........................................................................15
Features Available on IP3072 Phones ....................................................................15
Basic User Features..........................................................................................15
Advanced Features ...........................................................................................17
Audio Features ..................................................................................................18
Security Features ..............................................................................................18
Multimedia Features..........................................................................................19
IP Camera Related Features.............................................................................19
Part 2: Setting up Your System ...................................................................20
Chapter 3: Setting up Your Phone Network ...............................................21
Establishing Link Connectivity................................................................................21
Wired Connection..............................................................................................21
Wireless Connection.........................................................................................22
Security and Quality of Service Settings................................................................22
VLANs.................................................................................................................22
802.1X Authentication.......................................................................................22
QoS with DSCP..................................................................................................22
IPSec...................................................................................................................22
IP Communication Settings .....................................................................................23
Provisioning Server Discovery................................................................................23
Table of Content

Page 4
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Phone Network Menus .............................................................................................23
Network Settings Menu.....................................................................................23
Network Connection Settings Menu................................................................24
VLAN Settings Menu.........................................................................................24
IPSec Settings Menu.........................................................................................25
QoS Items Menu ................................................................................................25
802.1x Parameters Menu...................................................................................26
Security and Certificates Setting Menu...........................................................26
Chapter 4: Setting up the Provisioning Server ..........................................28
Why Use a Provisioning Server?.............................................................................28
Preparation for Auto-Provisioning Service ............................................................28
Provisioning Files..............................................................................................28
Auto-Provisioning Service Settings.................................................................28
The Hierarchy of File System in Provisioning Server ....................................29
Provisioning Procedure ...........................................................................................30
Provisioning Work Flow....................................................................................30
Getting the APS Server Address......................................................................31
Firmware Upgrade.............................................................................................31
Getting the Configuration File..........................................................................32
APS Check Timing.............................................................................................32
Part 3: Configuring Your System ................................................................33
Chapter 5: Setting up Advanced Phone Features .....................................34
Assigning Multiple Line Keys Per Registration .....................................................34
Example Multiple Line Keys Configuration.....................................................34
Assigning Call Progress Tones...............................................................................36
Configuring Network Address Translation.............................................................36
Using Corporate LDAP Directory ............................................................................37
Configuring an E-mail Account ...............................................................................38
Configuring Busy Lamp Field..................................................................................38
Enabling Voicemail Integration ...............................................................................39
Example Voicemail Configuration....................................................................39
Using Instant Messages...........................................................................................39
Enabling Multiple Registrations ..............................................................................40
Setting up Backup Servers ......................................................................................40
Backup Servers Settings ..................................................................................40

Page 5
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
SIP Servers Registration Procedure................................................................41
Chapter 6: Setting up Phone Audio Features ............................................42
Acoustic Echo Cancellation and Voice Activity Detection ...................................42
Generating Dual Tone Multi-Frequency (DTMF) Tones .........................................42
Audio Codecs............................................................................................................43
Chapter 7: Setting up User and Phone Security Features........................44
Local User and Administrator Passwords..............................................................44
Web Configuration Interface.............................................................................44
Local Phone User Interface ..............................................................................44
Locking the Phone....................................................................................................45
Chapter 8: Configuring XML Services Feature ..........................................46
Chapter 9: Configuring OCT Feature ..........................................................48
Typical OCT Application Examples.........................................................................48
Call Blocking......................................................................................................48
Do Not Disturb...................................................................................................48
Using OCT XML File to Configure OCT Feature.....................................................49
Adding More OCT Templates...................................................................................49
Part 4: System Maintenance Tasks .............................................................51
Chapter 10: Upgrading Your IP3072 Phones Firmware ............................52
Auto-Provision Upgrade with MOCET APS ............................................................52
Upgrade Using Web Browser on a Specified Computer .......................................53
Upgrade Using TFTP/FTP/HTTP Server ..................................................................53
Emergency Upgrade.................................................................................................54
Chapter 11: Miscellaneous Maintenance Tasks ........................................55
Real-Time Transport Protocol (RTP) Port Base .....................................................55
Session Timer ...........................................................................................................55
ENUM Suffix ..............................................................................................................56
Multi-Cast RTP ..........................................................................................................56
Configuration File Backup .......................................................................................57
Configuration File Updates......................................................................................57
Booting Wallpaper and Screen Saver Change.......................................................58
Line Parameters........................................................................................................60
CLIP/ CLIR..........................................................................................................60
SIP Transport.....................................................................................................61
Intercom Code ...................................................................................................61

Page 6
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Hotline ................................................................................................................61
Custom SIP Header ...........................................................................................61
RTP Options ..............................................................................................................61
Dial Plan ....................................................................................................................62
System Log ...............................................................................................................63
Reset to Default ........................................................................................................64
Part 5: Using IP Cameras .............................................................................65
Chapter 12: Using IP Cameras for Surveillance ........................................66
Chapter 13: Using IP Cameras for Door Phone .........................................69
Chapter 14: Using IP Cameras for Video Phone........................................71
Part 6: References.........................................................................................73
Chapter 15: IP3072 Firmware Menu System ..............................................74
Appendix A – Emergency Firmware Upgrade............................................76
Preparing Materials ..................................................................................................76
Software List......................................................................................................76
Hardware List.....................................................................................................76
Software Environment Setup...................................................................................76
Installing the Console Cable Driver.................................................................76
Installing the Telnet Client Software................................................................76
Hardware Environment Setup..................................................................................77
Connecting the Console Cable with PC/Notebook And the IP3072...............77
Connecting an Ethernet Cable with PC/Notebook and Switch Hub..............78
Connecting an Ethernet Cable with IP3072 Phone and Switch Hub.............78
Upgrading Boot Code through Console Port .........................................................78
Upgrading Phone Application Firmware through Console Port...........................80
Opening Telnet Client Window.........................................................................80
Opening TFTP Window .....................................................................................81
Turning on IP3072 Phone..................................................................................82
Changing the Boot Parameters........................................................................82
Upgrading the Phone Application Firmware...................................................83
Upgrading Firmware through MicroSD Card..........................................................83
Loading SD Files in MicroSD Card...................................................................83
Upgrading the Firmware ...................................................................................83

Page 7
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Introduction
About This Guide
The IP3072 Smart Office IP Desk Phone Administrators’ Guide provides instructions for
installing, provisioning, and administering IP3072 phones. This guide will help you
understand the MOCET VoIP network and telephony components, and provides
descriptions of all available phone features.
Part 1: Getting Started of this guide gives you an overview of the IP3072 IP Phone.
Part 2: Setting up Your System provides you essential information on how to setup your
phone network and a provisioning server.
Part 3: Configuring Your System is devoted to descriptions of the phone features you can
configure on the phones, which include brief examples of feature configurations.
Part 4: System Maintenance Tasks provides you firmware upgrade methods as well as
phone maintenance tasks.
Part 5: Using IP Cameras provides you essential information on how to configure IP
cameras and IP3072 to perform Surveillance, Door Phone and Video Phone applications.
Part 6: References show IP3072 firmware menu structure.
This guide will help you perform the following tasks:
Install and configure your phone on a network server
Configure your phone’s features and functions
Configure your phone’s user settings
This guide describes a method for provisioning IP3072 phones. Although there are other
methods, the method described in this guide provides the most flexibility and
manageability, and is the recommended approach for enterprise installations.
Who Should Read This Guide?
System administrators and network engineers should read this guide to learn how properly
to set up IP3072 phones. This guide describes administration-level tasks and is not
intended for end users.
How This Guide is Organized
This guide is organized into six parts. Each part contains multiple chapters. The parts are
sequenced in the same way you would deploy IP3072 phones.
The parts contain the following chapters:

Page 8
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Part 1: Getting Started
Chapter 1, “Welcome to the MOCET IP3072 Smart Office IP Desk Phone”, introduces the
MOCET IP3072 Smart Office IP Desk Phone.
Chapter 2, “The IP3072 IP Phone Firmware Architecture”, shows you how IP3072 IP
Phones fit in your organization and details about IP3072 IP Phone firmware architecture.
Part 2: Setting up Your System
Chapter 3, “Setting up Your Phone Network”, describes how to set up your network.
Chapter 4, “Setting up the Provisioning Server”, provides basic and advanced instructions
on how to set up a provisioning server, deploy the IP3072 phones from the provisioning
server, and upgrade the phone’s firmware.
Part 3: Configuring Your System
Chapter 5, “Setting up Advanced Phone Features”, shows you how to configure and use
advanced phone features like corporate directory, voice mail, instant messaging and e-
mail.
Chapter 6, “Setting up Phone Audio Features”, provides information on configuring and
using audio features.
Chapter 7, “Setting up User and Phone Security Features”, describes how to configure and
use security features like locking the phone.
Chapter 8, “Configuring XML Services Feature”, provides information on configuring and
using XML services and file sending features.
Chapter 9, “Configuring OCT Feature”, shows you how to configure and use On-Condition
feature like “Do not disturb”; phone will reject the call from XXXX that matches the on-
condition setting.
Part 4: System Maintenance Tasks
Chapter 10, “Upgrading Your IP3072 Phones Firmware”, give information about firmware
upgrade methods.
Chapter 11, “Miscellaneous Maintenance Tasks”, shows you how to maintain the IP3072
phones, that includes configuration file backup and updates, dial plan, system log and
reset to default.
Part 5: Using IP Cameras
Chapter 12, “Using IP Cameras for Surveillance”, describes how to configure IP cameras
and IP3072 to perform surveillance feature.
Chapter 13, “Using IP Cameras for Door Phone”, describes how to configure IP cameras
and IP3072 to perform door phone feature.

Page 9
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Chapter 14, “Using IP Cameras for Video Phone”, describes how to configure IP cameras
and IP3072 to perform video phone feature.
Part 6: References
Chapter 15, “IP3072 Firmware Menu System”, shows the menu structure of the IP3072 IP
Phone firmware.
Getting Help and Support
If you are looking for help or technical support for your phones, the following types of
documents are available:
Quick User Guide, which describes how to assemble IP3072 phone and the basic
phone features
User Guide, which describes both basic and advanced phone features
Release Note, which describes the new and changed features and fixed problems in
the latest version of the firmware
XML Server Software Development Kit, which describes how to set up an XML server

Page 10
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Part 1: Getting Started
Part 1 gives you an overview of the MOCET IP3072 Smart Office IP Desk Phone and
consists of the following chapters:
Chapter 1: Welcome to the MOCET IP3072 Smart Office IP Desk Phone
Chapter 2: IP3072 IP Phone Firmware Architecture

Page 11
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Chapter 1: Welcome to the MOCET IP3072
Smart Office IP Desk Phone
This chapter introduces the MOCET IP3072 Smart Office IP Desk Phone.
The IP3072 Smart Office IP Desk Phone is an easy-to-use but sophisticated desk phone
with many advanced features including support for secure calling with Trusted Layer
Security (TLS) and Secure Real-time Transfer Protocol (SRTP), a built-in IP Security
(IPSEC) Virtual Private Network (VPN) client. Furthermore, its audio system has been
improved not only for wide band HD(High Definition) voice call, but also with the super
wide band music play quality.
The IP3072 supports six lines and 24 call appearances to satisfy even the busiest users.
Utilizing a next generation resistive touch 4.3” LCD screen and capacitive sensitivity
control panel design, the touch-based user interface simplifies even the most complicated
calling features. The IP3072, it can be positioned with multiple tilt angles with a wall mount
option as well, has a built-in two port Gigabit Ethernet switch with Class 2/3 power over
Ethernet (PoE) support, and eight programable keys. The IP3072 supports local
programming through a web browser as well as local and remote auto configuration
through the MOCET auto-provisioning system and management protocols.
The IP3072 supports many supplementary features including call hold, transfer, forwarding,
3-way conferencing, MWI, CWI, music-on-hold (MOH), do not disturb (DND), and auto-
answer and is compliant with industry-standard SIP protocols and many servers including
those based on Metaswitch™, Broadsoft™, Freeswitch™ and Asterisk™. Therefore, the
IP3072 can be deployed and used worldwide.
The IP3072 supports HD audio quality on both the handset, headset and speakerphones
along with support for wideband codecs including G.722. Connectivity options for the
IP3072 include, a dedicated external headset port, USB 1.1 type A port, Micro SD card slot,
and an Extended Dial Module (EDM) port. Up to two EDMs can be connected for a total of
56 programable buttons on the IP3072.
Key Features of IP3072 IP Phone
Features Description
LCD 4.3” color TFT touch screen (resistive)
480 x 272 pixels
16.7M colors
Multiple line appearances Up to 6 line appearances
Multiple call appearances Up to 24 call appearances
Conference Up to 3-party

Page 12
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Hot keys
(Home, Menu, XML services, Back) Yes (capacitive touch)
Navigation keys
(Up, Down, Left, Right and Enter) Yes (capacitive touch)
Programmable keys 8 keys
Audio quality
(Speaker, Handset Receiver) Wide Band
Voice Codec
G.711 (A-law/Mu-law)
G.722
G.726
LINPCM256
G.723.1 (Disabled by default, need license)
G.729A/AB (Disabled by default, need license)
Audio Decoder
MID
WAVE
AAC (Disabled by default, need license)
MP3 (Disabled by default, need license)
Video Decoder MPEG-4 (Disabled by default, need license)
Ethernet 10M/100M/1000M (2 ports, PC and LAN)
Power Supply Built-in IEEE802.3af PoE port
Local Power (DC5V)
AC adaptor 5V/ 2A
Tilt stand Yes (3 steps. 30°, 51° and 60°)
Wall mount Yes (Optional)
Accessories
Headset
IP-EDMX (up to 2pcs)
IPP-KB USB Mini Keyboard
WR211N Wi-Fi 11b/g/n Ethernet Bridge
IPC-111(W) IP Camera

Page 13
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Chapter 2: IP3072 IP Phone Firmware
Architecture
This chapter provides an overview of the IP3072 Smart Office IP Desk Phone firmware big
picture, specifically an understanding of how the phone fits into the network configuration.
If you want to begin setting up your IP3072 phones, go to Chapter 3: Setting up Your
Phone Network.
The IP3072 phone supports the following deployment scenarios.
The Session Initiated Protocol (SIP) is the Internet Engineering Task Force (IETF)
standard for multimedia communications over IP. It is an ASCII-based, application-layer
control protocol (defined in RFC3261) that can be used to establish, maintain, and
terminate calls between two or more endpoints. Like other voice over IP (VoIP) protocols,
SIP is designed to address the functions of signaling and session management within a
packet telephony network. Signaling allows call information to be carried across network
boundaries. Session management provides the ability to control the attributes of an end-to-
end call.
For IP3072 phones to successfully operate as a SIP endpoint in your network, it will
require:
A working IP network
Routers configured for VoIP
VoIP gateways configured for SIP
An active, configured call server to receive and send SIP messages
The rest of this chapter consists of the following sections:
Where IP3072 Phones Fit in Your Network
Understanding IP3072 Phone Firmware Architecture
Features Available on Your IP3072 Phones
If you want to begin setting up your IP3072 phones on the network, go to Chapter 3:
Setting up Your Phone Network.
If you want to begin configuring the features available for your IP3072 phones, go to Part 3:
Configuring Your System.
Where IP3072 Phones Fit in Your Network
IP3072 phones connect physically through a Category 5 (Cat-5) cable to a standard office
twisted-pair (IEEE 802.3) 10/100/1000 megabits per second Ethernet LAN and PC ports,
and send and receive all data using the same packet-based technology.
There are many ways to set up a phone network using IP3072 phones. The figure below is
just one example of a netowork setup.

Page 14
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Understanding IP3072 Phone Firmware Architecture
IP3072 has two flash memories; one is for Main Board (BCM1104), and the other one is
for Codec Board (MP421). For the main board flash memory, it contains boot code, phone
application firmware and configuration files. For the codec board flash memory, it contains
GUI + Multimedia firmware and resources files.
Main Board flash memory:
Codec Board flash memory:
For the current each release of firmware, it has one combined image, and seperated
images and mandatory resource files.
“appsip_omega.bin” is a combined image. It includes phone application firmware, GUI
+ Multimedia firmware and resources files. It can be used to upgrade phone through
webpage.
B
Bo oo ot t C Co od de e
P
Ph ho on ne e A Ap pp pl li ic ca at ti io on n F Fi ir rm mw wa ar re e
C
Co on nf fi ig gu ur ra at ti io on n F Fi il le es s
R
Re es so ou ur rc ce e F Fi il le es s
G
GU UI I + + M Mu ul lt ti im me ed di ia a F Fi ir rm mw wa ar re e

Page 15
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
“appsip.bin.gz” includes phone application firmware only.
“SD file” includes GUI + Multimedia firmware and resources files.
In general case, you will only need to use the combined image to upgrade phone firmware
through web page. But, when the phone fails to reboot, you will need to use emergency
upgrade process to upgrade the phone.
What are the Configuration Files?
The configuration files are valid XML files that you can modify using an XML editor.
You can configure IP3072 phones automatically through configuration files stored on a
central provisioning server. Or, you can manually configure a phone using the phone’s
menu system via the local user interface. If you want, you can use the Web Configuration
Interface, or use a combination of the automatic and manual methods.
We recommend that you configure phones automatically through a central provisioning
server. If a provionsing server is not available, you can use one of the manual methods to
update most phone settings.
What are the Resource Files?
Examples of resource files include:
Pictures showing on LCD display
Default music and video files
Font files
Features Available on IP3072 Phones
This section briefly outline the features available on IP3072 phones.
Basic User Features
Configuring Call Forwarding – Provides a flexible call forwarding feature to
forward calls to another destination.
Enabling Call Hold – Pauses activity on one call so that you can use the phone
for another task, such as making or receiving another call.
Configuring the Call Logs – Contains call information such as remote party
identification, time and date, and call duration in three separate lists, dialed calls,
missed calls, and incoming calls.
Configuring Call Park and Retrieve – Park an active call – puts it on hold to a
specific location, so it can be retrieved by any phone. This feature requires call
server support.

Page 16
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Understanding the Call Timer – Maintains a timer, in hours, minutes, and
seconds, for each call in progress.
Using Call Transfer – Transfer a call in progress to some other destination.
Enabling Call Waiting Alerts – Visually presents an incoming call on the screen
when you are in another call.
Called Party Identification – Displays and logs the identity of the party in an
outgoing call.
Enabling Conference Management – Add, hold, mute, and remove conference
participants, and obtain information about participants.
Configuring Calling Party Identification – Displays a caller’s identity, derived from
the network signaling, when an incoming call is presented – if the information is
provided by the call server.
Connected Party Identification – Displays and logs the identity of the party to
whom you are connected to (if the name is provided by the call server).
Configuring Direct Call Pick-Up – Enables you to pick up calls to another phone
by dialing the extension of the other phone. This requires special call server to
cowork with IP3072.
Applying Distinctive Ringing – Enables you to select a ring tone for contacts in
the contact directory.
Configuring Do Not Disturb – Temporarily stops all incoming calls.
Configuring the Handset and Speakerphone.
Creating Local and Centralized Conferences – Join calls to create local
conferences. The user can call into centralized conferences using conference
bridge numbers. This feature requires call server support.
Using the Local Contact Directory – The phone maintains a local private contact
directory that can be edited locally, and a local public contact directory that can
be downloaded from a dedicated web server.
Microphone MUTE – Mutes the phone’s microphone so other parties cannot
hear you.
Enabling Missed Call Notification – Displays the number of missed calls you
have since you last looked at the Missed Calls list.
Using the Speed Dial Feature – Enables you to place calls quickly from
dedicated keys as well as from a speed dial menu.
Setting the Time and Date Display – Time and date can be displayed in differnt
format.

Page 17
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
Using Voice Recorder – You can record audio on the phone.
Using Calendar – You can view and add appointments on the calendar even
during a call.
Using World Clock – You can check world wide main city time and add your
favorites in the bookmarks even during a call.
Using MemoPad – You can view and add memos even during a call.
Using Painting Board – You can make notes on pictures even during a call.
Using Alarm Clock – You can set up to 5 sets of alarm clock with reminder.
Advanced Features
Configuring Busy Lamp Field – This feature works only when the phone
registers to Broadsoft call server. You can monitor the hook status of remote
parties with the busy lamp field (BLF) LEDs and you can display your status on
an attendant phone.
Resetting to Factory Defaults – Enables users to reset the phone to the factory
default settings.
Using the Corporate Directory – You can configure the phone to access your
corporate directory if it has a standard LDAP interface.
Using Instant Messaging –This feature works only when the phone registers to
Asterisk call server. Supports the sending and receiving of instant text
messages.
Using Multiple Call Appearances – Supports multiple concurrent calls. You can
place any active call on hold to switch to another call.
Assigning Multiple Line Keys Per Registration – You can assign Multiple Line
Keys to a single registration.
Enabling Multiple Registrations – Supports multiple registrations per phone.
Configuring Network Address Interface Translation – Phones can work with
certain types of network address translation (NAT).
Quick Setup – Provides a simplified interface to enter provisioning server
parameters while your phone boots.
Configuring Voicemail – Configures to access a compatible voice mail server.
Enabling Local Voicemail (Answering Machine) – Allows you to save your
voicemails on the local phone instead of voice mail server.

Page 18
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Supporting POP3 and SMTP based E-mails – Configures to retrieve a POP3 or
SMTP e-mail server.
Using XML based browser – You can configure the phone to access information,
such as weather and news..., and other customized applications from the
specified XML server.
Audio Features
Acoustic Echo Cancellation – Employs advanced acoustic echo cancellation for
handsfree operation.
Audiable Ringer Location – Choose how to play out audio tones.
Audio Codecs – Enables access to a wide range of industry standard auido
codecs.
Volume Control – Choose the volume levels for the various audio outputs on the
phone.
Comfort Noise – Provides a consistent noise level to the remote user.
Customizing Audio Sound Effects – Enables you to customize sound effects
associated with incoming calls and other events.
DTMF Event RTP Payload – Conforms to RFC2833, which describes a standard
RTP-compatible technique for conveying DTMF dialing and other telephony
events over an RTP media stream.
Generating Dual Tone Mulit-Frequency (DTMF) Tones – Generates dual tone
multi-frequency (DTMF) tones in response to user dialing on the dial pad.
IEEE 802.1p/Q – The phone may tag all Ethernet packets it transmits with an
802.1Q VLAN header.
Voice Activity Detection – Conserves netowork bandwidth by detecting periods
of relative “silence” in the transmit data path and replacing that silence with
special packets that indicate silence is occuring.
Security Features
Digital Certificates – Supports digital certificates and associated private keys.
Local User and Administrator Passwords – Local settings menus are protected
with two privilege levels – user and administrator – each with its oqn password.
Locking the Phone – Prevent access to the phone menu and to key presses.
Secure Real-Time Transport Protocol – Encrypting audio streams to avoid
interception and eavesdropping.

Page 19
MOCET IP3072 Smart Office IP Desk Phone Administrator Guide
802.1X Authentication – Authenticate devices connecting to a loacl area network
(LAN).
Multimedia Features
Video Viewer – Allows you to view video films (video format limitation and
license required) on the phone.
Music Player – Allows you to listen music (audio format limitation and license
required) on the phone.
Photo Viewer – Allows you to view photos slide on the phone.
IP Camera Related Features
Surveillance – You can configure the phone to view video from IPC-111(W) IP
cameras (video format limitation and license required) on the phone.
Door Phone – You can configure the phone to perform door phone function. This
feature requires the phone to work with IPC-111(W) IP camera (video format
limitation and license required).
Video Phone – You can configure the phone to perform video phone function.
This feature requires both of phones to work with IPC-111(W) IP camera (video
format limitation and license required) respectively.
For instructions on how to set up each feature on IP3072 phone, see the feature sections
in Part 3: Configuring Your System.

Page 20
MOCET IP3072 Smart Office IP Desk Phone Administrators' Guide
Part 2: Setting up Your System
Part 2 provides you with essential information on how to set up your phone network and a
provisioning server. You will find basic and advanced instructions on how to set up a
provisioning server, how to deploy IP3072 phones from the provisioning server, and how
to upgrade the firmware.
Part 2 consists of the following chapters:
Chapter 3: Setting up Your Phone Network
Chapter 4: Setting up the Provisioning Server
