Modena CX 9150 Owner's manual

User
Manual Book
Wall Chimney Hood
CX 9150
CX 6150
CX 7110 L
CX 9301
CX 6301
CX 6330
CX 9701 L
CX 9777
CX 9754
CX 7754
CX 7712 L
CX 9313 L
CX 7310 L
CX 9313 S
CX 7313 S
CX 9330
CX 9356
CX 9177
CX 9157
CX 9156
CX 9753
CX 8917 LASS
CX 7915 GXBK

2
TABLE OF CONTENTS
Part 1: Safety Warnings 3
Electrical Shock Hazards 3
Part 2: Name of Parts 4
Part 3: Installation 9
Preparations of Installation 9
Installing the Hood on Wall 10
Installing the Hood Body 12
Working Method 13
Installation (Ducting System) 14
Installation (Recirculating System) 15
Chimney Installation 16
Part 4: How to Use 21
Push Button Type 21
Electronic Button + Display Type 21
Touch Button Type 22
Clock Setting 22
LCD Display 24
CX 9777 25
CX 9157 / CX 9177 26
CX 8917 LASS 27
CX 7915 GXBK 29
CX 9754 / CX 7754 32
Part 5: Maintenance 33
Cleaning the Cabinet 33
Cleaning the Filter 33
Cleaning oil Container 34
Changing the Light Bulb 34
Part 6: Problem & Solution 35
Part 7: Precaution 35
Part 8: Specification 36
This guide book explains everything you need to know about your new product.
Please contact our Customer Care should you need further assistance through
www.modena.com

3
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the
environmental condition, bake shop, barbecue, and other commercial
purposes.
•The exhaust hood should be cleaned periodically so that its power is
maintained.
•Clean the exhaust hood according to the instructions contained in this book and
keeps it away from the danger of being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in
good shape. If there is damage to the power cord, the replacement must be
performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas
stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a
physical, sensory, or mental disability, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of
the appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more
than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt,
ask advice from an experienced technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other
hazards that are fatal.
PART 1: SAFETY WARNINGS

4
CX 9313 S, CX 9313 L, CX 7313 S, CX 7313 L, CX 9330, CX 6330, CX
9301, CX 6301
1. Control Panel
2. Cassette Aluminum Filter
3. Cassette Aluminum Filter Handle
4. Lamp
5. Main Chimney
6. Upper Connector Chimney
7. Circulation Hole
CX 9150, CX 6150, CX 7110 L, CX 9156
PART 2: NAME OF PARTS

5
CX 9753
CX 9356

6
CX 9701 L
CX 7712
1. Circulation Hole
2. Upper Chimney
3. Main Chimney
4. Control Panel
5. Aluminum Filter
6. Carbon filter

7
CX 9777
CX 9157/ CX 9177

8
CX 9754 & CX 7754
CX 8917 LASS

9
CX 7915 GXBK
• The image is a general overview and is not necessarily the same as the product
you receive.
• Features and other attributes are depending on the type of products
Preparations of installation:
The exhaust hood is equipment which vacuums the smoke and odor produced in
cooking process. With an exhaust hood, your kitchen will be free from oil particles
which produces bad odor.

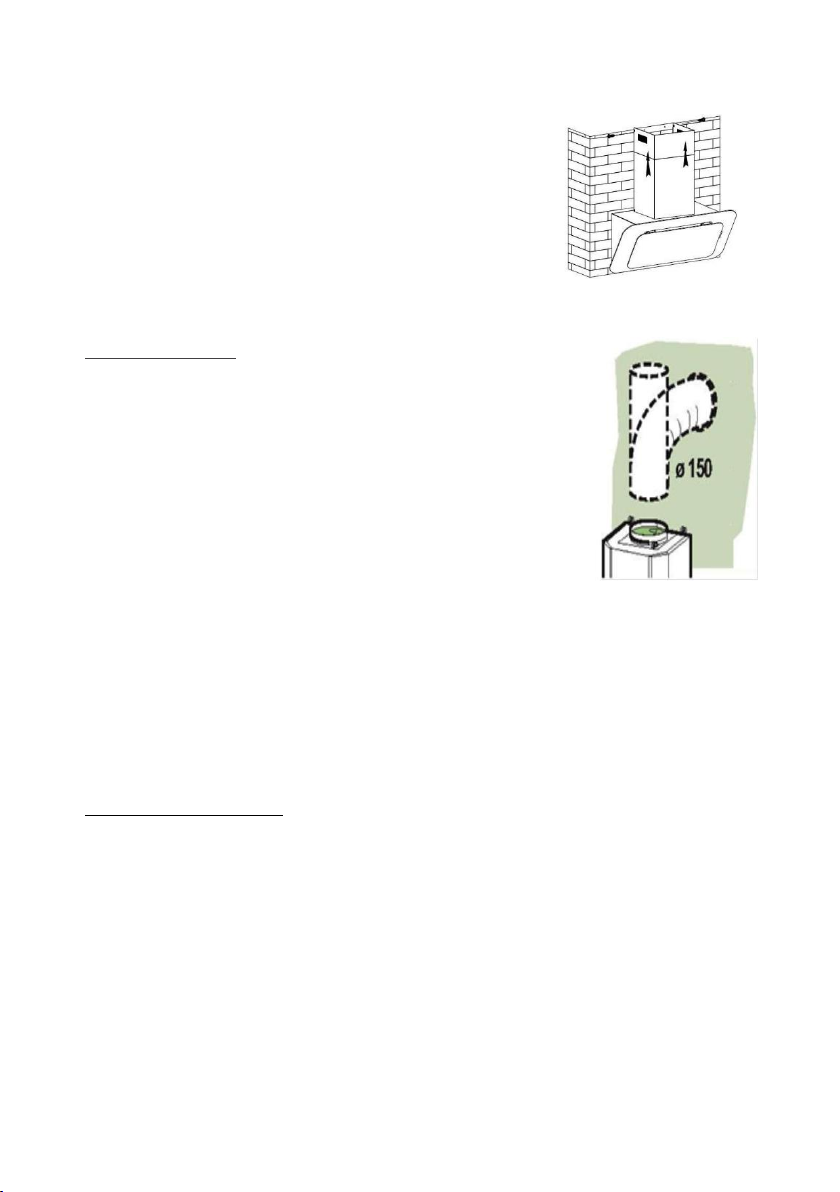

•If you have a waste pipe outside, the exhaust
hood can be connected using extraction duct
(enamel, aluminum, flexible pipe or a fire-
resistant material with an inner diameter of
150 mm), see the following picture:
PART 3: INSTALLATION

10
•Before installation, switch off the unit and
unplug the power cord from the power socket
.
•Check the strength of wall on which the hood
is to be installed. Make sure the wall can
sustain the weight / load of the hood.
•The hood should be installed precisely over
the stove at a vertical distance of 65 - 75 cm
from the stove surface.
.
Installing the Hood on Wall
The hood must be installed in an upright
position to prevent the oil from flowing
to one side and dripping out of the
exhaust hood.

11
Creating Holes on the Wall and Methods for Installing Bracket
Model
A (cm)
B (cm)
C (cm)
CX 9753
37.5
39
39
CX 9330
34.5
20.5
49
CX 6330
34.5
20.5
49
CX 9150
34.5
20.5
49
CX 6150
34.5
20.5
49
CX 7712 L
25
39
39

12
Installing the Hood Body
•Install hood’s body on the bracket I on the
wall or on the screw head especially for CX
9753.
•Connect the exhaust system with the spigot
/ flange if the exhaust hood will be
operated in a ducting / exhaust system.
NOTES
•Height / distance are 65 –75 cm, except for CX 9753 type where the
height / distance is 35 –40 cm.
•For CX 7712 L, the height H is 34 –45 cm
•For CX 9754 / CX 7754 the height is 34 –45 cm
•For CX 9753, we recommend installation for use with a stove without the
top cover.
•Height / Distance C can be shortened in accordance to the ceiling height.
•Make a vertical line on the wall to its highest point or to an appropriate
height on the center part of the area where the vent hood is to be
installed
•Make a horizontal line at H (cm) distance from the stove to mark the
lowest limit for the hood.
•Install bracket I on the wall just like on the picture above up to height A
and mark the holes for expansion bolt and plastic wall anchor. Especially
for CX 9753, attach the unit on the wall up to height A and mark the holes
for expansion bolt/plastic wall anchor/screw.
•Install bracket II on the wall just like on the picture above up to height B
and mark the holes for plastic wall anchor hole.
•Install bracket III on the wall just like on the picture above up to height C
and mark the holes for plastic wall anchor hole.
•Drill the wall with a Ø 10 mm for expansion bolt and ϕ8 mm for plastic
wall anchor in all marked sections.
•Insert the expansion bolt and plastic wall anchor into the hole.
•Install all brackets using nut for expansion bolt and screw for the available
plastic wall anchor

13
•Install the main chimney and the upper
chimney on brackets I and II with the screws
that already provided.
Working Method
MODENA exhaust hood has 2 principle of work:
Ducting system:
In this mode, the hood operates by sucking the
smoke / odor in the cooking process and then
releasing it out of the vent through the exhaust
system.
To connect the hood with the duct system, use
"spigot/flange" which is designed with a
diameter of 150 mm.
Several things which require attention in installing the
ducting system exhaust hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If the hood is installed in a multi-storied building or an apartment, consult with
the person in charge of the building / apartment prior to installing the exhaust
system.
3. Hood with ducting system should be used in an open-air room with good air
circulation.
Recirculating System
In this version, the vent hood sucks the smoke / cooking odor and filters it through
an aluminum filter and carbon filter. The filtered smoke is then reticulated into the
room. This system is used if the premise renders it impossible to install a ducting
system
Several things which must be ensured when installing a vent hood with reticulating
system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be precise.
3. Circulation holes on the exhaust hood are not allowed to be closed

14
Installation (Ducting System)
When the range hood and appliance supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must be not exceed
4 Pa (4 × 10-5 Bar)
•Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket
onto the wall with the screws & screw plugs provided
•For inclined panel Model, need to drill 4 x 8mm extra holes & fixing screws &
screw plugs before installation.
•Leave up the exhaust hood and hang onto the wall bracket hook.

15
•Fix the one-way-valve to the air outlet of the exhaust hood. Then, attached the
exhaust pipe into the one-way-valve as shown below.
Installation (Re-circulating System):
• If you do not have an outlet to the outside, exhaust
pipe is not required and the installation is similar to the
one show in section “Installation (Ducting/Exhaust
System)”.
• Activated carbon filter can be used to trap odors.
• In order to install the activated carbon filter, the grease filter should be
detached first by press the lock and pull it downward.
•Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side

16
Chimney installation
For Glass model and T shape model
•By put the upper chimney into lower chimney. Then pulling out the upper
chimney upwards. Adjust to reach the height required.
•Sliding the chimney to adjust the chimney height. When the height you required
is reached, then hang the fixing hole to the fixing screws as showed in below
pictures
NOTE
•Make sure the filter is securely locked. Otherwise, it would loosen and
cause dangerous.
•When activated carbon filter attached, the suction power will be lower.
•Carbon filters are installed at the rear of the grill and had to be replaced
after three months or depends on someone using cooker hood.

17
•Drill 2 × 8 mm holes to accommodate the plate II. Screw and tighten the plate II
into the wall with two screws provided. Assembly the chimney into the unit and
fix it with two screws
For Tower Model
•Put the inner chimney into upper chimney .Then pulling out the upper chimney
upwards. Adjust to reach the height required
•Fix the lower chimney with two pieces of 4x8 mm screws

18
•Sliding the chimney to adjust the chimney height. When the height you required
is reached, then fix two pieces of 4x8 mm screws onto the hole fixing with plate
I as showed in below pictures
•Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate II
into the wall with two screws provided.
•Assembly the chimney into the unit and fix it with two screws.
For optimal air extraction :
•Keep exhaust duct short and straight.
•Do not reduce the size or restrict the exhaust duct.
•Minimize bends.
•Make sure the helix of the flexible exhaust duct is tightly drawn rather than
slacking.
•Determine height between cooker hob and base of hood.
•Mark wall to suit all bracket locations. Drill holes of 50 mm depth at the selected
drilling position.

19
•Insert the expansion tubes to fix the bracket onto the wall.
•Install the flow exit to the hood and follow by connecting the flexible exhaust
duct to the flow exit.
•Strengthened the connection between the flow exit and the flexible exhaust
duct with screws.
•Lift and hang the hood to the wall bracket and please ensure it sits firmly on the
bracket.
•Direct the other end of the flexible exhaust duct to the outlet or wall.
•Fit in the safety baffle of the hood onto the wall to strengthen the position and
to reduce vibration when the hood is switched on.
•Chimney extension can be installed to the ceiling or wall.
•Ensure the oil collection container is in place before the hood is being used. To
remove it for cleaning, slide the oil collection container from front to rear, vice
versa for inserting it into position
•Ensure there is proper ventilation in the cooking area.
•Instructions concerning the discharge of air have to be followed.
•Does not use flame under the range hood.
•Avoid using materials which could cause spurts of flame near the range hood.
•Never touch the lamp when it is on.
•Do not dismantle, repair or modify the range hood on your own.
CX 8917 LASS
•Determine the installation position
The hood should be installed horizontally above the hob.
•Install the wall bracket
Drill 4 holes ofφ10 in the wall according to the size of the wall bracket with a
depth of 60mm, bury the plastic expansion tube in the holes and fix the bracket
with ST4.9X50 screws.
•Install the vent damper assembly and ducting hose
Fix the vent damper assembly on the range hood with the screws at the air
outlet, and check whether they are installed properly.
Insert the ducting hose into the vent damper assembly, fasten the pipe with two
ST3.9X10 screws and seal it with transparent adhesive to prevent fume leakage.

20
•Hood installation
Hang the hood on the fixed wall bracket and make sure it is securely in place,
then screw the anti-dislodging screws. Lead the ducting hose out, and install the
oil collector.
NOTES:
•When drilling holes for expansion tubes, the diameter of the holes
should be the same as the tube size. Drilling large holes will cause the
expansion tubes to loosen and accidental fall of hood.
•If installed above gas hob, the height should be 650 -750mm
•Avoid excessively long ducting hose to affect the extraction effect.
•Power sockets should be less than 1000mm away from the hood.
