Modena PX Series Owner's manual

User
Manual Book
Slim Hood
PX Series
PX 9022, PX 9002
PX Series
PX 7001, PX 9012 V
PX Series
PX 6021, PX 6001
PX Series
PX 6011 V, PX 6111

2
Thank you for your trust in choosing MODENA products for your household needs. With your
satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped
with state-of-the-art technology to assist you in your daily activities.
This is your guidebook containing everything you need to know about our product. Please reach
out to us if you need further assistance or other information via our Customer Care or our official
website www.modena.com.

3
CONTENT PAGE
▪Introduction
•Part 1 : Safety Warnings 5
•Part 2 : Name of Parts 6
•Part 3 : Installation 7
•Part 4 : How to Use 13
•Part 5 : Maintenance 15
•Part 6 : Problem & Solution 17
•Part 7 : Precaution 17
•Part 8 : Specification 18

4
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the environmental condition, bake shop, barbecue,
and other commercial purposes.
•The exhaust hood should be cleaned periodically so that its power is maintained.
•Clean the exhaust hood according to the instructions contained in this book and keeps it away from the danger of
being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the
power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a physical, sensory, or mental disability, or
lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the
appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt, ask advice from an experienced
technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other hazards that are fatal.
.
Part 1: Safety Warnings

5

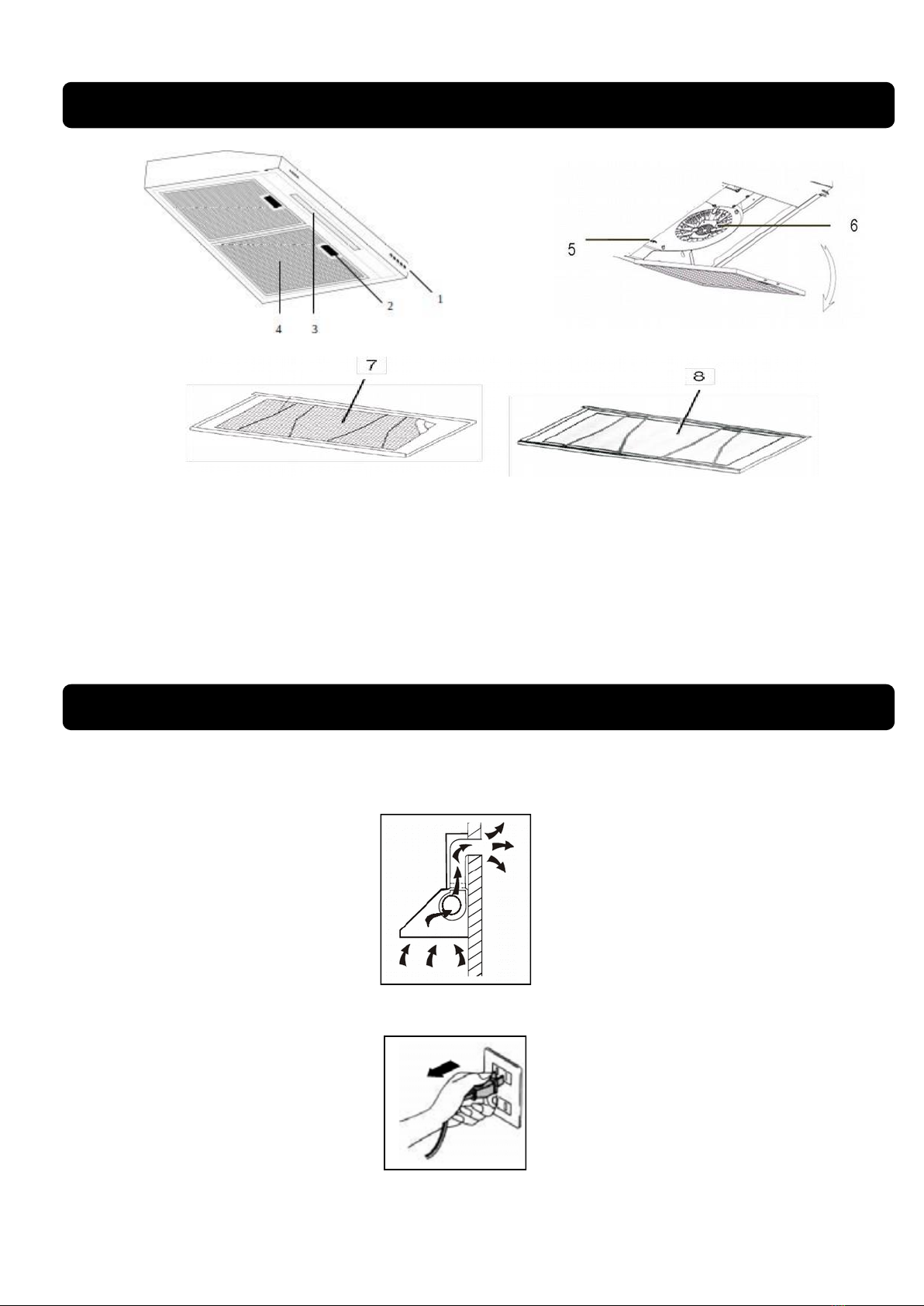

*The image is a general overview and is not necessarily the same as the product youreceive.
*Features and completeness depends on the type of products.
1. Control panel
2. Lock latches
3. LED
4. Aluminum filter
5. Air flow direction regulator knob
6. Motor
7. Carbon filter mat
8. Cassette Aluminum filter
Preparations:
1. If you have a waste pipe outside, the cooker hood can be connected using extraction duct (enamel, aluminum,
flexible pipe or a fire-resistant material with an inner diameter of 150 mm), see the following picture:
2. Before installation, switch off the unit and unplug the power cord from the wall socket.
3. Installation of the cooker hood should be right on the top of the stove with a minimum distance of 65 cm and a
Part 3: Installation
Part 2: Name of Parts

6
height of maximum 75 cm from the surface of thestove.
Hood Installation (slim hood)
Cooker hood can be installed on a concrete wall or on the bottom of the kitchen set cabinet wall.
Installing on a concrete wall
•Make a center line on the wall where it will be placed in the cooker hood.
•Attach the template to drill the wall. If it is not completed by a template, attach the cooker hood to the wall and
give a sign to make a hole with a center hole spacing on the back of the cookerhood.
•Make holes on the two previous signs using a drill bit with the diameter of 8 mm or the size of the nut. Then
insert the nut into the holes.
Caution:
•Before drilling, make sure that there is no cable, water pipe and other installations on thewalls.
•Put the screw on the two top holes and let a distance of 1 cm between the screw head and the wall surface.
•Attach the cooker hood on the wall that has been fastened by screws by hanging the cooker hood on the screws.
•If the position of the cooker hood on the wall is correct, tighten the twoscrews.
•Then close the grid.
•Install the safety ventilation using screws 6 mm in diameter.
•Connect the waste pipe with Spigot/ Flange if the cooker hood will be used as ducting/ exhaustsystem.

7
Installing on the bottom of the kitchen set cabinet
•Place the sucker cap on the bottom of the kitchen set cabinet in
accordance with the planned position precisely.
•Make signs at the bottom of the kitchen set cabinet for flexible pipe
holes and then make the holes if the cooker hood will use the ducting/
exhaust system.
•Drill 4 holes with diameter of 6 mm at the appropriate position. Attach
the spigot/ flange and then attach the cooker hood and fasten with 4
screws at the position that has been prepared.
•Attach the controller board on the bottom of the cooker hood to
prevent the gap between the cooker hood and the kitchen set.
Note:
1. Pipe extension is an additional accessory, not included in the unit.
2. Remove the protective layer before mounting.
3. There are 2 methods of ventilation, that is: 'horizontal ventilation' and 'vertical ventilation'.
Please note when doing installation.
Open the cover of the outlet at its top to apply vertical ventilation system.
See Fig. A. Meanwhile, applying the horizontal ventilation system can
be done by removing the cover on the outgoing airways on the back of
the unit. See Pic.B.
Rectangular outlet for horizontal ventilation is not included
Setting the air vents
MODENA cooker hood has two (2) working way versions that are:
A. DUCTING/ EXHAUST System:
•In this version, the cooker hood works by sucking fumes/ cooking
aroma which then is thrown out through the waste pipe.
•It is needed to have heat/ flame resistant ducting system to throw
away the smoke/ aroma throughthe outlet.
•Toconnect the cooker hood with the waste pipe,
•"spigot/flange" is used. It has been provided in every pack of cooker
hoods.
•Touse a cooker hood with this system then turn the control knob of
the air-circulation direction to the outside circulation position.
A few things to note for the cooker hood installation using ducting system:
1. Carbon filter should be removed because the sucked cooking aroma will immediately dumped out of the room.
2. A suction power will be decreased if the waste pipe is too long and a lot ofangles.
3. Do not connect with the waste pipe with a chimney or a room air duct or hot airducts.
4. If the cooker hood is about to be installed in buildings or apartment, preferably before the installation of the waste
pipe, it is consulted first with the responsible person of the building/apartment.
5. The use of cooker hood with ducting system should be in an open room with a good air circulation system.
B.RECIRCULATION System:
•In this version, the cooker hood works by sucking fumes/ cooking aroma which then will be filtered through an
aluminum filter and a carbon filter respectively. The smoke is filtered and then flowed back into the room
(recirculation). This system is used if the cooker hood installation place does not allow the ducting system
installation.
•Touse a cooker hood with this system then turn the control knob of the air circulation direction to the position of
recirculation and install the cover of the waste pipe.

8
A few things to note for the cooker hood installation using recirculation system:
1. Both carbon filters and filter aluminum should be used.
2. The position of the two filters must be precise.
3. The holes where the air comes out located on the front of the cooker hood cabinet should not be closed.
Note:
Carbon filters are installed at the rear of the grill and must be replaced after three months.
Warning: Carbon filters cannot be washed or recycled. The maximum use of carbon filters is for 120-hour use and must
be replaced afterwards. Carbon filters should not be exposed to the heat
Connect the plug to the power outlet.
Turning on or turning off the cooker hood and cooker hood lights can be done by sliding or pressing a motor speed
regulator button and the lighting button as shown below.
Note: The setting of the cooker hood motor speed is adjusted to the thickness of the smoke / steam that arises when
cooking.
PUSH type button
0 On/ Off Buttons
The Buttons which are for turning off or turning on the cooker hood
Motor speed button –LOW
Suitable for air circulation used in the kitchen or cooking conditions that does not cause a lot of smoke or
steam.
Motor speed button - MEDIUM
Air circulation speed that is suitable for a cooking process that raises a medium volume of smoke or fumes.
Motor speed button - HIGH
When the level of smoke or steam produced is high enough, then use a high-speed level for effective
air circulation.
Buttons to turn on/ off lights
Note: If the low/ medium/ high speed button pressed simultaneously, then the unit will turn on the high speed only.
Part 4: How to Use

9
CAUTION:
Avoid a direct contact between the stove being turned on and the cookerhood. To get the optimal filtering, cooker hood
should be turned off 20-30 minutes after cooking is finished.
MODENA cooker hood specifically designed for long term use so that it does not require complicated maintenance.
However, there are some things that are recommended to take care of your cooker hood so that the quality is maintained.
Turn the unit off and unplug the power cord from the power source before cleaning.
I. Regular care
Use a soft cloth dampened with a mixture of warm water and mild soap or household detergent. Do not use
metallic pads, chemicals, abrasive materials or a stiff brush to clean the unit.
II. Monthly Maintenance for a Grease Filters
IMPORTANT: Cleaning the filter can prevent the risk of fire. Filter captures grease, smoke and dust that filters directly
affect the efficiency of the cooker hood. If it is not cleaned, the residual grease (potentially flammable) will accumulate in
the filter. Clean it with household detergents.
III. Maintenance for Carbon Filters
Attach a carbon filter on the unit to be used with a recirculation system (not the ducting system). This filter should be
replaced at least every three months or depends on how often the use of cooker hood
Part 5: Maintenance

Consult the following troubleshooting before contacting our Service Center regarding your exhaust hood:
PROBLEM
POSSIBLE
CAUSE
RECOMMENDED ACTION
Exhaust hood
malfunctioning
- Power cord is not yet connected
to the electrical outlet.
- Electrical outlet does not have
electricity current in it.
- Connect the power cord to the electrical
outlet.
- Connect the power cord to a properly
functioning electrical outlet.
Reduced suction
power
- Dirty aluminum filter.
- Dirty carbon filter.
- Clean the aluminum filter, dry it and place
it back on the vent hood.
- Replace the carbon filter with a new one.
Motor fan
malfunctioning
- Broken motor coil.
- Contact MODENA Service Center.
Motor stops working
after a while
- Safety thermal regulator is active.
- The vent hood is installed too close to the
stove.
- Air circulation is not optimal.
- Contact MODENA Service Center.
●Make sure the hood is turned on after a while to allow the air around the cooking area to circulate properly and make sure
the hood is turned off after this process..
●Periodically inspect the filter and oil reservoir. Make sure that the filter is in clean and good condition and make sure the
oil reservoir is not exceeding the specified limit.
●If you smell burnt / burnt smell from the hood, immediately turn off the hood and contact the MODENA Service Center.
●Perform a routine service on your stove every 3 (three) months, because if there are problems / problems with your exhaust
hood, it can be immediately identified and repaired. Contact MODENA Service Center
Part 6: Problem and Solution
Part 7: Precaution

MODEL
PX 9022
PX 9002
PX 7001
PX 9012 V
Type
Slim hood
Slim hood
Slim hood
Slim hood
Cabinet Material
Metal + Acrylic
Metal + Acrylic
Metal + Acrylic
Metal
Color of Cabinet
Black
Black
Black
Silver
Color of Front Panel
Black
Black
Black
Silver
Motor
2
2
1
2
Lamp
LED Stripe
1
1
1
Control Type
Push button
Push button
Push button
Push button
Speed
3
3
3
3
Filter type
Cassette
Aluminum Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Motor power
2 x 100 Watt
2 x 100 Watt
1 x 100 Watt
2 x 100 Watt
Lamp power
2 x 1.5 Watt
40 Watt
40 Watt
40 Watt
Dimension (L x W x H) mm
900 x 500 x 80
900 x 500 x 80
700 x 500 x 80
900 x 500 x 80
MODEL
PX 6021
PX 6001
PX 6011 V
PX 6111
Type
Slim hood
Slim hood
Slim hood
Slim hood
Cabinet Material
Metal +
Acrylic
Metal +
Acrylic
Metal
Metal
Color of Cabinet
Black
Black
Silver
Black
Color of Front Panel
Black
Black
Silver
Black
Motor
1
1
1
1
Lamp
LED Stripe
1
1
1
Control Type
Push button
Push button
Push button
Push button
Speed
3
3
3
3
Filter type
Cassette
Aluminum Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Cassette
Aluminum
Filter
+ Carbon Mat
Filter
Motor power
1 x 100 Watt
1 x 100 Watt
1 x 100 Watt
1 x 70 Watt
Lamp power
1 x 1.5 Watt
40 Watt
40 Watt
40 Watt
Dimension (L x W x H) mm
600 x 500 x
80
600 x 500 x
80
600 x 500 x
80
600 x 500 x
80
Part 8: Specification

11/20
