Modena CX 9761 Owner's manual

User
Manual Book
Hood
CX 9761

2
Contents
Part 1: Important Safety Information 3
Electrical Shock Hazards 4
Part 2: Name Of Parts 5
Part 3: Installation 6
Installation Precaution 7
Installation Diagram 8
Part 4: How To Use 9
Part 5: Maintenance 11
Cleaning The Cabinet 11
Cleaning The Filter 11
Aluminum Filter 11
Carbon Filter 12
Changing The Light Bulb 12
Part 6: Problem And Solution 13
Part 7: Precaution 15
Part 8: Specification 16

3
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the
environmental condition, bake shop, barbecue, and other commercial
purposes.
•The exhaust hood should be cleaned periodically so that its power is
maintained.
•Clean the exhaust hood according to the instructions contained in
this book and keeps it away from the danger of being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power
cord is in good shape. If there is damage to the power cord, the
replacement must be performed by qualified personnel or contact the
MODENA Service Center for replacement process.
•The room should have good ventilation during the use of exhaust
hood on gas stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children)
with a physical, sensory, or mental disability, or lack of experience
and knowledge unless they have been given supervision or
instructions concerning the use of the appliance by the person who
is responsible for their safety.
•Children should be supervised to ensure that they are not playing
with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that
had more than four burners.
PART 1: IMPORTANT SAFETY INFORMATION

4
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you
are in doubt, ask advice from an experienced technician who is
suitably qualified.
•The failure to follow these instructions may cause electric shock, fire,
or other hazards that are fatal.

5

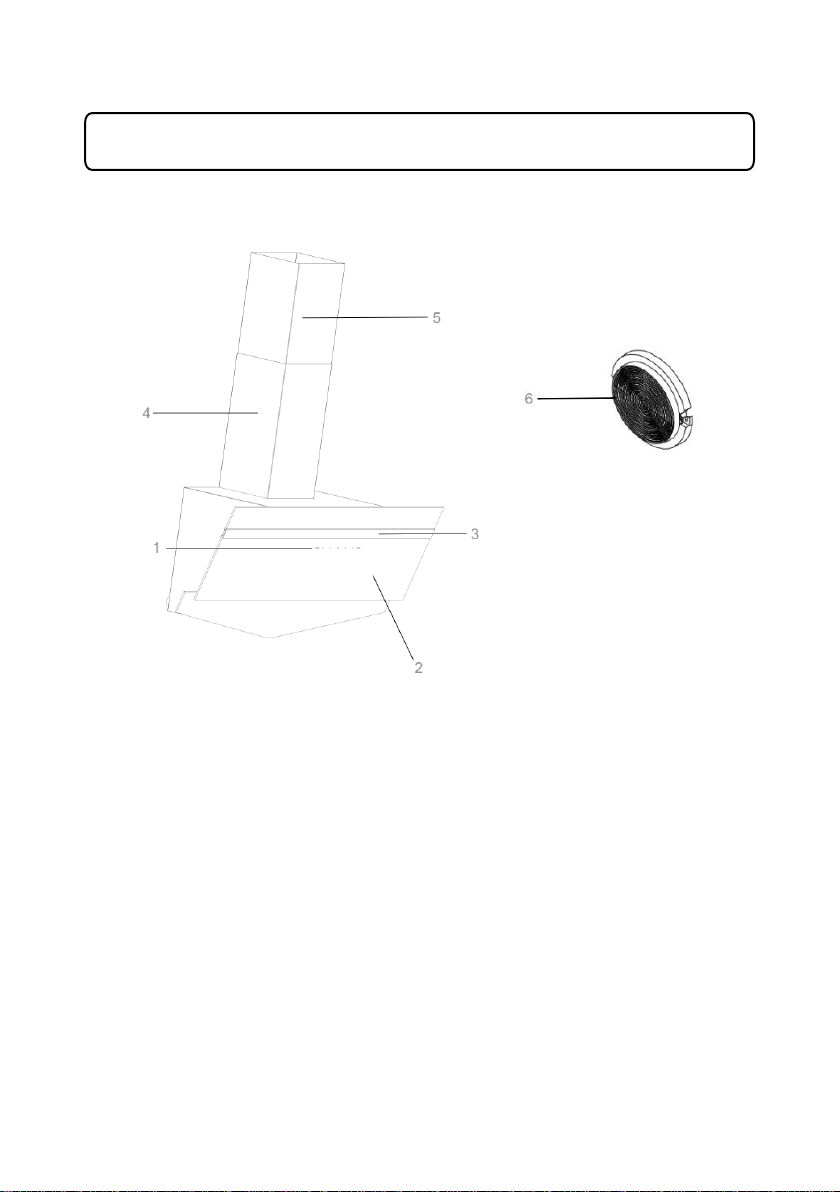

PART 2: NAME OF PARTS
1. Control Panel
2. Glass
3. Stripe
4. Main chimney
5. Upper chimney
6. Charcoal filter

6
1. Determine the location: According to the product model, refer to
the installation diagram, and mark the corresponding position on
the wall. The installation position shown in the figure in installation
diagram.
2. Install the hanging plate: in the horizontal position with the marked
height, drill a hole with a diameter of ∅10mm and a depth of about
50mm in the corresponding position on the wall according to the
corresponding illustration or the hole position of the hanging plate
provided with the plastic expansion tube Install it in the wall hole
and fix the hanging plate on the wall with the fixing screws.
3. Install the air outlet component: install the air outlet component
with the sponge pad in place, fasten it with the screws provided,
check and ensure that the air outlet blades rotate flexibly (if
installed, this step can be omitted)
4. Install the air outlet pipe: Insert one end of the air outlet pipe into
the groove of the air outlet assembly, and fix the air outlet pipe to
the air outlet with the two self-tapping screws provided.
5. Installation of the body: Align the hanging holes on the back of the
body with the hanging buckles of the hanging plate, and check by
shaking the body by hand to confirm that the body is installed
horizontally and firmly. The expansion tube fixes the anti-fall
pressure block (or anti-fall screw) on the top of the range hood;
finally, lead the other end of the air outlet pipe to the outdoor or
public flue.
6. Install the enclosure board: Remove the screws used to fix the
enclosure board, align the installation holes of the enclosure board
with the box, then replace the screws used to secure the enclosure
board, and finally attach the enclosure board bracket with the
screws provided Fixed on the fence (if installed, this step can be
omitted).
PART 3: INSTALLATION

7
Installation Precaution
•Only professionally trained and qualified installers can install this
range hood.
•If your kitchen is being decorated, then do not expose the cooker
hood to avoid corrosion and tarnishing of the cooker hood surface.
•When handling and installing the range hood, please do not carry
the glass and the front panel by hand, otherwise the glass may
break or loosen.
•Do not install the range hood on the top of a solid fuel stove.
•When drilling holes in the wall, avoid the electric wires buried in the
wall to avoid the risk of electric shock.
•The range hood must be grounded, it is equipped with a three-pin
plug, this plug must be plugged into a grounded socket.
•Please confirm that your home's power supply system (current,
voltage, and connecting wires) can meet the normal load
requirements of the hood.
•Do not install the range hood on the wall of wood or other
flammable materials.

8
Installation Diagram
Hanging Panel
Air Outlet
Screw
Gasket
Outlet Base

9
After the power is turned on, all the indicator lights are displayed. After
about 1 seconds, the indicator lights are off, then the system enters the
somatosensory standby state.
1. On / off key: When this key is touched in the off state, entering the
standby state and waiting for other key operations. When you
touch this key again, it returns to the off state. Time-delay function
when the motor is running, touch this key to enter a 1-minute time-
delay shutdown state, the indicator light flashes during the delay.
In the off state, long press this key for 2 seconds to turn off the
somatosensory function long press again for 2 seconds to turn on
the somatosensory function.
2. Low/Middle speed key: Press this button when in the standby
state, then the button will light up while the fan will enter the slow
running state. Press the button once again, the fan enters a
medium-speed running state. Press the button repeatedly to stop
the fan and return to the stand by state.
3. Fast speed key: Touch this key in standby state, the key lights up
and the fan enters the fast running state. Touch the key again to
return to the standby state, and the fan stops running.
4. Light key: In any state, touch this key to turn on the light. When
you touch this key again, the light will turn off. (The lamp is
PART 4: HOW TO USE
Cooling
function
Light
Fast speed
Low/middle
speed
On/off

10
controlled independently, it can be turned off by manual
shutdown)
5. Cooling function key: In any state, touch this key to turn on the
Cooling function.
6. Gesture Motion Sensor: Wave your hand from left to right to turn
on the cooker hood. The cooker hood will start to operate with high
fan speed and LED light will turn on. Wave your hand from right to
left to turn off the cooker hood. The cooker hood will stop operate
and turn off immediately. (Tips: When using a somatosensory
switch, please align your palm with the left and right sensing area!
The ideally gesture motion speed from left to right or right to left
shall within two seconds! The ideally distance of gesture motion
from control panel is from 5 –10 cm）

11
MODENA exhaust hood specifically designed for a long term use so that
it does not require complicated maintenance. However, there are some
things that are recommended to take care of your exhaust hood so that
the quality is maintained.
Turn the unit off and unplug the power cord from the electrical source
before cleaning
Cleaning The Cabinet
To clean the surface of exhaust hood cabinet from sticky oil particles,
use a cloth / sponge and soap water and then dry it out. The cabinet
should be cleaned after each cooking session.
Cleaning The Filter
Smoke / steam from cooking and oil particles generated by the cooking
process will immediately absorbed by the filter and therefore the filter
should be cleaned regularly
Aluminum Filter
• For routine usage, clean the aluminum
filter once every 10 –15 days by
soaking the filter in a container filled
with soap water for 1 hour (look at
image) and use a soft brush to scrub it
and then dry the filter thoroughly
before placing it back to its proper
position.
• Aluminum filter can be cleaned using a
dishwasher.
• Avoid bending the filter when you
wash it.
PART 5: MAINTENANCE

12
Carbon Filter
Carbon filter must be replaced with a
new one at least once every 4 months
or when the carbon filter is no longer
capable to absorb the cooking odor.
• Remove the aluminum filter first.
• Remove the carbon filter by
pulling the hook (for square-
shaped filter) or rotating it (for
round –shaped filter).
• Install the new carbon filter.
• Reinstall the aluminum filter.
Changing The Light Bulb
1. Turn off the Hood and unplug the
power cord.
2. Disconnect the wire and remove the
lamp from exhaust hood body.
3. Change the bulb with the same size
and power type.
4. Install the new lamp on the exhaust
hood body and reconnect the wire
ATTENTION:
Carbon filter cannot be washed and must be replaced
with a new one in accordance with the description above

13
Problem
Possible Cause
Recommended Action
The light is not on and
the motor does not
rotate
Poor contact between plug
and socket
Repair or replace
Power line is open
Replace the power cord
Fuse blown
Replace the fuse
No power
Wait until the power is recovered
and try again
The light is not on and the
motor is rotating
The lighting is broken
Replace the lamp assembly
The transformer of the lamp
has been damaged
Repair or replace
Defective power board or
switch
Repair or replace
Light is on, motor does not
rotate
Motor over temperature
protection act
Repair or replace
Capacitor burnout
Replace capacitor
Motor burnout
Replace motor
Failure of power board and
switch
Repair or replace
Vigorous body
vibration, noise
increase
Check if the range hood is
fastened
Hang up the range hood
Whether the connector fixing
screws are loose
Tighten the screws
Whether the volute fixing
screws are loose
Tighten the screws
Whether the motor fixing
screws are loose
Tighten the screws
Whether the impeller is in
place
Installed in place
PART 6: PROBLEM AND SOLUTION

14
Impeller damaged or missing
balance weight
Replace impeller
Suction power is weak
Installation height is too high
Adjust to the suitable height
Kitchen air convection is too
tight or tight
Reduce air convection or
moderately open doors and
windows
Air duct is too long and turns
too much
Install as required
Too much wind outdoors
Non-technical failure

15
●Make sure the hood is turned on after a while to allow the air
around the cooking area to circulate properly and make sure the
hood is turned off after this process.
●Periodically inspect the filter and oil reservoir. Make sure that
the filter is in clean and good condition and make sure the oil
reservoir is not exceeding the specified limit.
●If you smell burnt / burnt smell from the hood, immediately turn
off the hood and contact the MODENA Service Center.
●Perform a routine service on your stove every 3 (three) months,
because if there are problems / problems with your exhaust
hood, it can be immediately identified and repaired. Contact
MODENA Service Center
PART 7: PRECAUTION

16
Model
CX 9761
Type
Chimney - Wall
Cabinet Material
tempered glass
Front Panel Color
Diamond black
Motor
1 Turbo
Lamp
2 LED
Fan Speed
3
Ionizer (Germinator)
Yes
Filter Type
Aluminum Filter + Carbon
Filter
Control Panel
Touch Botton
Voltage ( V )
220 –240V / 50Hz
Motor Power
220 W
Lamp Power
2 x 1.5 W
Suction Power (m3/h)
750
Dimension (P x L x T) mm
900 x 360 x ( 740 –1080 )
PART 8: SPECIFICATION

17

05/21
