Modena PX 7111 User manual

User
Manual Book
Slim Hood
PX 9022, PX 9002, PX 9012 V
PX 7111, PX 7001,
PX 6001, PX 6021
PX 6011 V, PX 6111
PX 6031 L, PX 6031 V

2
TABLE OF CONTENTS
Part 1: Safety Warnings 3
Electrical Shock Hazards 3
Part 2: Name of Parts 4
Part 3: Installation 5
Preparations 5
Hood Installation (Slim Hood) 6
Setting the Air Vents 8
Part 4: How to Use 9
Push Type Button 10
Part 5: Maintenance 11
Regular Care 11
Monthly Maintenance for Grease Filter 11
Maintenance for Carbon Filter 11
Part 6: Problem & Solution 12
Part 7: Precaution 12
Part 8: Specification 13
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com

3
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the
environmental condition, bake shop, barbecue, and other commercial
purposes.
•The exhaust hood should be cleaned periodically so that its power is
maintained.
•Clean the exhaust hood according to the instructions contained in this book and
keeps it away from the danger of being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in
good shape. If there is damage to the power cord, the replacement must be
performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas
stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a
physical, sensory, or mental disability, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of
the appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more
than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt,
ask advice from an experienced technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other
hazards that are fatal.
PART 1: SAFETY WARNINGS

4
1. Control panel
2. Lock latches
3. Lamp
4. Aluminum filter
5. Air flow direction regulator knob
6. Motor
7. Carbon filter
8. Cassette Aluminum Filter
•The image is a general overview and is not necessarily the same as the product
you receive.
•Features and completeness depends on the type of products.
PART 2: NAME OF PARTS

5

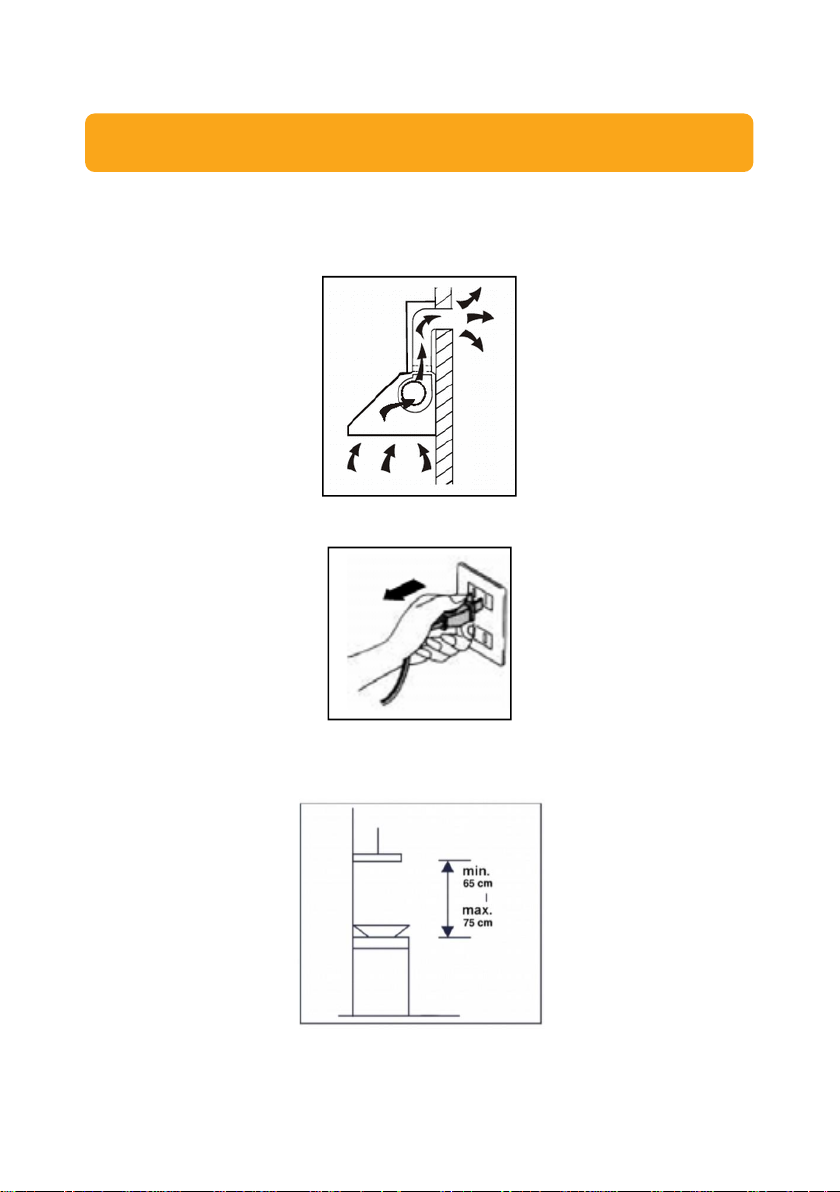

Preparations
1. If you have a waste pipe outside, the cooker hood can be connected using
extraction duct (enamel, aluminum, flexible pipe or a fire-resistant material
with an inner diameter of 150 mm), see the following picture:
2. Before installation, switch off the unit and unplug the power cord from the wall
socket.
3. Installation of the cooker hood should be right on the top of the stove with a
minimum distance of 65 cm and a height of maximum 75 cm from the surface
of the stove.
PART 3: INSTALLATION

6
Hood Installation (slim hood)
Cooker hood can be installed on a concrete wall or on the bottom of the kitchen
set cabinet wall.
Installing on a concrete wall
1. Make a center line on the wall where it will be placed in the cooker hood.
2. Attach the template to drill the wall. If it is not completed by a template, attach
the cooker hood to the wall and give a sign to make a hole with a center hole
spacing on the back of the cooker hood.
3. Make holes on the two previous signs using a drill bit with the diameter of 8 mm
or the size of the nut. Then insert the nut into the holes.
CAUTION
•Before drilling, make sure that there is no cable, water pipe and
other installations on the walls.
•Put the screw on the two top holes and let a distance of 1 cm
between the screw head and the wall surface.
•Attach the cooker hood on the wall that has been fastened by
screws by hanging the cooker hood on the screws.
•If the position of the cooker hood on the wall is correct, tighten
the two screws.
•Then close the grid.
•Install the safety ventilation using screws 6 mm in diameter.
•Connect the waste pipe with Spigot/ Flange if the cooker hood
will be used as ducting/ exhaust system.

7
Installing on the bottom of the kitchen set cabinet
1. Place the sucker cap on the bottom of the
kitchen set cabinet in accordance with the
planned position precisely.
2. Make signs at the bottom of the kitchen set
cabinet for flexible pipe holes and then make
the holes if the cooker hood will use the
ducting/ exhaust system.
3. Drill 4 holes with diameter of 6 mm at the appropriate position. Attach the
spigot/ flange and then attach the cooker hood and fasten with 4 screws at the
position that has been prepared.
4. Attach the controller board on the bottom of the cooker hood to prevent the
gap between the cooker hood and the kitchen set.
Please note when doing installation
Open the cover of the outlet at its top to apply vertical ventilation system. See Fig.
A. Meanwhile, applying the horizontal ventilation system can be done by removing
the cover on the outgoing airways on the back of the unit. See Pic.B.
Rectangular outlet for horizontal ventilation is not included.
NOTE
•Pipe extension is an additional accessory, not included in the
unit.
•Remove the protective layer before mounting.
•There are 2 methods of ventilation, that is: 'horizontal ventilation'
and 'vertical ventilation'.

8
Setting the air vents
MODENA cooker hood has two (2) working way versions that are:
Ducting System:
1. In this version, the cooker hood works
by sucking fumes/ cooking aroma which
then is thrown out through the waste
pipe.
2. It is needed heat/ flame resistant
ducting system is needed to throw away
the smoke/ aroma through the outlet.
3. To connect the cooker hood with the waste pipe, Spigot/flange is used. It has
been provided in every pack of cooker hoods.
4. To use a cooker hood with this system then turn the control knob of the air-
circulation direction to the outside circulation position.
A few things to note for the cooker hood installation using the ducting system:
•Carbon filter should be removed because the sucked cooking aroma will
immediately dump out of the room.
•A suction power will be decreased if the waste pipe is too long and has a lot of
angles.
•Do not connect the waste pipe to a chimney or a room air duct or a hot air duct.
•If the cooker hood is about to be installed in buildings or apartments, preferably
before the installation of the waste pipe, it is consulted first with the
responsible person of the building/ apartment.
•The use of a cooker hood with ducting system should be in an open room with
a good air circulation system.
Recirculation System:
1. In this version, the cooker hood works by sucking fumes/ cooking aroma which
then will be filtered through an aluminum filter and a carbon filter respectively.
The smoke is filtered and then flowed back into the room (recirculation). This
system is used if the cooker hood installation place does not allow the ducting
system installation.
2. To use a cooker hood with this system then turn the control knob of the air
circulation direction to the position of recirculation and install the cover of the
waste pipe.

9
A few things to note for the cooker hood installation using recirculation system:
•Both carbon filters and filter aluminum should be used.
•The position of the two filters must be precise.
•The holes where the air comes out located on the front of the cooker hood
cabinet should not be closed.
Connect the plug to the power outlet.
Turning on or turning off the cooker hood and cooker hood lights can be done by
sliding or pressing a motor speed regulator button and the lighting button as shown
below.
NOTE
Carbon filters are installed at the rear of the grill and must be
replaced after three months.
WARNING
Carbon filters cannot be washed or recycled. The maximum use of
carbon filters is for 120-hour use and must be replaced afterwards.
Carbon filters should not be exposed to the heat
PART 4: HOW TO USE
NOTE
The setting of the cooker hood motor speed is adjusted to the
thickness of the smoke / steam that arises when cooking.

10

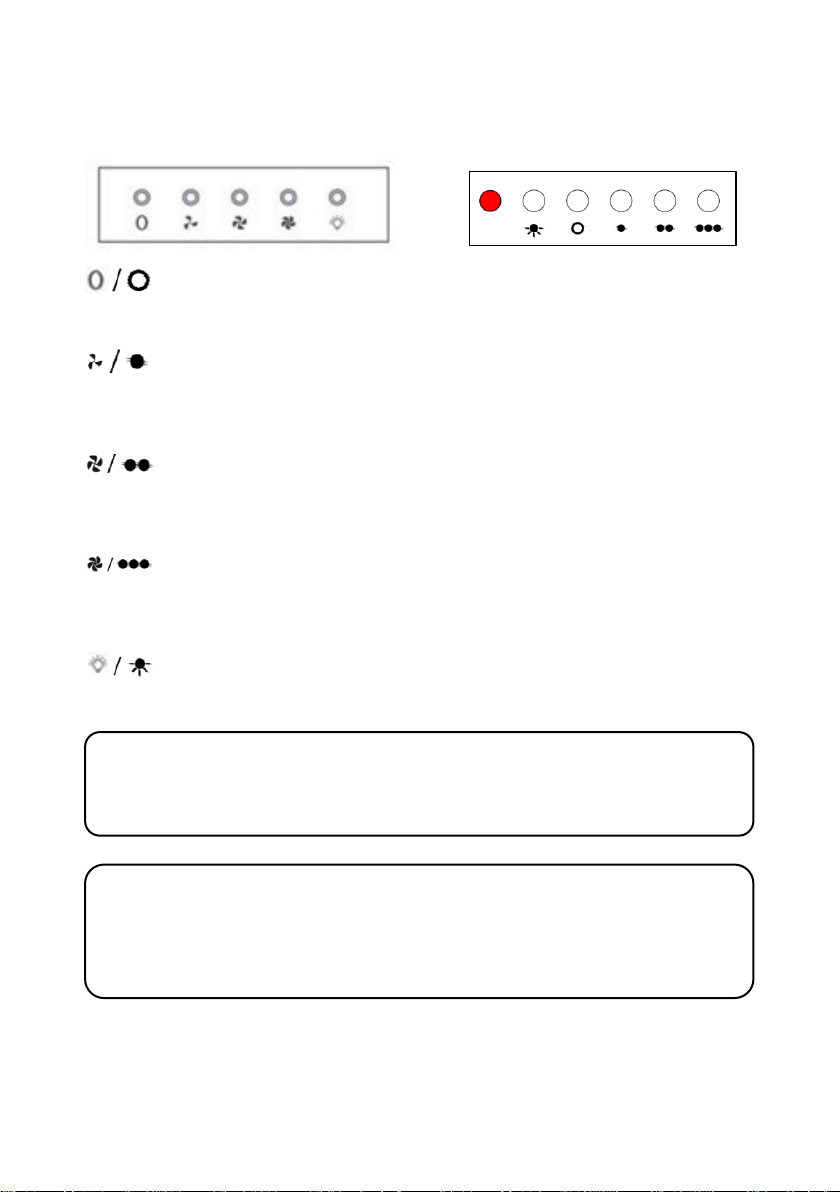

Push Type Button
On/ Off Buttons
The Buttons which are for turning off or turning on the cooker hood
Motor speed button –LOW
Suitable for air circulation used in the kitchen or cooking conditions that
does not cause a lot of smoke or steam.
Motor speed button - MEDIUM
Air circulation speed that is suitable for a cooking process that raises a
medium volume of smoke or fumes.
Motor speed button - HIGH
When the level of smoke or steam produced is high enough, then use a
high-speed level for effective air circulation.
Lamp Button
Button to turn on/off lights
NOTE
If the low/ medium/ high speed button pressed simultaneously,
then the unit will turn on the high speed only.
CAUTION
Avoid a direct contact between the stove being turned on and the
cooker hood. To get the optimal filtering, cooker hood should be
turned off 20-30 minutes after cooking is finished.

11
MODENA cooker hood specifically designed for long term use so that it does not
require complicated maintenance. However, there are some things that are
recommended to take care of your cooker hood so that the quality is maintained.
Turn the unit off and unplug the power cord from the power source before
cleaning.
Regular care
Use a soft cloth dampened with a mixture of warm water and mild soap or
household detergent. Do not use metallic pads, chemicals, abrasive materials or a
stiff brush to clean the unit.
Monthly Maintenance for a Grease Filters
Cleaning the filter can prevent the risk of fire. Filter captures grease, smoke and
dust that filters directly affect the efficiency of the cooker hood. If it is not cleaned,
the residual grease (potentially flammable) will accumulate in the filter. Clean it
with household detergents.
Maintenance for Carbon Filters
Attach a carbon filter on the unit to be used with a recirculation system (not the
ducting system). This filter should be replaced at least every three months or
depends on how often the use of cooker hood
PART 5: MAINTENANCE

12
Consult the following troubleshooting before contacting our Service Center
regarding your exhaust hood:
Problem
Possible Cause
Recommended Action
Exhaust hood
malfunctioning
•Power cord is not yet
connected to the electrical
outlet.
•Electrical outlet does not
have electricity current in it.
•Connect the power cord to the
electrical outlet.
•Connect the power cord to a
properly functioning electrical
outlet.
Reduced suction
power
•Dirty aluminum filter.
•Dirty carbon filter.
•Clean the aluminum filter, dry it
and place it back on the vent
hood.
•Replace the carbon filter with a
new one.
Motor fan
malfunctioning
Broken motor coil.
Contact MODENA Service Center.
Motor stops working
after a while
Safety thermal regulator is
active.
•The vent hood is installed too
close to the stove.
•Air circulation is not optimal.
•Contact MODENA Service Center.
•Make sure the hood is turned on after a while to allow the air around the
cooking area to circulate properly and make sure the hood is turned off after
this process..
•Periodically inspect the filter and oil reservoir. Make sure that the filter is in
clean and good condition and make sure the oil reservoir is not exceeding the
specified limit.
•If you smell burnt / burnt smell from the hood, immediately turn off the hood
and contact the MODENA Service Center.
•Perform a routine service on your stove every 3 (three) months, because if there
are problems / problems with your exhaust hood, it can be immediately
identified and repaired. Contact MODENA Service Center
PART 6: PROBLEM & SOLUTION
PART 7: PRECAUTION

13
MODEL
PX 9022
PX 9002
PX 7001
PX 9012 V
PX 6021
Type
Slim hood
Slim hood
Slim hood
Slim hood
Slim hood
Cabinet
Material
Metal + Acrylic
Metal + Acrylic
Metal + Acrylic
Metal
Metal + Acrylic
Color of Cabinet
Black
Black
Black
Silver
Black
Color of Front
Panel
Black
Black
Black
Silver
Black
Number of
Motor
2
2
1
2
1
Lamp Type
LED Stripe
Bulb Lamp
Bulb Lamp
Bulb Lamp
LED Stripe
Control Type
Push button
Push button
Push button
Push button
Push button
Speed
3
3
3
3
3
Filter type
Cassette
Aluminum Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Cassette
Aluminum Filter
+ Carbon Mat
Filter
Motor power
2 x 100 Watt
2 x 100 Watt
1 x 100 Watt
2 x 100 Watt
1 x 100 Watt
Lamp power
2 x 1.5 Watt
40 Watt
40 Watt
40 Watt
1 x 1.5 Watt
Dimension (L x
W x H) mm
900 x 500 x 80
900 x 500 x 80
700 x 500 x 80
900 x 500 x 80
600 x 500 x 80
PART 8: SPECIFICATION

14
MODEL
PX 6001
PX 6011 V
PX 6031 L
PX 6031 V
Type
Slim hood
Slim hood
Slim hood
Slim hood
Cabinet Material
Metal + Acrylic
Metal
Metal
Metal
Color of Cabinet
Black
Silver
Black
Silver
Color of Front
Panel
Black
Silver
Black
Silver
Number of
Motor
1
1
1
1
Lamp Type
Bulb Lamp
Bulb Lamp
E14 LED
E14 LED
Control Type
Push button
Push button
Push button
Push button
Speed
3
3
3
3
Filter type
Acrylic Filter
+ Carbon Mat
Filter
Acrylic Filter
+ Carbon Mat
Filter
Cassette
Aluminum Filter
+ Carbon Filter
Cassette
Aluminum Filter
+ Carbon Filter
Motor power
1 x 100 Watt
1 x 100 Watt
1 x 55 Watt
1 x 55 Watt
Lamp power
40 Watt
40 Watt
5.5 Watt
5.5 Watt
Dimension (L x
W x H) mm
600 x 500 x
80
600 x 500 x
80
600 x 452 x
85
600 x 452 x
85

15
MODEL
PX 7111
PX 6111
Type
Slim hood
Slim hood
Cabinet Material
Metal
Metal
Color of Cabinet
Black
Black
Color of Front Panel
Black
Black
Number of Motor
1
1
Lamp Type
Bulb Lamp
Bulb Lamp
Control Type
Push Button
Push Button
Speed
3
3
Filter type
Cassette Aluminum Filter
+ Carbon Mat Filter
Cassette Aluminum Filter
+ Carbon Mat Filter
Motor power
1 x 70 Watt
1 x 70 Watt
Lamp power
40 Watt
40 Watt
Dimension (L x W x H) mm
700 x 500 x 83
600 x 500 x 83
The specification of these tools can be changed without notice to improve product
quality. The images in this manual are an overview and may not look exactly like
the actual product.
The values indicated on the labels or in the documentation contained therein were
obtained from laboratories conforming to the relevant standards.
Depending on the environment and operational conditions of the device.

07/23
PT MODENA INDONESIA
Jl. Industri Raya I Blok D-8,
Jatiuwung, Tangerang 15135
