Modena Piazza Series Owner's manual

User
Manual Book
Wall Chimney Hood
Piazza Series
CX 9150, CX 6150
CX 7110 L
Ferrara Series
CX 9301, CX 6301
Forli Series
CX 9753, CX 9701 L, CX 9777
CX 9754, CX 7754
Diva Series
CX 9330, CX 6330
Modica Series
CX 7712 L
Imola
CX 9313 L, CX 7310 L
CX 9313 S, CX 7313 S
Faenza Series
CX 9356
Cessena
CX 9177, CX 9157, CX 9156

2
TABLE OF CONTENTS
Part 1: Safety Warnings 3
Electrical Shock Hazards 3
Part 2: Name of Parts 4
Part 3: Installation 6
Preparations of Installation 6
Installing the Hood on Wall 7
Creating Holes on the Wall and Installing the Brackets 8
Installing the Hood Body 9
Working Method 10
Installation (Ducting System) 11
Installation (Recirculating System) 12
Chimney Installation 13
CX 9157, CX 9177, and CX 9777 Installation Height 15
Part 4: How to Use 17
Push Button Type 17
Electronic Button + Display Type 18
Touch Button Type 18
Clock Setting 18
Touch Control 20
LCD Display 21
Operating Instructions 22
CX 9777 22
CX 9157 / CX 9177 23
CX 9754 / CX 7754
Part 5: Maintenance 24
Cleaning the Cabiner 24
Cleaning the Filter 24
Cleaning oil Container 25
Changing the Light Bulb 25
Part 6: Problem & Solution 26
Part 7: Precaution 27
Part 8: Specification 28
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com

3
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the
environmental condition, bake shop, barbecue, and other commercial
purposes.
•The exhaust hood should be cleaned periodically so that its power is
maintained.
•Clean the exhaust hood according to the instructions contained in this book and
keeps it away from the danger of being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in
good shape. If there is damage to the power cord, the replacement must be
performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas
stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a
physical, sensory, or mental disability, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of
the appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more
than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt,
ask advice from an experienced technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other
hazards that are fatal.
PART 1: SAFETY WARNINGS

4

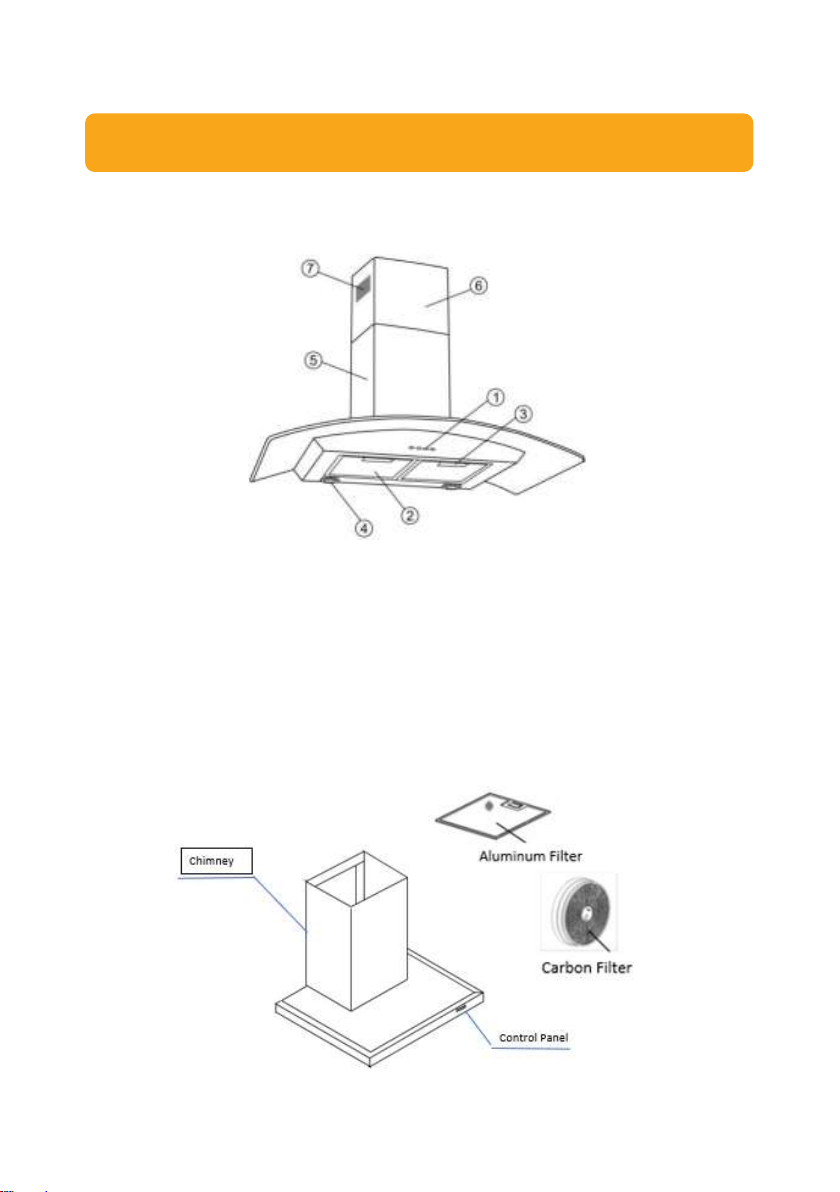

CX 9313 S, CX 9313 L, CX 7313 S, CX 7313 L, CX 9330, CX 6330, CX
9301, CX 6301

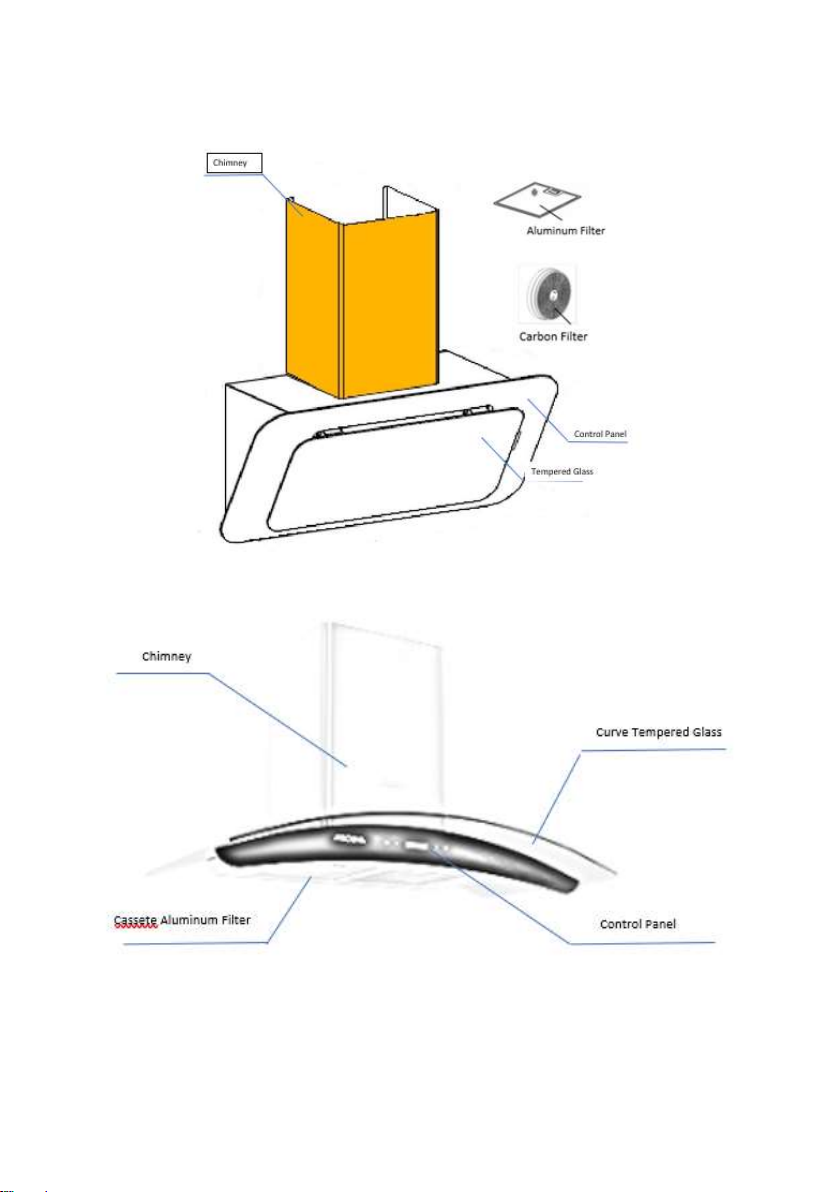

1. Control Panel
2. Cassette Aluminum Filter
3. Cassette Aluminum Filter Handle
4. Lamp
5. Main Chimney
6. Upper Connector Chimney
7. Circulation Hole

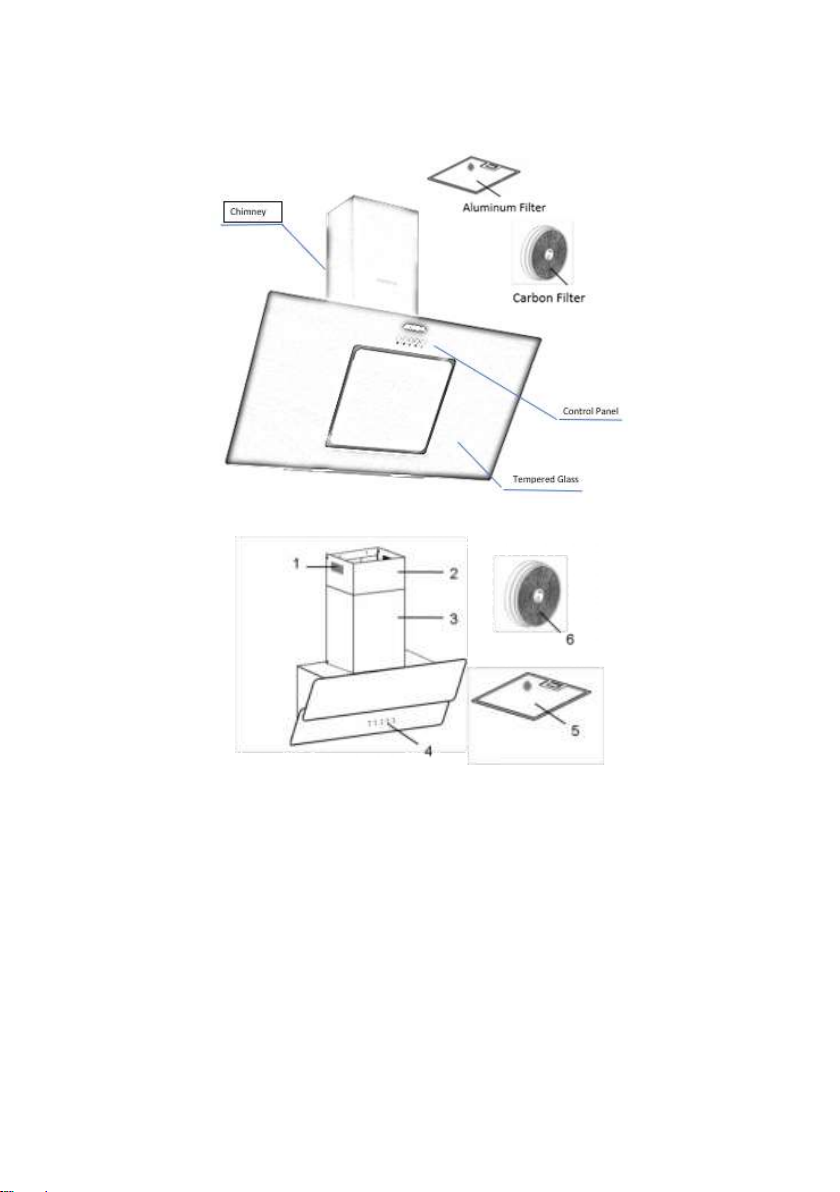

CX 9150, CX 6150, CX 7110 L, CX 9156
PART 2: NAME OF PARTS

5
CX 9753
CX 9356

6
CX 9701 L
CX 7712
1. Circulation Hole
2. Upper Chimney
3. Main Chimney
4. Control Panel
5. Aluminum Filter
6. Carbon filter

7

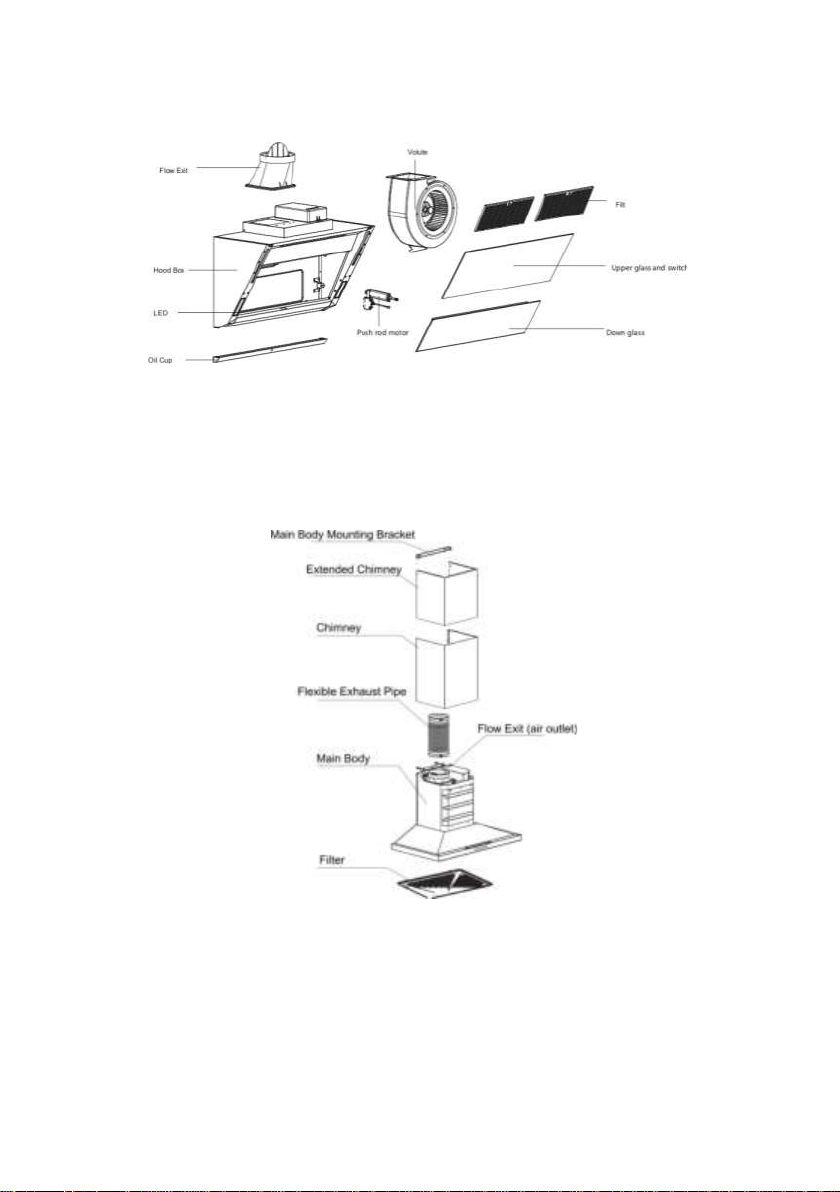

CX 9777
• The image is a general overview and is not necessarily the same as the product
you receive.
• Features and other attributes are depending on the type of products
CX 9157/ CX 9177
CX 9754 & CX 7754

8
• The image is a general overview and is not necessarily the same as the product
you receive.
• Features and other attributes are depending on the type of products
Preparations of installation:
The exhaust hood is equipment which vacuums the smoke and odor produced in
cooking process. With an exhaust hood, your kitchen will be free from oil particles
which produces bad odor .
•If you have a waste pipe outside, the exhaust
hood can be connected using extraction duct
(enamel, aluminum, flexible pipe or a fire-
resistant material with an inner diameter of
150 mm), see the following picture:
•Before installation, switch off the unit and
unplug the power cord from the power socket
.
PART 3: INSTALLATION

9
•Check the strength of wall on which the hood
is to be installed. Make sure the wall can
sustain the weight / load of the hood.

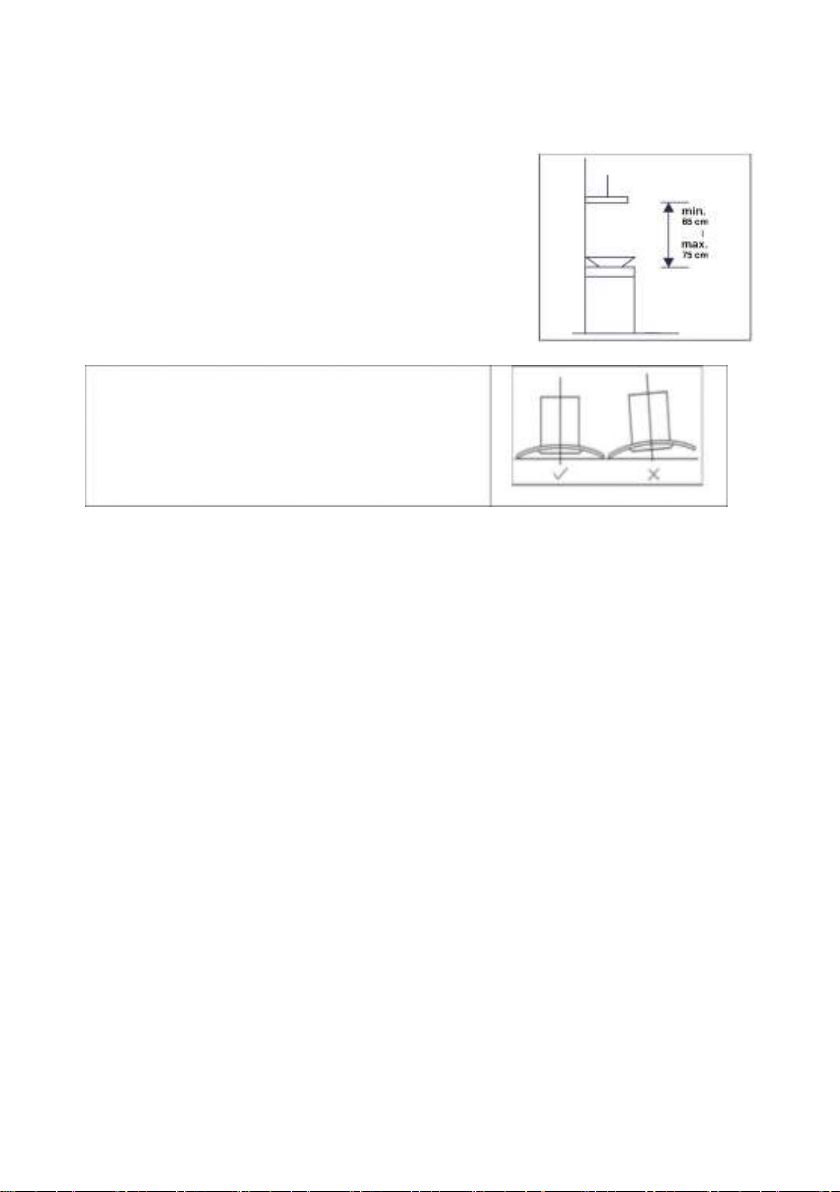

•The hood should be installed precisely over
the stove at a vertical distance of 65 - 75 cm
from the stove surface.
.
Installing the Hood on Wall
The hood must be installed in an upright
position to prevent the oil from flowing
to one side and dripping out of the
exhaust hood.

10
Creating Holes on the Wall and Methods for Installing Bracket
Model
A (cm)
B (cm)
C (cm)
CX 9753
37.5
39
39
CX 9330
34.5
20.5
49
CX 6330
34.5
20.5
49
CX 9150
34.5
20.5
49
CX 6150
34.5
20.5
49
CX 7712 L
25
39
39

11
Installing the Hood Body
•Install hood’s body on the bracket I on the
wall or on the screw head especially for CX
9753.
•Connect the exhaust system with the spigot
/ flange if the exhaust hood will be
operated in a ducting / exhaust system.
NOTES
•Height / distance are 65 –75 cm, except for CX 9753 type
where the height / distance is 35 –40 cm.
•For CX 7712 L, the height H is 34 –45 cm
•For CX 9754 / CX 7754 the height is 34 –45 cm
•For CX 9753, we recommend installation for use with a stove
without the top cover.
•Height / Distance C can be shortened in accordance to the
ceiling height.
•Make a vertical line on the wall to its highest point or to an
appropriate height on the center part of the area where the
vent hood is to be installed
•Make a horizontal line at H (cm) distance from the stove to mark
the lowest limit for the hood.
•Install bracket I on the wall just like on the picture above up to
height A and mark the holes for expansion bolt and plastic wall
anchor. Especially for CX 9753, attach the unit on the wall up
to height A and mark the holes for expansion bolt/plastic wall
anchor/screw.
•Install bracket II on the wall just like on the picture above up to
height B and mark the holes for plastic wall anchor hole.
•Install bracket III on the wall just like on the picture above up to
height C and mark the holes for plastic wall anchor hole.
•Drill the wall with a Ø 10 mm for expansion bolt and ϕ8 mm for
plastic wall anchor in all marked sections.
•Insert the expansion bolt and plastic wall anchor into the hole.
•Install all brackets using nut for expansion bolt and screw for
the available plastic wall anchor

12
•Install the main chimney and the upper
chimney on brackets I and II with the screws
that already provided.
Working Method
MODENA exhaust hood has 2 principle of work:
Ducting system:
In this mode, the hood operates by sucking the
smoke / odor in the cooking process and then
releasing it out of the vent through the exhaust
system.
To connect the hood with the duct system, use
"spigot/flange" which is designed with a
diameter of 150 mm.
Several things which require attention in installing the
ducting system exhaust hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If the hood is installed in a multi-storied building or an apartment, consult with
the person in charge of the building / apartment prior to installing the exhaust
system.
3. Hood with ducting system should be used in an open-air room with good air
circulation.
Recirculating System
In this version, the vent hood sucks the smoke / cooking odor and filters it through
an aluminum filter and carbon filter. The filtered smoke is then reticulated into the
room. This system is used if the premise renders it impossible to install a ducting
system
Several things which must be ensured when installing a vent hood with reticulating
system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be precise.
3. Circulation holes on the exhaust hood are not allowed to be closed

13
Installation (Ducting System)
Observe the warning in the instruction sheet concerning the operation of the
appliance when air is discharged from the room
When the range hood and appliance supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must be not exceed
4 Pa (4 × 10-5 Bar)
•Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket
onto the wall with the screws & screw plugs provided
•For inclined panel Model, need to drill 4 x 8mm extra holes & fixing screws &
screw plugs before installation.
•Leave up the exhaust hood and hang onto the wall bracket hook.

14
•Fix the one-way-valve to the air outlet of the exhaust hood. Then, attached
the exhaust pipe into the one-way-valve as shown below.
Installation (Re-circulating System):
• If you do not have an outlet to the outside, exhaust pipe is not required and the
installation is similar to the one show in section “Installation (Ducting/Exhaust
System)”.
•Activated carbon filter can be used to trap odors.
•In order to install the activated carbon filter, the grease filter should be
detached first by press the lock and pull it downward.
•Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side

15
Chimney installation
For Glass model and T shape model

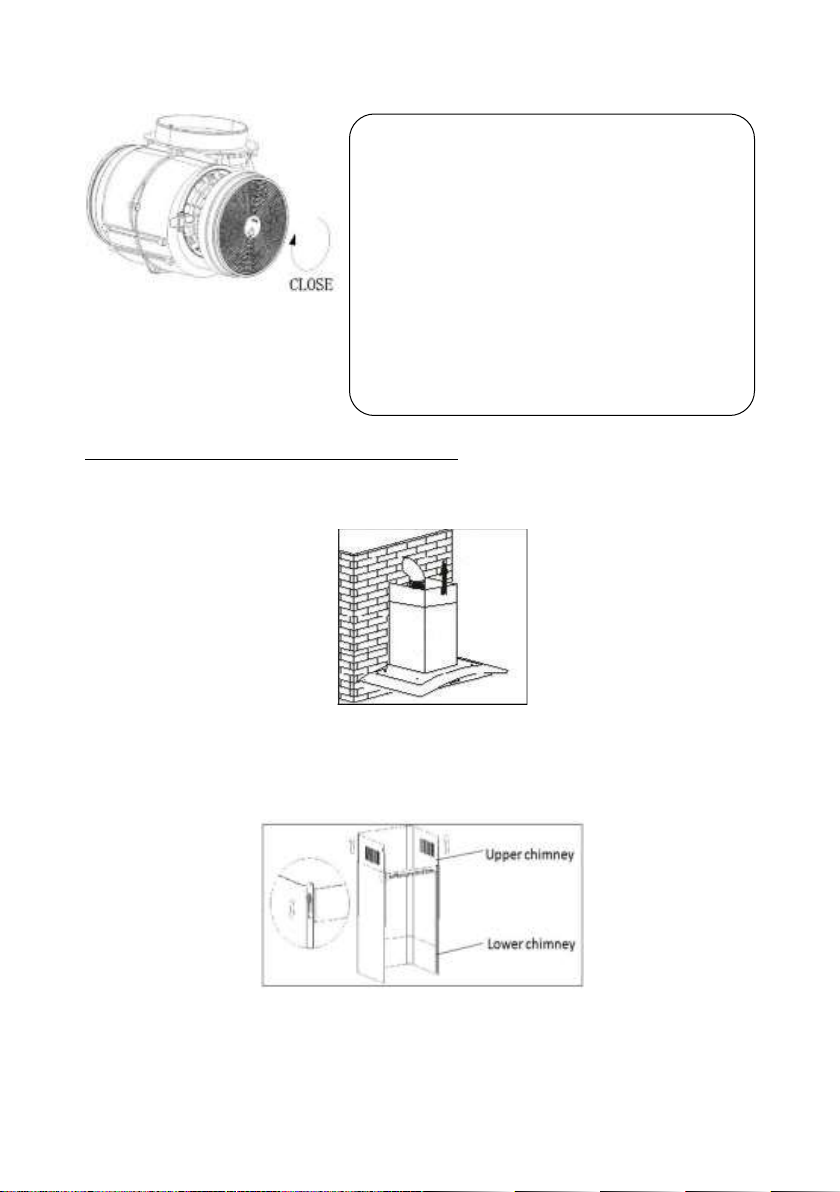

•By put the upper chimney into lower chimney. Then pulling out the upper
chimney upwards. Adjust to reach the height required.
•Sliding the chimney to adjust the chimney height. When the height you
required is reached, then hang the fixing hole to the fixing screws as showed
in below pictures
NOTE
•Make sure the filter is securely locked.
Otherwise, it would loosen and cause
dangerous.
•When activated carbon filter attached,
the suction power will be lower.
•Carbon filters are installed at the rear of
the grill and had to be replaced after
three months.

16

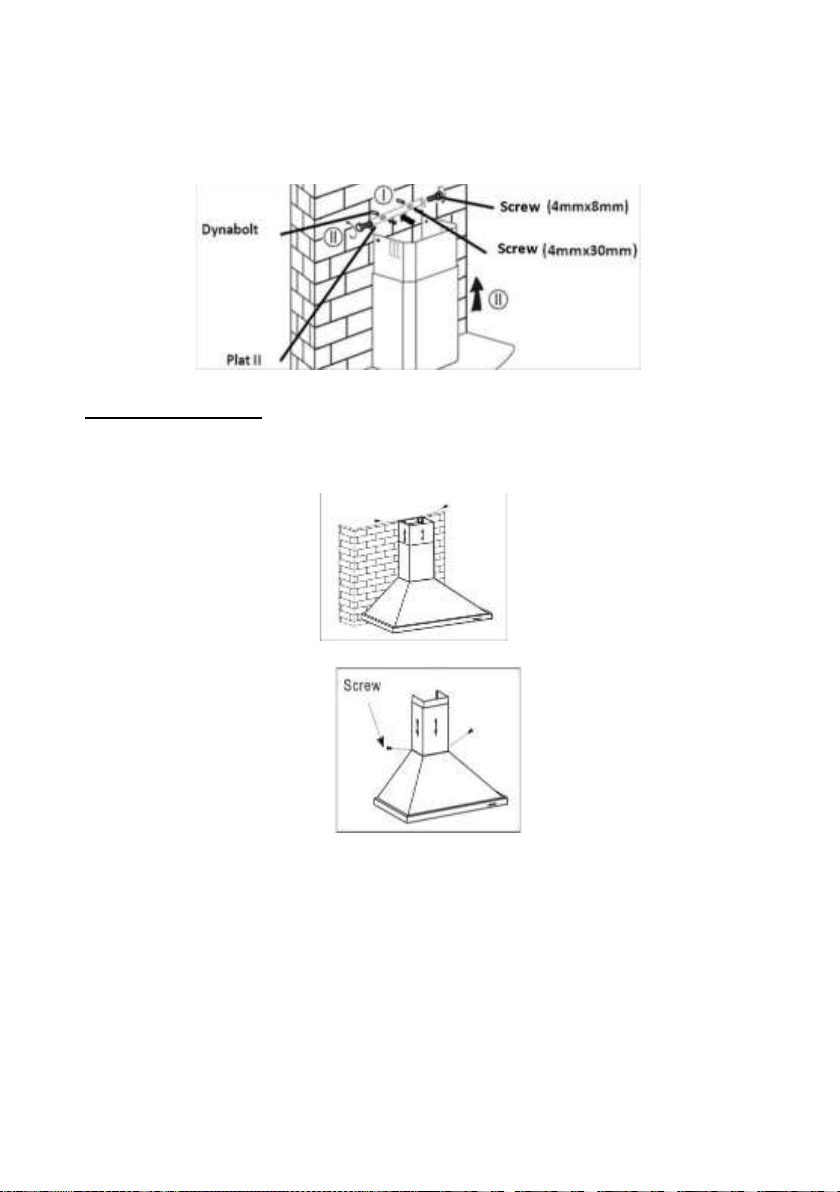

•Drill 2 × 8 mm holes to accommodate the plate II. Screw and tighten the plate
II into the wall with two screws provided. Assembly the chimney into the unit
and fix it with two screws

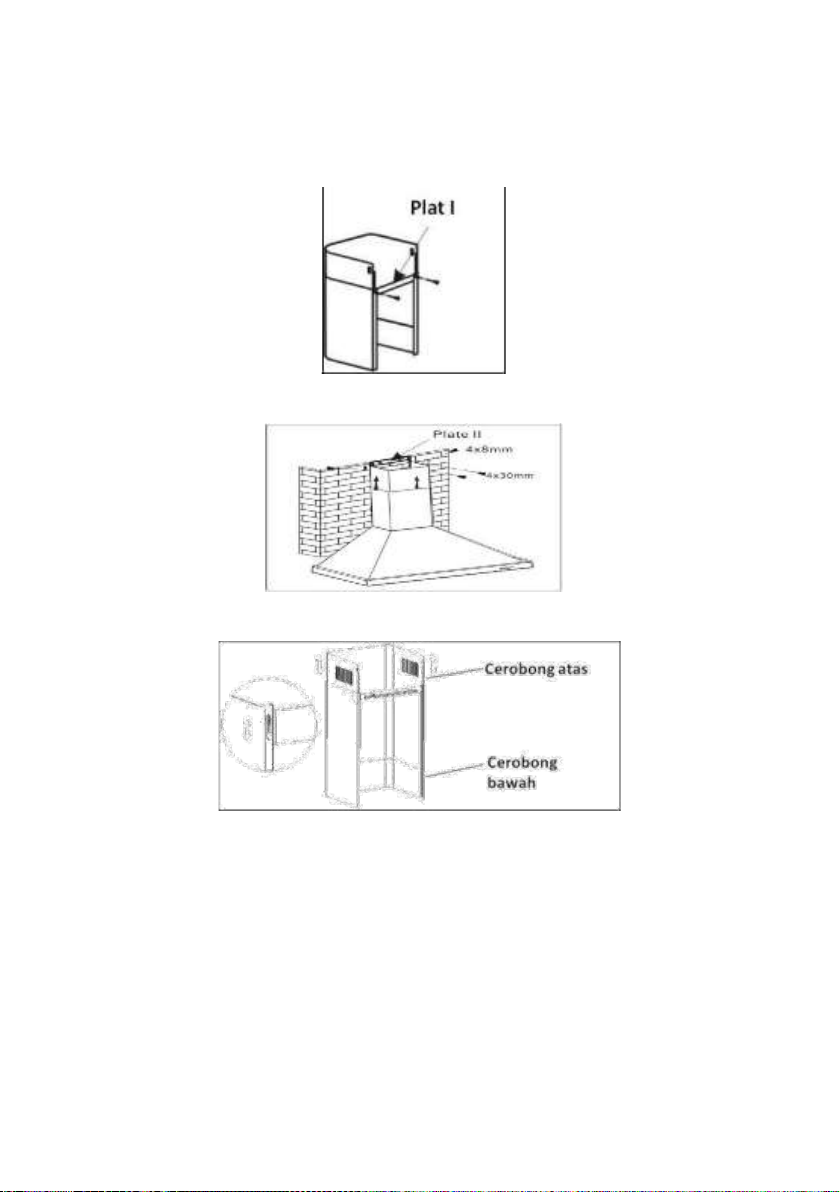

For Tower Model
•Put the inner chimney into upper chimney .Then pulling out the upper
chimney upwards. Adjust to reach the height required
•Fix the lower chimney with two pieces of 4x8 mm screws

17
•Sliding the chimney to adjust the chimney height. When the height you
required is reached, then fix two pieces of 4x8 mm screws onto the hole fixing
with plate I as showed in below pictures
•Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate
II into the wall with two screws provided.
•Assembly the chimney into the unit and fix it with two screws.
•For optimal air extraction :
•Keep exhaust duct short and straight.
•Do not reduce the size or restrict the exhaust duct.
•Minimize bends.
•Make sure the helix of the flexible exhaust duct is tightly drawn rather than
slacking.
•Determine height between cooker hob and base of hood.
•Mark wall to suit all bracket locations. Drill holes of 50 mm depth at the selected
drilling position.

18

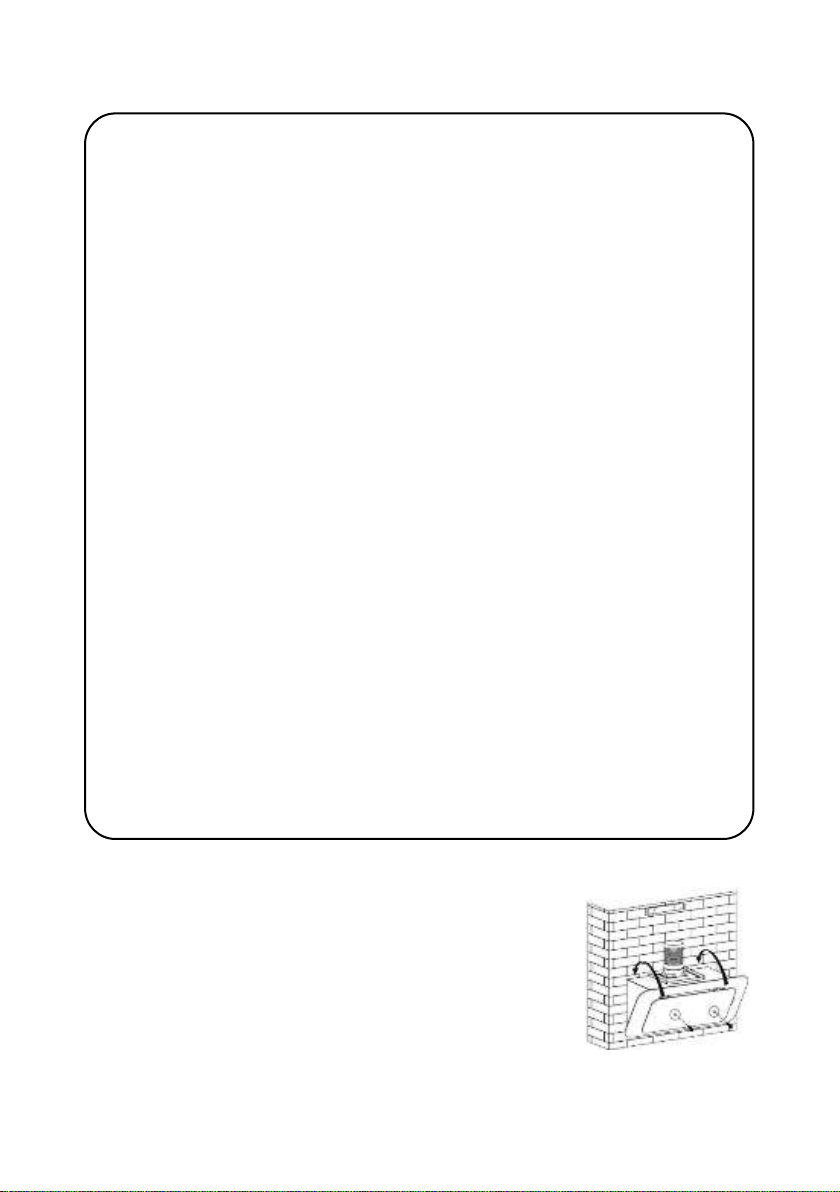

•Insert the expansion tubes to fix the bracket onto the wall.
•Install the flow exit to the hood and follow by connecting the flexible exhaust
duct to the flow exit.
•Strengthened the connection between the flow exit and the flexible exhaust
duct with screws.
•Lift and hang the hood to the wall bracket and please ensure it sits firmly on the
bracket.
•Direct the other end of the flexible exhaust duct to the outlet or wall.
•Fit in the safety baffle of the hood onto the wall to strengthen the position and
to reduce vibration when the hood is switched on.
•Chimney extension can be installed to the ceiling or wall.
•Ensure the oil collection container is in place before the hood is being used. To
remove it for cleaning, slide the oil collection container from front to rear, vice
versa for inserting it into position
•Ensure there is proper ventilation in the cooking area.
•Instructions concerning the discharge of air have to be followed.
•Does not use flame under the range hood.
•Avoid using materials which could cause spurts of flame near the range hood.
•Never touch the lamp when it is on.
•Do not dismantle, repair or modify the range hood on your own.

19

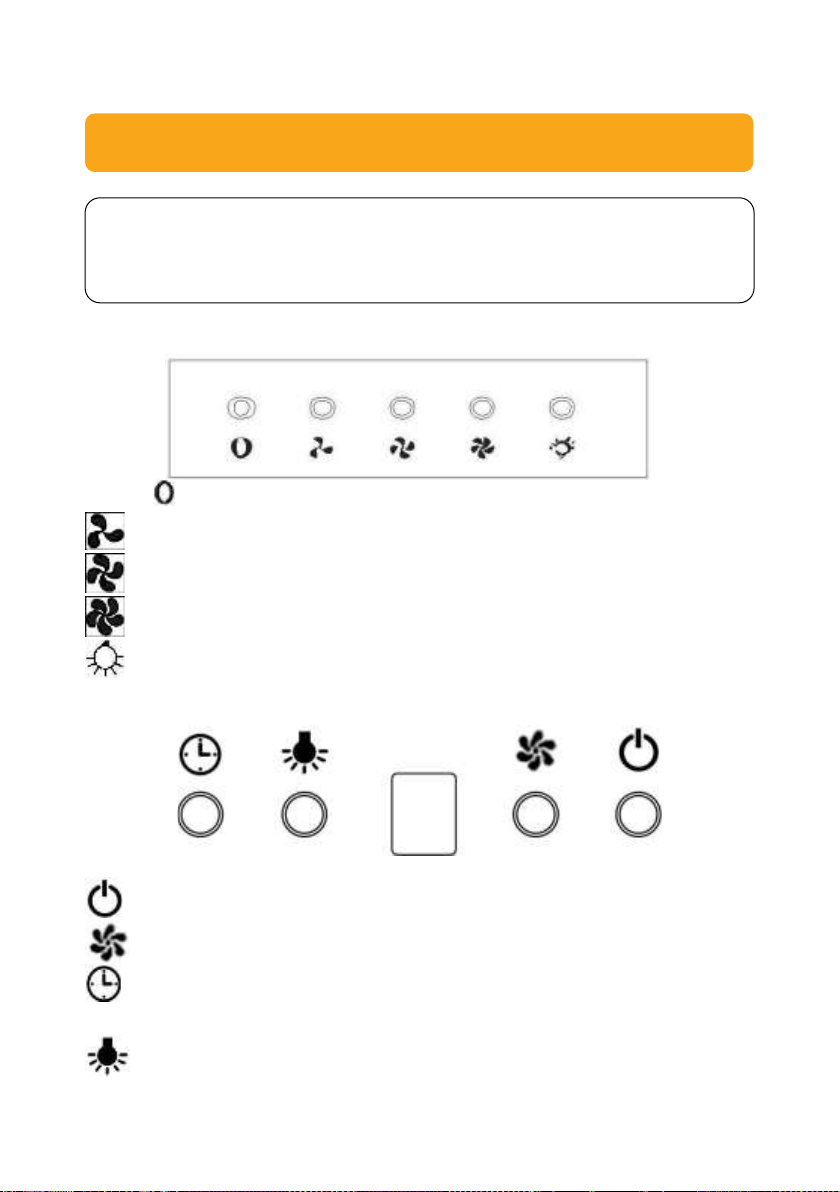

Push Button
OFF / To switch off the Hood
Activate Motor at Low Speed
Activate Motor at Medium Speed
Activate Motor at High Speed
To Turn On/Off the Light
Electronic Button + Display
To Turn On/Off the Hood
To Adjust the Motor’s Speed (Low Medium-High)
To Activate the Shut-off Timer (After 9 Minutes motor will
switch off automatically)
To Turn On/Off the Light
PART 4: HOW TO USE
NOTES:
Adjust the motor speed of the exhaust hood according to the thickness of
smoke / steam generated in the cooking process.

20

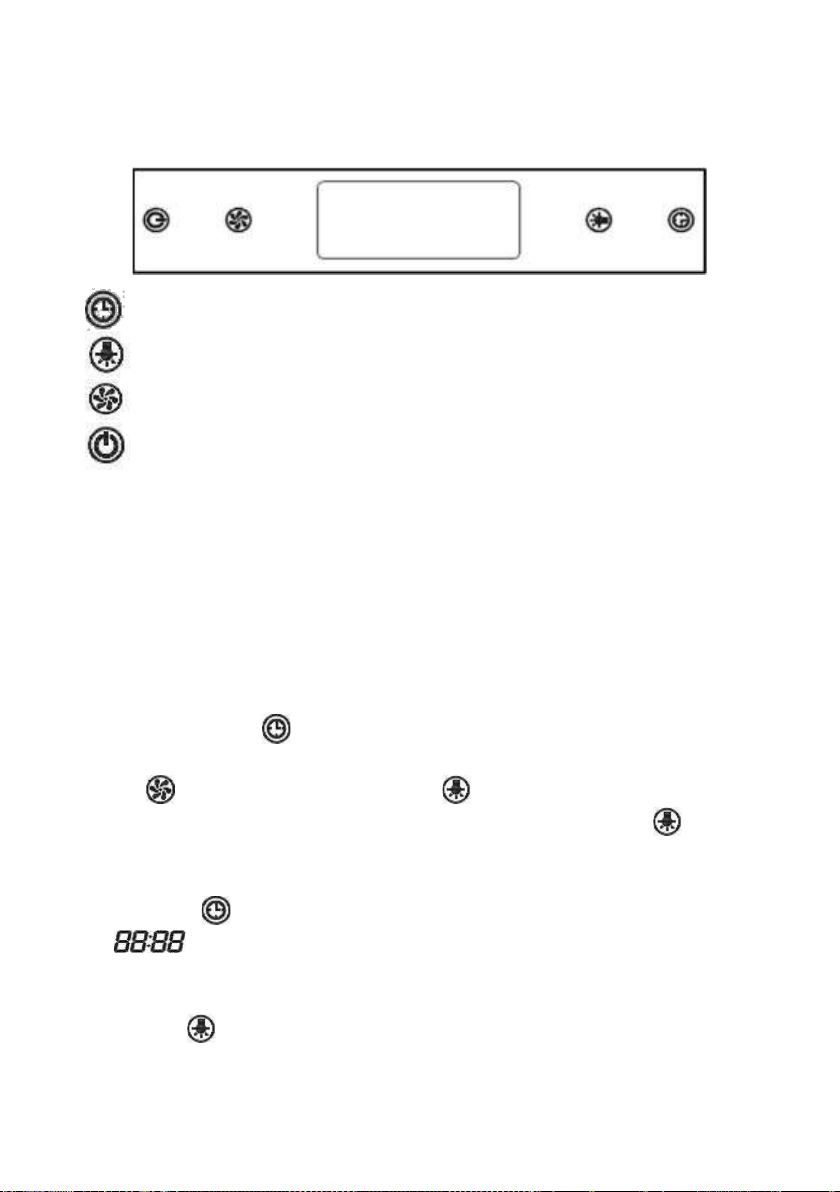

Touch Button
To Set the Usage Time
To Turn On/Off the Light
To Adjust the Speed Level (Low-Medium-High)
To Turn On/Off the Hood
If the button is pressed, the unit will work in which the motor speed
depending on the last setting
Clock Setting
The default setting for the time when it was first turned on is 12:00 PM. If the
power is not connected or cut off, the unit will return to the initial setting is 12:00
and you have to reset.
To set the clock can be done when the motor and lights are not in working
condition. The way to setting the clock as follow:
1. Touch the button around 2 until 5 seconds, the display will show, the first
two digits will blink indicates for setting of the hours. Then adjust with touch
the button to increase or the touch to decrease. The largest value for
hour is 23 and will not working if it is exceeded 23 and function will not
working if it has reached the lower limit of 00. The addition value by every touch
is 01.
2. Touch the button once more for 2 until 5 seconds, the display will show
the last two digits will blink which indicates to set the minute. Then
adjust it by touching the button to increase or the button to decrease. The
largest value for minute is 59 and will not working when it is exceeded 59 and
function will not working if it reached the lower limit of 00. The addition
value by every touch is 01.
