Modena Imola Series Owner's manual

User
Manual Book
Wall Chimney Hood
Imola Seri
CX 7310 L
Modica Seri
CX 7712 L,
Diva Seri
CX 9330, CX 6330, CX 9177
CX 9157
Ferrara Seri
CX 9301, CX 6301
Cesena
CX 9156, CX 9106
Forli Seri
CX 9777, CX 9753, CX 9701 L
Faenza Seri
CX 9356
Piazza Seri
CX 9150, CX 6150, CX 7110 L

2
Thank you for your trust in choosing MODENA products for your household needs. With your
satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with
state-of-the-art technology to assist you in your daily activities.
This is your guidebook containing everything you need to know about our product. Please reach out
to us if you need further assistance or other information via our Customer Care or our official website
www.modena.com.

3
CONTENTS PAGE
Introduction
- Part 1 : Safety Warnings 5
- Part 2 : Name of Parts 6
- Part 3 : Installation 8
- Part 4 : How to Use 18
- Part 5 : Maintenance 23
- Part 6 : Problems & Solutions 25
- Part 7 : Precautions 25
- Part 8 : Specification 26

4
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the environmental condition, bake shop, barbecue,
and other commercial purposes.
•The exhaust hood should be cleaned periodically so that its power is maintained.
•Clean the exhaust hood according to the instructions contained in this book and keeps it away from the danger of
being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the
power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a physical, sensory, or mental disability, or
lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the
appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt, ask advice from an experienced
technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other hazards that are fatal.
Part 1: Important Safety Information

5
CX 9150, CX 9330, CX 9753, CX 7110 L, CX 7310 L, CX 9156, CX 9301, CX 9356, and CX 9701
* The image is a general overview and is not necessarily the same as the product you receive.
* Features and other attributes are depending on the type of products

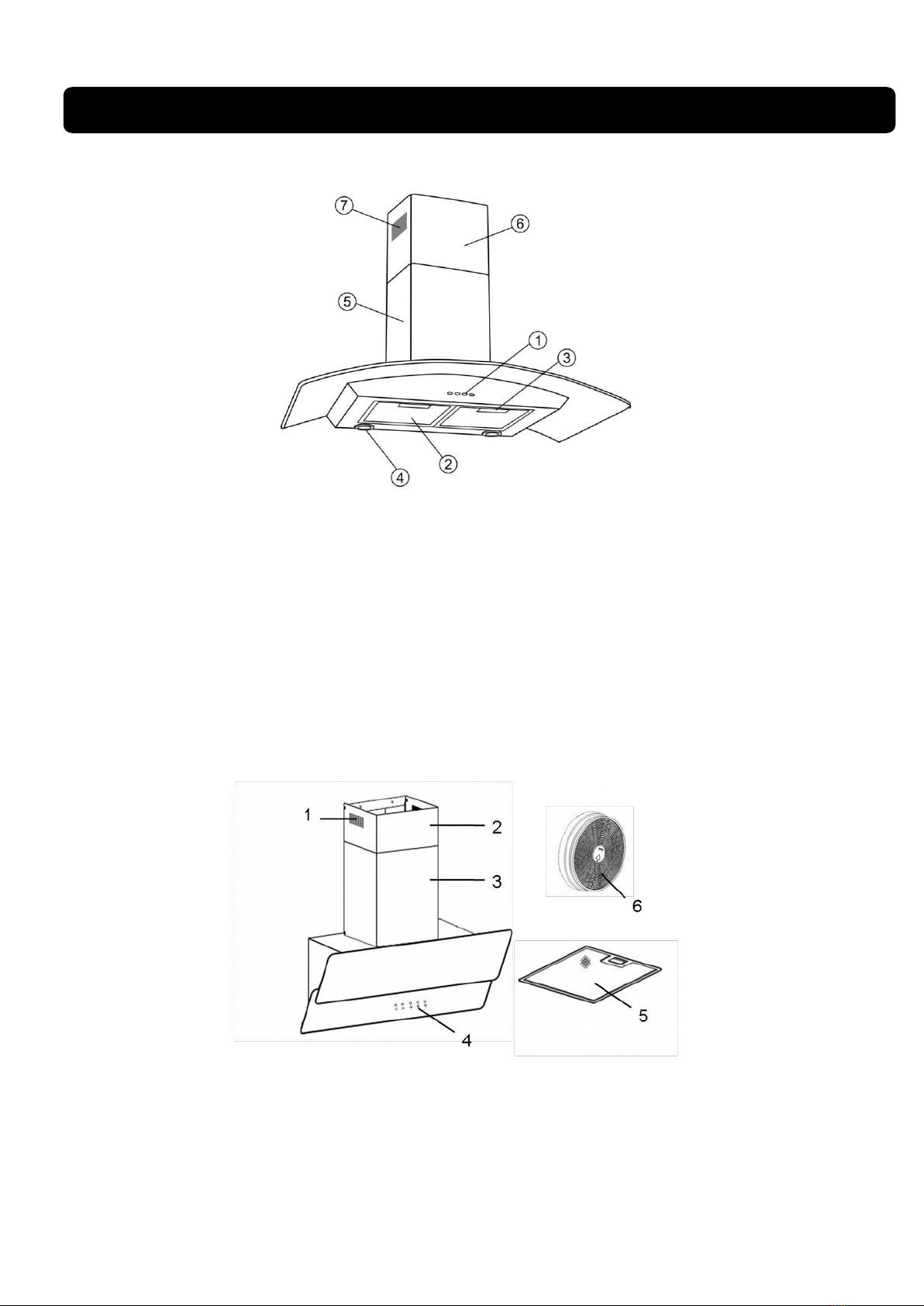

1. Control Panel
2. Cassette Aluminum Filter
3. Cassette Aluminum Filter Handle
4. Lamp
5. Main Chimney
6. Upper Connector Chimney
7. Circulation Hole
CX 7712
* The image is a general overview and is not necessarily the same as the product you receive.
* Features and other attributes are depending on the type of products
Part 2: Name of Parts

6
1. Circulation Hole
2. Upper Chimney
3. Main Chimney
4. Control Panel
5. Aluminum Filter
6. Carbon filter
CX 9777
* The image is a general overview and is not necessarily the same as the product you receive.
* Features and other attributes are depending on the type of products
CX 9157/ CX 9177
* The image is a general overview and is not necessarily the same as the product you receive.
* Features and other attributes are depending on the type of products

7
CX 9150, CX 9330, and CX 9753
Preparations of installation:
The exhaust hood is equipment which vacuums the smoke and odor produced in cooking process. With an exhaust hood,
your kitchen will be free from oil particles which produces bad odor .
1. Check the strength of wall on which the hood is to be installed. Make
sure the wall can sustain the weight / load of the hood.

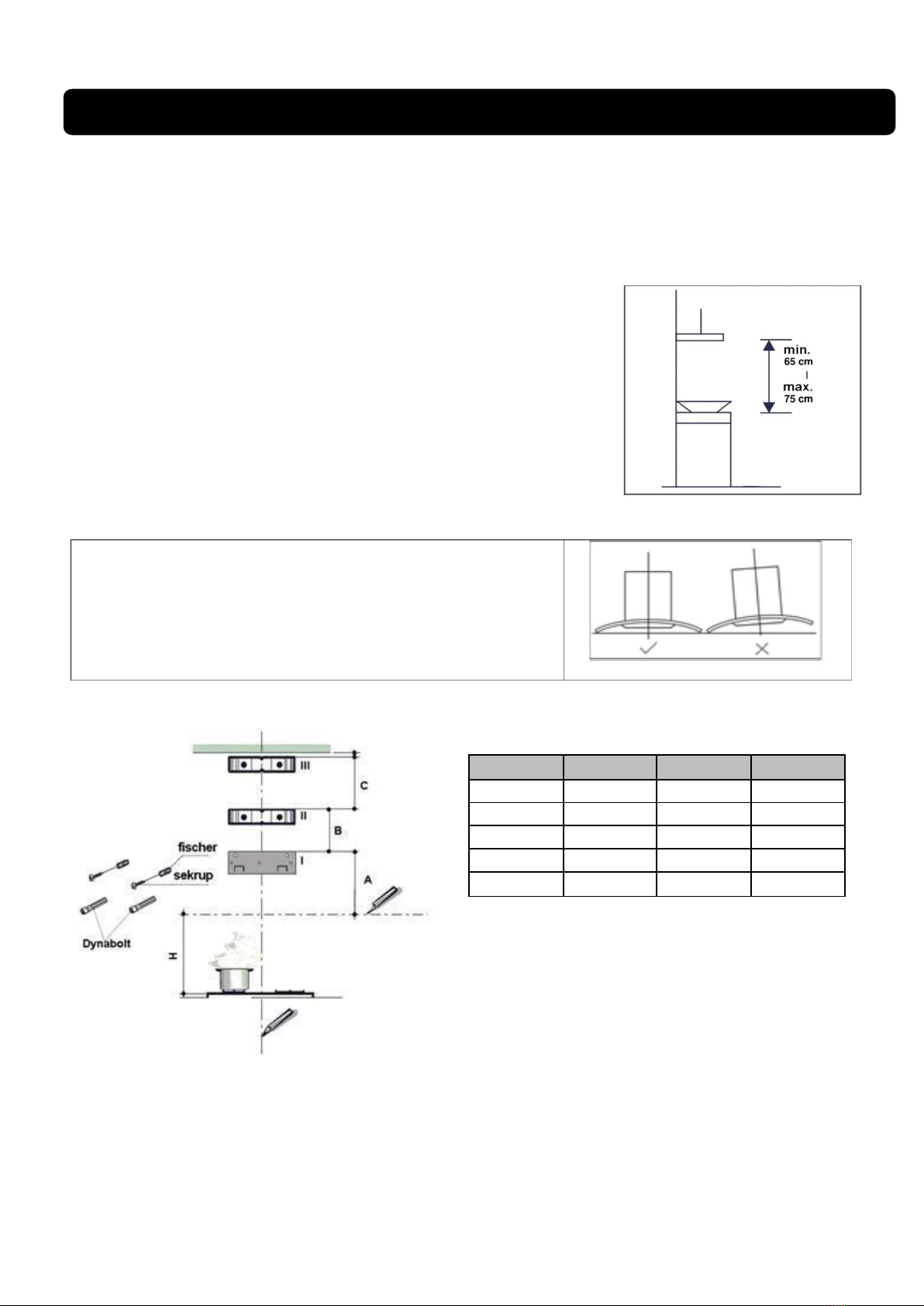

2. The hood should be installed precisely over the stove at a vertical
distance of 65 - 75 cm from the stove surface.
.
INSTALLING THE HOOD ON WALL
Creating holes on the wall and methods for installing bracket
Notes:
• Height / distance are 65 –75 cm, except for CX 9753 type where the height / distance is 35 –40 cm.
• For CX 9753, we recommend installation for use with a stove without the top cover.
• Height / Distance C can be shortened in accordance to the ceiling height.
• Make a vertical line on the wall to its highest point or to an appropriate height on the center part ofthe area where
the vent hood is to be installed
Model
A (cm)
B (cm)
C (cm)
CX 9753
37.5
39
39
CX 9330
34.5
20.5
49
CX 6330
34.5
20.5
49
CX 9150
34.5
20.5
49
CX 6150
34.5
20.5
49
Part 3: Installation
The hood must be installed in an upright position to prevent the oil from
flowing to one side and dripping out of the exhaust hood.

8
• Make a horizontal line at H (cm) distance from the stove to mark the lowest limit for the hood.
• Install bracket I on the wall just like on the picture above up to height A and mark the holes for dynabolt and fischer.
Especially for CX 9753, attach the unit on the wall up to height A and mark the holes for dynabolt/fischer/screw.
• Install bracket II on the wall just like on the picture above up to height B and mark the holes forfischer hole.
• Install bracket III on the wall just like on the picture above up to height C and mark the holes for fischer hole.
• Drill the wall with a Ø 10 mm for dynabolt and ϕ8 mm for fischer in all marked sections.
• Insert the dynabolt and fishcer into the hole.
• Install all brackets using nut for dynabolt and screw for the available fishcer
Installing the Hood Body
• Install hood’s body on the bracket I on the wall, or on the
screw head especially for CX 9753.
• Connect the exhaust system with the spigot / flange if the
exhaust hood will be operated in a ducting / exhaustsystem.
• Install the main chimney and the upper chimney on brackets
I and II with the screws that already provided.
WORK METHOD
MODENA exhaust hood has 2 principle of work:
Several things which require attention in installing the ducting system exhaust hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If the hood is installed in a multi-storied building or an apartment, consult with the person in charge of the building
/ apartment prior to installing the exhaust system.
3. Hood with ducting system should be used in an open-air room with good air circulation.
RECIRCULATING System
DUCTING SYSTEM:
In this mode, the hood operates by sucking the smoke / odor in the
cooking process and then releasing it out of the vent through the
exhaust system.
To connect the hood with the duct system, use "spigot/flange" which
are designed with a diameter of 150 mm.

9
In this version, the vent hood sucks the smoke / cooking odor and filters it through an aluminum filter and carbon
filter. The filtered smoke is then reticulated into the room. This system is used if the premise renders it impossible to
install a ducting system
Several things which must be ensured when installing a vent hood with reticulating system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be precise.
3. Circulation holes on the exhaust hood are not allowed to be closed
CX 7110 L, CX 7310 L, CX 9156, CX 9301, CX 9356, and CX 9701
Preparations of installation:
• If you have a waste pipe outside, the exhaust hood can be connected using extraction duct (enamel, aluminum,
flexible pipe or a fire-resistant material with an inner diameter of 150 mm), see the following picture:
• Before installation, switch off the unit and unplug the power cord from the power socket
• Installation of the exhaust hood should be right on the top of the stove with a minimum distance of
65 cm and a height of maximum 75 cm from the surface of the stove
Installation (DUCTING / EXHAUST System):
•
Attention! Observe the warning in the instruction sheet concerning the operation of the
appliance when air is discharged from the room

10
When the range hood and appliance supplied with energy other than electricity are simultaneously
in operation, the negative pressure in the room must be not exceed 4 Pa (4 × 10-5 Bar)
• Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the
screws & screw plugs provided
•For inclined panel Model, need to drill 4 x 8mm extra holes & fixing screws & screw plugs before
installation.
•Leave up the exhaust hood and hang onto the wall bracket hook.
•Fix the one-way-valve to the air outlet of the exhaust hood. Then, attached the exhaust pipe into
the one-way-valve as shown below.
Chimney installation
For Glass model and T shape model

11

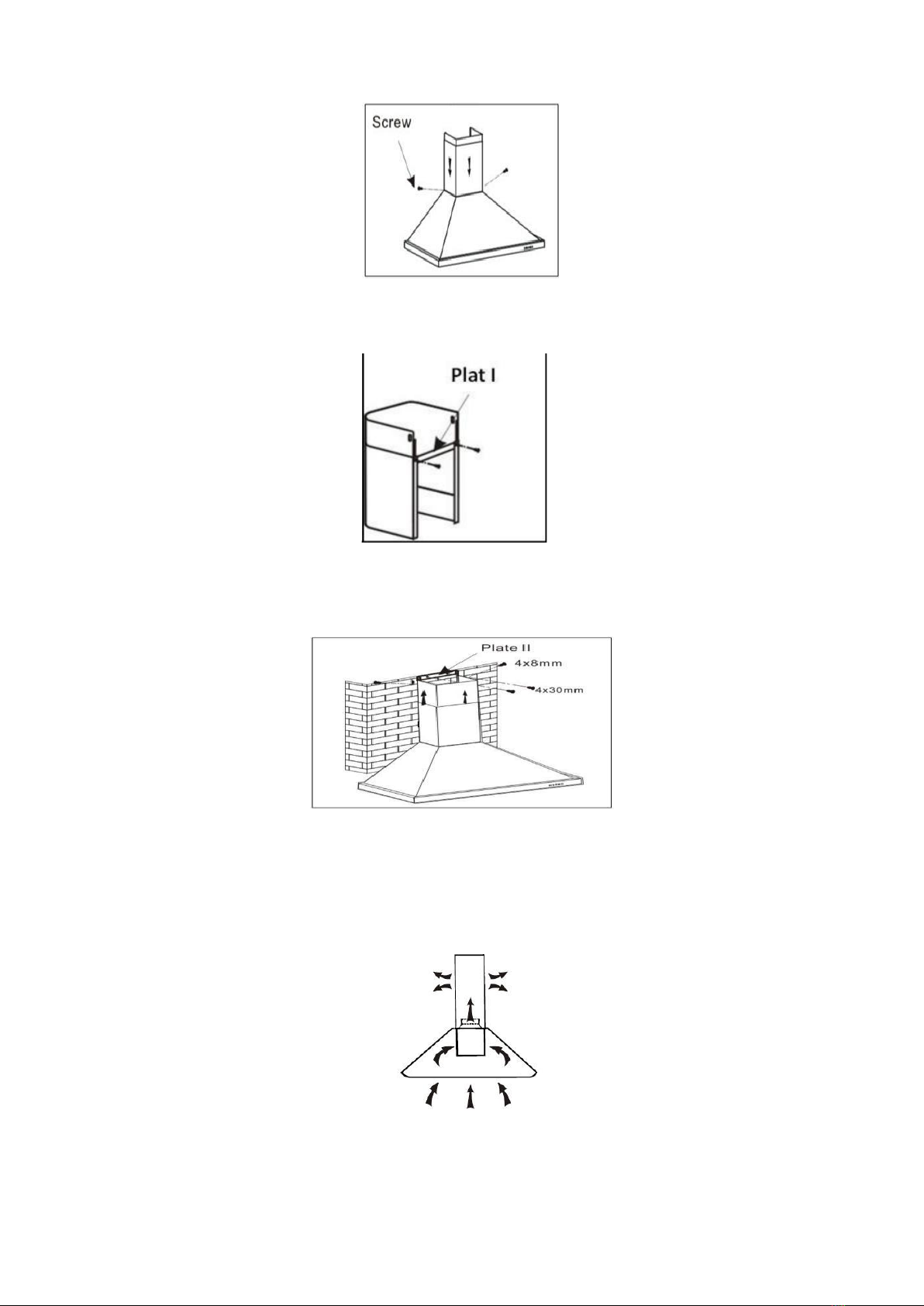

•By put the upper chimney into lower chimney. Then pulling out the upper chimney upwards. Adjust to reach the
height required.
•Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing
hole to the fixing screws as showed in below pictures
•Drill 2 × 8 mm holes to accommodate the plate II. Screw and tighten the plate II into the wall with two screws
provided. Assembly the chimney into the unit and fix it with two screws
For Tower model
•Put the inner chimney into upper chimney .Then pulling out the upper chimney upwards. Adjust to reach the height
required
•Fix the lower chimney with two pieces of 4x8 mm screws

12
•Sliding the chimney to adjust the chimney height. When the height you required is reached, then fix two
pieces of 4x8 mm screws onto the hole fixing with plate I as showed in below pictures
•Drill 2 x 8 mm holes to accommodate the plate II. Screw and tighten the plate II into the wall with two
screws provided.
•Assembly the chimney into the unit and fix it with two screws.
Installation (Re-circulating System):
• If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one
show in section “Installation (DUCTING / EXHAUST System)”.
•Activated carbon filter can be used to trap odors.
•In order to install the activated carbon filter, the grease filter should be detached first by press the lock and pull it
downward.

13
•Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side
Note:
Make sure the filter is securely locked. Otherwise, it would
loosen and cause dangerous.
When activated carbon filter attached, the suction power will
be lower.
Carbon filters are installed at the rear of the grill and had to
be replaced after three months.
Warning:
Carbon filters cannot be wash or recycle. Maximum use of carbon filter is 120 hours of use and
must be replaced afterwards. Carbon filters should not be exposed to heat
CX 9157, CX 9177, CX 9777
IMPORTANT: Installation must be carried out by our registered contractors
Installation Height
Minimum height from the hob surface to the underside of range hood:
- 300 mm for electric hob
- 350 mm for gas hob
*If the instruction for the gas hob installation specified a greater distance, this has to be taken into account
NOTE: Any installation above 700mm will compromise the performance of this range hood. The total height of the
hood is 660 mm. In order to disassemble the protective cover smoothly, the distance between the top end of the hood
and the ceiling is at least 20 cm, and the distance between the two sides of the hood and the kitchen cabinet is 10 mm.
NOTE: Any installation above 700mm will compromise the performance of this range hood. The total height of the
hood is 660 mm. In order to disassemble the protective cover smoothly, the distance between the top end of the hood
and the ceiling is at least 20 cm, and the distance between the two sides of the hood and the kitchen cabinet is 10 mm.

14
If the ceiling is low and hood is installed without extended chimney, there should be at least 3cm gap between the
ceiling and chimney
• Any distance above 700 mm will affect the performance of this range hood.
• Do not connect the range hood exhaust to the same conductor used to circulate hot air or for evacuating fumes
from other appliances generated by other than an electricalsource.
• If the hood is installed under a low ceiling without the extended chimney, there should be a minimum of 30 mm
gap between the ceiling and the main chimney. In order to obtain optimal air extraction:
• Keep exhaust duct short and straight.
• Do not reduce the size or restrict the exhaust duct.
• Minimize bends.
• Make sure the helix of the flexible exhaust duct is tightly drawn rather than slacking.
1. Determine height between cooker hob and base of hood.
2. Mark wall to suit all bracket locations. Drill holes of 50 mm depth at the selected drilling position.
3. Insert the expansion tubes to fix the bracket onto the wall.
4. Install the flow exit to the hood and follow by connecting the flexible exhaust duct to the flow exit.
5. Strengthened the connection between the flow exit and the flexible exhaust duct with screws.
6. Lift and hang the hood to the wall bracket and please ensure it sits firmly on thebracket.
7. Direct the other end of the flexible exhaust duct to the outlet or wall.
8. Fit in the safety baffle of the hood onto the wall to strengthen the position and to reduce vibration when the hood
is switched on.
9. Chimney extension can be installed to the ceiling or wall.
10. Ensure the oil collection container is in place before the hood is being used. Toremove it for cleaning, slide the
oil collection container from front to rear, vice versa for inserting it into position
1. Ensure there is proper ventilation in the cooking area.
2. Instructions concerning the discharge of air have to be followed.
3. Does not use flame under the range hood.
4. Avoid using materials which could cause spurts of flame near the range hood.
5. Never touch the lamp when it is on.
6. Do not dismantle, repair or modify the range hood on your own.

15
CX 7712 L
Preparations of installation:
Exhaust hood is equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be free
from oil particles that may produce bad odor
1. Check the strength of wall on which the exhaust hood is
to be installed. Make sure the wall can sustain the weight/
load of the vent hood.
2. The exhaust hood should be installed precisely over the
stove at a vertical distance of 65 - 75 cm from the stove
surface. Especially for incline/angle type the vertical
distance is 35 –45 cm.
Installing the Cook Hood on The Wall
Exhaust hood must be installed perpendicularly to prevent the oil
from flowing to one side and dripping out of the vent hood .
Creating holes on the wall and methods for installing bracket
Notes:
- Height / distance are 35 - 45 cm.
- For CX 7712 L, we recommend installation for use with a stove without top cover.
- Height / Distance C can be shortened in accordance with the ceilingheight.
- Make a vertical line on the wall to its highest point or to an appropriate height on the center part of
the area where the vent hood is to be installed
- Make a horizontal line at H (cm) distance from the stove to mark the lowest limit for the vent hood.
- Install bracket I on the wall just like in the above picture up to height Aand mark the holes for fisher.
- Install bracket II on the wall just like in the above picture up to height B and mark the holes for
fisher hole.
- Install bracket III on the wall just like in the above picture up to height C and mark the holes for
fisher hole.
- Drill the wall with a Ø 8 mm for fisher in all markedsections.
- Insert the fishcer into the hole.
- Install all brackets using the provided fischer screws
Model
A (cm)
B (cm)
C (cm)
CX 7712 L
25
39
39

16
Installing the Cook Hood’s Body
- Install hood on the bracket I on the wall
- Connect the exhaust system with the spigot / flange if the vent
hood is to be operated as a ducting / exhaust system).
- Install the main chimney and the upper chimney on brackets I and
II with the available screw.
WORK METHOD
MODENA hood have 2 versions of work method, as following:
Exhaust System:
• In this mode, the hood operates by sucking the smoke /
cooking odor and then discharging it out of the vent through
the exhaust system.
• To connect the hood with the discharge duct, use
"spigot/flange" is designed with a diameter of 150 mm.
Several things which require attention in installing the ducting system vent hood:
1. Carbon filter must be removed. Only use the aluminum filter.
2. If the hood is to be installed in a multi-storied building or an apartment, consult
with the person in charge of the building / apartment prior to installing the
exhaustsystem.
3. Hood with ducting system should be used in an open-air room with good air
circulation.
Re-circulation System
• If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one show in section “Installation (Exhaust
System)”.
• Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first by press the lock and pull it downward

17
• Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
Note:
Make sure the filter is securely locked. Otherwise, it
would loosen and cause dangerous.
When activated carbon filter attached, the suction power
will be lower.
Carbon filters are installed at the rear of the grill and had
to be replaced after three months.
Warning:
Carbon filters cannot be wash or recycle. Maximum use of carbon filter is 120 hours of use and must be replaced
afterwards. Carbon filters should not be exposed to heat.
CX 9150, CX 9330, and CX 9753
Connect the power cord with a power socket.
Slide or press the motor speed button to turn the hood on or off as shown in the following image.
Notes:
Adjust the motor speed of the exhaust hood according to the thickness of smoke / steam generated in the cooking
process.
PUSH BUTTON
OFF / To switch off the Hood
Activate Motor at Low Speed
Activate Motor at Medium Speed
Activate Motor at High Speed
To Turn On/Off the Light
Part 4: How to Use

18
Electronic Button + DISPLAY
To Turn On/Off the Hood
To Adjust the Motor’s Speed (Low-Medium-High)
To Activate the Shut-off Timer (After 9 Minutes motor will
switch off automatically)
To Turn On/Off the Light
TOUCH BUTTON
To Set the Usage Time
To Turn On/Off the Light
To Adjust the Speed Level (Low-Medium-High)
To Turn On/Off the Hood
If the button is pressed, the unit will work in which the motor speed depending on
the last setting
Clock Setting
The default setting for the time when it was first turned on is 12:00 PM. If the power is not connected or cut off, the
unit will return to the initial setting is 12:00 and you have to reset.

19
To set the clock can be done when the motor and lights are not in working condition. The way to setting the clock as
follow:
1. Touch the button around 2 until 5 seconds, the display will show , the first two digits
will blink indicates for setting of the hours. Then adjust with touch the button to increase or the
touch to decrease. The largest value for hour is 23 and will not working if it is exceeded
23 and function will not working if it has reached the lower limit of 00. The addition value by
every touch is 01.
2. Touch the button once more for 2 until 5 seconds, the display will show , ,
the last two digits will blink which indicates to set the minute. Then adjust it by touching thebutton
to increase or the button to decrease. The largest value for minute is 59 and will not working
when it is exceeded 59 and function will not working if it reached the lower limit of 00. The addition
value by every touch is 01.
3. Press the button one more time to finish the Clock’s Setting
Setting the Timer
The Timer can be set when the motor or lamp is on. Timer duration is set in three periode: 5 minutes/ 15 minutes / 30
minutes/ Cancel.
1. To set the timer, touch the button once for 5 minutes, twice for 15 minutes, thrice for 30 minutes, four
times to cancel, five times for 5 minutes and so on. After the timer’s time is finish, the motor and lamp will turn
off automatically.
2. To change an ongoing timer, touch the button for 5 seconds or until the correct time is displayed.
CX 7110 L, CX 7310 L, CX 9156, CX 9301, CX 9356, and CX 9701
Plug the power cord into the power socket.
Turning on or turning off the exhaust hood and exhaust hood lights can be done by sliding or pressing a motor speed
regulator button and the lighting button as shown below.
Note:
The setting of the exhaust hood motor speed is adjusted to the thickness of the smoke/ steam that arises when
cooking.

20

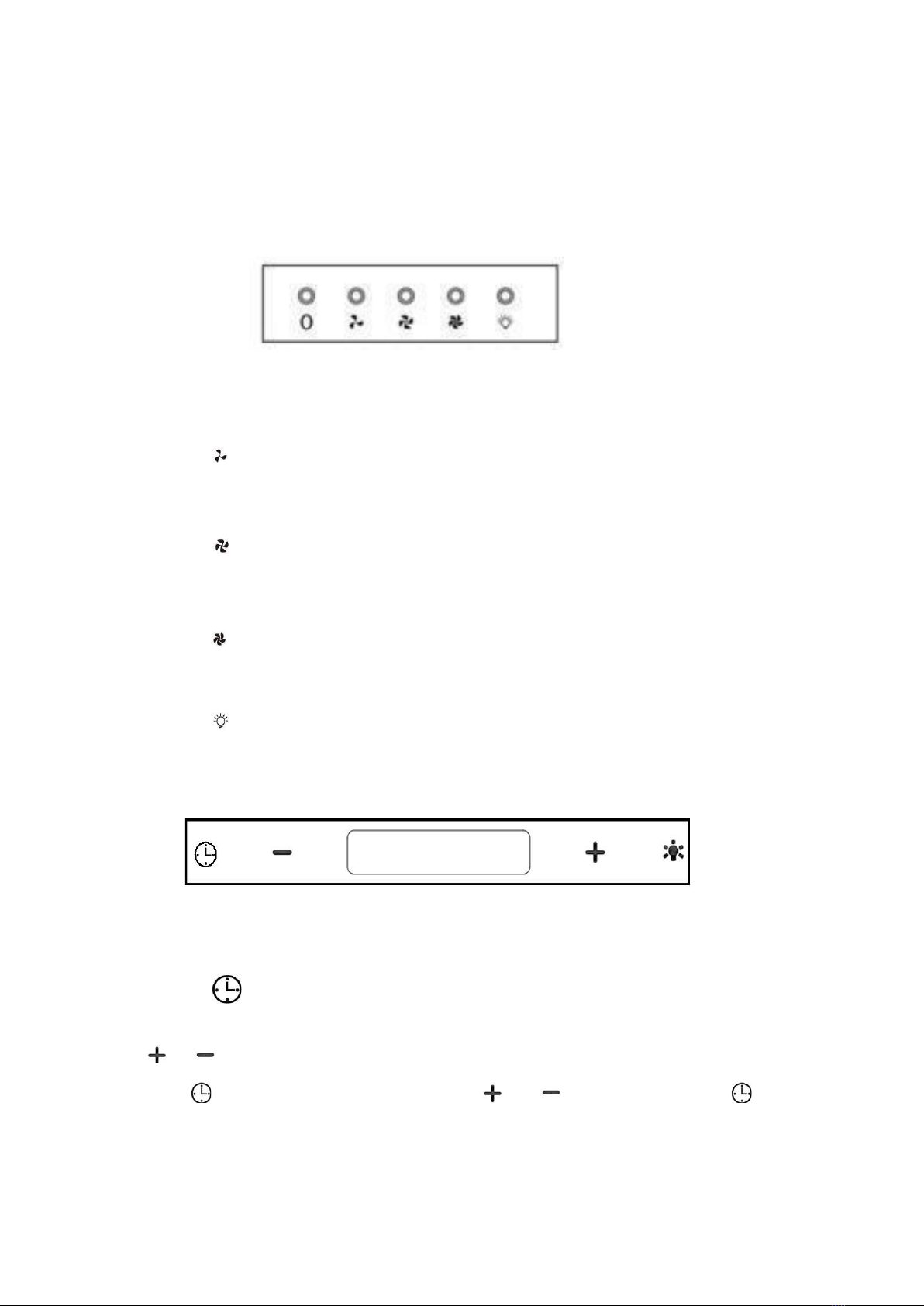

0 On / Off Buttons
The Button to Turn ON/Off the Hood
Motor Speed Button - LOW
Suitable for kitchens or cooking condition that does not cause a lot of smoke or steam.
.
Motor speed button - MEDIUM
Suitable for kitchens or cooking condition that does not cause a medium amount of smoke
and steam
Motor speed button –HIGH
Suitable for kitchens or cooking condition that causes a high amount of smoke and steam
Buttons to turn on/ off lights
TOUCH button type / Touch control
After plug in power, it will automatically sets in standby mode
Timer’s Button
Times setting keep pressing it while in standby mode to enter time setting, hour display will flash, press
" "or" " to set the time.
. Press " " to change into minute setting, press " " or " " to set the time, press " " again or
wait 10s to finish the time setting.
Timer setting, short press during working mode, pre-set cycle: off→15mins→30mins→45mins→off:
off→15menit→30menit→45menit→off.
