Modena SX 9502 V Owner's manual

User
Manual Book
Slim Hood
Fresco Series
SX 9502 V, SX 9502 S, SX 6501 V
SX 6501 S, SX 9512 L, SX 7511 L
SX 9412 L, SX 9412 S
SX 7412 L, SX 7412 S
Forte Series
SX 9122 L, SX 9002 S, SX 7121 L,
SX 6001 S

2
TABLE OF CONTENTS
Part 1: Safety Warnings 3
Part 2: Name of Parts 4
Part 3: Installation 5
Part 4: How to Use 10
Part 5: Maintenance 12
Part 6: Troubleshooting 13
Part 7: Precaution 14
Part 8: Specification 15
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com

3
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the
environmental condition, bake shop, barbecue, and other commercial
purposes.
•The exhaust hood should be cleaned periodically so that its power is
maintained.
•Clean the exhaust hood according to the instructions contained in this book and
keeps it away from the danger of being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in
good shape. If there is damage to the power cord, the replacement must be
performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas
stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a
physical, sensory, or mental disability, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of
the appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more
than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt,
ask advice from an experienced technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other
hazards that are fatal.
PART 1: SAFETY WARNINGS

4
SX 6501 S, SX 6501 V, SX 9502 S, and SX 9502 V
1 Carbon Filter
2 Directional Knob
3 Grid
4 Aluminum Filter
5 Lamp
6 Control Panel
7 Air Flow Direction Glass
SX 9512 L,SX 7511 L, SX 9412 L, SX 9412 S,SX 7412 L, & SX 7412 S
1. Carbon Filter
2. Direction knob
3. Control Panel
4. Lamp
5. Aluminum Filter
6. Filter locker
* Image is a general overview and is not necessarily the same as the product you
receive
PART 2: NAME OF PARTS

5
Exhaust hood is equipment which sucks smoke and cooking fragrance. With a vent
hood, your kitchen will be free from oil particles that may produce bad odor.
1. Check the strength of wall on which the
exhaust hood is to be installed. Make sure
the wall can sustain the weight / load of
the vent hood.

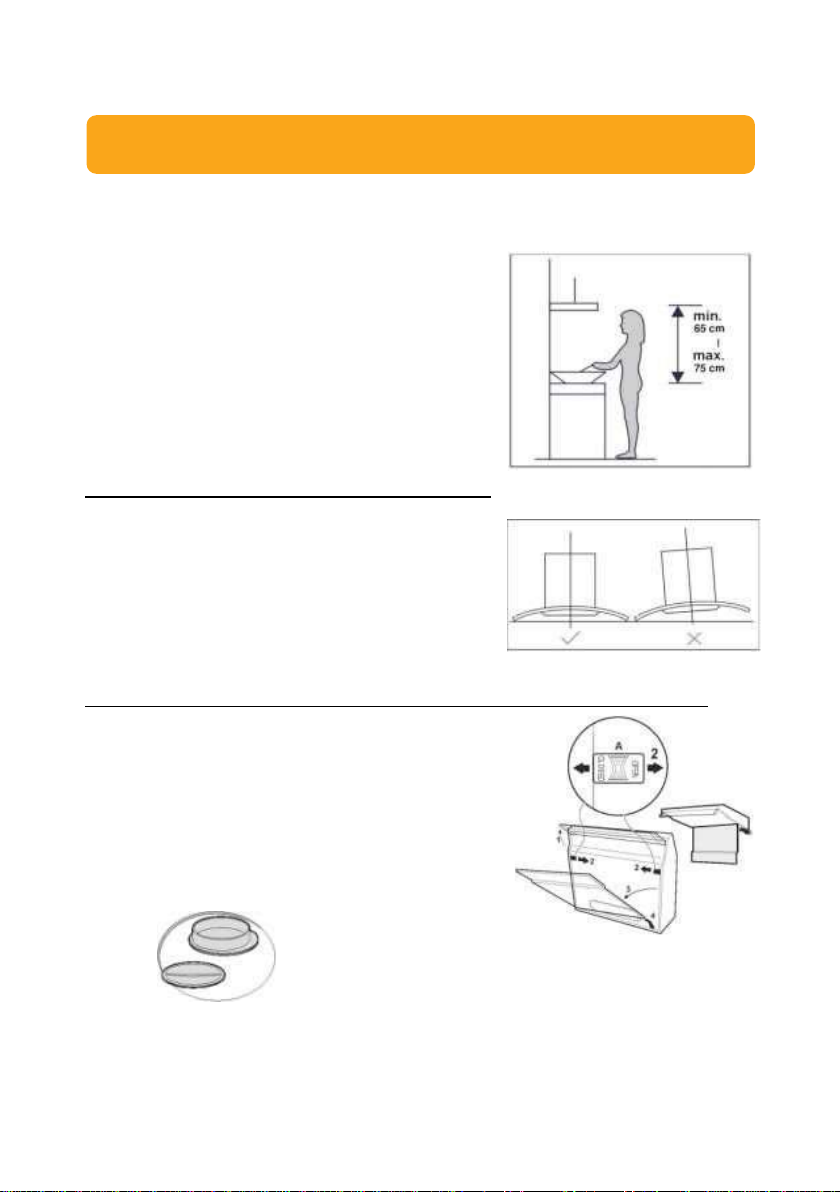

2. The exhaust hood should be installed
precisely over the stove at a vertical
distance of 65 - 75 cm from the stove
surface.
Installing the Exhaust Hood on the Wall
Exhaust hood must be installed
perpendicularly to prevent the oil from
flowing to one side and dripping out of the
vent hood.
Preparations to Be Made Before Installing the Exhaust Hood
1. Remove the exhaust hood from its
packaging and put it on an even place (eg.
Tables).
2. Open the grid by sliding the right and left
grid locker (A) and then pull it. Remove the
spigot / flange (pipe connector) and the
hole cover from the plastic bag.
3. Turn the air directing knob to the following position:
a. Exterior symbol for ducting / exhaust system
b. Interior symbol for recirculation system
PART 3: INSTALLATION

6

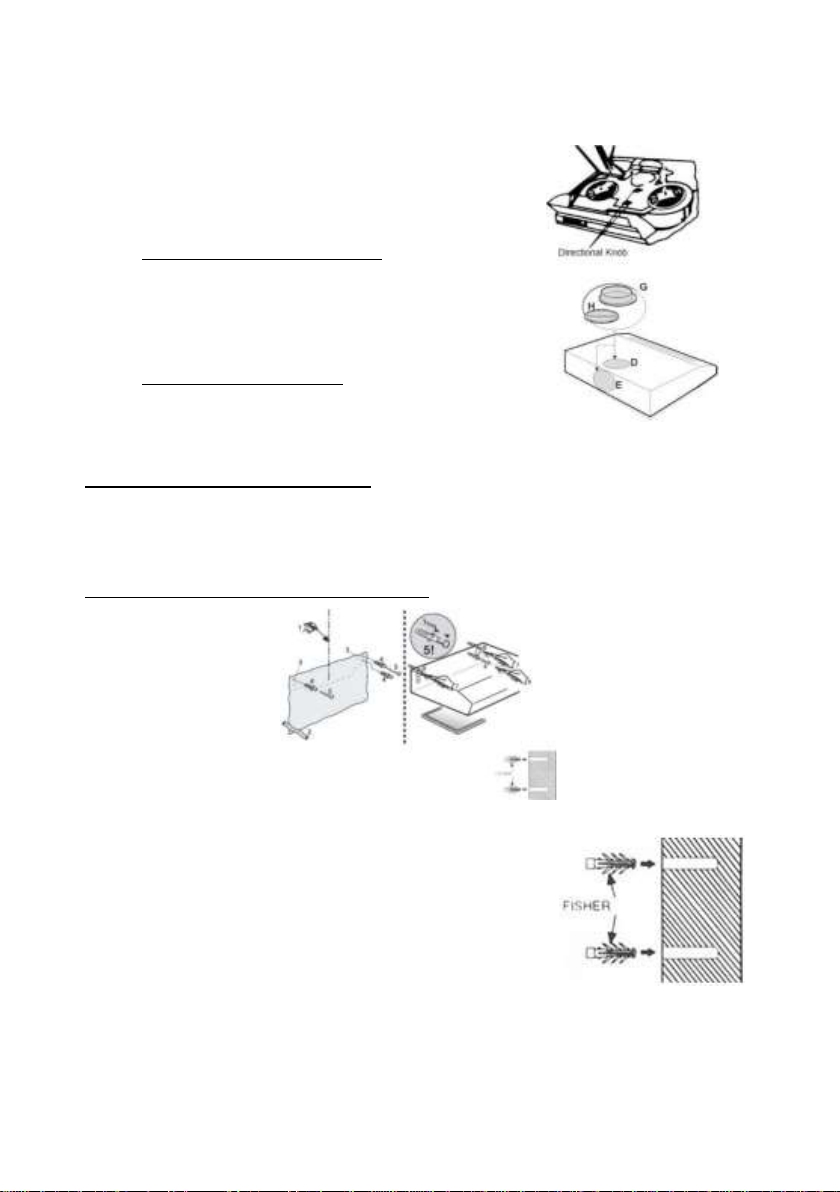

4. Cover the grid
5. The exhaust hood has two holes on it: Hole D
and Hole E (look at the picture). To install the
spigot/flange and hole cover, follow these
instructions:
•For ducting / exhaust system:
Install the spigot / flange G on one of the air
holes, either D or E. Holes which do not
have spigot / flange shall be covered with
Hole Cover H.
•For recirculation system:
Both air holes D and E shall be covered with
the available plastic Hole Cover.
Instalation of Exhaust Hood
Exhaust hood can be installed on the concrete (brick) wall or the bottom
part of the kitchen set.
Installing on concrete (brick) wall
1. Draw a centerline on the wall where the
exhaust hood is to be installed (1).
2. Post a template for drilling on the wall
(2). If no template is available, attach
the exhaust hood on the wall and mark
the spot on the wall where a hole is to
be made.
3. Create holes on the four marks with a 6 mm diameter drill bit or fisher size
(3), and then insert the fisher to the four holes (4).

7
4. Install the screw on both upper holes
and set aside 1 cm between the head of
the screw and the wall surface (5).
5. Install the exhaust hood on the screwed
wall by suspending the vent hood on the
screw (6).
6. When the exhaust hood is positioned correctly on the wall, tighten both
screws on the upper part (7).
7. To reinforce the exhaust hood handle on the wall, install the screws on both
holes on the bottom part (8) and tighten them (9).
8. Close the grid
9. Connect the exhaust system with the spigot / flange if the exhaust hood is
to be operated as a ducting / exhaust system.
Installation on the bottom part of the kitchen set
1. Put the exhaust hood on the bottom
part of the kitchen set in accordance
with the planned position.
2. Mark the bottom part of the kitchen set
for flexible pipe hole and then creates a
hole if the exhaust hood is to be
operated with ducting / exhaust system.
3. Install the exhaust hood with 4 screws
on the prepared position.
4. To reinforce the exhaust hood handle on the kitchen set, install the screws
on other holes on the upper part and tighten them.
5. Connect the exhaust system with the spigot / flange if the exhaust hood is
to be operated as a ducting / exhaust system.
ATTENTION:
Before drilling, make sure that there is no cable installation, water pipe and
installation inside the wall.

8

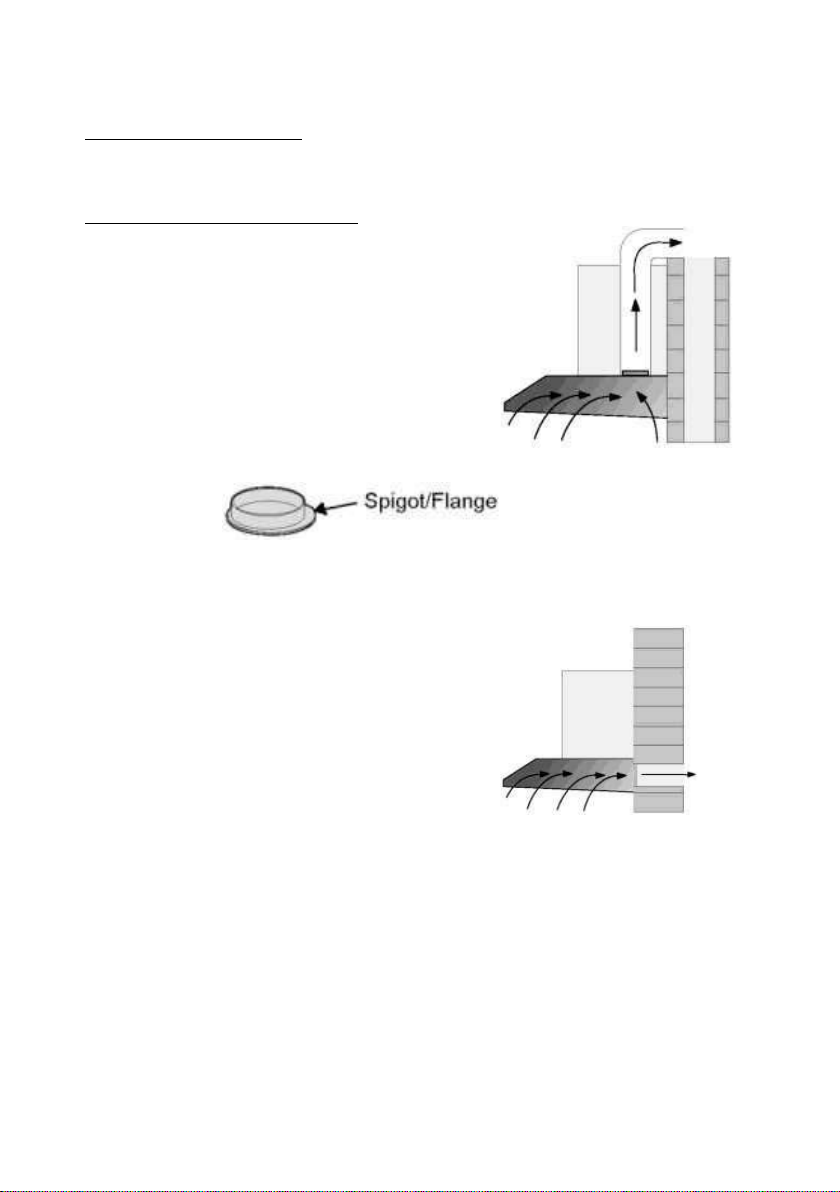

Operating Procedure
MODENA Exhaust Hood has 2 (two) work methods as follows:
Ducting / Exhaust System:
• In this mode, the exhaust hood operates
by sucking the smoke / cooking odor
and then discharging it out of the vent.
• A heat / fire-resistant ducting system is
required to discharge smoke / odor out
of the vent.
• To connect the exhaust hood with the
discharge duct, use "spigot/flange" is
designed with a diameter of 100 or 125
mm.
Several things which require attention in installing the ducting system exhaust
hood:
1. Carbon filter must be removed because
the cooking odor will be sucked and
immediately discharged out of the
room.
2. The suction force will be diminished if
the exhaust system is too long and there
are too many elbows.
3. Do not connect the exhaust system with
a chimney or an air duct or hot steam
duct.
4. If the exhaust hood is to be installed in a multi-storied building or an
apartment, consult with the person in charge of the building / apartment
prior to installing the exhaust system.
5. Exhaust hood with ducting system should be used in an open-air room with
good air circulation.

9

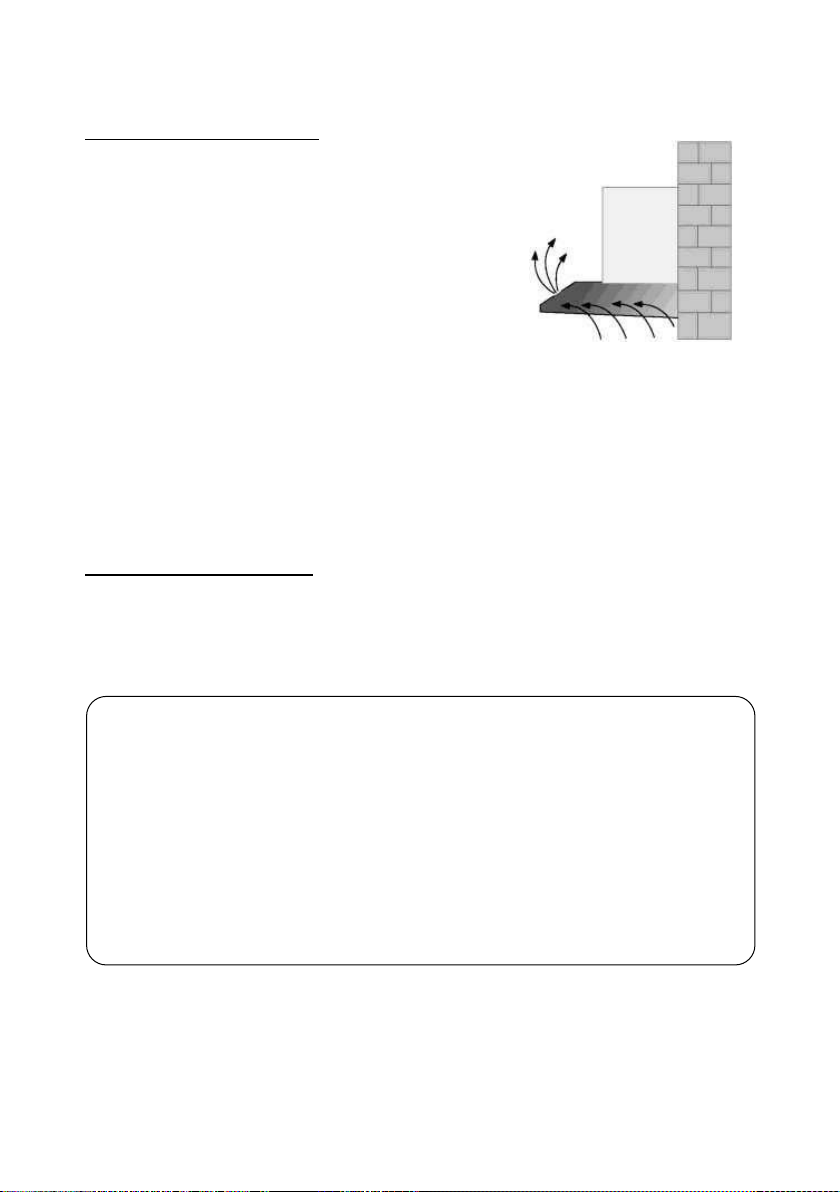

Recirculating system:
In this version, the exhaust hood sucks the
smoke / cooking odor and filters it through
an aluminum filter and carbon filter. The
filtered smoke is then re-circulated into the
room. This system is used if the premise
renders it impossible to install a ducting
system.
Several things which must be ensured when
installing a exhaust hood with recirculation
system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be correct.
3. Holes where air duct is discharged found in the front cabinet of the exhaust
hood cannot be closed.
Electricity Connection
MODENA Exhaust Hood is designed for 220 volt electricity input, single phase
with 50 Hz of frequency. This appliance uses a double-insulated power cord (2
parallel cords) and should not be connected to a grounding wire.
ATTENTION:
Overall installation should be performed by a competent person in the field of
electrical or able to do the installation. If you will do the installation yourself,
it is recommended that at first consult to the Service Center Modena.
Details of the method and frequency of cleaning listed in the "Installation and
Maintenance"
To separate the equipment from the power source should not attract a wired
connection, but the pull of the base / head power cable.

10

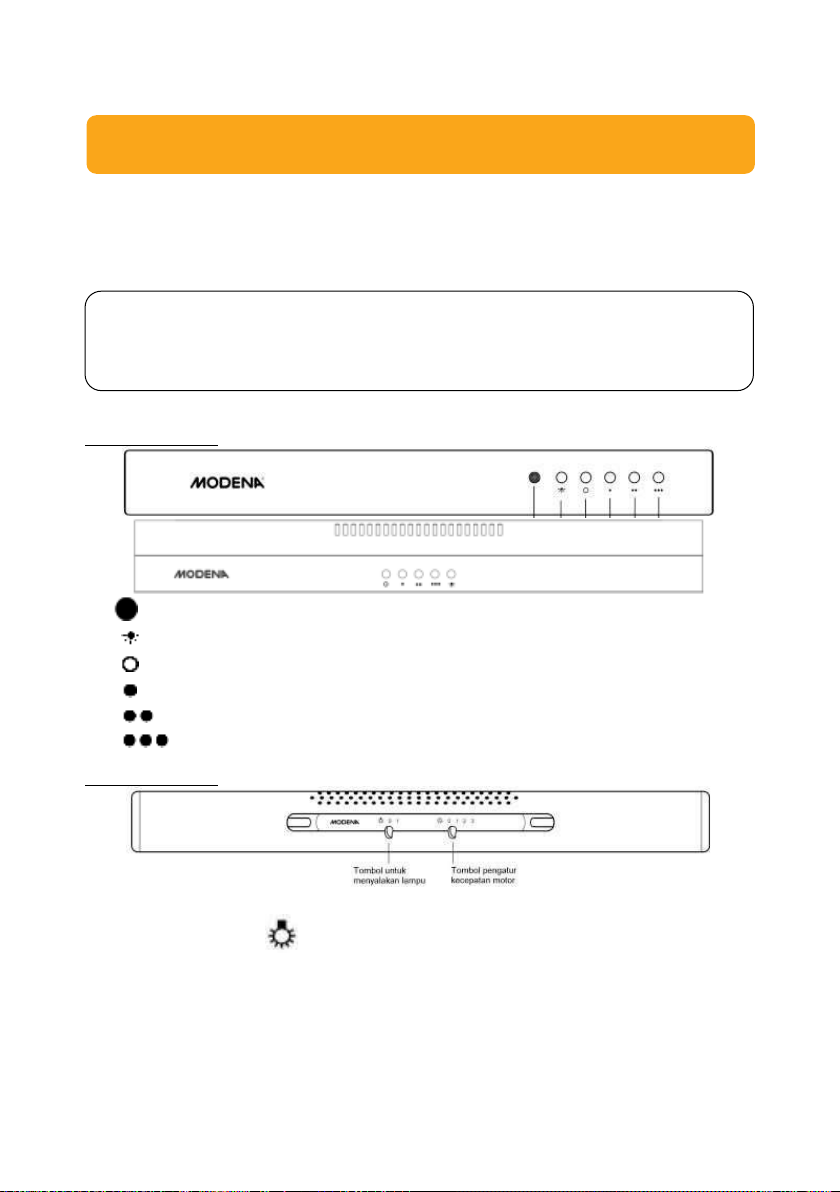

• Connect the power cord with an electrical outlet.
• Slide or press the motor speed regulator button and light switch to turn
vent hood on or off as shown in the following picture.
Push Button
Indicator lamp
Button used for turning lamp on / off
Button for turning off the exhaust hood
Motor speed button –LOW
Motor speed button –MEDIUM
Motor speed button - HIGH
Slide Button
Symbol
To turn on/off the light
0 To turn off the motor
1 LOW motor speed
2 MEDIUM motor speed
3 HIGH motor speed
PART 4: HOW TO USE
NOTES:
Adjust the motor speed of the vent hood according to the thickness of smoke
/ steam generated by the cooking process.

11

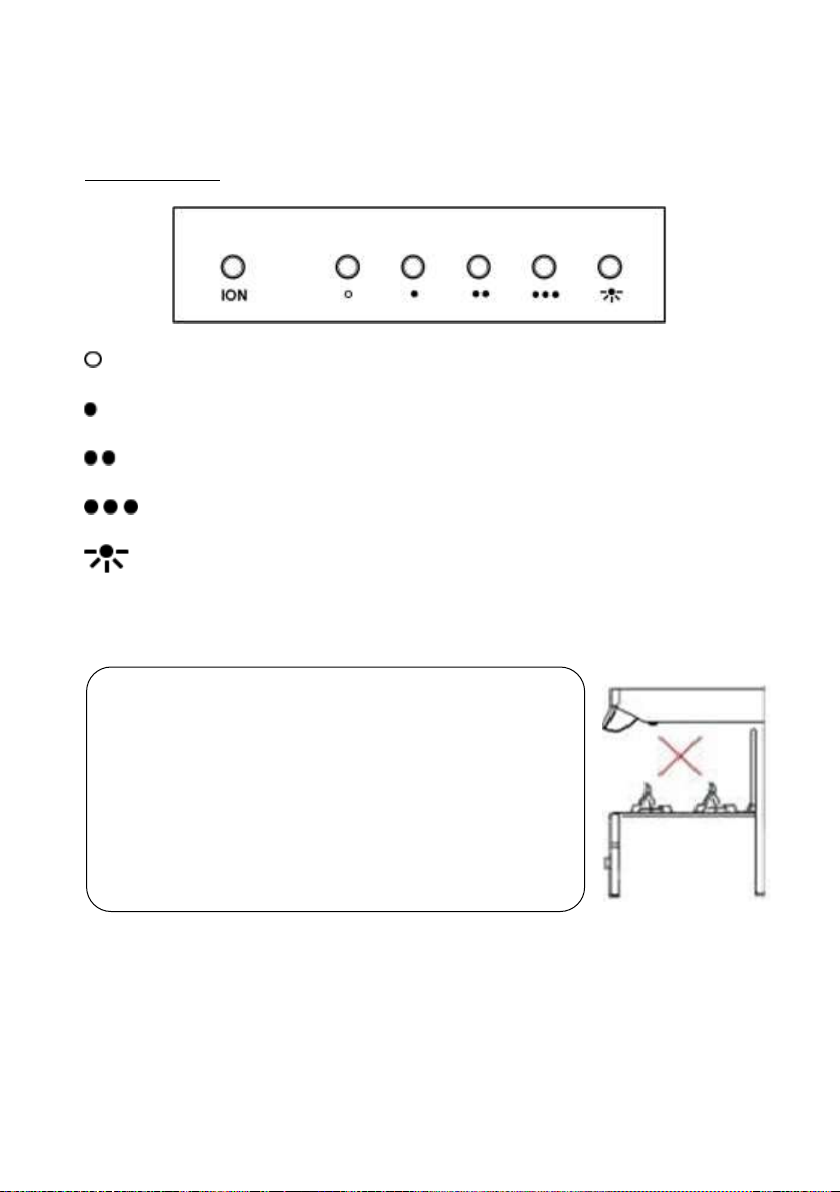

SX 9512 L and SX 7511 L
Push Button
To turn off the hood
Use motor at low speed
Use motor at medium speed
Use motor at high speed
To turn off/on the light
ION Will be activated when operating the hood motor
CAUTION:
• Avoid direct contact of an active stove with the
exhaust hood.
• Adjust the motor’s speed of the exhaust hood
according to the thickness of smoke / steam
generated in the cooking process.
• To get the best filtering result, turn off the exhaust
hood 20 –30 minutes after finished cooking.

12
MODENA Exhaust Hood is specifically designed for long-term usage and does not
require complicated maintenance. However, there are several things you can do to
maintain its quality as follows:
Cleaning the Cabinet:
To clean the surface of exhaust hood cabinet from sticky oil particles, use cloth /
sponge and soap water and dry it. The cabinet should be cleaned after each cooking
session.
Cleaning the Filter:
Smoke / steam from cooking and oil particles generated by the cooking procedure
will be immediately absorbed by the filter and therefore must be cleaned regularly.
Aluminum Filter and Metal Filter

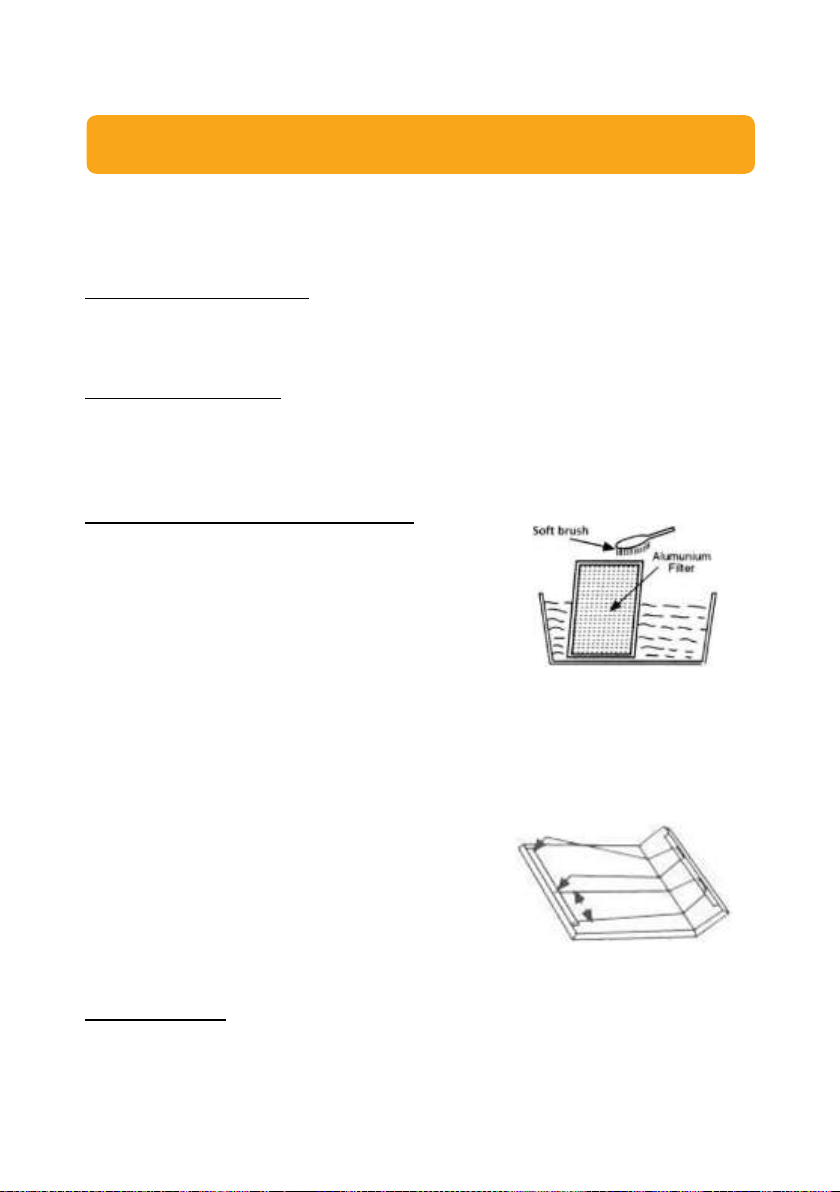

• For routine usage, clean the aluminum
filter once every 10 –15 days by soaking
the filter in a basin filled with soap water
for 1 hour (look at picture) and use a soft
brush to scrub it and then dry the filter
thoroughly before returning it to its
proper position.
• Aluminum filter can be cleaned using a dishwasher.
• Avoid bending the filter during wash.
Follow these instructions to remove the metal filter:
1. Remove the power cord from the
electrical outlet.
2. Open the exhaust hood grid.
3. Remove the filter pin wire from its
position and lift the filter
4. Install the clean filter to its original
position.
Carbon Filter:
Carbon filter must be replaced with a new one at least once every 4 months
or when the carbon filter is no longer capable of absorbing the cooking odor.
PART 5: MAINTENANCE

13
1. Remove the power cord from the
electrical outlet.
2. Open the exhaust hood grid.
3. Rotate the carbon filter counterclockwise
and remove the carbon filter
4. Install the new carbon filter by putting it in
position and rotating it clockwise.
Consult the following troubleshooting before contacting our Service Center
regarding your exhaust hood:
Problem
Possible Cause
Recommended Actions
Exhaust hood is not
working
• Power cord is not yet
connected to the electrical
socket.
• Electrical socket does
not have any electricity
• Connect the power cord to the
electrical socket.
• Connect the power cord to a
properly functioning electrical
socket
Deteriorating of
Suction Power
• Dirty aluminum filter
• Dirty carbon filter
• Clean the aluminum filter, dry
it and place it back on the
exhaust hood.
• Replace the carbon filter with a
new one.
ATTENTION:
Carbon filter cannot be washed and must be replaced with a new one in
accordance with the above description.
There is a risk of fire if cleaning is not in accordance with the instructions.
Condition of carbon filter that have oiling can ease the fire ,if there is
negligence usage
PART 6: TROUBLESHOOTING

14
Problem
Possible Cause
Recommended Actions
Motor fan is not
functioning
• Motor coil is broken
• Contact MODENA Service
Center
Motor stops
working after a
while
• Safety thermal regulator is
active
• The vent hood is installed too
close to the stove.
• Air circulation is not optimal.
• Contact MODENA Service
Center.
•Make sure the hood is turned on after a while to allow the air around the
cooking area to circulate properly and make sure the hood is turned off after
this process..
•Periodically inspect the filter and oil reservoir. Make sure that the filter is in
clean and good condition and make sure the oil reservoir is not exceeding the
specified limit.
•If you smell burnt / burnt smell from the hood, immediately turn off the hood
and contact the MODENA Service Center.
•Perform a routine service on your stove every 3 (three) months, because if there
are problems / problems with your exhaust hood, it can be immediately
identified and repaired. Contact MODENA Service Center
PART 7: PRECAUTION

15
TYPE
SX 9502 V
SX 6501 S
SX 6501 V
Hood type
Slim
Slim
Slim
Cabinet’s color
Silver (V)
Stainless (S)
Silver (V)
Cabinet Material
Metal
Stainless
Metal
Front panel’s color
Silver (V)
Stainless (S)
Silver (V)
Motor
2
1
1
Lamp
2
1
1
Control panel
Push Button
Push Button
Push Button
Ionizer
Yes
Yes
Yes
Filter type
Carbon Filter + Cassette
Aluminum Filter
Carbon Filter +
Cassette Aluminum
Filter
Carbon Filter +
Cassette Aluminum
Filter
Motor Power
2 x 125 W
125 W
125 W
Lamp Power
2 x 40 W
1 x 40 W
1 x 40 W
Dimension (L x W x H mm)
900 x 495 x 150
600 x 496 x 150
600 x 495 x 150
PART 8: SPECIFICATION

16
TYPE
SX 9512 L
SX 7511 L
SX 9502 S
Hood type
Slim
Slim
Slim
Cabinet’s color
Black
Black
Stainless (S)
Cabinet
Material
Metal
Metal
Stainless
Front panel’s
color
Black
Black
Stainless (S)
Motor
2
1
2
Lamp
2 bulb
2 bulb
2
Control panel
Push Button
Push Button
Push Button
Ionizer
Yes
Yes
Yes
Filter type
Aluminum
+ Carbon + Vit. C filter
Aluminum
+ Carbon + Vit. C filter
Filter Karbon +
Cassette Aluminium
Motor Power
2 x 100 W
100 W
2 x 125 W
Lamp Power
2 x 40 W
2 x 40 W
2 x 40 W
Dimension (L x
W x H mm)
900 x 500 x 150
700 x 500 x 150
900 x 495 x 150

17
TYPE
SX 9412 L
SX 9412 S
SX 7412 L
SX 7412 S
Hood type
Slim
Slim
Slim
Slim
Cabinet’s color
Black
Stainless
Black
Stainless
Cabinet
Material
Metal
Stainless
Metal
Stainless
Front panel’s
color
Black
Stainless
Black
Stainless
Motor
2
2
2
2
Lamp
Led
Led
Led
Led
Control panel
Push Button
Push Button
Push Button
Push Button
Ionizer
No
No
No
No
Filter type
Filter Karbon +
Aluminium
Cassette Filter
Filter Karbon +
Aluminium
Cassette Filter
Filter Karbon +
Aluminium
Cassette Filter
Filter Karbon +
Aluminium
Cassette Filter
Motor Power
2 X 80 W
2 X 80 W
2 X 80 W
2 X 80 W
Lamp Power
1 X 2 W Led
1 X 2 W Led
1 X 2 W Led
1 X 2 W Led
Dimension (L x
W x H mm)
900 X 480 X 100
900 X 480 X 100
700 X 480 X 100
700 X 480 X 100

06/21
PT MODENA INDONESIA
Jl. Industri Raya I Blok D-8,
Jatiuwung, Tangerang 15135
