Modena Fresco Series Owner's manual

User
Manual Book
Slim Hood
Fresco Series
SX 9502 V, SX 9502 S, SX 6501 V
SX 6501 S, SX 9512 L, SX 7511 L
Forte Series
SX 9122 L, SX 9002 S, SX 7121 L,
SX 6001 S

2
Thank you for your trust in choosing MODENA products for your household needs. With your
satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped
with state-of-the-art technology to assist you in your daily activities.
This is your guidebook containing everything you need to know about our product. Please reach
out to us if you need further assistance or other information via our Customer Care or our official
website www.modena.com.

3
CONTENT PAGE
Introduction
• Part 1 : Safety Warnings 4
• Part 2 : Name of Parts 5
• Part 3 : Installation 6
• Part 4 : How to Use 12
• Part 5 : Maintenance 14
• Part 6 : Problem & Solution 16
• Part 7 : Precaution 16
• Part 8 : Specification 17

4
•Do not allow children to operate the unit.
•This exhaust hood is designed for home use only, not suitable for the environmental condition, bake shop, barbecue,
and other commercial purposes.
•The exhaust hood should be cleaned periodically so that its power is maintained.
•Clean the exhaust hoods according to the instructions contained in this book and keep it away from the danger of
being burnt.
•No direct grilling on a gas stove.
•Keep your kitchen remains good circulation.
•Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the
power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for
replacement process.
•The room should have good ventilation during the use of exhaust hood on gas stoves or other fuels.
•The exhaust hood waste pipe should be separated with an air-duct.
•Regulations regarding the air exhaust must be met.
•The unit is not intended to be used by persons (including children) with a physical, sensory, or mental disability, or
lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the
appliance by the person who is responsible for their safety.
•Children should be supervised to ensure that they are not playing with the unit.
•Do not strike a fire under the sucker of the exhaust hood.
•The exhaust hood is not aimed to be installed on top of the stove that had more than four burners.
Electrical Shock Hazards
•Connect the unit only to a grounded power socket correctly. If you are in doubt, ask advice froman experienced
technician who is suitably qualified.
•The failure to follow these instructions may cause electric shock, fire, or other hazards that are fatal.
.
Part 1: Safety Warning

5
SX 6501 S, SX 6501 V, SX 9502 S, and SX 9502 V
The image is a general overview and is not necessarily the same as the product you receive.
* Features and completeness depends on the type of products
SX 9512 L and SX 7511 L
1 Carbon Filter
2 Direction knob
3 Control Panel
4 Lamp
5 Aluminum Filter
6 Filter locker
Part 2: Name of Parts

6
SX 6501 S, SX 6501 V, SX 9502 S, and SX 9502 V
Exhaust hood is an equipment which sucks smoke and cooking fragrance. With a vent hood,
your kitchen will be free from oil particles that may produce bad odor.
.
1. Check the strength of wall on which the exhaust hood is to be
installed. Make sure the wall can sustain the weight / load of the
vent hood.
2. The exhaust hood should be installed precisely over the stove at a
vertical distance of 65 - 75 cm from the stove surface.
INSTALLING THE EXHAUST HOOD ON THE WALL
Exhaust hood must be installed perpendicularly to prevent the oil from
flowing to one side and dripping out of the vent hood.
PREPARATIONS TO BE MADE BEFORE INSTALLING THE EXHAUST HOOD
1. Remove the exhaust hood from its packaging and put it on an even place (eg. Tables).
2. Open the grid by sliding the right and left grid locker (A) and then pull it. Remove the spigot / flange (pipe
connector) and the hole cover from the plastic bag.

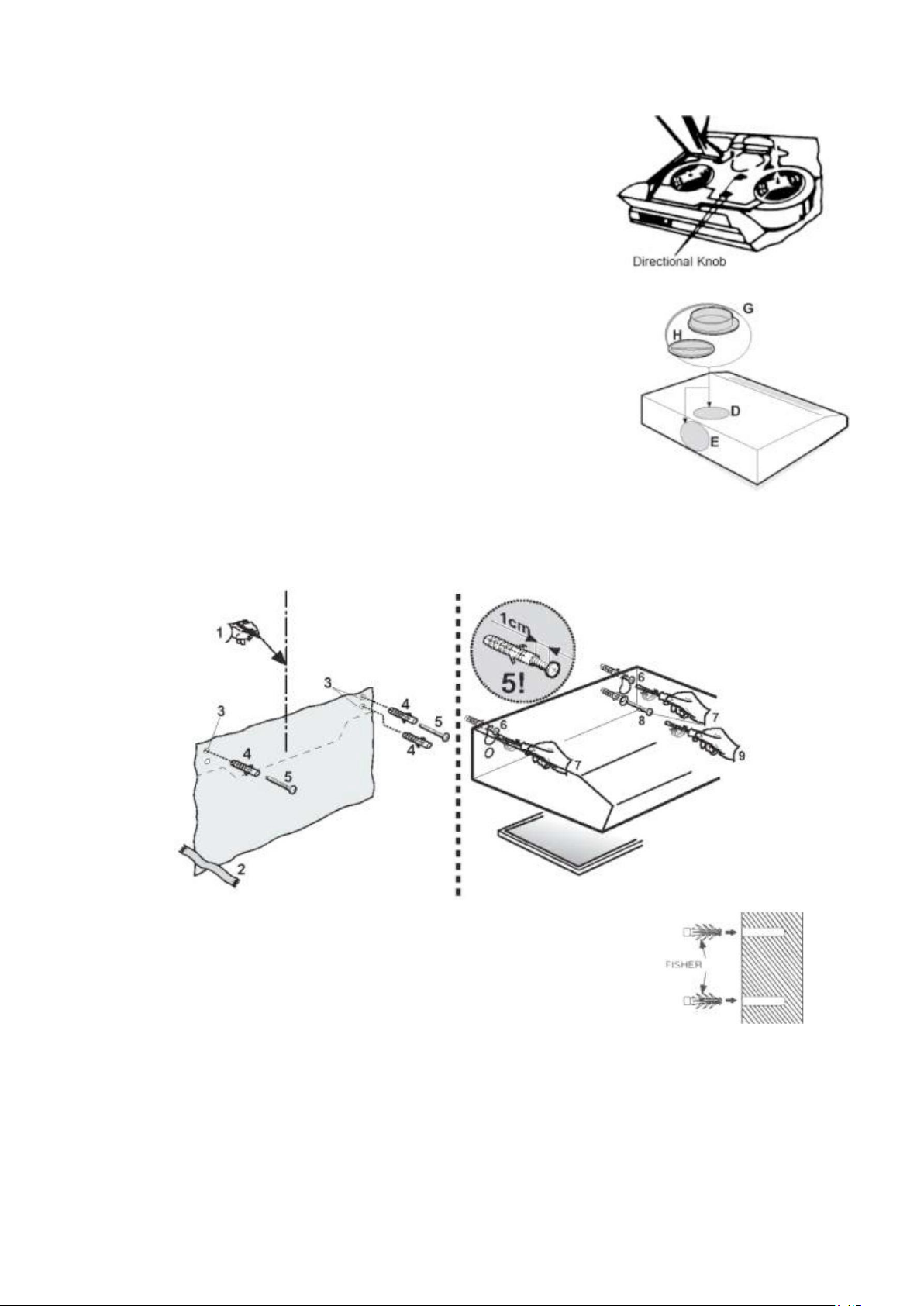

3. Turn the air directing knob to the following position:
a. Exterior symbol for ducting / exhaust system
b. Interior symbol for recirculation system
4. Cover the grid
Part 3: Installation

7
5. The exhaust hood has two holes on it: Hole D and Hole E (look at
the picture). To install the spigot/flange and hole cover, follow these
instructions:
• For ducting / exhaust system:
Install the spigot / flange G on one of the air holes, either D or E.
Holes which do not have spigot / flange shall be covered with Hole
Cover H.
• For recirculation system:
Both air holes D and E shall be covered with the available plastic
Hole Cover.
.
INSTALATION OF EXHAUST HOOD
Exhaust hood can be installed on the concrete (brick) wall or the bottom part of the kitchen set .
Installing on concrete (brick) wall
1. Draw a centerline on the wall where the exhaust hood is to be
installed (1).
2. Post a template for drilling on the wall (2). If no template is
available,
attach the exhaust hood on the wall and mark the spot on the wall
where a hole is to be made.
3. Create holes on the four marks with a 6 mm diameter drill bit or fisher
size (3), and then insert the fisher to the four holes (4).
Attention:
Before drilling, make sure that there's no cable installation, water pipe and installation inside the wall.

8
4. Install the screw on both upper holes and set aside 1 cm between
the head of the screw and the wall surface (5).
5. Install the exhaust hood on the screwed wall by suspending the vent
hood on the screw (6).
6. When the exhaust hood is positioned correctly on the wall, tighten
both screws on the upper part (7).
7. To reinforce the exhaust hood handle on the wall, install the screws
on both holes on the bottom part (8) and tighten them (9).
8. Close the grid
9. Connect the exhaust system with the spigot / flange if the exhaust
hood is to be operated as a ducting / exhaust system.
Installation on the bottom part of the kitchen set
1. Put the exhaust hood on the bottom part of the kitchen set in
accordance with the planned position.
2. Mark the bottom part of the kitchen set for flexible pipe hole and then
creates a hole if the exhaust hood is to be operated with ducting /
exhaust system.
3. Install the exhaust hood with 4 screws on the prepared position.
4. To reinforce the exhaust hood handle on the kitchen set, install the
screws on other holes on the upper part and tighten them.
5. Connect the exhaust system with the spigot / flange if the exhaust
hood is to be operated as a ducting / exhaust system.
OPERATING PROCEDURE
MODENA Exhaust Hood has 2 (two) work methods as follows::
DUCTING / EXHAUST System:
• In this mode, the exhaust hood operates by sucking the smoke /
cooking odor and then discharging it out of the vent.
• A heat / fire-resistant ducting system is required to discharge smoke
/ odor out of the vent.
• To connect the exhaust hood with the discharge duct, use
"spigot/flange" is designed with a diameter of 100 or 125 mm.
Several things which require attention in installing the ducting system exhaust hood:
1. Carbon filter must be removed because the cooking odor will be
sucked and immediately discharged out of the room.
2. The suction force will be diminished if the exhaust system is too long
and there are too many elbows.
3. Do not connect the exhaust system with a chimney or an air duct or
hot steam duct.
4. If the exhaust hood is to be installed in a multi-storied building or an
apartment, consult with the person in charge of the building /
apartment prior to installing the exhaust system.
5. Exhaust hood with ducting system should be used in an open-air
room with good air circulation.
RECIRCULATING system:

9
In this version, the exhaust hood sucks the smoke / cooking odor and
filters it through an aluminum filter and carbon filter. The filtered smoke
is then re-circulated into the room. This system is used if the premise
renders it impossible to install a ducting system.
Several things which must be ensured when installing a exhaust hood
with recirculation system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be correct.
3. Holes where air duct is discharged found in the front cabinet of the
exhaust hood cannot be closed.
Electricity Connection
MODENA Exhaust Hood is designed for 220 volt electricity input, single phase with 50 Hz of frequency. This
appliance uses a double-insulated power cord (2 parallel cords) and should not be connected to a grounding wire.
SX 9512 L and SX 7511 L
Exhaust hood is equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be
free from oil particles that may produce bad odor
1. Check the strength of wall on which the exhaust hood is to be
installed. Make sure the wall can sustain the weight / load of the vent
hood.
2. The exhaust hood should be installed precisely over the stove at a
vertical distance of 65 - 75 cm from the stove surface.
INSTALLING THE EXHAUST HOOD ON WALL
Exhaust hood must be installed perpendicularly to prevent the oil from flowing to one side and dripping out
of the vent hood.
PREPARATIONS TO BE MADE BEFORE INSTALLING THE EXHAUST HOOD
Remove the exhaust hood from its packaging and put it on an even place (i.e. Tables).
Open the grid by sliding the right and left grid locker (6) and then pull it. Remove the spigot / flange (pipe connector)
and the hole cover from the plastic bag.
INSTALATION OF EXHAUST HOOD
Exhaust hood can be installed on the concrete (brick) wall or the bottom part of the kitchen set.
Installing on concrete (brick) wall
1. To install the hood in the wall, drill 4 holes on the wall and the diameter each holes is 8 mm, or according
to fisher size at the possible place based on the distance of the center of the back hole of the hood.
Caution:
Before drilling, make sure that there's no cable installation, water
pipe and installation inside the wall.
2. Insert fisher/nut into the holes.
3. Pair the screw in the 2 above holes and leaving the 1 cm distance from the wall.

10
4. Install the hood at the wall that already pair 2 screws by hange on the screws.
5. When the exhaust hood is positioned correctly on the wall, tighten both screws on the upper part.
6. To reinforce the exhaust hood handle on the wall, install the screws on both holes on the bottom part and
tighten them.
7. Connect the exhaust system with the spigot / flange if the exhaust hood is to be operated as a ducting / exhaust
system.
Installation on the bottom part of the kitchen set
1. Put the exhaust hood on the bottom part of the kitchen set in accordance with the planned position.
2. Mark the bottom part of the kitchen set for flexible pipe hole and then creates a hole if the exhaust hood is to
be operated with ducting / exhaust system.
3. Install the exhaust hood with 4 screws on the prepared position.
4. To reinforce the exhaust hood handle on the kitchen set, install the screws on other holes on the upper part
and tighten them.
5. Connect the exhaust system with the spigot / flange if the exhaust hood is to be operated as a ducting / exhaust
system
Note:
There are two methods to air exchange, its are covering ‘horizontal ventilation' and 'vertical ventilation'. Note the
ventilation method when installation.

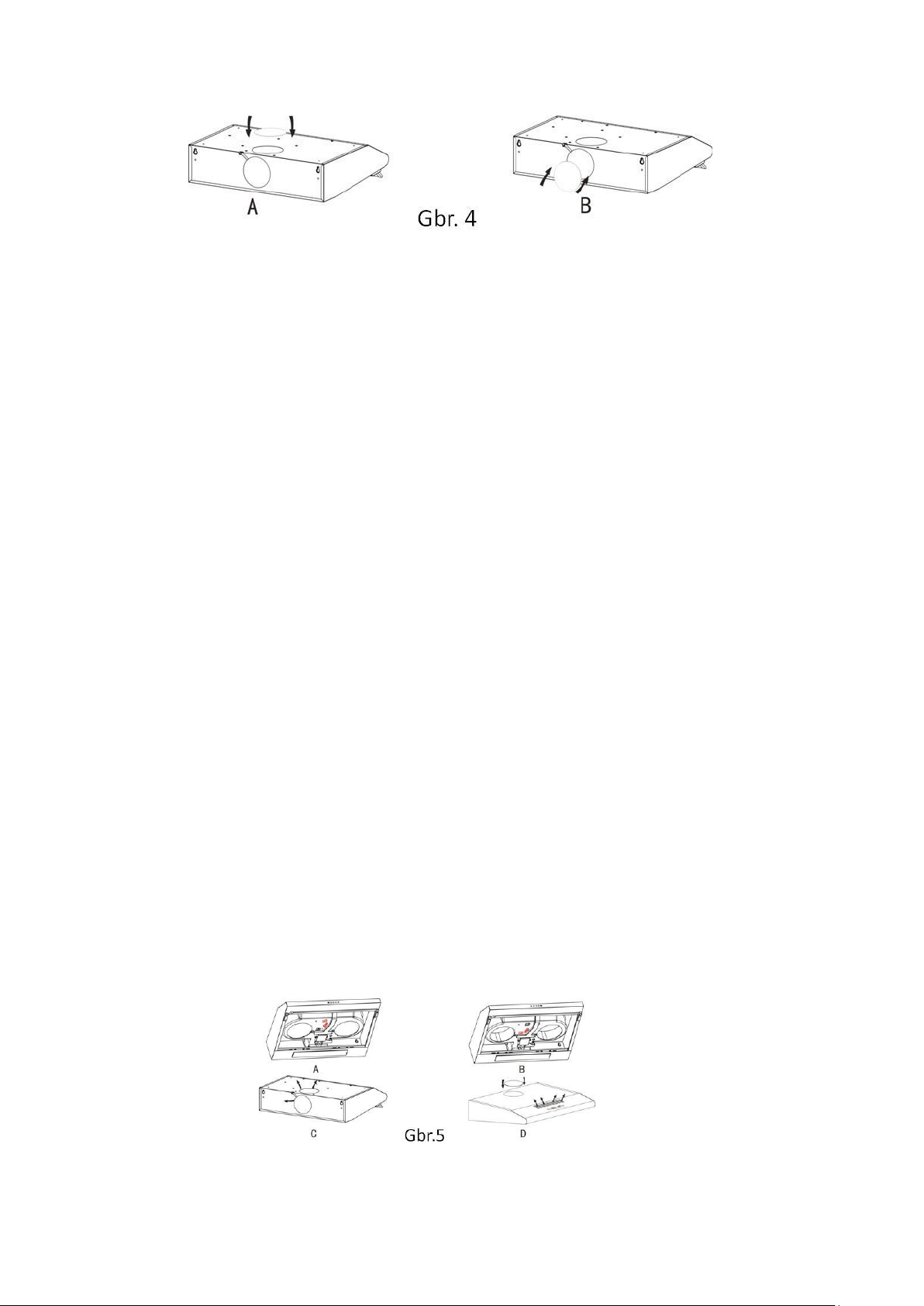

Horizontal ventilation: As shown in the picture. 4A, use a cover to close the outlet at the top, then the air can be
streamed from behind.
Vertical ventilation: As shown in the picture 4B, use a cover to close the outlet on the back, then air can be
streamed from above.

11
Working Method
MODENA hoods have 2 version of working method, that is :
Ducting/Exhaust System:
1. In this mode, the exhaust hood operates by sucking the smoke / cooking odor and then discharging it out of
the vent.
2. A heat / fire-resistant ducting system is required to discharge smoke / odor out of the vent.
3. To connect the exhaust hood with the discharge duct, use "spigot/flange" is designed with a diameter of 100
or 125 mm.
Several things which require attention in installing the ducting system exhaust hood :
1. Carbon filter must be removed because the cooking odor will be sucked and immediately discharged out of the
room.
2. The suction force will be diminished if the exhaust system is too long and there are too many elbows.
3. Do not connect the exhaust system with a chimney or an air duct or hot steam duct.
4. If the exhaust hood is to be installed in a multi-storied building or an apartment, consult with the person in
charge of the building / apartment prior to installing the exhaust system.
5. Exhaust hood with ducting system should be used in an open-air room with good air circulation.
RECIRCULATING system:
In this version, the exhaust hood sucks the smoke / cooking odor and filters it through an aluminum filter and
carbon filter. The filtered smoke is then re-circulated into the room. This system is used if the premise renders it
impossible to install a ducting system.
Several things which must be ensured when installing a exhaust hood with recalculating system:
1. Both carbon filter and aluminum filter must be used.
2. The position of both filters must be correct.
3. Holes where air duct is discharged found in the front cabinet of the exhaust hood cannot be closed.
Air ventilation setting
At the time of going to apply two circulation systems above please note the following way air vent setting.
Outdoor air ventilation (ducting system / exhaust): Turn regulator to position the outdoor (Figure 5A), plug outlet,
turn on the suction hood (hood), then the air will flow through the exhaust air duct (dumped out of the room).
The air vents in the room (recirculation): Turn regulator to position the indoor (Figure 5B), plug outlet cover, turn
on the suction hood (hood), then the air will flow through the inside of the channel (in circulated into the room).

12
Electricity Connection
MODENA Exhaust Hood is designed for 220 volt electricity input, single phase with 50 Hz of frequency. This
appliance uses a double-insulated power cord (2 parallel cords) and should not be connected to a grounding wire.
Attention:
Overall installation should be performed by a competent person in the field of electrical or able to do the installation.
If you will do the installation yourself, it is recommended that at first consult to the Service Center Modena.
Details of the method and frequency of cleaning listed in the "Installation and Maintenance"
To separate the equipment from the power source should not attract a wired connection, but the pull of the base / head
power cable.
SX 6501 S, SX 6501 V, SX 9502 S, and SX 9502 V
• Connect the power cord with an electrical outlet.
• Slide or press the motor speed regulator button and light switch to turn vent hood on or off as shown in the
following picture.
Notes:
Adjust the motor speed of the vent hood according to the thickness of smoke / steam generated by the cooking
process.
PUSH Button
A = Indicator lamp
B = Button used for turning lamp on / off
C = Button for turning off the exhaust hood
D = Motor speed button –LOW
E = Motor speed button –MEDIUM
F = Motor speed button - HIGH
SLIDE Button
Symbol
To turn on/off the light
0 To turn off the motor
1 LOW motor speed
2 MEDIUM motor speed
Part 4: How to Use

13
3 HIGH motor speed
SX 9512 L and SX 7511 L
• Connect the power cord with an electrical outlet.
• Slide or press the motor speed regulator button and light switch to turn vent hood on or off as shown in the
following picture.
Notes:
Adjust the motor speed of the vent hood according to the thickness of smoke / steam generated by the cooking
process.

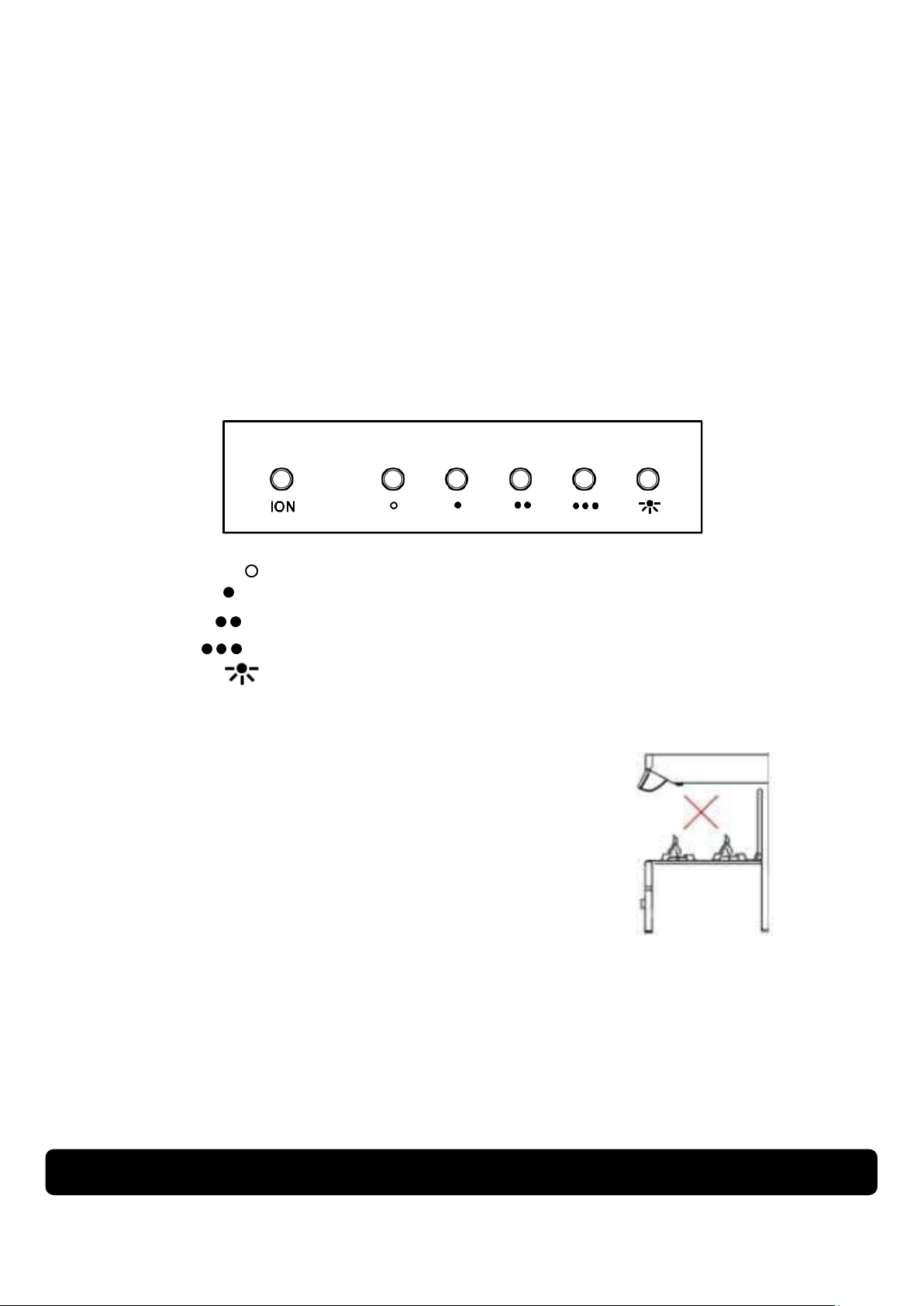

PUSH BUTTON
To turn off the hood
Use motor at low speed
Use motor at medium speed
Use motor at high speed
To turn off/on the light
ION will be active when operating the hood motor
ATTENTION:
• Avoid direct contact between the vent hood and open flames from
the stove.
• To obtain optimum filtering result, turn off the vent hood 20 –30
minutes after having finished cooking.
• Children must be supervised to ensure they do not play with the
equipment.
• This hood is designed for household use only.
Part 5: Maintenance

14
SX 6501 S, SX 6501 V, SX 9502 S, and SX 9502 V
MODENA Exhaust Hood is specifically designed for long-term usage and doesn't require complicated
maintenance. However, there are several things you can do to maintain its quality as follows:
Cleaning the Cabinet:
To clean the surface of exhaust hood cabinet from sticky oil particles, use cloth / sponge and soap water and dry
it. The cabinet should be cleaned after each cooking session.
Cleaning the Filter:
Smoke / steam from cooking and oil particles generated by the cooking
procedure will be immediately absorbed by the filter and therefore must
be cleaned regularly.

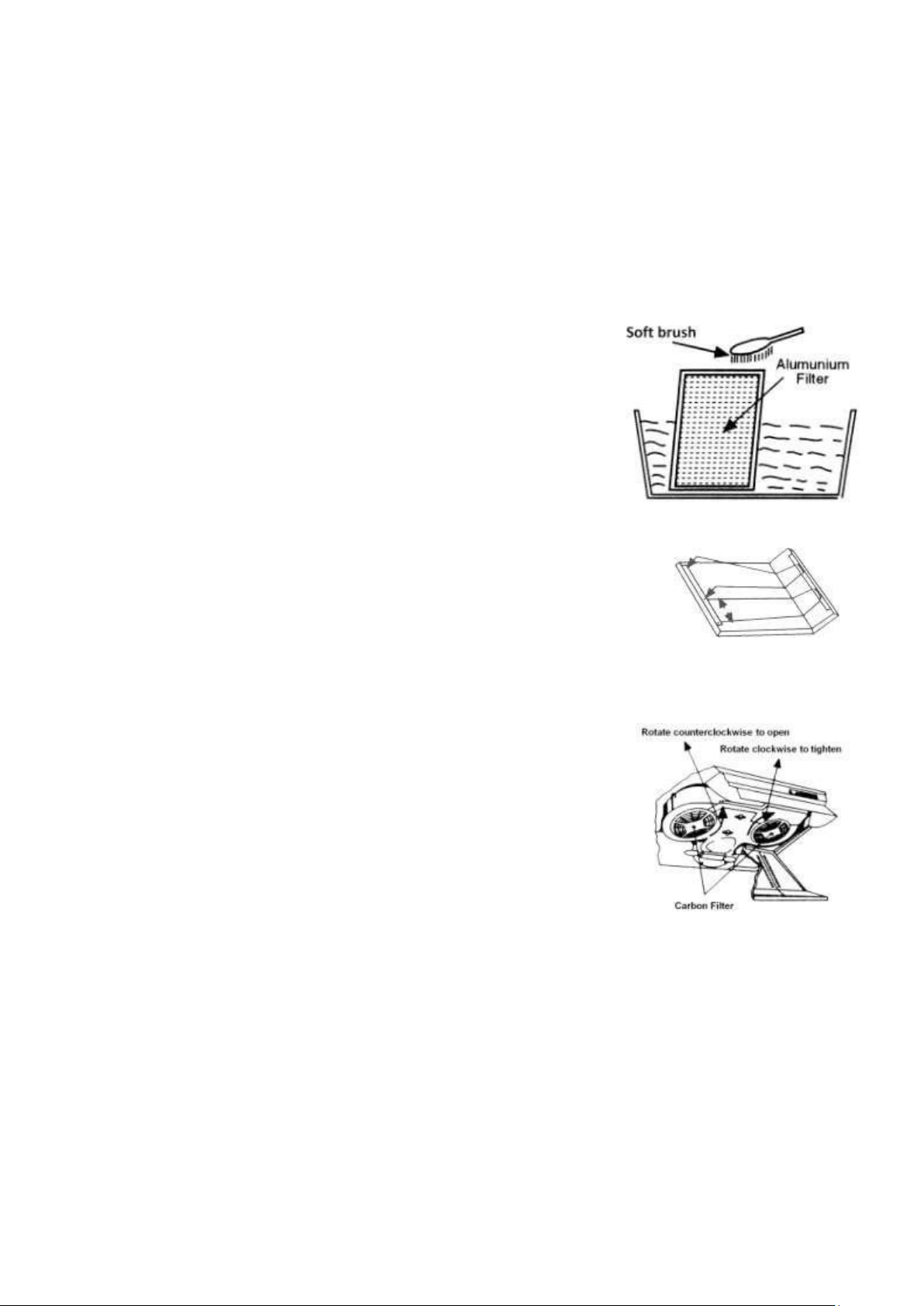

Aluminum Filter and Metal Filter
• For routine usage, clean the aluminum filter once every 10 –15 days
by soaking the filter in a basin filled with soap water for 1 hour (look
at picture) and use a soft brush to scrub it and then dry the filter
thoroughly before returning it to its proper position.
• Aluminum filter can be cleaned using a dishwasher.
• Avoid bending the filter during wash.
Follow these instructions to remove the metal filter:
1. Remove the power cord from the electrical outlet.
2. Open the exhaust hood grid.
3. Remove the filter pin wire from its position and lift the filter
4. Install the clean filter to its original position.
Carbon Filter:
Carbon filter must be replaced with a new one at least once every 4 months or when the carbon filter is no longer
capable of absorbing the cooking odor.
1. Remove the power cord from the electrical outlet.
2. Open the exhaust hood grid.
3. Rotate the carbon filter counterclockwise and remove the carbon filter
4. Install the new carbon filter by putting it in position and rotating it
clockwise.
Attention:
Carbon filter cannot be washed and must be replaced with a new one upon its expiry.
SX 9512 L dan SX 7511 L
MODENA Exhaust Hood is specifically designed for long-term usage and doesn't require complicated
maintenance. However, there are several things you can do to maintain its quality as follows:
Cleaning the Cabinet:
To clean the surface of exhaust hood cabinet from sticky oil particles, use cloth / sponge and soap water and dry
it. The cabinet should be cleaned after each cooking session.

15
Cleaning the Filter:
Smoke / steam from cooking and oil particles generated by the cooking procedure will be immediately absorbed
by the filter and therefore must be cleaned regularly.
Aluminum Filter and Metal Filter:
• For routine usage, clean the aluminum filter once every 10 –15 days by soaking the filter in a basin filled with
soap warm water during 1 hour and use a soft brush to clean it and then dry the filter thoroughly before
returning it to its proper position.
• Aluminum filter can be cleaned using a dishwasher.
• Avoid bending the filter during wash.
Carbon Filter:
Carbon filter must be replaced with a new one at least once every 4 months or when the carbon filter is no longer
capable of absorbing the cooking odor.
1. Remove the power cord from the electrical outlet.
2. Open the exhaust hood grid.
3. Rotate the carbon filter counterclockwise and remove the carbon filter
4. Install the new carbon filter by putting it in position and rotating it clockwise.
Attention:
Carbon filter cannot be washed and must be replaced with a new one in accordance with the above description.
There is a risk of fire if cleaning is not in accordance with the instructions.
Condition of carbon filter that have oiling can ease the fire, if there is negligence usage
Consult the following troubleshooting before contacting our Service Center regarding your exhaust hood:
PROBLEM
CAUSE
SOLUTION
Part 6: Problem and Solution

16
Exhaust hood
malfunctioning
• Power cord is not yet connected to
the electrical outlet.
• Electrical outlet does not have
electricity current in it.
• Connect the power cord to the electrical
outlet.
• Connect the power cord to a properly
functioning electrical outlet.
Reduced suction
power
• Dirty aluminum filter.
• Dirty carbon filter.
• Clean the aluminum filter, dry it and place it
back on the vent hood.
• Replace the carbon filter with a new one.
Motor fan
malfunctioning
Broken motor coil.
Contact MODENA Service Center.
Motor stops working
after a while
Safety thermal regulator is active.
• The vent hood is installed too close to the
stove.
• Air circulation is not optimal.
• Contact MODENA Service Center.
●Make sure the hood is turned on after a while to allow the air around the cooking area to circulate properly and
make sure the hood is turned off after this process..
●Periodically inspect the filter and oil reservoir. Make sure that the filter is in clean and good condition and make
sure the oil reservoir is not exceeding the specified limit.
●If you smell burnt / burnt smell from the hood, immediately turn off the hood and contact the MODENA Service
Center.
●Perform a routine service on your stove every 3 (three) months, because if there are problems / problems with
your exhaust hood, it can be immediately identified and repaired. Contact MODENA Service Center
TYPE
SX 9502 V
SX 9502 S
SX 6501 S
Hood type
Slim
Slim
Slim
Cabinet’s color
Silver (V)
Stainless (S)
Stainless (S)
Part 7: Precaution
Part 8: Specification

12/20
Cabinet Material
Metal
Stainless
Stainless
Front panel’s color
Silver (V)
Stainless (S)
Stainless (S)
Motor
2
2
1
Lamp
2
2
1
Control panel
Push Button
Push Button
Push Button
Ionizer
Yes
Yes
Yes
Filter type
Carbon Filter +
Cassette Aluminum
Filter
Carbon Filter +
Cassette
Aluminum Filter
Carbon Filter +
Cassette
Aluminum Filter
Motor Power
2 x 125 W
2 x 125 W
125 W
Lamp Power
2 x 40 W
2 x 40 W
1 x 40 W
Dimension (L x W x H mm)
900 x 495 x 150
SX 9502 S
600 x 496 x 150
Weight (kg)
9,8
Slim
6,5
TYPE
SX 6501 V
SX 9512 L
SX 7511 L
Hood type
Slim
Slim
Slim
Cabinet’s color
Silver (V)
Black
Black
Cabinet Material
Metal
Metal
Metal
Front panel’s color
Silver (V)
Black
Black
Motor
1
2
1
Lamp
1
2 bulb
2 bulb
Control panel
Push Button
Push Button
Push Button
Ionizer
Yes
Yes
Yes
Filter type
Carbon Filter + Cassette
Aluminum Filter
Aluminum
+ Carbon + Vit. C filter
Aluminum
+ Carbon + Vit. C filter
Motor Power
125 W
2 x 100 W
100 W
Lamp Power
1 x 40 W
2 x 40 W
2 x 40 W
Dimension (L x W x H mm)
600 x 495 x 150
900 x 500 x 150
700 x 500 x 150
Weight (kg)
6,5
8
6.5
TYPE
SX 9122 L
SX 7121 L
SX 9002 S
SX 6001 S
Hood type
Slim
Slim
Slim
Slim
Cabinet’s color
Black
Black
Grey
Grey
Cabinet Material
Metal
Metal
Metal
Metal
Front panel’s color
Black
Black
Stainless
Stainless
Motor
2
1
2
1
Lamp
LED
LED
2 bulb
1 bulb
Control panel
Push Button
Push Button
Push Button
Push Button
Ionizer
No
No
Yes
Yes
Filter type
Carbon matt
Carbon matt
Cassette Aluminium +
Carbon Filter
Aluminium Filter +
Carbon Filter
Motor Power
2 x 100 W
100 W
2 x 125 W
125 W
Lamp Power
1 x 2 W
1 x 2 W
2 x 40 W
40 W
Dimension (L x W x H
mm)
900 x 500 x 100
700 x 500 x 150
900 x 520 x 150
600 x 520 x 150

12/20
Weight (kg)
8
6.5
11
7.4

12/20
