Modena Grafici Series Owner's manual

User
Manual Book
Water Dispenser
Grafici Series
DD 7301 L
Lucido Series
DD 7315 W

2
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver
stylishly designed products equipped with state-of-the-art technology to
assist you in your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach out to us if you need further assistance or other
information via our Customer Care or our official website www.modena.com.

3
CONTENTS PAGE.
• Introduction 2
• Part 1 : Name of Parts 4
•Part 2 : Installation 6
• Part 3 : How to Use 7
• Part 4 : Maintenance 8
• Part 5 : Precaution Action 8
• Part 6 : Troubleshooting 10
• Part 7 : Specification 10

4

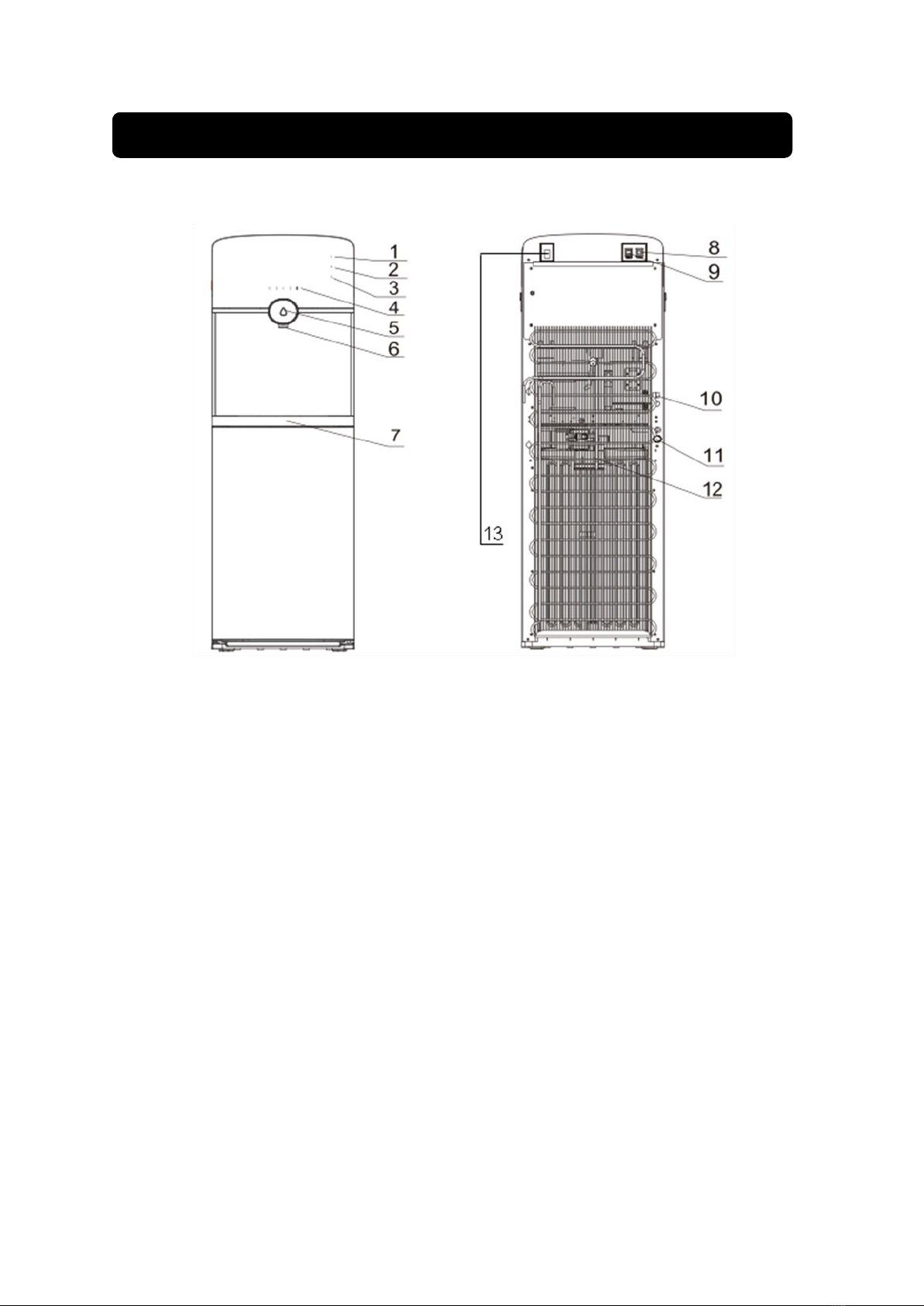

DD 7315 W
Remark ;
Part 1: Name of Parts
1+2. Water Level Indicator Light 6. Water Tap 12. Condenser
1. Cooling Indicator Light 7. Drip Tray 13. O3 Switch
2. Heating Indicator Light 8. Heating switch
3. O3 Indicator Light 9. Cooling switch
4. Dispenser controls panel 10. Power cord
5. Water button 11. Drain Valve
(Front)
(Rear)

5

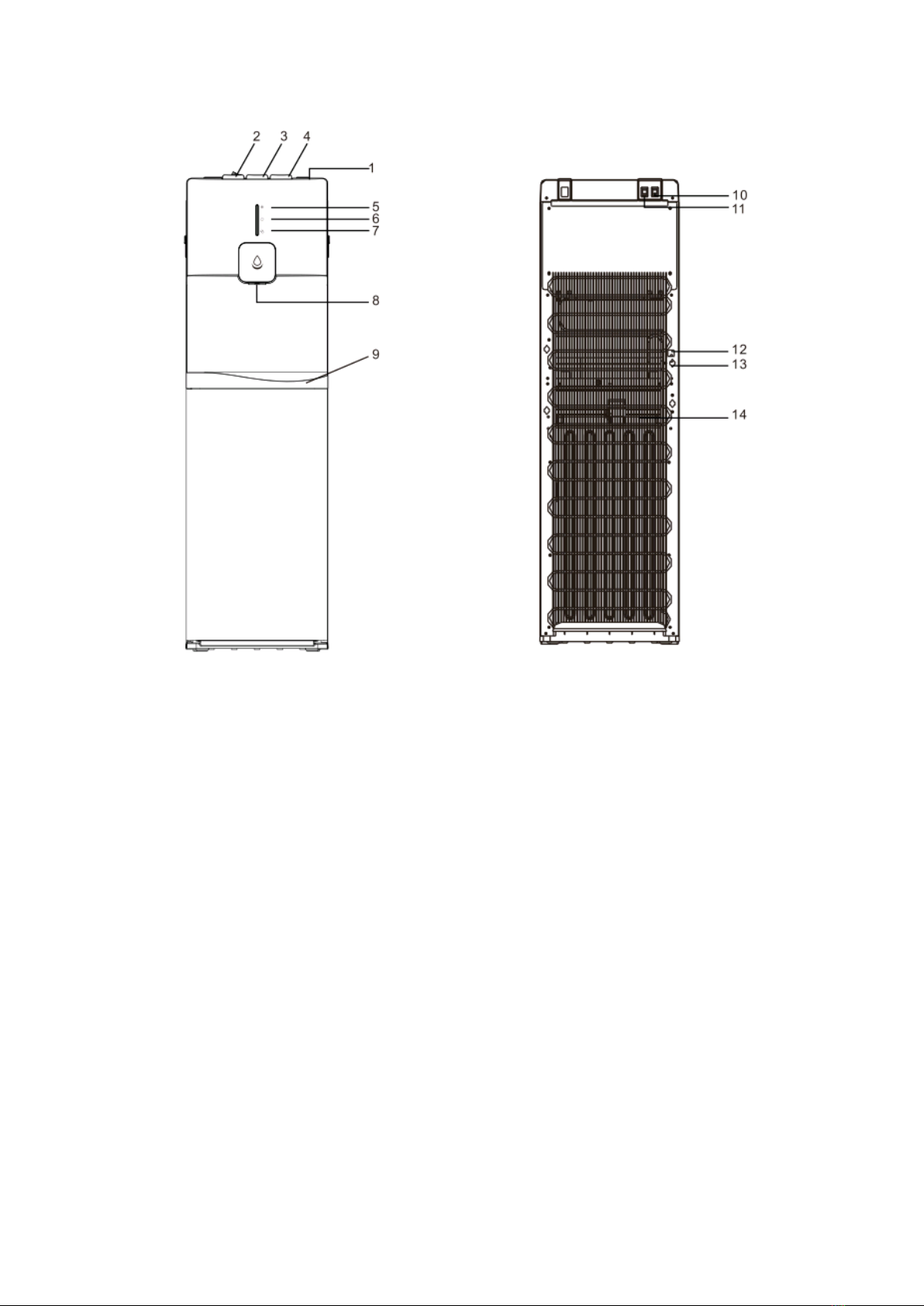

DD 7301 L
Note :
1. Top Cover 7. Water Level Indicator Light 13. Drain Valve
2. Hot Water Button 8. Water Tap 14. Condenser
3. Normal Water Button 9. Drip tray
4. Cold Water Button 10.Heating switch
5. Cooling Indicator Light 11.Cooling switch
6. Heating Indicator Light 12.Power supply cord
(Front)
(Rear)

6
Please read this operation manual carefully before operating the appliance in order to use the
appliance properly and safely. Pay attention to the entire sign or warning explained on the pictures or
text.

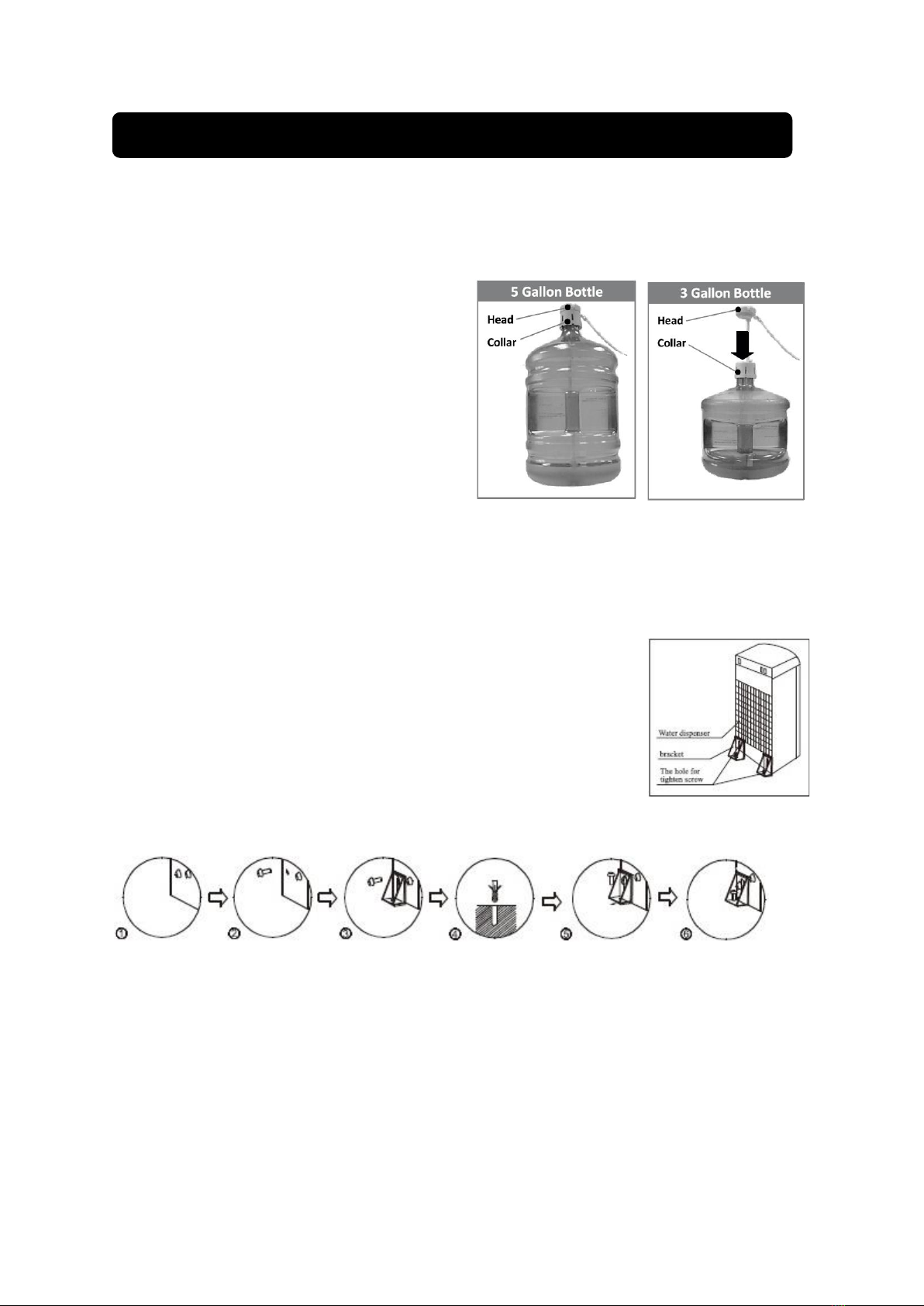

1. Install the dispenser on an even and
stable surface. A minimum distance of 20
cm from the wall must be provided.
2. Leave it for 1 hour to stabilize the
refrigerant.
3. Insert the pipe into the gallon and then
cover it with the lid.
4. Insert the gallon into the cabinet and close
the door.
5. Connect the power cord to the power
socket, and turn on the red switch (heater)
located behind the appliance. Make sure
that the socket/electric source has been
grounded to prevent electric leakage. Turn on the switch located
behind the appliance.
6. For initial use, the inside of the appliance must be cleaned. Press the hot and cold
water button. Make sure the water dispenses out of the tap. After that, wait around 20
minutes, then remove the gallon out of the storage and empty the water by opening
the drain valve. Make sure the power cord is unplugged from the power source when
draining the remaining water.
To prevent the dispenser from falling/wobbling, adjust the placement using
the bracket:
1. Loosen the screws at the rear bottom left as seen on the picture.
2. Loosen the screw at the rear bottom right corner as well, as seen
on the picture.
3. If the bracket has been taken out, install the screws at therear
bottom left and right corner of the dispenser.
4. Make a hole on the floor surface in accordance with the dispenser
placement.
5. Attach brackets to the floor.
6. Tighten until each bracket is secure.
Attention :
-This appliance is designed for indoor use.
-Make sure the pipe is installed properly and the cabinet doors closed securely
-When the water in the gallon is empty, turn off the red switch (heating) before replacing it with a
new one.
-Avoid placing the appliance in a humid, wet and poor electrical installation because it can cause
an electric shock or fire.
-Do not place flammable objects near the dispenser.
-Do not expose the appliance to direct sunlight and rain because it can degrade its performance
and cause electrical leakage hazard.
Part 2: Installation

7
-Do not connect this dispenser to the source of electric current or pressing the heating button if
there is no water in the tank or no water flows from the hot water tap if the button is pressed.
-Do not modify the power cord on the appliance or connect using extension cord to prevent risks
of short circuit and fire.
-Do not touch the back or the condenser to avoid electric shock.
How to use a dispenser with three taps (DD 7301 L):
•To dispense the hot water, push the left button.
•To dispense the normal-temperature water, push the middle button.
•To dispense the cold water, push the right button.
How to use DD 7315 W.
This appliance has been tested and cleaned prior to packing and shipping. During transportation, dust
and odors can accumulate in the tank and duct. Clean and drain the dirt water for at least ¼ L before
using it to drink.
a. Dispensing Cold Water
After setup, it will take up to 1 hour to get water to maximum cold temperature. During this time, the
compressor will run continuously. This is normal.
1. Place a glass or another container under the tap.
2. Touch the cold water button , the cold water indicator will be on and the button will
blink. Touch the button to dispense the cold water.
3. Touch the button again and the indicator will be off. The appliance will stop
dispensing the water.
b. Dispensing Normal Water
1. Place a glass or another container under the tap.
2. Touch the warm water button , the warm water indicator will be on and the button
will blink. Touch the button to dispense the warm water.
3. Touch the button again and the indicator will be off. The appliance will stop
dispensing the water.
c. Dispensing Hot Water
1. Touch the hot water button , the hot water indicator will be on and the button
will blink. Touch the button to dispense the hot water.
2. Touch the button again and the indicator will be off. The appliance will stop
dispensing the water.
How to turn on the O3 (DD 7315 W)
Press O3 button located at the back of the appliance to turn it on. Hold for 5 seconds and release to
activate it The O3 indicator light will be on for 1 hour During this time, when the O3 indicator light is
on, it is suggested not to dispense any water.
The appliance is equipped with a safety on hot water button to prevent the danger of the reach of
children. Scroll and press the button to dispense the hot water.
Part 3: How to Use

8
Attention:
•Beware! Avoid hazard of hot water.
•Cabinet door should be closed.

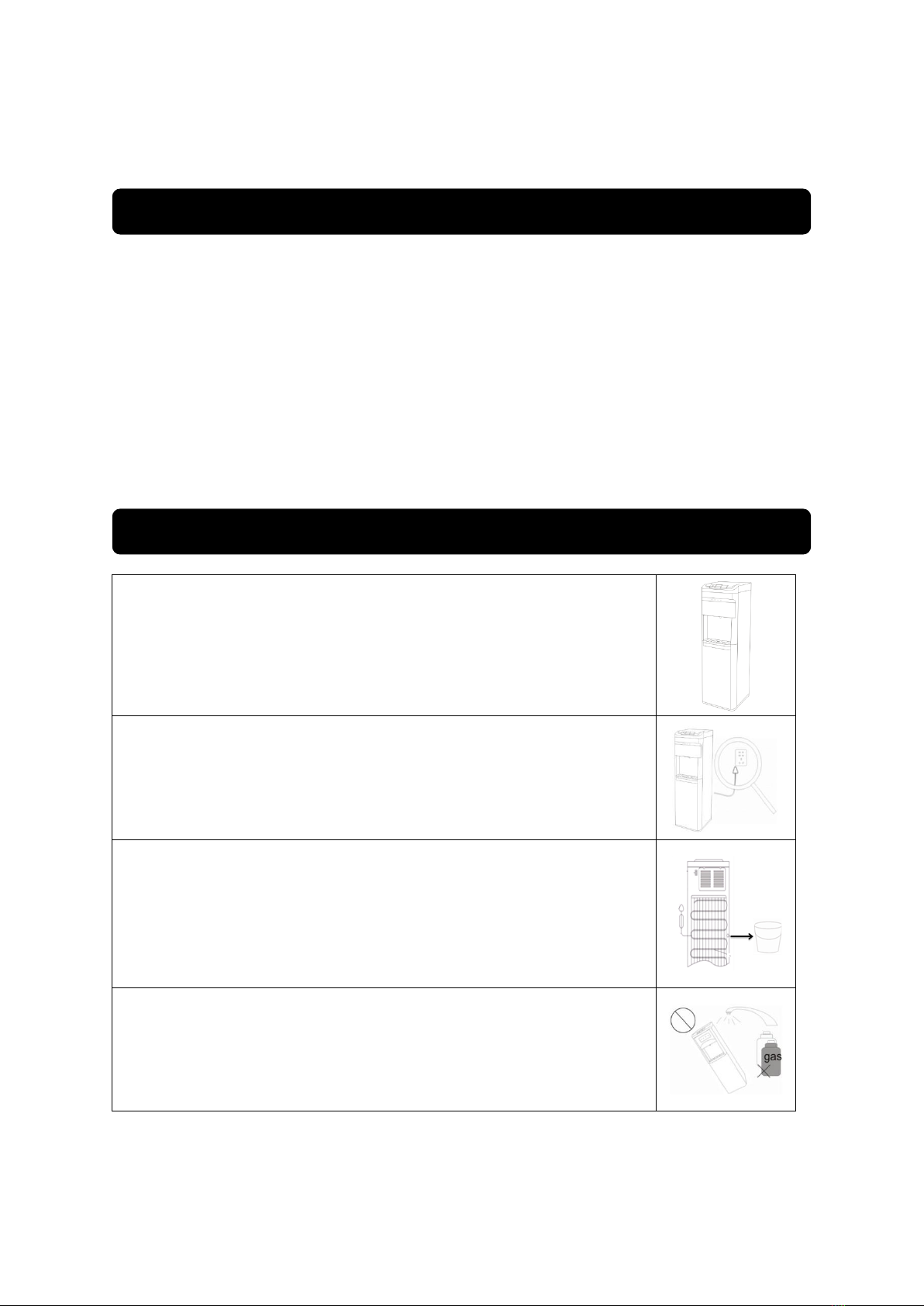

1. In order to avoid unwanted incidents, always disconnect from the power cord from the power
source before cleaning the dispenser.
2. This dispenser has been disinfected prior to shipping.
3. Bottle support collar, water tube, and heating element must be cleaned by expert technician once
a year to maintain the machine to its good condition and to extend the appliance’s lifespan. Do
not attempt to disassemble the machine in order to avoid damage to the machine.
4. Use soft and wet cloth to clean the surface of the dispenser. Use soft and dry cloth to dry the
surface. Do not let water enter the appliance’s engine.
5. Make sure the power cord is unplugged from the power source when draining the remaining water
or when in a maintenance or when not in use for a long time. Meanwhile, when the water from the
hot tap is cold, open the drain valve until there is no water in the appliance.
1. Install the dispenser on even surface. Avoid placing it in a humid place. A
minimum distance of 20 cm from the wall must be provided. Do not store
flammable substances near the dispenser.
2. To avoid damage to the machine, avoid connecting electrical cord or
pressing the heating switch (red) until the hot water comes out of the hot
water tap.
3. If the dispenser won’t be used for a long period, turn off the heating and
cooling switches and disconnect the cord from the power socket and
drain the remaining water through the drainage.
4. Do not use chemical substances or directly pour water to to clean the
dispenser. Use soft cloth instead.
Part 5: Precaution Action
Part 4: Maintenance

9

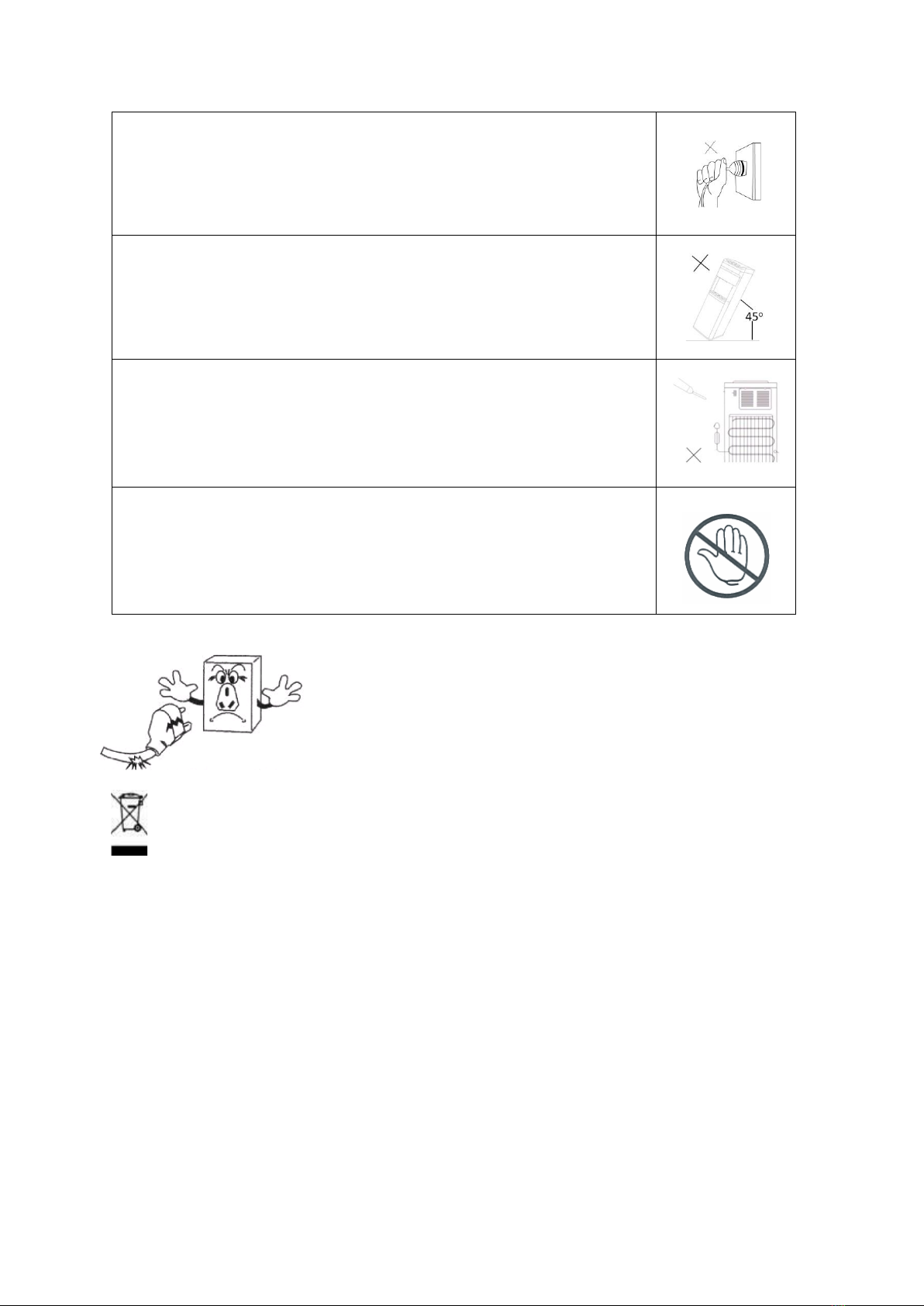

5. Do not pull the cord to disconnect the power cord from the power socket.
Hold and unplug it from the head with dry hand with dry hand.
6. Do not put the dispenser upside down. The inclination should not be
more than 45° to avoid damage to the compressor.
7. The thermostat on the dispenser has been adjusted by the manufacturer.
Do not attempt to modify the thermostat by yourself to avoid unwanted
damage.
8. This appliance is designed for use by adults. Do not allow children to
play with the appliance or let them hang on the door. The appliance may
fall over and harm them. The appliance is not intended for use by
individual (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a
person who is responsible for their safety.
If there is damage to the power cord, contact MODENA Call
Center immediately to do a replacement. The replacement of
power cord must be done by experienced expert and understands
about electricity. Never replace the power cord on your own, due
to the dangers that could lead to harm yourself and others.
Attention!
This appliance must not be disposed of with other household waste. To prevent possible
harm to the environment or human health from uncontrolled waste disposal.
The appliance contains a gas insulation and refrigerant that must be disposed of properly. When you
want to dispose of the appliance, We advise you to consult with authorized service providers so that
they can learn information required and official forms.
Make sure the pipes and duct work of refrigerant of the appliance is not damaged before it was taken
by the disposal personnel.
Consult with authorized service providers to ask everything and issues regarding the appliance. Do
not do or allow others to do anything to the appliance.

10
Please check these following before contacting the Call Center if any problem occurs:
Problem
Possible Cause
Recommended Action
Water is not hot or not cold.
-Excessive usage of hot
water or cold water in a
short period of time.
-The appliance is not yet
connected to electricity.
-Wait until the water
becomes cold or hot.
-Connect the cord to the
power socket and press
the heating and cooling
switches.
Water is not being
dispensed out of the tap.
-Water gallon is empty.
-The pipe is stuck or
blocked by something.
-Replace the water gallon
with a new one
-Turn off the cooling switch.
After 4 hours, turn it back
on.
Leak on the water gallon
support.
-Water gallon is leaking /
damaged.
-Replace water gallon with
a new one.
Loud noise during operation.
-Improper installation or
placement of appliance.
-Install appliance on even
and stable surface.
* Specifications of this appliance may change without prior notice to improve the quality of the product.
Pictures in this manual are schematic and may be different from the actual product. Values stated on the machine
labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant
standards. Depending on operational and environmental conditions of the appliance, values may vary.
MODEL
DD 7301 L
DD 7315 W
Type
Cold, Hot & Normal
Cold, Hot & Normal
Lower chamber
Gallon storage
Gallon storage
Color
Black
White
Hot water output (liter/hour)
1.5
4
Cold water output(liter/hour)
4
4
High temperature (Celsius)
≥90
≥90
Cold temperature (Celsius)
≤10
≤10
Free-CFC compressor
Yes
Yes
Regulator of thermostat
Yes
Yes
Water tube material
Stainless
Stainless
Heating Power (watt)
190
385
Compressor power (watt)
80
100
Product Dimension (L x W x H) mm
310 x 360 x 1040
310 x 375 x 1061
Product weight (Kg)
17
17
Part 7: Specification
Part 6 : Troubleshooting

11/20
