INTRODUCTION
This Installation Manual provides a description of the
Vehicular Charger/Holder Kit package components, power
connection and installation procedure.

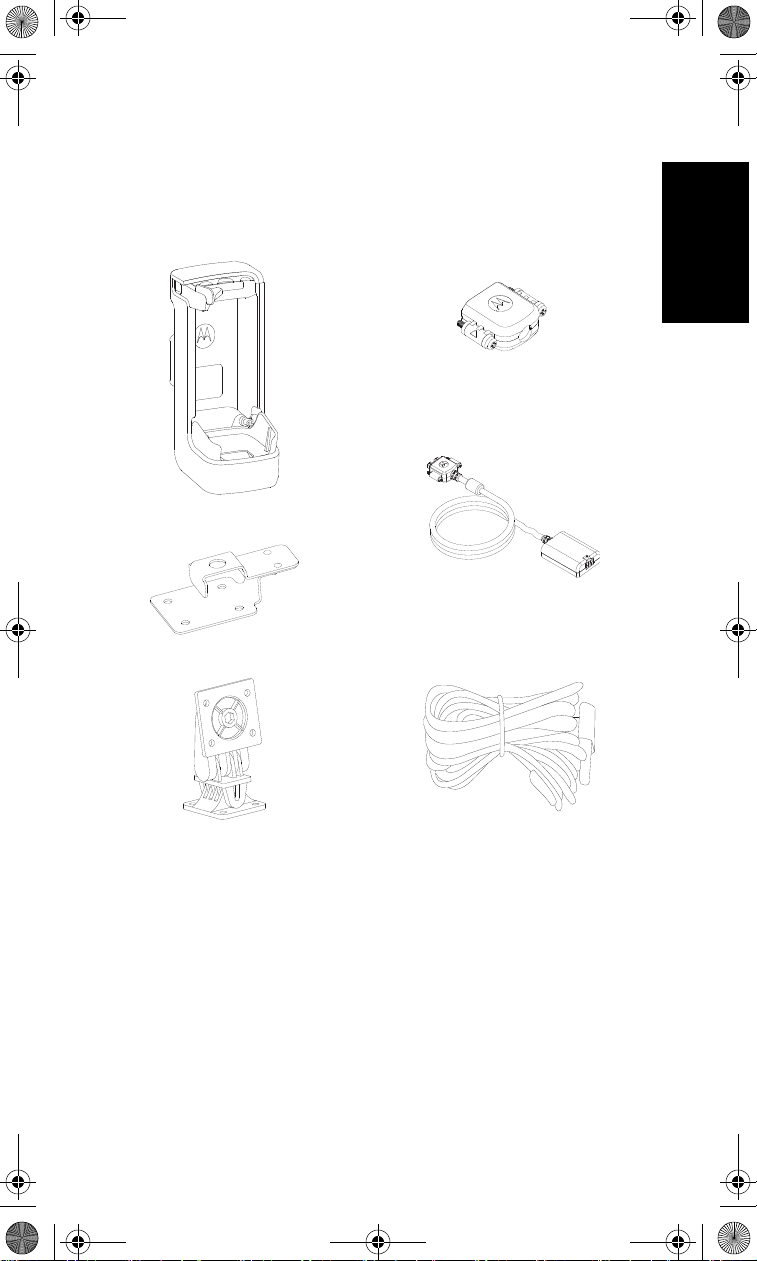

Figure 1. Vehicular Charger/Holder Kit Components
The Vehicular Charger Kit and Vehicular Radio Holder Kit
listed comprises of the following parts:
PMLN7018 Passive Vehicular Radio Holder Kit
- Vehicular cradle (0104054J58)
- Remote Speaker Microphone, RSM Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- User Guide (68012006078)
Vehicular Cradle
(0104054J58)
RSM Bracket
(PMLN6240)
Mounting Bracket
(FTN6376)
VPA Holder Adaptor
(PMLN6075)
Vehicular Power Module
(0104058J87/
PS000149A01)
Power Cable
(30012040002)
01_EN.fm Page 1 Monday, March 28, 2016 10:08 AM

2
English
- Installation Manual (68012006077)
PMLN6181 Vehicular Power Adaptor, VPA Charging Cradle
Kit
- Vehicular cradle (0104054J58)
- Remote Speaker Microphone, RSM Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Adaptor, VPA Holder Adaptor
(PMLN6075)
- User Guide (68012006078)
- Installation Manual (68012006077)
Note: Vehicular Power Adaptor, VPA (NNTN8040) to be ordered
separately.
PMLN6182 Vehicular Power Module, VPM Charging Cradle
Kit
- Vehicular cradle (0104054J58)
- Remote Speaker Microphone, RSM Bracket (PMLN6240)
- Mounting Bracket (FTN6376)
- Vehicular Power Module, VPM (0104058J87/
PS000149A01)
- Power Cable (30012040002)
- User Guide (68012006078)
- Installation Manual (68012006077)
IMPORTANT SAFETY INSTRUCTIONS
This document contains important safety and operating
instructions and must be read in conjunction with the product
safety information supplied with the mobile or portable radios,
used with the accessories. Please read these instructions
carefully and save them for future reference. Installation of
communications equipment must be performed by qualified
personnel only.
Before using the Vehicular Charger/Holder Kit, read all the
instructions and cautionary markings on all other items.
Consult vehicle manufacturer’s guidance on mounting
equipment in vehicles.
01_EN.fm Page 2 Monday, March 28, 2016 10:08 AM

3
English
OPERATIONAL CAUTION
1. To reduce risk of injury, use only Motorola approved items
with your mobile or portable radios.
2. It is essential to mount the equipment in locations where it
will not cause any injury in the event of a collision.
3. A vehicle air bag inflates with great force. DO NOT place
objects, including communications equipment, in the area
over the vehicle air bag or in the air bag deployment area.
If the communication equipment is improperly installed
and the vehicle air bag inflates, this could cause serious
injury. If necessary, contact the vehicle manufacturer for
air bag information specific to the vehicle.
4. Verify that none of the vehicle’s systems are affected by
use of the portable radio e.g. cruise control, ABS braking,
traction control, engine management, direction indicators,
lights etc.
5. Use existing openings through the bulkhead to avoid
drilling. If drilling is necessary, ensure that no damage is
incurred to the Vehicle Electronic Control Modules
(ECM’s), fuel pipes, brake pipes, and/or cable looms.
6. Do not transport or store flammable gas, flammable
liquids or explosives in the compartment of your vehicle
that contains your equipment.
7. To avoid possible interference with blasting operations,
turn your radio OFF before entering an are where you
maybe close to electrical blasting caps, in a “blasting
area” or in areas posted as “Turn off two-way radios”.
Obey all signs and instructions.
OPERATING SPECIFICATIONS
Vehicular Power Adaptor, VPA (NNTN8040)
Input voltage range: 10.8 to 33 VDC
Vehicular Power Module, VPM
- 0104058J87 (input voltage range: 10.8 to 16.6 VDC)
- PS000149A01 (input voltage range: 10.8 to 33.0 VDC)
!
Caution
01_EN.fm Page 3 Monday, March 28, 2016 10:08 AM

4
English
SAFETY AND GENERAL INFORMATION
A properly installed Vehicular Charger/Holder Kit minimizes
service calls. When mounting the components of the
Vehicular Charger/Holder Kit, consider the following factors:
• The mounting surface must have sufficient strength to
support the item being mounted to prevent it from
becoming loose over time.
• Do not attach components to any part of the vehicle that
is subject to excessive vibration.
• The proposed location of the item being mounted or
wires/cables attached must not interfere with driver/
passenger seating or leg space.
• Use the supplied mounting hardware.
• Ensure that the cables are not stretched, and not subject
to heat from the engine, transmission housing or heating
ducts.
• Crimp connectors securely.
• Do not run cables over sharp edges that may cause
excessive wear or chaffing of the cable insulation.
• Do not install components in locations where they may
cause interference to the operation of the vehicle's
controls.
Check the required mounting locations. Modern cars are
equipped with power supply connections for mobile phone
inside the passengers cabin. It is preferable to connect the
power cable to these connections.
On some vehicles, it is necessary to penetrate the bulkhead
to reach the battery. Ensure that there is cable clearance on
the opposite side of the bulkhead and that vehicle’s Electronic
Control Modules (ECM’s) are not installed on the opposite
side of the bulkhead before drilling commences. Protect the
cable where it passes through the bulkhead by using a
grommet or similar protective measures.
01_EN.fm Page 4 Monday, March 28, 2016 10:08 AM

5
English
INSTALLATION PROCEDURES
OPERATIONAL CAUTION
• An air bag inflates with great force. DO NOT place
objects, including communications equipment, in the area
over the air bag or in the air bag deployment area. If the
communication equipment is improperly installed and the
air bag inflates, this could cause serious injury.
If necessary, contact the vehicle manufacturer for air bag
information specific to the vehicle.
• Verify that none of the vehicle’s systems are affected by
use of the TETRA Handportable Terminal e.g. cruise
control, ABS braking, traction control, engine
management, direction indicators, lights etc.
• Use existing openings through the bulkhead to avoid
drilling. If drilling is a must, verify that no damage is done
to the Vehicle Electronic Control Modules (ECMs), Fuel
pipes, brake pipes and/or cable looms.
VEHICULAR CHARGING CRADLE/RADIO
HOLDER INSTALLATION
Note: Always use the supplied fastening hardware to rigidly
secure the cradle. An unsecured cradle could cause a unit
to move and interfere with the proper operation of the
vehicle and the charging cradle/radio holder must be
mounted in such a way that the TETRA Handportable
terminal is within easy reach of the driver during normal
operation of the vehicle.
Sufficient room should be allowed to permit the insertion of
the TETRA Handportable terminal and provide easy access
to the release mechanism of the TETRA Handportable
terminal from the cradle/holder.
!
Caution
01_EN.fm Page 5 Monday, March 28, 2016 10:08 AM

6
English
Figure 2. When installing the cradle, use the following
procedure or modify to suit the particular vehicle
When installing the PMLN7018 Passive Vehicular Holder Kit,
follow the following procedure or modify to suit the particular
vehicle. See Figure 2:
1. Open the hinge screw and separate the two halves of the
mounting bracket.
2. Use the lower half of the bracket as a template. Position it
so that the pivot end of the bracket is toward the bottom
of the cradle.
3. Using an awl or similar device, make four holes in the
carpet at marked locations. This must be done prior to
drilling to avoid damaging the carpet.
4. Mark and drill holes. Securely mount the bracket half
using the four #8x.625” self tapping screws (supplied with
the mounting bracket).
5. Secure the cradle/holder to the other half of the bracket
using the four M4x10 mm screws, you may choose to
sandwich the RSM bracket in between or install it
separate as shown in Figure 2.
6. Connect the two parts of the mounting bracket and
secure the hinge screw.
7. Align the RSM bracket and the cradle to the mounting
bracket four holes. Secure with four M4x10mm screws.
M4x10mm
Screw (x4)
Wipe clean flat surface
before using adhesive pad
#8x.625” Self
Tapping Screw
(x4)
Hinge screw
RSM
Bracket
01_EN.fm Page 6 Monday, March 28, 2016 10:08 AM

7
English
8. RSM Bracket allows user to clip on the RSM as shown in
Figure 3.
Note: Do not connect the power cable to the cradle until the
power cable is fully installed.
Figure 3. Clipping the RSM onto the RSM Bracket.
Figure 4. Installing the VPA adaptor holder onto the cradle.
When installing the PMLN6181 Vehicular Charging Cradle
with VPA Kit, follow the following procedure. See Figure 4 :
1. Place the NNTN8040 Vehicular Power Adaptor on the
holder adaptor as show in Figure 4.
Jack Screw
(x2) Vehicular Power Adaptor
(NTNN8040)
Holder Adaptor
Top
Insert Nut
(x2)
01_EN.fm Page 7 Monday, March 28, 2016 10:08 AM

8
English
2. Push the Adaptor Holder Top to engage onto the Adaptor
Holder bottom.
3. Secure the Adaptor Holder onto the bottom of the cradle
pocket by screwing the jack screws into the insert nuts.

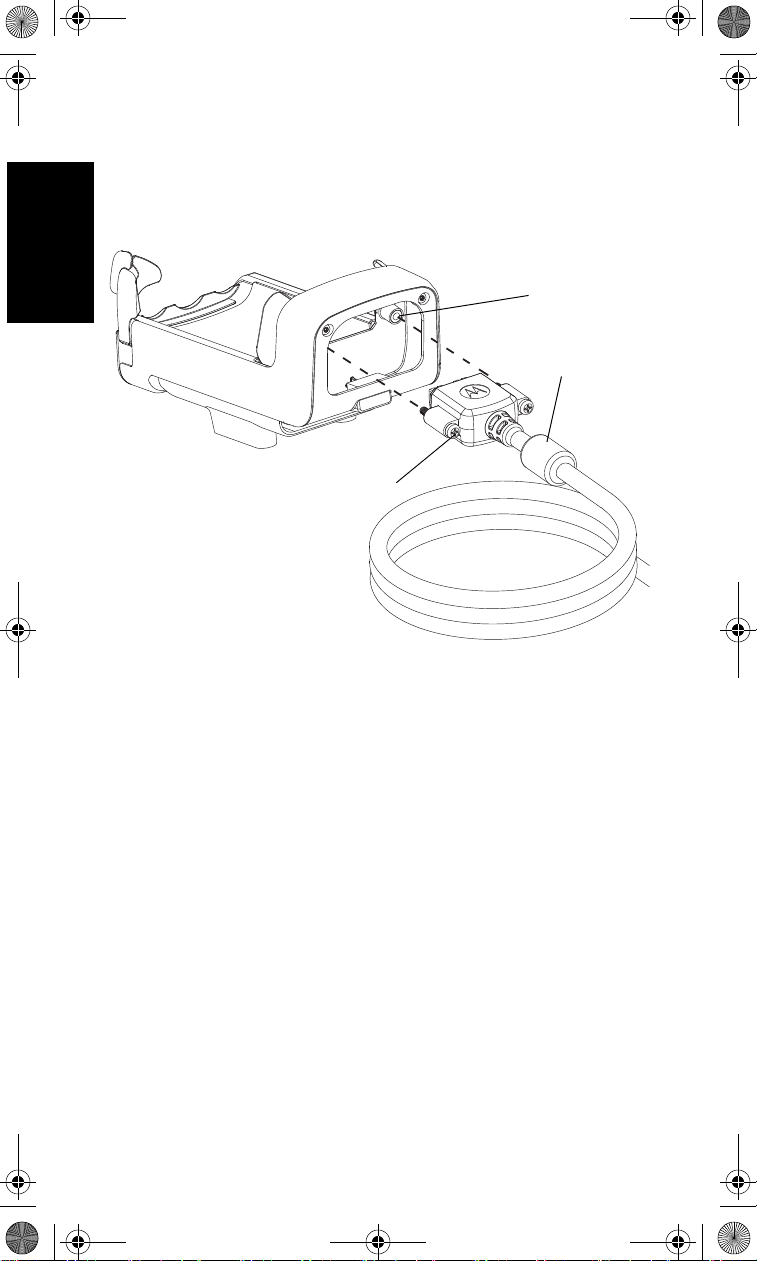

Figure 5. Installing the Vehicular Power Module onto the
cradle.
When installing the PMLN6182 Vehicular Charging Cradle
with VPM Kit, follow the following procedure. See Figure 5 :
1. Secure the Vehicular Power Module onto the bottom of
the cradle pocket by screwing the jack screw onto the
insert nut.
Note: Do not connect the power cable to the cradle until the
power cable is fully installed.
POWER CABLE INSTALLATION
Note: This installation procedure is applicable to PMLN6182
Vehicular Charging Cradle with VPM Kit only. The
PMLN6182 Vehicular Charging Cradle with VPM Kit
supports 12/24 VDC vehicular batteries only.
The Vehicular Charger Kit power cable is equipped with
5-Ampere fuse for battery positive terminal and 1-Ampere
fuse for ignition. Verify that the vehicle electrical system can
Jack Screw (x2)
Vehicular Power
Module(0104058J87/
PS000149A01)
Insert Nut
(x2)
