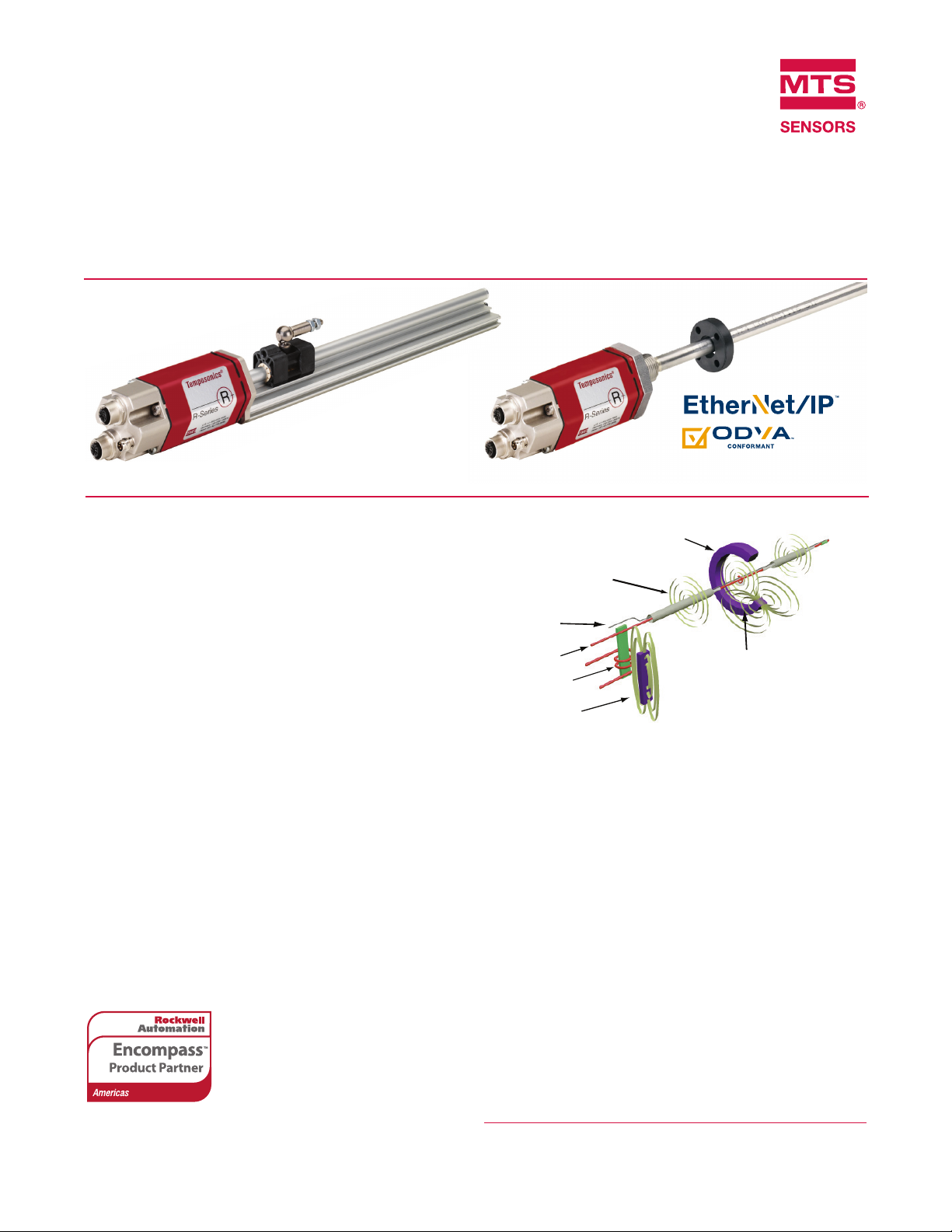

Temposonics
®
Magnetostrictive Linear-Position Sensors
R-Series Models RP and RH
EtherNet/IP™Industrial Ethernet Interface
Data Sheet
Document Part Number
551253 Revision C
FEATURES
Linear, Absolute Measurement
LEDs For Sensor Diagnostics
Superior Accuracy, Resolution down to 1 µm
Non-Contact Sensing Technology
Linearity Less Than 0.01 %
Repeatability Within 0.001 %
Direct EtherNet/IP™ Interface, Position + Velocity
BENEFITS
Rugged Industrial Sensor
Position + Velocity Measurements For Up to 20 Magnets
APPLICATIONS
Continuous Operation In Harsh Industrial Conditions
High Pressure Conditions
For Accurate, Simultaneous Multi-Position
and Velocity Measurements
TYPICAL INDUSTRIES
Factory Automation
Fluid Power
Plastic Injection and Blow Molding
Material Handling and Packaging
EtherNet/IP™ is a trademark used under license by ODVA.
ODVA CONFORMANT™ is a certification mark of ODVA.
Benefits of Magnetostriction
Temposonics®linear-position sensors use the time-based magneto-
strictive position sensing principle developed by MTS Sensors. Within
the sensing element, a sonic-strain pulse is induced in a specially
designed magnetostrictive waveguide by the momentary interaction of
two magnetic fields. One field comes from a movable permanent mag-
net that passes along the outside of the sensor. The other field comes
from an “interrogation” current pulse applied along the waveguide.
The resulting strain pulse travels at sonic speed along the waveguide
and is detected at the head of the sensing element.
The position of the magnet is determined with high precision and
speed by accurately measuring the elapsed time between the applica-
tion of the interrogation pulse and the arrival of the resulting strain
pulse with a high-speed counter. The elapsed time measurement is
directly proportional to the position of the permanent magnet and is
an absolute value. Therefore, the sensor's output signal corresponds
to absolute position, instead of incremental, and never requires
recalibration or re-homing after a power loss. Absolute, non-contact
sensing eliminates wear, and guarantees the best durability and output
repeatability.
Time-based Magnetostrictive position sensing principle
Movable position magnet
Magnetic field from
position magnet
Interaction of magnetic
fields causes waveguide to
generate a strain pulse
Magnetic field encompasses
entire waveguide - generated
by the interrogation pulse
Bias magnet
Strain-Pulse detector
Interrogation
Return wire
Waveguide
All specifications are subject to change. Contact MTS Sensors for
specifications and engineering drawings that are critical to your application.
Drawings contained in this document are for reference only.
Go to http://www.mtssensors.com for the latest support documentation and
related media.

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors2
Product specifications
Product overview
Parameters Specifications
OUTPUT
Measured output
variables: Simultaneous multi-position and velocity
measurements up to 20 magnets.
Resolution: 1 to 1000 µm selectable
Cycle time: 1.0 ms up to 2000 mm
2.0 ms up to 4800 mm,
4.0 ms up to 7600 mm stroke length
Linearity:
< ± 0.01% full stroke (minimum ± 50 µm)
Repeatability: < ± 0.001% full stroke
(minimum ± 2.5 µm)
Hysteresis: < 4 µm
Outputs: Interface: EtherNet/IP™
Data transmission rate max: 100 Mbit/s
Stroke length: Range (Profile style):
25 mm to 5080 mm (1 in. to 200 in.)
Range (Rod style):
25 mm to 7620 mm (1 in. to 300 in.)
ELECTRONICS
Operating
voltage:
+24 Vdc nominal: -15% or +20%*
Polarity protection: up to -30 Vdc
Over voltage protection: up to 36 Vdc
Current drain: 110 mA typical
(Note: Due to variations in cable length and topology
as well as inrush current draw on power up, MTS
Sensors recommends that 1 amp per sensor be
available on the power supply used.)
Dielectric withstand voltage:
500 Vdc (DC ground to machine ground)
Product Overview and Specifications
Parameters Specifications
ENVIRONMENTAL
Operating
conditions: Operating temperature:
-40 °C (- 40 °F) to +75 °C (+167 °F)
Humidity: 90 % no condensation
Temperature coefficient: < 15 ppm/ °C
EMC test: Electromagnetic emission:
EN 61000-6-4
Electromagnetic immunity:
EN 61000-6-2
CE qualified
Shock rating: 100 g (single hit)/IEC standard
60068-2-27(survivability)
Vibration rating: 15 g / 10 to 2000 Hz / IEC standard 60068-2-6
(excluding resonance frequencies)
WIRING
Connection type: D56 option: Two female 4-pin (M12-D) plus
one 4-pin male (M8) connector
PROFILE STYLE SENSOR (MODEL RP)
Sensor
electronics
housing:
Aluminum housing with diagnostic LED display
(LEDs located beside connectors)
Ingress
protection: IP 65**
Sensor extrusion: Aluminum (Temposonics®profile style)
Mounting: Any orientation. Adjustable mounting feet or
T-slot nut (M5 threads) in bottom groove
Magnet types: Captive-sliding magnet or U-magnet
ROD STYLE SENSOR (MODEL RH)
Sensor
electronics
housing:
Aluminum housing with diagnostic LED display
(LEDs located beside connectors)
Ingress
protection: IP 67**
Sensor rod: 1.4306 (AISI 304L)
Operating
pressure:
350 bar static, 690 bar peak
(5000 psi static, 10,000 psi peak)
Mounting: Any orientation. Threaded flange M18 x 1.5 or
3/4 - 16 UNF-3A
Typical
mounting torque: 45 N-m (33 ft. - lbs.)
Magnet types: Ring magnet, U-magnet, or magnet float
Temposonics®R-Series EtherNet/IP™ sensors represent MTS
Sensors’ development and product offering in networked position
feedback. EtherNet/IP™ systems require only a single point of con-
nection for both configuration and control, because EtherNet/IP™
supports both I/O (or implicit) messages—those that typically contain
time-critical control data—and explicit messages—those in which
the data field carries both protocol information and instructions for
service performance. And, as a producer-consumer network that sup-
ports multiple communication hierarchies and message prioritization,
EtherNet/IP™ provides more efficient use of bandwidth than a device
network based on a source-destination model. EtherNet/IP™ systems
can be configured to operate either in a master/slave or distributed
control architecture using peer-to-peer communication.
* UL Recognition requires an approved power supply with energy limitation
(UL61010-1), or Class 2 rating according to the National
Electrical Code (USA) / Canadian Electrical Code.
** The IP rating is not part of the UL Recognition.

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors 3
EtherNet/IP™ Output Options, Programmability
Enhanced Monitoring and Diagnostics
Enhanced monitoring and diagnostics

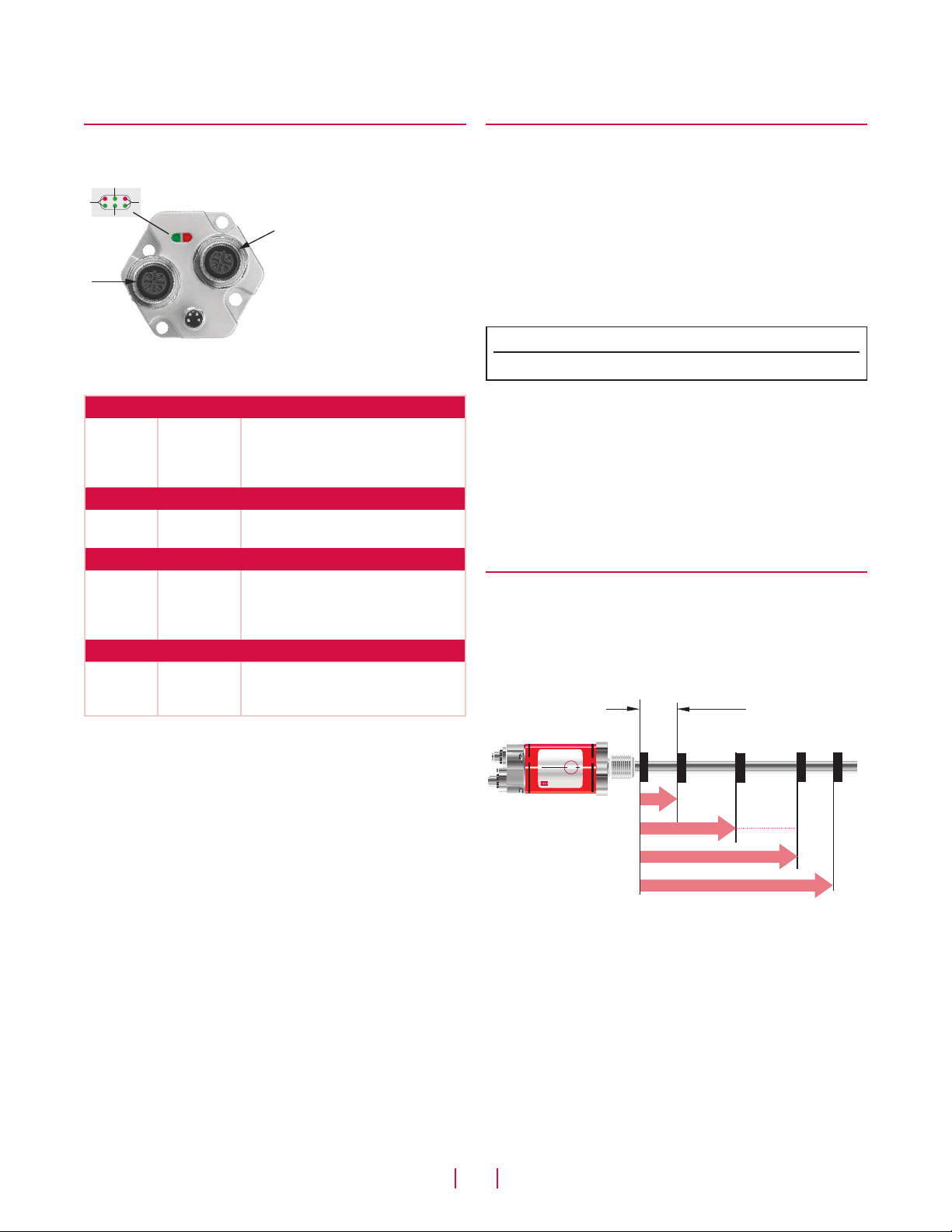

SENSOR STATUS AND DIAGNOSTIC DISPLAY
Integrated green and red
diagnostic LEDs are located
beside the sensor's connec-
tors as shown in ‘Figure 1’,
the LEDs provide basic visual
monitoring for normal sensor
operation and troubleshooting.
These diagnostic display LEDs
indicate four modes as de-
scribed in ‘Table 1. Diagnostic
display indicator modes'
Figure 1. R-Series sensor Integrated diagnostic LEDs
EtherNet Port 1 (INLET)
Green
Green
Red
On:
Flickering:
On:
Ethernet connection established
Data activity
Magnet not detected or wrong
quantity of magnets
EtherNet Port 2 (OUTLET)
Green
Green
On:
Flickering:
Ethernet connection established
Data activity
Network Status
Green
Green
Red
Red
On:
Flashing:
On:
Flashing:
At least one connection established
No connection established
Unrecoverable fault detected
Recoverable fault detected
Module Status
Green
Green
Red
On:
Flashing:
Flashing:
IP address configured
IP address not configured
Duplicate IP address detected
Table 1. Diagnostic display indicator modes
EtherNet/IP™ interface
EtherNet/IP™ is an Industrial Ethernet implementation of the Common
Industrial Protocol (CIP), managed by the Open DeviceNet Vendors
Association (ODVA), which defines communication services for
automation. Ethernet/IP™ uses standard IEEE 802.3 technology at
both the Physical Layer and Data Layers for compatibility with other
applications and protocols. The protocol is also compliant with
IEC 61158-2 for the physical layer and IEC 61784-1, -2 for measurement
and control profiles. The MTS Sensors R-Series EtherNet/IP™ sensor

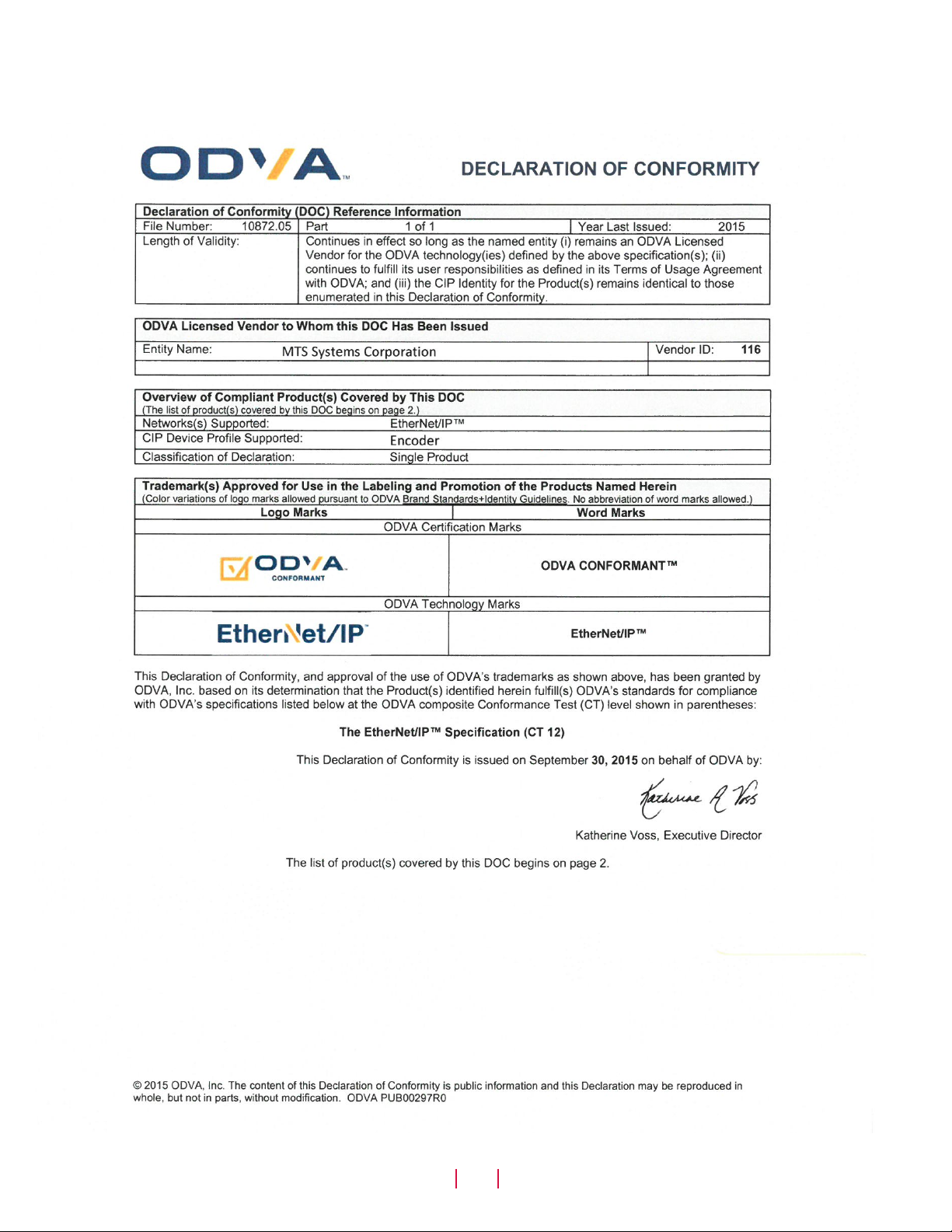

last passed the ODVA EtherNet/IP™ Conformance Test in September
of 2015 (Composite Conformance Test CT12).
Note:
Go to www.mtssensors.com to download latest EDS file.
This Ethernet/IP™ device also offers Device-Level-Ring (DLR) capabil-
ity to directly connect devices to a ring topology without the use of
external switches. DLR provides device-level network re-routing and
failure point identification to improve reliability and network recovery
time.
The ODVA DLR Conformance Test was also completed in September
of 2015.
Operation modes and output
N101 Single and Multi-magnet position and velocity:
Up to 20 simultaneous magnet measurements are possible when using
multiple magnets. The minimum allowed distance between magnets
is 75 mm (3 in.) to maintain proper sensor output (see ‘Figure 2’).
Figure 2.
1 to 20 magnet
Measurement M1 M2 M19
M20
75 mm
(3 in.) min.
M3
Position / Velocity
Temposonics®
R-Series
R
®
Single to multi-magnet output diagram
In Port Traffic
Network
Status
Out Port Traffic
Module
Status
Port 1
Port 2

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors4

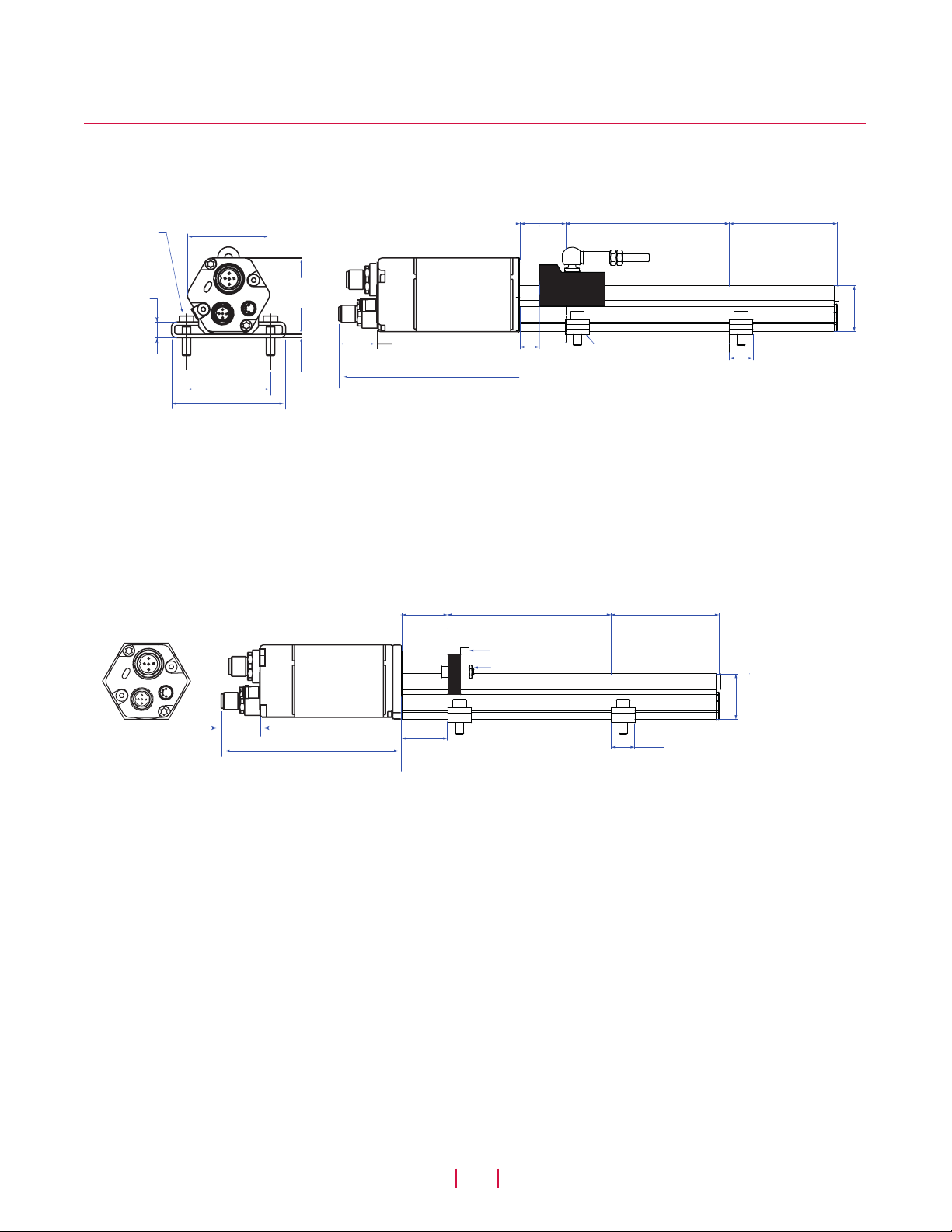

Model RP profile-style sensor dimension references
MODEL RP, PROFILE-STYLE SENSOR WITH CAPTIVE-SLIDING MAGNET
Drawing is for reference only, contact applications engineering for tolerance specific information.
Figure 3. R-Series Model RP Profile-style sensor dimension reference (Shown with the D56 connector option)
MODEL RP, PROFILE-STYLE SENSOR WITH OPEN-RING MAGNET
Drawing is for reference only, contact applications engineering for tolerance specific information.
28 mm
(1.10 in.)
Null
zone Open-ring magnet Style M
(part no. 251416-2)
Dead Zone
66 mm (2.6 in.)
Stroke length
Non-ferrous mounting
support and screws
130
(5.1)
19
(0.75)
29 mm
(1.14 in.)
D56
integral connector option
Electronics
Housing
End of stroke
‘Span’ position
Beginning of stroke ‘Null’ position
Ø 5.5
(Ø 0.22)
9.1
(0.36)
68 (2.68)
1.9
(0.07)
50 (1.97)
35.6 (1.4)
Dead zone
66
(2.6)
28
(1.1)
Stroke length
50…5080
(2…200)
Dead zone
66
(2.6)
Stroke length
50…5080
(2…200)
Sensor electronics housing
75.2
(2.96)
11.8
(0.46)
12
(0.47)
32.5
(1.28)
Sensor electronics housing
96
(3.78)
28
(1.1)
14.5
(0.57)
28
(1.1)
28
(1.1)
Connector outlet D70
Adjustable mounting feet
Ø 5.5
(Ø 0.22)
9.1
(0.36)
68 (2.68)
1.9
(0.07)
50 (1.97)
35.6 (1.4)
e.g. for
M5×20
Cable outlet PXX
M4×0.7-6g
Non-magnetic
mounting support
14.5
(0.57)
Null zone
28
(1.1)
Null zone
49 (1.93)
47
(1.86)
49 (1.93)
47 (1.86)
Null position
Figure 4. R-Series Model RP Profile-style sensor dimension reference (Shown with the D56 connector option)
Model RP Profile-Style Sensor
Sensor Dimension References
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
49
(1.92)
9
(0.36)
50 (1.97)
68 (2.68)
5.5
(0.21) dia.
M5 or #10 scre
w
2
(0.07)
45
(1.77)
130
(5.1)
Stroke length
82 mm (3.2 in.)
Dead zone
End of stroke
‘Span’ position
Mounting foot, moveable
(part no.: 400802)
Electronics
housing
Captive-sliding magnet
D56
integral connector option
19 (0.75)
45 mm
(1.77 in.)
71
Ø 5.5
(Ø 0.22)
9.1
(0.36)
68 (2.68)
1.9
(0.07)
50 (1.97)
35.6 (1.4)
Dead zone
66
(2.6)
28
(1.1)
Stroke length
50…5080
(2…200)
Dead zone
66
(2.6)
Stroke length
50…5080
(2…200)
Sensor electronics housing
75.2
(2.96)
11.8
(0.46)
12
(0.47)
32.5
(1.28)
Sensor electronics housing
96
(3.78)
28
(1.1)
14.5
(0.57)
28
(1.1)
28
(1.1)
Connector outlet D70
Adjustable mounting feet
Ø 5.5
(Ø 0.22)
9.1
(0.36)
68 (2.68)
1.9
(0.07)
50 (1.97)
35.6 (1.4)
e.g. for
M5×20
Cable outlet PXX
M4×0.7-6g
Non-magnetic
mounting support
14.5
(0.57)
Null zone
28
(1.1)
Null zone
49 (1.93)
47
(1.86)
49 (1.93)
47 (1.86)
Null position
Null position

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors 5
Model RP Profile-Style Sensor
Standard Magnet Selections
Standard magnet selections (Model RP)
SELECTION OF POSITION MAGNETS
A choice of two magnet mounting configurations are available with the profile-style sensor; A ‘captive-sliding’ magnet, Styles Sor Vor an
U-magnet. Captive-sliding magnets utilize slide bearings of special material that reduce friction, and if required, help mitigate dirt build up. The
slide bearings are designed to operate dry, requiring no external lubrication or maintenance.
The U-magnet mounts on the moving machine part and travels just above the sensor’s profile extrusion. The U-magnet requires a minimum
distance away from ferrous metals to allow proper sensor output. It must be mounted using non-ferrous screws and a non-ferrous support
bracket, or utilize a non-ferrous spacer of at least 5 mm (0.2 in.) thickness.
POSITION MAGNET SELECTIONS (Drawing dimensions are for reference only)
Magnet dimensions and mounted magnet dimensions Description Part number
Captive-sliding magnet, Style S
For Model RP profile-style sensor 252182
40 mm
(1.58 in.)
25 mm
(1 in.)
9 mm
(0.35 in.)
57 mm
(2.24 in.)
14 mm
(0.55 in.)
Rotation:
Vertical: 18°
Ball-jointed arm
(M5 thread)
Captive-sliding magnet, Style V
For Model RP profile-style sensor 252184
21 mm
(0.81 in.)
25 mm
(0.97 in.)
14 mm
(0.55 in.)
2 Holes
Each 4.3 mm
(0.17 in.) dia. on
24 mm (0.94 in.) dia.
60°
U-magnet
I.D.: 13.5 mm (0.53 in.)
O.D.: 33 mm (1.29 in.)
Thickness: 8 mm (0.31 in.)
Operating temperature:
-40 °C to 100 °C
This magnet may influence the
sensor performance specifications
for some applications.
251416-2
40 mm
(1.58 in.)
25 mm
(1 in.)
20 mm
(0.79 in.)
43 mm
(1.69 in.)
14 mm
(0.55 in.)
Rotation:
Vertical: 18°
Horizontal: 360°
Ball-jointed arm
(M5 thread)
45 mm
(1.77 in.)
52 mm
(2.05 in.)
36 mm
(1.41 in.)
21 mm
(0.81 in.)
Max gap
3 mm ± 1 mm
(0.12 in. ± 0.04 in.)
29 mm
(1.14 in.)
Non-ferrous mounting support and screws
U-magnet

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors6
Sensor mounting
Model RP profile-style sensor mounting flexible installation in any position!
Temposonics®Model RP profile-style sensors offer two basic mounting methods; side grooves for use with mounting feet or a bottom groove
that accepts special T-Slot nuts. Both the mounting feet and T-Slot nuts can be positioned along the sensor extrusion to best secure the sensor
for each particular application.
Notes:
1. Model RP sensors include two mounting feet (part no. 400802) for sensors stroke lengths up to 1250 mm (50 in.)
2. One additional mounting foot is included for stroke lengths over 1250 mm (50 in.) and for each additional 500 mm (20 in.),
thereafter.
3. MTS Sensors recommends using 10-32 cap screws (customer supplied) at a maximum torque of 44 in. lbs. when fastening
mounting feet.
Model RP Profile-Style Sensor
Sensor Mounting Reference
Profile-Style sensor mounting and installation reference Mounting method Part number
(Width = 14.5 mm (0.57 in.)
Mounting feet, standard (304 SS)
Profile-style sensor mounting for
sensor model RP
400802
10 - 32 Cap screws
Recommended
(Customer supplied)
Mounting feet and screws
Profile-style sensor foot installation
See Mounting
Feet
part number:
400802
T-Slot nut
Nut for mounting model RP sensor.
M5 thread
(Optional, ordered separately)
401602
4 Holes
5.3 mm
(0.21 in.) dia.
28 mm
(1.1 in.) 9 mm
(0.36 in.)
50 mm
(1.97 in.)
2 mm
(0.08 in.)
68 mm
(2.68 in.)
9 mm
(0.36 in.)
Mounting foot
(Customer supplied)10-32 cap screw
s
M5 threaded T-Slot nut
T-Slot nut (M5 threaded)
5 mm
(0.20 in.)
M5 Threaded stud and nut
(customer supplied)

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors 7
Model RH Rod-Style Sensor
Dimension References
Model RH rod-style sensor dimension reference
The Temposonics®R-Series rod-style sensor (Model RH) offers modular construction, flexible mounting configurations, and easy installation.
The Model RH sensor is designed for mounting in applications where high pressure conditions exist (5000 psi continuous, 10,000 psi spike)
such as inside hydraulic cylinders. The Model RH sensor (see 'Figure 5') may also be mounted externally in many applications.
Stroke-dependent Dead Zones:
Stroke length:
25 mm (1 in.) - 5000 mm (197 in.)
5005 mm (197 in.) - 7620 mm (300 in.)
Dead zone:
63.5 mm (2.5 in.)
66 mm (2.6 in.)
MODEL RH, ROD-STYLE SENSOR WITH RING MAGNET (MAGNET ORDERED SEPARATELY)
Drawing is for reference only, contact applications engineering for tolerance specific information.
Figure 5. Model RH Rod-style sensor dimension reference (shown with D56 integral connector options
19 mm (0.75 in.)
135 mm (5.3 in.) 51 mm (2 in.)
Beginning of stroke ‘Null’ position End of stroke ‘Span’ position
Electronics
housing
Null zone
Stroke length
Flat-faced hex flange type ‘S’
Sensor Rod
10 mm (0.39 in.) dia.
25 mm
(0.98 in.)
O-Ring
Ring magnet
Dead zone
(refer to Notes
‘Stroke Dependent
Dead Zones’)
Refer to ‘Table 2’ for
(A) Flange threads
D56
Integral connector option
)
MODEL RH, ROD-STYLE SENSOR WITH RING MAGNET (MAGNET ORDERED SEPARATELY)
Drawing is for reference only, contact applications engineering for tolerance specific information.
Figure 6.
D56
Integral connector option
25.4 mm
(1 in.)
O-Ring
Beginning of stroke ‘Null’ position
Null
51 mm (2 in.)
Electronics
housing
2.5 mm (0.10 in.)
Raised-faced flange, Type ‘T’
Refer to ‘Table 2’
25 mm
(0.98 in.)
Ring Magnet
part no.: 201542-2
Refer to ‘Table 2’
(A) Flange Threads
B
C
Refer to ‘Table 2’
(B) dimensions and (C) dimension
s
Model RH Rod-style sensor dimension reference (Shown with the D56 integral cable connection type option)
Housing style
Flange type Description (A) Flange threads (B) Dimensions (C) Dimensions
T US customary threads with raised-face flange 3/4" - 16 UNF-3A 1.75 in. 2 in.
SUS customary threads with flat-faced flange 3/4" - 16 UNF-3A 1.75 in. 2 in.
M Metric threads with flat-faced flange M18 x 1.5 46 mm 53 mm
Table 2. Model RH Rod-style sensor housing style and flange type references

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors8

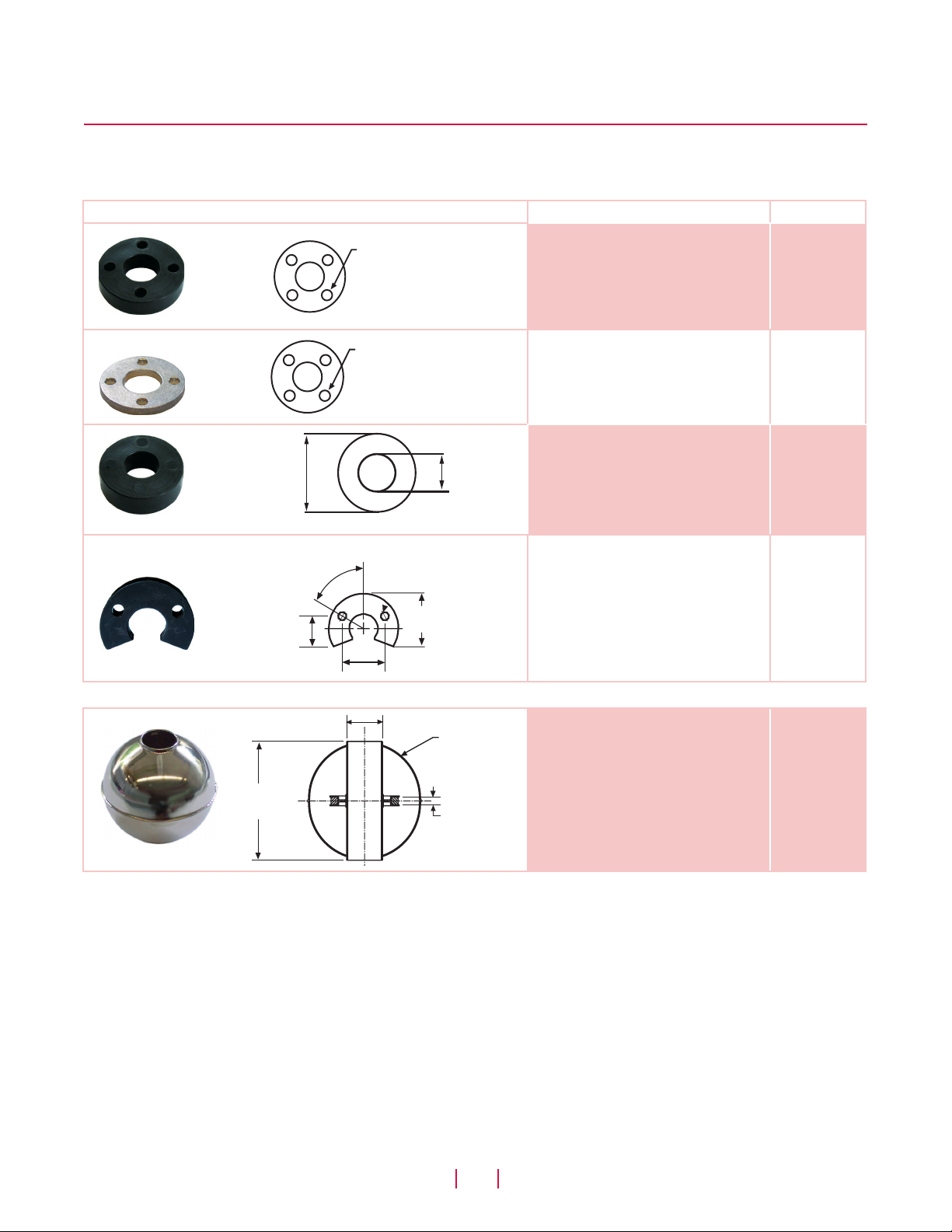

Model RH Rod-Style Sensor
Standard Magnet Selections
Standard magnet selections (Model RH)
Magnets must be ordered separately with Model RH position sensors. The standard ring magnet (part number 201542-2) is suitable for most
applications.
POSITION MAGNET SELECTIONS (Magnet must be ordered separately) (Drawing dimensions are for reference only)
Magnet and magnet dimensions Description Part number
Standard ring magnet
I.D.: 13.5 mm (0.53 in.)
O.D.: 33 mm (1.3 in.)
Thickness: 8 mm (0.3 in.)
Operating temperature:
-40 °C to 100 °C
201542-2
Magnet spacer
(Non-ferrous, use with ring magnet
Part number: 201542-2)
I.D.: 14 mm (0.56 in.)
O.D.: 32 mm (1.25 in.)
Thickness: 3.2 mm (0.125 in.)
400633
Ring magnet
I.D.: 13.5 mm (0.53 in.)
O.D.: 25.4 mm (1 in.)
Thickness: 8 mm (0.3 in.)
Operating temperature:
-40 °C to 100 °C
400533
U-magnet
I.D.: 13.5 mm (0.53 in.)
O.D.: 33 mm (1.3 in.)
Thickness: 8 mm (0.3 in.)
Operating temperature:
-40 °C to 100 °C
This magnet may influence the
sensor performance specifica-
tions for some applications.
251416-2
MAGNET FLOAT SELECTION (Drawing dimensions are for reference only)
Magnet float
(Level sensing applications)
Specific gravity: 0.70 maximum
Pressure: 870 psi maximum
(This float is used with Model RH rod-style
sensors for hydraulic fluid or fresh water
applications only). Collar (part no.: 560777)
is recommended for end of stroke stops.
251447
4 Holes
Each 4.3 mm (0.17 in.) dia.
90° apart on
24 mm (0.94 in.) dia.
4 Holes
Each 4.3 mm (0.17 in.) dia.
90° apart on
24 mm (0.94 in.) dia.
13.5 mm
(0.53 in.)
25.4 mm
(1 in.)
21 mm
(0.81 in.)
25 mm
(0.97 in.)
14 mm
(0.55 in.)
2 Holes
Each 4.3 mm
(0.17 in.) dia. on
24 mm (0.94 in.) dia.
60°
14 mm (0.55 in.) Min. I.D.
51 mm (2 in.)
Spherical O.D.
3.4 mm (0.13 in.)
C
L
53 mm
(2.1 in.)

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors 9

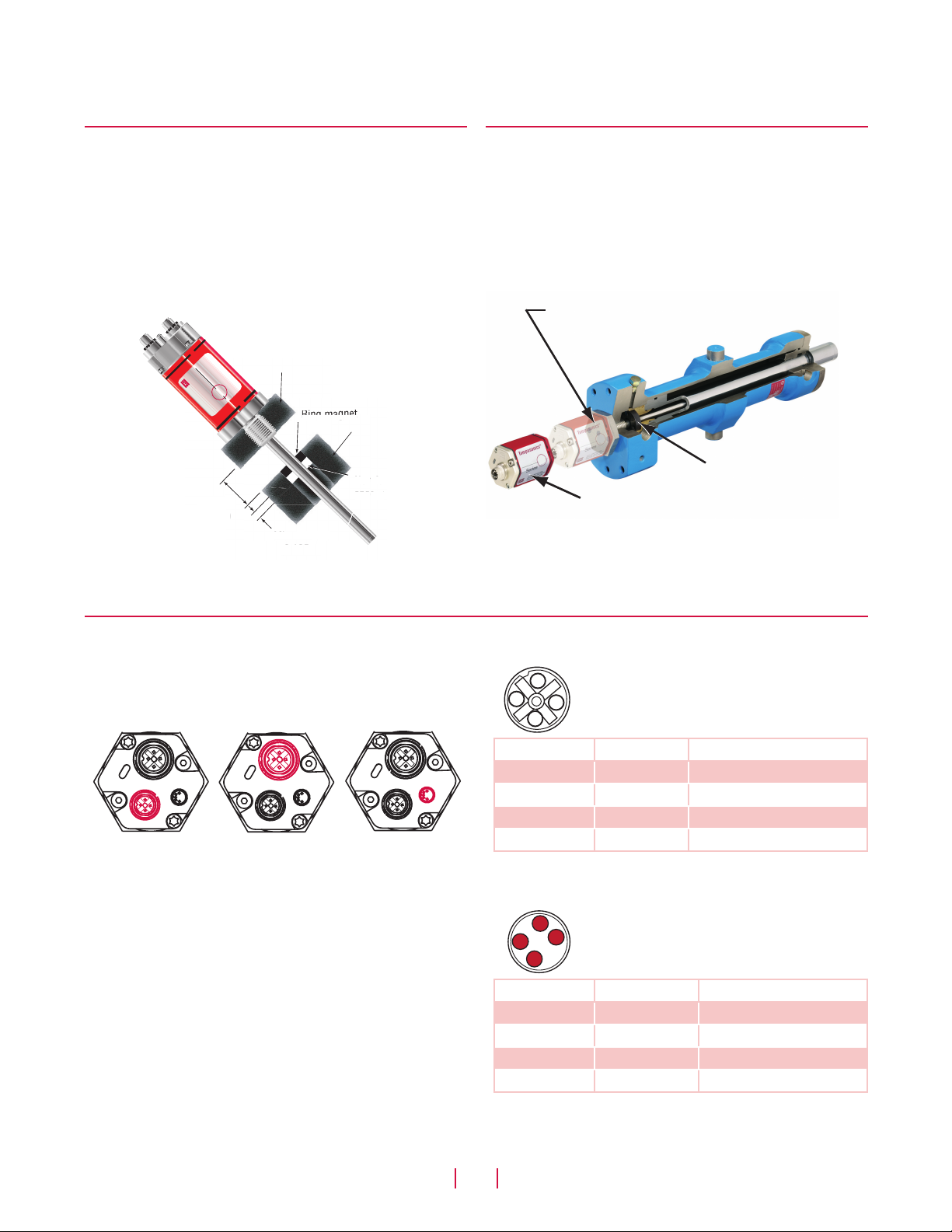

Model RH Rod-Style Sensor Mounting
Cylinder Installation and Connections
Model RH Rod-Style sensor mounting
The position magnet requires minimum distances away from ferrous
metals to allow proper sensor output. The minimum distance from the
front of the magnet to the cylinder end cap is 15 mm (0.6 in.).
The minimum distance from the back of the magnet to the piston head
is 3.2 mm (0.125 in.). However, a minimum distance of at least 5
mm (0.197 in.) is preferred for added performance margin.The non-
ferrous spacer (part no.: 400633) provides this minimum distance
when used along with the standard ring magnet (part no.: 201542-2),
as shown in 'Figure 7'.
Figure 7.
Non ferrous
spacer
> 15 mm
(0.6 in.)
Min. 3.2 mm
(0.125 in.)
Ring magnet
n fer
cer
m
m
mm
.)
(0
.125 in.)
magne
t
Ring
m
Non
spa
Min. 3.2 mm
m
ag
net
Ring
m
Cylinder end cap
Piston head
Temposonics®
R-Series
R
®
Model RH rod-style mounting
Cylinder installation
When used for direct-stroke measurement in fluid cylinders, the sen-
sor's high pressure, stainless steel rod installs into a bore in the piston
head/rod assembly as shown in 'Figure 8'. This method guarantees a
long-life and trouble-free operation.
The sensor cartridge can be removed from the flange and rod hous-
ing while still installed in the cylinder. This procedure allows quick
and easy sensor cartridge replacement without the loss of hydraulic
pressure.
The sensor’s rod housing and flange can remain
permanently installed in the cylinder
Ring magnet
The sensor cartridge consist of the electronics housing
and sensing element and is easy to replace by removing
(2) M4 thread 2.5 mm hex socket head screws
Figure 8. Fluid cylinder installation
Connections and wiring
(D56) BUS CONNECTOR OPTION
D56 connector option for 'daisy chain' topologies. A separate cable
is used for the supply voltage. Unused connectors should be covered
by a protective cap (part no.: 370537).
D56
Female
4-pin Bus
Port 1
D56
Female
4-pin Bus
Port 2
D56
Male, 4-pin
Input voltage
BUS CONNECTIONS PORTS 1 AND 2
4
3
2
1
Female, 4-pin (M12-D) Integral connector
pin-out as viewed from the end of the sensor
Pin number Cable color Function
1 Yellow Tx+
2 White Rx+
3 Orange Tx-
4 Blue Rx-
INPUT VOLTAGE
3
4
2
1
Input voltage, male, 4-pin (M8) integral
connector pin-out as viewed from the end of
the sensor
Pin number Cable color Operating voltage
1 Brown +24 Vdc (-15/+20%)
2 White No connection
3 Blue DC ground (for supply)
4 Black No connection

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors
Ethernet cable
Male, (M12)
4-pin connector
47 mm
(1.85 in.)
16 mm
(0.63 in.) dia.
1
2
3
4M12 x 1
RJ45 Connecto
r
55 mm
(2.17 in.)
10
Model RP and RH Sensors
Ordering Information; Connector and Cable Assembly Options
(D56) CABLE CONNECTOR OPTIONS (Drawing dimensions are for reference only)
Connector and connector dimensions Description Part number
Bus Cable Connector, Male 4-pin
(M12), D-coded with insulation
displacement technology
370523
Connector, Female 4-pin
(M8) and cable with pigtail
termination
For 24 Vdc input.
Wire gage 4x0.25 mm2
shielded, PUR cable jacket
5 m length =
530066
10 m length =
530096
15 m length =
530093
Connector end cap
(Unused connectors should be
covered by this protective cap)
370537
BUS CABLE WITH CONNECTORS (Drawing dimensions are for reference only)
Bus cable and connector assemblies Description Part number
Ethernet cable
2 - Male, (M12)
4-pin connectors
47 mm
(1.85 in.)
16 mm
(0.63 in.) dia.
1
2
3
4
Industrial Ethernet Bus Cable,
5 m length (Cat 5e ES)
Assembly Includes two 4-pin
(M12) connectors (D-coded)
and PUR cable jacket (green)
530064
Industrial Ethernet Bus Cable,
5 m length (Cat 5e ES)
Assembly includes one RJ45
connector and one 4-pin (M12)
connector (D-coded) with PUR
cable jacket (green). Cables using
the RJ45 connector provide
convenient sensor connection to
a PC for setup and programming
but are not recommended for
factory floor installations.
530065
SW17/ width across flats 17
M12x1
Ø19.5 mm
(0.77 in.)
52 mm (2.05 in.)
SW13/ width across flats 13
10 mm
(0.39 in.)
dia.
M8 x 1
32.5 mm
(1.28 in.)

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors 11
Model RP and RH Sensors
Ordering Information
R D 5 6 1 N 1 0 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
SENSOR MODEL =R1-2
RP =
Profile style
RH
= Hydraulic rod style
HOUSING STYLE =3
Model RP profile-style sensor (includes one magnet):
S=
Captive-sliding magnet with ball joint
at top (part no. 252182)
V
=
Captive-sliding magnet with ball
joint at front (part no. 252184)
M
=
U-magnet (part no. 251416-2)
Model RH rod-style sensor (magnet(s) must be ordered separately):
T=
US customary threads, raised-faced
flange and pressure tube, standard
U
=
Same as option “T”, except uses
fluoroelastomer seals for the
sensor electronics housing
B
=
Sensor cartridge only (no flange or
pressure tube, stroke length
< 1830 mm (72 in.))
S=
US customary threads, flat-faced
flange and pressure tube, standard
H
=
Same as option “S”, except uses
fluoroelastomer seals for the
sensor electronics housing
M=
Metric threads, flat-faced flange and
pressure tube, standard
V
=
Same as option “M”, except uses
fluoroelastomer seals for the
sensor electronics housing
STROKE LENGTH = 4-8
— — — — M
=
Millimeters
(Encode in 5 mm increments)
Stroke Length Notes:
———.—U
=
Inches and tenths
(Encode in 0.1 in.
increments)
1. Profile-style sensor (model RP) stroke length = 25 mm (1 in.) - 5080 mm. (200 in.)
2. Rod-style sensor (model RH) stroke length = 25 mm (1 in.) - 7620 mm (300 in.)
CONNECTION TYPE =D 5 6 9-11
Integral connector:
D56
=
Two 4-pin female (M12-D), plus one 4-pin male (M8)
INPUT VOLTAGE =
1
12
1=
+24 Vdc (-15% or +20%)
OUTPUT = N 1 0 1
13-16
N101 =
EtherNet/IP™, position and velocity, maximum 20 magnets
NUMBER OF MAGNETS =Z
17-19
For multi-position measurement only (Order additional magnets separately).
Z— — =
Number of magnets for output
N101 (range 02 to 20)

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015 MTS Sensors
Model RP and RH Sensors
Declaration of Conformity
12

R-Series Models RP and RH Temposonics®Linear-Position Sensors - EtherNet/IP™ Industrial
Ethernet Interface Product Data Sheet, Part No.: 551253 Revision C (EN) 10/2015
MTS Sensors

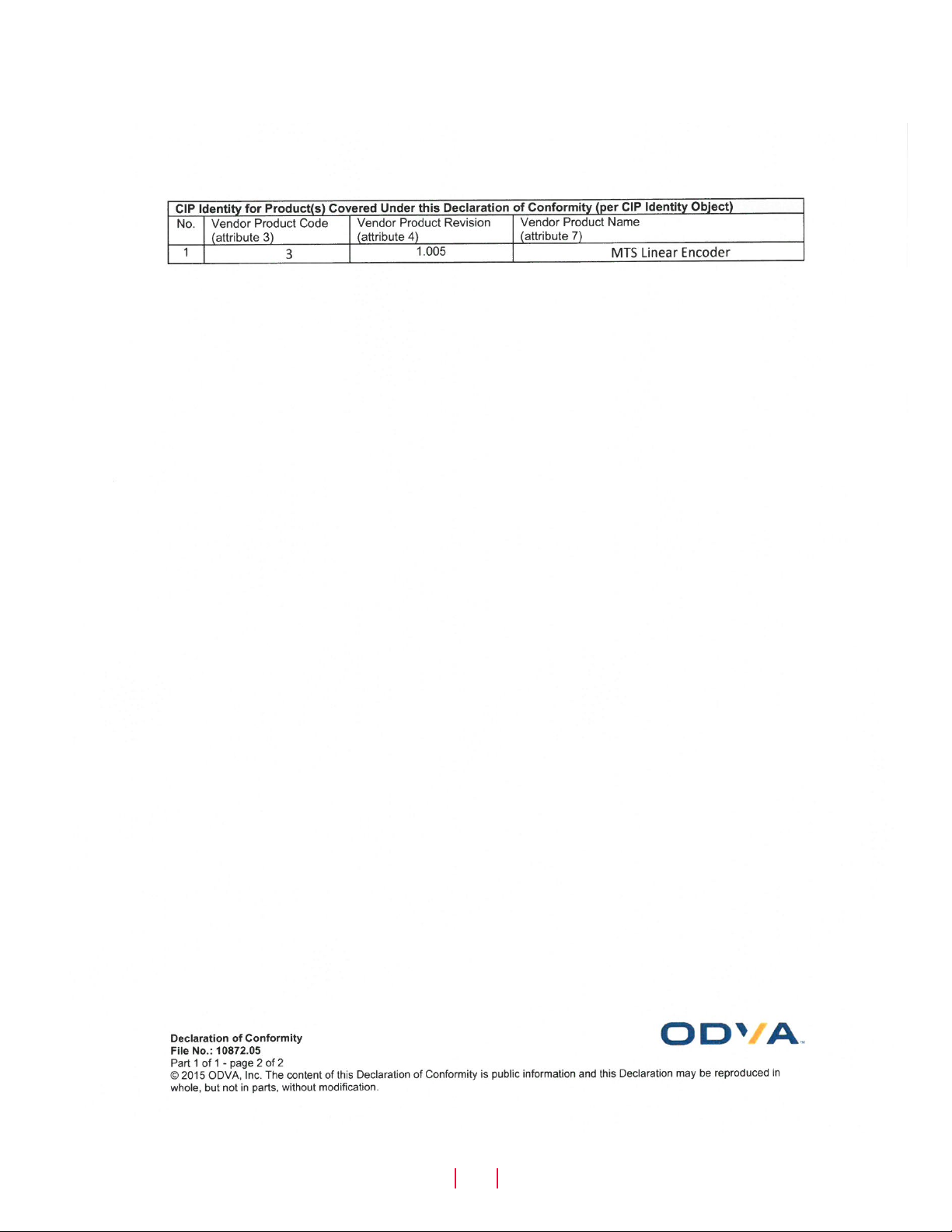

Model RP and RH Sensors
Declaration of Conformity
13

Document Part number:
551253 Revision C (EN) 10/2015
MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation. All
other trademarks are the property of their respective owners. Printed in USA. Copyright © 2015
MTS Systems Corporation. All Rights Reserved in all media.
All specifications are subject to change. Contact MTS for specifications and engineering
drawings that are critical to your application. Drawings contained in this document are for
reference only. Go to http://www.mtssensors.com for the latest product information.
LOCATIONS
LEGAL NOTICES
USA
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive
Cary, N.C. 27513, USA
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
GERMANY
MTS Sensor Technologie
GmbH & Co. KG
Auf dem Schüffel 9
58513 Lüdenscheid, Germany
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
JAPAN
MTS Sensors Technology Corp.
737 Aihara-machi,
Machida-shi,
Tokyo 194-0211, Japan
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
FRANCE
MTS Systems SAS
Zone EUROPARC Bâtiment EXA 16
16/18, rue Eugène Dupuis
94046 Creteil, France
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
ITALY
MTS Systems Srl.Sensor Division
Via Diaz,4
25050 Provaglio d‘Iseo (BS), Italy
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
CHINA
MTS Sensors
Room 504, Huajing Commercial Center,
No. 188, North Qinzhou Road
200233 Shanghai, China
Tel. [phone]
Fax [phone]
[email protected]
www.mtssensors.com
Reg.-No. 003095-QN
