MTS Sensors Temposonics MH-Series User manual

Temposonics
®
Magnetostrictive, Absolute, Non-contact
Linear-Position Sensors
M-Series Mobile Hydraulic
In-Cylinder Sensor
Model MH CAN Safety (SIL 2)
Data Sheet
SENS
O
RS
®
Document Part Number
551194 Revision B
All specifications are subject to change. Contact MTS for specifications and
engineering drawings that are critical to your application. Drawings contained
in this document are for reference only. Go to http://www.mtssensors.com for
the latest support documentation and related media.
FEATURES
Linear, Absolute Measurement in Hydraulic Cylinders
Non-Contact Sensing Technology
Superior Accuracy, < ± 0.04% F.S.
Hysteresis < ± 0.1 mm
Repeatability, < ± 0.005% F.S.
Compact Design for Embedded Cylinder Applications
Direct CAN Safety Output:
Displacement + Velocity
Stroke length: 50 mm (2 in.) to 2500 mm (98 in.)
Voltage input: 12/24 Vdc
Shock Rating: 100 g (single hit) / IEC 68-2-27
Vibration Rating 25 g / 10-2000 Hz/IEC 68-2-6
200 V/m EMI Immunity
BENEFITS
Rugged Mobile Sensor
SIL2 Safety Integrity Level
CAN Safety (SIL 2) Output
APPLICATIONS
Continuous Operation In Harsh Mobile Conditions
High Pressure Conditions
For Welded and Tie-rod Cylinder Applications
TYPICAL INDUSTRIES
Construction
Agriculture
Off-highway Machinery
Product overview
The M-Series Model MH sensor is designed with the “mobile” world
in mind. The Model MH sensor is validated in the field by customers
worldwide. Performance is second-to-none with high EMI resistance
of 200 V/m. Ruggedness is “designed in”; 100 g shock and 25 g vibra-
tion rating. The model MH CAN Safety sensor can be fully sealed and
embedded in a cylinder to ensure a long operating life.
The absolute, non-contact Temposonics position sensor with CAN
Safety reaches a level of 95% for SFF at a fault to ground of 0 for the
hardware. Since they are approved for SIL 2 level, they have an aver-
age probability for Failure (PFH) in the range of ≥10-7 to <10-6 per year.
A SIL Safety manual and direct connection to the Temposonics®
M12x1 connector system and other proven mobile connectors are
available.

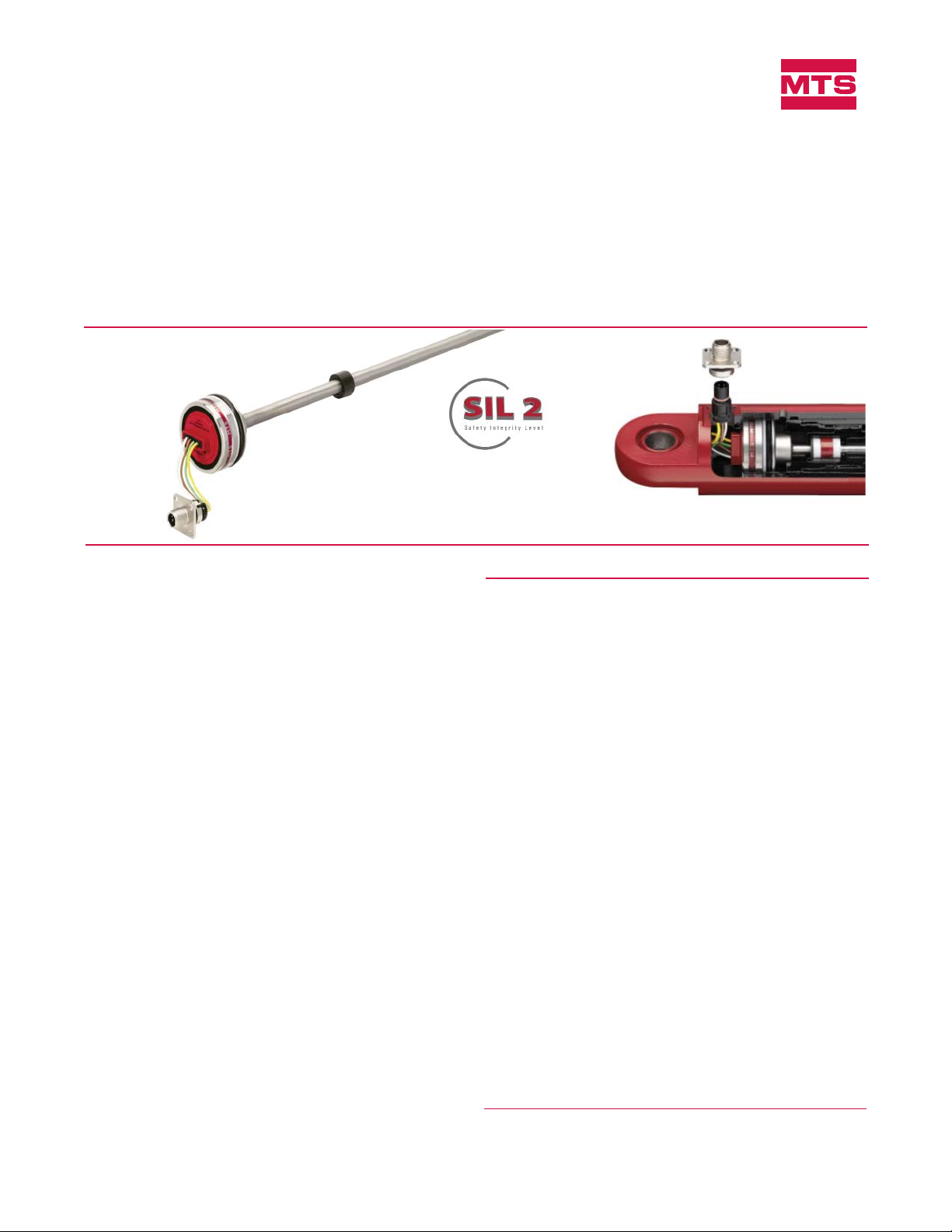

Cylinder Application ExampleM-Series Model MH Sensor

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12 2
Product specifications
Parameters Specifications
INPUT/OUTPUT
Measured
variable: Linear position and velocity
Output: Direct CAN Safety acc. CiA DS-304
Resolution: Consistent: > 1 mm/s
CAN Safety ≤ ± 0.1 mm
Signal output frequency:
CAN Safety adjustable 1 ms to 65535 ms or
Sync. mode
Velocity: Typical 1 m/s
Stroke length: 50 mm to 2500 mm (2 in. to 98 in.)
Measured in 5 mm (0.20 in.) increments
Linearity
uncorrected: 50 to 250 mm ≤± 0.1 mm
255 to 2000 mm < ± 0.04% full stroke
(minimum ± 0.100 mm 0.003 in.)
< ± 0.08% full stroke (for short damping zone)
500 mm ≤± 0.2 mm
750 mm ≤± 0.3 mm
1250 mm ≤± 0.5 mm
2005 to 2500 mm ≤± 0.8 mm
Hysteresis: ± 0.1 mm (0.003 in.)
Cycle time: 1 ms
Setpoint
tolerance: ± 0.2 mm (0.007 in.)
Operating
voltage: 12/24 Vdc (8-32 Vdc)
Voltage supply ripple: <1 % p-p
Power drain: < 1.5 W
ELECTRONICS
Electrical
isolation: 500 Vdc (DC ground to machine ground)
Polarity
protection: Up to -36 Vdc
Overvoltage
protection: Up to 36 Vdc
M-Series Model MH CAN Safety Sensor
Product Overview and Specification
Parameters Specifications
ENVIRONMENTAL
Operating
conditions: Operating: any orientation, -40 °C (-40 °F) to
+105 °C (221 °F)
Storage: -30 °C (-22 °F) to +105 °C (221 °F)
90% relative humidity, no condensation
EMC test: 200 V/m
ISO 11452-5
ISO 14982: Agriculture and forest machinery
Shock rating: 100 g (single hit)/IEC standard 68-2-27
(survivability)
25 g / 10 to 2000 Hz /IEC standard 68-2-6
Vibration
rating: Sensor rod, 10 mm (0.39 in.): 25 g
Sensor rod, 7 mm (0.27 in.): 15 g
WIRING
Connection
type: One 5-wire with the M12x1 connector
and flange (provides IP69K environmental
protection when installed in a cylinder).
ROD STYLE SENSOR (Model MH)
Material: Sensor rod: Stainless steel 1.4306 / AISI
304L
Housing: Stainless steel 1.4305 / AISI 303
Mechanical assembly: Flange housing 48 mm
(1.89 in.) dia., O-ring 40.87 x 3.53 mm NBR
80, backup ring 42.6 x 48 x 1.4 PTFE
Sealing: IP67 (IP69k when installed inside a cylinder
with M12 x 1 in. connection type)
Pressure
rating: Sensor rod, 10 mm (0.39 in.):
Operating, 350 bar (5076 psi)
Peak, 450 bar (6615 psi)
Sensor rod, 7 mm (0.27 in.):
Operating, 300 bar (4350 psi)
Peak, 400 bar (5800 psi)
Pressure pulse test acc.: DIN EN ISO 19879
Magnet type: Ring magnet (see standard magnet selections)

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12
3
M-Series Model MH CAN Safety Sensor
Output, Dimension and Magnet References
Output options
The M-Series Model MH position CAN Safety sensor provides direct CAN Safety output.
Model MH sensor dimension references
Model MH, rod-style Redundant Sensor Drawing is for reference only, contact applications engineering for tolerance specific information.
Stroke length start ‘Null’ position
Null
30 mm
(1.18 in.)
Stroke length
50 mm (1.96 in.) to 2500 mm (98.42 in.)
7 mm (0.27 in.) dia. or
10 mm (0.39 in.) dia.
11.5 mm
(0.45 in.)
30 mm
(1.18 in.)
48 mm (1.88 in.) dia.
Dead zone
63.5 mm (2.49 in.) or
36.5 mm (1.44 in.)
24 mm
(0.94 in.)
dia.
Stroke length end ‘Span’ position
30 mm
(1.18 in.) dia.
21.2 mm +0 / -0.2
(0.83 in.) +0 / -0.007
23 mm
(0.9 in.) dia.
Figure 1. M-Series Model MH rod-style sensor dimension reference
Standard magnet selections (Model MH)
SELECTION OF POSITION MAGNETS (MAGNET AND MAGNET SPACER MUST BE ORDERED SEPARATELY)
A choice of three magnets are available with the Model MH rod-style sensor. Magnets must be ordered separately with Model MH position
sensors. The standard ring magnet (part number 201542-2) is suitable for most applications.
STANDARD RING MAGNET
Part number 201542-2
MAGNET SPACER
Part number 400633
(used with magnet part no.: 201542-2)
RING MAGNET
Part number 400533
RING MAGNET
Part number 401032
Material: Ferrite PA
I.D.: 13.5 mm (0.53 in.)
O.D.: 33 mm (1.3 in.)
Thickness: 8 mm (0.3 in.)
Operating temperature:
- 40 °C (-40 °F) to
- 105 °C to (221 °F)
Material: Non-ferrous
Used with ring magnet (part no.:
201542-2)
I.D.: 14 mm (0.56 in.)
O.D.: 32 mm (1.25 in.)
Thickness: 3.2 mm (0.125 in.)
Material: Ferrite PA
I.D.: 13.5 mm (0.53 in.)
O.D.: 25.4 mm (1 in.)
Thickness: 8 mm (0.3 in.)
Operating temperature:
- 40 °C (-40 °F) to
- 105 °C to (221 °F)
Material: Ferrite PA
I.D.: 13.5 mm (0.53 in.)
O.D.: 17 mm (0.68 in.)
Thickness: 8 mm (0.31 in.)
Operating temperature:
- 40 °C (-40 °F) to
- 105 °C to (221 °F)

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12 4
Model MH sensor installation references
The robust Temposonics Model MH sensor’s new stainless-steel position sensor is designed for direct stroke measurement in mobile hydraulic
cylinders. The Temposonics Model MH sensor can be installed from the head side or the rod side of the cylinder depending on the cylinder
design.
Installation Notes:
1. Use a non-ferrous circlip to fix the magnet.
2. The piston rod bore is dependent on hydraulic pressure and piston velocity. Minimum drilling for a (10 mm rod) should be 13.5 mm.
3. There should be no less than 3 mm clearance between the end of the sensor rod and the bottom of the rod bore at full retraction.
Model MH, rod-style sensor mechanical installation Drawing is for reference only, contact applications engineering for tolerance specific
information.
30 mm
(1.18 in.)
> 32.5 mm
(1.27 in.) dia.
>15 mm (0.59 in.) 21.2 mm -
0.2
(0.83 in.) -0.007
Figure 2. M-Series Model MH rod-style sensor mechanical installation example
Model MH, rod-style sensor installation Drawings are for reference only, contact applications engineering for tolerance specific information.
Installation methods are possible in magnetic and non-magnetic applications (shown in Figures 3 and 4) and are entirely dependent on the
cylinder design. While the most common method of installation is from the rod side of the cylinder, installation from the head side of the
cylinder is also possible. In both installation methods, the sensor seals the cylinder by using an O-Ring and backup ring which is installed on
the sensor housing.
Magnetic material installation reference
M-Series Model MH CAN Safety Sensor
Installation
Figure 3.
30 mm
(1.18 in.)
5 mm
(0.19 in.)
min. Non-ferrous spacer
Position Magnet
Model MH installation in magnetic material using a
non-ferrous magnet spacer.
Non-magnetic material installation reference
Figure 4.
30 mm
(1.18 in.)
Position magnet
Model MH installation in non-magnetic material
(without using a non-ferrous magnet spacer).
Set screw detail
45
°
4.5 mm
(0.17 in.)
4 mm
(0.15 in.)
4.5 mm
(0.17 in.) 8.5 mm
(0.33 in.)
1 mm
(0.03 in.)
Retaining screw with set screw DIN 913
M5x10 max. torque 0.5 Nm

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12
5
M-Series Model MH CAN Safety Sensor
Connections, Wiring and Mounting
Connections and wiring
CONNECTION TYPE
The Temposonics®M12 connector system (shown in Figures 7, 8, 9 and 10 ), meets the most stringent protection requirements important
for the difficult environmental conditions of mobile hydraulics applications. Protection type IP69K makes the robust metal housing not only
completely dust and waterproof, even the harshest cleaning measures cannot damage the sensor.
Model MH, rod-style sensor connector and pin assignments Drawings are for reference only, contact applications engineering for tolerance
specific information.
MOUNTING THE CONNECTOR SYSTEM TO THE CYLINDER
Figure 7. The MH sensor is delivered by MTS together with the new
connector system: The connector insert carrier is already connected
to the sensor electronics, i.e. no soldering, any color or connection
mistake.
Figure 8. The connector insert is taken out of the cylinder through
a bore hole. The flange housing can be snapped into position easily
from outside.
16H8
9 mm
(0.35 in.)
4.4 mm
(0.17 in.) dia.
24 mm
(0.94 in.)
17 mm
(0.66 in.)
M12 x 1 10 mm
(0.27 in.)
12 mm
(0.47 in.)
Figure 5. Model MH sensor connection dimensions
CAN Pin Assignment
(1) N.C.
(2) Power Supply 12/24 Vdc
(4) CAN High
(5) CAN Low
43
2
1
43
2
1
43
2
1
(3) DC Gnd
5
Figure 6. M12 x 1 connector system pin assignments
Figure 9. Four standard screws must be tightened to mount the
connector system on the cylinder.
Figure 10. With a corresponding mating molded plug the connector
system fulfills a ingress rating of IP69K.

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12
M-Series Model MH ordering information
Use the table below to configure your sensor part number.
M-Series Model MH CAN Safety Sensor
Ordering Information
MH M 3
12 3 45678 9101112 13 141516171819
SENSOR MODEL =MH 1-2
MH = Rod-style with pressure fit flange housing 48 mm (1.88 in.) dia.
SENSOR STYLES =3
C= Rod-style 10 mm (0.39 in.) dia.
damping zone 63.5 mm (2.49 in.)
F= Rod-style 7 mm (0.27 in.) dia.
reduced damping zone 36.5 mm (1.44 in.)
D= Rod-style 7 mm (0.27 in.) dia.
dam
p
in
g
zone 63.5 mm
(
2.49 in.
)
E= Rod-style 10 mm (0.39 in.) dia.
reduced dam
p
in
g
zone 36.5 mm
(
1.44 in.
)
STROKE LENGTH (ORDER LENGTH) = M4-8
— — — — M = Millimeters
50 to 2500 mm
(
in 5 mm increments
)
CONNECTION TYPE = 9-12
N _ _ _ =Wire exit:
Integral 'single wires', each conductor: 0.5 mm2(20 AWG)
Termination type:
N _ _ A =Pigtail (stripped conductors) no termination
N _ _ F =5 single wires, M12x1 IP69K, 5 pin (pin assignment 2-3-4-5)
Wire length:
06 =60 mm (2.36 in.) min. wire length
25 =250 mm (9.84 in.) max. wire length
Cable exit:
T _ _ _ 4 conductor/ cable integral PUR cable, pigtailed, 4 cables. Cable length (first digit x 1m, second digit x 0.1 m).
10 =1.0 m length (standard all other lengths require minimum order quantities: 0.5 m min. to 9.9 max.: 0.1 m increments).
Termination type:
A = Pigtail (stripped conductors) Contact factory for termination
INPUT VOLTAGE =313
3= +12/24 Vdc
OUTPUT =14-19
S01 =CANopen Safety (SIL2)
17 digit Baud rate
0=1000 kBit 3= 250 kBit 6= 50 kBit
1=800 kBit 4= 125 kBit 7= 20 kBit
2=500 kBit 5= Reserved 8= 10 kBit
18 + 19 digit: Node-ID
=CAN Safety (SIL2): hex 01 to 40 (default Node ID = 40)
6

MTS Sensors
M-Series Model MH Temposonics®Position Sensor for Mobile Hydraulics, CAN Safety (SIL 2)
Product Data Sheet, Document Part No.: 551194, Revision B 02/12, 05/12, 08/12
7
M-Series Model MH CAN Safety Sensor
Ordering Information
Magnet selections and optional Test kit
Magnet selections and the M-Series CAN test kit part no.: 551140, must be ordered separately. Refer to the tables below for ordering information.
Magnet selections Part no.
Ring magnet, O.D. 17.4 mm (0.68 in.) 401032
Ring magnet, O.D. 25.4 mm (0.99 in.) 400533
Ring magnet, O.D. 33 mm (1.29 in.) 201542-2
Non-ferrous magnet spacer‡400633
‡Used with ring magnet part no.: 201542-2
Optional accessory Part no.
M-Series CAN test kit
The M-Series CAN Test kit includes:
• M-Series CANopen / J1939 Test software
installation CD
• USB CAN module kit
- USB CAN module
- USB CAN Module utility CD
- USB connector cable
• 12 Vdc battery charger with adapter
• Cable with M12x1 and RS232 connectors
• Cable with core cable ends and RS232 connector
• Carrying case
• User’s guide (PDF format)
551140
M-Series CAN test kit software interface

SENS
O
RS
®
MTS and Temposonics are registered trademarks of MTS Systems Corporation.
All other trademarks are the property of their respective owners.
Printed in USA. Copyright © 2012 MTS Systems Corporation. All Rights Reserved in all media.
Document Part Number: 551194, Revision B, 02/12, 05/12, 08/12
MTS Systems Corporation
Sensors Division
3001 Sheldon Drive
Cary, North Carolina
27513, USA
Tel.: [phone]
Fax: [phone]
[phone]
e-mail: [email protected]
http://www.mtssensors.com
MTS Sensor Technologie
GmbH & Co. KG
Auf dem Schüffel 9
D - 58513 Lüdenscheid, Germany
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
http://www.mtssensor.de
MTS Sensors Technology
Corporation
737 Aihara-cho, Machida-shi
Tokyo 194-0211, Japan
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
http://www.mtssensor.co.jp
