Emergency Services and Safety Precautions PL-1
Emergency Services and Safety Precautions
Emergency services
To make an emergency call in any country
1Ensure that your e808 is on and in service.
2Press the CLR key to return to the standby screen if needed.
3Press 112 (or 999 within UK or 000 in Australia) followed by the Start key.
•When the USIM card is not inserted, just press the SK1 (Emrgncy) key.
•When the handset is dial/keyboard locked, a message will be generated indicating that it is in a lock.
Ignore the messages and press the emergency number, and then the Start key.
•When the handset is dial/keyboard locked, the SK1 (Emrgncy) key will not be indicated.
4Follow instructions received and do not end call until told to do so.
Tell the operator which service you require: Police, Ambulance, Fire Brigade, Coastguard or Mountain
Rescue Service. Give your position and, if possible, remain stationary to maintain contact.
The 112 emergency number service is available on every digital network service whilst in the UK an
alternative is 999 and in Australia 000. Note that these can only be used with a valid USIM.
Due to the nature of the cellular system, the connection of emergency calls cannot be guaranteed.
Even if the handset is in dial/keyboard lock, you can make emergency calls. Press the emergency call
number (ignore the message indicating the handset is in dial/keyboard lock) and press the Start key.
General care
A handset contains delicate electronic circuitry, magnets, and battery systems. You should treat it with care
and give particular attention to the following points:
•Do not allow the handset or its accessories to come into contact with liquids or moisture at any time.
•Do not paint the handset.
•Do not drop or subject the handset to rough treatment.
•Do not place the handset alongside computer disks, credit cards, travel cards and other magnetic media.
The information contained on disks or cards may be affected by the handset.
•Do not leave the handset or the battery in places where the temperature could exceed 60 ºC, e.g. on a
car dashboard or a window sill, behind glass in direct sunlight, etc.

PL-2 Emergency Services and Safety Precautions
•Do not remove the handset’s battery while the handset is switched on.
•Take care not to allow metal objects, such as coins or key rings to contact or short-circuit the battery
terminals.
•Always slide the battery lock up, to prevent the battery from falling out from the handset.
•Do not dispose of battery packs in a fire. The handset’s Li-ION batteries may be safely disposed of at a
Li-ION recycling point. For more specific battery and power supply information, see pages 8 and 10.
•Do not put the handset’s battery in your mouth, as battery electrolytes may be toxic if swallowed.
•Do not attempt to dismantle the handset or any of its accessories.
•This equipment is fitted with an internal battery that can only be replaced by a qualified service engineer.
There is a risk of explosion if the battery is replaced with an incorrect battery type. Dispose of the used
battery in accordance with the manufacturer’s instructions.
•Do not put battery into a microwave oven, dryer, or high-pressure container.
•Do not contact battery directly to an electric outlet or cigarette lighter charger.
•Do not pierce battery with a sharp object such as a needle.
•Do not hit with a hammer, step on, throw or drop to cause strong shock.
•When the battery is thrown away, be sure it is non-conducting by applying vinyl tape to the (+) and (-)
terminals.
•Do not immerse in water.
•Do not disassemble or modify the battery.
•Do not solder a battery directly.
•Stop using the battery if abnormal heat, odor, discolouration, deformation, or abnormal condition is
detected during use, charge, or storage.
•Do not use with a damaged or deformed battery.
In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes or
skin. If the leakage does come into contact with the eyes or skin, please flush thoroughly in clean water
and consult with a doctor.
•Remove the battery whose life cycle has expired from equipment immediately.
•The earpiece may become warm during normal use. Also, the handset itself may become warm while the
battery is being charged.
•When a handset is set to Vibration mode, the vibration can sometimes cause the e808 handset to move.
Be careful not to place the handset near heat sources (such as a heater) or too close to the edge of the
table.

Emergency Services and Safety Precautions PL-3
•Use a damp or anti-static cloth to clean the handset. Do not use a dry cloth or electrostatically charged
cloth. Do not use chemical or abrasive cleaners as these could damage the case.
•Remember to recycle: the cardboard packing supplied with this handset is ideal for recycling.
•Remember to make backup copies of all important data on your handset.
•Third party equipment
The use of third party equipment, cables or accessories, not made or authorised by NEC, may invalidate
the warranty of your cellphone and also adversely affect the phone’s safety/operation.
Aircraft safety
•Switch off your handset when inside or near aircraft. The use of handsets in aircraft is illegal, as it may be
dangerous to the operation of the aircraft and it may disrupt the aircraft communication system. Failure to
observe this instruction may lead to suspension or denial of the offender’s handset service, or legal
action, or both.
•Do not use the handset on the ground without the permission of the ground staff.
General safety
•Observe "Turn off 2-way radio" signs, such as those near petrol stations, chemicals or explosives and
turn off handset/device.
•If you have a heart condition, be careful with the settings of call vibration or tone volume.
•Do not allow children to play with the handset, charger or batteries.
•Do not use the handset where blasting is in progress.
•The operation of some medical electronic devices, such as hearing aids and pacemakers, may be
affected if a handset is used next to them. Observe any warning signs and the manufacturer’s
recommendations.
Road safety
•You MUST exercise proper control of your vehicle at all times. Give your full attention to driving.
•Observe all of the recommendations contained in your local traffic safety documentation.
•Pull off the road and park before making or answering a call, if driving conditions so require.
•You MUST NOT stop on the hard shoulder of a motorway to answer or make a call, except in an
emergency.
•Switch off your handset at a refuelling point, such as a petrol station, even if you are not refuelling your
own car.

PL-4 Emergency Services and Safety Precautions
•Do not store or carry flammable or explosive materials in the same compartment as a radio transmitter.
•Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems are not
normally affected by radio transmissions. The manufacturer of such equipment can advise if it is
adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio
transmissions consult your dealer and do not switch on the handset until it has been checked by qualified
approved installers.
•Check if local laws and/or regulations restrict the use of handsets while driving.
Vehicles equipped with an air bag
An air bag inflates with great force. Do not place objects, including either installed or portable wireless
equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inflates, serious injury could result.
Third party equipment
The use of third party equipment, cables or accessories, not made or authorised by NEC, may invalidate the
warranty of your handset and also adversely affect the handset’s operation. For example, use only the NEC
mains cable supplied with the AC charger.
Service
The handset, batteries and charger contain no user-serviceable parts. We recommend that your NEC
handset be serviced or repaired by an NEC authorised service centre. Please contact 3 or NEC for advice.
Efficient use
The handset has the internal antenna. For optimum performance with minimum power consumption, please
do not cover the internal antenna area with your hand. Covering the internal antenna affects call quality, may
cause the handset to operate at higher power level than needed, and may shorten talk and standby times.
Radio frequency energy
Your handset is a low-power radio transmitter and receiver. When it is turned on, it intermittently receives and
transmits radio frequency (RF) energy (radio waves). The system that handles the call controls the power
level at which the handset transmits.
Exposure to radio frequency energy
The handset is designed not to exceed the limits for exposure to RF energy set by national authorities and
international health agencies.* These limits are part of comprehensive guidelines and establish permitted
levels of radio wave exposure for the general population. The guidelines were developed by independent
scientific organizations such as ICNIRP (International Commission on Non-ionizing Radiation Protection)

Emergency Services and Safety Precautions PL-5
through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health, and to account for any variations
in measurements.
*Examples of radio frequency exposure guidelines and standards that the handset is designed to conform to:
•ICNIRP, "Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic fields
(up to 300 G Hz)-International Commission on Non-Ionizing Radiation Protection (ICNIRP). Health
Physics, vol.74. pp, 494-522, April 1998.
•99/519/EC, EU Council Recommendation on the limitation of exposure to the general public to
electromagnetic fields 0 Hz-300 GHz. Official Journal of the European Communities, July 12, 1999.
•ANSI/IEEE C95.1-1992. "Safety levels with respect to human exposure to radio frequency
electromagnetic fields, 3kHz to 300 GHz". The Institute of Electrical and Electronics Engineers Inc., New
York, 1991.
•FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications Commission (FCC),
August 1996.
•Radiocommunications (Electromagnetic Radiation Human Exposure) Standard 1999, Australian
Communications Authority (ACA), May 1999.
Declaration of conformity
We declare under our sole responsibility that the product(s) detailed in this manual, and in combination with
our accessories, conform with the essential requirements of European Union Directive 1999/5/EC Radio and
Telecommunications Terminal Equipment Directive requirements 3.1(a), 3.1(b), 3.2.
Con la presente NEC dichiara, sotto la propria responsabilità, che il prodotto descritto in questo manuale (e
in combinazione con i propri accessori), è conforme ai requisiti essenziali e alle disposizioni pertinenti
stabilite dalla direttiva radio 1999/5/CE e ai requisiti 3.1(a), 3.1(b), 3.2 stabiliti dalle direttive per i terminali di
telecomunicazioni.
Nous déclarons sous notre unique responsabilité que le(s) produit(s) présentés dans ce manuel et leurs
accessoires sont conformes aux conditions de la Directive de l’Union Européenne 1999/5/EC sur les
équipements de terminaison radioélectriques et de télécommunications, 3.1(a), 3.1(b), 3.2.
Wir erklären in alleiniger Verantwortung, dass die in diesem Handbuch aufgeführten Produkte allein und in
Verbindung mit den von uns hergestellten Zubehörerzeugnissen den grundlegenden Vorschriften und
Bestimmungen der EG-Richtlinie 1999/5/EC, Funkund Telekommunikationsendgeräte, Abschnitte 3.1(a),
3.1(b) und 3.2 entsprechen.
Vi tar ansvar för att produkten/produkterna som beskrivs i manualen, också i kombination med våra tillbehör,
överenstämmer med de väsentliga krav som beskrivs i 3.1(a), 3.1(b), 3.2 i Rådets direktiv om radioutrustning
och teleterminalutrustning (1999/5/EG).
A copy of the “Declaration of Conformity” certificate can be found on www.neceurope.com.

CL-1 Contents
Contents
Emergency Services and Other Possible Operations During a Call ....... 18
Safety Precautions ....................................... PL-1 Making and Receiving a Video Call ................... 19
What’s e808? ......................................................1 To Make a Video Call to a
Views, Keys, and Display of e808 .......................1 Video Capable Handset ................................. 20
Setup ...................................................................4 To Make a Video Call to a PC with Webcam . 20
USIM Card ...........................................................4 To Receive a Video Call ................................. 21
Battery .................................................................8 Settings During a Video Call .......................... 23
Charging ..........................................................8 Showing and Hiding Your CLI ........................... 24
Low Battery Alarm ..........................................10 Text Entry ......................................................... 25
Power On/Off ....................................................11 Text Mode and Numeric Mode ........................... 25
Power On/Off .....................................................11 Keys .................................................................. 26
Entering PIN Code ............................................. 11 Text edit ............................................................. 27
Power Saver ......................................................12 Display Information ............................................ 29
Setting Clock .....................................................12 Contacts ........................................................... 29
Making and Receiving Calls ...........................12 Contact Entries .................................................. 29
Making a Voice Call ...........................................13 Contacts Menu List ............................................32
Receiving a Voice Call .......................................15 Browser ............................................................ 36
During a Voice Call ............................................17 Browser Menu List ............................................. 36
To Make a Second Call .................................. 17 Advanced Features ......................................... 41
To Receive a Second Call.............................. 18 Video Call .......................................................... 41
To Switch to a Grouptalk ................................ 18 Photo/Video Camera ......................................... 42

Contents CL-2
Multi-call/Multi-task ............................................43 Message Memory Maintenance ........................ 76
High-Speed Data Communications ...................44 Email ................................................................. 77
Other Features of e808 .....................................46 Email Menu List ............................................. 78
Messaging ......................................................46 Email Operation List ...................................... 78
Java™ Application .........................................46 Email Settings ................................................ 80
Images ...........................................................47 Email Basic Operations .................................. 81
Video/Audio Player ........................................47 Email Memory/Cash Maintenance.................. 92
Data Transfer to/from a PC ............................47 Java™ ............................................................... 94
How to Use Menu Function .............................48 Settings ............................................................ 97
Menu Functions Operations ..............................49 Phone ................................................................97
Menu Functions List ..........................................53 VT Settings ........................................................ 99
Service (SAT) ....................................................57 Profile ................................................................99
External Connect .............................................57 Time ................................................................ 100
USB ...................................................................57 Display ............................................................ 101
Message ...........................................................58 Clock .............................................................. 102
Overview ............................................................58 Security .......................................................... 102
Message Services Provided by e808 .............58 Services .......................................................... 104
Message Memory Maintenance .....................59 Provisioning .................................................... 107
Maximum Number of Characters ...................59 Network .......................................................... 108
Messaging Operation List ..............................59 Other ............................................................... 109
Message Menu List ........................................61 Multimedia ...................................................... 109
Message Settings ..........................................62 Video ............................................................... 110
Writing and Sending a Message ........................64 Image ............................................................... 115
Receiving and Reading a Message ...................71 Audio Player .................................................... 118

CL-3 Contents
Voice Recorder ................................................120 Contacts .......................................................... 133
Other File Type ................................................121 Owner Info ....................................................... 133
Accessories ...................................................121 Calls Received ................................................ 133
Calendar ..........................................................122 Calls Made ...................................................... 134
ToDo ................................................................126 Ringtune .......................................................... 134
Alarm Clock .....................................................127 Used Memory .................................................. 135
Calculator ........................................................128 Data Transfer ................................................. 135
Currency Calculation .......................................129 To/From USIM ................................................. 136
Voice Notes .....................................................130 To/From PC ..................................................... 139
Text Notes ........................................................131 Shortcut keys ................................................... 140
User Data ........................................................132 Index ............................................................... 144

What’s e808? -1-
What’s e808?
The e808 combines a wide range of features into a technologically advanced handset, capable of operating
in both UMTS (Universal Mobile Telecommunication System), also known as 3G, as well as GSM (Global
System for Mobile Communications) or 2G.
3G will allow much greater data speeds than 2G networks and will enable you to make video calls, send
emails and multimedia messages and view photos and videos and much more.
Views, Keys, and Display of e808
Views
Camera
LED indicator
Front
Back
Stereo headset connector
I/O connector for USB cable or charger
Left
Right
Camera
Speaker
(Back/Away from me)
(Front/Towards me)
Microphone
Battery lock

-2- What’s e808?
Keys
Triangle key
End (On-Off) key
Return key
SYMBOL key
SK2 (Softkey 2) key
4-Way navigation
Display (Refer to the next page.)
Camera (Front/Towards me)
SK1 (Softkey 1) key
MENU key
CLR (Clear) key
Start key
(Up/Down/Left/Right) key
CAP (Capital) key
SHIFT key
SPACE key
BS (Backspace) key
Internal antenna
Enter key

What’s e808? -3-
Display
Battery level
Vibrate on
Call diverting
Voice message
Email/Multimedia message/Text message Signal strength
2G/3G roaming mode
Packet switched connect
Circuit switched connect
USB connect
Multitask
SK1 key SK2 key
4-Way navigation (Up/Down/Left/Right)* Enter key**
Profile *
Missed call/
Date
Local time
Remote time
Operator name
Area setting mode
** The 4-Way navigation indicator and the Enter key indicator are replaced with (shutter icon)
or (yellow: dial lock indicator, red: keyboard lock indicator) that indicates whether the video
capture or image capture function is on or a dial/keyboard lock function is on.
Schedule or Alarm on
Service provider name
* Profile indicates the following handset operation modes: normal, meeting, pocket, and car. Pressing
and holding the ✱key will allow you to set a profile. (Refer to Profile on page 99.)

-4- Setup
Setup
Before you use your handset you will need to carry out the following actions:
•Valid USIM (Universal Subscriber Identity Module) card inserted
•Battery charged
•Set the data and time.
This section will guide you through this step by step.
USIM Card
When you become a subscriber to 3, you are issued a USIM card with a security code or PIN (Personal
Identification Number). The USIM card contains your personal subscriber data and must be inserted into your
handset.
If the USIM card is removed then the handset becomes unusable until a valid USIM is inserted. The holder
for the USIM card is located underneath the battery.
Always turn off the handset and disconnect the charger and other accessories from the handset before
inserting and removing the USIM card.

Setup -5-

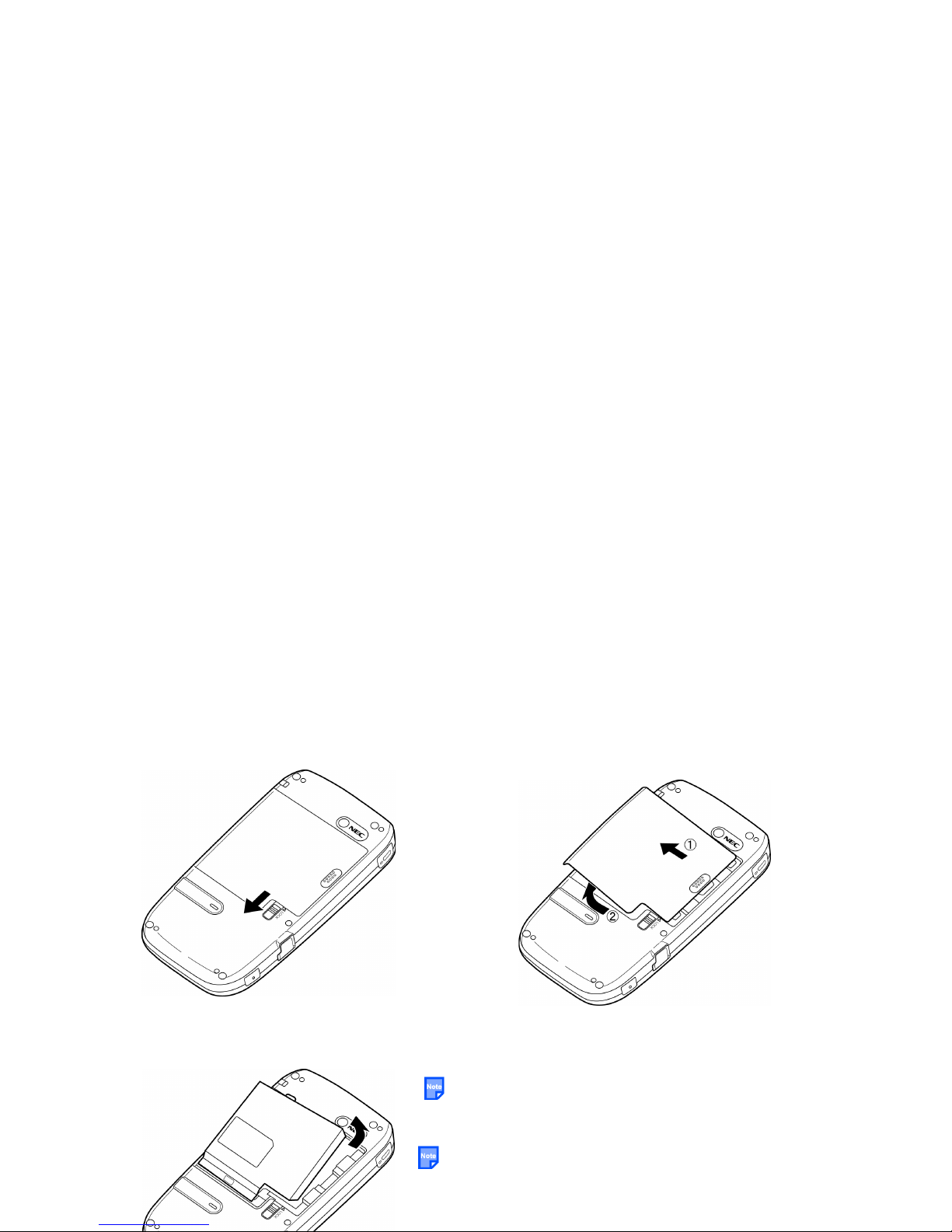

To Insert a USIM Card
1Slide the battery lock down.
3Lift the battery away from the handset.
When it is difficult to lift the battery, please use
the small projection on the upper side of the
battery to remove it.
If you cannot remove the battery by the above
instruction, gently shake e808 to remove it. In
this case, please take care not to drop the
battery or e808.
2Slide the back cover backward and lift it
away from the handset.

-6- Setup
4Slide and release the USIM card holder lock. 5Open the USIM card holder.
6Insert the USIM card into the USIM card holder. 7Slide and lock the USIM card holder.

Setup -7-
To Remove a USIM Card
1Slide the back cover backward and lift it away from the handset.
2Lift the battery away from the handset.
3Slide and release the USIM card holder lock.
4Open the USIM card holder.
5Slide the USIM card out of the USIM card holder.
9Slide the back cover back in place.8Insert the battery and push down
until it clicks into place.
10 Slide the battery lock up.

-8- Setup
Battery

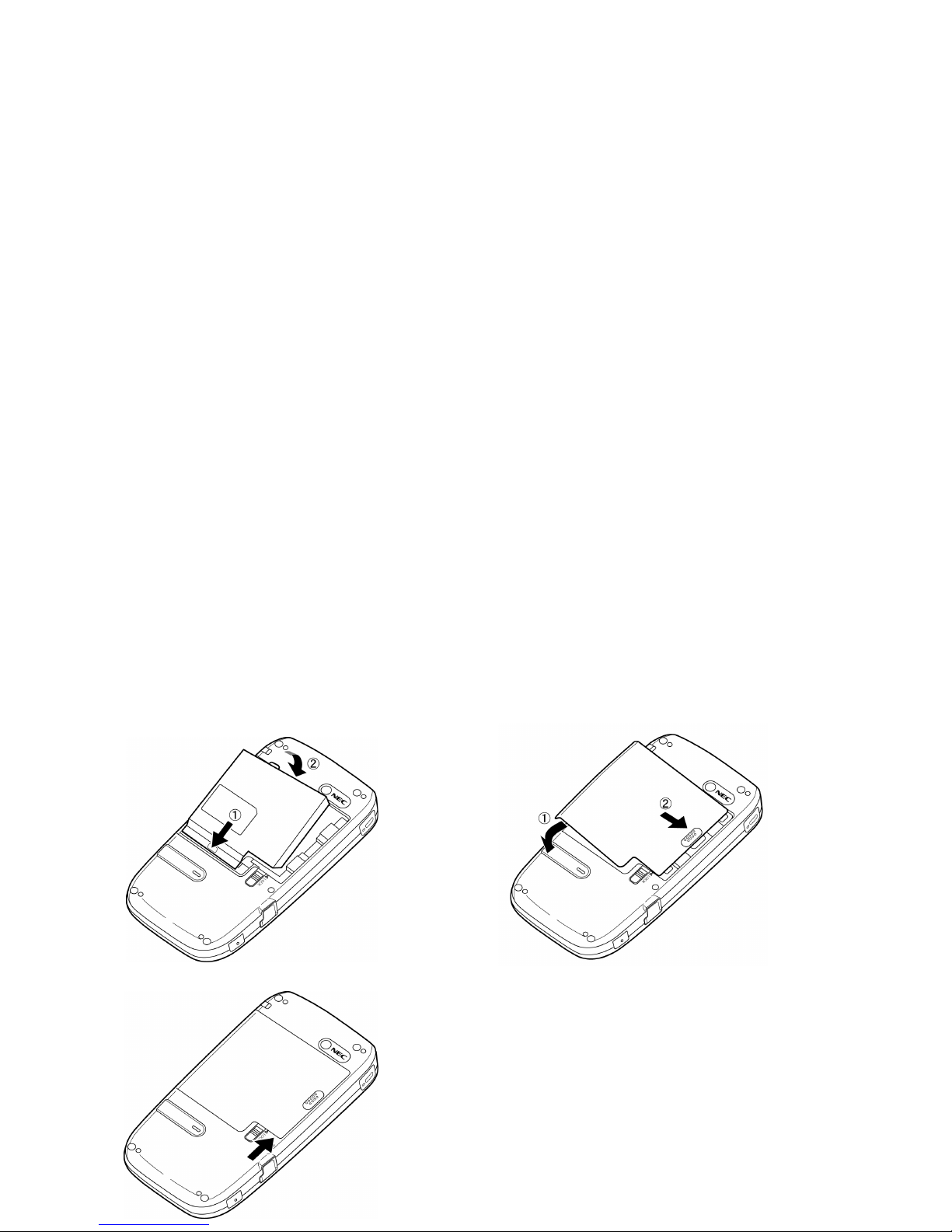

To Insert the Battery
1Slide the back cover backward and lift it away from the handset.
2Insert the battery and push down until it clicks into place.
3Slide the back cover back in place.
4Slide the battery lock up.
To Remove the Battery
1Ensure that the handset is switched off. If the handset is switched on, press and hold the End (On-Off)
key until power is off.
2Slide the battery lock down.
3Slide the back cover backward and lift it away from the handset.
4Lift the battery away from the handset.
When it is difficult to lift the battery, please use the small projection on the upper side of the battery to
remove it.
If you cannot remove the battery by the above instruction, gently shake e808 to remove it. In this case,
please take care not to drop the battery or e808.
The battery is not fully charged when you buy your handset but there may be enough power in the battery to
turn the handset on. A battery that has not been used for a long period of time needs to be completely
discharged and then recharged two or three times before reaching full capacity. Charge the battery by
following the procedure indicated below.
The battery can also be charged whenever you wish without affecting the performance of the handset.
The e808 automatically switches off if the battery voltage is too low.
Batteries have a life cycle. If the time that the battery powers equipment becomes much shorter than
usual, the battery life is coming to an end. Replace the battery with a new one of the same type.
When not using the battery for a long period, remove it from the e808 and store in a place with low
humidity and low temperature.
Charging
Charge the battery by using the charger supplied with your handset. When the battery is fully charged, a full
battery power level icon will be displayed. Refer to Low Battery Alarm on page 10 for details.

Setup -9-
To Charge the Battery Using the Charger
1Make sure that the battery is attached to your handset.
2Connect the charger plug to the e808 I/O connector. See the diagram below.
3Plug the charger into a power socket. The red LED indicator on the outside of your e808 will light up
when charging is in progress and go off when charging is completed.
4After charging the battery, tilt the charger plug upward and pull it away from the e808 I/O connector.
Even if the handset remains connected to the charger, battery residual capacity may decrease when the
handset is used.
The battery must be charged in the room temperatures between 0°C and 45°C. Ensure that your handset
is switched off. If the handset temperature is high, wait until it returns to a normal temperature.
The recommended battery charge time is approximately 4 hours.
Stop charging the battery if charging is not completed within 5 hours.

-10- Setup
Low Battery Alarm

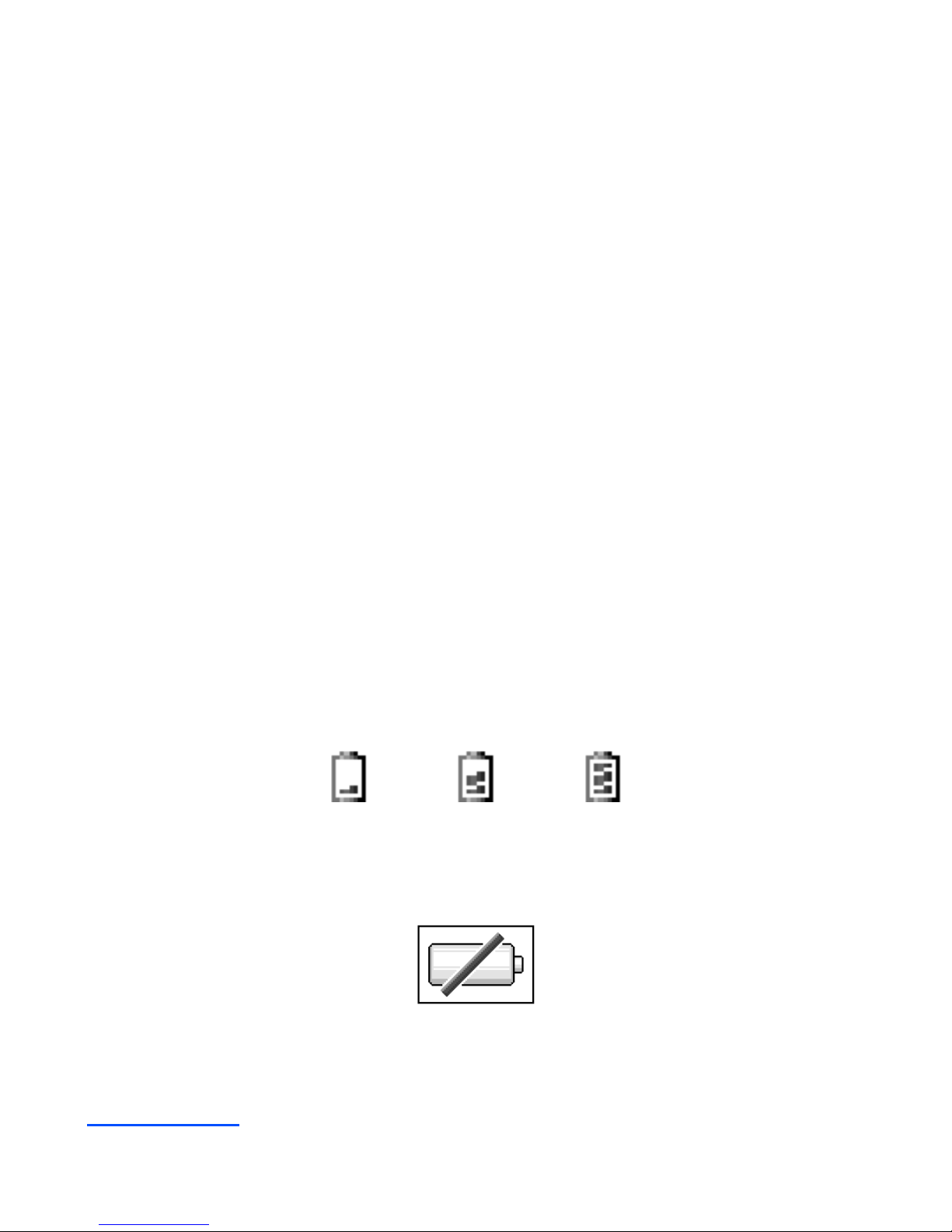

The battery power level (3 levels) is indicated by the following icons:
When the battery runs out, the following image will blink on the display. A low-power warning alarm sound will
come on for approximately 10 seconds. Press the End key to turn off the alarm. After approximately one
minute, the power will be turned off.
During a call, the image and a discontinuing alarm sound indicate low-power. After approximately 20 seconds
the call will be disconnected.
When the ringing volume level is set to Level 0 (silent), the low-power warning alarm will turn on at Level 1
(the softest level). When the volume level is between 1 and 6, it will come on at Level 3 (medium level).
Date and Time
When using your e808 for the first time, please remember to set the date and time. This will ensure that all of
your e808 functions are accessible. For further instructions, refer to Setting Clock on page 12 and Date &
Time on page 102.
Low Battery Medium Battery Full Battery
