NEC Aspire User manual

Product Description
(5.00)
4. Specifications and
Parts List
2. The Components
3. Features
1. The Basics

This manual has been developed by NEC Unified Solutions, Inc. It is intended for the use of its customers and
service personnel, and should be read in its entirety before attempting to install or program the system. Any
comments or suggestions for improving this manual would be appreciated. Forward your remarks to:
NEC Unified Solutions, Inc.
4 Forest Parkway
Shelton, CT 06484
necunifiedsolutions.com
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or
representation with respect to, any of the equipment covered. This manual is subject to change without notice and
NEC Unified Solutions, Inc. has no obligation to provide any updates or corrections to this manual. Further, NEC
Unified Solutions, Inc. also reserves the right, without prior notice, to make changes in equipment design or
components as it deems appropriate. No representation is made that this manual is complete or accurate in all
respects and NEC Unified Solutions, Inc. shall not be liable for any errors or omissions. In no event shall NEC Unified
Solutions, Inc. be liable for any incidental or consequential damages in connection with the use of this manual. This
document contains proprietary information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied or reproduced without prior written consent of NEC Unified Solutions, Inc.
©2006 by NEC Unified Solutions, Inc. All Rights Reserved.
Printed in U.S.A.

Table of Contents
Product Description i
Section 1: The Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Section 2: Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
The Telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keyset Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Aspire S Common Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Aspire S Trunk PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Aspire S Station PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Aspire (M/L and XL) Common Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Aspire Trunk PCBs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Aspire Station PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Aspire Optional Feature Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Section 3: Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Abbreviated Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Account Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Alarm Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Alphanumeric Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Analog Communications Interface (ACI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Aspire Wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Attendant Call Queuing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Automatic Call Distribution (ACD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Automatic Route Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Background Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Barge In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Call Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Call Duration Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Call Forwarding, Fixed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Call Forwarding, Off-Premise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Call Forwarding with Follow Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Call Forwarding/Do Not Disturb Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Call Pickup Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Call Redirect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Call Waiting / Camp On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Center Telephone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Table of Contents
ii Product Description
Central Office Calls, Answering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Central Office Calls, Placing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Class of Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Computer Telephony Integration (CTI) Applications . . . . . . . . . . . . . . . . . . . . . 93
Conference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Conference, Voice Call/Privacy Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Continued Dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Cordless II/Cordless Lite II. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Department Calling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Department Step Calling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Dial Number Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Dial Pad Confirmation Tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Dial Tone Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Direct Inward Dialing (DID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Direct Inward Line (DIL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Direct Inward System Access (DISA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Direct Station Selection (DSS) Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Directed Call Pickup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Directory Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Display Messaging, Selectable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Distinctive Ringing, Tones and Flash Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . 112
Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Door Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Dual Line Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Dual OPX/2-OPX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
E911 Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
External Alarm Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Flexible System Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Forced Trunk Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Group Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Group Listen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Handsfree and Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Handsfree Answerback/Forced Intercom Ringing . . . . . . . . . . . . . . . . . . . . . . . 119
Headset Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hotline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Hotline, External. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Table of Contents
Product Description iii
i-Series Telephones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
InDepth Lite, inDepth and inDepth+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Intercom Abandoned Call Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
ISDN Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Line Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Long Conversation Cutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Loop Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Meet Me Conference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Meet Me Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Meet Me Paging Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Memo Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Message Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Microphone Cutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Multiple Directory Numbers / Call Coverage. . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Music on Hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Name Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Night Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Off Hook Signaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
One-Touch Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
OPX (Off Premise Extension) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Paging, External . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Paging, Internal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Paging, Privacy Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
PBX Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Prime Line Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Privacy Release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Private Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Programmable Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Pulse to Tone Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Repeat Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Reverse Voice Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Ring Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Table of Contents
iv Product Description
Ring Tones, Selectable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Ringdown Extension, Internal/External . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Room Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Save Number Dialed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Secretary Call (Buzzer). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Secretary Call Pickup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Secure Set Relocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Selectable Display Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Selectable Ring Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Serial Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Single Line Telephones, Analog 500/2500 Sets. . . . . . . . . . . . . . . . . . . . . . . . . 167
Single Line Telephones, Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Soft Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Station Message Detail Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Station Park. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Station Relocation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
T1 Trunking (with ANI/DNIS Compatibility) . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Tandem Ringing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Tandem Trunking (Unsupervised Conference) . . . . . . . . . . . . . . . . . . . . . . . . . 173
TAPI Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Tie Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Time and Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Toll Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Toll Restriction, Dial Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Toll Restriction Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Traffic Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Transfer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Trunk Group Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Trunk Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Trunk Queuing/Camp On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Ultra CallAnalyst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Universal Answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Voice Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Voice Response System (VRS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Volume Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Warning Tone For Long Conversation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Table of Contents
Product Description v
Section 4: Specifications and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
System Number Plan/Capacities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Aspire S System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Aspire M/L System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Aspire XL System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Aspire M/L/XL System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Aspire S Configuration Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Aspire M/L/XL Configuration Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Table of Contents
vi Product Description

Section 1: The Basics
Product Description 1
1
Section 1:The Basics
spire from NEC allows you to converge your voice and data network
and enjoy the many advantages of Voice over Internet Protocol (VoIP)
while enjoying the hundreds of features you’ve come to expect from tra-
ditional digital/analog switching. Aspire lets your organization beneÞt from the
potential cost-saving advantages of IP even if you’re not ready to migrate to 100%
IP Telephony immediately. That’s because Aspire gives you a choice: You can
deploy traditional circuit-switched technology, VoIP or a combination, all from one
system! You have the freedom to adopt VoIP when and where you need it.
Peer-to-Peer Switching
“Peer-to-peer” switching means that the stations participating in a call are con-
nected directly to each other through the IP network. The signals travel through
the IP network but do not “go through” the switch as they do in traditional tele-
phony. The fact that Aspire can function in and support a “hybrid” network with
traditional digital/analog switching, IP/TDM/IP switching and pure peer-to-peer
IP switching means that users can continue to utilize their existing equipment
while they begin to phase in IP Telephony and lay the foundation for current and
future networks.
A

Section 1:The Basics
2 Product Description
Reduced Costs of Peer-to-Peer IP Connectivity
● Maintain one network rather than two
● Bypass the long distance carrier by sending voice calls over the data network
● Single cable termination to the desktop
● Reduced brick and mortar expenses by deploying main ofÞce features to
remote personnel.

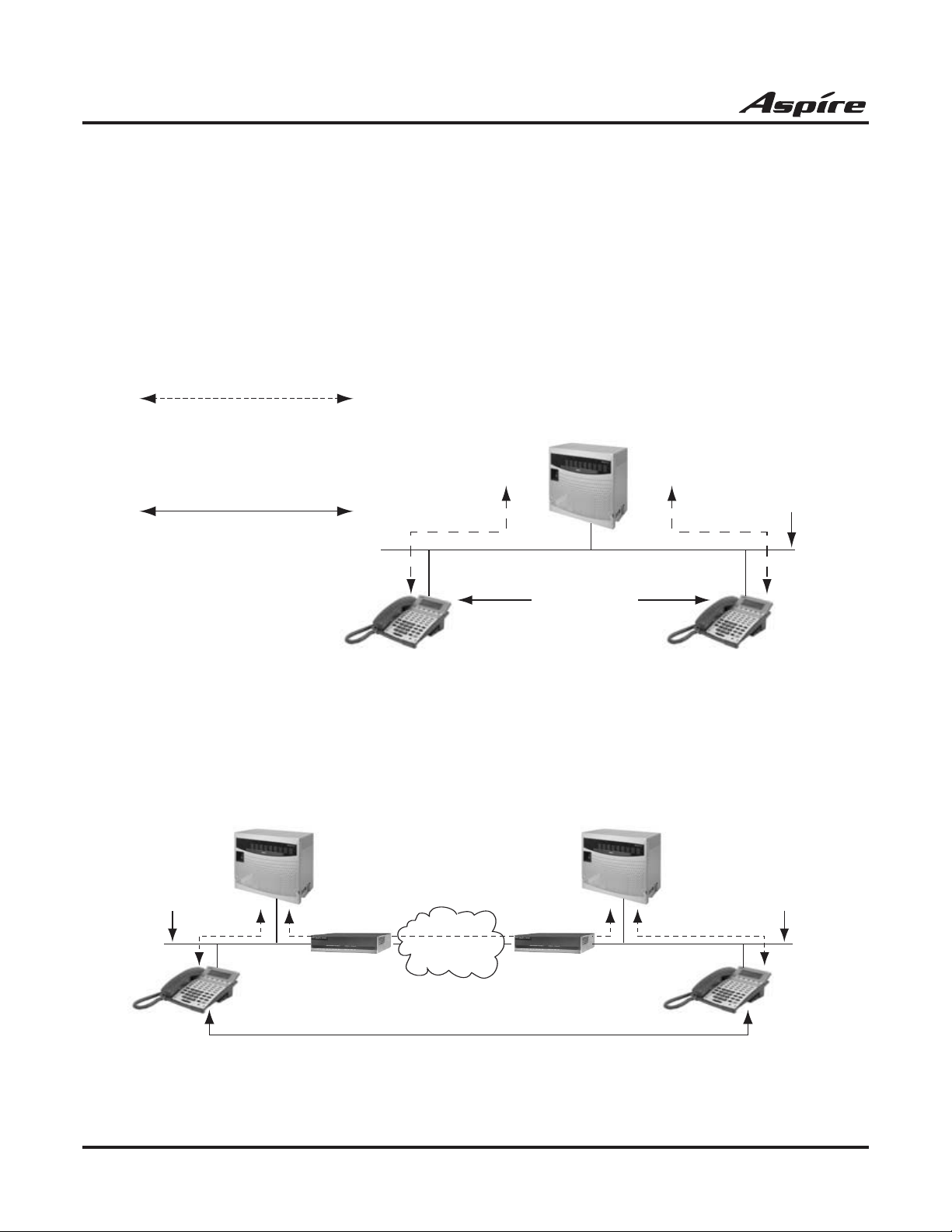

Node-to-Node Peer-to-Peer IP
Connectivity In LAN
Aspire
Cabinet
IP Phone Sets
10/100
Ethernet LAN
The Aspire unit assists in the call
setup process and provides the
full range of Aspire
telephony features.
Once the call is establised, it is
"carried" only by the network The
Aspire only "re-enters" when
requested to Provide call
control features.
Node-to-Node Peer-to-Peer IP Connectivity Accross WAN
Aspire Cabinet with Internal Switching HubAspire Cabinet with Internal Switching Hub
10/100
Ethernet LAN
10/100
Ethernet LAN
Router Router
Managed IP
Network

Section 1: The Basics
Product Description 3
1
Elegant Sophisticated Design
Aspire’s Voice over IP (VoIP) capability allows you to place voice calls over the
data
network . VoIP reduces long distance charges by using IP to connect multiple
ofÞce locations and telecommuters. Remote workers also have access to main
ofÞce features, such as voice mail, allowing ofÞces to operate as a single unit.
Aspire Mail , an optional digitally linked in-switch voice mail, provides sophisti-
cated features that save time and money.
Return call with Caller ID saves caller ID
information for inside- and outside-originated calls.
Answering Machine Emula-
tion
is helpful when you are waiting for an important call. It lets you listen while a
caller is leaving a message for you.
Message Center Keys allow two people sharing
the same phone to have their own message waiting key. Each person can see if he/she
has new messages.
Conversation Record saves and records your conversation into
your mailbox with the touch of a button.
Park and Page allows a caller to page you
before leaving a message.You can pick up the call from any station.
Automatic Call Distribution (ACD) distributes calls evenly among member agents
and provides initial and repetitive announcements that encourage callers to remain
online. Callers can leave a message if they choose to receive a callback from an agent.
Optional PC-based
Supervisor with Reports can be used for agent scheduling.

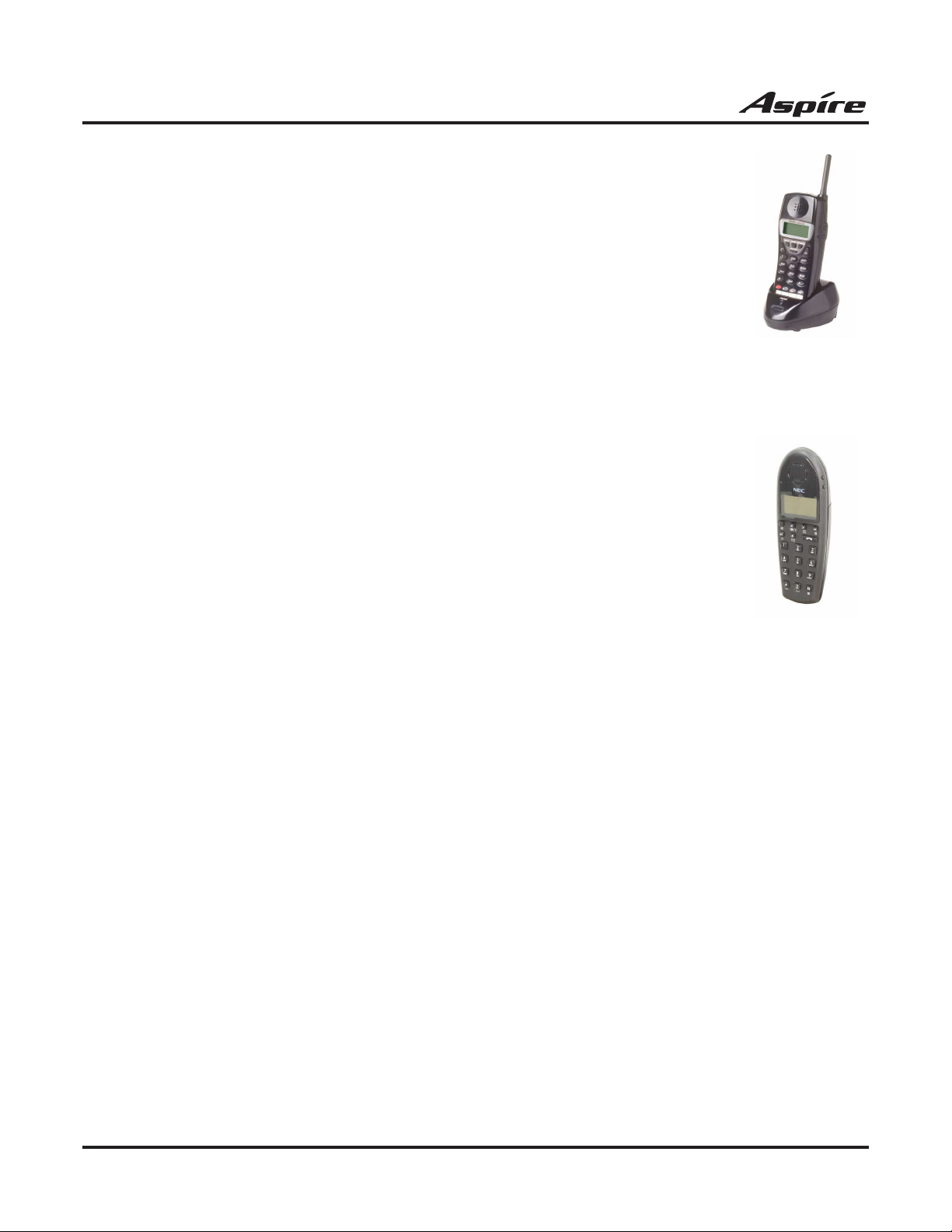

Wireless/Cordless phones keep employees connected while away from their desk.
Aspire provides a variety of mobility solutions to connect your whole campus or
just your ofÞce.
System maintenance allows for online HTML-based programming access either
on-site or over the Internet. Using browser software simpliÞes the process for
changing names or speed dial settings. Special PC software is available for off-line
programming and remote access by modem.
Call Logging saves information about incoming and outgoing calls. Logged calls
can be redialed or saved to speed dial.
Aspire’s Automatic Route Selection (ARS) system decides whether to place a
call with a long distance carrier, over IP or, if allowed, a local trunk. You specify
how you want your calls to be routed.
E911 Compatibility identiÞes the origination of an E911 call so emergency ser-
vices can reach the speciÞc extension location quickly.

Section 1:The Basics
4 Product Description
Aspire Versatility Feature List
Usability Serviceability Scalability
• Toll Restriction
• Built-in Headset Jack
• On-line Programming • Application Processors • User Programming
• Call Coverage Keys
• Remote Programming • IP Keysets • Walking Class of
Service
• Caller ID Logging
• Self Diagnostics • IP Trunks • Web-based
Programming
• Contrast Control
• Single Pair Wiring • Software Upgrades
• Last Number Redial
List (10)
• Universal Line/Station
Card Slots
Adaptability
• One Touch Feature
Operation
Versatility
• In-switch Aspire
• Tilt Display
• Analog Trunks and
Stations
Manageability
• Mail Cards
• Colored Face Mats • Account Codes, Forced
& VeriÞable • Media Gateway
Flexibility
• Digital Trunks and
Stations • Automatic Call Distribution • Switching Hub
• Adjustable Height
Telephone • DID Trunks • Automatic Route Selection • In-server Card
• Flexible Numbering
Plan • E&M Trunks • Built-in Mini Gatekeeper • Wall, ßoor, 19” Rack Mountable Cabinet
• Secure Station
Relocation • IP Trunks and Stations • IP Networking • TDM and/or IP
• Universal Card Slots • i-Series Telephone
Support • Networking
• Virtual Extension Keys • T1/PRI Trunks
• TAPI Compatible

Section 2: Components
Product Description 5
2
Section 2: Components
The Telephones
✍
Make a note. . .
For your convenience. . . there is a Parts List located at the end of this guide. You should Þnd this
list helpful when selecting system equipment. More detailed tools are also available — ask your
Account Representative for the speciÞcs.

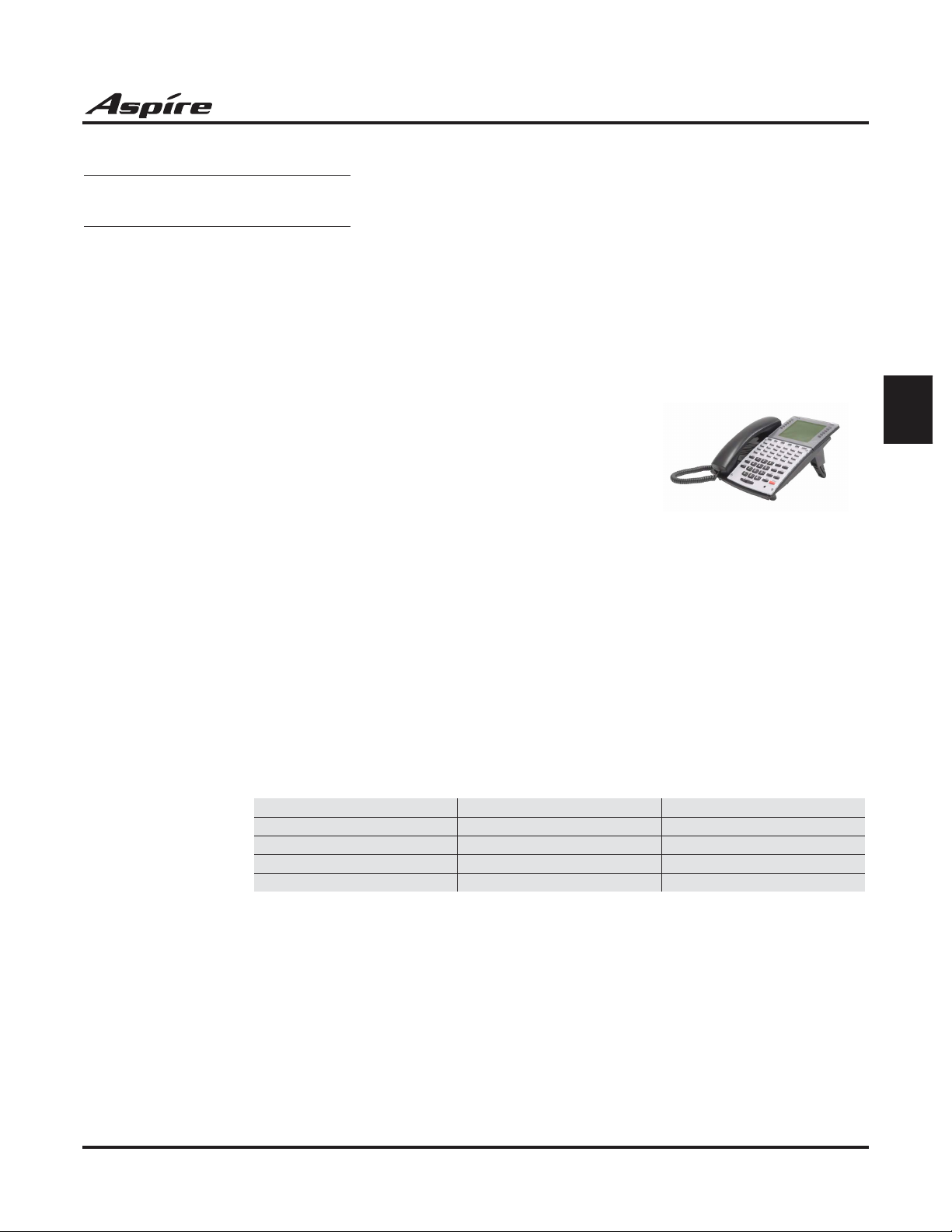

34-Button Super Display Telephone – P/Ns 0890049 & 0890050
The Super Display Telephone, which is supported with soft-
ware 1.07 or higher, is the system's premier telephone instru-
ment, featuring an interactive 9-line, 24-character display
with 12 associated interactive keys. As the Super Display
Telephone user processes calls, the interactive key functions
change to provide intuitive access to the system's most
sophisticated features. Every Super Display Telephone has a
built-in speakerphone for full Handsfree operation. Handsfree
Answerback and Intercom voice-announce capability is also
standard.
The telephone's 24 programmable function keys can be customized by the user for one-button
access to co-workers, features like Paging or Park or speciÞc outside lines. The Dual LEDs in each
programmable key help the user see which calls are for them and which features are active. Access
to other commonly used features is simpliÞed by 15 Þxed feature keys.
In addition, the Super Display Telephone provides a built-in wall-mount bracket, as well as adjust-
able legs which allow each phone to be angled at a height which best suits the user.
Note that the three IP adapters (IP, ADA2, and PSA) do not work on the Super Display Telephones.
✍
At a glance
Super Display Telephone - Part Numbers 0890049 & 0890050
Function Keys: ✔ Accepts 110-Button DSS: ✔ Accepts 24-Button DLS: ✔
Handsfree (Speakerphone): ✔ Dual LEDs: ✔ ADA Adapter: ✔
ADA2 Adapter: No APA Adapter: ✔ APR Adapter: ✔
CTA Adapter: ✔ CTU Adapter: ✔ ILPA Adapter:
No
IP Adapter:
No
PSA Adapter:
No

Section 2: Components
6 Product Description
34-Button Display Telephone — P/Ns 0890045 & 0890046
The 34-Button Display Telephone has a 3-line, 24-character dis-
play with four interactive soft keys for intuitive feature access. In
addition, the 34-Button Display Telephone has 24 user-program-
mable function keys (with Dual LEDs) for one-button access to
co-workers, features and outside lines. The telephone also pro-
vides 10 user-programmable One-Touch (Personal Speed Dial)
keys and 15 additional Þxed feature keys.
The 34-Button Display Telephone has a built-in speakerphone and
can accept optional adapters. You can also assign 110-Button DSS
Consoles or connect 24-Button DLS Consoles to these phones. Like the Super Display, the 34-Button
Display provides Handsfree Answerback, Intercom voice-announcements. In addition, the 34-Button
Display provides a built-in wall-mount bracket, as well as adjustable legs which allow each phone to
be angled at a height which best suits the user.
✍
At a glance
22-Button Display Telephone — P/Ns 0890043 & 0890044
The 22-Button Display Telephone features a 3-line, 24-charac-
ter display with 4 interactive soft keys for intuitive feature
access, in addition to 12 function keys with Dual LEDs. The
function keys are user-programmable and can provide 1-button
access to co-workers, features and outside lines. The telephone
additionally provides 10 user-programmable One-Touch (Per-
sonal Speed Dial) keys and 15 additional Þxed feature keys.
The 22-Button Display Telephone has a built-in speakerphone,
provides Handsfree Answerback, Intercom voice-announcements. In addition, the 22-Button Dis-
play provides a built-in wall-mount bracket, as well as adjustable legs which allow each phone to be
angled at a height which best suits the user.
✍
At a glance
34-Button Display Telephone - Part Numbers 0890045 & 0890046
Function Keys: ✔ Accepts 110-Button DSS: ✔ Accepts 24-Button DLS: ✔
Handsfree (Speakerphone): ✔ Dual LEDs: ✔ ADA Adapter: ✔
ADA2 Adapter:
No
APA Adapter: ✔ APR Adapter: ✔
CTA Adapter: ✔CTU Adapter: ✔ILPA Adapter: ✔
IP Adapter ✔PSA Adapter: No
22-Button Display Telephone - Part Numbers 0890043 & 0890044
Function Keys: ✔Accepts 110-Button DSS: ✔Accepts 24-Button DLS: ✔
Handsfree (Speakerphone): ✔Dual LEDs: ✔ADA Adapter: ✔
ADA2 Adapter: No APA Adapter: ✔APR Adapter: ✔
CTA Adapter: ✔CTU Adapter: ✔ILPA Adapter: ✔
IP Adapter: ✔PSA Adapter: No

Section 2: Components
Product Description 7
2
22-Button Standard Telephone — P/Ns 0890041 & 0890042
The 22-Button Telephone offers similar capabilities as the
22-Button Display Telephone, but excludes the alphanumeric
display and soft keys.
✍At a glance
2-Button Telephone — P/Ns 0890047 & 0890048
The Digital 2-Button Telephone offers many keyset features and
conveniences at an analog station set price. Handsfree Answer-
back lets users answer Intercom calls without touching the phone.
The 11 Þxed feature keys provide quick access to many essential
features, and the Message Waiting lamp always shows when there
are unanswered messages.
✍At a glance
Cordless Telephone — P/N 730088 & 730087
The Aspire System, with software 1.07 or higher, supports the Cordless Telephone.
The DTR-4R-2 Cordless II (P/N 730088) is a 900 MHz spread-spectrum digital
cordless telephone that provides mobility, ßexibility and convenience for those who
spend much of the workday away from their desk. Fully integrated with the tele-
phone system, the DTR-4R-2 Cordless II offers many standard features such as
Park, Do Not Disturb, Hotline, Voice Over and Voice Mail. Normally paired with a
companion keyset for improved 1-button call coverage capabilities, the DTR-4R-2
Cordless II will also work as a stand-alone telephone.
Where users require greater range on the cordless phones and 3 or less cordless
phones are being used at a speciÞc site, the DTR-4R-2 Cordless II phone is recommended.
22-Button Telephone - Part Numbers 0890041 & 0890042
Function Keys: ✔Accepts 110-Button DSS: ✔Accepts 24-Button DLS: ✔
Handsfree (Speakerphone): ✔Dual LEDs: ✔ADA Adapter: ✔
ADA2 Adapter: No APA Adapter: ✔APR Adapter: ✔
CTA Adapter: ✔CTU Adapter: ✔ILPA Adapter: ✔
IP Adapter ✔PSA Adapter: No
2-Button Telephone - Part Numbers 0890047 & 0890048
Function Keys: ✔Accepts 110-Button DSS: ✔Accepts 24-Button DLS: No
Handsfree (Speakerphone): ✔Dual LEDs: ✔ADA Adapter: No
ADA2 Adapter: No APA Adapter: No APR Adapter: No
CTA Adapter: No CTU Adapter: No ILPA Adapter: No
IP Adapter: No PSA Adapter: No

Section 2: Components
8Product Description
Complemented by 4 fully programmable function keys (with LEDs), the DTR-
4R-2 Cordless II achieves a whole new level of convenience and mobility. An
easy-to-read LCD display, volume controls, a rechargeable nickel-cadmium
battery pack and a handy belt clip round out the elegant and affordable DTR-
4R-2 Cordless II Phone. This phone provides 10 channels.
A second Cordless Phone is also available: the Cordless Lite II (P/N 730087).
The Cordless Lite II offers the same features as the DTR-4R-2 Cordless II
except that it uses a NiMH battery and has FM modulation (single channel)
instead of the spread spectrum modulation.
Where more than 3 cordless phones are to be used at one speciÞc site, the Cord-
less Lite II phone is recommended. This phone provides 30 channels.
Aspire Wireless (DECT) Phones — P/N 780004
The Aspire system, with software 2.16 or higher, provides the ability to use 2.4
GHz DECT (Digital Enhanced Cordless Telecommunication) phones. These
phones provide you with the freedom and conveniences of a wireless phone, but
in addition, you also have access to features provided by the Aspire system.
These phones can not be used on the Aspire S system.
The Aspire Wireless (DECT) phone provides additional options as well.
●Alphanumeric Display with Back Light
●LED Indication for Incoming and Unanswered Calls
●Telephone Book with 80 Number Memory Capacity
●Vibration
●Auto Log-In (roaming between different systems)
●14 Messages Stored
●Stack for 10 Caller ID
●Silent Mode (mute all sounds)
●Redial (last 10 numbers)
●Programming Pause
●Programming of 2 Different Setups (indoor and outdoor)
●Adjustable Volume
●Key Lock
●9 Different Ring Tones and Adjustable Ring Volume
●Microphone Mute
●Headset Connection
●Automatic Off-Hook (B-Answer)
●R-Key for Transfer and Special Services

Section 2: Components
Product Description 9
2
Keyset Adapters
Each Aspire keyset (except the 2-Button telephone) accepts the following optional adapters, though
there are limitations with phone types (such as IP) and adapter compatibility. Each telephone can
have up to two adapters installed except when an IP adapter is used. This adapter uses the full space
on the keyset, preventing any other adapter installation. In addition, the IP adapter cannot be used
on a Super Display telephone.
You can install one of these. . .
●Call Recording Adapter (ADA) (P/N 0890055)
Using the ADA Adapter provides a recording jack connection which provides a connection from a
telephone to an external tape recorder or speaker.
●Analog Interface with Ringing (APR) (P/N 0890056)
The APR provides an analog interface for a keyset. The APR provides ringing which allows the
connected device to be used for incoming and outgoing calls. It can use the same extension number
as the keyset (B1 channel) or it can have its own extension number (B2 channel). The APR does not
support reverse polarity, message waiting lamping, or Caller ID.
This adapter requires an AC Adapter (AC-2R), P/N 780135.
The APR for the B1 channel consumes no ports, however, the B2 channel consumes 1
port, ranging from 512 to 1 in descending order.
●Analog Interface without Ringing (APA) (P/N 0890057)
The APA provides an analog interface for a keyset. The connected device is used for outgoing calls
only (for example, when using a modem). It does not provide ringing. When an analog device is in
use, the keyset cannot be used (as the same port number is used for both devices). If both devices
are picked up at the same time, the analog device takes priority. The APA does not support reverse
polarity, message waiting lamping, or Caller ID.
●RS-232C Adapter (CTA) (P/N 0890058)
Provides a serial interface (RS-232C) connector. This can be used for SMDR or TAPI (1.4) or sys-
tem reporting.
●Speakerphone Adapter (HF-R) (P/N 0890062 & 0890063)
Offers 22-Button, 34-Button, and Super Display keysets high quality speakerphone capability.
This adapter requires an AC Adapter (AC-2R), P/N 780135.
●USB Adapter (CTU) (P/N 0890059)
Provides a USB connector. This can be used for either SMDR, TAPI (1.4) or system reporting.
This adapter requires an AC Adapter (AC-2R), P/N 780135.
●24-Button DLS Console (P/N 0890053 & 0890054)
Refer to the “110-Button DSS Console and 24-Button DLS Console” on 24-Button DLS Console
— P/Ns 0890053 & 0890054 (page 12) for more details.

Section 2: Components
10 Product Description
●IP Adapter (P/N 0890060)
Provides the ability to communicate through a LAN which is connected to a VOIPU or 8SHUBU
PCB. The VOIPU or 8SHUBU PCB is required in order to communicate with non-VoIP Aspire
phones, as well as to place or receive outside calls. This adapter cannot be used on a Super Display
telephone.
This adapter requires an AC Adapter (AC-2R), P/N 780135.
●IPhone Power Failure Adapter (PSA) (P/N 0890067)
Provides power failure capacity for the IPhone IP keysets. This allows a user to make or receive an out-
side call using the central ofÞce if an IP keyset is unable to make or receive a call using the LAN.
●IP Call Recording Adapter (ADA2) (P/N 0890066)
Using the ADA2 Adapter provides a recording jack connection which provides a connection from
an Aspire IPhone to an external tape recorder or speaker.
The following chart indicates if there are restrictions when combining certain adapters. Select the adapter in
the column and then select the adapter in the row to see if there are any restrictions. For example, using an
APA and APR adapter refers you to restriction 3 (only one voice path provided - adapters can not be used
together)
Adapter Compatibility Restrictions
24DLS IP CTU CTA APR APA ADA ADA2 HF-R PSA
ADA √1√ √ √ √ 25√5
ADA2 5 555555555
APA √1√ √ 32√5√5
APR √16√23√565
CTA √142√√√5√5
CTU √1246√ √ 565
IP 1 2111115√5
HF-R √16√6√ √ 525
PSA 5 555555555
24DLS 21
√√√√√5√5

Section 2: Components
Product Description 11
2
When installing the adapters, the keyset should Þrst be unplugged from the system. Also note that
the adapters may have an AC/DC power jack. Power is not required for all the adapters.You should
refer to the information for the speciÞc adapter to determine whether a power source is needed.
Telephones with any of these adapters installed cannot be wall-mounted. The bracket will not
accommodate the adapter(s).
1 = The IP Adapter takes the full space provided for adapters on the keysets. Therefore, if an IP adapter is
installed, no other adapters can be used.
2 = Only one adapter of the same type can be used on a keyset.
3 = As there is only one voice path provided for adapters, the APR and APA adapters can not both be used
on the same keyset.
4 = Due to protocol collision, the CTU and CTA adapters can not both be used on the same keyset.
5 = The ADA2 and PSA Adapters can only be installed on the Aspire IPhone, which only has one adapter
connection. Therefore, if either the ADA2 or PSA is installed, no other adapters can be used.
6 = As this adapter requires the AC power adapter, it can not be installed on a phone with an APR or
Speakerphone adapter, which also requires power. The placement of the AC power adapter plug will
not allow the unit installed on the left side of the phone to receive power.
Adapter Compatibility Restrictions

Section 2: Components
12 Product Description
Optional Equipment

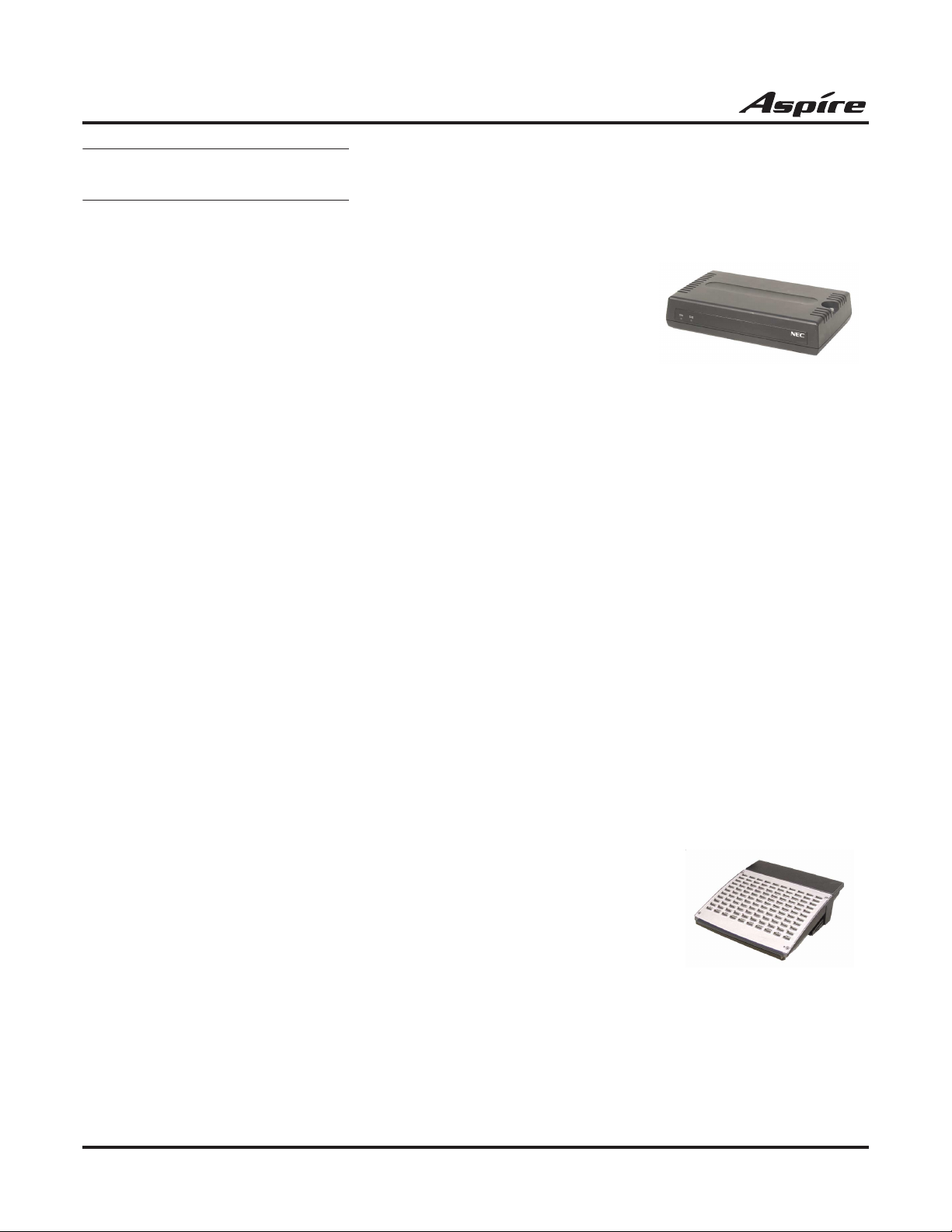

2PGDAD Module — P/N 0891027
The 2PGDAD module provides two circuits which allow
connection to external terminals such as:
●Door Box
(Aspire S: 4 max. per system, Aspire: 8 max. per system)
●External Speaker with AmpliÞer
(Aspire S: 4 maximum with 2PGDAD modules, Aspire: 8 maximum with 2PGDAD modules,
1 on the NTCPU)
●External Music Source (external MOH)
(Aspire S: 8 maximum per system, Aspire: 96 maximum per system)
●External Recording System
(Aspire S: 8 maximum per system, Aspire: 96 maximum per system)
●External Ringing
The Aspire S supports a total of 10 2PGDAD modules on the system which can be used within the
feature maximums indicated above. The Aspire supports a total of 56 2PGDAD modules on the sys-
tem which can be used within the feature maximums indicated above.
The 2PGDAD module also provides multi-purpose controls. These control relays can be used for
controlling the external ampliÞer, external music source and door lock control with the use of a
Door Box. The Aspire S system allows for up 8 general purpose relays with the 2PGDAD modules.
The Aspire system allows for up 8 general purpose relays with the 2PGDAD modules (4 relays on
each 2PGDAD) and 1 on the NTCPU for a maximum of 9.
The 2PGDAD module connects to any available digital extension port. The terminal connections
made within the PGDAD module and the jumper settings determine what features are used for each
circuit.
110-Button DSS Console — P/Ns 0890051 & 0890052
24-Button DLS Console — P/Ns 0890053 & 0890054
The DSS (Direct Station Selection) Console gives a keyset user a
Busy Lamp Field (BLF) and one-button access to extensions,
trunks and system features. The 110-Button DSS Console pro-
vides an additional 100 programmable keys, while the 24-Button
DLS Console provides 24 programmable keys. The 110-Button
DSS also has 10 Þxed feature keys for Paging, calling Door Boxes,
activating Night Service and enabling DSS Console Alternate
Answer. There are also two keys that allow “shifting” between the
Þrst and second set of 100 extensions.
