SL 1100
Quick Start
Help Guide
Table of Contents:

- 2 -
DOCUMENT DESCRIPTION...............................................................................................................................................................3
PERFORMING A COLD START (INITIALIZATION): ...................................................................................................................3
INSTALLING THE EXPANSION INTERFACE CARDS:................................................................................................................3
SL1100 BASE KSU CONNECTIONS:..................................................................................................................................................4
PROGRAMMING METHODS: ............................................................................................................................................................6
DEFAULT USER NAMES &PASSWORDS:.................................................................................................................................................6
...................................................................................................................................................................................................................6
IMPORTANT SYSTEM DEFAULT VALUES:...................................................................................................................................6
DEFAULT IP ADDRESS AND ETHERNET SETTINGS: .................................................................................................................................6
DHCP Client: ....................................................................................................................................................................................6
Default IP Address & Subnet Mask:..................................................................................................................................................6
OTHER IMPORTANT ETHERNET PROGRAM ADDRESS:..............................................................................................................................7
Default Gateway:...............................................................................................................................................................................7
DHCP Client Setting: ........................................................................................................................................................................7
DNS Primary Address: ......................................................................................................................................................................7
DNS Secondary Address:...................................................................................................................................................................7
Confirming a system’s IP address: ....................................................................................................................................................7
DEFAULT LINE SETTINGS: ......................................................................................................................................................................7
DEFAULT STATION SETTINGS:................................................................................................................................................................7
INMAIL:..................................................................................................................................................................................................7
SL 1100 MANUAL CROSS REFERENCE:..........................................................................................................................................8
DESKTOP SUITE MANUAL:......................................................................................................................................................................8
FEATURES &SPECIFICATIONS: ...............................................................................................................................................................8
HARDWARE MANUAL:............................................................................................................................................................................8
INMAIL FEATURES MANUAL:.................................................................................................................................................................8
LICENSE MANAGER MANUAL:................................................................................................................................................................8
NETWORKING MANUAL:.........................................................................................................................................................................8
PCPRO MANUAL: ...................................................................................................................................................................................8
PROGRAMMING MANUAL: ......................................................................................................................................................................8
SIP TRUNK MANUALS:............................................................................................................................................................................8
SIDE TONE AUTO SETUP FOR ANALOG TRUNKS:.....................................................................................................................9

- 3 -
Document Description
This document is a quick reference for the base SL 1100 KSU’s connections, base default as well as cross reference for
which manual to refer to. This document is not intended to replace other SL 1100 manuals.
These instructions are for reference only. Do not install the system without first reading the Hardware & Features and
Specifications Manuals.
Performing a Cold Start (Initialization):
Note: Before turning on power to the system for the first time it is a good practice to install all expansion cards and the
InMail Compact Flash card so that the system can Auto Detect them upon Cold Start.
If Expansion KSUs are installed turn the power on/off in order of Expansion KSU 2, Expansion KSU 1, and then
Main KSU.
1) Set the power switch to the off position.
2) Push in and hold the red Load button on the CPU.
3) Turn the power switch to the on position on the Main KSU.
4) Continue holding the Load button for approximately 3 seconds or until the status LED D5 starts to flash red.
5) Release the Load button.
6) When the system has completed reloading software (approximately 2 minutes) the Run LED is flashing blue on
the CPU and connected Multi-Line phones show Time & Date and Extension number.
Installing the Expansion Interface Cards:
•Each KSU can have up to two expansion cards.
•Expansion card include: IPWW-080E-B1 (8 Port Digital Station Card ESIU), IPWW-0008E-B1 (8 port Analog
Station Card SLIU), IP-WW-PRIU-C1 (PRI/T1 card).
•IP-WW-4COIDB-B1 (4 port analog Trunk Daughter Board Card) May only be mounted on the following cards
084M-B1 (KSU Mother Board), 080E-B1 (8 port ESIU), or 0008E-B1 (8 Port SLIU card) but not the PRIU-C1 card.
•KSU must be powered off before installing any of the above expansion cards.

- 4 -
SL1100 Base KSU Connections:

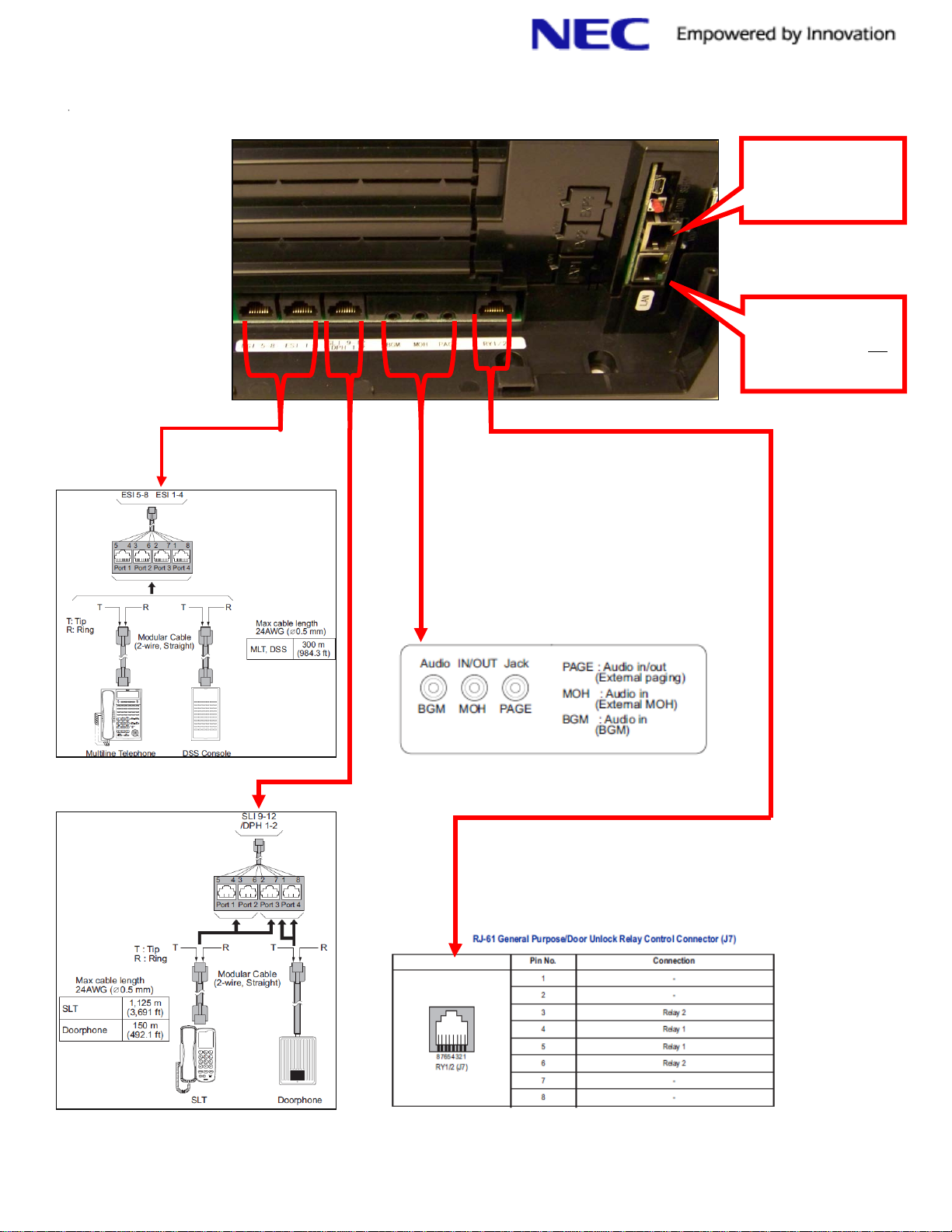

Figure 1 SL1100 Base KSU Connections
VOIP DB, Use this as
the Network
connection when
installed.
CPU Network
Connection, Use this
when VOIP DB is not
installed.

- 5 -
The IP 4WW-4COIPDB-B1 provides four analog trunk ports and can be mounted on either:
084M KSU Mother Board, 080E Digital Station Card (ESIU) or 008E Analog Station Card (SLIU.)
***Important: It is highly recommended once the SL 1100 is installed onsite and Analog Trunks are installed that
you run the Side Tone Auto Setup program in program 90-68-01 from a telephone. See Side Tone Auto Setup
note at the end of this document for this procedure. ***
RJ 61x Pin Out used by ESLIU, SLIU, and COIU connections:
Refer to the SL1100 Hardware Guide for more details on pin outs and other Hardware related Details.

- 6 -
Programming Methods:
There are three methods of programming the SL1100 system:
•Web Pro, using a Web Browser to connect to the system via the system’s IP address.
•PC Pro, using PC Pro Software to connect to the system’s IP address or by NetBios by entering SL1100 in place
of system’s IP address.. This also allows the ability to down load and upload system data bases as well as
provides some utilities and install wizards.
•Phone Pro, programming from a SL1100 Multi-Line telephone. Access Phone Pro Programming by pressing
Speaker, #, *, # *.
•Refer to SL1100 Features & Specs and Program Manuals for additional programming instructions.
Default User Names & Passwords:
There are different User Names and Passwords which allow a different program level access. The default User Names
and passwords are:
•User Name: sltech Password: 12345678 Access: To all Level 2 (IN) Installer level programs.
•User Name: ADMIN1 Password: 0000 Access: System Admin Level 1-Restricted Access.
•User Name: ADMIN2 Password: 9999 Access: System Admin Level 2-More Restricted Access.
•User Name: USER1 Password: 1111 Access: User Programming Administrator Mode.
The sltech login has the most programs available to it, and is used primarily by the installing part.
Refer to the SL1100 Programming Guide for more details.
Important System Default values:
Default IP Address and Ethernet Settings:
DHCP Client:
By default the SL 1100 is enabled to receive its IP address, Subnet Mask & Default Gateway from the Network’s
DHCP Server. If you need to statically assign the system’s IP address you should go to program 10-63 and set
DHCP to 0 for No or disable, then reboot the system first.
Default IP Address & Subnet Mask:
If the system did not receive its IP Address information from a Network’s DHCP server or if the system is not
connected to a Network it will have the following IP address by default:
CPU Network Interface Connection:
IP Address: 192.168.0.10 (Program 10-12-01)
Subnet Mask: 255.255.255.0 (Program 10-12-02)
VOIP DB Interface Connection:
IP Address: 172.16.0.10 (Program 10-12-09)
Subnet Mask: 255.255.0.0 (Program 10-12-10)

- 7 -
•System will require a reboot before it will use any changes made to any 10-12 program.
•When the VOIP DB is installed you should use the VOIP DB in place of the CPU Interface Card. You
should never have both connected at the same time.
•It is a good practice to program 0.0.0.0 into Program 10-12-01 when using the VOIP DB connection to
avoid any potential future IP conflicts.
Other Important Ethernet Program address:
Default Gateway: Program 10-12-03 Default: 0.0.0.0.
DHCP Client Setting: Program 10-63-01 Default: Enabled, this should be disabled if you wish to
manually assign your system’s IP address.
DNS Primary Address: Program 90-11-11 Default: 0.0.0.0 (Needed for InMail E-mail Notification)
DNS Secondary Address: Program 90-11-12 Default: 0.0.0.0
Confirming a system’s IP address:
1) From any display phone press: Menu
2) Dial 96, then press select
3) System IP Address should show the CPU’s IP address set in 10-12-01, VOIP DB will show the VOIP IP address
set in program 10-12-09. If this shows an address different than you have loaded check program 10-63-01 DHCP
Client Setting.
Default Line Settings:
Trunk Type: Loop Start
Caller ID: Disabled Program 14-02-10
Trunk Group Assignment Trunk Group 1 Program 14-05
Incoming Call Type: Normal Program 22-02
Incoming Ring Group: IRG 1 Program 22-05
Default Station Settings:
Incoming Ring Group: Ext. 101 – 108 assigned to IRG 1 Program 22-04
Feature Keys: Keys 1-12 are Lines 1 -12 Program 15-07
Class of Service Ext. 101 = COS 15, all others 1 Program 20-06
Toll Restriction Unrestricted Class 2 Program 21-04
Trunk Group Routing Trunk Group 1 Programs 14-06, 21-03
Default Summary:
•Lines 1-12 appear on all phones.
•Lines 1-12 Ring to Incoming Ring Group 1, Incoming Ring Group 1 will ring Extensions 101-108 by default.
•All extensions are not Toll Restricted and may make an out bound call by pressing a line key or by dial 9 which
will access Trunk Group 1 which all lines are assigned too by default.
InMail: Below Version 2 InMail disabled by default, Version 2 systems InMail is detected Automatically upon Cold Start,
Version 3 and higher InMail is detected when installed, once system is powered up
Refer to the SL1100 Features & Specification Guide under “InMail-Auto Setting” SL1100 InMail Guide
Quick Setup section for InMail installation details.

- 8 -
SL 1100 Manual Cross Reference:
Desktop Suite Manual: The Desktop Suite manual describes the operation and functionality of the SL1100
Desktop Applications.
Features & Specifications: The Features and Specifications Manual provides an alphabetical listing of features
available with the SL1100. This includes descriptions, conditions, default settings,
system availability, programming, related features as well as the operation of each
feature.
Hardware Manual: The Hardware Manual lists all SL1100 parts, with part number, description, capacities,
and hardware installation steps.
InMail Features Manual: The InMail Feature Manual covers the Installation & programming of InMail, as well
descriptions and use of InMail Features and InMail Utility Tool use.
License Manager Manual: The License Manager Manual gives an overview of how the license procedure operates
on the SL1100 platform. Some features and hardware require an appropriate license to
be installed on a SL1100 processor to work.
Networking Manual: The Networking Manual covers Networking features such as Ethernet settings, NEC IP
Terminals, 3rd Party IP terminals, DHCP and other Network related functions.
PCPro Manual: The PCPro Manuals covers how to use the PCPro software to program, download and
upload SL1100 data bases as well as how to use utilities PCPro offers.
Programming Manual: The Program Manual provides detailed information about system programs, the
features the program affects, and how to enter program data into system memory.
Sip Trunk Manuals: There are unique SIP Trunk Manuals for each SIP Trunk Provider that has completed
inter-opt testing with NEC SL1100. Each SIP Trunk manual provides documentation of
required Programming for the SL 1100 to work with that particular SIP Trunk provider as
well as program examples.

- 9 -
Side Tone Auto Setup for Analog Trunks:
You must do the following from a telephone:
1) Enter system programming by pressing Speaker, then dialing #, *, #, * .
2) Password is 12345678, then press the Hold Key.
3) Next enter 9068 to go to program 90-68-01, then press select.
4) At the "Adjustment Start _ " Prompt enter the line number of your first Analog Trunk, then press select.
5) The system will then run a series of test on that line. Allow the test to complete. If the line is not an Analog line or if
the Line currently does not have dial tone you will be returned with "Error"
6) Once the test is complete you will be presented with "Copy? (1 Yes)" If you wish to copy the new settings the system
has automatically set for this line to your other lines enter a 1 then press Hold. If not simply press Hold, then the Mute
key several times to back up to a blinking curser on the display then press the Speaker key to exit.
In some cases it may be a good idea to run this individually per line. Especially if the source of each line is different.
This procedure should be run in the following cases:
1) Upon new install of a SL 1100 once the system is installed onsite with the Analog lines installed.
2) Anytime the system is moved to a new site, once the lines are re-installed at the new location.
3) Anytime the line source changes such as changing over to a new provider.
4) Anytime an additional line is added.
This only applies to Analog lines.
Running these procedures often resolves many issues such as echo, poor Speakerphone quality when on outside lines, and
DTMF reception issues to Auto Attendant, for example.
