NEC DSX-34 User manual

For additional resources, visit our Technical Support site on the web at
http://www.necdsx.com
.
Components
Specifications
and Parts
Empowered by Innovation
Component Guide
P/N 1093066
Rev 1, October 30, 2006
Printed in U.S.A
.
01.01.10

This manual has been developed by NEC Unified Solutions, Inc. It is intended for the use of its customers and service
personnel, and should be read in its entirety before attempting to install or program the system. Any comments or suggestions
for improving this manual would be appreciated. Forward your remarks to:
NEC Unified Solutions, Inc.
4 Forest Parkway
Shelton, CT 06484
www.necunifiedsolutions.com
Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or representation
with respect to, any of the equipment covered. This manual is subject to change without notice and NEC Unified Solutions,
Inc. has no obligation to provide any updates or corrections to this manual. Further, NEC Unified Solutions, Inc. also reserves
the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No
representation is made that this manual is complete or accurate in all respects and NEC Unified Solutions, Inc. shall not be
liable for any errors or omissions. In no event shall NEC Unified Solutions, Inc. be liable for any incidental or consequential
damages in connection with the use of this manual. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent
of NEC Unified Solutions, Inc.
©2006 by NEC Unified Solutions, Inc. All Rights Reserved.
Printed in U.S.A.

INNOVATIVE
DSX from NEC takes the lead with state-of-the-art innovations sure to make your business communications
more efficient, profitable, and enjoyable.
Innovation starts with the new sleek DSX telephones. All models feature the same thin, floating design, two
position angle adjustment for effortless viewing, and built in wall mounting. The 22-Button Display offers a
large 3-line-by-24 character display, four interactive soft keys, and a built in speakerphone. The 34-Button
Display is enhanced with a backlit display and illuminated dial pad (for improved low light viewing), as well
as additional feature keys. An advanced model of the 34-Button Display provides a built-in half-duplex
speakerphone. The 34-Button Super Display has all the features of the advanced 34-Button Display and
additionally offers the user a 9-line-by-24-character display and 12 interactive soft keys. Rounding out the
line, the DSX Cordless Telephone provides mobility and flexibility for those who spend much of the work-
day away from their desk. Complemented by 4 fully programmable Feature Keys, the DSX Cordless Tele-
phone achieves a whole new level of convenience and mobility.
Innovations don’t stop with the DSX telephones. Right out of the box the system has a two-port Automated
Attendant with no optional equipment required. The capability for full-featured IntraMail Voice Mail with
Automated Attendant is inherent in the system and only requires an IntraMail flash card to activate. Program
on-site from the telephone or from a PC connected to the system’s ethernet or USB port. PC remote pro-
gramming is available through the ethernet port or built-in modem.
AFFORDABLE
NEC designed DSX from the ground up with affordability in mind. Economy per port is maximized by high-
density circuitry. All DSX telephones have a speakerphone and display for increased functionality and total
lower station cost. Native support for ISDN PRI and T1 provides maximum connectivity for low initial
investment. Since DSX is simple to install and easy to use, the expenses of configuration, programming, and
post-installation training are minimized.
The cost-effective IntraMail provides sophisticated Voice Mail and Automated Attendant features previously
available only with expensive add-ons or costly external units. It is available in two configurations: 4 port/8
hour and 8 port/16 hour. The IntraMail Automated Attendant includes the call answering features you
demand such as dial access to extensions, unique day, night, and holiday answering (Flexible Answering
Schedules), the ability for two companies to share the same IntraMail (Multiple Company Greetings), and
the capability to dial employees by entering their names instead of extension numbers (Directory Dialing).
IntraMail Voice Mail is much more than simple messaging. Advanced IntraMail features allow you to auto-
matically place a return call to the message sender (Caller ID with Return Call), screen your incoming calls
(Call Screening), forward a message to a co-worker (Message Forward), and send a call to a co-worker’s
mailbox (Transfer to a Mailbox).

DSX is sized right, starting with the economical 40-port DSX-40, growing into the 80-port DSX-80, and
culminating in the 160-port DSX-160. To maintain the value of your investment, all the components of a
DSX-80 can be used in DSX-160 just by adding a DSX-160 cabinet. Even when growing from the DSX-40,
your investment in programming, telephones and other station equipment is retained.
RELIABLE
Over a decade of intense feature development ensures that the core DSX call processing features are mature,
efficient, and reliable – yet intuitive and easy to use. Combined with end-to-end Quality Assurance and state-
of-the-art circuit design (which achieves new standards for efficiency and economy), you are assured that
DSX will be your reliable business partner for years to come.
Innovative leadership and longevity are a rare combination among technology companies. Founded in 1899,
NEC has grown to a nearly $50 billion enterprise that produces 15,000 products in 126 manufacturing plants
worldwide. NEC pioneered the development of telephones and switching systems early in the 20th century,
and has maintained a leadership position in communications and networking ever since.

Table of Contents
DSX Component Guide Table of Contents ◆ i
Table of Contents
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DSX Telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
22-Button Display Telephone with Speakerphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
34-Button Backlit Display Telephone with Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
34-Button Backlit Display Telephone with Full-Duplex Speakerphone . . . . . . . . . . . . . . . . . . 2
34-Button Backlit Super Display Telephone with Half-Duplex Speakerphone . . .. . . . . . . . . . 2
60-Button DSS Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Single Line Telephones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

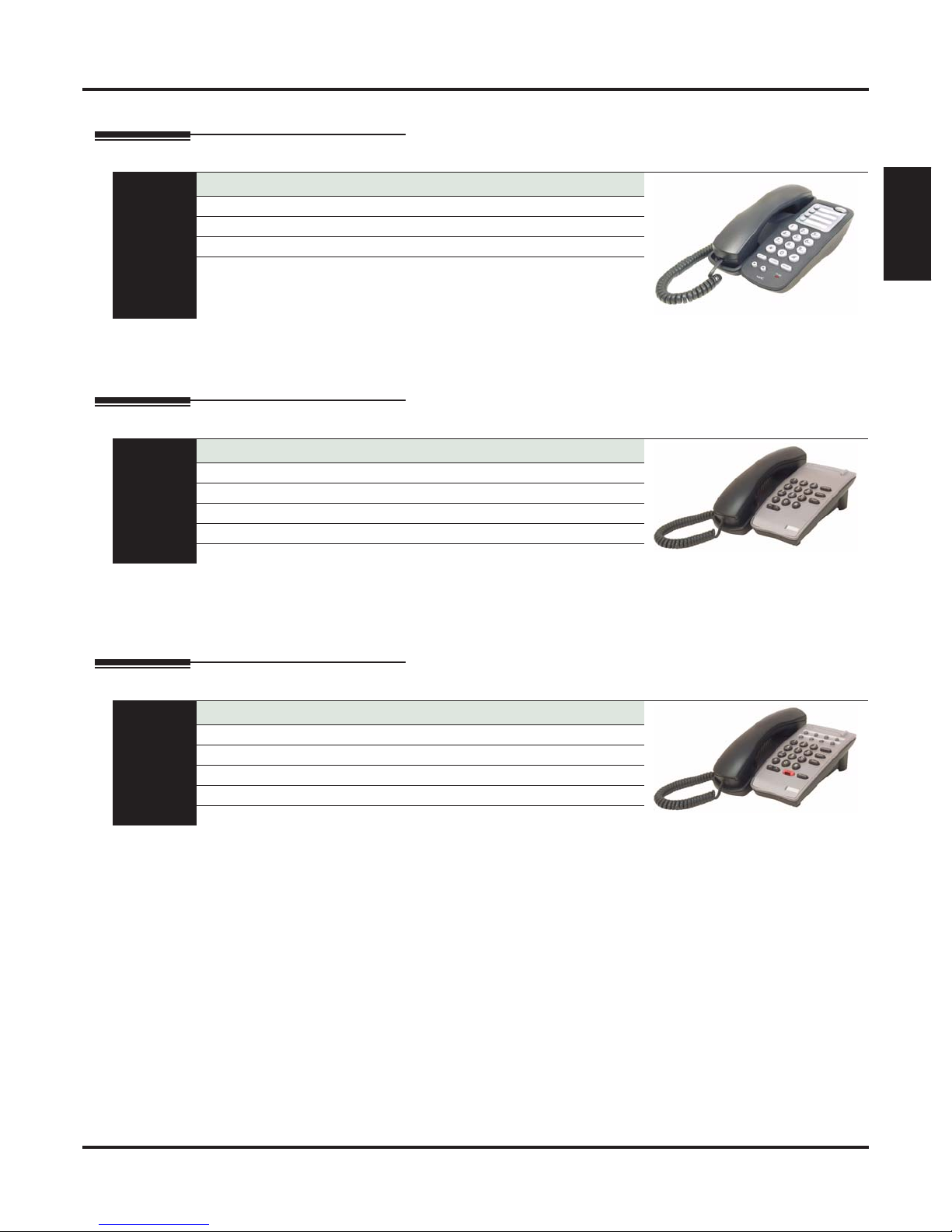

DTH-1-1 Single Line Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DTR-1-1 Single Line Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DTR-1HM-1 Single Line Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DSX Cordless Telephone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
DSX Cordless Lite II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

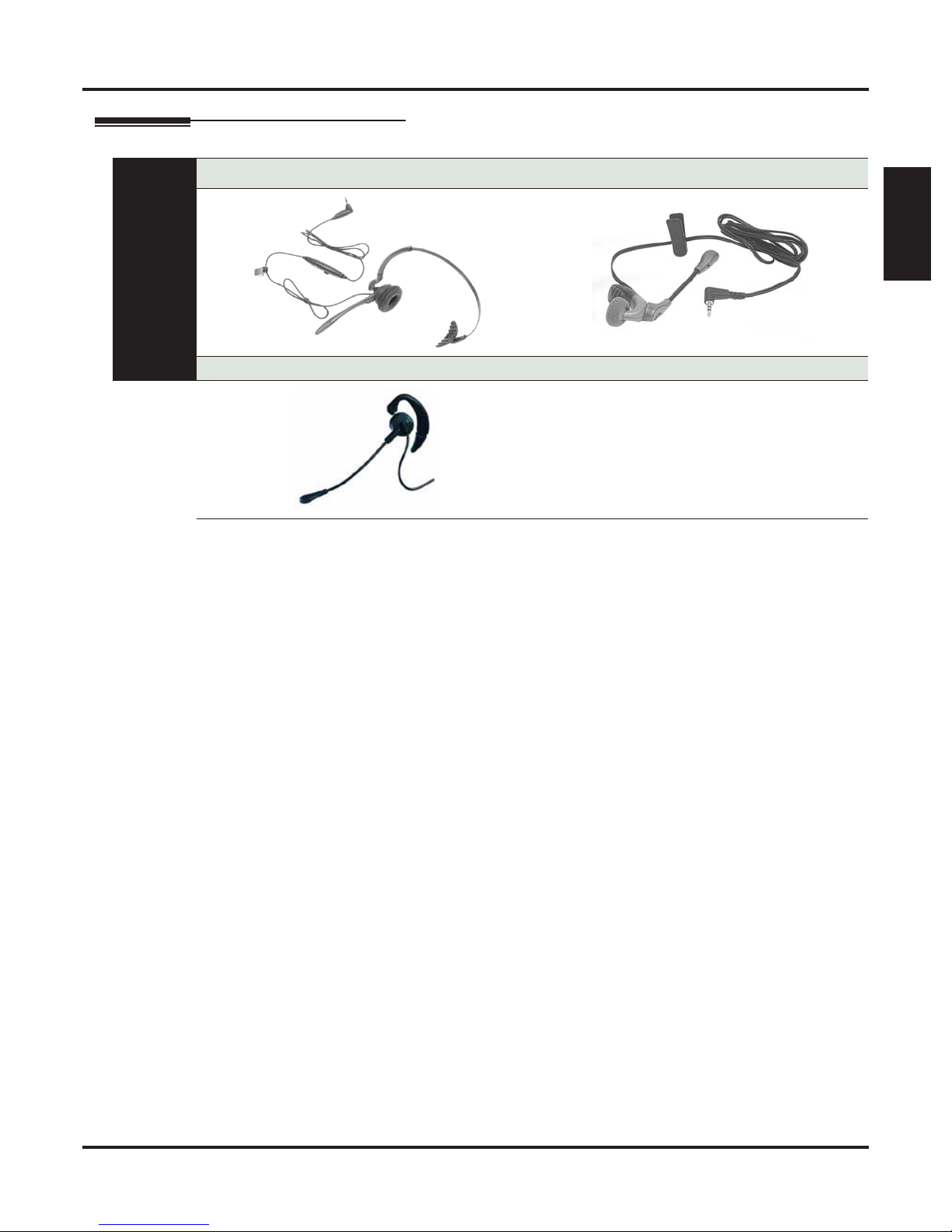

Headsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Corded Headsets for DSX Keysets and DTR/DTH SLTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
NEC / Plantronics Headsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
GN Netcom Headsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Headsets for DSX Cordless Lite II Telephone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DESI Telephone Label System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

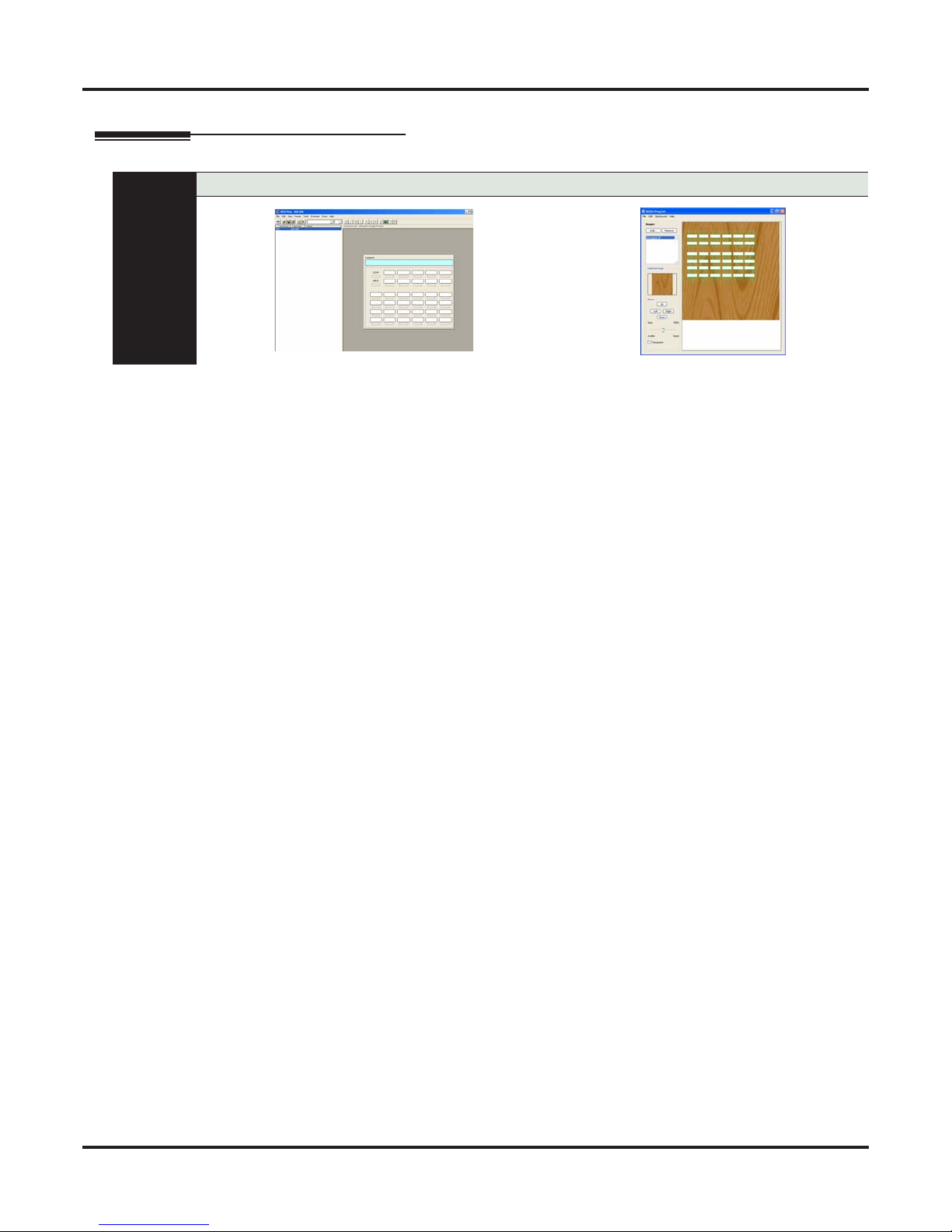

DESI Plus Labeling Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DESI Telephone Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DSX-80/160 Common Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DSX-80 4-Slot KSU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DSX-160 8-Slot KSU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DSX-80/160 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DSX-80/160 CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DSX-80/160 CPU Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DSX-80/160 Station Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

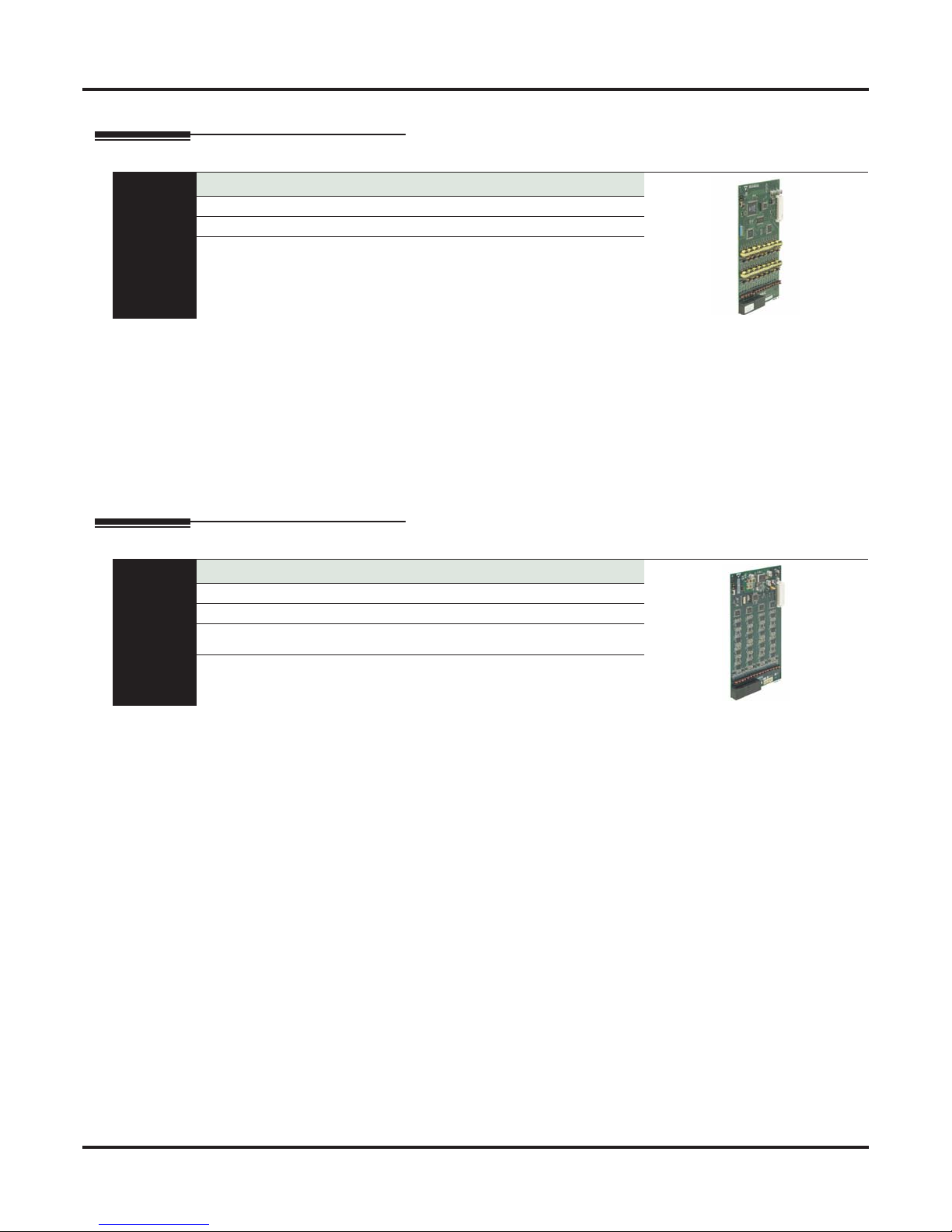

DSX-80/160 16 Port Digital Station (16ESIU) Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DSX-80/160 16 Port Analog Station (16SLIU) Card with HV Message Waiting. . . . . . . . . . 14
DSX-80/160 8 Port Analog Station (8SLIU) Card with HV Message Waiting. . . . . . . . . . . . 15
DSX-80/160 Line Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DSX-80/160 T1/E1/PRI Line Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DSX-80/160 16 Port CO Line (16COIU) Card with Caller ID . . . . . . . . . . . . . . . . . . . . . . . . 16
DSX-80/160 8 Port CO Line (8COIU) Card with Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DSX-40 Common Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DSX-40 4x8x2 Key Telephone System with 2 Door Box Ports and Caller-ID. . . . . . . . . . . . 18
DSX-40 PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DSX-40 8-Port Digital Station (8ESIU) Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Expansion Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DSX-40 8-Port Analog Station (8SLIU) Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DSX-40 4 Port (4COIU) Line PCB with Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
IntraMail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DSX IntraMail 8 x 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DSX IntraMail 4 x 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Built-In Automated Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of Contents
ii ◆ Table of Contents
DSX Component Guide
Miscellaneous Cards and Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DSX Analog Door Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DSX 2PGDAD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DSX System Administrator (PC Program) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DSX-80/160 System Load Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DSX-80/160 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DSX-40 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DSX IntraMail Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

DSX Telephones
DSX Component Guide Components ◆ 1
Components
Components
DSX Telephones
DSX Telephones

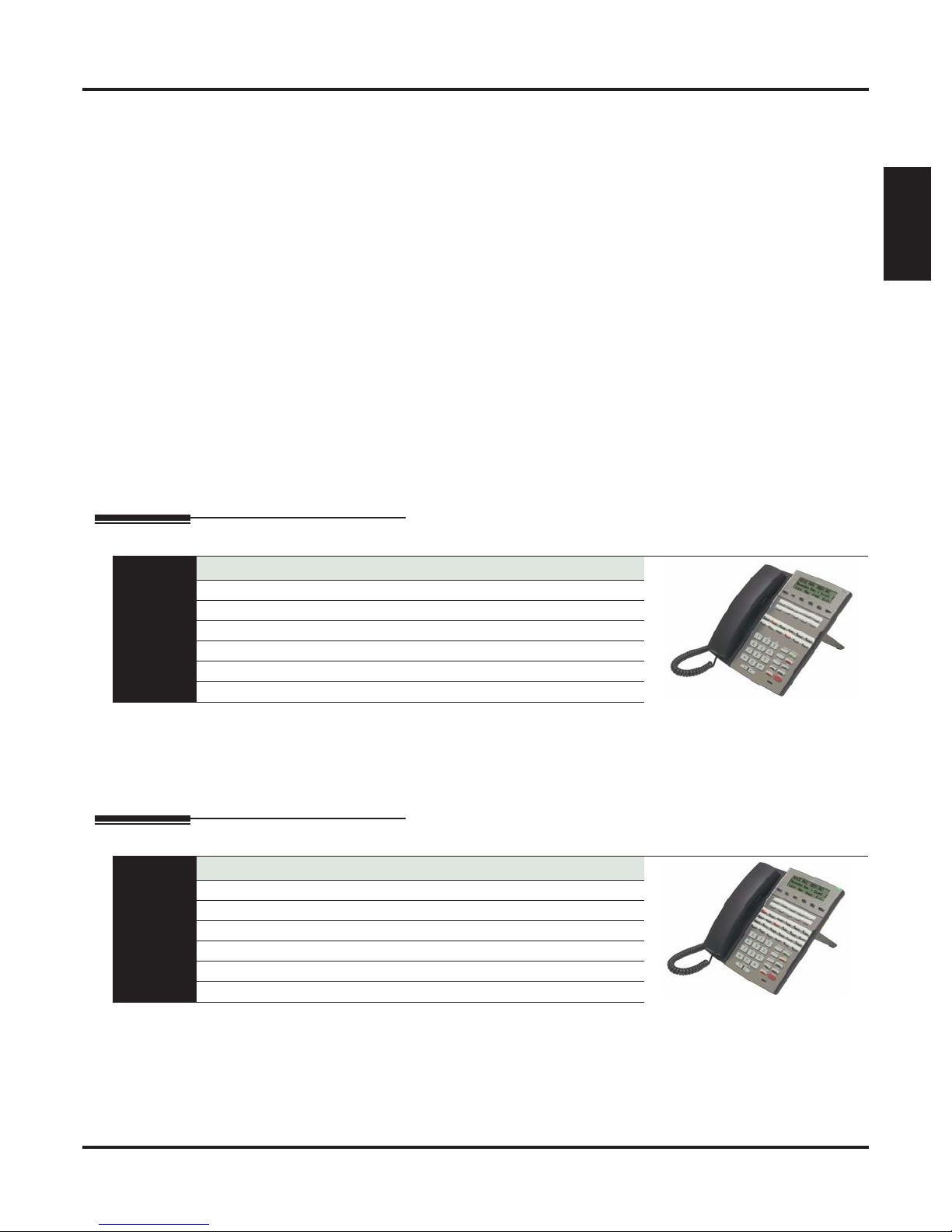

22-Button Display Telephone with Speakerphone
The 22-Button Display Telephone features a large 3 line-by-24 character alphanumeric display with 4 Interac-
tive Soft Keys for intuitive feature access. It also provides 10 Personal Speed Dial bin keys, 12 programmable
Feature Keys and 12 fixed function keys for streamlined operation. Additionally, this telephone offers a headset
jack and built-in speakerphone. Unique features include dual LEDs, a Ring/Message Lamp (to show ringing,
Caller ID, and voice mail messages), built-in wall mounting, and an innovative two position angle adjustment.
34-Button Backlit Display Telephone with Speakerphone
The 34-Button Display Telephone features a large 3 line-by-24 character backlit alphanumeric display with
4 Interactive Soft Keys for intuitive feature access. It also provides 10 Personal Speed Dial bin keys, 24 pro-
grammable Feature Keys and 12 fixed function keys for streamlined operation. Additionally, this telephone
offers a backlit keypad, a headset jack, and built-in speakerphone. Unique features include dual LEDs, a
Ring/Message Lamp (to show ringing, Caller ID, and voice mail messages), built-in wall mounting, and an
innovative two position angle adjustment.
At a Glance
P/Ns 1090020 (Black) and 1090025 (White)
Display: 3 line x 24 character Speakerphone: Built-in, half-duplex
Soft Keys: 4 Wall Mount: Built-in
Feature Keys: 12 Angle Adjustment: 2 position built-in
Fixed Function Keys: 12 Backlit: No
Speed Dial Bin Keys: 10 Dual LEDs: Yes
Headset jack: RJ-10 built-in (standard handset type)
At a Glance
P/Ns 1090021 (Black) and 1090026 (White)
Display: 3 line x 24 character Speakerphone: Built-in, half-duplex
Soft Keys: 4 Wall Mount: Built-in
Feature Keys: 24 Angle Adjustment: 2 position built-in
Fixed Function Keys: 12 Backlit:Yes
Speed Dial Bin Keys: 10 Dual LEDs: Yes
Headset jack: RJ-10 built-in (standard handset type)

DSX Telephones
2 ◆ Components
DSX Component Guide

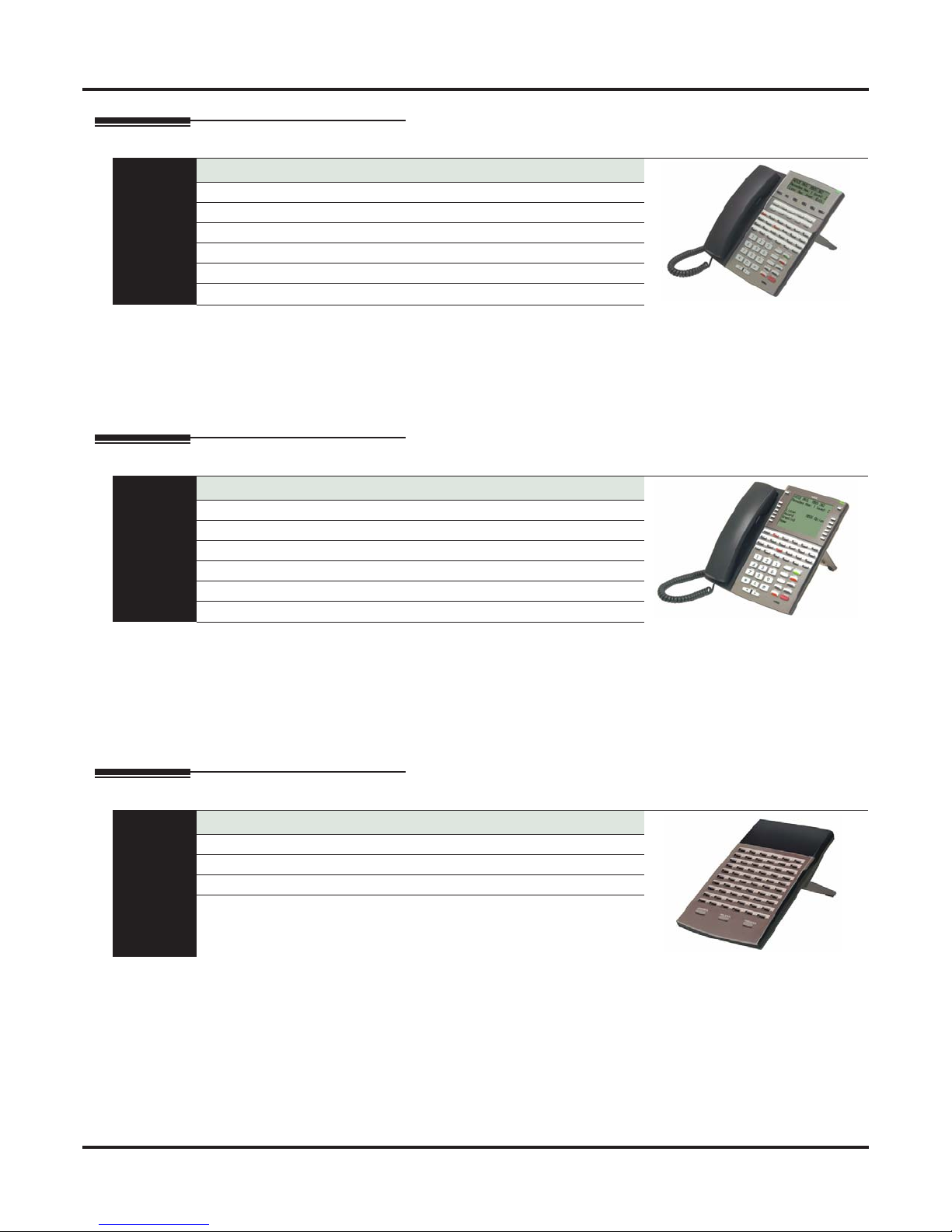

34-Button Backlit Display Telephone with Full-Duplex Speakerphone
This feature-rich 34-Button Display Telephone features a large 3 line-by-24 character backlit alphanumeric dis-
play with 4 Interactive Soft Keys for intuitive feature access. It also provides 10 Personal Speed Dial bin keys,
24 programmable Feature Keys and 12 fixed function keys for streamlined operation. Additionally, this tele-
phone offers a built-in full duplex speakerphone (with no external speaker or microphone required), a backlit
keypad, and a headset jack. Unique features include dual LEDs, a Ring/Message Lamp (to show ringing, Caller
ID, and voice mail messages), built-in wall mounting, and an innovative two position angle adjustment.
34-Button Backlit Super Display Telephone with Half-Duplex Speakerphone
The Super Display Telephone is the system’s most sophisticated telephone instrument. It features a large 9
line-by-24 character backlit alphanumeric display with 12 Interactive Soft Keys for intuitive feature access.
It also provides 10 Personal Speed Dial bin keys, 24 programmable Feature Keys and 12 fixed function keys
for streamlined operation. Additionally, this telephone offers a built-in full duplex speakerphone (with no
external speaker or microphone required), a backlit keypad, and a headset jack. Unique features include dual
LEDs, a Ring/Message Lamp (to show ringing, Caller ID, and voice mail messages), built-in wall mounting,
and an innovative two position angle adjustment.
60-Button DSS Console
The 60-Button DSS Console provides a display keyset with a 60-button Busy Lamp Field (BLF) and one-
button access to extensions, trunks, and selected system features. Enhanced by Answer, Release, and
Transfer fixed function keys, the 60-Button DSS Console is a great time saver for users that do a lot of call
processing (such as operators or dispatchers). By default, the DSS Console is set up with Hotline keys to
extensions and 14 feature keys for quick access to Page, Park and the system Night Mode
Note: DSX80/160 supports DS1000/2000 telephones if the system has a DSTU Card (P/N 80021A) installed.
At a Glance
P/Ns 1090022 (Black) and 1090027 (White)
Display: 3 line x 24 character Speakerphone: Built-in, full-duplex
Soft Keys: 4 Wall Mount: Built-in
Feature Keys: 24 Angle Adjustment: 2 position built-in
Fixed Function Keys: 12 Backlit:Yes
Speed Dial Bin Keys: 10 Dual LEDs: Yes
Headset jack: RJ-10 built-in (standard handset type)
At a Glance
P/Ns 1090030 (Black) and 1090031 (White)
Display: 9 line x 24 character Speakerphone: Built-in, half-duplex
Soft Keys: 12 Wall Mount: Built-in
Feature Keys: 24 Angle Adjustment: 2 position built-in
Fixed Function Keys: 12 Backlit:Yes
Speed Dial Bin Keys: 10 Dual LEDs: Yes
Headset jack: RJ-10 built-in (standard handset type)
At a Glance
P/Ns 1090024 (Black) and 1090029 (White)
Feature Keys: 60 Wall Mount: Built-in
Fixed Function Keys: 3 Angle Adjustment: 2 position built-in
Dual LEDs: Yes

Single Line Telephones
DSX Component Guide Components ◆ 3
Components
Single Line Telephones
DTH-1-1 Single Line Telephone
The DTH-1-1 is a cost-effective analog single line telephone that offers 5 fixed feature keys, 4 Speed Dial
bin keys and Message Waiting. The built-in Message Waiting lamp will flash for incoming calls or when the
user has a message. To simplify working in groups, The DTH-1-1 provides 3 selectable ring tones.
DTR-1-1 Single Line Telephone
The DTR-1-1 is a stylish yet rugged analog single line telephone with 5 fixed feature keys and Message
Waiting. Similar to the DTH-1-1, the DTR-1-1 has a built in Message Waiting lamp that will flash for incom-
ing calls or when the user has a message. The DTR-1-1 offers programmable ring pitch and volume. Built-in
wall mounting and a bridged data jack for connecting a modem or answering machine are standard.
DTR-1HM-1 Single Line Telephone
The DTR-1HM-1 provides all the features of the DTR-1-1 in addition to two additional fixed function keys
(for Hold and Speaker/Monitor) and 8 Speed Dial bin keys. For convenient on-hook dialing and call monitor,
the DTR-1HM-1 also offers Handsfree Monitor.
At a Glance
P/N 780034 (Black)
Fixed Function Keys: 5 Message Waiting: Yes
Speed Dial Bin Keys: 4 Ring/Message Waiting Lamp: Yes
Selectable Ring Tones: Yes Wall Mount: Built-in
At a Glance
P/Ns 780020 (Black) and 780021 (White)
Fixed Function Keys: 5 Message Waiting: Yes
Speed Dial Bin Keys: None Ring/Message Waiting Lamp: No
Selectable Ring Tones: Yes Wall Mount: Built-in
Handsfree Monitor: No
At a Glance
P/Ns 780025 (Black) and 780026 (White)
Fixed Function Keys: 7 Message Waiting: Yes
Speed Dial Bin Keys: 8 Ring/Message Waiting Lamp: Yes
Selectable Ring Tones: Yes Wall Mount: Built-in
Handsfree Monitor: Yes

DSX Cordless Telephone
4 ◆ Components
DSX Component Guide
DSX Cordless Telephone
DSX Cordless Lite II
The DSX Cordless Lite II Telephone (P/N 730087) is a 900 Mhz digital narrow band FM cordless telephone
that provides mobility, flexibility and convenience for those who spend much of the workday away from
their desk. Fully integrated with the DSX system, the DSX Cordless Lite II Telephone offers many standard
features such as Call Forwarding, Call Coverage, Hotline, and Voice Mail. Complemented by 4 fully pro-
grammable function keys (with LEDs), the DSX Cordless Lite II Telephone achieves a whole new level of
convenience and mobility. An easy-to-read 16-character by 2-line LCD display (with four status icons), vol-
ume controls, a rechargeable Nickel Metal Hydride Battery Pack, and a handy belt clip round out the elegant
and affordable DSX Cordless Lite II Telephone.
The Cordless II Lite Telephone includes the following:
At a Glance
P/N 730087
Display: 2 line x 16 character Transmission: 900 MHz Narrow Band FM
Status Icons: 4 Range: 350 feet (site dependent)
Feature Keys: 4 Max Units Per Site: 30 (12 in close proximity)
Fixed Function Keys: 8 Battery Life: Up to 7 hours talk time
Channels: 30
• Base Unit
• Base Unit AC Adaptor (P/N 630618)
• Base Wall Mount Bracket (P/N 730608)
• Base Line Cord
• Handset
• Handset Charger (P/N 730632)
• Handset Charger AC Adaptor (P/N 730619)
• Handset Charger Wall Mount Bracket (P/N
730633)
• Handset Battery (P/N 730631)
• Belt Clip (P/N 730634)

Headsets
DSX Component Guide Components ◆ 5
Components
Headsets
Corded Headsets for DSX Keysets and DTR/DTH SLTs
The following corded headsets are compatible with DSX keysets and the DTR/DTH single line telephones.
Check with your supplier for their latest offerings.
NEC / Plantronics Headsets
NEC / Plantronics Amplified Headsets
NEC P/N Description Style Microphone Type Plantronics Model
Number
- Polaris Starset In-the-Ear Voice Tube P31
Noise Canceling P31N
750631 Polaris Mirage On-the-Ear Voice Tube P41
- Noise Canceling P41N
750632 Polaris Supra Monaural Over-the-Head Voice Tube P51
750636 Noise Canceling P51N
-Polaris Supra Binaural Over-the-Head Voice Tube P61
750633 Noise Canceling P61N
750630 Polaris TriStar In-the-Ear Voice Tube P81
- Noise Canceling P81N
750634 Polaris Encore Monaural Over-the-Head Voice Tube P91
- Noise Canceling P91N
- Polaris Encore Binaural Over-the-Head Voice Tube P101
760635 Noise Canceling P101N
- Polaris DuoSet Convertible Over-the-Head,
On-the-Ear
Voice Tube P141
Noise Canceling P141N
- Polaris DuoPro On-the-Ear Voice Tube P151
Noise Canceling P151N
- Polaris DuoPro Over-the-Head Voice Tube P161
Noise Canceling P161N
- Polaris DuoPro Convertible Over-the-Head, Voice Tube P171
- Polaris DuoPro Convertible Over-the-Head, Noise Canceling P171N
- Polaris DuoPro Behind-the-Head Voice Tube P181
- Polaris DuoPro Behind-the-Head Noise Canceling P181N
750643 Polaris/SupraPlus Monaural Over-the-Head Voice Tube P251
750644 Polaris/SupraPlus NC Monaural Noise Canceling P251N
- Polaris/SupraPlus NC Binaural Over-the-Head Voice Tube P261
750645 Polaris/SupraPlus NC Binaural Noise Canceling P261N
- Polaris SupraPlus SL Monaural Over-the-Head Voice Tube P351
Noise Canceling P351N
- Polaris SupraPlus SL Binaural Over-the-Head Voice Tube P361
Noise Canceling P361N

Headsets
6 ◆ Components
DSX Component Guide
NEC / Plantronics Non-Amplified Headsets
1
(http://www.plantronics.com)
NEC P/N Description Style Microphone Type Plantronics Model
Number
- Polaris StarSet In-the-Ear Voice Tube H31
Noise Canceling H31N
- Polaris Mirage On-the-Ear Voice Tube H41
Noise Canceling H41N
- Polaris Supra Monaural Over-the-Head Voice Tube H51
Noise Canceling H51N
- Polaris Supra Binaural Over-the-Head Voice Tube H61
Noise Canceling H61N
- Polaris TriStar In-the-Ear Voice Tube H81
Noise Canceling H81N
- Polaris Encore Monaural Over-the-Head Voice Tube H91
Noise Canceling H91N
- Polaris Encore Binaural Over-the-Head Voice Tube H101
Noise Canceling H101N
- Polaris Freehand Monaural In-the-Ear Voice Tube H131
Noise Canceling H131N
- Polaris DuoSet Convertible Over-the-Head,
On-the-Ear
Voice Tube H141
Noise Canceling H141N
- Polaris DuoPro On-the-Ear Voice Tube H151
H151N
- Polaris DuoPro Over-the-Head Voice Tube H161
Noise Canceling H161N
- Polaris DuoPro Convertible Over-the-Head,
On-the-Ear
Voice Tube H171
Noise Canceling H171N
- Polaris DuoPro Behind-the-Head Voice Tube H181
Noise Canceling H181N
- Polaris SupraPlus Monaural Over-the-Head Voice Tube H251
Noise Canceling H251N
- Polaris SupraPlus Binaural Over-the-Head Voice Tube H261
Noise Canceling H261N
- Polaris SupraPlus SL Monaural Over-the-Head Voice Tube H351
Noise Canceling H351N
- Polaris SuproPlus SL Binaural Over-the-Head Voice Tube H361
Noise Canceling H361N
1
Requires Vista M12 Amplifier and Handset/Headset Switch

Headsets
DSX Component Guide Components ◆ 7
Components
Accessories and Replacement Parts for Polaris Headsets
NEC P/N Description Plantronics Item Number
750655 Polaris Extension Cable (10 ft.)
• For all Polaris headset models. 40703-01
750657
Clothing Clip Replacement (1)
• For all Polaris Mirage, Tristar, and Encore headset
models.
29961-01 or
29961-13
750656 Ear Cushion (Package of 2)
• For Supra and Encore models. 15729-11
750 650 Windscreen Replacement (1)
• For Supra NC headset models
24316-01 or
24316-04
750651 Clear Voice Tube for Mirage and Supra Replacement (1) 17593-01 or
17593-06
750653 Rainbow Voice Tube for Mirage and Supra Replacement
(Package of 6)
17593-7 or
17593-80
750652 Clear Voice Tube for Encore and Tristar (1) 29960-01 or
29960-13
750654 Rainbow Voice Tube for Encore and Tristar (Package of 6) 29960-70 or
29960-80

Headsets
8 ◆ Components
DSX Component Guide
GN Netcom Headsets
GN Netcom Non-Amplified Headsets
1
(http://www.gnnetcom.com/us/en)
Model Number Description Microphone Type Style
GN 2110 STD01 2100 Sound Tube Monaural Sound-Tube Over-the-Head
GN 2120 NCD01 2100 Flex Monaural Noise-Canceling Over-the-Head
GN 2115 STD01 2100 SoundTube Binaural Sound-Tube Over-the-Head
GN 2125 NCD01 2100 Flex Binaural Noise-Canceling Over-the-Head
GN 2117 STD01 2100 SoundTube Monaural Sound-Tube On-the-Ear
GN 2127 NCD01 2100 Flex Monaural Noise-Canceling On-the-Ear
GN 2110 ST 2100 SoundTube Monaural Sound-Tube Over-the-Head
GN 2120 NC 2100 Flex Monaural Noise-Canceling Over-the-Head
GN 2115 ST 2100 SoundTube Binaural Sound-Tube Over-the-Head
GN 2125 NC 2100 Flex Binaural Noise-Canceling Over-the-Head
GN 2127 ST 2100 SoundTube Monaural Sound-Tube On-the-Ear
GN 2127 NC 2100 Flex Monaural Noise-Canceling On-the-Ear
405-SF Surefit Monaural Voice-Tube 3-Way Convertible:
Over-the-Head, Ear-
hook, Earloops
405-FLEX-SF Surefit Monaural Noise-Canceling
405-UNC-SF Surefit Monaural Noise-canceling
ADP-I ADDvantage Plus Monaural Noise-Canceling Over-the-Head
ADP-II ADDvantage Plus Binaural Noise-Canceling Over-the-Head
GN 2200 2200 Omega Monaural Noise-Canceling Over-the-Head
GN 2225 2200 Omega Binaural Noise-Canceling Over-the-Head
OG-I Orator-G Monaural Noise-Canceling Over-the-Head
OG-II Orator-G Binaural Noise-Canceling Over-the-Head
Contour LX-G Contour LX-G Monaural Noise-Canceling On-the-Ear
Stratus Ultra-G Stratus Ultra-G Monaural Noise-Canceling On-the-Ear
805-Flex 805-Flex Binaural Noise-Canceling Under-the-Chin or
Behind-the-Neck
1
Requires GN8000 MPA Amplifier and Headset Switch.

Headsets
DSX Component Guide Components ◆ 9
Components
Headsets for DSX Cordless Lite II Telephone
The following headsets are available for the DSX Cordless Lite II Telephone:
• M175 Headband Style (P/N 750637)
• MX150 Earloop Style (P/N 750642)
• EXP 9350 Convertible Headset (P/N 730602)
At a Glance
P/N 750637 (M175) P/N 750642 (MX150)
P/N 730602 (EXP9530)

DESI Telephone Label System
10 ◆ Components
DSX Component Guide
DESI Telephone Label System
DESI Plus Labeling Software
DESI Plus Labeling Software is a Windows-compatible application for printing customized key data on spe-
cially designed DESI telephone labels. Use DESI Plus Labeling Software to create quick, professional cus-
tom labels that can be printed on virtually any office ink jet or laser printer. DESI Labeling Software
features:
• Automatic extension numbering
• Label templates that can be saved for later use
• Copy and paste functions
• Perforated and die cut labels for a perfect fit
• Choice of fonts and font colors
• Space for incorporating company logo
• User-printable background graphics (using DESI Preprint)
DESI Plus Labeling Software is provided on the DSX System Document CD included with each DSX
telephone system.
At a Glance
DESI Plus Labeling Software

DESI Telephone Label System
DSX Component Guide Components ◆ 11
Components
DESI Telephone Labels
The following DESI labels are available for DSX telephone “replacement” applications.
• 22-Button Display (pkg 20 with 10 backers)
- White (P/N 1093086)
- Black (P/N 1093085)
• 34-Button Display (pkg 20 with 10 backers)
- White (P/N 1093084)
- Black (P/N 1093083)
• 34-Button Super Display (pkg 20 with 10 backers)
- White (P/N 1093082)
- Black (P/N 1093081)
• 60-Button DSS Console (pkg 20 with 10 backers)
- White (P/N 1093080)
- Black (P/N 1093079)
The following DESI labels are available for DSX telephone “preprint” applications.
• 22-Button Display Preprint (pkg 25)
- P/N 1093072
• 34-Button Display Preprint (pkg 25)
- P/N 1093071
• 34-Button Super Display Preprint (pkg 25)
- P/N 1093070
• 60-Button DSS Console Preprint (pkg 25)
- P/N 1093069
The following DESI labels are available for the NEC analog single line telephones.
• For DTR-1-1
- Black (P/N 780400)
- Metallic green (P/N 780401)
- Metallic silver (P/N 780402)
- Lime green (P/N 780403)
- Preprint (blank) (P/N 780459)
• For DTR-1HM-1
- Black (P/N 780404)
- Metallic green (P/N 780405)
- Metallic silver (P/N 780406)
- Lime green (P/N 780407)
- Preprint (blank) (P/N 780460)
• For DTH-1-1
- Metallic silver (P/N 780450)
At a Glance
Labels for DSX Telephones Labels for NEC Single Line Telephones

DSX-80/160 Common Equipment
12 ◆Components DSX Component Guide
DSX-80/160 Common Equipment
DSX-80 4-Slot KSU
The DSX-80 4-Slot KSU contains the CPU, 4 universal card slots and the system’s power supply. It provides
80 ports. It is wall-mountable, has a flip off cover and removable side panel for easy access. The cabinet has
a handy translucent panel in the cover that allows you to get essential system status and troubleshooting
information at a glance, without removing the cover.
DSX-160 8-Slot KSU
The DSX-160 8-Slot KSU contains the CPU slot, 8 universal card slots and up to 3 system power supplies
(depending on Load Factor requirements). It provides 160 ports. Just like the DSX-80 4-Slot KSU, the DSX-
160 is wall-mountable, has a flip off cover and removable side panel for easy access. The DSX-160 also has
a translucent panel in the cover for getting essential system status and troubleshooting at a glance
DSX-80/160 Power Supply
The power supply provides the various DC voltages required to power the DSX-80/160 Cards. The DSX-80
4-Slot KSU requires a single power supply. The DSX-160 8-Slot KSU requires up to 3 power supplies,
depending on system configuration.
At a Glance
P/N 1090002
Slots: 4 Analog extensions (max.): 32
Ports: 80 Analog lines (max): 48
Digital extensions (max.): 32 Digital (T1) lines (max.): 64
• Capacities determined by System Load Factor.
• Always install a 16ESIU Card in the first universal slot.
At a Glance
P/N 1090003
Slots: 8 Analog extensions (max.): 96
Ports: 160 Analog lines (max): 64
Digital extensions (max.): 96 Digital (T1) lines (max.): 64
• Capacities determined by System Load Factor.
• Always install a 16ESIU Card in the first universal slot.
• Install one power supply for every two 16ESIU Cards.
At a Glance
P/N 1091008
DSX-80 Qty: 1 DSX-160 Qty: 3 (max.)
• Quantity required in DSX-160 determined by System Load Factor.
• In DSX-160, Install one power supply for every two 16ESIU Cards.

DSX-80/160 CPU
DSX Component Guide Components ◆13
Components
DSX-80/160 CPU
DSX-80/160 CPU Card
The CPU Card is the system’s control center. It provides the system’s Linux operating system, central pro-
cessing, stored program, and memory for the customer’s site-specific data. Every system requires a CPU
Card. In addition, it also provides:
• CompactFlash card interface (for IntraMail, software loading, and database backup)
• Conference circuits, DTMF receivers and DTMF generators
• Real Time Clock
• NAND Flash for storing the system database
• Battery for short term (14 day) backup of the Real Time Clock and station parameters
• Two audio inputs for Background Music and Music on Hold (1/8” mono minijacks)
• One audio output for External Paging (1/8” mono minijack)
• Ethernet and USB ports for local and remote PC Programming
• RS-232 serial port for Station Message Detail Recording
• Built-in V.32BIS 14.4K BPS modem for remote maintenance
The CPU also has a reset switch that provides the following three functions:
1. System reset (when momentarily pressed).
2. System initialization (when held down as power is turned on).
3. Software update (when held down for six seconds while software update CompactFlash card is installed).
Tips to remember:
• When connecting to the CPU audio inputs or outputs, make sure the connected device is compatible
with the CPU audio specifications. See Specifications and Parts (page 27) for more.
At a Glance
P/N 1090010
Audio Inputs: 2 RS 232 connector: Yes (for SMDR)
Audio outputs: 1 Ethernet port: Yes
USB connector: Yes CompactFlash interface: Yes

DSX-80/160 Station Cards
14 ◆Components DSX Component Guide
DSX-80/160 Station Cards
DSX-80/160 16 Port Digital Station (16ESIU) Card
Each 16ESIU Card connects 16 digital extensions (i.e., DSX keysets). The 16ESIU has a Mode Switch (for
taking the card out of service). It also has a status LED that indicates proper card operation — as well as a
port activity LED that flashes faster as traffic on the card increases. You can install up to two 16ESIU Cards
in a DSX-80. You can install up to six 16ESIU Cards in a DSX-160. See System Configuration (page 24) for
more.
Tips to remember:
• In DSX-160, you must install a separate power supply for every two 16ESIU Cards installed.
• In both DSX-80 and DSX-160, you must install a 16ESIU Card in slot 1.
• You can install additional 16ESIU Cards in any slot.
DSX-80/160 16 Port Analog Station (16SLIU) Card with HV Message Waiting
The 16SLIU Card connects 16 analog extensions which are typically used for single line telephones and fax
machines. Just like the 16ESIU Card, the 16SLIU Card has a Mode Switch (for taking the card out of ser-
vice), a status LED indicating proper card operation, and a port activity LED to indicate traffic on the
card.See System Configuration (page 24) for more.
Tips to remember:
• The 16SLIU Card provides high voltage message waiting for single line sets with high voltage mes-
sage waiting lamps.
• The 16SLIU Card also provides Caller ID to single line sets.
• You can install a 16SLIU Card in any slot except slot 1.
At a Glance
P/N 1091004
Digital station ports: 16 Status LED: Yes
Mode switch: Yes Activity LED: Yes
Max. installed in DSX-80: 2 (32 station
ports)
Max. installed in DSX-160: 6 (96 station
ports)
At a Glance
P/N 1091007
Analog station ports: 16 Activity LED: Yes
High Voltage Message Waiting: Yes Mode switch: Yes
Max. installed in DSX-80: 3 (48 station
ports)
Status LED: Yes
Max. installed in DSX-160: 5 (80 station
ports)
