NEC Portrait 308 User manual

Dial Codes for Phones Using Dial Plan 1
Features not listed here work as previously described.
Note: Used when Automatic Line Access uses “0” or “9” to seize a line.
Lift handset + 63 + Extension to receive call +
Forwarding code (0-3) + Hang up.
Cancel: Lift handset + 69.
Lift handset + 65 + Personal code + Hang up.
Cancel Dial Block: Lift handset + 66 + Personal
code + Hang up.
Lift handset + 7 + # + Hunt group number (1-4).
Lift handset + 61.
Lift handset + 7 + Co-worker’s extension number.
This feature may require system programming.
Lift handset + 60 + Queue group number (1-6).
Lift handset + 7 + Page zone number + # + Wait
for party to join conversation.
Answer a Meet-Me Page: Lift handset + 8.
(System programming changes may then require
you to dial the announced page zone.)
Lift handset + 7 + *.
Lift handset + 7 + Page zone (Portrait 308=80-85,
Portrait 824=80-87) + Make announcement +
Hang up.
Set: Lift handset + 64 + Enter time (24-hour clock)
+ Hang up.
Clear: Lift handset + 69 + Hang up.
This feature may require system programming.
Lift handset + 5 + Queue group number (1-6) +
Speed Dial number.
Lift handset + 07 + Security code + Phone
number.
Walking Class of
Service:
Speed Dial:
Reminder Call:
Page:
Message Waiting -
Answer a message:
Meet-Me Page:
Last Number Redial:
Intercom:
Hold - Retrieve a call:
Extension Hunting:
Dial Block:
Call Forward:
Single Line Telephone
Quick Reference Guide
82400SLO04.QXD 4/17/02 3:57 PM Page 11

Placing an Outside Call . . .
The instructions in this guide assume your system
uses default program settings (e.g. Dial Plan 2).
1. Lift handset.
2. Press
3. Dial a 2-digit outside line number (e.g.,
01, 02).
4. Dial outside number.
•If your system is behind a PBX, you may
have to dial 9 before your number.
•To Flash a CO line, flash the hook-
switch and dial 90.
Calling a Co-Worker . . .
1. Lift handset.
2. Dial your co-worker’s extension number.
•If you hear ringing, wait for an answer.
If you hear a beep, begin speaking.
• To Page, dial 80 for All Call or 81-84
for internal zones. External zones are
85 or, for Portrait 824 only, 86-87.
3. (Optional) Dial to force the call to
ring your co-worker.

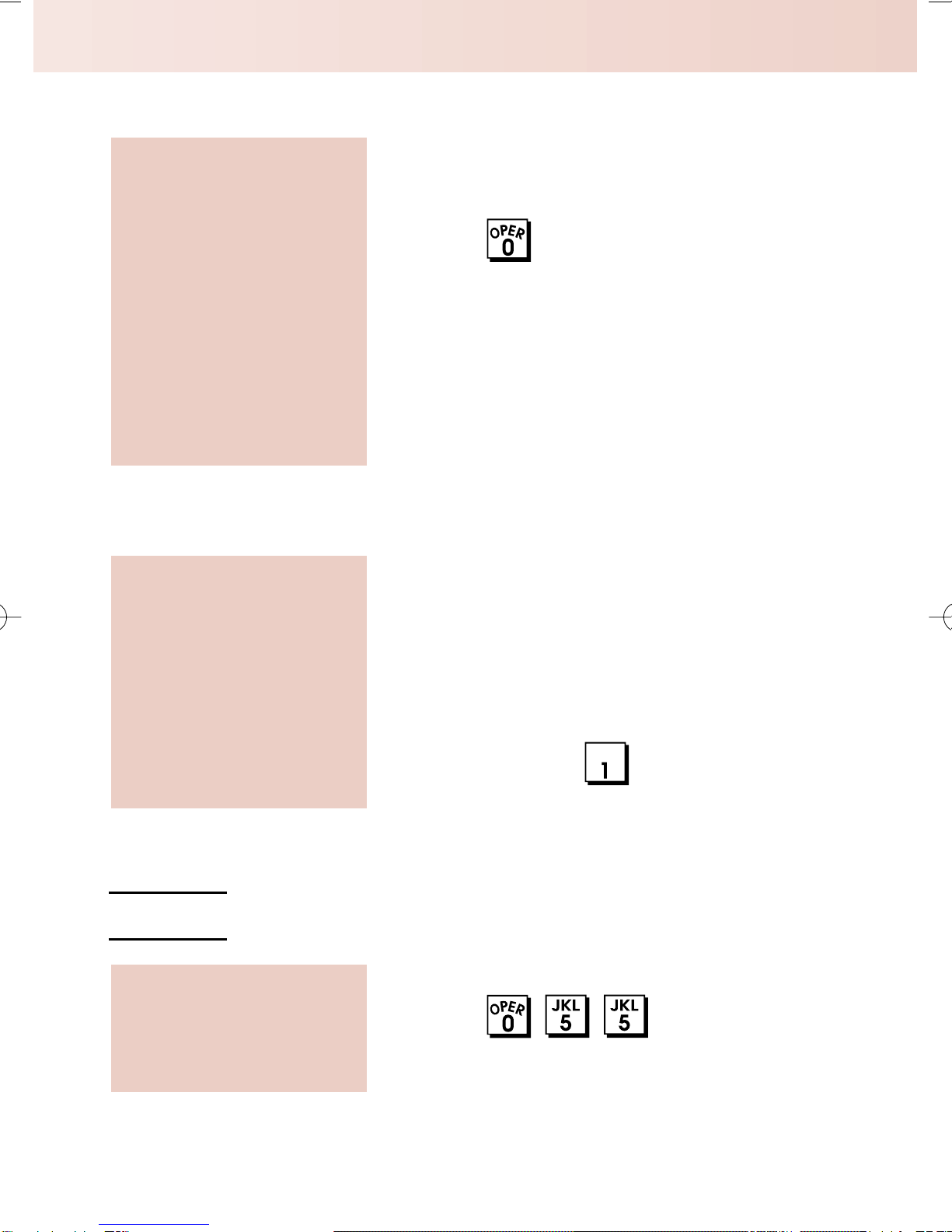

Block outgoing calls from your phone . . .
Dial Block
1. Lift handset.
2. Press .
3. Dial Personal Code (4 digits).
4. Hang up.
Enter 4-digit code
to temporarily block
outgoing calls on
your phone:
Dial using the
Intercom:
Dial access code for an
outside line:
Placing and Answering Calls
82400SLO04.QXD 3/29/01 4:51 PM Page 1

1. Lift handset.
2. Press .
3. Dial Personal Code (4 digits).
4. Hang up.

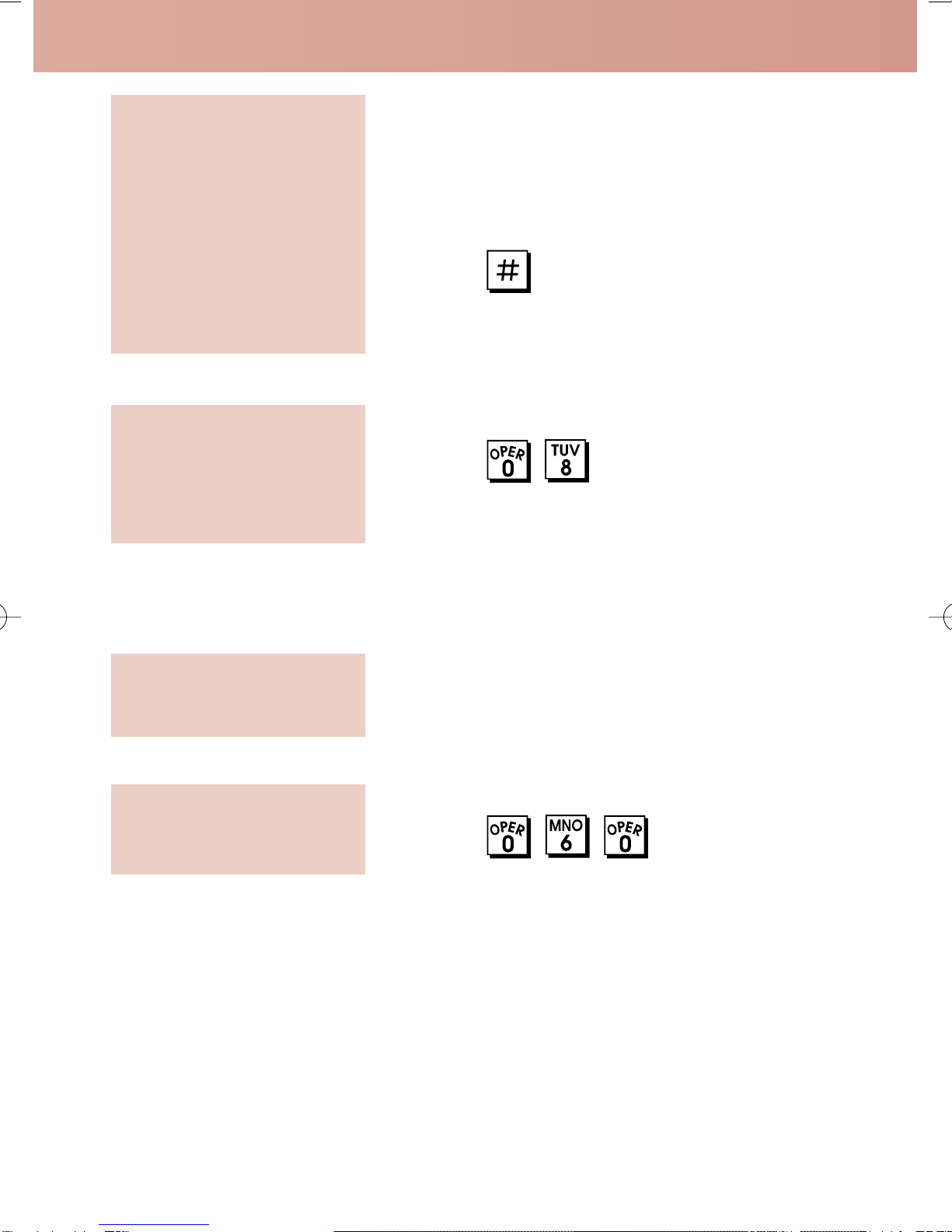

If your call doesn’t go through . . .
Camp On and Callback
1. For Intercom calls, dial to Camp On
(wait without hanging up).
OR
1. For Intercom calls, dial and hang up
to leave a Callback for an extension.
•When the called party hangs up, the
call rings you back.
2. Lift handset when the system calls
you back.
Step Calling
1. Do not hang up if there is no answer.
2. Press .
• The next extension rings (e.g., if you
called extension 14, pressing # will ring
extension 15)
Call the next extension
if busy or no answer:
When you hear system
busy, use Camp On or
Callback:
Clear the Dial Block on
your phone:
82400SLO04.QXD 3/29/01 4:51 PM Page 2

Message Waiting
1. Do not hang up if there is no answer.
2. Press .
• MW on your co-worker’s multibutton
phone flashes fast.
3. Hang up.
A Message Waiting is indicated by a moderate
busy-type signal when the handset is first lifted.
1. Lift handset.
2. Press .
Have a telephone meeting (Conference) . . .
1. Set up your first outside call and press the
hookswitch.
2. To add an internal party: Press .
The called extension must pick up the
handset in order to be conferenced.
OR
2. To add an outside call: Press .
3. Place your second call.
Internal Calls:
The called internal extension must pick
up the handset before being Conferenced.
External Calls:
To place a second call, you first must seize
the outside line to be used. Dial 01-08,
then dial the telephone number.
4. Press the hookswitch again.
Use Conference to
have a 3-way
telephone meeting:
To answer your own
Message Waiting:
Leave a Message
Waiting so your
co-worker can call
you back:
82400SLO04.QXD 3/29/01 4:52 PM Page 3

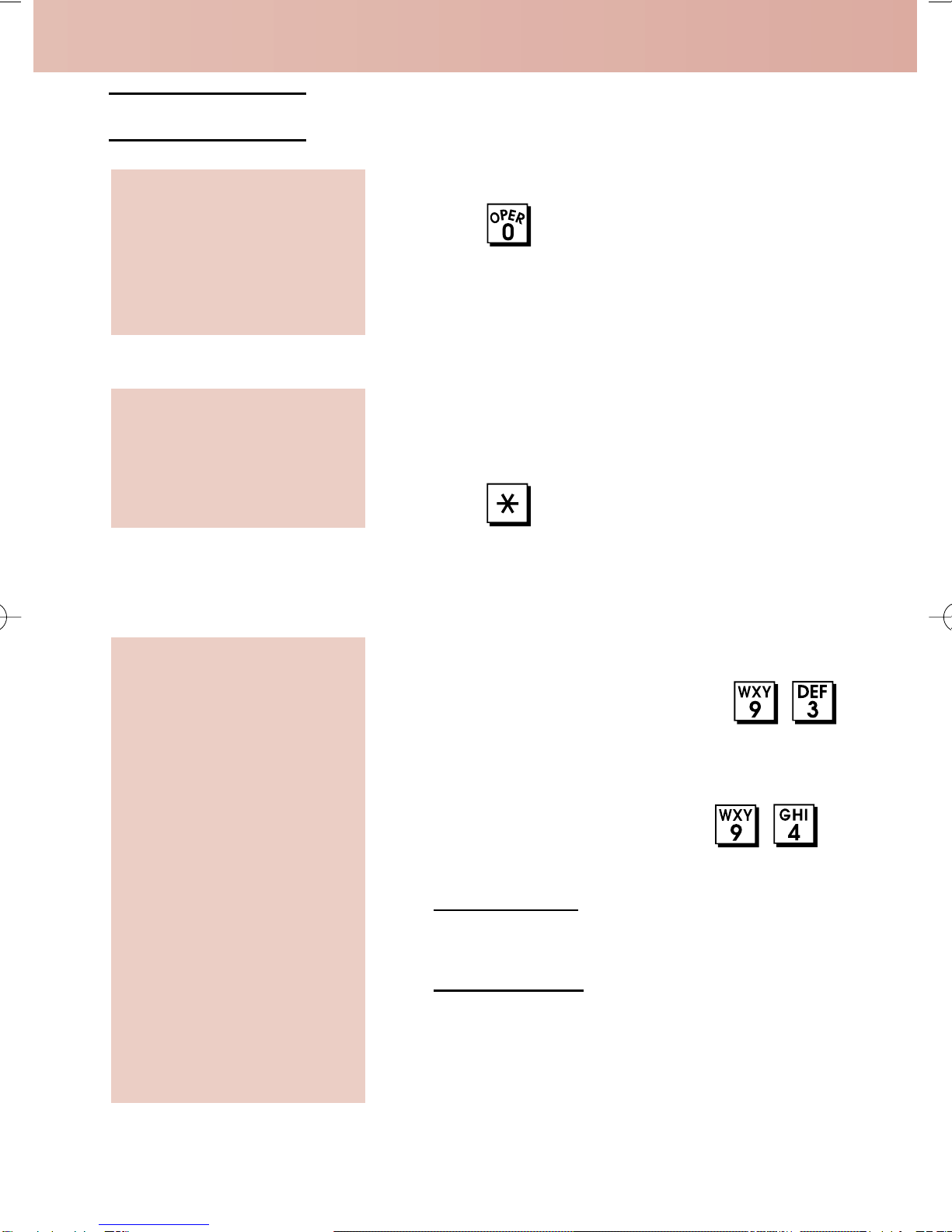

1. Lift handset.
2. Dial a Page Zone (Portrait 308 = 80-85;
Portrait 824 = 80-87).
3. Announce co-worker to pick up the same
page zone number you dialed.
4. Press .
5. Do not hang up. Wait for party to join in
the conversation.
1. Lift handset.
2. Press .
3. Dial announced page zone (Portrait 308 =
80-85; Portrait 824 = 80-87).
Answering Calls . . .
1. Lift handset.
•To Flash a CO line, flash the hook-
switch and dial 90.
1. Lift handset.
2. Press .
To answer a call
ringing another
extension:
Listen for ringing:
Answer a Meet-Me
Page request:
Use Meet-Me Page to
have a telephone
meeting with an
internal party:
82400SLO04.QXD 3/29/01 4:52 PM Page 4

Your call can wait at your phone . . .
Hold
1. Do not hang up.
2. Press the hookswitch.
3. System Hold: Dial .
•Your co-workers can take the call off Hold.
OR
3. Exclusive Hold: Dial .
•Your co-workers can not take the call
off Hold.
1. Lift handset.
2. Press .
Redirect your call . . .
Transfer
1. With an outside call on the line, press
hookswitch and dial your co-worker’s
extension number.
2. (Optional) Announce call.
3. Hang up.
Send (Transfer) your
call to a co-worker:
Easily retrieve a call
from Hold:
Use Hold instead of
leaving the handset
off-hook:
Handling Your Calls
82400SLO04.QXD 3/29/01 4:52 PM Page 5

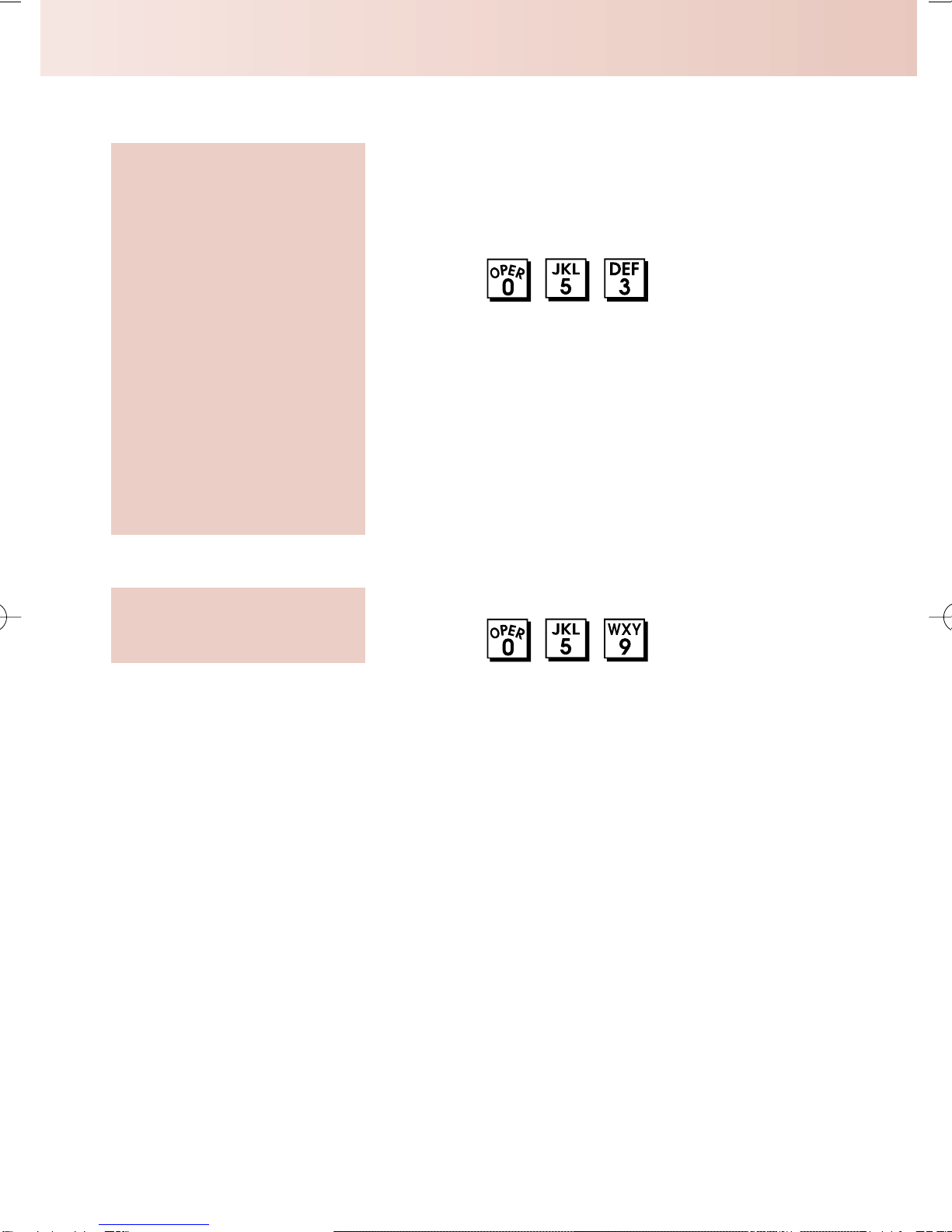

Forward your calls to a co-worker . . .
When Call Forward is activated, it’s indicat-
ed by a slow busy-type signal when the hand-
set is first lifted.
1. Lift handset.
2. Press .
3. Dial extension to receive your calls.
4. Dial one of the following:
•0 to forward all calls.
•1 to forward busy calls.
•2 to forward unanswered calls.
•3 to forward unanswered and/or busy
calls.
5. Hang up.
1. Lift handset.
2. Press .
Cancel Call
Forwarding:
While at your desk,
forward your calls to a
co-worker:
Handling Your Calls (cont.)
82400SLO04.QXD 3/29/01 4:52 PM Page 8

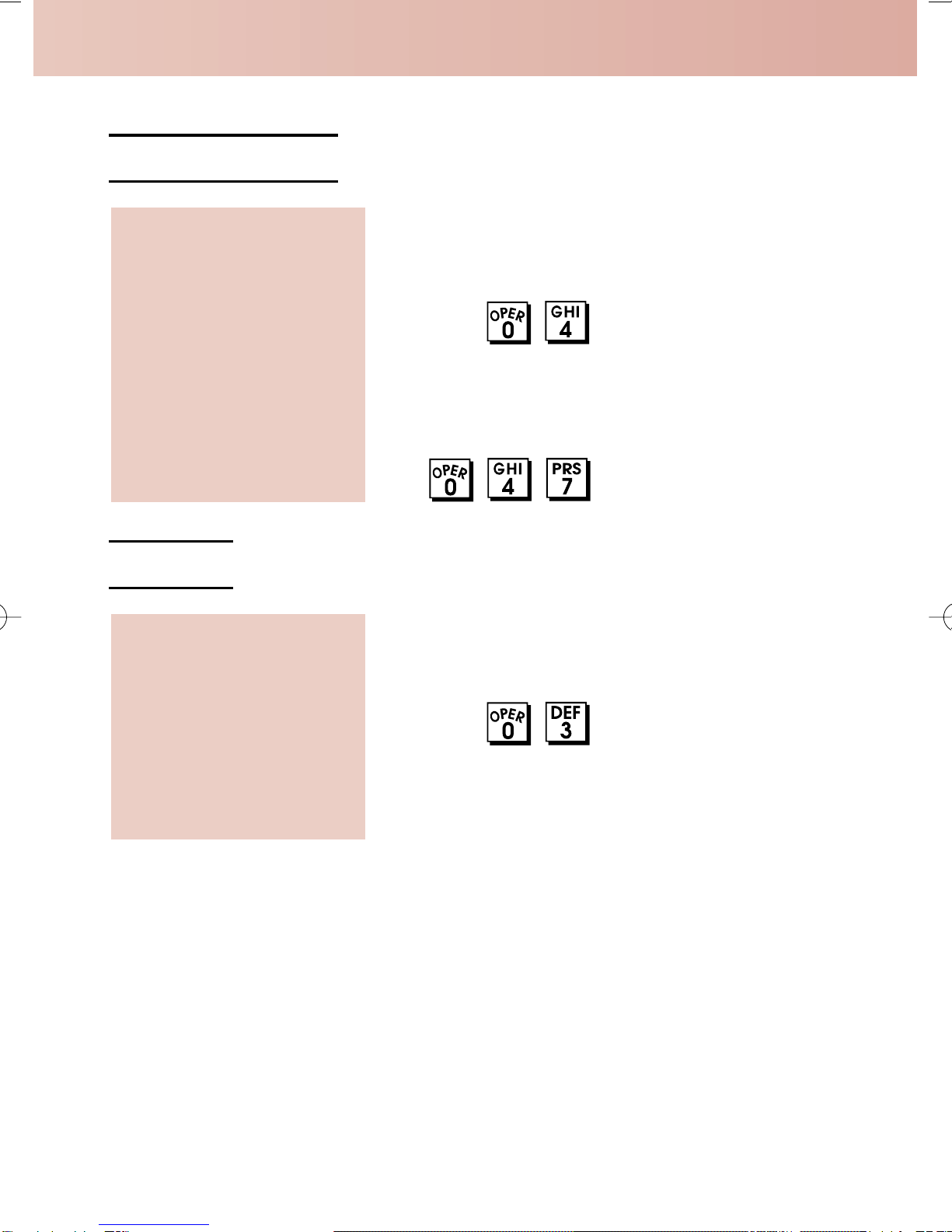

Automatically redial calls . . .
Last Number Redial
This feature may require system
programming.
1. Lift handset.
2. Press and dial queue group
number (1-6).
OR
2. With software version 2.1 or higher, press
.
Speed Dial
This feature may require system
programming.
1. Lift handset.
2. Press .
3. Dial a queue group number (1-6).
4. Dial the desired Speed Dial number
(00[0]-199).
To dial a stored system
Speed Dial number:
Quickly redial your last
outside call:
Placing Calls Quickly
82400SLO04.QXD 3/29/01 4:52 PM Page 9

Possible Dial Codes for Dial Plan 2 Phones
The following features may have dial code changes which could apply to
your phone if system programming was altered. Ask your communica-
tions manager if these codes apply to you. Features not listed here work
as previously described.
Note: Used when Automatic Line Access uses “0” to seize a line.
Lift handset + 953 + Extension to receive call +
Forwarding code (0-3) + Hang up.
Cancel: Lift handset + 959.
Lift handset + 955 + Personal code + Hang up.
Cancel: Lift handset + 956 + Personal code +
Hang up.
To answer a Door Box call:
Lift handset + 98 + 9.
Lift handset + 951.
This feature may require system programming.
Lift handset + 94 + Queue group number (1-6).
Lift handset + 98 + Announced page zone.
Lift handset + 9 + 2-digit line # (this may not be
required) + Outside number. OR Lift handset + 0
+ Outside number.
Set: Lift handset + 954 + Enter time (24-hour
clock) + Hang up.
Clear: Lift handset + 959 + Hang up.
This feature may require system programming.
Lift handset + 93 + Queue group number (1-6) +
Speed Dial number.
Speed Dial:
Reminder Call:
Outside Call - Place:
Meet-Me Page - Answer:
Last Number Redial:
Hold - Retrieve a call:
Door Box:
Dial Block:
Call Forward:
82400SLO04.QXD 3/29/01 4:52 PM Page 10

Dial Codes for Phones Using Dial Plan 1
Features not listed here work as previously described.
Note: Used when Automatic Line Access uses “0” or “9” to seize a line.
Lift handset + 63 + Extension to receive call +
Forwarding code (0-3) + Hang up.
Cancel: Lift handset + 69.
Lift handset + 65 + Personal code + Hang up.
Cancel Dial Block: Lift handset + 66 + Personal
code + Hang up.
Lift handset + 7 + # + Hunt group number (1-4).
Lift handset + 61.
Lift handset + 7 + Co-worker’s extension number.
This feature may require system programming.
Lift handset + 60 + Queue group number (1-6).
Lift handset + 7 + Page zone number + # + Wait
for party to join conversation.
Answer a Meet-Me Page: Lift handset + 8.
(System programming changes may then require
you to dial the announced page zone.)
Lift handset + 7 + *.
Lift handset + 7 + Page zone (Portrait 308=80-85,
Portrait 824=80-87) + Make announcement +
Hang up.
Set: Lift handset + 64 + Enter time (24-hour clock)
+ Hang up.
Clear: Lift handset + 69 + Hang up.
This feature may require system programming.
Lift handset + 5 + Queue group number (1-6) +
Speed Dial number.
Lift handset + 07 + Security code + Phone
number.
Walking Class of
Service:
Speed Dial:
Reminder Call:
Page:
Message Waiting -
Answer a message:
Meet-Me Page:
Last Number Redial:
Intercom:
Hold - Retrieve a call:
Extension Hunting:
Dial Block:
Call Forward:
82400SLO04.QXD 3/29/01 4:52 PM Page 11

Tones you may hear . . .
Lift handset + 07 + Security Code + Line Access
Code + Phone number.
Walking Class of
Service:
Quick Reference for Other Features
Seize CO line + Hookswitch + 99 + Account Code
+ Hookswitch + Telephone number.
Account Code:
This means you made a mistake in placing a call
or using a feature. Hang up and start over.
This means you have a Message Waiting.
This means that Call Forward is activated on your
phone.
Slow busy-type signal
when the handset is
first lifted:
Moderate busy-type
signal when the handset
is first lifted:
Fast busy or warble
tone anytime:
To answer a Door Box call:
Lift handset + 08 + 9.
To call a Door Box:
Lift handset + 88 (Door Box 1) or 89 (Door
Box 2).
Door Box:
Lift handset + Page Zone (Portrait 308=80-85,
Portrait 824=80-87) + Make announcement +
Hang up.
Page:
Set: Lift handset + 054 + Enter time (24-hour
clock) + Hang up.
Clear: Lift handset + 059 + Hang up.
Reminder Call:
82400SLO04.QXD 3/29/01 4:52 PM Page 6

Forward your calls to a co-worker . . .
When Call Forward is activated, it’s indicat-
ed by a slow busy-type signal when the hand-
set is first lifted.
1. Lift handset.
2. Press .
3. Dial extension to receive your calls.
4. Dial one of the following:
•0 to forward all calls.
•1 to forward busy calls.
•2 to forward unanswered calls.
•3 to forward unanswered and/or busy
calls.
5. Hang up.
1. Lift handset.
2. Press .
Cancel Call
Forwarding:
While at your desk,
forward your calls to a
co-worker:
Handling Your Calls (cont.)
April 2001
Printed in U.S.A.
NEC America Inc., Corporate Networks Group
4 Forest Parkway, Shelton, CT 06484
TEL: [phone] FAX: [phone]
cng.nec.com
82400SLO04
*82400SLO04*
82400SLO04.QXD 4/17/02 3:55 PM Page 7
