1. Remove the unit from the crate and open
the packing cartons. Check for any damage
that may have occurred during shipment. If
you see any possible damage, make a note
of it on the delivery paperwork and advise
the factory immediately.
2. Unpack the spray gun support tube, spray
gun mounting bracket, and spray shields.
3. Slide the gun support tube with shields into
the receiver tube on the front of the
machine and then hand tighten the star
knobs. (Pic 1)
4. Slide the spray gun mounting bracket onto
the upright of the gun support tube and
then hand tighten star knob. (Pic 1)
5. Place the spray gun (without the hose
attached) in the gun mount, and secure it
with the gun mount clamp. (Pic 1)
6. Check the placement of spray gun in the gun
mount. The spray gun should be far enough
forward so that there is room between the
trigger and the lifting bar. (1/8”-3/16”). This
will allow the gun to shut off completely
when the trigger is released. (Pic 1)
7. There should also be enough room to push
the trigger lock sideways. If the trigger lock
will not push, release the gun clamp and
slide gun backward until you can push the
trigger lock. Re-clamp the gun. NOTE: To
release the trigger lock, push the trigger
lock in on the right side (outside) of the gun.
(Pic 1)
8. Attach one end of the spray hose to the
pump outlet with a ¾” wrench and the other
end to the spray gun. You will need two
wrenches (3/4” and 9/16” or two adjustable
wrenches) to secure the hose on the spray
gun as it has a swivel fitting. Tighten both
connections. (Pic 1)
9. Make sure that the static ground chain on
the bottom side of the chassis, is contacting
the ground.
10. If the unit was shipped with suction hose
removed at the pump. (Garden hose type
fitting) Depress the Inlet Valve Stem to
ensure it moves freely. Attach the suction
hose to the pump inlet. The hose fitting may
now be hand tightened. You may also need
to perform this operation any time the
pump will not prime. (Pic 2)
11. Always check the oil level in the engine
before starting. (SAE 10W30)

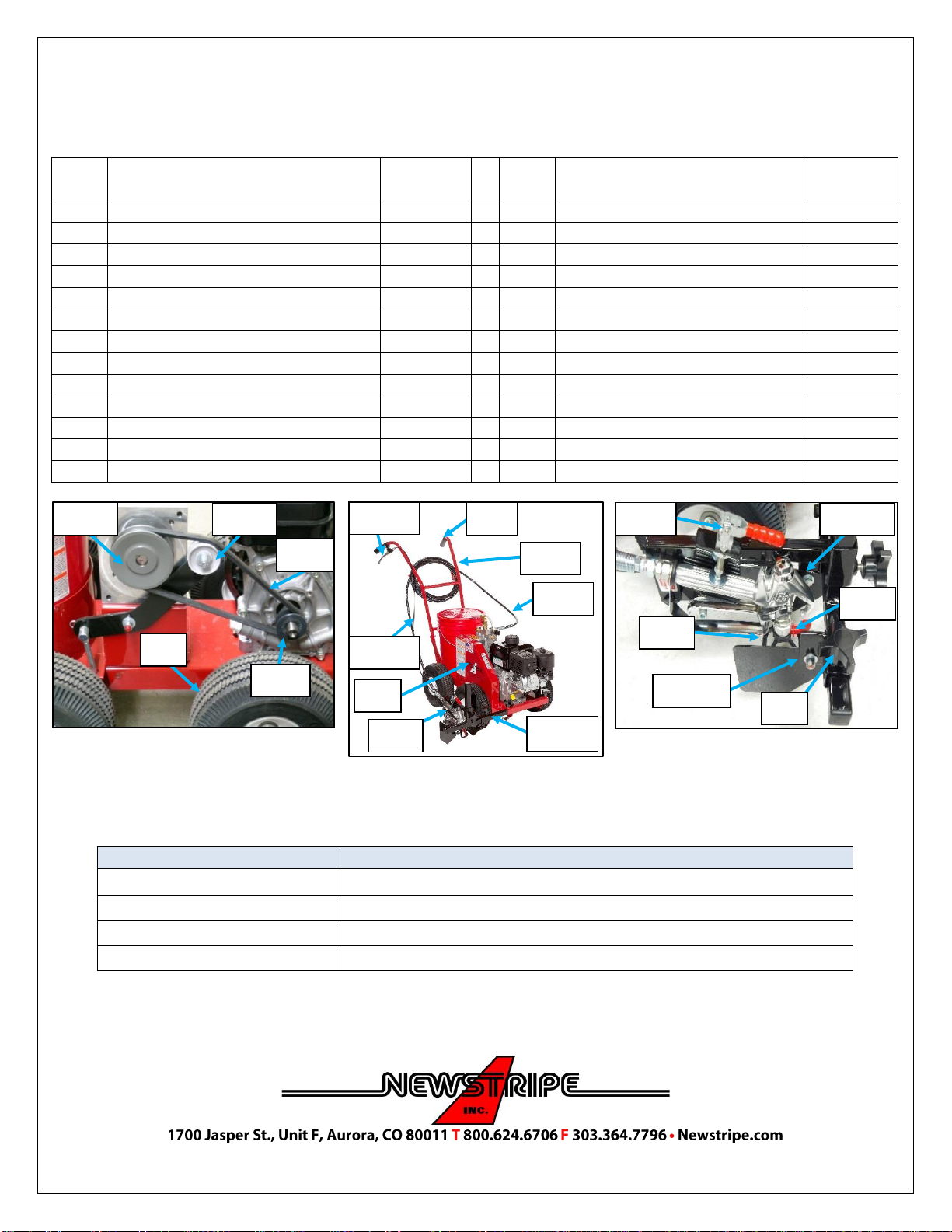

Pic 1
Pic2
