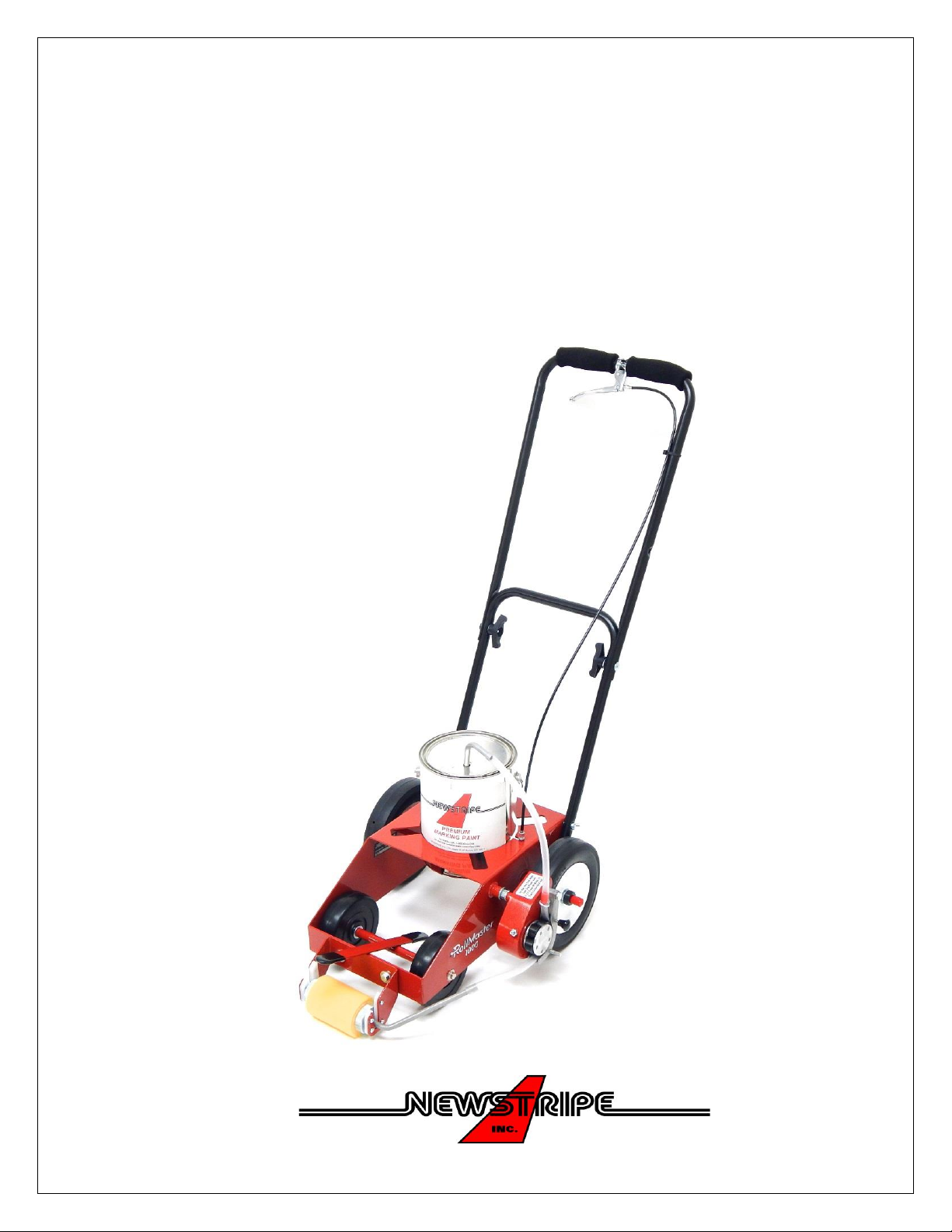

Newstripe RollMaster 1000 User manual

Jasper St., Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 / 3856.0822
RollMaster™ 1000
Product Manual

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
RollMaster™ 1000 Manual / 3856.0822
TABLE OF CONTENTS
Precautionary Warning…........Page 1
Assembly……………………….……..Page 2-3
Operation …………………….………Page 3-4
Helpful tips……………………..……Page 4
Cleaning Procedure……….……. Page 5
Troubleshooting…..……..……….Page 5
Parts List………………………….…..Page 6-7
Warranty……………………...……..Page 8
Thank you! For your purchase of the
Newstripe RollMaster™ 1000 Striper.
Please read over the instructions and
make sure you understand operating
procedures before using the unit.
Please check the serial number on
your unit. This Manual is for units with
serial number 1017585 and above
only. For units with serial numbers
below 1017585, please contact
Newstripe for the correct manual.

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
RollMaster™ 1000 Manual / 3856.0822
PRECAUTIONARY WARNING!
•Please read and understand all operation instructions
as detailed in this manual. Failure to follow specified
instructions may result in equipment damage or
serious injury to person.
•Use only in well-ventilated area.
•Keep away from sparks and flame –No smoking.
•Wear appropriate personal protective equipment.
•Always consult your Facility Safety and/or Personnel
Department for specified safety protocols prior to
operating this equipment.
•Paint and all foreign matter should be kept away from
the pump and trough. It is especially important that
pump rollers always be clean and greased with every
use.
•NEVER use fuels to clean the equipment.
•DO NOT use brushes with metal bristles or any metal
object to clean any part of the RollMaster™ 1000.
•The Paint Can Tube (attached to paint hose) and
Mandrel Tube (in Roller Assembly), Mandrel, and
Knurled Nuts are permanent parts of the machine.
NOTE: These parts must be cleaned after every use
and are not supplied with the Roller Hose
Replacement Kits.
Page 1 of 8

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822

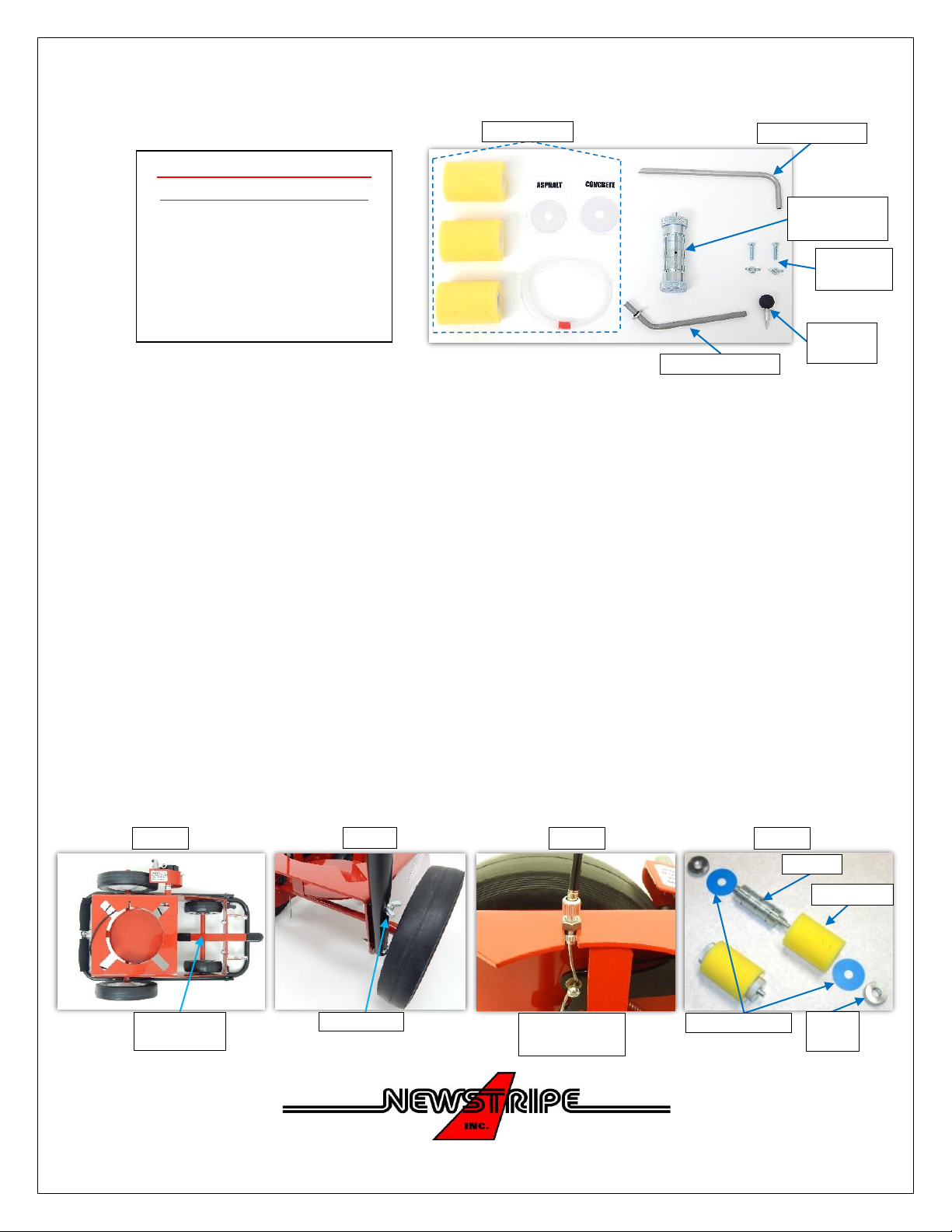

ASSEMBLY
1. Remove the chassis and handle assembly from the box. (Pic 2).
2. Rotate the folding handle upright so that the holes are aligned with the corresponding holes in the chassis. Be
careful not to damage the control cable. (Pic3)
3. Fasten the handle to the chassis with the provided ¼” wing nuts to the outside of the handle. (Pic3).
4. Rotate the top section of the handle upward to the unfolded position and then tighten the wing knobs.
5. Pull up on the cable adjuster with the cable and slip it into the slot in the chassis. (Pic 4)
Note: The cable adjuster should be positioned all the way into the slot with the hex nut above the plate and the
round adjusting nut below the plate.
6. Adjust the nuts on the cable adjuster for proper pump operation. When adjusted correctly, the pump rollers will spin
when the control lever is squeezed and stop spinning when the control lever is released.
7. The guide bar/kickstand raises the mandrel off the surface when it is in the vertical position. When lowered for
striping it can also serve as a line guide. (Pic 2)
8. Remove the protective film from the regulating discs before installing them on the mandrel. (Pic 5)
9. Place one regulating disc on one threaded end of the mandrel, and then screw on one knurled nut, finger tight, to
retain it. Slide the roller cover onto the mandrel and install the second regulating disc and knurled Nut. Tighten the
nuts fully by hand.
NOTE: PVC spacers and discs with larger holes will be included with your kit if you ordered 2" or 3" wide rollers.
Follow the above assembly instructions, except you must add these spacers between the discs and the knurled nut.
3
2
Your RollMaster™ 1000 box
should include these parts:
Can Hole Punch
Paint Can Tube
Mandrel with Knurled Nuts
Mandrel Tube with O-Ring
4” Roller Kit (3 Pack)
Handle Hardware
Guide bar/
Kickstand (31)
((() 33((31)
extension bracket
Wing
nut (33)
Quick release
pin (32)
Cable adjuster (29)
in correct position
Pic 2
Cable Adjuster
Correct Position
Wing
Nut (33)
Wing nut
Pic 3
Pic 4
Pic 5
Mandrel with
Knurled Nuts
Mandrel Tube
Handle
Hardware
Guide bar/
Kickstand
Page 2 of 8
Can Hole
Punch
Paint Can Tube
4” Roller Kit
Mandrel
Roller Cover
Knurled
Nut
Regulating Discs

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
Assembly for Striping
1. Apply a light coating of grease to the O-Ring and the short end of the mandrel tube. Insert the greased end of the
mandrel tube into the open side of the mandrel with the O-Ring toward the mandrel. (Pic 6)
2. Place the mandrel with the roller cover in the J-Yokes of the carrier assembly with the mandrel tube to the left side
of the machine. The washer of the mandrel tube will be on the inside of the J-Yokes. The mandrel should be able to
slide up and down freely in the J-Yokes. If necessary, bend the side plates out just enough to allow the mandrel to
move up and down freely. (Pic 7)
3. Open the trough by grasping the thumb grip on the trough and the rear wheel hub while squeezing them toward each
other, until it clicks and locks in the open position. (Pic 8)
4. Push one end of paint hose over the end of the mandrel tube and then insert the hose under the pump rollers, inside
the trough. Squeeze the hose flat just below the red band, and then insert it through the side of the trough eye bolt
with the red band ON THE TOP SIDE. Close the trough by pulling OUT on the release knob on the side of the trough
while lightly squeezing the thumb grip and wheel hub toward each other. (Pic 9)
5. Make sure the paint hose is under the pump rollers and is not pinched by the sides of the trough.
OPERATION
1. Punch a hole in the can lid with the provided Punch about 1 inch from the left edge. A second SMALL "vent
hole" should be punched near the other hole.
2. Insert the paint can tube into the punched hole in the paint can lid.
3. Push the open end of the paint hose onto the end of the paint can tube.
4. Make sure the trough is in the closed position.
5. When you squeeze the control lever, the pump drive wheel is brought into contact with the rear wheel. The
paint is then pumped directly into the mandrel and out through the roller cover, as you move forward. When
you release the lever the pumping stops.
NOTE: Only squeeze the control lever when moving forward. Release the lever when rolling backward, or the
paint will be sucked back to the paint can.
6. To prime the roller cover for painting, tip the unit back slightly so the front wheels are off the ground. Squeeze
and hold the control lever while rolling the unit forward approximately 50-75 feet. You should see dots of paint
forming on the roller cover. This indicates that the roller cover is priming properly with paint.
7. After priming the roller cover, place the unit on an existing line or on cardboard and roll the unit forward and
backward with the front wheels and roller contacting the surface until the roller is completely saturated.
Trough Open Position
Trough Closed Position
Pic 6
Roller Carrier
Pic 7
Pic 8
Pic 9
Page 3 of 8
Eye
Bolt
Regulating
Disc
J-Yoke
Thumb grip
O-Ring
Paint Hose
Release
Knob

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
OPERATIONAL NOTES
DO NOT use lacquer-based paints. Use of lacquer based paints will damage the roller cover.
DO NOT over-thin the paint.
The mandrel and roller cover should slide up and down freely in the J-Yokes with a side clearance of not more
than 1/32". Proper clearance was set at the factory, but it may be necessary to spread the side plates on the
carrier assembly to regain this clearance.
The mandrel and roller cover should roll freely in the J-Yokes. If not, lightly oil the short end of the mandrel tube
that goes into the mandrel, and the O-Ring.
Most paints can be used without thinning. Some paints will flow better with thinning, so you may need to thin
them for easier use.
Cooler temperatures (50-65 degrees) may also require paint thinning. Normally, no more than 4 ounces (1/2
cup) per gallon is required. Fast Dry paints are not recommended (Fast Dry paints are those that are “no pick
up” in 30 minutes or less). On rough surfaces, thinning will also improve the appearance of the line.
Follow the paint manufacturer’s instructions for best results.
If the roller cover becomes oversaturated with paint, release the control lever for a short period of time.
Continue rolling forward to allow the excess paint to transfer from the roller cover onto the surface area.
Squeeze the lever again when the roller cover requires additional paint. This practice called feathering, will be
required when the operator is striping a 2" or a 3" line.
Releasing the lever when you are 2-3 feet from the end of the line will allow you to finish with a clean and crisp
end without puddling.
HELPFUL TIPS
The roller cover must be saturated with paint before a solid painted line will be transferred onto the painting
surface. It is recommended that you saturate the roller cover as detailed in the operation instructions.
We recommend that you use water-base traffic paints, as they are easier to clean up and do not "lift" new
asphalt surfaces.
Follow the paint manufacturer’s instructions for best results. In colder temperatures, the flow of paint can be
restricted because the paint becomes too thick. If the paint is not thin enough, you will not get a solid line and
the edges of your line will not appear crisp.
When stopping for prolonged periods, cover the mandrel and roller cover with plastic wrap to prevent it from
drying out.
The machine works better if the operator moves at a slow constant pace for nice even edges.
Releasing the control lever about two feet from the end of the line creates a crisp edge without puddling.
Page 4 of 8

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
CLEANING PROCEDURE
1. When you are finished striping, open the trough and then roll the machine forward with the roller contacting a
dry painted line to transfer any excess paint out of the roller cover.
2. Remove the end of the paint hose from the paint can tube. Keep the hose upright to avoid dripping paint.
3. Squeeze the paint hose out through the side of the trough eye bolt. Remove the paint hose, mandrel tube,
mandrel, and roller cover from the machine.
4. Set the mandrel tube and paint can tube aside for cleaning.
5. Remove one knurled nut and regulating disc from the mandrel and then slide the roller cover off and discard it.
Remove the second knurled nut and regulating disc from the mandrel. Discard the regulating discs and the paint
hose.
6. Clean the mandrel, knurled nuts, mandrel tube, and paint can tube with water or solvent, for future use.
*DO NOT THROW AWAY THE MANDREL, KNURLED NUTS, PAINT CAN TUBE, OR MANDREL TUBE AS THESE ARE
PERMANENT PARTS OF THE MACHINE.
NOTE: Always use a solvent recommended by the paint manufacturer. DO NOT use petroleum base cleaners or
thinners with water based paint, as they will react with the paint. This will make it difficult to clean the parts.
7. Apply a light coat of spray oil to all moving parts.
TROUBLESHOOTING GUIDE
PROBLEM
REMEDY
Paint not getting to the roller or too
little paint getting to roller.
1. Make sure the trough is closed.
2. Check the paint hose for a kink. If the hose is kinked, open the trough
and rotate the hose to unkink it. Replace the hose if necessary.
3. Check that the pump drive wheel is contacting rear wheel when the
control lever is pulled. If it is not, adjust the cable at the frame.
4. Check that all pump rollers spin freely. If not clean the rollers of debris
or paint, and lubricate them with a light oil.
5. Check to see if your paint is “Set Fast” or “Fast Dry”. These paints are
not recommended and require thinning, which may cause the paint
to dry slower, or may diminish the overall line quality.
Painted line is solid on one side, but
light or skipping on the other side.
1. Check that the mandrel moves up and down freely in the J-Yoke and is
not binding. Adjust the J-Yokes if needed. Clean any debris or paint off
of the J-Yokes.
2. If the mandrel is riding up on the mandrel carrier sides, grease the
mandrel tube end and O-Ring with a light oil.
Painted line has heavy ridges on edges
or excessive paint.
1. Make sure that you are using the proper regulating discs.
2. Periodically release the control lever every few feet during striping to
avoid oversaturating the roller cover.
Paint line skips across width of roller.
1. Make sure that the mandrel and roller cover are rolling freely. If not,
lubricate the O-Ring end of mandrel tube and the mandrel tube O-Ring.
Your machine is designed to be simple and safe to operate.
If you have any questions during setup, painting or cleaning, please call us! 1-800-624-6706
Page 5 of 8

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
PARTS LIST
Item Number Description Part Number
1 Paint Can Tube 10000665
2 Paint Hose (5-Pack) 10002496
3 Mandrel Tube Assembly 10003864
4 O-Ring, 3/8” ID X 1/32” Thick 10000027
5 Knurled Nut (2 Required) 10000646
6 Mandrel 10000643
7 Trough Assembly 10000652
8 Trough Lock Pin Kit 10000671
9 Pump Rotor Assembly 10000654
10 Tire, Pump Drive (Not Shown) 10000650
11 Control Cable 10002519
12 Handle 10004852
13 Hand Grip (2 Required) 10000967
14 Control Lever 10000821
15 Wheel, Front (2 Required) 10000753
16 Wheel, Rear (2 Required) 10003837
17 Can Hole Punch 10000669
18 Actuating Arm Spring 10000692
19 Cable Stop 10001577
20 Cable Adjuster 10000018
21 Roller Carrier with J-Yokes 10004024
22 Replaceable J-Yokes 10004023
23 Wing Nut (4 Required) 10000107
24 Wing Knob (2 Required) 10004899
25 3-Pack Replacement Roller Kits include 3 roller covers, paint hoses & 12 discs:
4” Replacement Roller Kit 10004377
3” Replacement Roller Kit 10004378
2” Replacement Roller Kit 10004379
12-Pack Replacement Rollers include 12 roller covers & 48 discs:
4” Replacement Rollers and discs 10000728
3” Replacement Rollers and discs 10001461
2” Replacement Rollers and discs 10000729
Optional Left Position Roller Kit 10004461
Includes:
Mandrel Tube Assembly, Left Position 10003866
Left Position Striping Bracket 10003865
5/16-18 x 3/4” Bolts (2) 10001499
5/16” Flat Washers (4) 10000095
5/16-18 KEPS Nuts (2) 10004461
Page 6 of 8

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
PARTS PICTURES
Hand Grip #13
Paint Can Tube #1
Paint Hose #2
Rear Wheel #16
Control Cable #11
Handle #12
Cable Stop #19
Actuating Arm Spring
#18
Actuating Arm
Trough Lock Pin
Kit #8
Trough
Assembly #7
Rollers (In Kits)
See #25
Knurled Nut #5
Regulating Discs
(In Kits) See #25
Pic 10
Pic 11
Pic 12
Wing Knob #24
Pic 13
Page 7 of 8
Control
Lever #14
Pump Rotor
Assembly #9
Front
Wheel #15
Mandrel Tube #3
Mandrel #6

RollMaster™ 1000
ALWAYS wear safety goggles or protective eye-wear when operating the unit!
1700 Jasper St. Unit F, Aurora, CO 80011 T800.624.6706 F303.364.7796 •Newstripe.com
RollMaster™ 1000 Manual / 3856.0822
THE NEWSTRIPE WARRANTY –18 MONTH
NEWSTRIPE, INC., WARRANTS TO THE ORIGINAL PURCHASER, FOR 18 (EIGHTEEN) MONTHS AFTER
DATE OF PURCHASE, THAT THE EQUIPMENT* HEREBY SOLD SHALL BE FREE OF DEFECTS IN
MATERIALS AND WORKMANSHIP. THIS WARRANTY DOES NOT EXTEND TO ANY DAMAGE OR
MALFUNCTION RESULTING FROM MISUSE, NEGLECT, ACCIDENT, IMPROPER OPERATION, OR NORMAL
WEAR AND TEAR.
Damage incurred in shipment from Newstripe, Inc. to the customer is the total responsibility of the carrier. The
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc.
will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by
placing his signature on the documents.
The Newstripe, Inc. obligation under this warranty and any implied warranties is limited to replacement or repair of
defective parts of its manufacture without charge for 18 (EIGHTEEN) months from date of purchase. For service under
this warranty, buyer shall ship the defective part or parts of the equipment, transportation prepaid, to Newstripe, Inc.
together with a written description of any claimed defect and proof of purchase date of the materials being returned. Prior
to retuning any part or machine, the CUSTOMER must obtain a Return Materials Authorization number. Call 1-
800-624-6706. To review the complete guidelines for warranty and returns, please visit
www.newstripe.com/guidlinesforwarrantyandreturn.
*Gasoline engines, compressors, pumps (including airless) and Transaxles are furnished with their respective
manufacturer's warranties only. Such components are not covered by any warranty of Newstripe, Inc. Where
Newstripe elects to extend manufacturers’ warranties, the warranty shall be pro-rated as to cover 100% of the cost
to replace or repair materials and parts for the first 12 months of ownership and 60% for the remaining 6 month
period.
The responsibilities described above are the only responsibilities of Newstripe, Inc. under this written warranty or any
implied warranty, and may be exercised only within 18 (EIGHTEEN) months from the date of purchase. In no event shall
Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any
representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its'
specific written authorization.
THIS WARRANTY SHALL BE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
THERE IS NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND WITH RESPECT TO THE GOODS
SOLD HEREBY EXCEPT AS SET FORTH HEREIN. IT IS EXPRESSLY AGREED THAT THIS WARRANTY
SHALL BE LIMITED TO THE ADJUSTMENT, REPAIR OR REPLACEMENT OF PARTS AND THE LABOR AND
SERVICES REQUIRED THEREBY. IN NO EVENT, INCLUDING ANY CLAIM FOR NEGLIGENCE, SHALL
NEWSTRIPE, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Sincerely,
Newstripe, Inc
Page 8 of 8
