Nibe SMO 40 User guide

Installer manual
LEK
SMO 40
Control module
IHB EN 1746-5
231760

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 32.
How to scroll through menus and make different settings is described on page 33.
Set the indoor climate
2X
MY INSTALLATION
INDOOR CLIMATE HOT WATER
INFO
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode
in the main menu.
Increase hot water volume
2X
1X INDOOR CLIMATE HOT WATER
MY INSTALLATION INFO
To temporarily increase the amount of hot water (if a hot water heater is installed to your SMO 40), first turn the
control knob to mark menu 2 (water droplet) and then press the OK button twice.

Table of Contents
41 Important information
4Safety information
72 Delivery and handling
7Wall installation
7Supplied components
83 The Control Module Design
8Component positions
8Electrical components
94 Pipe connections
9General
9Compatible NIBE air/water heat pumps
9Symbol key
10Temperature sensor installation on pipe
10Docking alternatives
155 Electrical connections
15General
16Accessibility, electrical connection
17Cable lock
18Connections
22Optional connections
29Connecting accessories
306 Commissioning and adjusting
30Preparations
30
Commissioning with NIBE air/water heat
pump
30Commissioning with additional heating only
30Check the reversing valve
30Check AUX socket
30Cooling mode
31Start guide
327 Control - Introduction
32Display unit
33Menu system
368 Control
36Menu 1 - INDOOR CLIMATE
37Menu 2 - HOT WATER
37Menu 3 - INFO
38Menu 4 - MY SYSTEM
39Menu 5 - SERVICE
499 Service
49Service actions
5210 Disturbances in comfort
52Troubleshooting
53Additional heating only
5411 Accessories
5712 Technical data
57Dimensions
58Technical specifications
59Energy labelling
60Electrical circuit diagram
66Item register
71Contact information
3Table of Contents |SMO 40

Safety information
This manual describes installation and service procedures
for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and under-
stand the hazards involved. Children shall
not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2017.
NOTE
SMO 40 must be installed via an
isolator switch with a minimum
breaking gap of 3 mm.
NOTE
If the supply cable is damaged,
only NIBE, its service representat-
ive or similar authorised person
may replace it to prevent any
danger and damage.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP21
Danger to person or machine.
!
Read the User Manual.
SMO 40Chapter 1 | Important information4
1 Important information

Serial number
The serial number can be found on the top of the cover
for the control module and in the info menu (menu 3.1).
LEK
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type of
service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current legis-
lation.
5Chapter 1 | Important informationSMO 40

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Electricity (page 15)
Communication, heat pump
Connected supply 230 V
Outside sensor
Room sensor
Temperature sensor, hot water charging
Temperature sensor, hot water top
Temperature sensor, external flow line
Temperature sensor, external return line
Charge pump
Shuttle valve
AUX1
AUX2
AUX3
AUX4
AUX5
AUX6
AA3-X7
Dipswitch
Miscellaneous
Checking additional heater
Checking the function of the reversing
valve
Checking charge pump function
Completed installation check of heat
pump and associated equipment
SMO 40Chapter 1 | Important information6

Wall installation
NOTE
For wall mounting, use screws suitable for the
surface.
120
10
310 35
410
360
215 70
120
Use all mounting points and install SMO 40 upright flat
against the wall without any part of the control module
protruding out beyond the edge of the wall.
Leave at least 100 mm free space around the control
module to facilitate access and cable routing on installa-
tion and service.
NOTE
Screws for removing the front cover are
reached from underneath.
Supplied components
Room sensorOutside sensor
LEK
Temperature sensorInsulation tape
LEK
Cable tiesAluminium tape
LEK
LEK
LEK
Current sensorHeating pipe paste
Installatörshandbok
SMO 40
Tillbehörskort
Tillbehör
IHBSE 1345-1
331075
IHB SMO 40 Accessory board
7Chapter 2 | Delivery and handlingSMO 40
2 Delivery and handling

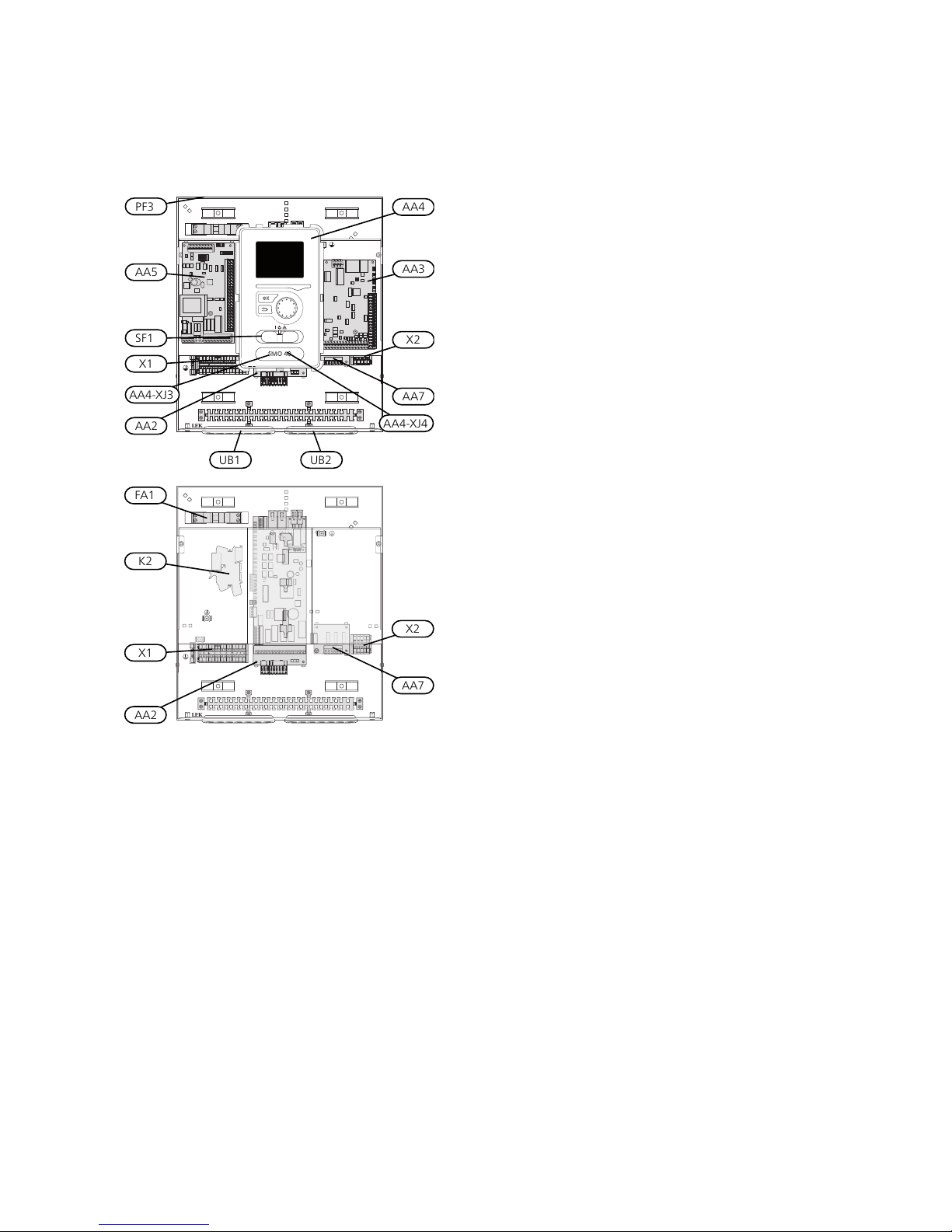

Component positions
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
AA2
AA4-XJ3
X1
SF1
AA5
PF3 AA4
AA3
X2
AA7
AA4-XJ4
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
1
2
3
4
AA2
X1
K2
FA1
X2
AA7
UB2UB1
Electrical components
Base cardAA2
Input circuit boardAA3
Display unitAA4
AA4-XJ3 USB socket
AA4-XJ4 Service outlet (No function)
Accessory cardAA5
Extra relay circuit boardAA7
Miniature circuit breaker, 10 AFA1
Emergency mode relayK2
Terminal block, incoming electrical supplyX1
Terminal block, AUX4 - AUX6X2
SwitchSF1
Serial number platePF3
Cable grommet, incoming supply electricity,
power for accessories
UB1
Cable gland, signalUB2
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
SMO 40Chapter 3 | The Control Module Design8
3 The Control Module Design

General
Pipe installation must be carried out in accordance with
current norms and directives. See manual for compatible
NIBE air/water heat pump for installation of the heat
pump.

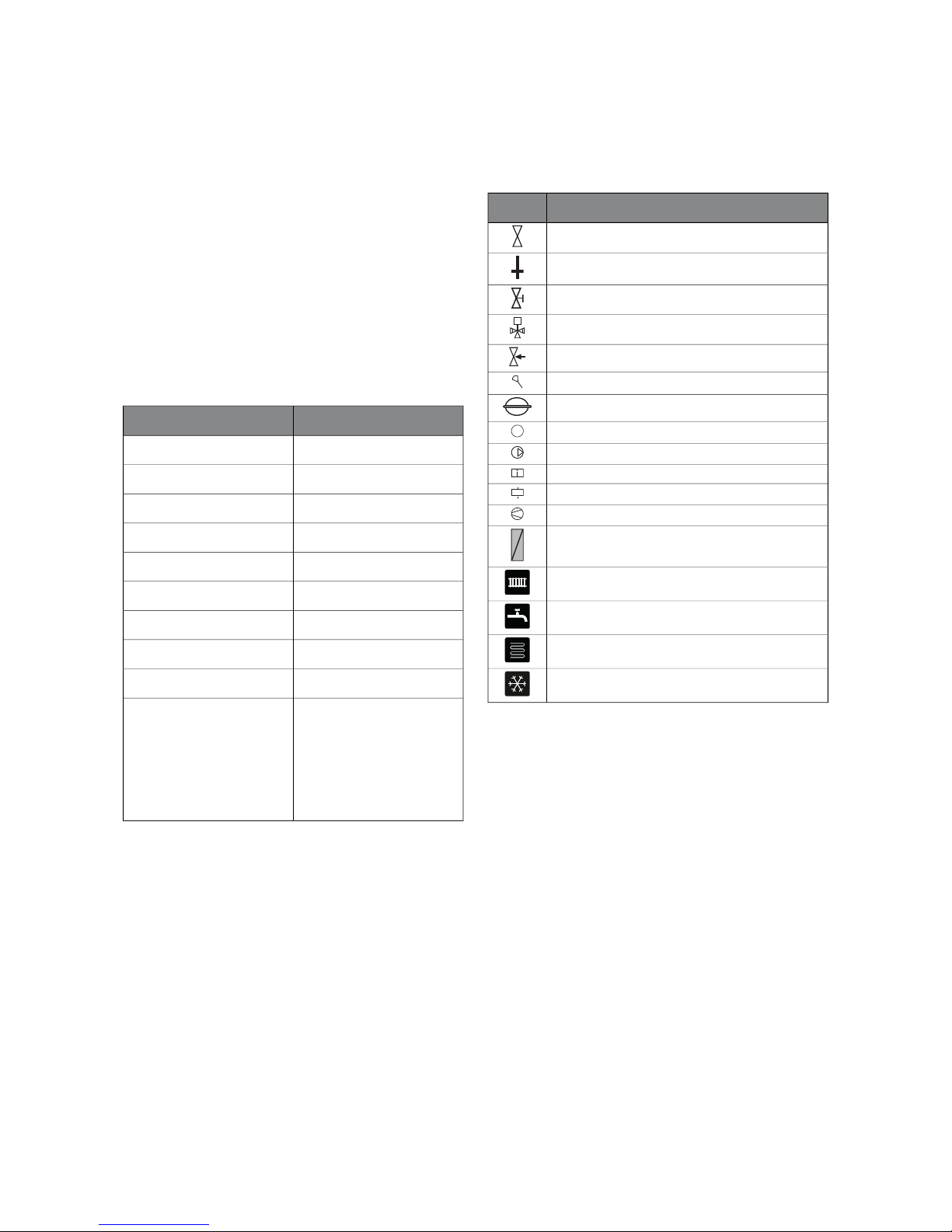

Compatible NIBE air/water heat
pumps
Compatible NIBE air/water heat pumps must be
equipped with a control card that has at least the soft-
ware version given in the following list. The control card
version is displayed in the heat pump's display (if applic-
able) upon start-up.
Software versionProduct
55F2015
55F2016
118F2020
55F2025
55F2026
all versionsF2030
all versionsF2040
all versionsF2120
55F2300
all versionsNIBE SPLIT HBS 05:
AMS 10-6 + HBS 05-6
AMS 10-8 + HBS 05-12
AMS 10-12 + HBS 05-12
AMS 10-16 + HBS 05-16
Symbol key
MeaningSymbol
Shut-off valve
Tapping valve
Trim valve
Shunt / reversing valve
Safety valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
Auxiliary relay
Compressor
Heat exchanger
Radiator system
Domestic hot water
Under floor heating systems
Cooling system
9Chapter 4 | Pipe connectionsSMO 40
4 Pipe connections

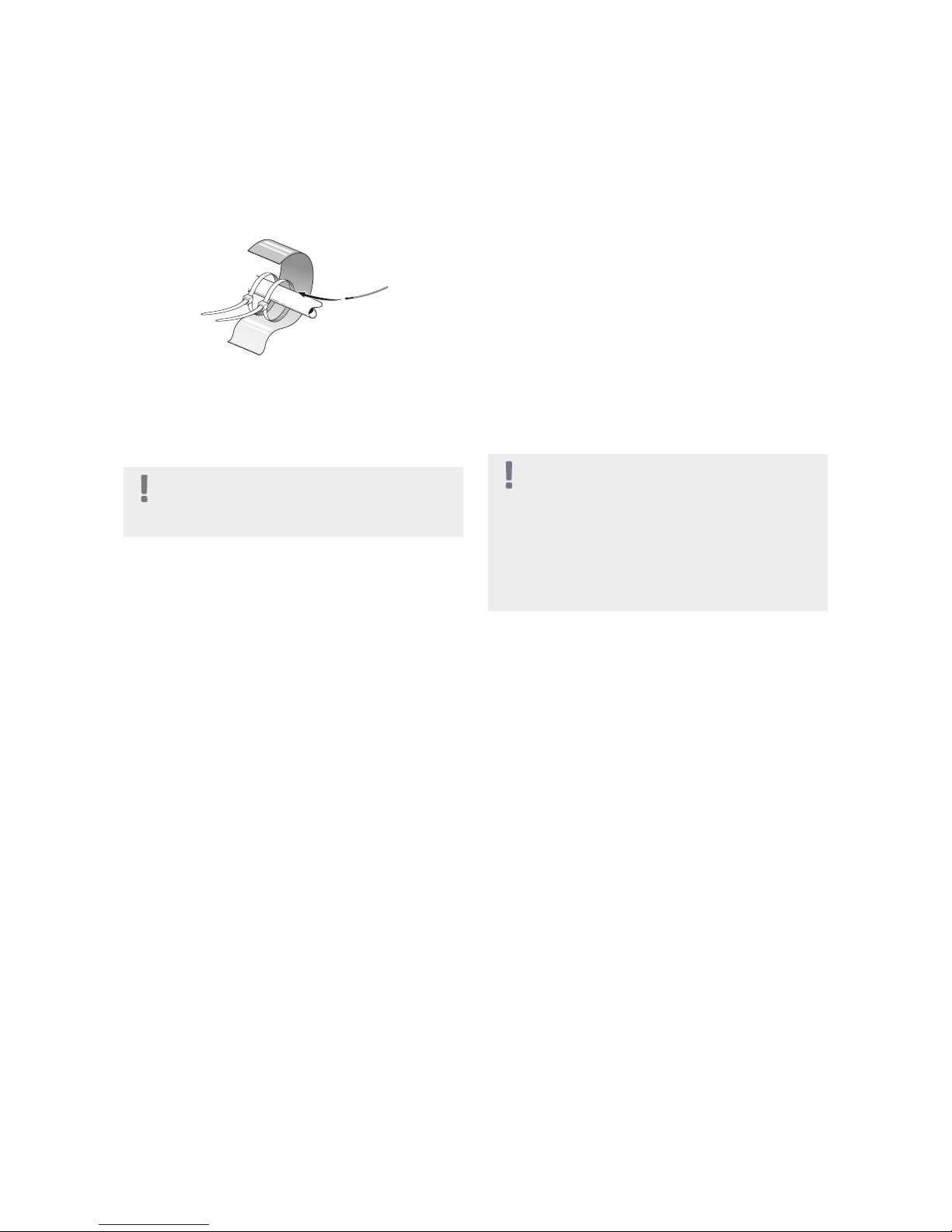

Temperature sensor installation
on pipe
LEK
LEK
The temperature sensors are mounted with heat con-
ducting paste, cable ties (the first cable tie is secured to
the pipe in the middle of the sensor and the other cable
tie is mounted approx. 5 cm beyond the sensor) and
aluminium tape. Then insulate with supplied insulation
tape.
NOTE
Sensor and communication cables must not be
placed near power cables.

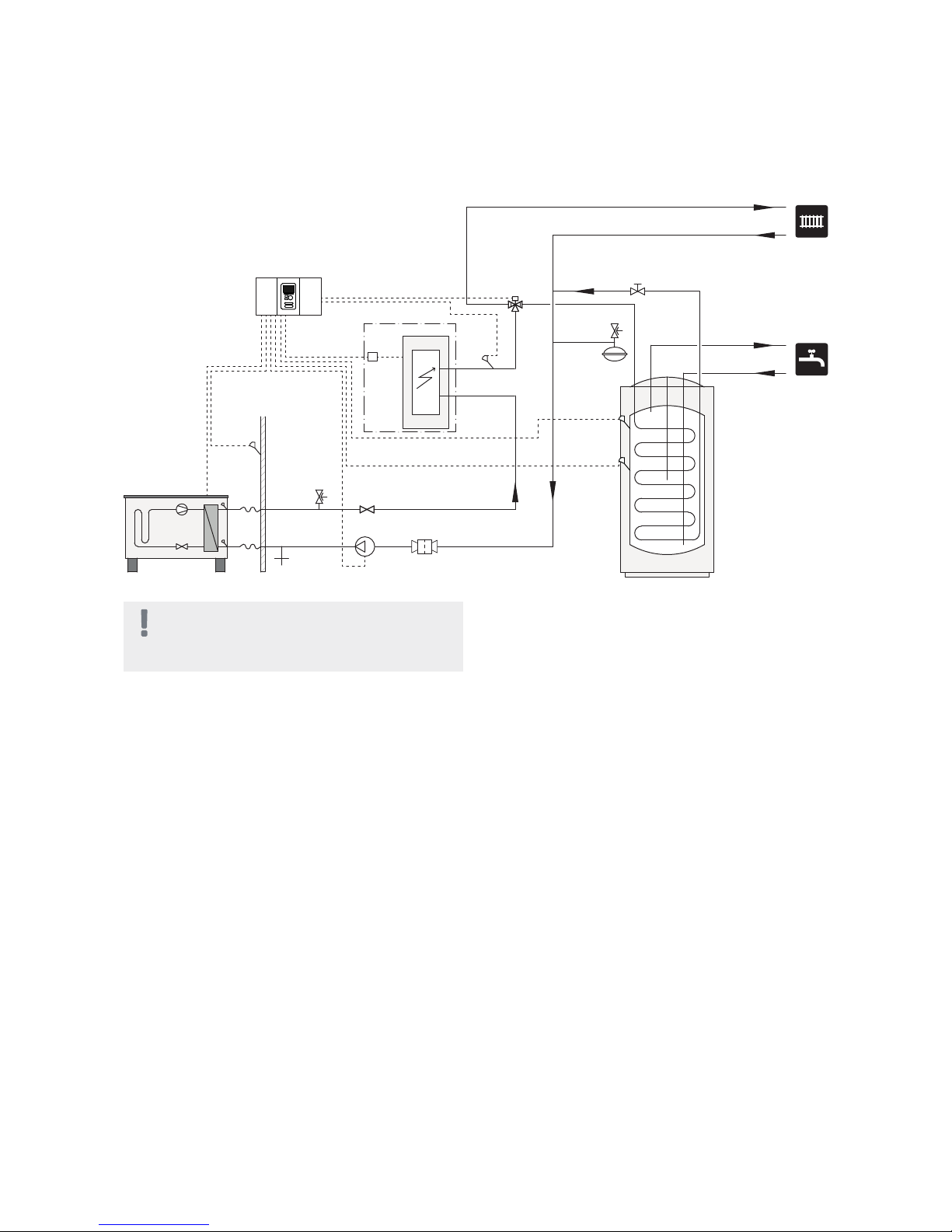

Docking alternatives
SMO 40 can be connected with other products from
NIBE in several different ways, some of which are shown
below (accessories may be required).
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the ac-
cessories used. See page 54 for a list of the accessories
that can be used with SMO 40.
Installations with SMO 40 can produce heating and hot
water. Cooling can also be produced, depending on
which heat pump is used.
On cold days of the year when the access to energy from
the air is reduced the additional heating can compensate
and help to produce heat. The additional heating is also
good to have as assistance if the heat pump ends up
outside its working range or if it has been blocked for
any reason.
NOTE
The heating medium side and the hot water
side must be fitted with the necessary safety
equipment in accordance with the applicable
regulations.

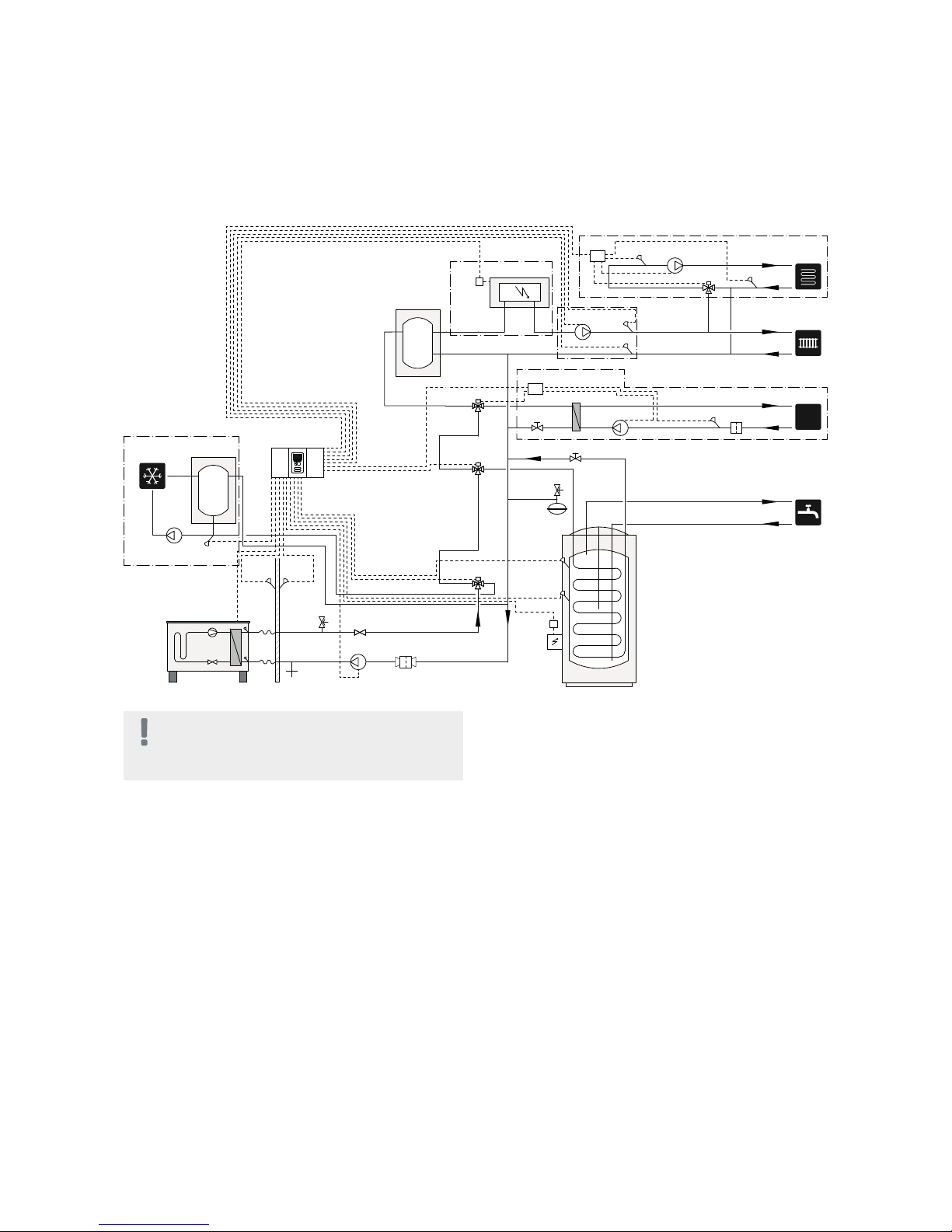

This is the outline diagram. Actual installations
must be planned according to applicable
standards.
SMO 40Chapter 4 | Pipe connections10

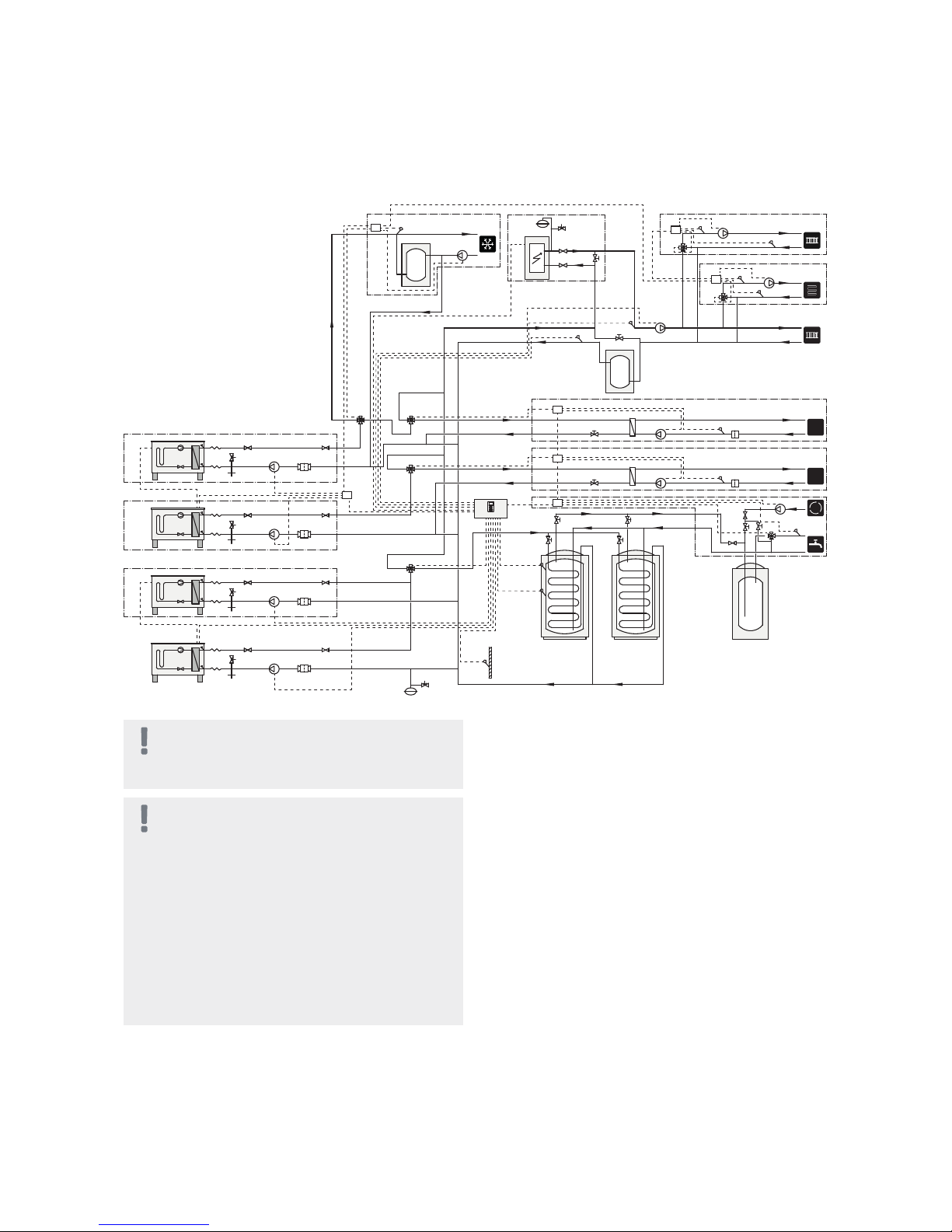

Explanation
SMO 40AA25
Outdoor sensor1) BT1
Temperature sensor, hot water charging1) BT6
Temperature sensor, hot water top1) BT7
Temperature sensor, external supply line1) BT25
Room sensor1) BT50
Temperature sensor, external supply line
after electric heater
BT63
Temperature sensor, external return line1) BT71
Circulation pump, Heating mediumGP10
Reversing valve, Hot water/Heating medi-
um2)
QN10
Non-return valveRM2
Pool system 1 to 2CL11 to 12
Unit box with accessory card2) AA25
Temperature sensor, pool2) BT51
Exchanger, poolEP5
Circulation pump, poolGP9
Particle filter, poolHQ4
Three way valve, pool2) QN10
Trim valveRN10
Additional heatEB1
Expansion vesselCM5
Immersion heaterEB1
Safety valveFL10
Auxiliary relay/Contactor2) KA1
Trim valveRN11
Shut-off valveQM42 to 43
Heat pump systemEB101 to 104
Unit box with accessory card2) AA25
Temperature sensor, return line3) BT3
Temperature sensor, condenser supply line3) BT12
Heat pumpEB101 to
104
Safety valveFL10
External circulation pump, climate systemGP10
Charge pump2) GP12
Drain valve, Heating mediumQM1
Shut-off valve, Heating medium, FlowQM31
Shut off valve, Heating medium, ReturnQM32
FilterballQZ2
Non-return valveRM11
Climate system 2 to 3EP21 to 22
Unit box with accessory card2) AA25
Temperature sensor, heating medium sup-
ply2)
BT2
Temperature sensor, heating medium re-
turn2)
BT3
Circulation pump2) GP20
Shunt valve2) QN25
Cooling systemEQ1
Unit box with accessory card2) AA25
Temperature sensor, cooling supply line2) BT64
Single jacket accumulator tank, coolingCP6
Circulation pump, coolingGP13
Reversing valve, Cooling/Heating2) QN12
Hot water circulationQZ1
Unit box with accessory card2) AA25
Temperature sensor, outgoing hot water2) BT70
Circulation pump, domestic hot water circu-
lation
GP11
Mixer valve, hot waterFQ1
Non-return valveRM23 to 24
Trim valveRN20 to 21
Miscellaneous
Expansion vessel closed, Heating mediumCM1
Buffer vessel (UKV)CP5
Accumulator tank with hot water heatingCP10 to 11
Hot water/additional water heaterEB10
Immersion heaterEB20
Safety valve, Heating mediumFL2
Auxiliary relay/ContactorKA1
Trim valveRN10,
RN43, RN60
to 63
1) Included in and supplied SMO 40
2) Included in and supplied accessory
3) Included in and supplied NIBE heat pump (can vary depending
on heat pump).
Designations according to standards 81346-1 and 81346-
2.
11Chapter 4 | Pipe connectionsSMO 40

Compatible NIBE air/water heat pump together with SMO 40 – docking step-controlled
additional heat before the reversing valve for hot water
-FL2
-CM1
-EB101
-QM1
-QM31
-BT1
-AA25
-AA25
-AA25
-BT63
-KA1
-EB1
-FL10
-QZ2
-BT3
-BT12
-GP12
-AA25
-RN10
-CP10
-AA25-QN10
-AA25-BT7
-AA25-BT6
-EB1
NOTE
NIBE does not supply all components in this
outline diagram.
This installation alternative is suitable for simpler install-
ations with a focus on low installation costs.
SMO 40 (AA25) starts and stops the heat pump (EB101)
to meet the heat and hot water demand of the installa-
tion. At simultaneous heating and hot water demand
the reversing valve switches (AA25-QN10) periodically
between the climate system and the water heater/accu-
mulator tank (CP10). When the hot water heater/accu-
mulator tank is fully charged (CP10), the reversing valve
switches (AA25-QN10) to the climate system.
Additional heat (EB1) is connected automatically when
the power demand for the installation exceeds the heat
pump capacity. This is used for both heating and char-
ging hot water.
The additional heat can also be used if a higher temper-
ature in the hot water is required than the heat pump
can produce.
SMO 40Chapter 4 | Pipe connections12

Compatible NIBE air/water heat pump together with SMO 40 – docking step-controlled
additional heat after reversing valve for hot water and accessory for extra climate system,
pool and cooling
-EB20
-KA1
-FL2
-CM1
-EB101
-QM1
-QM31
-BT1
-AA25
-AA25 -AA25
-FL10
-BT3
-BT12
-GP12
-AA25 -QZ2
-RN10
-EP5
-GP9 BT51 POOL
-HQ4
-AA25
-CL11
-GP20
-BT3
-BT2
-QN25
-EP21
-AA25
-RN10
-CP10
-AA25-QN10
-AA25-BT7
-AA25-BT6
-BT25
-EB1
-CP5
-GP10
-KA1
-BT71
-EB1
-AA25
-CL11-QN19
-GP13
-CP6
-BT64
-EQ1-QN12
-EQ1
-BT50
NOTE
NIBE does not supply all components in this
outline diagram.
This installations alternative is suitable for more complex
installations with a focus on comfort.
SMO 40 (AA25) starts and stops the heat pump (EB101)
to meet the heat and hot water demand of the installa-
tion. At simultaneous heating and hot water demand
the reversing valve switches (AA25-QN10) periodically
between the climate system and the water heater/accu-
mulator tank (CP10). When the water heater/accumulat-
or tank is fully charged (CP10), the reversing valve
switches (AA25-QN10) to the climate system and pool.
When the pool needs heating the reversing valve (CL11-
QN19) switches from the climate system to the pool
system.
Additional heat (EB1) is connected automatically when
the energy demand exceeds the heat pump capacity.
Immersion heater (EB20) in the water heater/accumulat-
or tank (CP10) is used during the time to produce hot
water if the heat pump (EB101) is used for heating the
building at the same time.
The immersion heater (EB20) can also be used if a higher
temperature of hot water is required than the heat pump
can produce.
During cooling operation (requires compatible heat
pump), the reversing valve (EQ1-QN12) switches to the
cooling system (EQ1). If several demands occur while
there is a cooling demand, the installation reacts differ-
ently. In event of a hot water demand, the reversing valve
(EQ1-QN12) switches back and hot water is produced
until the demand is fulfilled. In event of a heating de-
mand, the reversing valve (EQ1-QN12) instead switches
periodically between the demands. When the cooling
demand is met, the reversing valve switches back to basic
mode (heat/hot water).
Active cooling (in 4-pipe system) is selected in menu 5.4
- soft in/outputs.
13Chapter 4 | Pipe connectionsSMO 40

Compatible NIBE air/water heat pumps together with SMO 40 and electric heater after reversing
valve for hot water as well as pool and extra climate system (floating condensing)
-AA25-BT71
-AA25-BT25
-CM1
-FL2
>-EB101
-QM1
-BT3
-BT12 -QM31
-GP12
-AA25
-FL10
-RM11
-BT1
-AA25
-AA25 -QZ2
-QZ2
-QZ2
-QZ2
-CP10
-AA25-BT6
-AA25-BT7
-RN63
-RN62
-CP11
-RN60
-RN61
-QZ1
-GP11
-RN20
-RM23
-RM24
-EB10
-FQ1 -BT70
-AA25
-RN21
-BT3
-BT2
-EP21
-GP20
-QN25
-AA25
-GP20
-BT3
-BT2
-EP22
-QN25
-AA25
-CM5 -FL10
-QM42
-QM43-RN11
-EB1
-EB1
POOL1
POOL2
-RN10 -GP9 -BT51 -HQ4
-EP5
-CL11
-AA25
-CL11-QN19
-CP6
-BT64
-AA25
-EQ1
-GP13
-RM11
>-EB102
-QM1
-BT3
-BT12 -QM31
-GP12
-EB102
-FL10
-EB103-AA25
>-EB103
-QM1
-QM31
-GP12
-EB103
-FL10
-RM11
-BT3
-BT12
-RN10 -GP9 -BT51 -HQ4
-EP5
-CL12
-EQ1
-QN12
-CL12
-QN19
>-EB104
-QM1
-BT3
-BT12 -QM31
-GP12
-EB104
-FL10
-RM11
-AA25-QN10
-CP5
-AA25-GP10
-RN43
NOTE
NIBE does not supply all components in this
outline diagram.
NOTE
Different types of demand (heating, hot water
etc.) mean different supply and return temper-
atures as well as different flows to the heat
pump.
When connecting pipes in installations with
several compressors and different heating de-
mands, ensure that these are separated so that
different return temperatures are not mixed.
Otherwise this can affect the heating installa-
tion's efficiency.
See outline diagram for example.
This installations alternative is suitable for more complex
installations with a focus on comfort.
SMO 40 (AA25) starts and stops the heat pumps EB101)
and (EB102) to meet the heat and hot water demand of
the installation. The heat pump (EB103) is used for
heating and pool heating and heat pump (EB104) is used
for cooling, heating and pool heating.
At simultaneous heating and hot water demand the re-
versing valve switches (AA25-QN10) periodically between
the climate system and the water heater/accumulator
tank (CP10). When the hot water heater/accumulator
tank is fully charged (CP10), the reversing valve switches
(AA25-QN10) to the climate systems. When the pool
needs heating the reversing valve (CL11-QN19) or (CL12-
QN19) switches from the climate system to the pool
system.
Additional heat (EB1) is connected automatically when
the energy demand exceeds the heat pump capacity.
Additional water heating is obtained from the additional
water heater (EB10).
During cooling operation (requires compatible heat
pump), the reversing valve (EQ1-QN12) switches to the
cooling system (EQ1). If several demands occur while
there is a cooling demand, the installation reacts differ-
ently. In the event of a heating demand, the reversing
valve (EQ1-QN12) instead switches periodically between
the demands. When the cooling demand is met, the re-
versing valve switches back to basic mode (heat/hot
water). In the event of a pool heating demand, the re-
versing valve (EQ1-QN12) switches back at the same time
as the reversing valve (CL12-QN19) switches to the pool
system (CL12) and pool heating is produced until the
demand is fulfilled.
SMO 40Chapter 4 | Pipe connections14

General
■Disconnect SMO 40 before insulation testing the house
wiring.
■If the building is equipped with an earth-fault breaker,
SMO 40 should be equipped with a separate one.
■SMO 40 must be installed via a circuit breaker with a
minimum breaking gap of 3 mm.
■For the electrical wiring diagram for the control mod-
ule, see page .60.

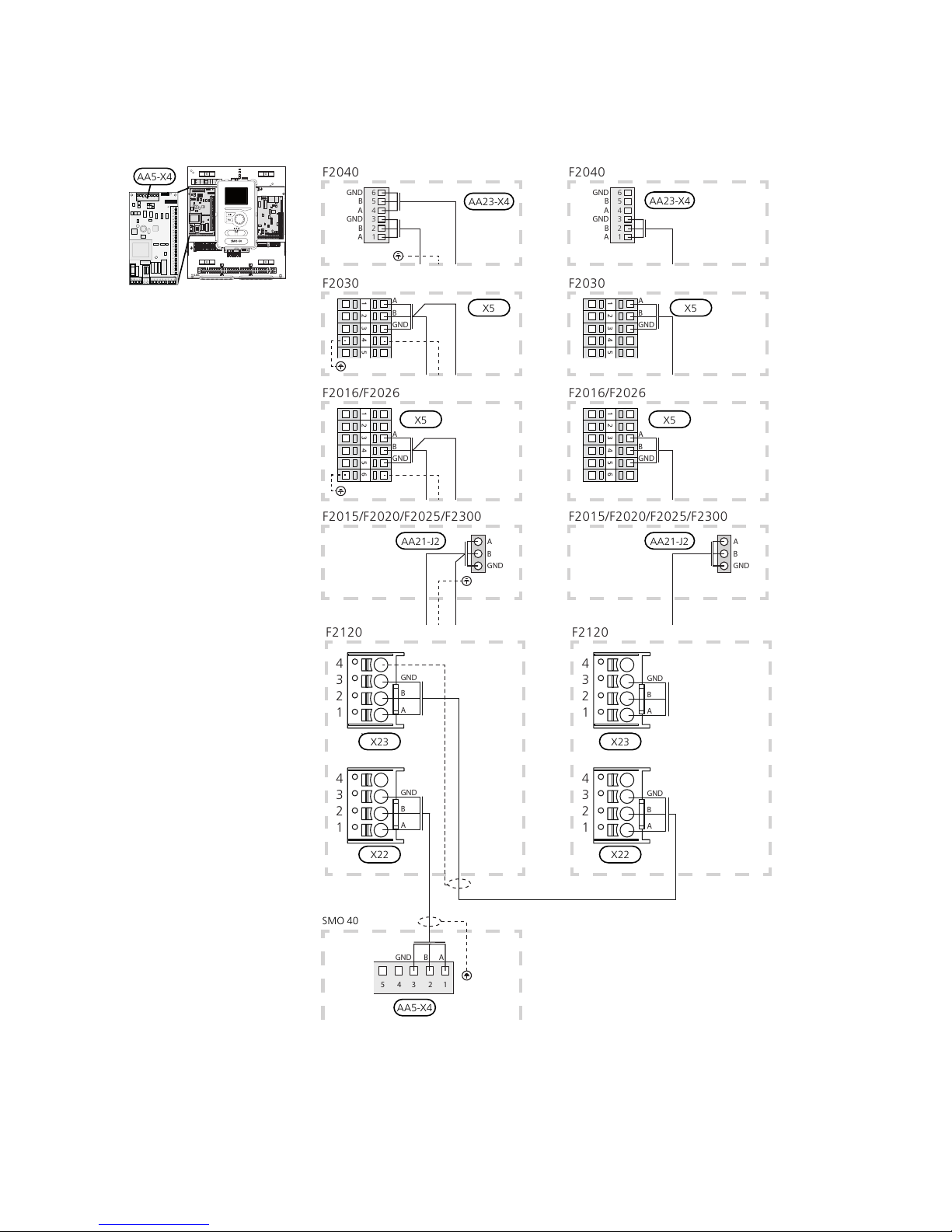

■Use a screened three core cable for communication
with the heat pump.
■Communication and sensor cables to external connec-
tions must not be laid close to high current cables.
■The minimum area of communication and sensor
cables to external connections must be 0.5 mm² up to
50 m, for example EKKX, LiYY or equivalent.
■When cable routing into SMO 40, cable grommets
(UB1 and UB2, marked in image) must be used.
NOTE
The switch (SF1) must not be moved to "" or
" " until the boiler in the system has been
filled with water. The compressor in the heat
pump and any external additional heat can be
damaged.
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Cut the current with the circuit
breaker before carrying out any servicing.
Electrical installation and wiring must be car-
ried out in accordance with the stipulations in
force.
When installing SMO 40, NIBE's air/water heat
pump and any addition must be current free.
NOTE
See outline diagram for your system for physic-
al location of the temperature sensor that is to
be installed.
Caution
The relay outputs on the accessory board (AA5)
may be subjected to a max load of 2 A (230 V)
in total.
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
SF1
AA5
FA1
UB2UB1
Miniature circuit-breaker
The control module operating circuit and parts of its in-
ternal components are internally fused by a miniature
circuit breaker (FA1).
15Chapter 5 | Electrical connectionsSMO 40
5 Electrical connections

Accessibility, electrical
connection

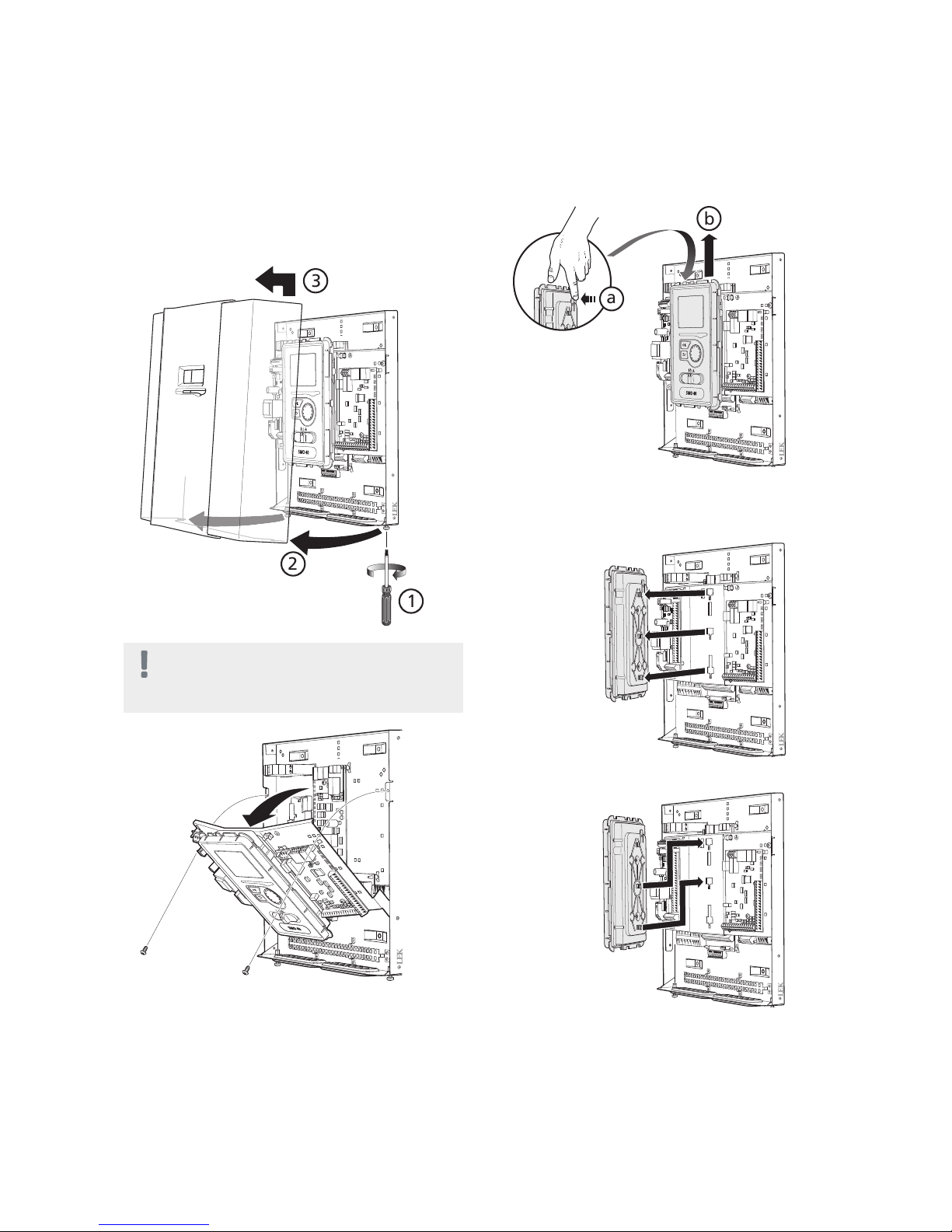

The cover of the control module is opened using a Torx
25 screwdriver. Assembly takes place in the reverse order.
LEK LEK
3
1
2
NOTE
The cover to access the base board is opened
using a Torx 25 screwdriver.
LEK LEK
3
1
2
The display may need to be moved for easier access when
connecting electrics. This is easily done by following these
steps.
1.
LEK LEK
LEK
LEK
b
a
Press in the catch on the upper rear side of the dis-
play unit towards you (a) and move the display unit
upwards (b) so that the mountings unhook from the
panel.
2.
LEK LEK
LEK
LEK
b
a
Lift the display unit from its mountings.
3.
LEK LEK
LEK
LEK
b
a
Align the two lower mountings on the reverse of the
display unit with the two upper holes in the panel
as illustrated.
SMO 40Chapter 5 | Electrical connections16

4.
LEK LEK
LEK
LEK
b
a
Secure the display on the panel.
5. When the electrical connection is ready the display
must be reinstalled with three mounting points
again, otherwise the front cover cannot be installed.

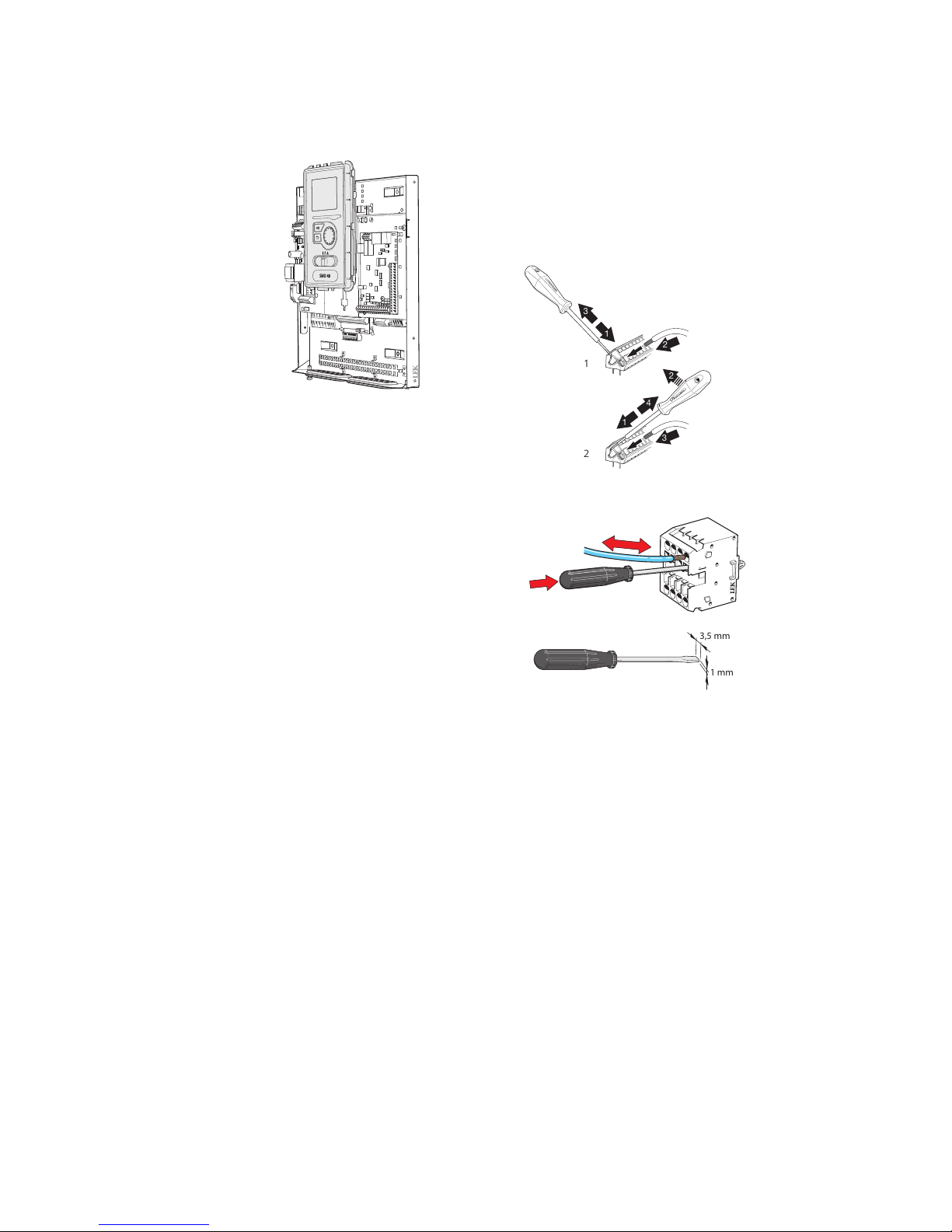

Cable lock
Use a suitable tool to release/lock cables in the heat
pump terminal blocks.
Terminal block on the electrical card
LEK
1
1
2
2
3
3
1
2
3
3
4
1
2
LEK
1
1
2
2
3
3
1
2
3
3
4
1
2
1
2
Terminal block
LEK
1 mm
3,5 mm
LEK
1 mm
3,5 mm
17Chapter 5 | Electrical connectionsSMO 40

Connections
NOTE
To prevent interference, unscreened commu-
nication and/or sensor cables to external con-
nections must not be laid closer than 20 cm
from high voltage cables.
Power connection
SMO 40 must be installed via an isolator switch with a
minimum breaking gap of 3mm. Minimum cable area
must be sized according to the fuse rating used.
1N
L
X1
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
X1
1 1N
L0 432PE
Tariff control
If the voltage to the compressor in the heat pump disap-
pears for a certain period, simultaneous blocking of these
must take place via software controlled input (AUX input)
to avoid alarm, see page 26.
Connecting the charge pump for the heat
pump 1 and 2
Connect circulation pump (EB101-GP12) to terminal
block X4:5 (PE), X4:6 (N) and X4:7 (230 V) on the base
board (AA2) as illustrated.
Control signal for (EB101-GP12) is connected to terminal
block X4:7 (GND) and X4:8 (PWM) on the input board
(AA3) as illustrated.
If two heat pumps are connected to SMO 40, the circula-
tion pump (EB102-GP12) must be connected to terminal
block X4:12 (PE), X4:13 (N) and X4:15 (230 V) on the
base board (AA2) as illustrated. Control signal for (EB102-
GP12) is then connected to terminal block X4:5 (GND)
and X4:6 (PWM) on the input board (AA3) as illustrated.
TIP
Two charge pumps (four if the internal accessor-
ies card is used) can be connected to and con-
trolled by SMO 40. More charge pumps can be
connected if the accessories card is used, two
pumps per card.
987654
SMO
Externt
PE
L
N
External
SMO40
AA2-X4
EB101-GP12
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
1
2
3
4
AA2-X4
161514131211
SMO
Externt
PE
L
N
External
SMO40
AA2-X4
EB102-GP12
5678910
SMO
Externt
External
SMO40
AA3-X4
EB101-GP12
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
AA3-X4
345678
SMO
Externt
External
SMO40
AA3-X4
EB102-GP12
SMO 40Chapter 5 | Electrical connections18

Communication with heat pump
Connect the heat pump (EB101) with a screened three
core cable to terminal block X4:1 (A), X4:2 (B) and X4:3
(GND) on the accessory board (AA5) as illustrated.
If several heat pumps are to be connected to SMO 40
these must be connected in cascade as illustrated.
NOTE
Up to 8 heat pumps can be controlled by
SMO 40.
Caution
Heat pumps with inverter controlled com-
pressor can only be combined with other invert-
er controlled heat pumps of the same model.
19Chapter 5 | Electrical connectionsSMO 40

123
ABGND
45
SMO
6
5
4
3
2
1
A
B
GND
A
B
GND
6
5
4
3
2
1
A
B
GND
A
B
GND
F2040 F2040
A
B
GND
542 3
1
A
B
GND
5
4
2 3
1
F2030 F2030
A
B
GND
5 64
2 3
1
A
B
GND
5 6
4
2 3
1
F2016/F2026 F2016/F2026
2
1
3
4
GND
B
A
2
1
3
4
GND
B
A
X22 X22
F2120 F2120
2
1
3
4
GND
B
A
2
1
3
4
GND
B
A
X23 X23
A
B
GND
A
B
GND
F2015/F2020/F2025/F2300 F2015/F2020/F2025/F2300
AA5-X4
AA21-J2 AA21-J2
X5 X5
X5 X5
AA23-X4 AA23-X4
X23 X23
SMO40
X22 X22
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
ON
1 2 3 4 5 6 7 8
-X9
-X2 24
20
21
22
23
15
16
17
18
19
10
11
12
13
14
5
6
7
8
9
1
1
NLPEPE
12345678
2
1 2 3 4 5 6 7 8 9
2
3
4
-X8
-X4
-X10
-X1
AA5-X4
SMO 40Chapter 5 | Electrical connections20
