NKE NMEA 90-60-360 Instruction Manual

nke - Sailing competition
Z.I. Kerandré – Rue Gutenberg – 56700 HENNEBONT- FRANCE
http://www.nke.fr – After sale service tel : [phone].
REV: 2
USER GUIDE
and
INSTALLATION GUIDE
NMEA Flash input
interface
Product reference : 90-60-360

- 2 - NMEA input interface guide 33-60-466-000 REV : 2
TABLE OF CONTENTS
1 PRESENTATION ..................................................................................................................3
2 LIST OF IDENTIFIED NMEA FRAMES ................................................................................3
3 TECHNICAL SPECIFICATIONS...........................................................................................5
4 DIAGNOSTIC OF 1
ST
LEVEL TROUBLESHOOTING..........................................................5
5 INSTALLATION ....................................................................................................................6
5.1 L IST OF ACCESSORIES ...........................................................................................................6
5.2 I NSTALLATION PRECAUTIONS ..................................................................................................6
5.3 H OUSING ASSEMBLY OF THE NMEA I NPUT I NTERFACE .............................................................6
5.4 C ONNECTION TO THE T OPLINE BUS .........................................................................................7
5.5 I NITIALISATION OF THE NMEA I NPUT I NTERFACE .....................................................................8

- 3 - NMEA input interface guide 33-60-466-000 REV : 2
1 PRESENTATION
The NMEA input interface allows the connection to the Topline bus of any instrument fitted
with an NMEA 0183 output (GPS, PC, etc.). It is a one-way communication gateway, which
converts the NMEA data transmitted by the instrument, into Topline channels. These can then
be used on the instruments of your Topline installation : display, driver, calculator.
The NMEA input interface allows the connection of one single instrument that delivers NMEA
frames. If you wish to connect a second instrument, you can connect it either to the NMEA input
of a TOPLINE multifunction system, or to a second NMEA input interface.
Please note that an NMEA frame transmitted by an instrument (GPS, PC, etc.) cannot replace
a channel already created by a Topline instrument of your installation.
IMPORTANT
-Please read this guide completely before starting the installation.
- Any electrical connection on the TOPLINE bus must carried out with the terminal box 90-60-
121. Only use TOPLINE bus cable 20-61-001.
2 LIST OF IDENTIFIED NMEA FRAMES
The NMEA input interface identifies the frames below. The interface is thus able to create up
to 40 NMEA channels on the Topline bus of your installation. These NMEA channels do not
have sub-channels.
Please note :
- Topline channels have priority : an NMEA channel will not be taken into account if an
equivalent Topline channel is already present on the bus.
- When the instrument connected to the NMEA input interface no longer transmits NMEA
frames, the last values received remain on display for 64 seconds.
Channels created NMEA frames used
N° Label Priority 1 Priority 2 Priority 3
1 HEADING_MAG HDG VHW
2 TRUE_HEADING HDT VHW
3 DEPTH DPT DBT --
4 MINSEC ZDA RMC --
5 LOCHT VLW -- --
6 LOCHJ VLW -- --
7 HOURDAY ZDA RMC --
8 TEMP_AIR MTA XDR --

- 4 - NMEA input interface guide 33-60-466-000 REV : 2
9 TEMP_WATER MTW -- --
10 BARO MMB XDR --
11 SPEEDO VHW -- --
12 ANEMO MWV VWR --
13 APP_WIND_ANG MWV VWR --
14 DIST_TO_WP BWC RMB --
15 HEAD_TO_WP (true) BWC RMB --
16 X_TRACK APA APB XTE
17 BOTT_SPD VTG RMC --
18 BOTT_HDG (true) VTG RMC --
19 DIR_HDLG XDR -- --
20 C_WP_OD APA APB --
21 B_PILOT APA APB XTE
22 YEARMONTH ZDA RMC --
23 R_COMPAS HDG HDM VHW
24 R_ APP_WIND_ANG MWV VWR --
25 LAT_DEGMIN GGA GLL RMC
26 LAT_MILMIN GGA GLL RMC
27 LON_DEGMIN GGA GLL RMC
28 LON_MILMIN GGA GLL RMC
29 V_WP WCV -- --
30 TARGET_SPD KEP -- --
31 OTHER_SIDE_HDG KEP -- --
32 OPT_WIND_ANG KEP -- --
33 PRES_EFF KEP -- --
34 POLAR_EFF KEP -- --
35 CMG_OPT_ANGLE KEP -- --
36 VMG_OPT_ANGLE KEP -- --
37 CMG_TRACK_GAIN KEP -- --
38 VMG_TRACK_GAIN KEP -- --
39 CURRENT_DIREC KEP VDR --
40 CURRENT_SPD KEP VDR --
41 ATM_PRESS MMB XDR --

- 5 - NMEA input interface guide 33-60-466-000 REV : 2
3 TECHNICAL SPECIFICATIONS
-Power supply : 10 to 16VDC.
-Power consumption : 20mA.
-Tightness : IP54.
-Connection cable : 5 meter length.
-Weight : 280 g (cable included).
-Operating temperature : -10°C to +50°C.
-Storage temperature : -20°C to +60°C.
-Characteristics of the NMEA frames :
The NMEA frames identified by the NMEA input interface comply with the NMEA 0183 V2.30
standard (or previous version).
The format of the frames is : 4,800 bauds / 8 bits with bit 7 at 0 / 1 start bit and 1 stop bit. With
or without checksum.
The NMEA input is isolated by an optocoupler.
4 DIAGNOSTIC OF 1
ST
LEVEL TROUBLESHOOTING.
This chapter can help you rapidly resolve minor problems which do not require the intervention
of a specialist. Before contacting technical support, please check the troubleshooting table
below.
Problem Possible causes and solutions
The Topline installation does not detect the NMEA
Interface. The NMEA frames do not show on the Topline
display of your installation.
The bus cable is not or is badly connected to the terminal box :
check the plugging and the connection inside the terminal box.
Check the state of the cables : they must not show any sign of
wear or cut.
Have you initialised the NMEA interface ? After initialisation, the
red initialisation wire must be connected to the earth or to the init
terminal : see installation chapter
An NMEA channel does not show on the Topline display
of your installation. The Topline channel is already present and provided by an nke instrument.
If you do not manage to solve the problem, please contact your distributor.

- 6 - NMEA input interface guide 33-60-466-000 REV : 2
5 INSTALLATION
5.1 List of accessories
-TOPLINE terminal box : 90-60-121
-TOPLINE terminal box, with NMEA connection : 90-60-417
5.2 Installation precautions
The housing of the NMEA input interface is waterproof against water spray. Install the housing
in a location that is unlikely to get flooded.
5.3 Installation of the NMEA input interface housing
-Fix the housing in place using Ø4 screws
CAUTION :
-The connection of this sensor must be carried out with the power switched off.
unit : mm

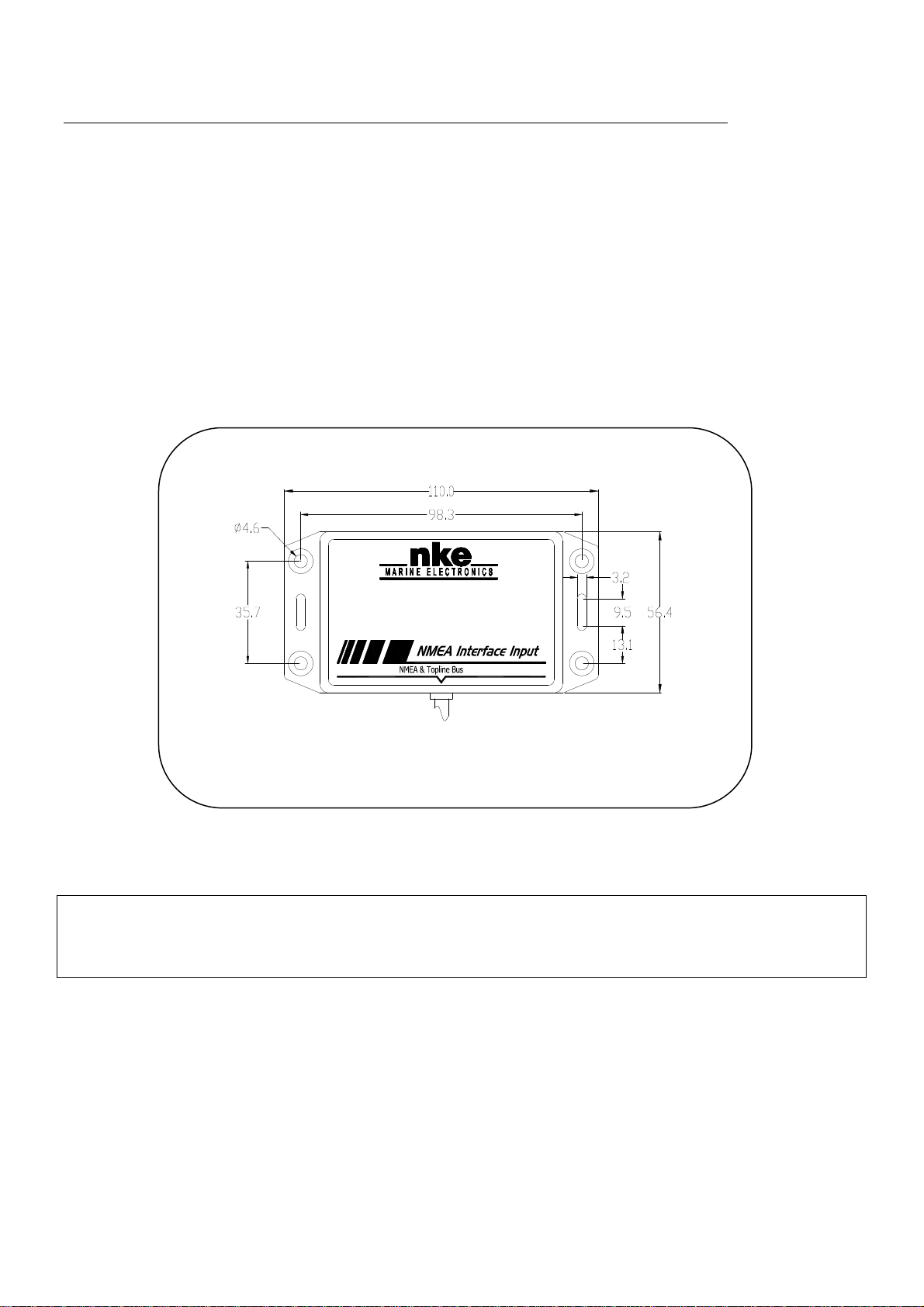

Figure 1

- 7 - NMEA input interface guide 33-60-466-000 REV : 2
5.4 Connection to the Topline bus
1. Make the bus cable run from the NMEA input interface to the TOPLINE terminal box of
your installation.
2. Connect the bus cable inside the terminal box.
3. Connect the NMEA+and NMEA-conductors to your instrument.
If you reduce the length of the bus cable, strip and galvanise the wires before connecting them
inside the terminal box.
Identification of the cable wires
White cable 5 conductor wires Wire identification
White wire
+12V
TOPLINE bus
Black wire
Topline data
Braid
Earth
Red wire
NMEA initialisation wire
Yellow wire
NMEA +
NMEA input
Green wire
NMEA –
BLANC
GND NOIR
BLANC
GND
NOIR
12V
GND
NMEA-
NMEA+
NMEA-
NMEA+
init
Supply voltage 12Vdc
Terminal box
90-60-417
-
DATA noir
12VDC blanc

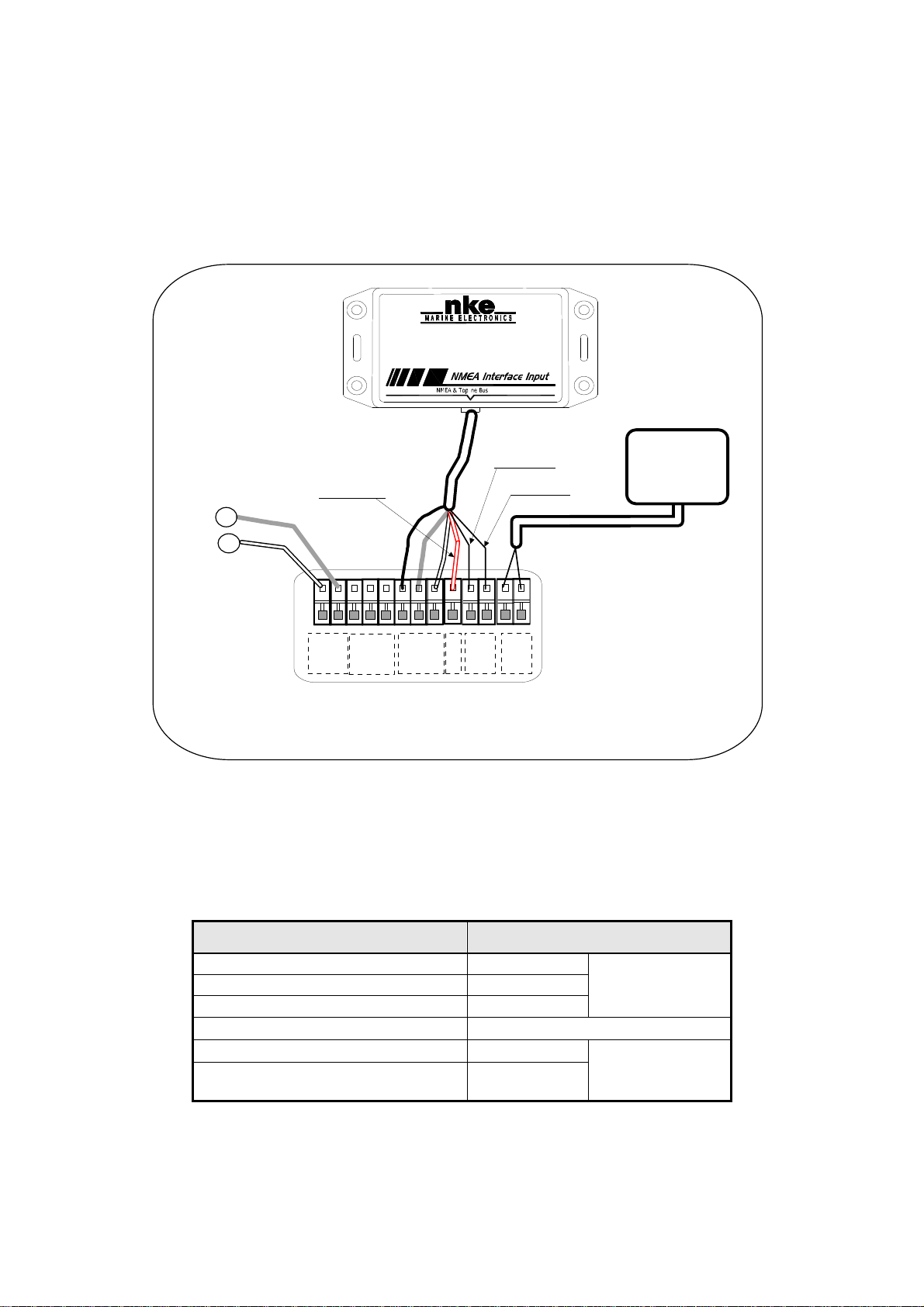

Figure 2 : Connecting to TOPLINE bus
+
Red init wire
Output NMEA
instrument
Yellow wire
Green wire

- 8 - NMEA input interface guide 33-60-466-000 REV : 2
5.5 Initialisation of the NMEA input interface
At the first power-up, the NMEA input interface must be initialised in order to identify and
memorise the NMEA frames transmitted by the instrument (GPS, PC, etc.). The NMEA
channels created are then saved to the memory of the NMEA input interface, and restored at
each power-up, on the Topline bus.
5.5.1 Initialisation procedure
-Disconnect the red wire from the init terminal (or from the GND terminal).
-The NMEA input interface then performs a search sequence of NMEA data as long as the
red initialisation wire is disconnected, then it creates the new channels that correspond to
the NMEA frames transmitted by the instrument. A sounding beep is emitted for each NMEA
frame identified.
-Reconnect the red initialisation wire to the init terminal (or to the GND terminal).
Initialisation is then complete and you may select the NMEA channels on the Topline
Multifunction displays of your installation.
Please note that this initialisation procedure can be repeated at any time, to start over a failed
frame identification for example.
CAUTION :
- Under normal operation, the red wire must remain connected to the init terminal (or to the
GND terminal).
- Use one NMEA input interface per instrument that transmits NMEA frames ; Each interface
will thus be initialised separately.
